Cab / engine link-up wiring harness

Code

Function

Connectors

Colour

Number

of tracks

Z014

Trailer brake control EBS modulator unit

A69

SB

7

X204

Link-up connector between 2 wiring harnesses

EI

GR

39

A002

Chassis-cab connection box

XT21

NL

24

A002

Chassis-cab connection box

XT22

BL

12

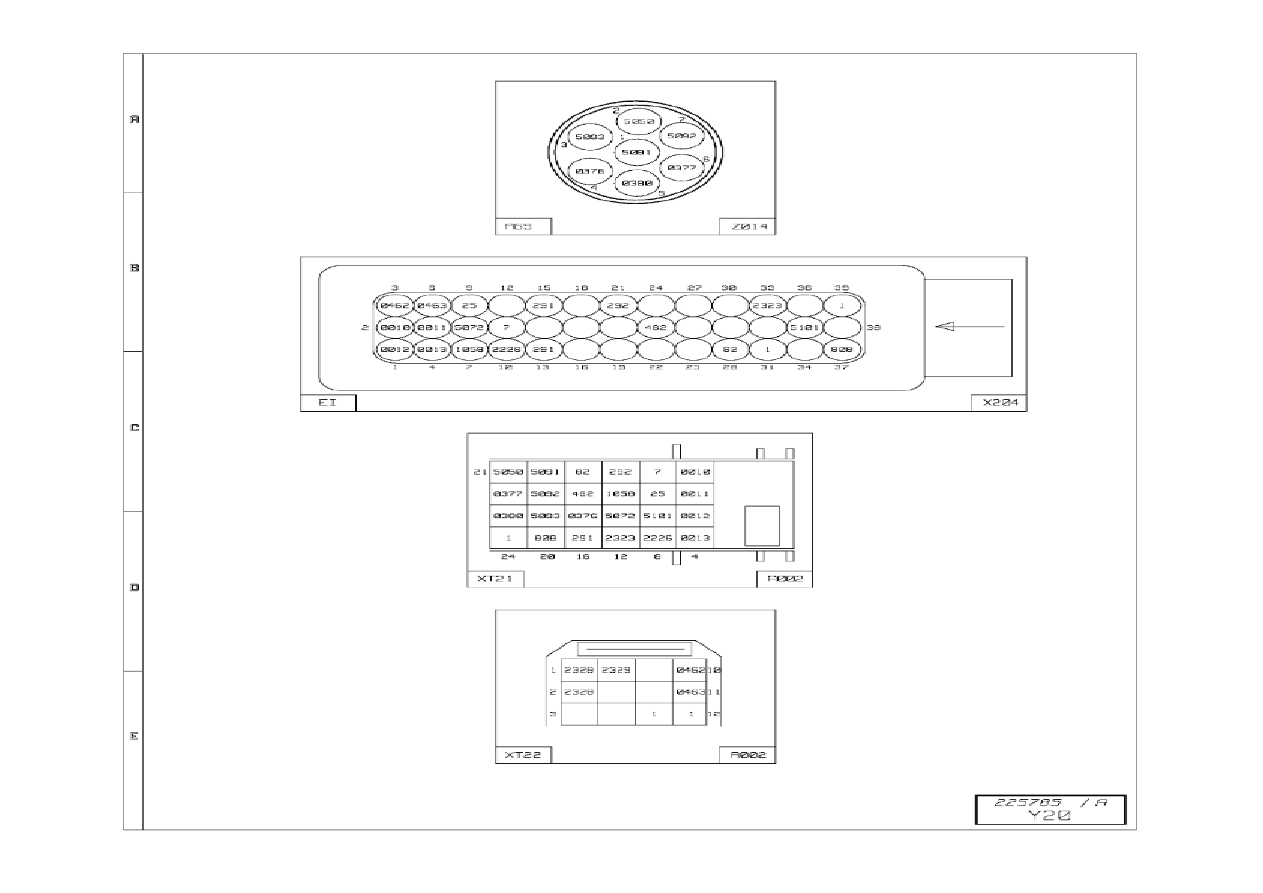

Cab / engine link-up wiring harness

2 / 2

1 / 1

Gearbox wiring harness (1/2)

1 / 2

Gearbox wiring harness (1/2)

Code

Function

Connectors

Colour

Number

of tracks

G020

Automatic transmission ECU

A13D.A

SB

20

V018

PTO engagement electrovalve N° 2

Y18

SB

4

V010

PTO engagement electrovalve N° 1

Y18A

SB

4

V018

PTO engagement electrovalve N° 2

Y18B

SB

4

V010

PTO engagement electrovalve N° 1

Y18G

SB

4

X204

Link-up connector between 2 wiring harnesses

XGH01

SB

23

X204

Link-up connector between 2 wiring harnesses

XHG02

SB

7

A002

Chassis-cab connection box

XT33

Y

24

AD: with  automatic gearbox

AY: with manual gearbox

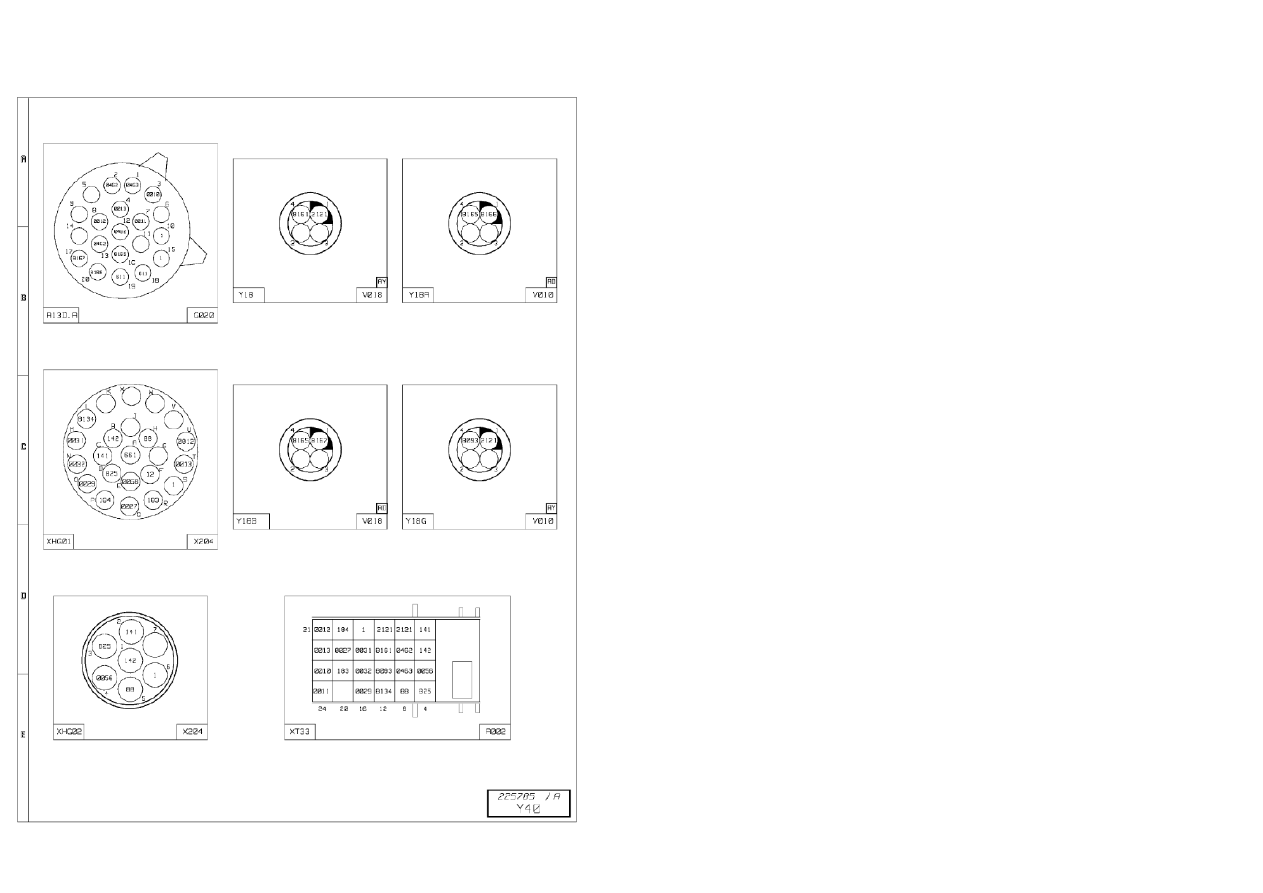

Gearbox wiring harness (1/2)
