Renault Magnum engine. Manual - part 75

1 / 2

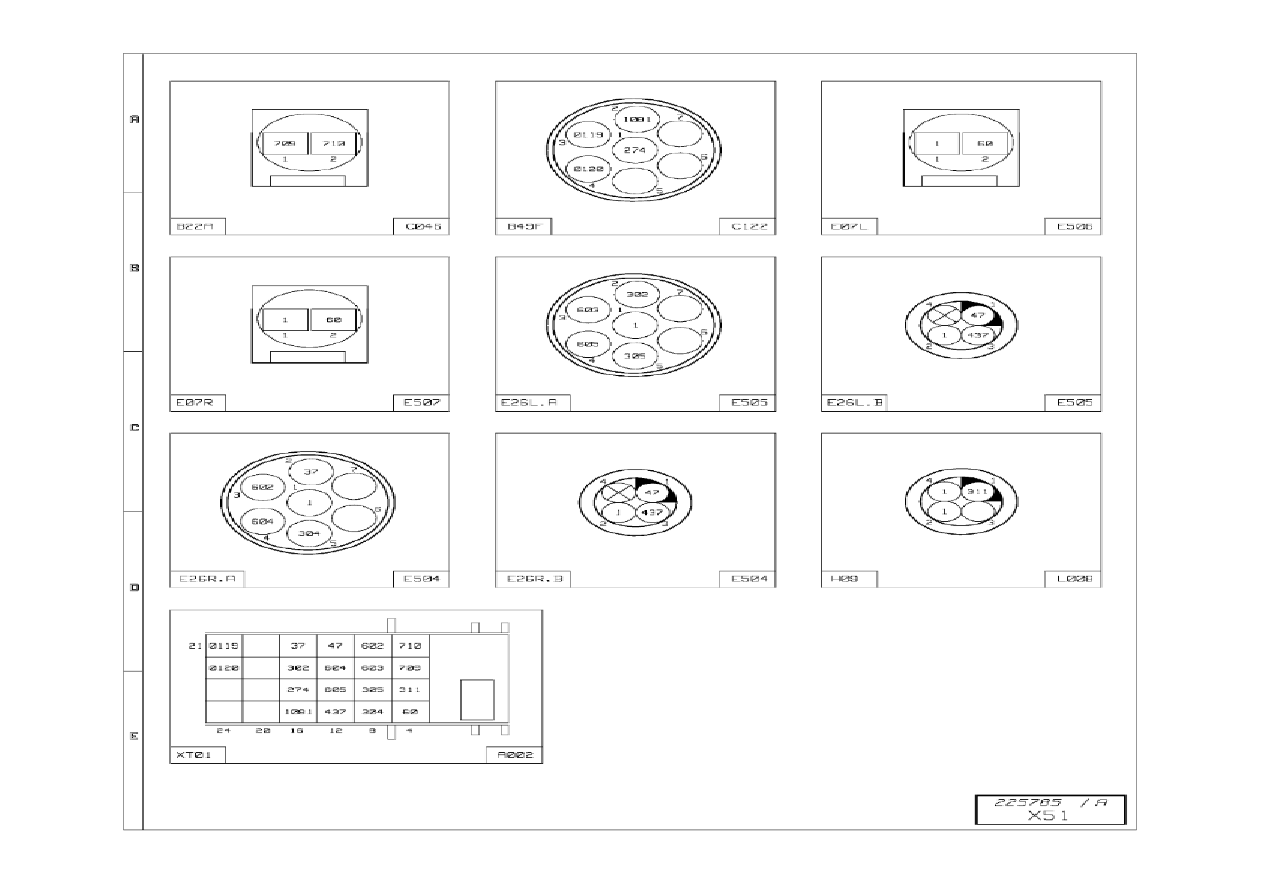

Front end wiring harness

Code

Function

Connectors

Colour

Number

of tracks

C046

External temperature sensor

B22A

SB

2

C122

Piloted axle lockover angle sensor

B49F

SB

7

E506

LH fog driving light

E07L

SB

2

E507

RH fog driving light

E07R

SB

2

E505

LH headlamp insert

E26L.A

SB

7

E505

LH headlamp insert

E26L.B

SB

3

E504

RH headlamp insert

E26R.A

SB

7

E504

RH headlamp insert

E26R.B

SB

3

L008

Electric horn

H09

SB

4

A002

Chassis-cab connection box

XT01

BL

24

Front end wiring harness

2 / 2

1 / 1

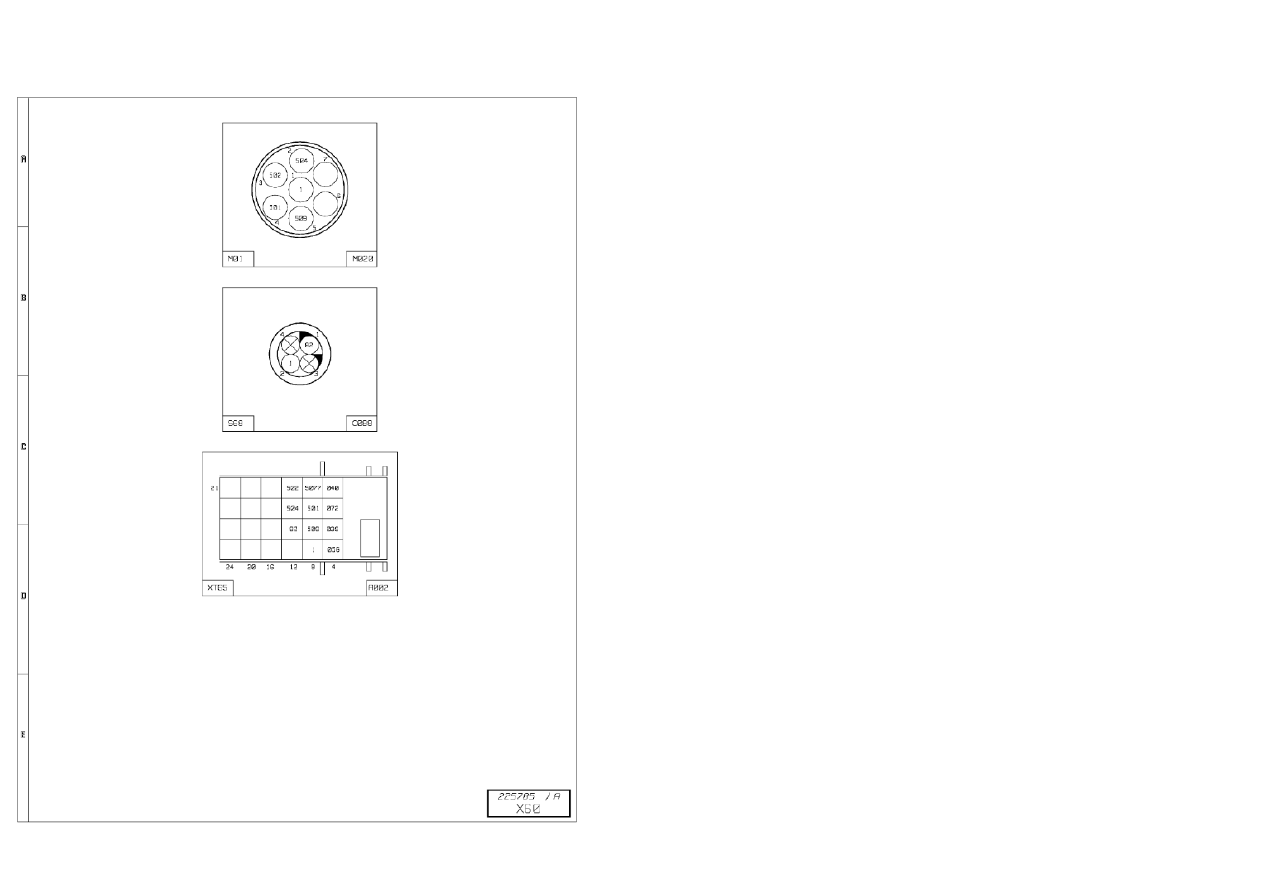

Under-cab wiring harness

1 / 2

Under-cab wiring harness

Code

Function

Connectors

Colour

Number

of tracks

M020

Windscreen wipers drive motor

M01

SB

7

C088

Engine coolant level sensor

S68

GN

2

A002

Chassis-cab connection box

XT65

R

24

Under-cab wiring harness
