Renault Magnum engine. Manual - part 73

2 / 2

1 / 1

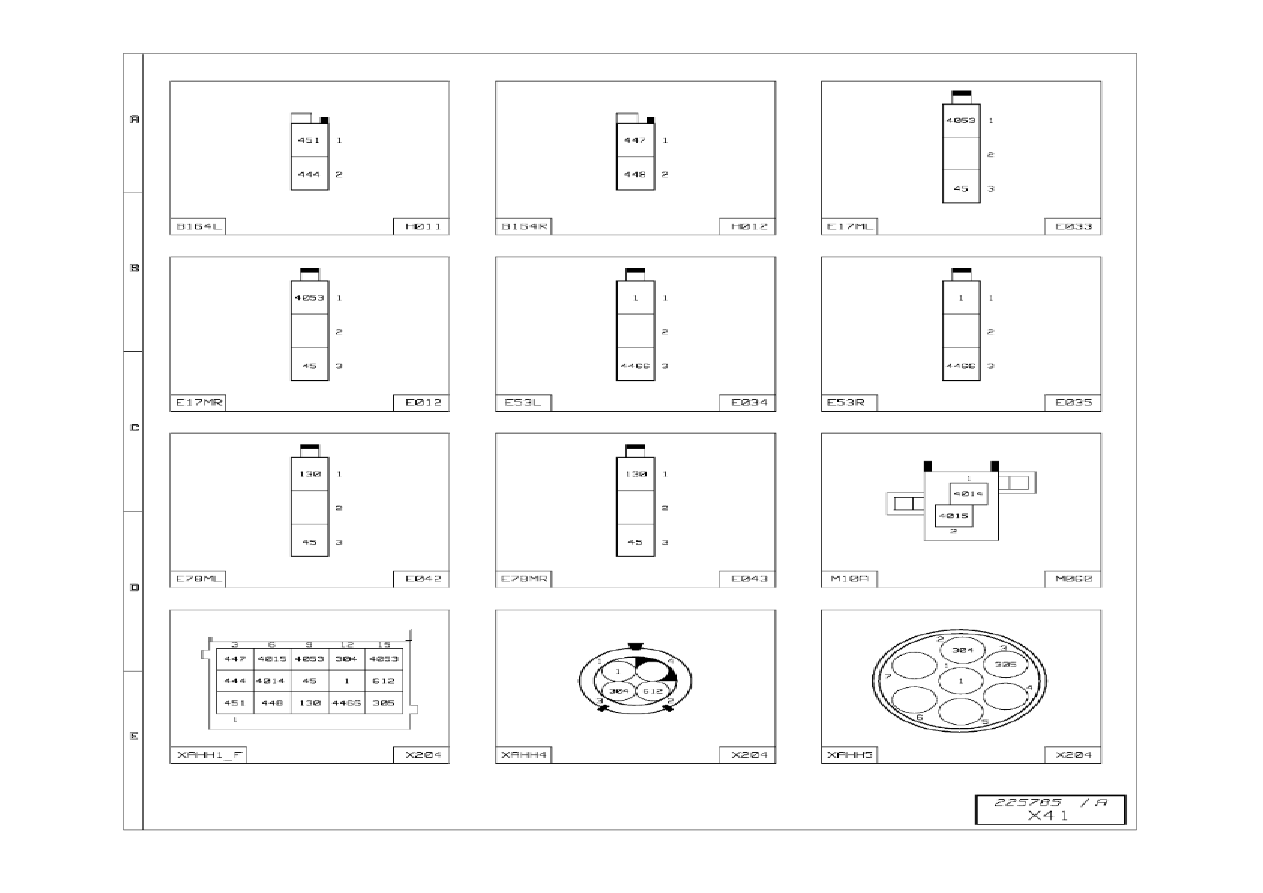

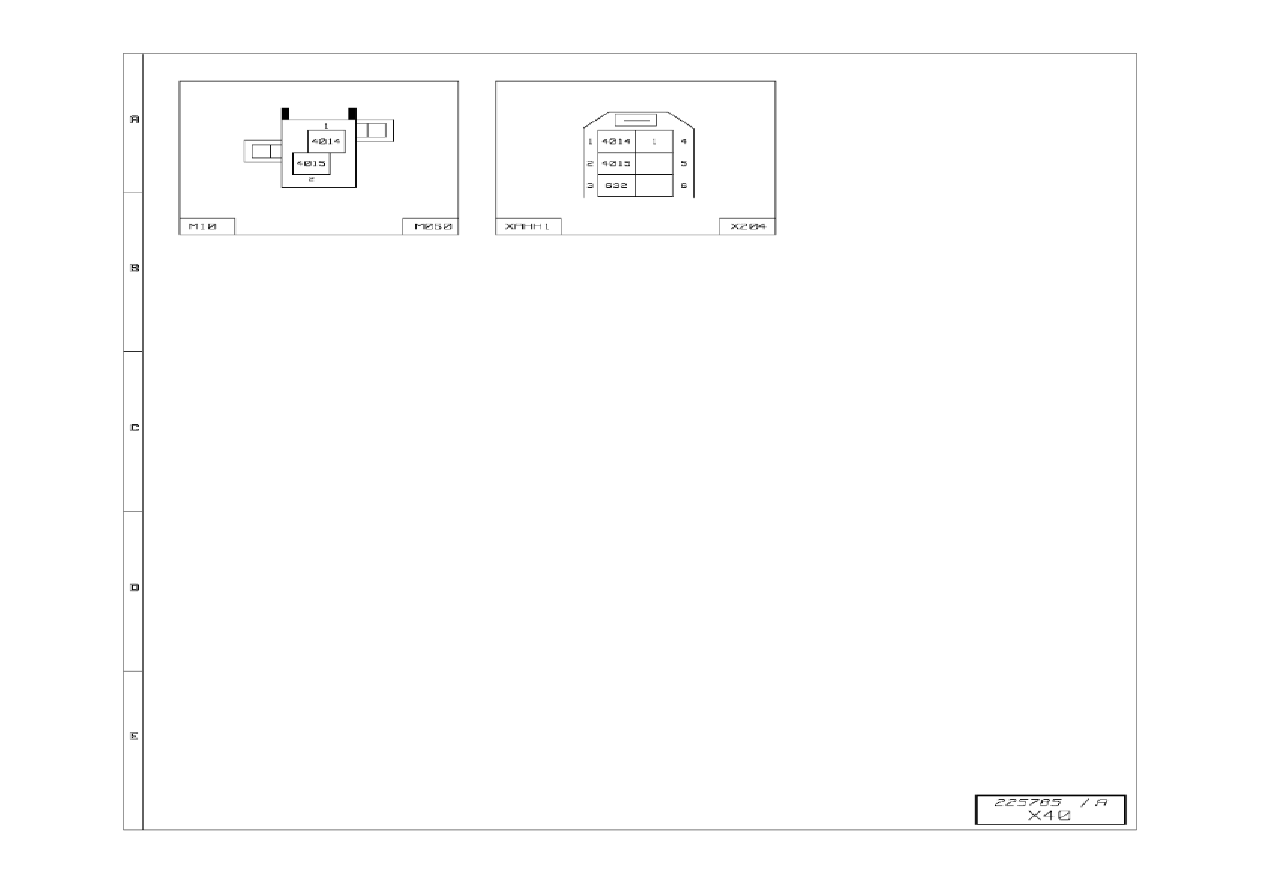

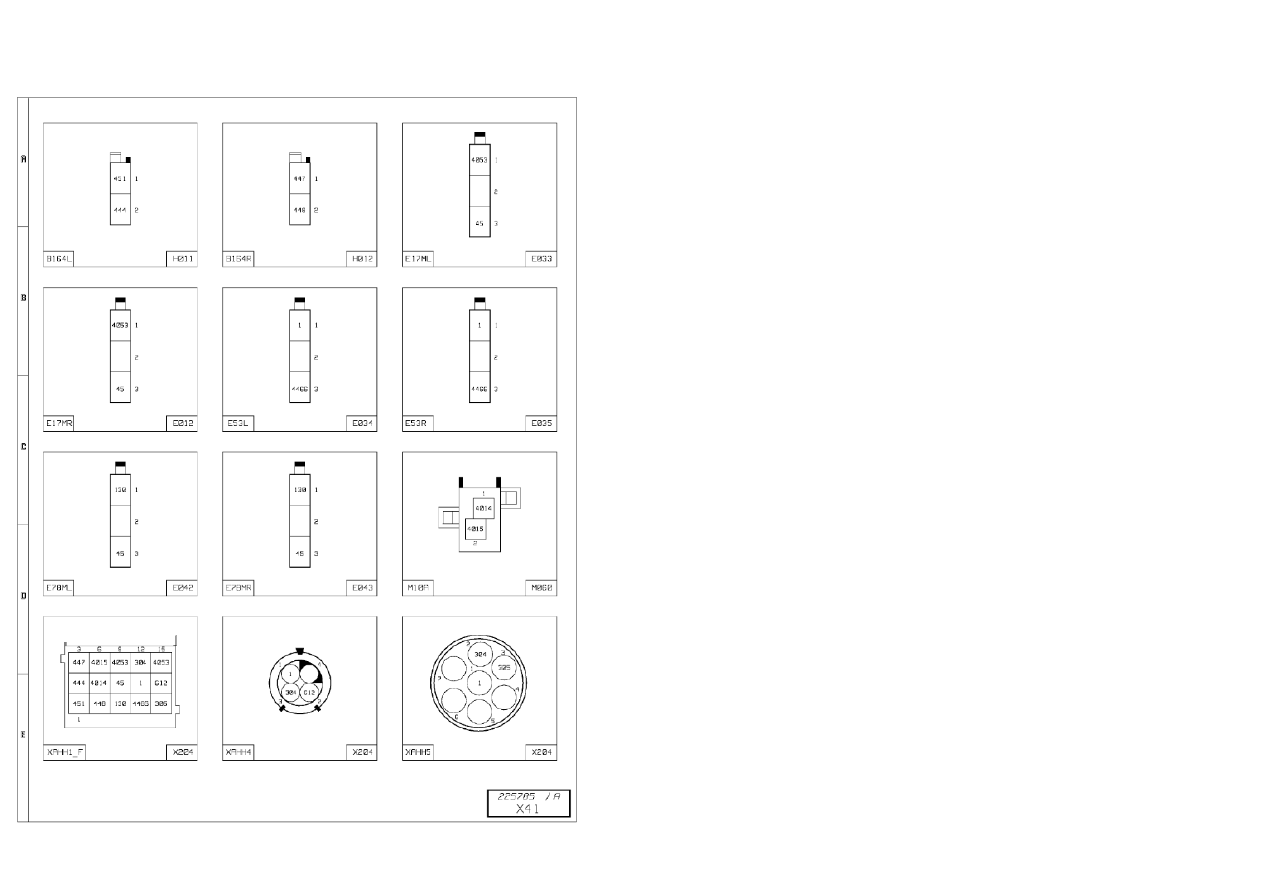

Roof wiring harness

1 / 2

Roof wiring harness

Code

Function

Connectors

Colour

Number

of tracks

H011

LH front loudspeaker

B164L

W

2

H012

RH front loudspeaker

B164R

W

2

E033

LH upper overhead lighting (door)

E17ML

SB

3

E012

RH upper overhead lighting (door)

E17MR

SB

3

E034

LH overhead lighting (ambience)

E53L

SB

3

E035

RH overhead lighting (ambience)

E53R

SB

3

E042

Upper left-hand side overhead lamp lighting

E78ML

SB

3

E043

Upper right-hand side overhead lamp lighting

E78MR

SB

3

M060

Electric roof air vent motor

M10A

GR

2

X204

Link-up connector between 2 wiring harnesses

XAHH1_F

VO

15

X204

Link-up connector between 2 wiring harnesses

XAHH4

SB

4

X204

Link-up connector between 2 wiring harnesses

XAHH5

NL

7

Roof wiring harness

2 / 2
