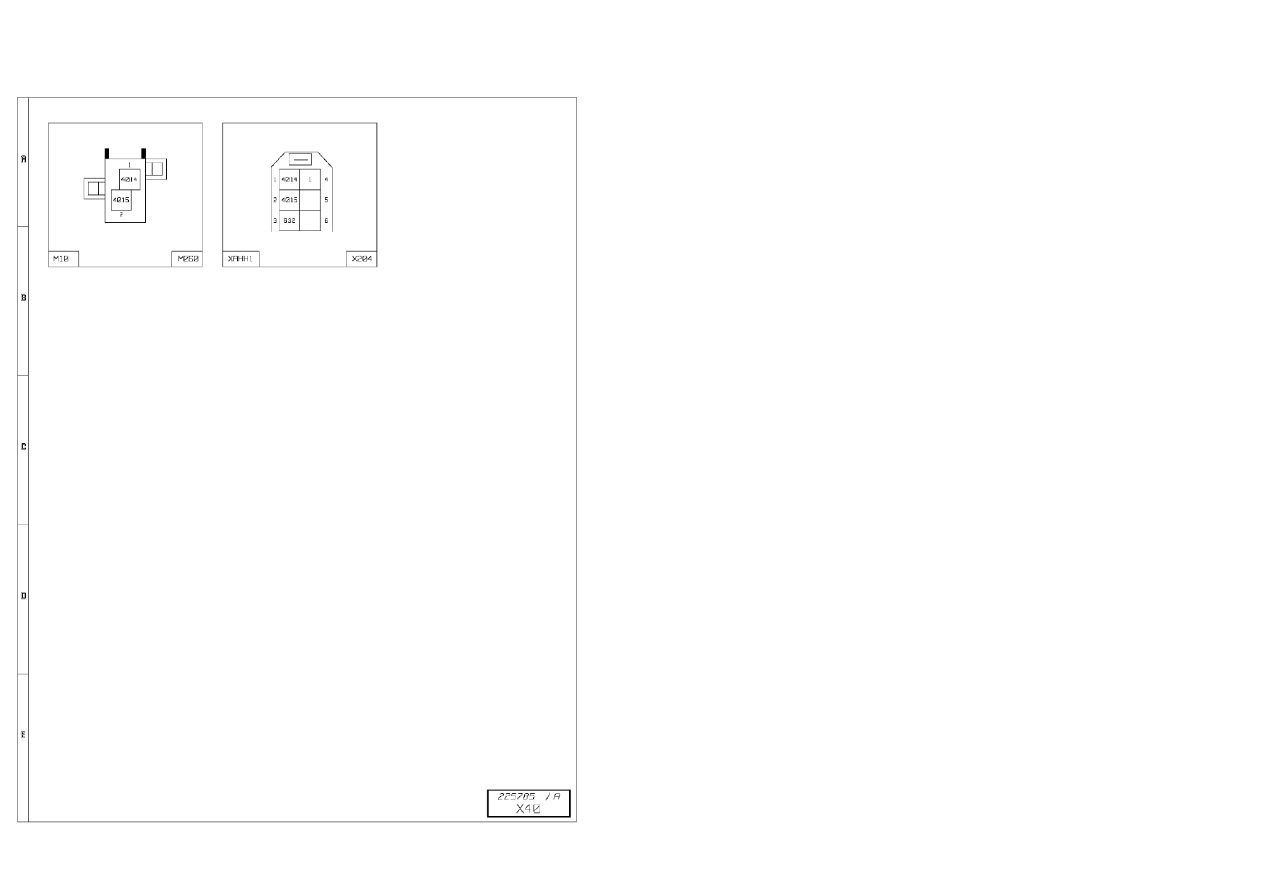

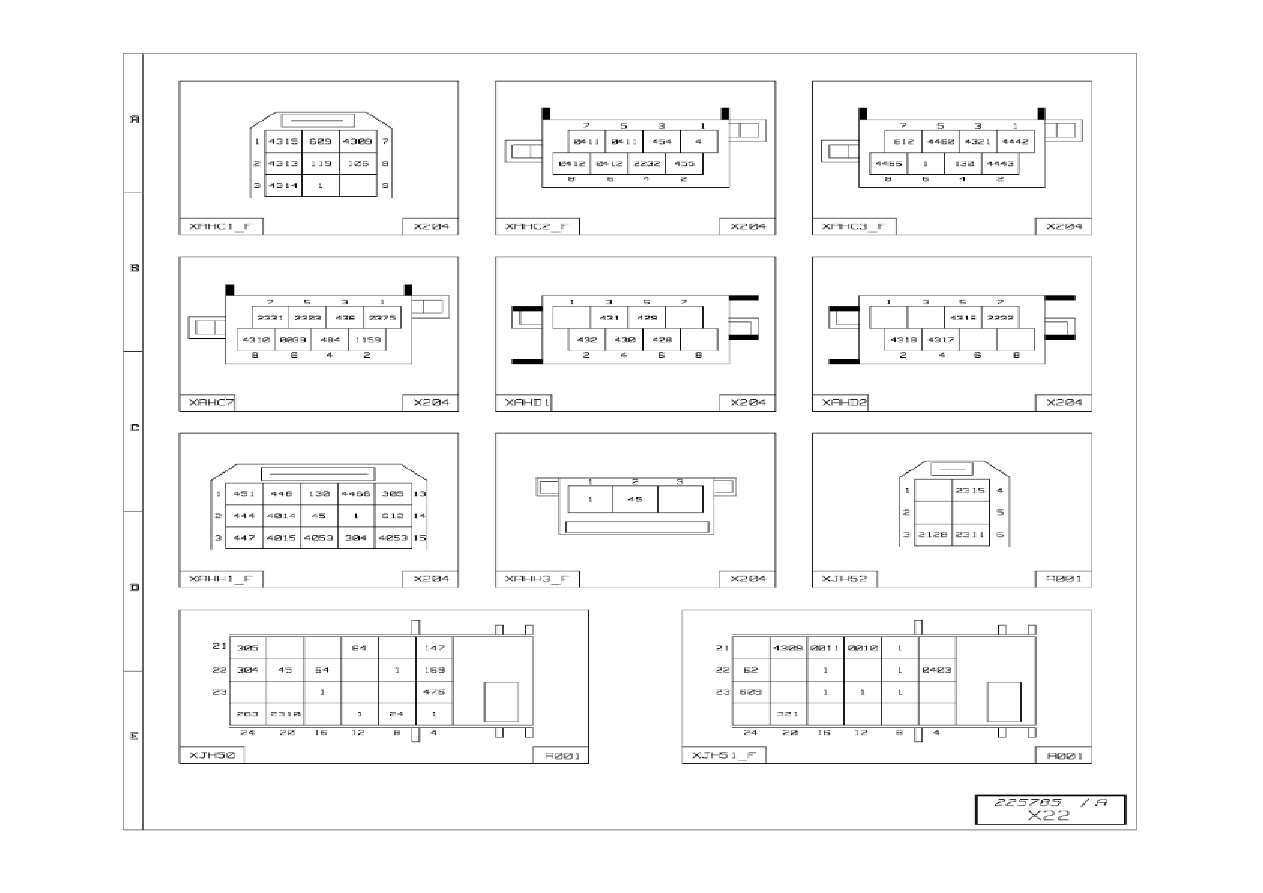

Cab top ledge wiring harness (3/3)
Code
Function
Connectors
Colour
Number
of tracks
X204
Link-up connector between 2 wiring harnesses
XAHC1_F
Y
9
X204
Link-up connector between 2 wiring harnesses
XAHC2_F
VO
8
X204
Link-up connector between 2 wiring harnesses
XAHC3_F
BN
8
X204
Link-up connector between 2 wiring harnesses
XAHC7
Y
8
X204
Link-up connector between 2 wiring harnesses
XAHD1
WH
8
X204
Link-up connector between 2 wiring harnesses
XAHD2
Y
8
X204
Link-up connector between 2 wiring harnesses
XAHH1_F
VO
15
X204
Link-up connector between 2 wiring harnesses
XAHH3_F
SB
3
A001
Cab electrical distribution box
XJH52
NL
6
A001
Cab electrical distribution box
XJH50
Y
24
A001
Cab electrical distribution box
XJH51_F
GN
24
Cab top ledge wiring harness (3/3)
