Renault Magnum engine. Manual - part 76

2 / 2

1 / 1

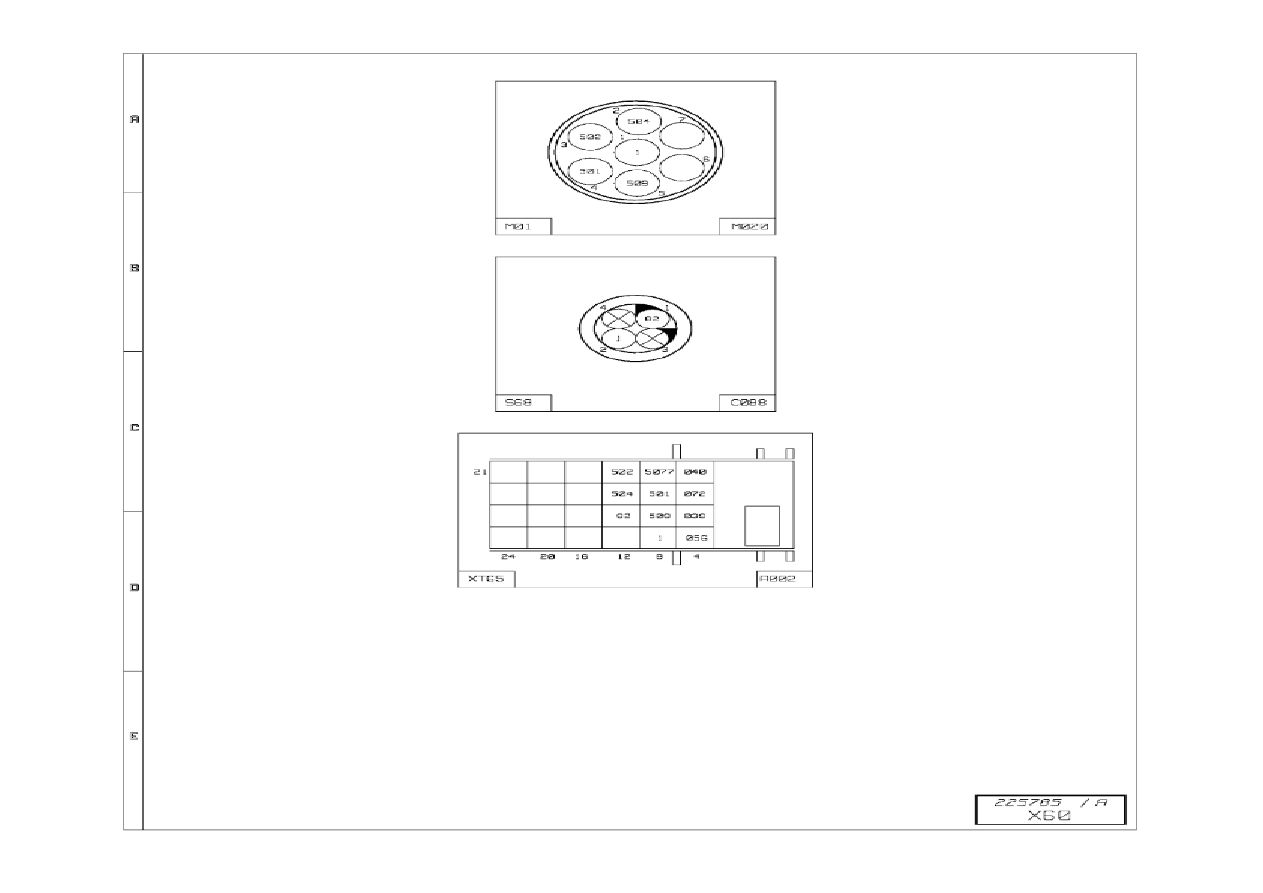

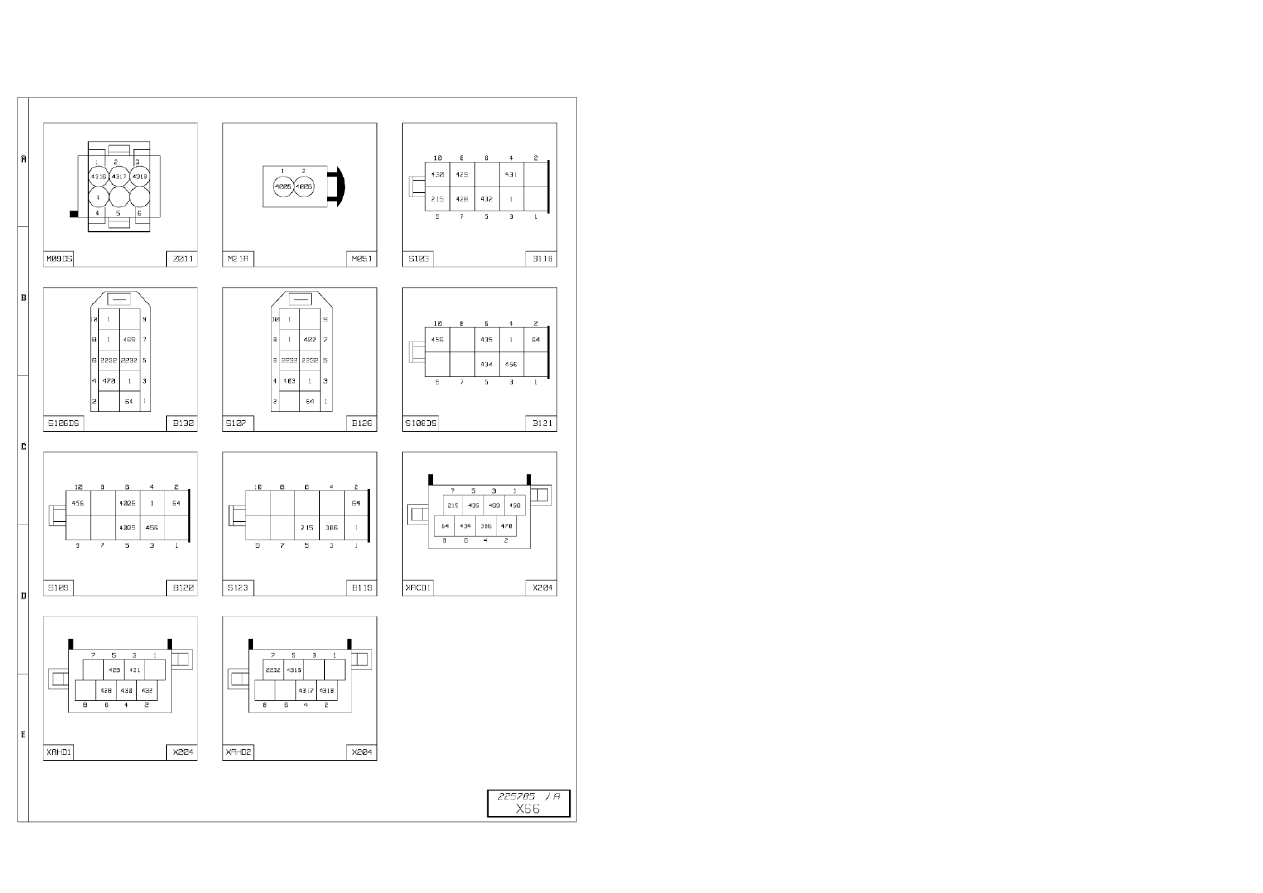

Driver's door wiring harness

1 / 2

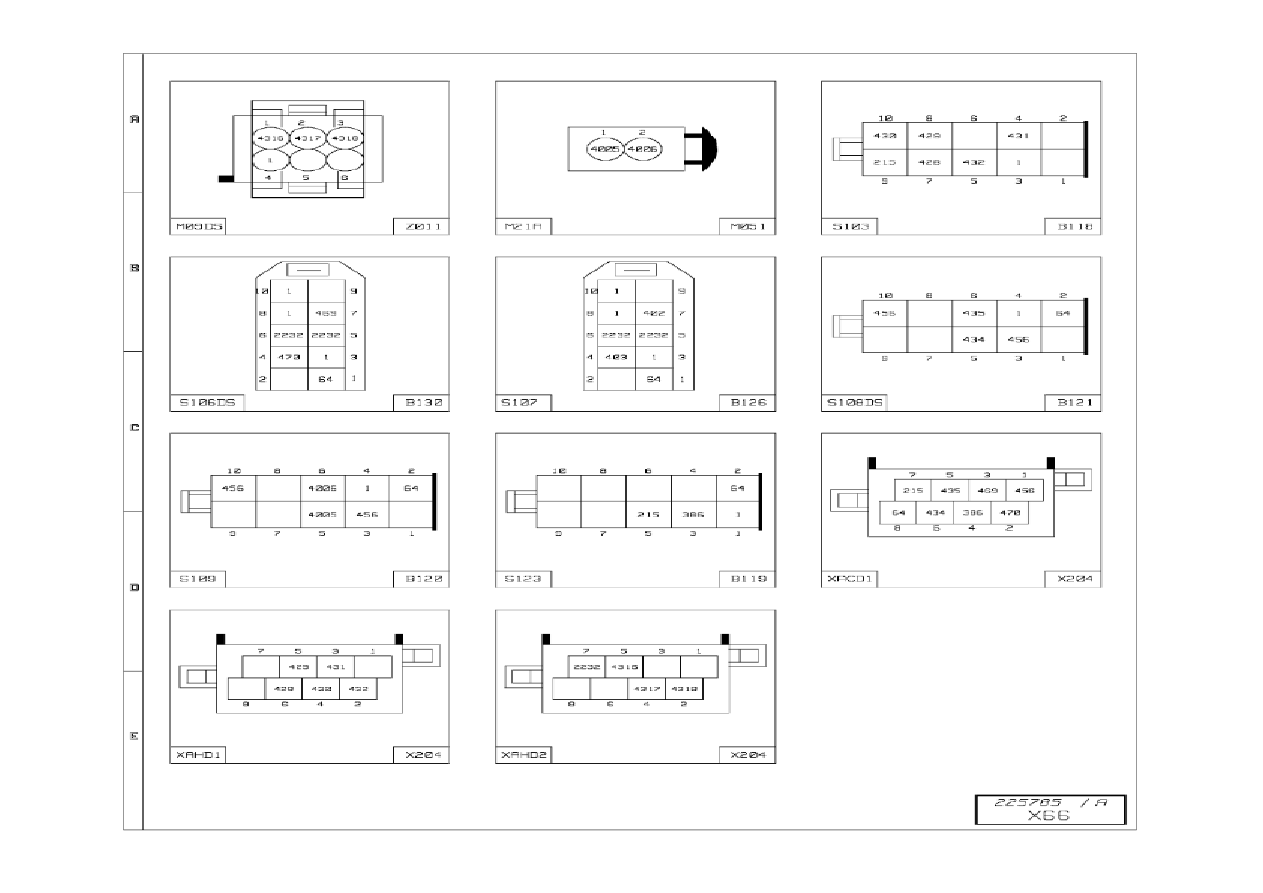

Driver's door wiring harness

Code

Function

Connectors

Colour

Number

of tracks

Z011

Driver's door locking striker unit

M09DS

SB

6

M051

Driver's sun visor motor

M21A

SB

2

B118

Swivelling rearview mirrors and

alarm siren adjustment control

S103

SB

10

B130

Front passenger window winder

motor control (driver side)

S106DS

SB

10

B126

Driver's window winder motor control (driver side)

S107

SB

10

B121

Passenger's electric curtain

motor control (driver side)

S108DS

SB

10

B120

Passenger's electric curtain

motor control (passenger side)

S109

SB

10

B119

Rearview mirrors and windscreen defrosting control

S123

SB

10

X204

Link-up connector between 2 wiring harnesses

XACD1

GR

8

X204

Link-up connector between 2 wiring harnesses

XAHD1

W

8

X204

Link-up connector between 2 wiring harnesses

XAHD2

Y

8

Driver's door wiring harness

2 / 2
