Renault Magnum engine. Manual - part 64

2 / 2

1 / 1

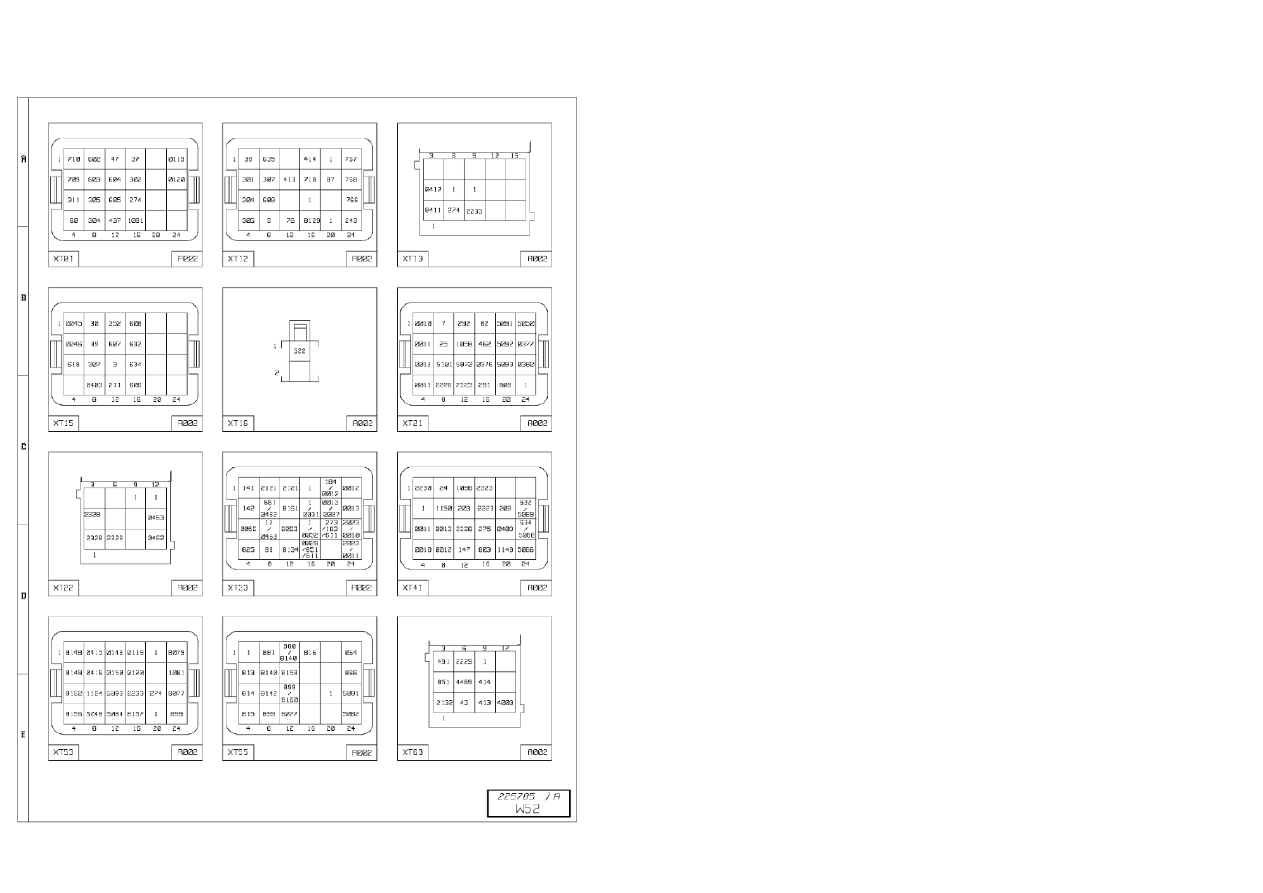

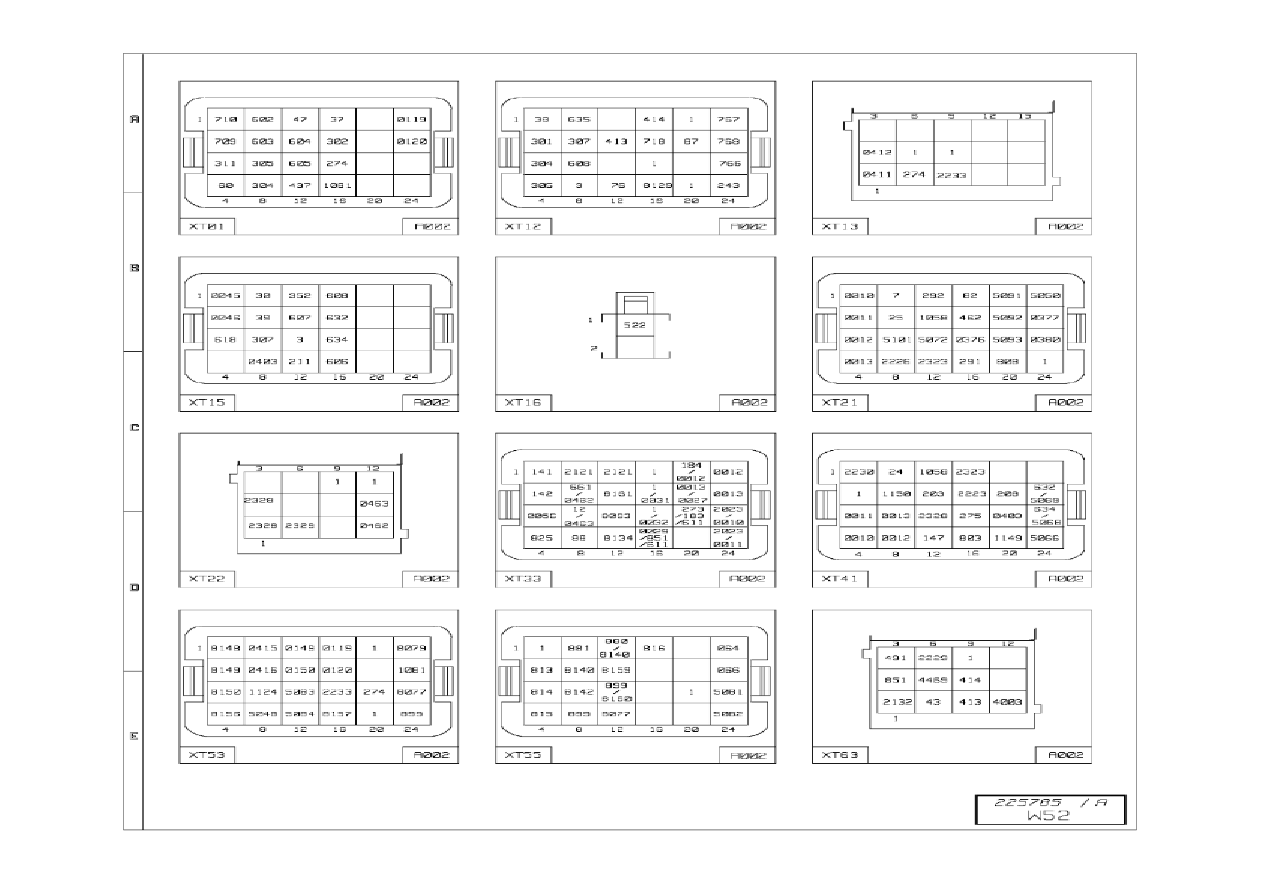

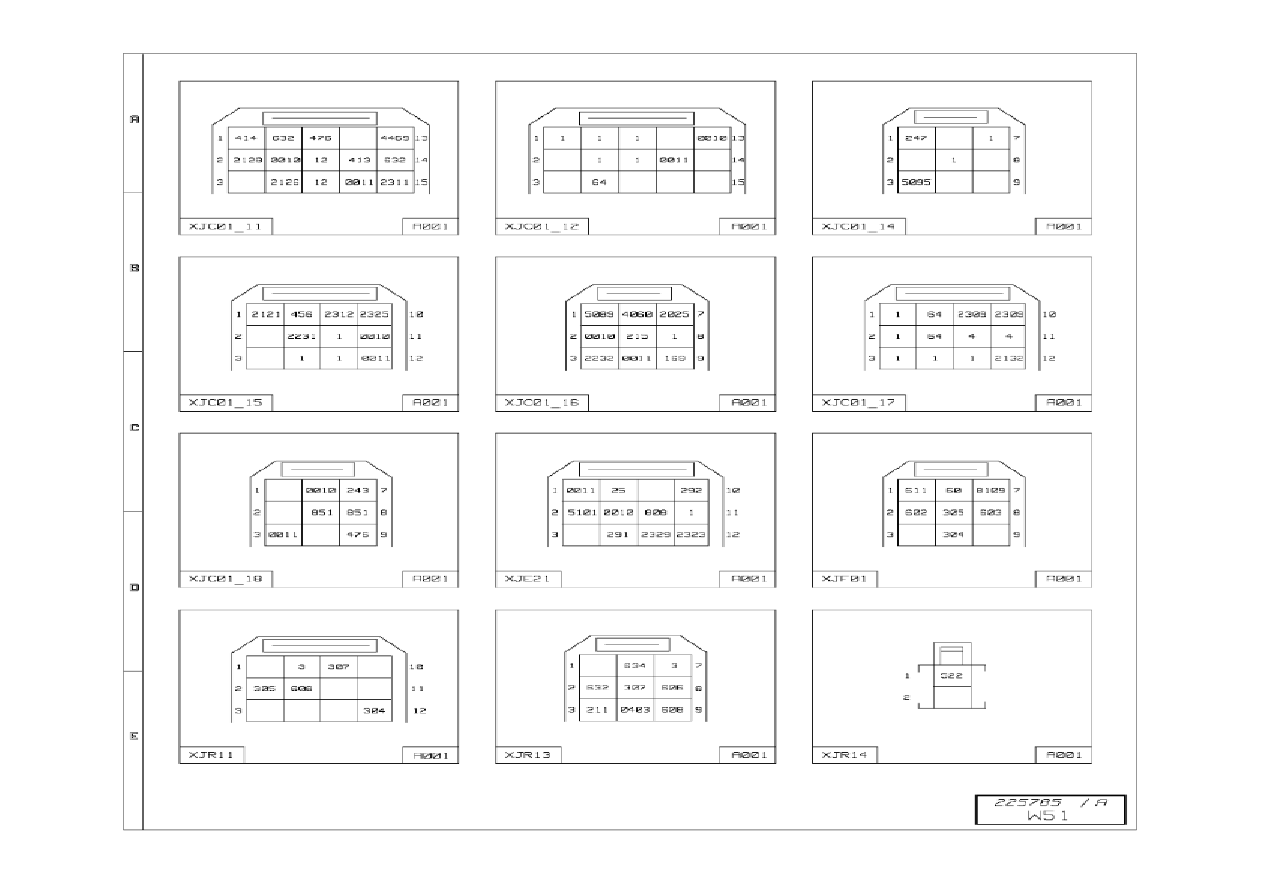

Dashboard wiring harness (13/14)

1 / 2

Dashboard wiring harness (13/14)

Code

Function

Connectors

Colour

Number

of tracks

A002

Chassis-cab connection box

XT01

BL

24

A002

Chassis-cab connection box

XT12

GN

24

A002

Chassis-cab connection box

XT13

NL

15

A002

Chassis-cab connection box

XT15

GR

24

A002

Chassis-cab connection box

XT16

SB

2

A002

Chassis-cab connection box

XT21

NL

24

A002

Chassis-cab connection box

XT22

BL

12

A002

Chassis-cab connection box

XT33

Y

24

A002

Chassis-cab connection box

XT41

Y

24

A002

Chassis-cab connection box

XT53

BL

24

A002

Chassis-cab connection box

XT55

NL

24

A002

Chassis-cab connection box

XT63

GN

12

Dashboard wiring harness (13/14)

2 / 2
