Renault Scenic 3 Chassis. Manual - part 41

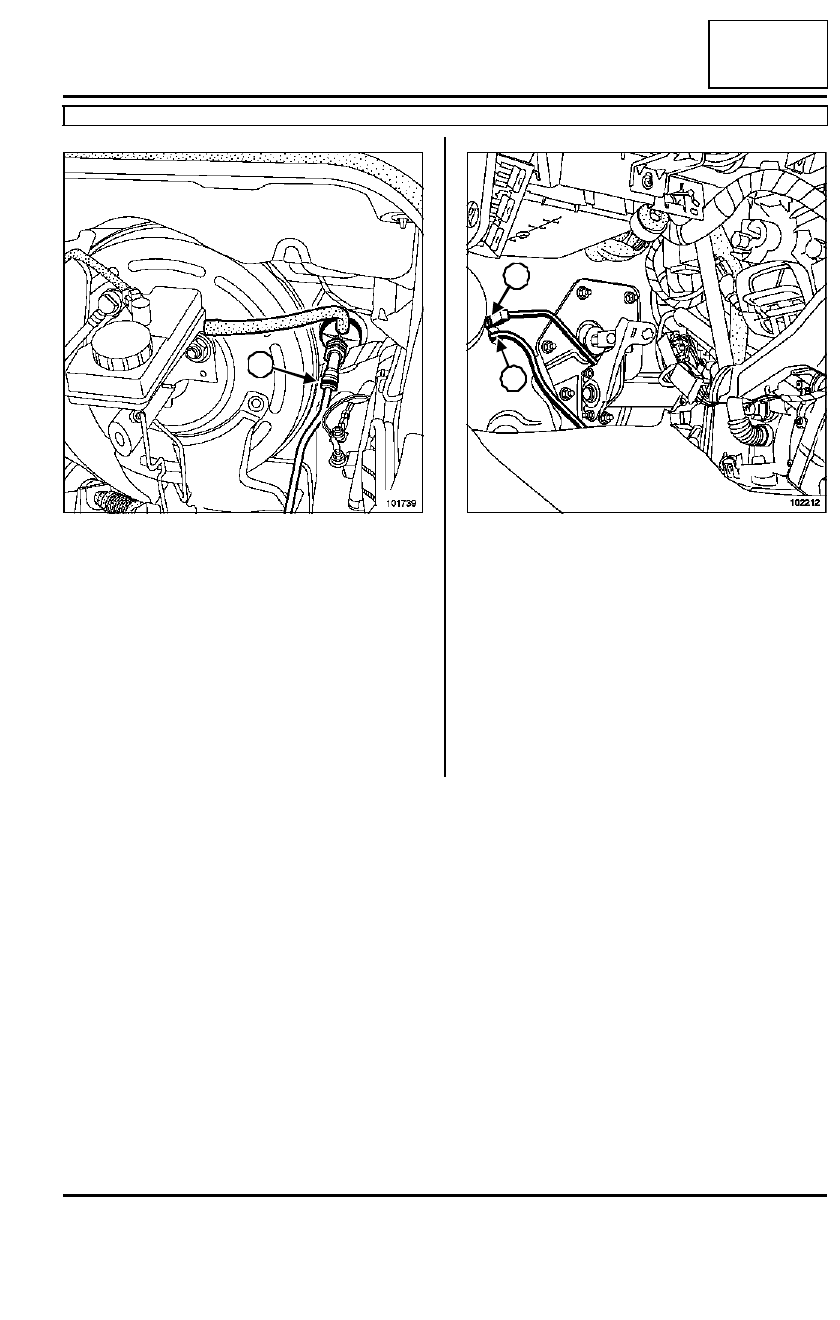

37A

-

55

MECHANICAL COMPONENT CONTROLS

Clutch control pipes

JH3 or JR5 or ND0, and RIGHT-HAND DRIVE

37A

Place a cloth under the master cylinder.

Remove the clip (6) from the union on the master cy-
linder return.

Disconnect the pipes from the slave cylinder.

Fit the plugs into the openings.

Withdraw the slave cylinder supply pipe.

Remove:

- the left-hand glove box (see  Interior accessories-

Section),

- the left-hand air duct.

Place a cloth under the pipe unions.

Remove the clip (7) from the master cylinder union
on the master cylinder return.

Disconnect the pipe.

Fit the plugs into the openings.

Remove the clip (8) from the slave cylinder union on
the master cylinder return.

Disconnect the pipe.

Fit the plugs into the openings.

101739

6

102212

7

8

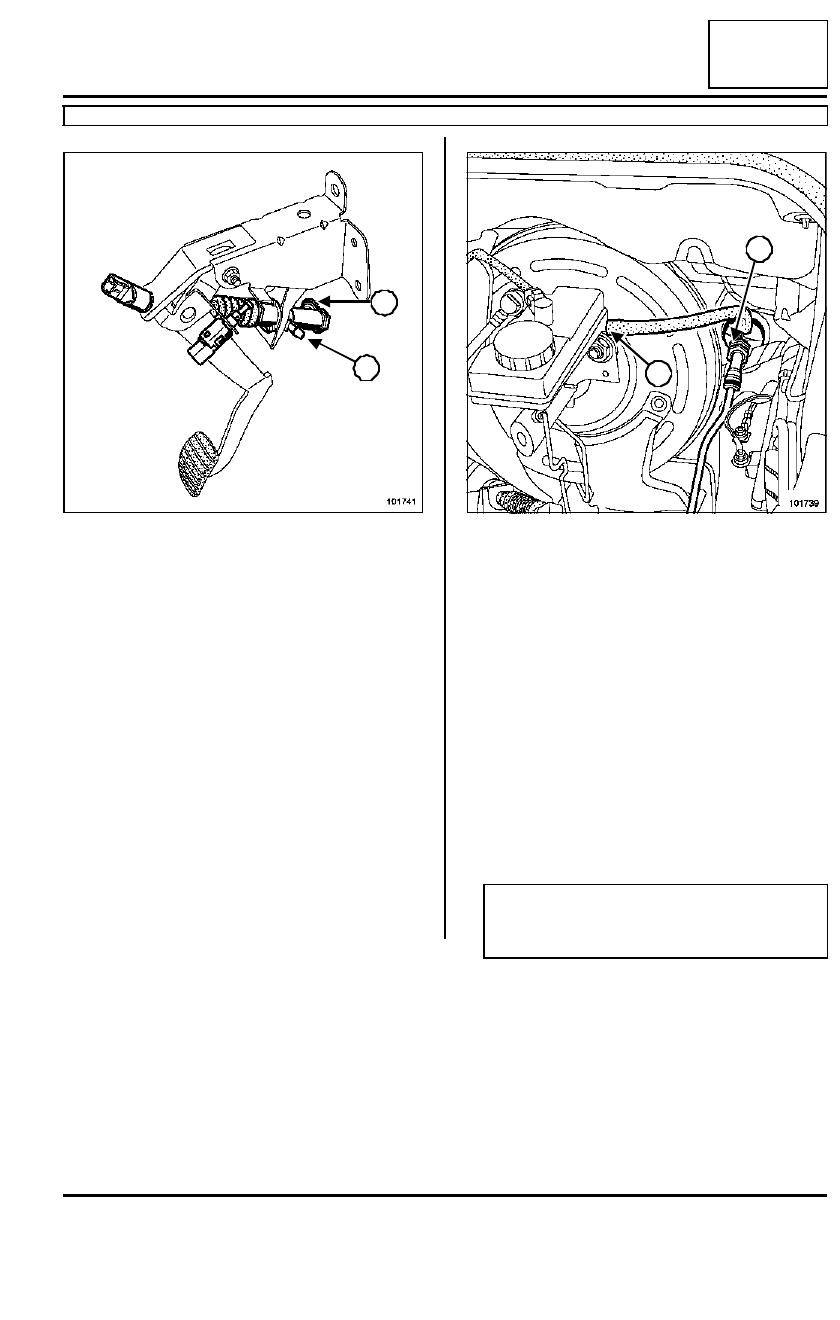

37A

-

56

MECHANICAL COMPONENT CONTROLS

Clutch control pipes

JH3 or JR5 or ND0, and RIGHT-HAND DRIVE

37A

Place a cloth under the master cylinder.

Remove the clip (9)from the master cylinder union on
the master cylinder return

Disconnect the pipe.

Fit the plugs into the openings.

Withdraw the master cylinder supply pipe from the
left-hand side.

Remove the clip (10) from the slave cylinder union
on the master cylinder return.

Disconnect the pipe.

Fit the plugs into the openings.

Remove the slave cylinder supply pipe from the left-
hand side.

Place a cloth under the hole (11)

Remove the brake fluid reservoir pipe.

Fit the plugs into the openings.

Remove the master cylinder return (12) from the
bulkhead by turning it clockwise a quarter of a turn
(bayonet type mounting) using tool (Emb. 1596).

REFITTING

Check the condition of the seals.

To refit, proceed in the reverse order of removal.

Bleed the clutch control (Section Mechanical compo-
nent controls, Clutch circuit: Bleeding,  page 37A-
57).

Check that the clutch system is operating correctly.

101741

10

9

101739

WARNING

Connect the battery; carry out the necessary pro-
gramming (Section Electrical equipment).

12

11

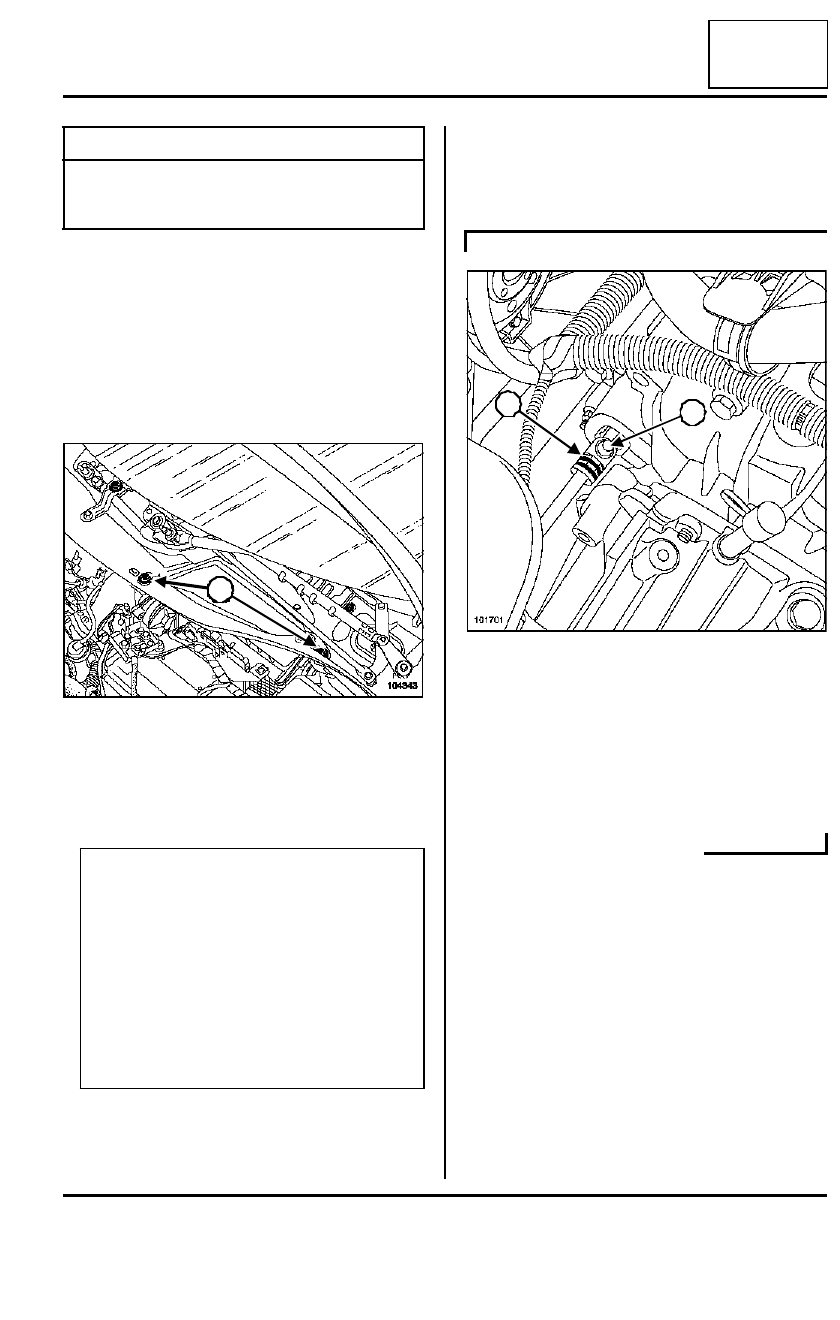

37A

-

57

MECHANICAL COMPONENT CONTROLS

Clutch circuit: Bleeding

37A

PROCEDURE

Disconnect the battery, starting with the negative ter-
minal.

Remove:

- the engine covers,

- the scuttle panel grille (see MR 371 Bodywork,

55A, Exterior protection, Scuttle panel grille).

Remove:

- air filter access panel mounting bolts (1),

- the air filter access flap.

I - BLEEDING FROM THE RESERVOIR TO THE
BLEED HOLE

Keep the clutch pedal in the upper position.

Fill the hydraulic circuit reservoir with the approved
fluid.

Connect tool (Ms. 554-07) to the hydraulic circuit re-
servoir.

Remove the bleed plug.

Connect a transparent hose to the bleed hole (2) run-
ning to an empty container placed above the bleed
hole

Remove the clip (3).

Pull out the master cylinder control pipe by one posi-
tion.

Special tooling required

Ms. 554-07

Cooling circuit and
expansion bottle valve
tester

104343

Note:

Even the tiniest air bubble in the circuit can cause
faulty operation (pedal failing to return properly,
crunching sound when changing gear, etc.).

Improper bleeding can result in faulty diagnostics
and unnecessary part replacements.

During every operation on the hydraulic
clutch system, it is essential to bleed:

- between the reservoir and the bleed hole,

- between the bleed hole and the hydraulic stop.

1

JH3 or JR5

101701

2

3

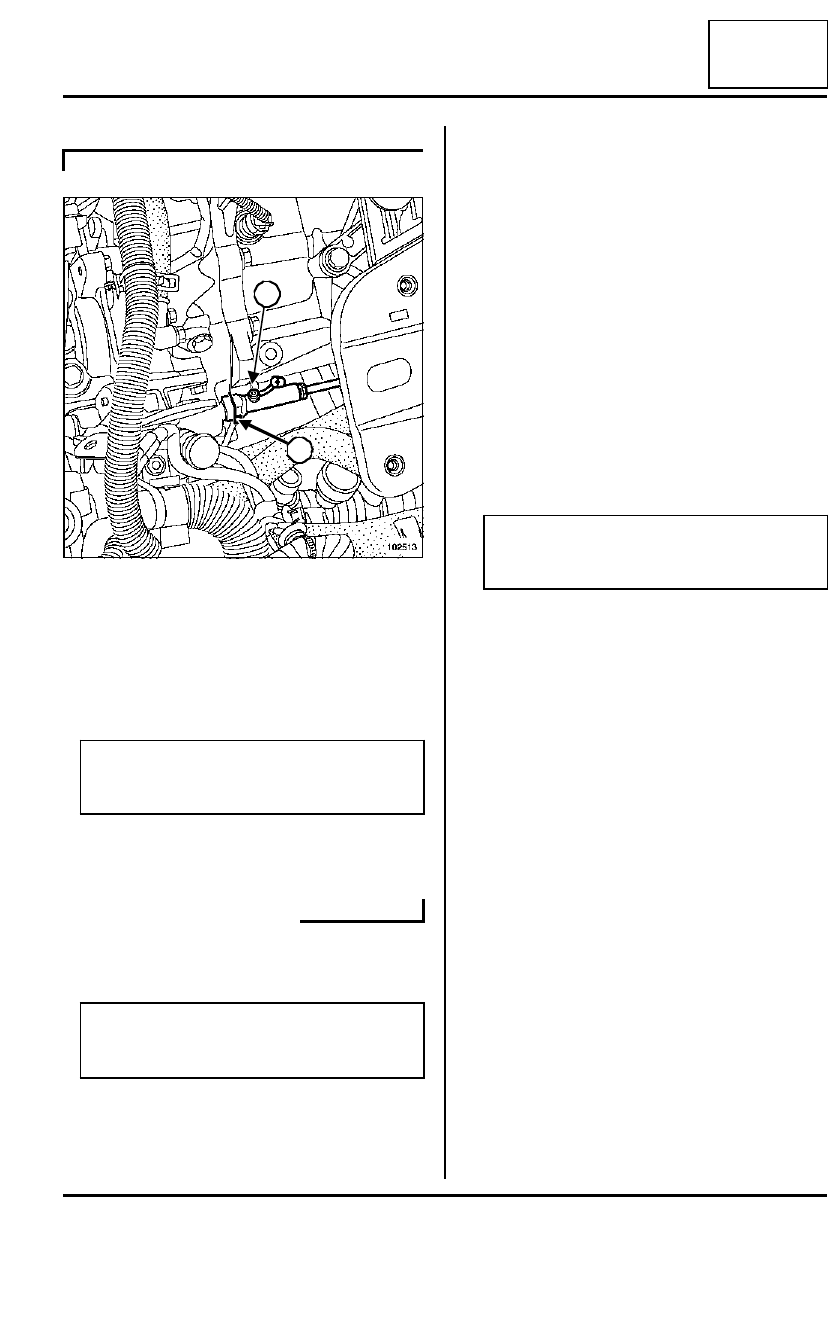

37A

-

58

MECHANICAL COMPONENT CONTROLS

Clutch circuit: Bleeding

37A

Remove the bleed plug.

Connect a transparent hose to the bleed hole (4) run-
ning to an empty container placed above the bleed
hole.

Press the clip (5).

Pull out the master cylinder control pipe by one posi-
tion.

Switch on the pump of tool (Ms. 554-07) and let the
liquid flow into the container.

Stop when the liquid does not contain any bubbles.

Close the bleed hole.

Disengage and engage the clutch about ten times.

II - BLEEDING FROM THE HYDRAULIC STOP TO
THE BLEED HOLE.

Connect an empty 60 cc syringe to the end of the
transparent pipe.

Open the bleed hole.

Switch on the pump of (Ms. 554-07) and let the liquid
fill the syringe.

Slowly inject the entire contents of the syringe into
the circuit.

Repeat this operations three times.

Disengage and engage the clutch about ten times.

Check that the clutch system is working properly.

Top up the fluid level until it reaches the maximum
mark on the reservoir.

Connect the battery, starting with the positive termi-
nal.

ND0

102513

WARNING

DO NOT PULL THE CLIP. If it is incorrectly han-
dled in any way, the pipe will need to be replaced.

WARNING

Check that the level is still above the hydraulic
control union.

4

5

WARNING

Carry out the necessary programming (see 80A,
Battery: Remove and Refit).
