37A

-

51

MECHANICAL COMPONENT CONTROLS

Clutch control pipes

JH3 or JR5 or ND0, and LEFT-HAND DRIVE

37A

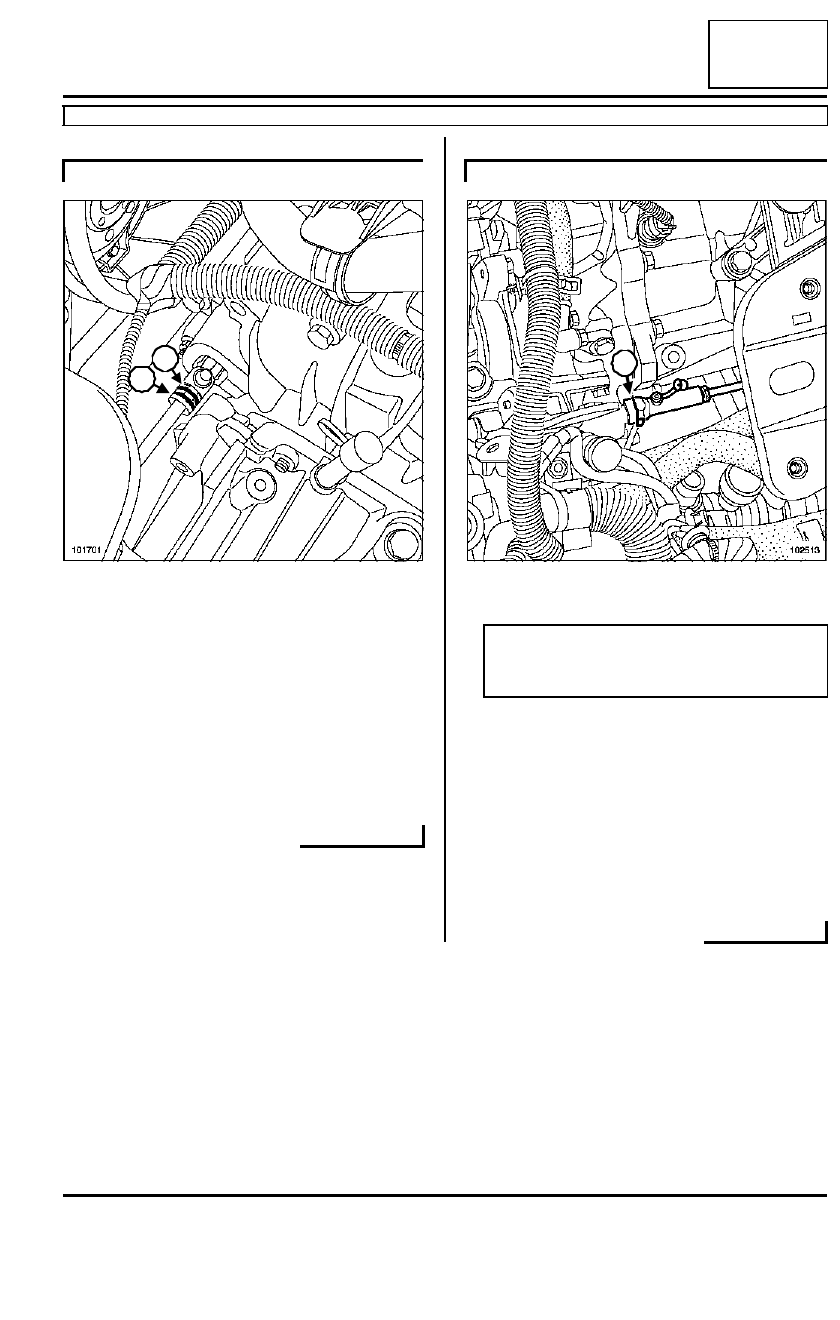

Remove the clip (6).

Pull out the master cylinder control pipe by one posi-
tion.

Place a cloth under the bleed port.

Depress the pedal using your hand (to drain the
master cylinder and the pipe).

Remove the clip (7).

Disconnect the pipes from the slave cylinder.

Fit the plugs into the openings.

Press clip (8) with your hand while pulling the pipe.

Pull out the master cylinder control pipe by one posi-
tion.

Place a cloth under the bleed port.

Depress the pedal using your hand (to drain the
master cylinder and the pipe).

Remove the clip (8).

Disconnect the pipes from the slave cylinder.

Fit the plugs into the openings.

JH3 or JR5

101701

7

6

ND0

102513

WARNING

Do not pull the clip. If there are any handling
errors the pipe it will need to be replaced.

8

37A

-

52

MECHANICAL COMPONENT CONTROLS

Clutch control pipes

JH3 or JR5 or ND0, and LEFT-HAND DRIVE

37A

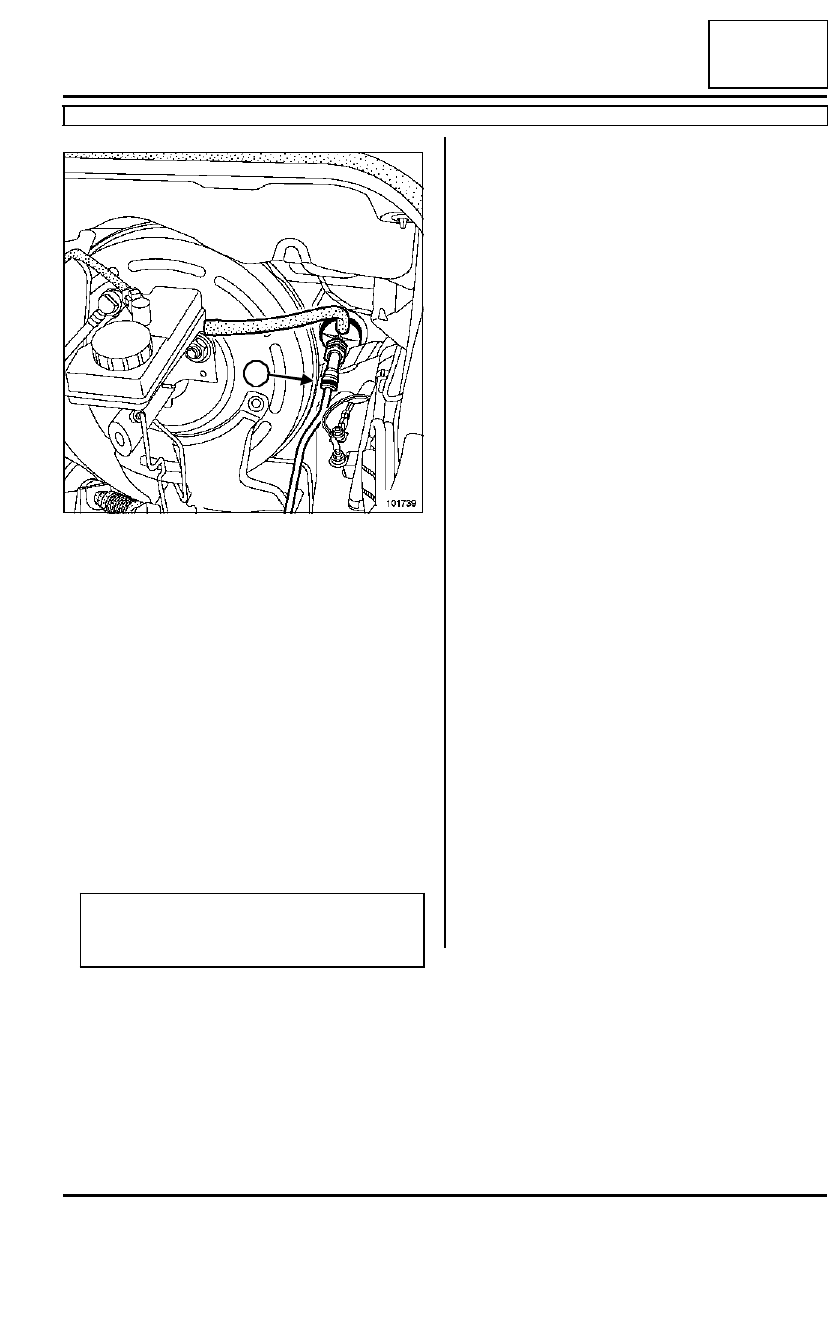

Place a cloth under the master cylinder.

Remove the clip (9) from the union on the master cy-
linder return.

Disconnect the pipes from the slave cylinder.

Fit the plugs into the openings.

Remove the slave cylinder supply pipe.

REFITTING

Check the condition of the seals.

To refit, proceed in the reverse order of removal.

Bleed the clutch control (Section Mechanical compo-
nent controls, Clutch circuit: Bleeding,  page 37A-
57).

Check that the clutch system is operating correctly.

101739

WARNING

Connect the battery; carry out the necessary pro-
gramming (Section Electrical equipment).

9

37A

-

53

MECHANICAL COMPONENT CONTROLS

Clutch control pipes

JH3 or JR5 or ND0, and RIGHT-HAND DRIVE

37A

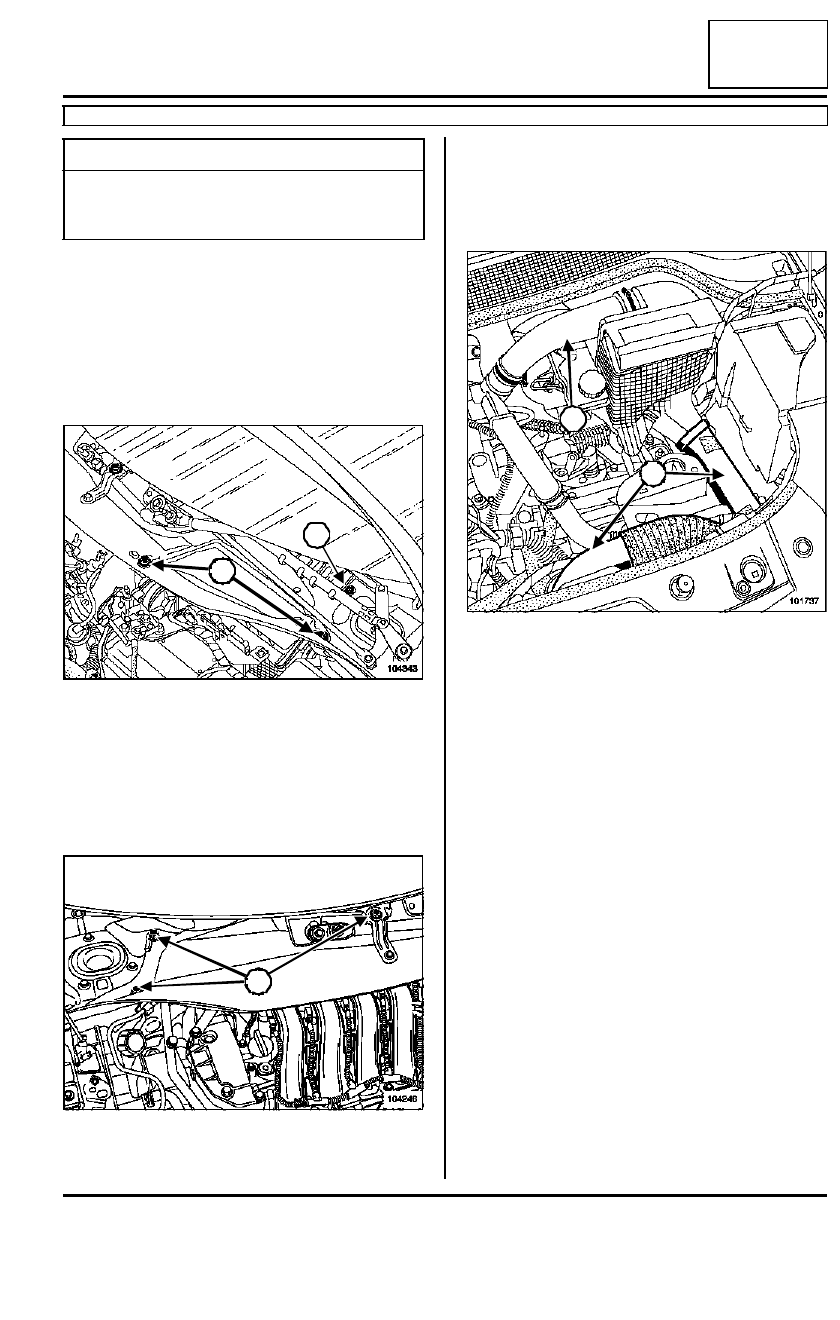

REMOVAL

Put the vehicle on a two-post lift.

Disconnect the battery starting with the negative ter-
minal.

Remove the engine covers and the scuttle grille ( Wi-
ping - WashingSection).

Remove:

- both air filter access flap mounting bolts (1),

- the air filter access panel,

- the radiator tank partition mounting bolt (2).

Remove:

- the radiator tank partition mounting bolts (3),

- the radiator tank partition panel.

- the battery,

- the battery tray,

- the computer and its mounting.

Remove:

- the air filter outlet filter (4),

- the inlet ducts (5),

- the air filter unit.

Drain the brake fluid reservoir until the level is below
the master supply port.

Special tooling required

Emb. 1596

2 4  mm socket  for
removing/fitting clutch
master cylinder

104343

104246

2

1

3

3

101737

4

5

37A

-

54

MECHANICAL COMPONENT CONTROLS

Clutch control pipes

JH3 or JR5 or ND0, and RIGHT-HAND DRIVE

37A

Remove the clip .(3)

Pull out the master cylinder control pipe by one posi-
tion.

Place a cloth under the bleed port.

Depress the pedal using your hand (to drain the
master cylinder and the pipe).

Remove the clip (4).

Disconnect the pipes from the slave cylinder.

Fit the plugs into the openings.

Press clip (5) with your hand while pulling the pipe.

Pull out the master cylinder control pipe by one posi-
tion.

Place a cloth under the bleed port.

Depress the pedal using your hand (to drain the
master cylinder and the pipe).

Remove the clip (5).

Disconnect the pipes from the slave cylinder.

Fit the plugs into the openings.

JH3 or JR5

101701

4

3

ND0

102513

WARNING

Do not pull the clip. Any error in handling will
require the pipe to be replaced.

5
