Peugeot RCZ (2015 year). Instruction - part 13

PRACTICAL

INFORMA

TION

191

RCZ_en_Chap08_info-pratiques_ed01-2015

Installation of radio communication transmitters

Before installing any after-market radio communication transmitter,
you can contact a PEUGEOT dealer for the specification of

transmitters which can be fitted (frequency, maximum power,

aerial position, specific installation requirements), in line with the
Vehicle Electromagnetic Compatibility Directive (2004/104/EC).

Depending on the legislation in force in the country, certain
safety equipment may be compulsory: high visibility safety vests,

warning triangles, breathalyzers, spare bulbs, spare fuses, fire

extinguisher, first aid kit, mud flaps at the rear of the vehicle.

The fitting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your
vehicle's electronic system and excessive electrical consumption.

Contact a PEUGEOT dealer for information on the range of
recommended equipment and accessories.

"Multimedia":

portable navigation systems, Wi-Fi on Board...

By going to a PEUGEOT dealer you can also obtain products for
cleaning and maintenance (exterior and interior) - including ecological
products from the "TECHNATURE" range, topping up products
(screenwash, ...), touch-up pens and aerosols for the exact colour of
your vehicle, refills (cartridge for temporary tyre repair kit...), ...

192

RCZ_en_Chap09_caracteristiques_ed01-2015

Engine

1.6 THP

150 hp

1.6 THP 155 hp

1.6 THP

160 hp

1.6 THP

200 hp

1.6 THP

270 hp

Gearbox

Automatic

(6-speed)

Manual

(6-speed)

Automatic

(6-speed)

Automatic

(6-speed)

Manual

(6-speed)

Manual

(6-speed)

Model code:

4j...

5FE-j

5FV-8

5FV-A

5FV-A/GT**

5FM-j

5FM-j/GT**

5FU-8

5FU-M

5FU-8/GT**

5FU-M/GT**

5FG-M

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW)*

110

115

120

147

199

Max power engine speed (rpm)

6 050

6 000

5 500

6 000

Max torque: EU standard (Nm)

240

275

330

Max torque engine speed (rpm)

1 400

1 700

1 900

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres)
(with filter replacement)

4.25

PETROL ENGINES AND GEARBOxES

* The maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation

(directive 1999/99/CE).

** GT Line version.

TECHNICAL

193

RCZ_en_Chap09_caracteristiques_ed01-2015

Engine

1.6 THP 150 hp

1.6 THP 155 hp

1.6 litre THP 155 hp

GT Line

Gearbox

Automatic

(6-speed)

Manual

(6-speed)

Automatic

(6-speed)

Automatic

(6-speed)

Model code: 4j...

5FE-j

5FV-8

5FV-A

5FV-A/GT

Unladen weight

1 297

1 275

1 297

Kerb weight

1 372

1 350

1 372

- Payload

463

465

463

Gross vehicle weight (GVW)

1 760

1 740

1 760

Gross train weight (GVW)

on a 12% gradient

2 260

2 240

2 260

1 760

Braked trailer (within GTW limit)

on a 10% or 12% gradient

500

Braked trailer* (with load transfer within
GTW limit)

650

Unbraked trailer

500

Recommended nose weight

The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned must be reduced by 10 % for
every additional 1000 metres.
The maximum permited speed is reduced when towing (observe the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambient temperature is
higher than 37 °C, limit the towed weight.

PETROL WEIGHTS AND TOWED LOADS (IN KG)

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same

amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

194

RCZ_en_Chap09_caracteristiques_ed01-2015

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same

amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

Engine

1.6 THP 160 hp

GT Line

1.6 THP 200 hp

GT Line

1.6 litre THP

270 hp

Gearbox

Automatic

(6-speed)

Automatic

(6-speed)

Manual

(6-speed)

Manual

(6-speed)

Manual

(6-speed)

Model code: 4j...

5FM-j

5FM-j/GT

5FU-8

5FU-M

5FU-8/GT

5FU-M/GT

5FG-M

Unladen weight

1 297

1 280

Kerb weight

1 372

1 355

- Payload

463

483

425

Gross vehicle weight (GVW)

1 760

1 780

Gross train weight (GTW)

on a 12% gradient

2 260

1 760

2 280

1 780

Braked trailer (within GTW limit)

on a 10% or 12% gradient

500

Brakled trailer* (with transfer of load
within GTW limit)

650

Unbraked trailer

500

Recommended nose weight

TECHNICAL

195

RCZ_en_Chap09_caracteristiques_ed01-2015

Engine

2.0 Hdi 160 hp

Gearbox

Manual

(6-speed)

Model code:

4j...

RHH-8

Cubic capacity (cc)

1 997

Bore x stroke (mm)

85 x 88

Max power: EU standard (kW)*

120

Max power engine speed (rpm)

3 750

Max torque: EU standard (Nm)

340

Max torque engine speed (rpm)

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle filter

Yes

Engine oil capacity (in litres)
(with filter replacement)

5.25

DIESEL ENGINE AND GEARBOx

* The maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation

(directive 1999/99/CE).

196

RCZ_en_Chap09_caracteristiques_ed01-2015

Engine

2.0 Hdi 160 hp

Gearbox

Manual

(6-speed)

Model codes: 4j...

RHH-8

Unladen weight

1 370

Kerb weight

1 445

- Payload

455

Gross vehicle weight (GVW)

1 825

Gross train weight (GTW)

on a 12% gradient

2 325

Braked trailer (within GTW limit)

on a 10% or 12% gradient

500

Braked trailer* (with load transfer within GTW
limit)

650

Unbraked trailer

500

Recommended nose weight

The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned must be reduced by 10 % for
every additional 1000 metres.

The maximum permited speed is reduced when towing (observe the legislation in force in your country).

High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambient temperature is
higher than 37 °C, limit the towed weight.

DIESEL WEIGHTS AND TOWED LOADS (IN KG)

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same

amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

TECHNICAL

197

RCZ_en_Chap09_caracteristiques_ed01-2015

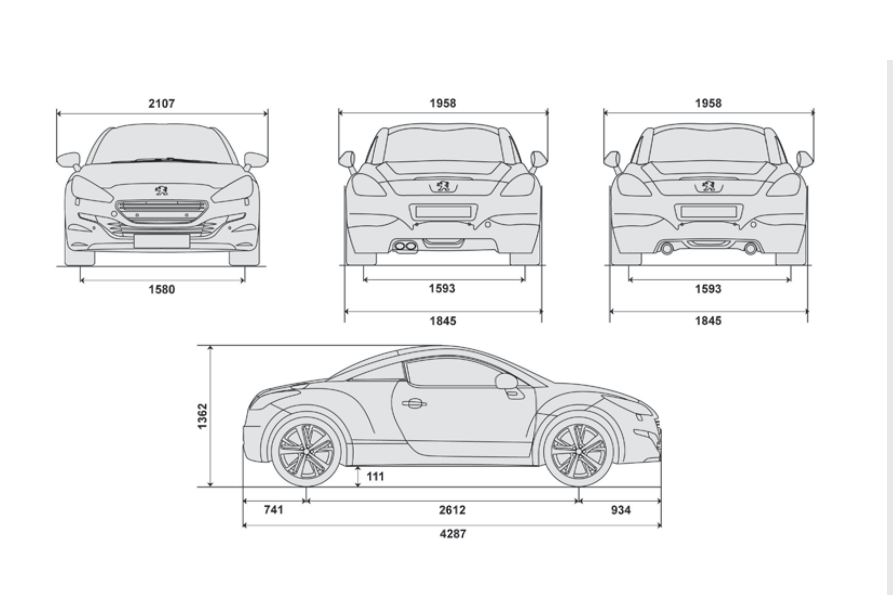

DIMENSIONS (IN MM)

All versions, except 1.6 THP 270 hp

198

RCZ_en_Chap09_caracteristiques_ed01-2015

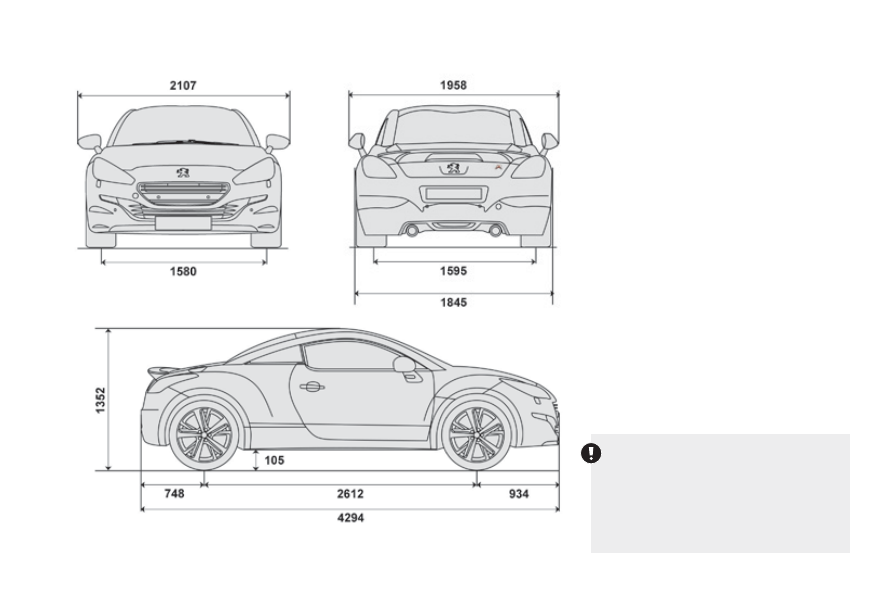

1.6 THP 270 hp version

Bumpers and lower body

Your vehicle has reduced ground clearance.

Take care when traversing kerbs, speed
humps, access ramps, fords, unmade
roads…

TECHNICAL

199

RCZ_en_Chap09_caracteristiques_ed01-2015

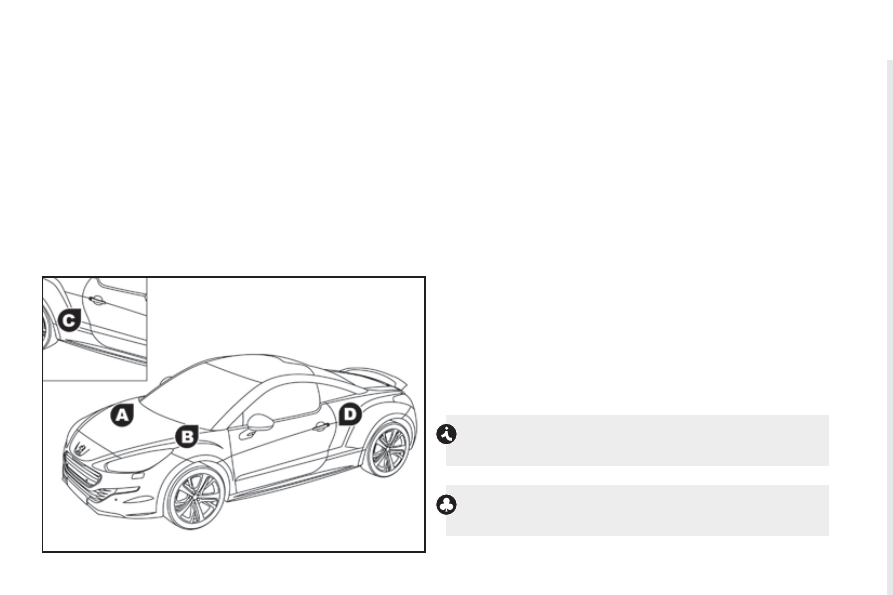

IDENTIFICATION MARKINGS

Various visible markings for the identification of your vehicle.

Vehicle identification number (VIN) under the bonnet.

This number is engraved on the bodywork near the damper
support.

For access to it, raise the plastic cover.

C. Manufacturer's label.

This self-destructing label affixed to the right hand middle door pillar
carries the following information:

- the manufacturer's name,

- the European Type Approval number,
- the vehicle identification number (VIN),
- the gross vehicle weight (GVW),

- the gross train weight (GTW),

- the maximum front axle weight,

- the maximum rear axle weight.

The tyre pressures must be checked when the tyres are cold, at
least once a month.

Low tyre pressures increase fuel consumption.

Vehicle identification number (VIN) at the bottom of the
windscreen.

This number is indicated on a self-adhesive label which is visible
through the windscreen.

d. Tyre/paint label.

This label, affixed to the door aperture, driver's side, carries the
following information:

- the tyre inflation pressures, laden and unladen,
- the tyre sizes (including the load index and speed rating),
- the inflation pressure of the spare wheel,
- the paint colour code.

201

RCZ_en_Chap10a_BTA_ed01-2015

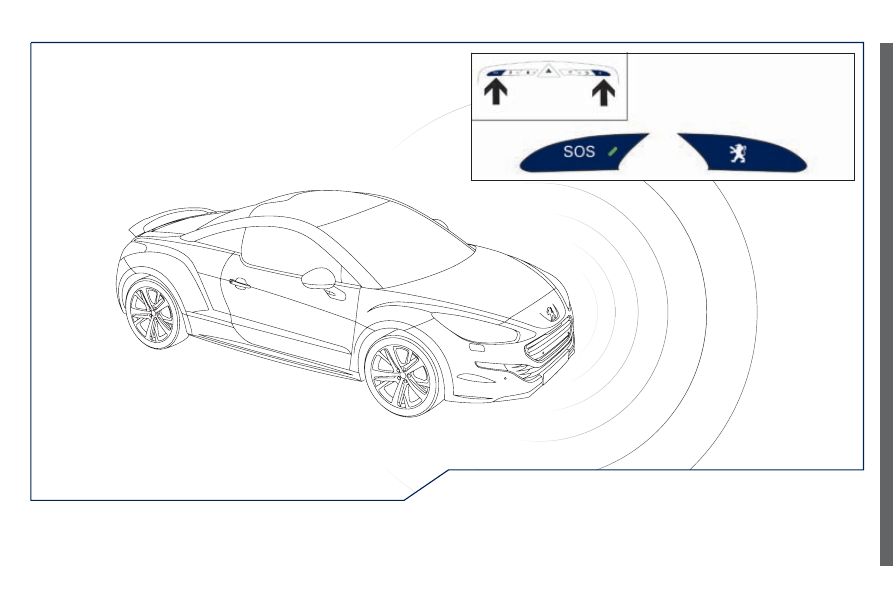

EMERGENCY OR ASSISTANCE CALL

202

RCZ_en_Chap10a_BTA_ed01-2015

EMERGENCY OR ASSISTANCE CALL

In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice

message confirm that the call has been made to the

"PEUGEOT Connect SOS" centre*.

The green LED remains on (without flashing) when communication is

established. It goes off at the end of communication.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.

Pressing this button again immediately cancels the request.

The cancellation is confirmed by a voice message.

Press this button for more than 2 seconds to request

assistance if the vehicle breaks down.
A voice message confirms that the call has been made**.

Pressing this button again immediately cancels the request. The green

LED goes off. Cancellation is confirmed by a voice message.
To cancel a call, tell the "PEUGEOT Connect SOS" call centre that the call
was a mistake.

"PEUGEOT Connect SOS" immediately locates your vehicle, starts
communication with you in your language**, and where necessary sends
the appropriate public emergency services**. In countries where the
service is not available, or when the locating service has been expressly
declined, the call sent directly to the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.

* Subject to the general conditions for the service available from dealers

and to technological and technical limitations.

If the orange LED flashes: there is a system

fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a PEUGEOT dealer.

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the configuration of these services

and, if desired, modified to suit your wishes. In a multi-lingual country,

configuration is possible in the official national language of your choice.

For technical reasons and in particular to improve the quality of

"PEUGEOT CONNECT services" services to customers, the manufacturer
reserves the right to carry out updates to the vehicle's on-board telematic
system.

PEUGEOT Connect SOS

PEUGEOT Connect Assistance

Operation of the system

** Depending on the geographical cover of "PEUGEOT Connect SOS",

"PEUGEOT Connect Assistance" and the official national language

selected by the owner of the vehicle.

The list of countries covered and PEUGEOT CONNECT services

services is available from dealers or at www.peugeot.co.uk.

203

RCZ_en_Chap10b_RT6-2-8_ed01-2015

The system is protected in such a way that it will only
operate in your vehicle.

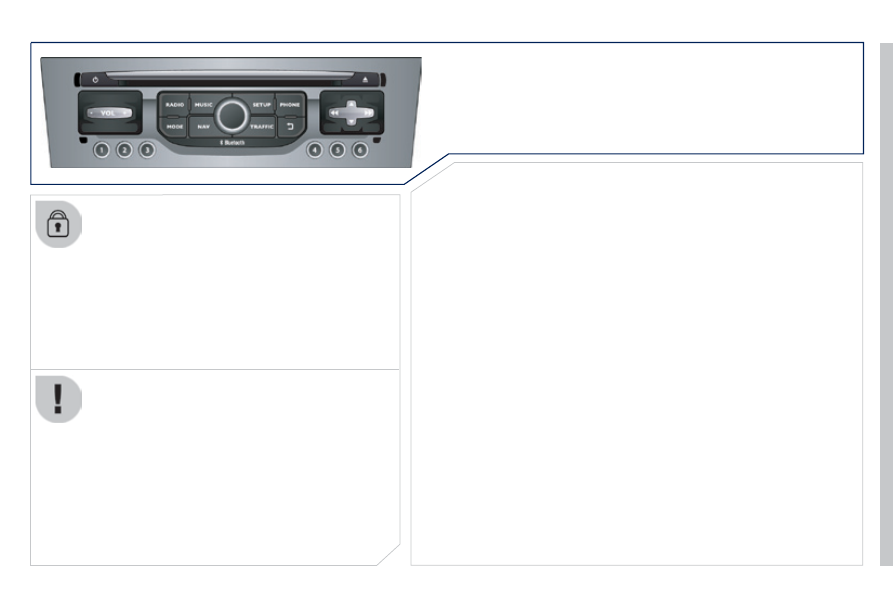

PEUGEOT Connect Navigation (RT6)

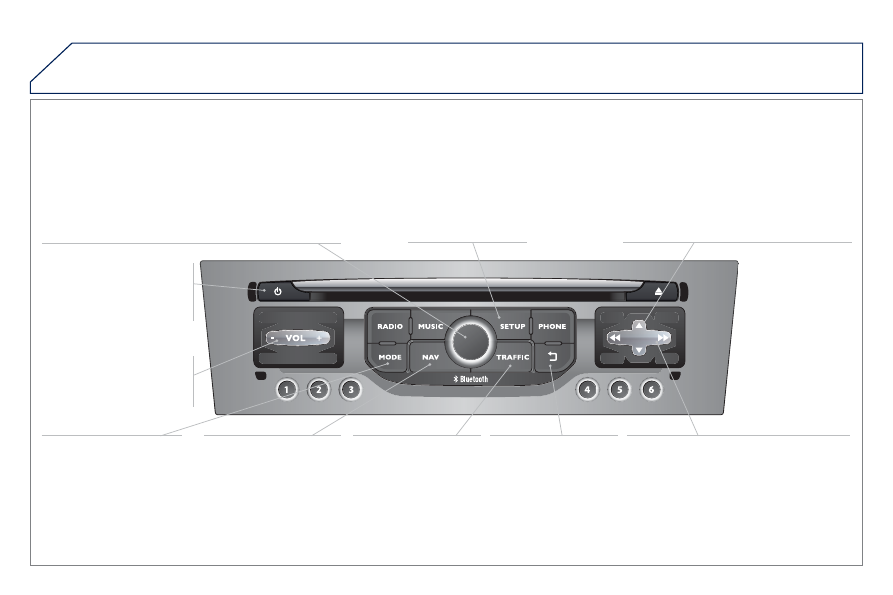

01 First steps - Control panel

For safety reasons, the driver must only carry out

operations which require prolonged attention while the

vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.

CONTENTS

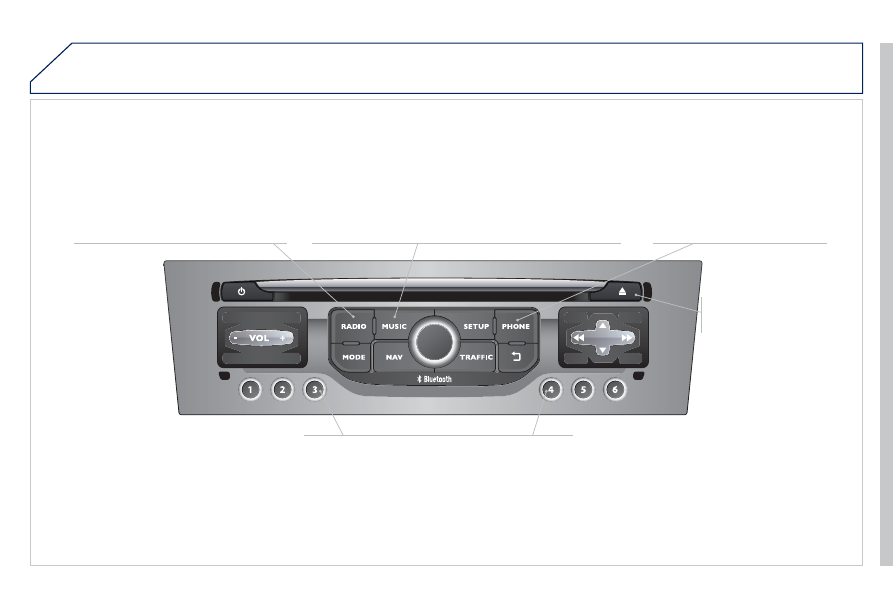

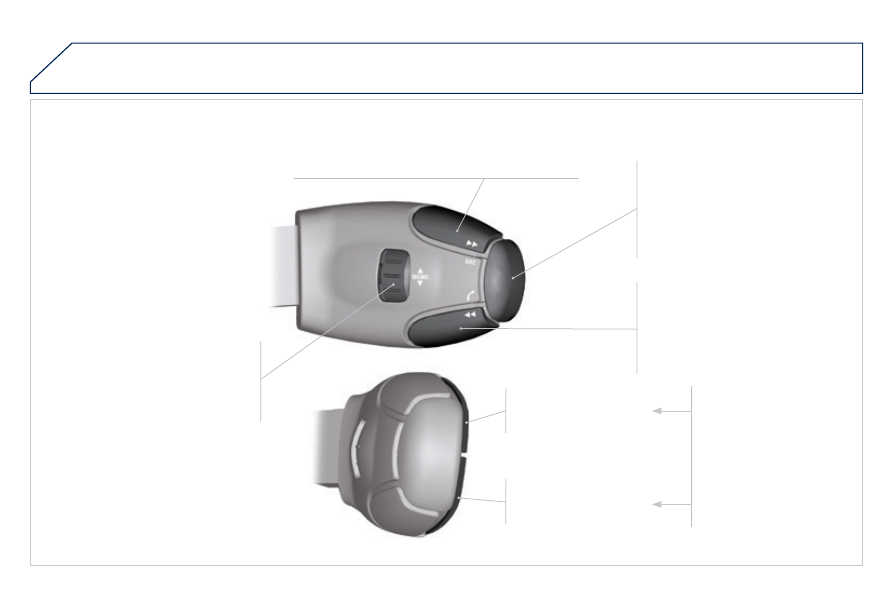

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

GPS navigation system
Multimedia audio system
Bluetooth

telephone

Frequently asked questions

p. 252

204

RCZ_en_Chap10b_RT6-2-8_ed01-2015

Select:
-

the next lower / higher radio

frequency automatically.

the previous / next CD track, MP3
track or media.

the left / right of the screen when a
menu is displayed.

Move left / right in "Move the map" mode.

Abandon the current
operation, up one level
in the menu.
Long press: return to
the permanent display.

Open the
"

Configuration" menu.

Long press: access
to the GPS coverage
and the navigation
demonstration mode.

Open the "

Traffic

information" menu
and display the current

traffic alerts.

Select:
-

the previous/next line in a list or menu.

the previous / next media folder.

step by step selection of the previous/

next radio frequency.

the previous / next MP3 folder.

Move up/down, in "Move the map" mode.

FIRST STEPS

Access to the
"Navigation - guidance"
menu and display the
recent destinations.

Short press without the
engine running: on / off.
Short press with the engine
running: audio source off /
restore.

MOdE button: Selection
of the type of permanent
display.
Long press: black
screen (DARK).

Selection and confirmation OK knob:
Selection of an item on the screen or in a list or a menu,

then confirmation with a short press.
Other than for menus and lists, a short press displays a
contextual menu depending on the current screen.
Rotation with map displayed: zoom the map scale in
and out.

Volume adjustment (each
source is independent,
including TA messages and
navigation instructions).

205

RCZ_en_Chap10b_RT6-2-8_ed01-2015

Continuous press:
reinitialisation of the system.

Open the "Telephone" menu
and display the list of recent
calls or accept an incoming call.

FIRST STEPS

Short press: select pre-set radio station.
Long press: pre-set the current station.

Access to the "MUSIC" menu, and display of the CD/MP3/
Apple

tracks and folders.

Long press: display the audio settings screen for the
"MEdIA" (CD/USB/iPod/Streaming/AUx) sources.

Access to the "RAdIO" menu and
display the list of stations received.
Long press: display the audio settings
screen for the radio tuner source.

206

RCZ_en_Chap10b_RT6-2-8_ed01-2015

RADIO: select the previous/next preset
station.
Select the next entry in the address book.

SRC/TEL button:
change the audio source,
start a call from the address book,
call/end call on the telephone,
press for more than 2 seconds: access
to the address book.

RADIO: change to the previous radio
station in the list.
Long press: automatic search for a

lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.

RADIO: change to the next radio station in the list.
Long press: automatic search for a higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.

Volume increase.

Volume decrease.

Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the
two volume buttons.

STEERING MOUNTEd CONTROLS

Content .. 11 12 13 14 ..
