Peugeot RCZ (2015 year). Instruction

PRACTICAL

INFORMA

TION

159

RCZ_en_Chap08_info-pratiques_ed01-2015

Raise the vehicle until there is sufficient space between the wheel

and the ground to admit the spare (not punctured) wheel easily.

F Remove the bolts and store them in a clean place.
F Remove the wheel.

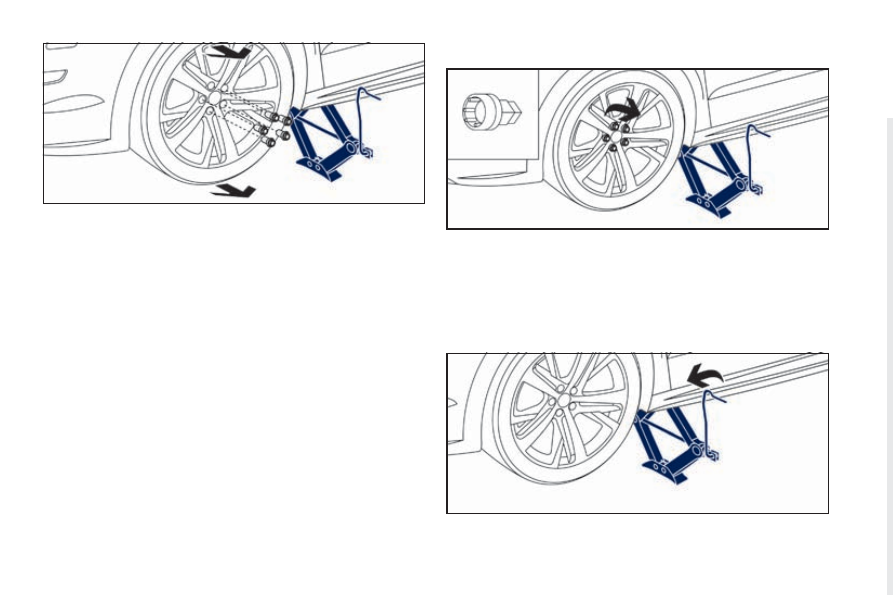

FITTING A WHEEL

F Put the wheel in place on the hub.
F Screw in the bolts by hand.
F

Pre-tighten the security bolt using the wheelbrace fitted with the

security socket.

F Pre-tighten the other bolts using the wheelbrace only.

F Lower the vehicle fully.
F Fold the jack and detach it.

160

RCZ_en_Chap08_info-pratiques_ed01-2015

TOOLS ANd SPARE WHEEL*

Depending on the country of sale, the vehicle is equipped with the tools

needed to change a wheel and may also be equipped with a spare
wheel.

The spare wheel is stowed in a protective cover, secured to the boot
floor with Velcro

The tools are held in a storage box under the boot floor.

Never drive with the rear seat folded when the
spare wheel - or a punctured wheel - is present
in the boot.

Warning marking

"Do not release the backrest of the rear seats!"

* According to country.

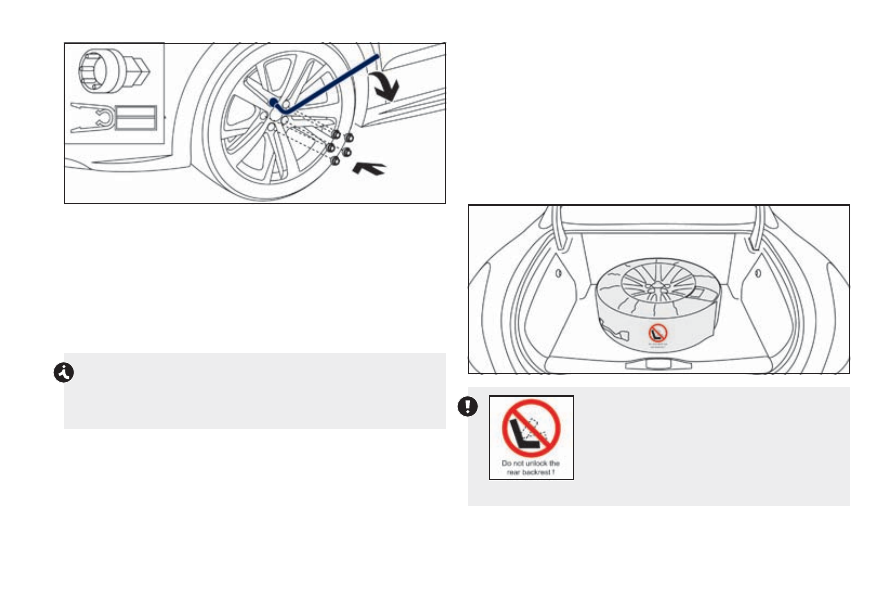

Tighten the security bolt using the wheelbrace fitted with the

security socket.

F Tighten the other bolts using the wheelbrace only.
F

Refit the covers on each of the bolts.

F Store the tools in the storage box.

After changing a wheel

Have the tightening of the bolts and the pressure of the new wheel
checked by a PEUGEOT dealer or a qualified workshop without
delay.

PRACTICAL

INFORMA

TION

161

RCZ_en_Chap08_info-pratiques_ed01-2015

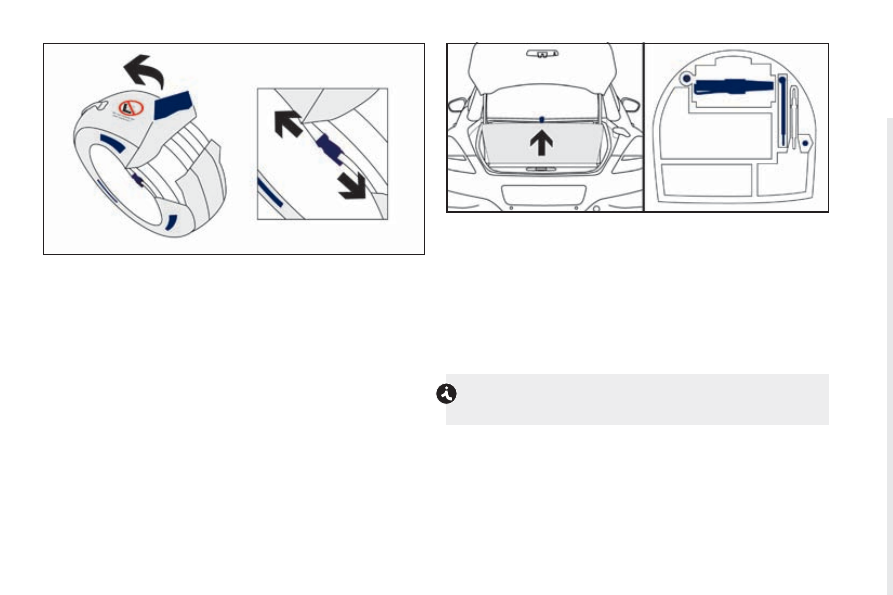

Access to the spare wheel*

F Open the boot lid.
F Remove the spare wheel by grasping the grip of its protective

cover.

F Position the wheel vertically so as to read the warning markings.
F Remove the Velcro

located on the tyre tread.

F Detach the straps, located on each sidewall, then slacken them.
F Remove the wheel from its protective cover.

When refitting the wheel into its cover, place it so that the valve is

opposite the strap fixings.

Access to tools*

F Open the boot lid.
F

Lift the boot floor using its strap.

F Fix it in the vertical position beyond the stops located on the boot

sides.

F Remove the temporary puncture repair kit for access to the jack.

* According to country.

All of these tools are specific to your vehicle. Do not use them for
other purposes.

162

RCZ_en_Chap08_info-pratiques_ed01-2015

SNOW CHAINS

Original tyre size

Maximum link size.

235/45 R18

cannot be fitted with chains

235/40 R19

225/45 R18

9 mm

For more information on snow chains, contact a PEUGEOT dealer or a
qualified workshop.

Use only the chains designed to be fitted to the type of wheel fitted to
your vehicle:

The snow chains must be fitted only to the front wheels. They

must never be fitted to "space-saver" type spare wheels.

Take account of the legislation in force in your country on the use
of snow chains and the maximum running speed authorised.

Avoid driving with snow chains on roads that have been cleared
of snow, to avoid damaging your vehicle's tyres and the road
surface. If your vehicle is fitted with alloy wheels, check that no

part of the chain or its fixings is in contact with the wheel rim.

In wintry conditions, snow chains improve traction as well as the
behaviour of the vehicle when braking.

Advice on installation

If you have to fit the chains during a journey, stop the vehicle on a

flat surface on the side of the road.

F Apply the parking brake and position any wheel chocks to prevent

movement of your vehicle.

F Fit the chains following the instructions provided by the

manufacturer.

F Move off gently and drive for a few moments, without exceeding

30 mph (50 km/h).

F Stop your vehicle and check that the snow chains are correctly

tightened.

It is strongly recommended that before you leave, you practise
fitting the snow chains on a level and dry surface.

PRACTICAL

INFORMA

TION

163

RCZ_en_Chap08_info-pratiques_ed01-2015

CHANGING A WIPER BLADE

BEFORE REMOVING A WIPER BLAdE

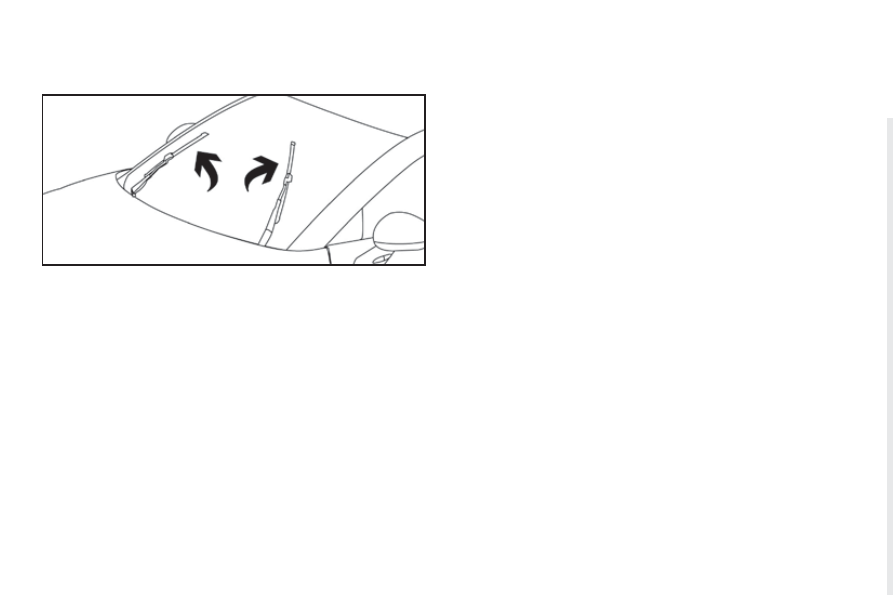

F Within one minute after switching off the ignition, operate the wiper

stalk to position the wiper blades in the centre of the windscreen.

REMOVING

F Raise the corresponding wiper arm.
F Unclip the wiper blade and remove it.

FITTING

F Put the corresponding new wiper blade in place and clip it.
F Fold down the wiper arm carefully.

AFTER FITTING A WIPER BLAdE

F Switch on the ignition.
F Operate the wiper stalk again to park the wiper blades.

164

RCZ_en_Chap08_info-pratiques_ed01-2015

ENERGY ECONOMY MODE

System which manages the duration of use of certain functions to
conserve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as
the audio and telematics system, windscreen wipers, dipped beam
headlamps, courtesy lamps, etc. for a maximum combined duration of
thirty minutes.

GOING INTO TO ECONOMY MOdE

Once this period has elapsed, a message appears in the multifunction
screen indicating that the vehicle has gone into economy mode and the
active functions are put on standby.

This period may be reduced considerably if the battery is not fully
charged.

If a telephone call is being made at this time, it will be maintained
for 5 minutes with the hands-free kit of your PEUGEOT Connect
Sound (RD5) or PEUGEOT Connect Navigation (RT6).

COMING OUT OF ECONOMY MOdE

These functions are reactivated automatically next time the vehicle is
started.

To resume the use of these functions immediately, start the engine and
let it run for at least 5 minutes.

A flat battery prevents the engine from starting (refer to the "12 V
battery" section).

LOAD REDUCTION MODE

System which manages the use of certain functions according to the
level of charge remaining in the battery.

When the vehicle is being driven, the load reduction function temporarily
deactivates certain functions, such as the air conditioning, the heated
rear screen...

The deactivated functions are reactivated automatically as soon as
conditions permit.

Observe this minimum period of engine running to maintain the correct
level of charge in the battery.

Do not repeatedly restart of the engine to restore immediate use of
systems.

PRACTICAL

INFORMA

TION

165

RCZ_en_Chap08_info-pratiques_ed01-2015

12 V BATTERY

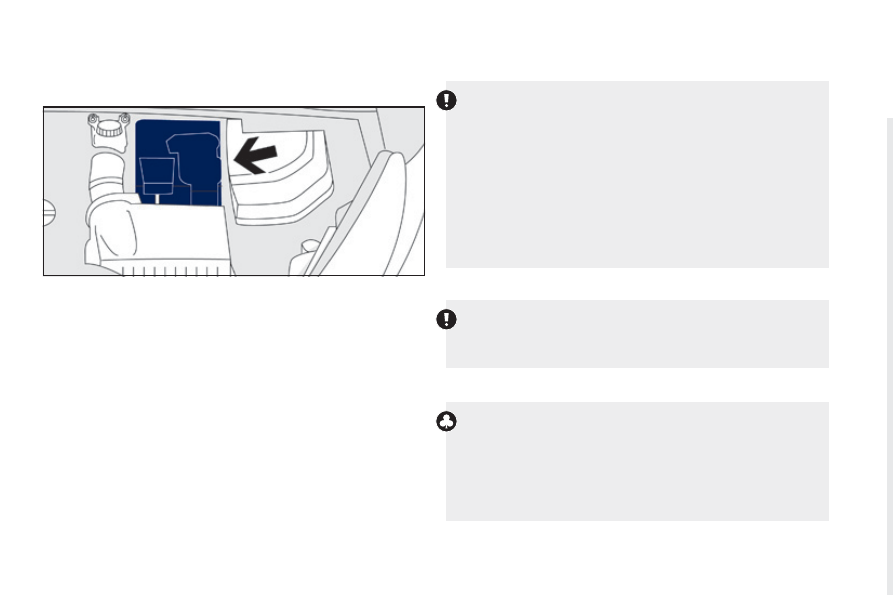

The battery is located under the bonnet.

For access to it:
F open the bonnet using the interior release lever, then the exterior

safety catch,

F remove the plastic cover for access to the two terminals,
F unclip the fusebox to remove the battery, if necessary.

ACCESS TO THE BATTERY

Before doing any work

Immobilise the vehicle: apply the parking brake, put the gearbox
into neutral (or position P if your vehicle has an automatic
gearbox), then switch off the ignition.

Check that all electrical systems are off.

Do not reverse the polarity and use only a 12 V charger.

Do not disconnect the terminals while the engine is running.

Do not charge the batteries without disconnecting the terminals
first.

Ensure that the battery posts and terminals are clean. If covered
in sulphate (white or green deposits), remove and clean them.

The batteries contain harmful substances such as sulphuric
acid and lead. They must be disposed of in accordance with
regulations and must not, in any circumstances, be discarded with
household waste.

Take used remote control batteries and vehicle batteries to a
special collection point.

166

RCZ_en_Chap08_info-pratiques_ed01-2015

Some functions are not available if the battery is not sufficiently
charged.

STARTING USING ANOTHER BATTERY

When your vehicle's battery is discharged, the engine can be started
using a slave battery (external or on another vehicle) and jump lead
cables.

First check that the slave battery has a nominal voltage of 12 V
and a capacity at least equal to that of the discharged battery.
Do not try to start the engine by connecting a battery charger.

Do not disconnect the (+) terminal when the engine is running.

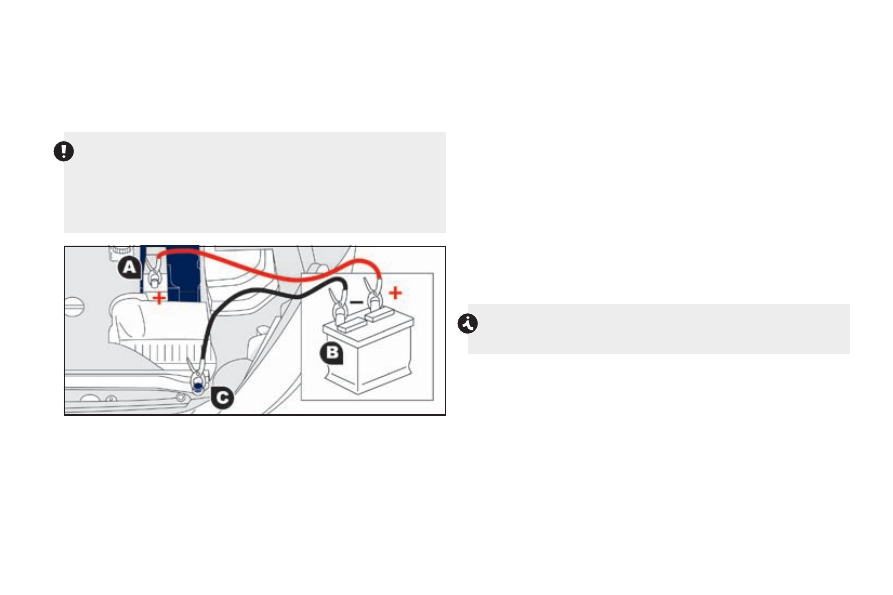

F Remove the plastic cover from the (+) terminal, if your vehicle has

one.

Connect the red cable to the positive terminal (+) of the flat

battery A, then to the positive terminal (+) of the slave battery B.

F Connect one end of the green or black cable to the negative

terminal (-) of the slave battery B (or earth point on the other
vehicle).

F Wait until the engine returns to idle then disconnect the jump lead

cables in the reverse order.

Refit the plastic cover to the (+) terminal, if your vehicle has one.

F Connect the other end of the green or black cable to the earth

point C on the broken down vehicle (or on the engine mounting).

F Start the engine of the vehicle with the good battery and leave it

running for a few minutes.

F Operate the starter on the broken down vehicle and let the engine

run.

If the engine does not start straight away, switch off the ignition and
wait a few moments before trying again.

PRACTICAL

INFORMA

TION

167

RCZ_en_Chap08_info-pratiques_ed01-2015

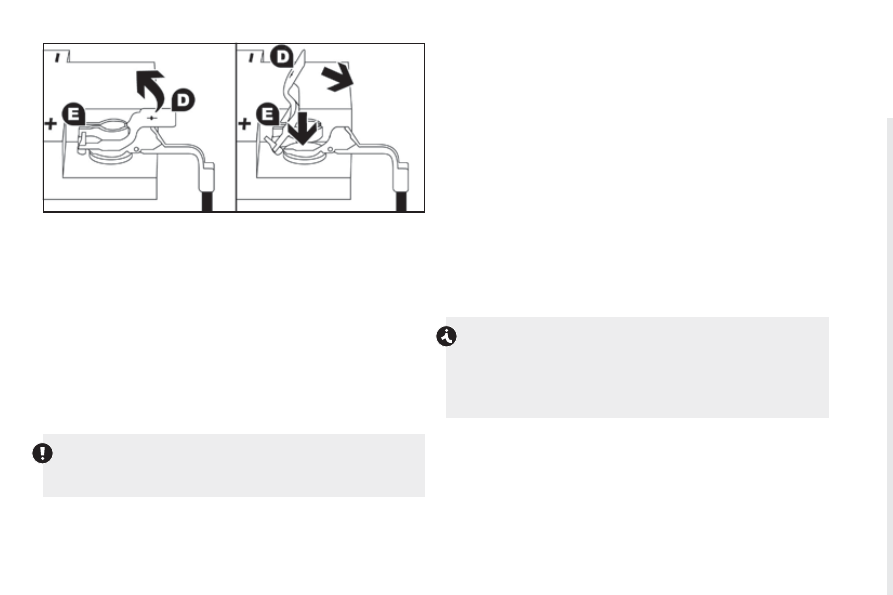

dISCONNECTING THE (+) TERMINAL

F Raise the lever d fully to release the clamp E.

RECONNECTING THE (+) TERMINAL

F Position the open clamp E of the cable on the positive post (+) of

the battery.

F Press down on the clamp to position it correctly on the battery post.
F Lock the clamp by lowering the lever d.

Do not force the lever as locking will not be possible if the clamp is
not positioned correctly; start the procedure again.

CHARGING THE BATTERY USING A BATTERY
CHARGER

When your vehicle's battery is discharged or when the vehicle is to be
out of use for a prolonged period, you can charge the battery using a
battery charger.
Contact a PEUGEOT dealer or a qualified workshop for the specification
of chargers compatible with your battery.

Before disconnecting

F  Go to the battery.
F  Withdraw the active spoiler.
F  Check that the doors and boot are closed but not locked.
F  Switch off the ignition and wait for at least four minutes.

If the vehicle is to not going to be used for more than a month, it is
recommended that the battery be disconnected.

To avoid discharging the battery, do not leave the lighting on for
extended periods when the engine is not running (see the "Energy
economy mode" section).

168

RCZ_en_Chap08_info-pratiques_ed01-2015

Charging

F Disconnect the (+) terminal.
F Follow the instructions for use provided by the manufacturer of the

charger.

F Connect the charger's red cable to the (+) terminal of the battery,

then the black cable to the (-) terminal.

F Once the battery is fully charged, disconnect the charger cables in

reverse order.

Charging should be carried out in a well-ventilated area and away
from naked flames and sources of sparks, so as to avoid any risk

of explosion and fire.
Do not try to charge a frozen battery; first thaw it out so as to
avoid the risk of explosion.

If the battery had frozen, before charging, have it checked by a
PEUGEOT dealer or qualified workshop who will ensure that the
internal components have not been damaged and that the casing
is not cracked, which would cause a leak of toxic and corrosive
acid.

REINITIALISATION AFTER RECONNECTION

After any reconnection of the battery, switch on the ignition and wait at
least one minute before starting, to allow time for the initialisation of the
electronic systems.

By referring to the corresponding sections, you should set or initialise
the following systems yourself:

remote control,

electric windows and automatic partial opening of door glasses,

time and date,

audio and navigation system settings.

Check that no alert message or warning lamp comes on after switching
on the ignition.

However, if minor problems persist after carrying out these operations,
contact a PEUGEOT dealer or a qualified workshop.

PRACTICAL

INFORMA

TION

169

RCZ_en_Chap08_info-pratiques_ed01-2015

CHANGING A BULB

The headlamps are fitted with polycarbonate glass with a
protective coating:
F do not clean them using a dry or abrasive cloth, nor with

a detergent or solvent product,

F use a sponge and soapy water or a pH neutral product,
F when using a high pressure washer on persistent marks, do

not keep the lance directed towards the lamps or their edges
for too long, so as not to damage their protective coating and
seals.

FRONT LAMPS

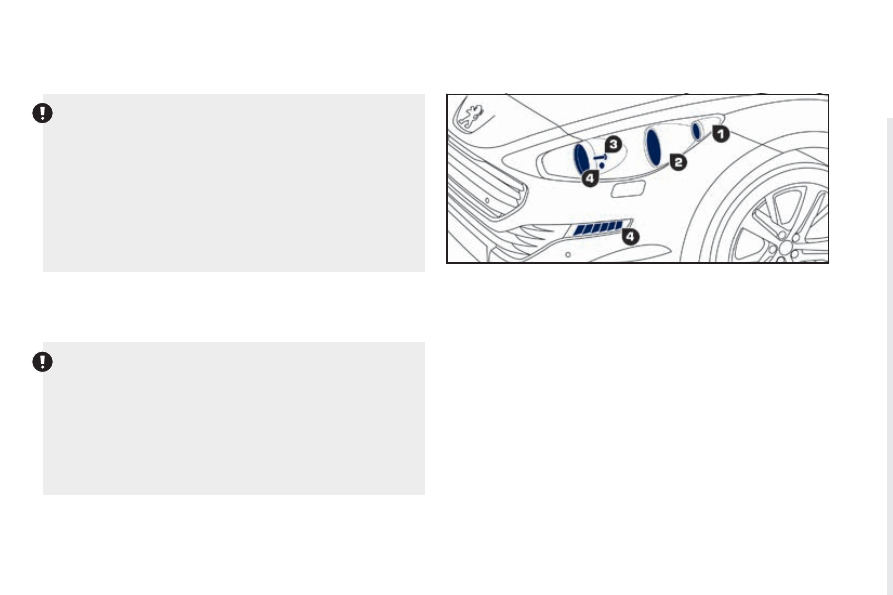

Model with halogen headlamps

1. direction indicators (PY21W amber).

2. dipped beam headlamps (H7).

3. Main beam headlamps (H1).

4. daytime running lamps / sidelamps (P21/5W)

daytime running lamps / sidelamps (LEds).

Changing a bulb should only be done after the headlamp has been
switched off for several minutes (risk of serious burns).
F

Do not touch the bulb directly with your fingers, use a lint-free

cloth.

It is imperative to use only anti-ultraviolet (UV) type bulbs to avoid
damaging the headlamp.

Always replace a failed bulb with a new bulb with the same type
and specification.

170

RCZ_en_Chap08_info-pratiques_ed01-2015

1. direction indicators (PY21W SV silver).

2. directional dipped / main beam headlamps (d1S).

3. Additional main beam headlamps (H1).

4. daytime running lamps / sidelamps (P21/5W)

daytime running lamps / sidelamps (LEds).

Model with xenon and directional headlamps

Risk of electrocution

xenon bulbs (D1S) must be replaced by a PEUGEOT dealer or a
qualified workshop.

Changing direction indicator bulbs

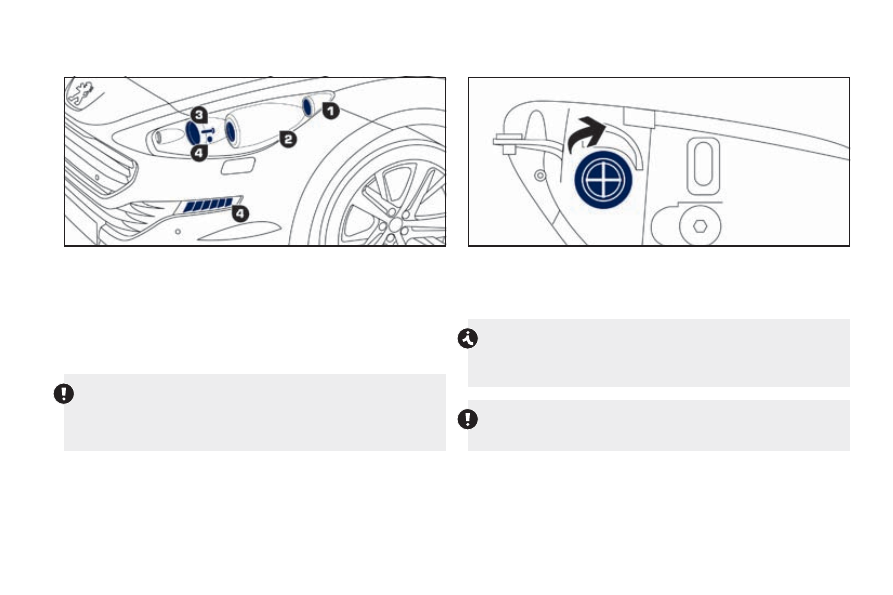

Turn the bulb holder a quarter of a turn and extract it.

F Pull the bulb out and change it.
To refit, carry out these operations in reverse order.

Amber or silver coloured bulbs, such as the direction indicators,
must be replaced with bulbs of identical specifications and colour.

When refitting, close the protective cover carefully to assure the
sealing of the headlamp.

PRACTICAL

INFORMA

TION

171

RCZ_en_Chap08_info-pratiques_ed01-2015

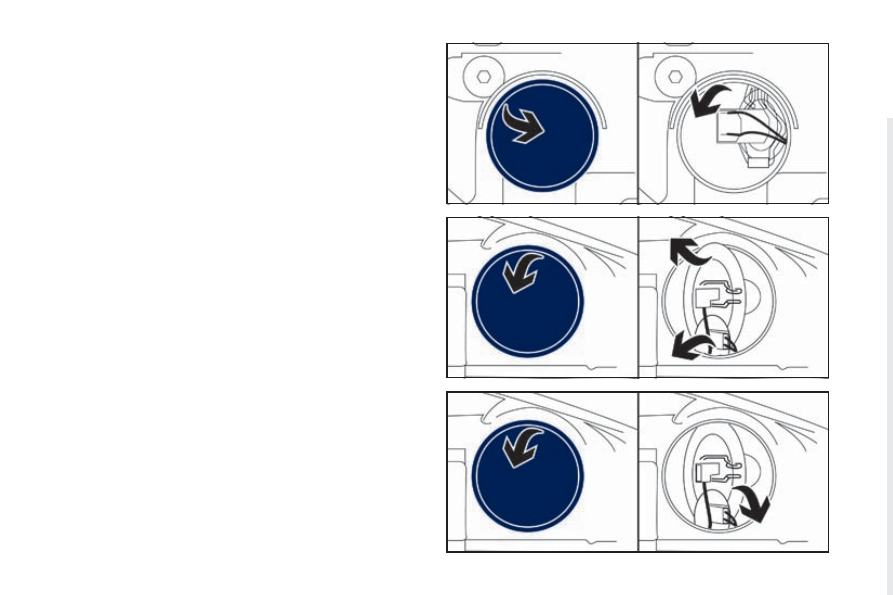

Changing dipped beam headlamp bulbs

F  Remove the protective cover by pulling the tab.
F  Disconnect the bulb connector.
F  Spread the springs to release the bulb.
F  Pull the bulb out and change it.
To refit, carry out these operations in reverse order.

Changing main beam headlamp bulbs

F  Remove the protective cover by pulling on the tab.
F  Disconnect the bulb connector.
F  Compress the springs to release the bulb.
F  Remove the bulb and change it.
To refit, carry out these operations in reverse order.

Changing daytime running lamp / sidelamp bulbs

F Remove the protective cover by pulling on the tab.
F Disconnect the bulb connector.
F

Turn the bulb holder a quarter of a turn and extract it.

F Pull the bulb and change it.
To refit, carry out these operations in reverse order.

172

RCZ_en_Chap08_info-pratiques_ed01-2015

Changing integrated direction indicator side repeaters

Changing the daytime running lamps / sidelamps

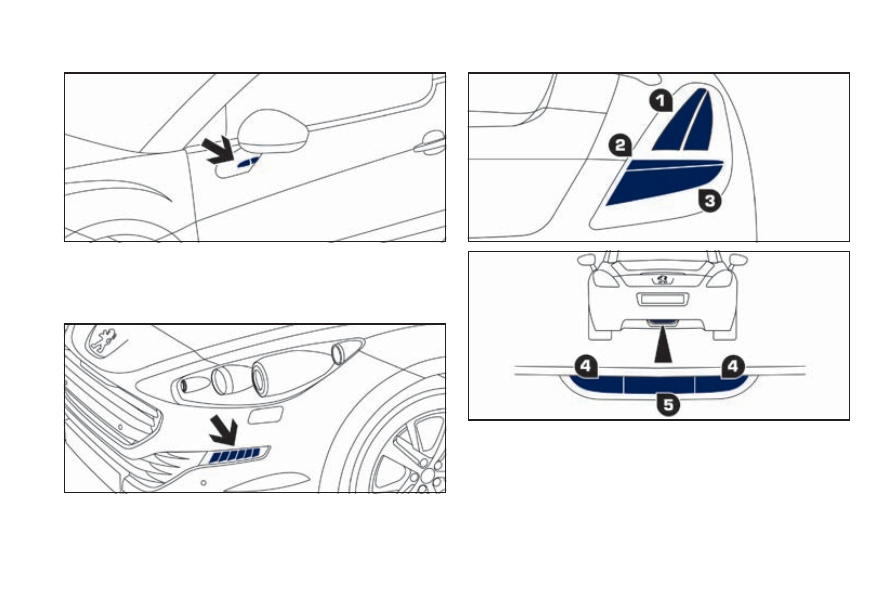

REAR LAMPS

1. Sidelamps (LEds).

2. direction indicators (LEds).

3. Brake lamps / sidelamps (P21/5W).

4. Reversing lamps (P21W).

5. Foglamp (P21W).

For the replacement of this type of LED lamp, contact a PEUGEOT
dealer or a qualified workshop.

For the replacement of these bulbs, contact a PEUGEOT dealer or a
qualified workshop.

PRACTICAL

INFORMA

TION

173

RCZ_en_Chap08_info-pratiques_ed01-2015

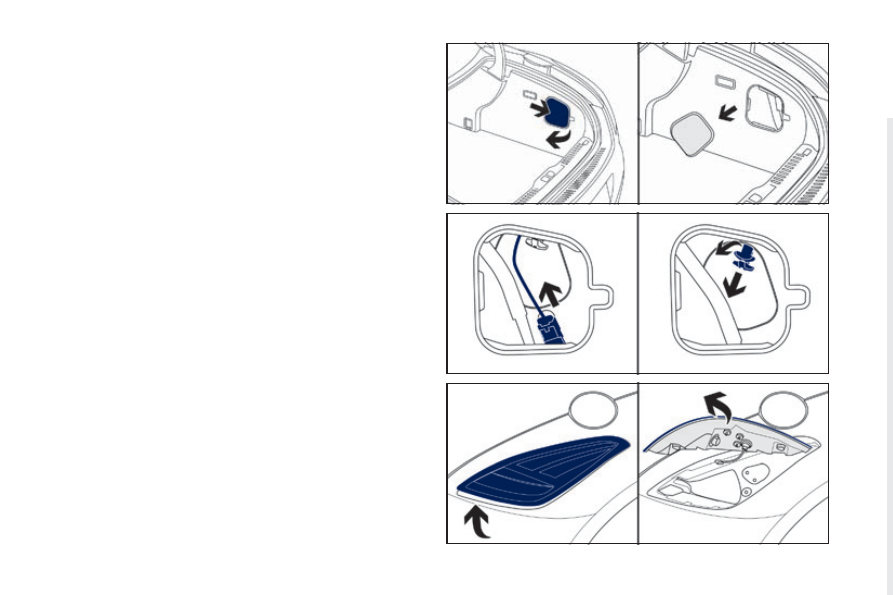

Changing brake lamps / sidelamps

This bulb is changed from outside the boot, having first removed the
rear lamp:
F open the boot lid,
F

unclip the access flap of the corresponding side trim, then remove it,

F unclip the lamp taking hold of it at the base, then tilt it,
F

turn the bulb holder one quarter of a turn and remove it,

turn the bulb one quarter of a turn and change it.

To refit, carry out these operations in reverse order.

F disconnect the lamp connector,
F

remove the two lamp fixing bolts,

174

RCZ_en_Chap08_info-pratiques_ed01-2015

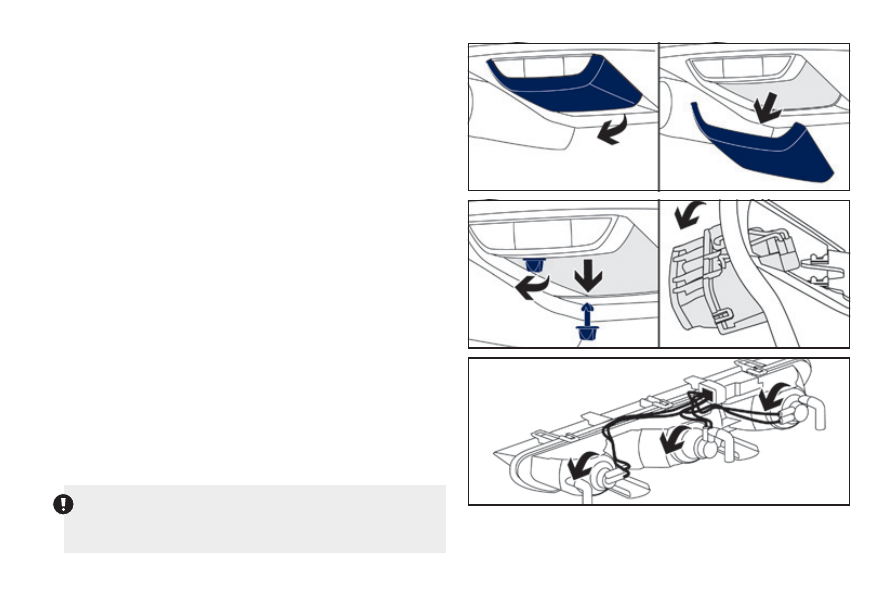

Changing reversing lamps and foglamps

Version with asymmetrical twin exhaust tailpipes

These two bulbs are changed from outside the rear bumper:
F unclip the protective cover from the rear, then tilt it,
F

remove it completely to gain access to the two lamp fixing bolts,

On the left-hand side, take care not to touch the silencer; risk
of burns, if you change the bulb immediately after switching
off the ignition.

turn these two bolts one quarter of a turn and remove them,

F push the lamp towards the inside to unclip it, then tilt it,
F pull the lamp towards the outside for access to the various bulb-

holders.

- For the reversing lamps: pull the corresponding bulb holder,
- turn the bulb one quarter of a turn and change it.
- For the foglamp: turn the bulb holder one quarter of a turn and

remove it,

- turn the bulb one quarter of a turn and change it.

To refit, carry out these operations in reverse order.

Peugeot RCZ (2015 year). Instruction - part 11
