Peugeot Partner VP Dag (2007 year). Instruction - part 3

Audio equipment -

CASSETTE:

AUDIO RB3

Selecting cassette mode

Recommendations for using

casssettes

- Use good quality cassettes.

- Avoid the use of cassettes which

play for longer than 90 minutes.

- Never expose the cassettes to heat

or the direct rays of the sun.

- Re-tighten the tape if necessary

before inserting the cassette in the

player.

- Clean the playing head regularly

with a damp type cleaning cas-

sette.

When a cassette is

inserted, the cassette

player will start auto-

matically.

If a cassette is already inserted,

press button

"SRC" several times to

select cassette mode.

Note: before inserting the cassette,

ensure that the tape is taut.

Ejecting the cassette

Direction of play

The player will play sides 1 and 2 of

the cassette alternately, by automati-

cally reversing the direction of play at

the end of a side.

To manually reverse the direction of

play, press the 2 buttons

F and G half

way.

Fully press buttons

and

G to eject the cas-

sette from the player.

Fast forward/rewind

Fully press button

F or G to fast for-

ward or rewind the cassette. At the

end of the fast forward/rewind, the

set plays the current side.

Audio equipment

28 -

AUDIO RD3

Stalk movement

Function

1 - Press (behind)

Increase volume

2 - Press (behind)

Decrease volume

1 + 2 - Simultaneous press

Sound cut-off (mute); restoring of the sound by pressing any button

3 - Press

Automatic search of higher frequencies (radio) - Selection of next track (CD)

4 - Press

Automatic search of lower frequencies (radio) - Selection of previous track (CD)

5 - Press the end

Change of source (radio/CD)

6 - Rotation

(clockwise)

Selection of next station stored in memory (radio) - Selection of next CD

7 - Rotation

(anti-clockwise)

Selection of previous station stored in memory (radio) - Selection of previous CD

Audio equipment -

Button

Function

Radio on/off

Decrease volume

Increase volume

RDS

RDS function on/off

Press for more than 2 seconds: regional following mode on/off

Trafﬁc information priority on/off

Press for more than 2 seconds: PTY function on/off



Selection of bass, treble, loudness, sound distribution

and automatic volume correction



Increase the setting of the functions associated with button



Decrease the setting of the functions associated with button



Manual and automatic search of higher frequency

Selection of next CD track and PTY (radio)

MAN

Manual/automatic operation of buttons

L and N



Manual and automatic search of lower frequency.

Selection of previous CD track and PTY (radio)

Selection of CD

Press for more than 2 seconds: shufﬂe

Radio

Selection of radio. Selection of FM1, FM2, FMAST, AM wavebands

Press for more than 2 seconds: automatic storing of stations in memory (autostore)



Ejection of CD

1 to 6

1 2 3 4 5 6 Selection of station stored in memory - Selection of a CD

Press for more than 2 seconds: storing of a station in memory

Audio equipment

36 -

Ejection of a disc

Shufﬂe (RDM)

When the CD player is selected, keep

button

Q pressed for two seconds.

The tracks will be played in random

sequence. Pressing the button again

for two seconds returns you to nor-

mal play.

Shufﬂe mode is de-activated each

time the audio system is switched

off.

After insertion of a

disc, printed face

upwards, the player

starts automatically.

If a disc is already inserted, press

button

COMPACT DISC:

AUDIO RD3

Selecting CD mode

The use of copied compact

discs may cause faults.

Insert circular compact discs

only.

Selecting a track

Press button

L to select the next

track.

Press button

N to return to the start

of the current track or to select the

previous track.

Press button

S to

eject the disc from the

player.

Accelerated play

Keep button

L or N pressed for for-

wards or backwards accelerated

play.

Accelerated play stops as soon as

the button is released.

Ventilation

38 -

Ventilation -

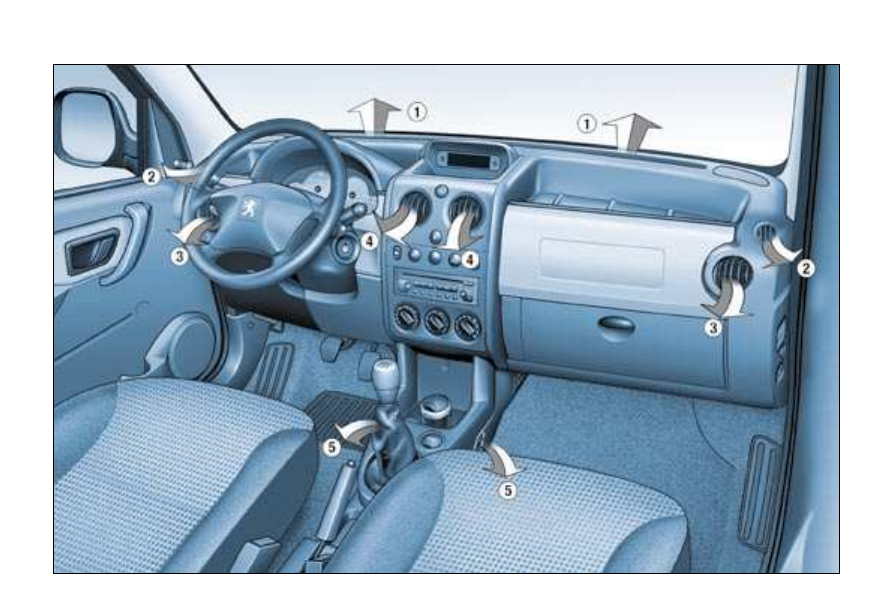

VENTILATION

1. Windscreen de-icing or

demisting vents.

2. Front window de-icing or

demisting vents.

3. Side vents.

4. Centre vents.

5. Air outlets to front footwells.

De-icing the rear screen and

mirrors

With the engine running, pressing

the control de-ices the rear screen

and mirrors.

It switches off automatically after

approximately twelve minutes.

Pressing the control again switches

the de-icing system on again for

twelve minutes.

It is possible to switch off the de-icing

by pressing the control before the

twelve minutes have elapsed.

The air conditioning system does not

contain chlorine and does not pres-

ent any danger to the ozone layer.

Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month, to keep it in perfect working

order.

The water created by the air condi-

tioning condensation is discharged

via an opening provided for this pur-

pose. Therefore, a puddle of water

may form underneath the vehicle

when stationary.

If the system does not produce cold

air, do not use it and contact your

PEUGEOT dealer.

Advice on operation

Select the air distribution most suited

to your requirements and the climatic

conditions.

Gradually adjust the temperature

setting for your comfort.

Position the air control in the "Outside

Air" position.

For perfectly even air distribution,

take care not to obstruct the exterior

air intake grille and the vents. Check

that the passenger compartment ﬁlter

is in good condition.

When the engine is cold, to prevent

too great a distribution of cold air, the

ventilation will increase to its opti-

mum level gradually.

In order to be effective, the air

conditioning (

A/C button), should only

be used with the windows closed.

If the interior temperature remains

very high following a prolonged period

parked in the sun, do not hesitate to

ventilate the passenger compartment

for a few minutes.

Ventilation

40 -

Turn the control from posi-

tion

1 to position 4 to obtain

an air ﬂow sufﬁcient to ensure

your comfort.

HEATING

1. Air ﬂow adjustment

2. Air ﬂow adjustment and air

intake control

Turn the control from position

1 to position 4 to obtain an

air ﬂow sufﬁcient to ensure

your comfort.

Intake of exterior air.

This is the normal operating position.

Passenger compartment

isolation.

This position prevents exterior odours

and smoke entering the passenger

compartment.

As soon as possible, position the

control in the exterior air intake

position to prevent misting of the

windows.

Ventilation -

To quickly de-ice or demist the wind-

screen and side windows:

- position the air intake control in the

"Outside Air" position,

- turn the temperature and air ﬂow

controls to maximum,

- close the centre vents.

3. Temperature adjustment

To be adjusted to your requirements.

From blue (exterior temperature) to

red (hot).

Windscreen, side windows

and footwells.

4. Air distribution adjustment

Windscreen and side win-

dows (de-icing/demisting).

Footwells.

These settings are recommended for

cold climates.

Centre and side vents.

This setting is recommended for high

temperatures.

Ventilation

42 -

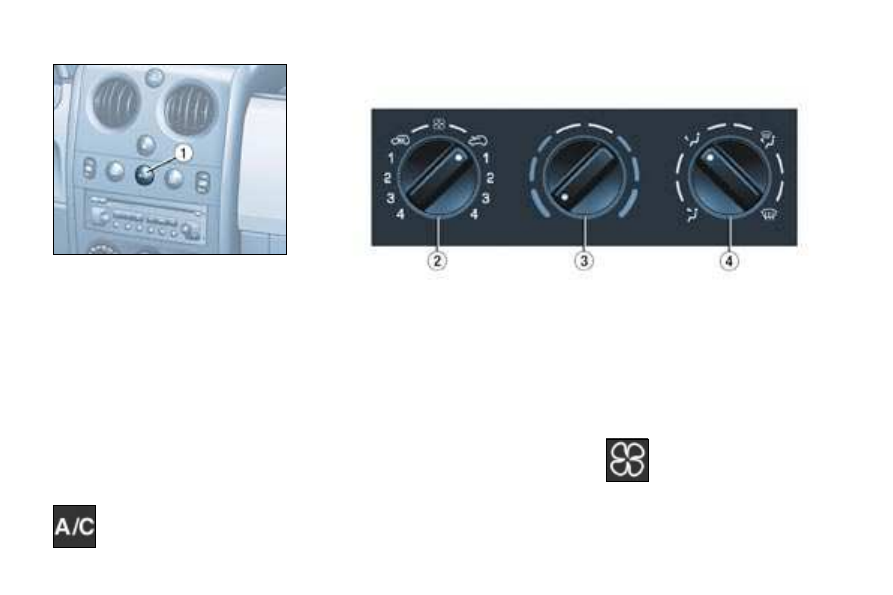

AIR CONDITIONING

The air conditioning does not op-

erate while the air ﬂow adjustment

control is in the minimum position.

Note: to optimise the operation of

the air conditioning, leave the vents

open.

Press the switch to activate the

air conditioning. The indicator

light comes on.

2. Air ﬂow adjustment and air

intake control

Turn the control from posi-

tion

1 to position 4 to obtain

an air ﬂow sufﬁcient to ensure

your comfort.

1. Air conditioning control

The air conditioning is designed to

operate in all seasons. In summer,

it enables the temperature to be

lowered and in winter, above 0 °C,

it increases the effectiveness of the

demisting.

Ventilation -

This position prevents exterior odours

and smoke entering the passenger

compartment.

Used simultaneously with the air

conditioning, recirculation enables

both heating and cooling performance

to be improved.

Used without the air conditioning,

recirculation may result in misting of

the windows.

As soon as possible, position the

control in the exterior air intake

position.

To quickly de-ice or demist the wind-

screen and side windows:

- turn the temperature and air ﬂow

controls to maximum,

- close the centre vents,

- position the air intake control in the

"Outside Air" position,

- start the air conditioning.

Intake of exterior air.

4. Air distribution adjustment

Windscreen and side windows

(de-icing/demisting).

This is the normal operating position.

Recirculation of interior air.

3. Temperature adjustment

To be adjusted to your requirements.

From blue (cold when the air condi-

tioning is on) to red (hot).

Windscreen, side windows

and footwells.

Footwells.

These settings are recommended for

cold climates.

Centre and side vents.

This setting is recommended for high

temperatures.

Additional heater

Vehicles which are ﬁtted with an HDI

engine may be ﬁtted with automatic

additional heating to improve your

comfort.

When the engine is idling or the ve-

hicle is stationary, it is quite normal to

notice a high-pitched whistling noise

and a slight emission of smoke and

odour.

Seats and bench seats

44 -

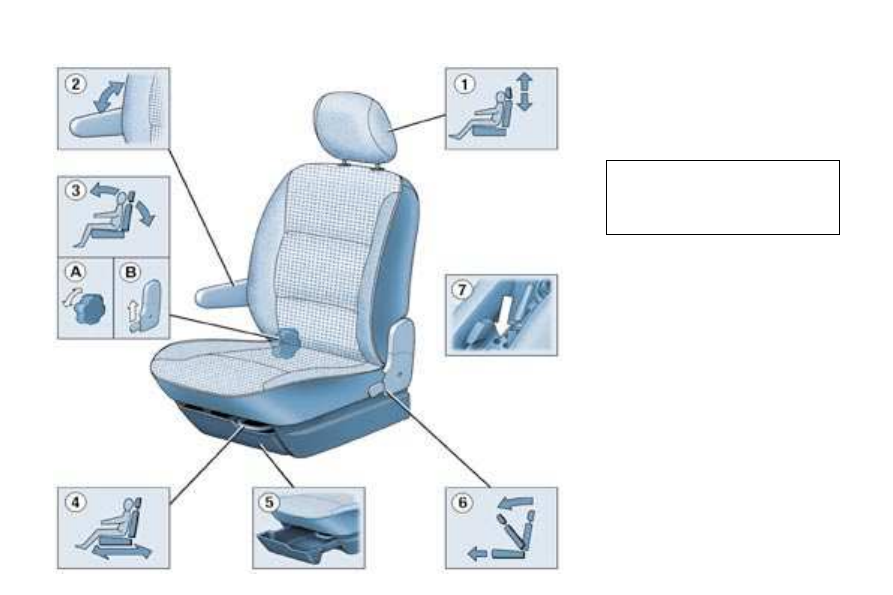

FRONT SEATS

1. Head restraint height

adjustment

To raise or lower the restraint, slide it.

The adjustment is correct when

the upper edge of the head re-

straint is level with the top of the

head.

To remove the head restraint, place it

in the top position, press the tabs and

pull it upwards.

To put it back in position, locate the

stems of the restraint in the holes,

taking care to keep them in line with

the seat back.

2. Armrests

These can be folded back.

3. Seat back angle adjustment

A. Turn the knob.

B. Pull the lever (version with one

sliding side door only).

Seats and bench seats -

4. Forwards-backwards

adjustment

Lift the control and slide the seat

forwards or backwards.

5. Storage drawer (version with

passenger air bag)

There is a storage drawer under the

front passenger seat.

To open it, lift it and pull.

7. Heated seats switch

(according to model)

Press the switch. The temperature is

controlled automatically.

Pressing the switch again stops

operation.

Note: the command for activation

of heating of the seat(s) remains

memorised for two minutes after the

ignition has been switched off.

No person or object must

prevent the seat from re-

turning to its initial position;

return to this position is nec-

essary for the seat to lock in

place.

Never drive with the head re-

straints removed; they must

be in place and correctly ad-

justed.

Do not place heavy objects in the

drawers.

6. Access to rear seats

(version with one sliding

side door only)

Lift the control to fold the seat back

and move the seat forwards.

On repositioning, the seat returns to

its initial position (driver’s side).

Seats and bench seats

46 -

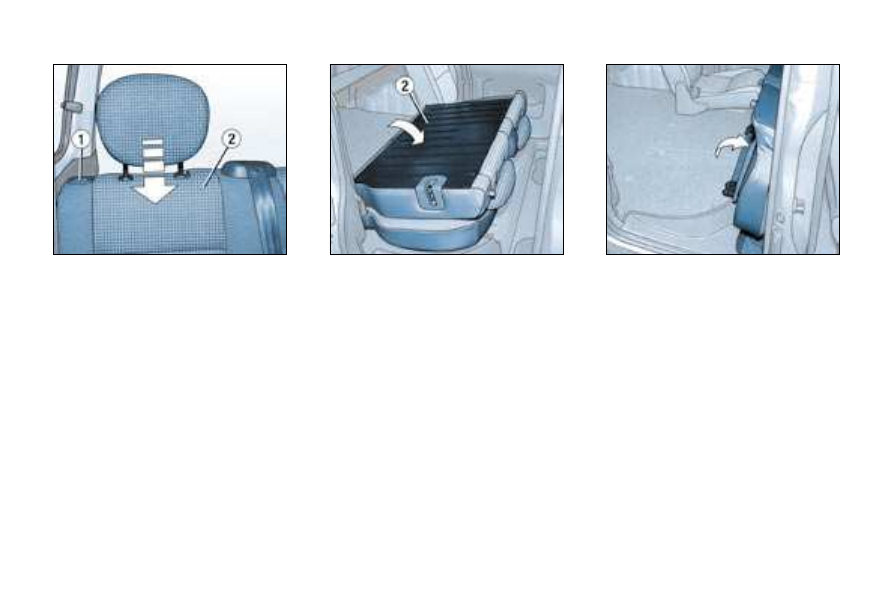

REAR SEAT

To fold the rear seat:

- lower the head restraint,

- press control

1 to unlock the seat

back

- fold the seat back

2 onto the seat,

- place the seat in the "folded" position.

When repositioning:

- tilt the folded seat rearwards,

- lift the seat back,

- check that the seat is locked

correctly.

Take care not to trap the seat belts.

Seats and bench seats

48 -

GENERAL POINTS RELATING

TO CHILD SEATS

Although one of PEUGEOT’s main

criteria when designing your vehicle,

the safety of your children also de-

pends on you.

For maximum safety, please follow

these precautions:

- in accordance with Directive 2003/20,

all children under the age of 12 or

less than one metre ﬁfty tall must

travel in approved child seats suit-

ed to their weight, on seats ﬁtted with

a seat belt or ISOFIX mountings*.

statistically, the safest seats in

your vehicle for the transportation

of children are the rear seats,

a child weighing less than 9 kg

must travel in the "rearwards-

facing" position both in the front

and in the rear.

PEUGEOT recommends that chil-

dren should travel in the

rear seats

of your vehicle:

"rearwards-facing" up to the age

of 2,

"forwards-facing" over the age of 2.

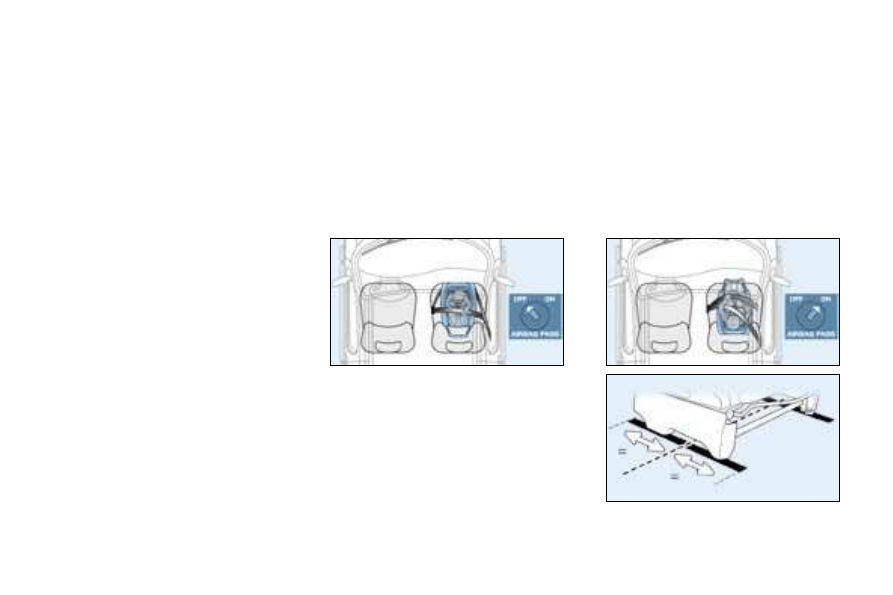

INSTALLING A CHILD SEAT

USING A THREE POINT SEAT

BELT

"Rearwards-facing"

When a "rearwards-facing" child seat

is installed on the

front passenger

seat, it is essential that the passen-

ger air bag** is disarmed. Otherwise,

the child would risk being seri-

ously injured or killed if the air bag

were to inﬂate.

"Forwards-facing"

When a "forwards-facing" child seat

is installed on the

front passenger

seat, adjust the vehicle’s seat to the

intermediate longitudinal position

with the seat back upright and leave

the passenger air bag armed**.

* The rules for transporting children

are speciﬁc to each country. Con-

sult the current legislation in your

country.

** According to model.

Intermediate longitudinal

position

Seats and bench seats -

Passenger air bag OFF**

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-

cured using a

three point seat belt:

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"BRITAX

Babysure"

(E11 0344117)

Installed in

the rear-facing

position.

"RÖMER

Baby-Safe Plus"

(E1 03301146)

Installed in

the rear-facing

position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

(E1 03301135)

For the safety of young children

(from 9 to 18 kg),

PEUGEOT recommends use

of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start"

(E1 03301108).

"KLIPPAN Optima"

(E17 030007)

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

** According to version.

Seats and bench seats

50 -

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child

seats secured using the seat belt and universally approved (a), in accordance with the weight of the child and the seat in the

vehicle:

(a) Universal child seat: child seat

which can be installed in all ve-

hicles using the seat belt.

(b) Group 0: from birth to 10 kg.

Seat

Weight of the child and indicative age

Below 13 kg

(groups 0 (b)

and 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years

approx

From 15 to 25 kg

(group 2)

From 3 to 6 years

approx

From 22 to 36 kg

(group 3)

From 6 to 10 years

approx

Front passenger

seat (c)

Rear side seat

Rear centre seat

in your country before installing

your child on this seat.

U Seat suitable for the installation

of a child seat secured using

a seat belt and universally

approved, "rear facing" and/or

"forward facing".

Content .. 1 2 3 4 ..
