Peugeot Partner VP Dag (2007 year). Instruction - part 1

Familiarisation

4 -

Familiarisation -

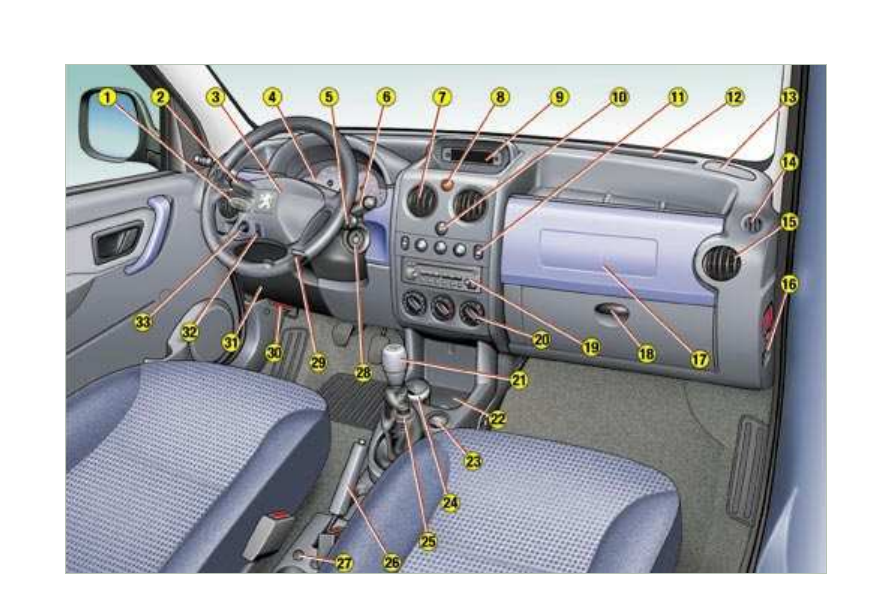

INSTRUMENTS AND CONTROLS

12 - Windscreen demisting

vents.

13 - Speaker (tweeter).

14 - Side window demisting

vents.

15 - Side adjustable heating/ventila-

tion vents.

16 - Passenger air bag disarming

control.

17 - Upper glove box or passenger

air bag.

18 - Lower glove box.

19 - Audio RB3 or RD3.

20 - Heating/air conditioning

controls.

21 - Gear lever.

22 - Storage.

23 - 12 V accessories socket.

24 - Removable ashtray.

25 - Lighter.

26 - Handbrake.

27 - Heated seats control or parking

assistance deactivation switch.

28 - Steering lock and ignition.

29 - Steering wheel adjustment

control.

30 - Bonnet release.

31 - Fuse box.

32 - Headlamp height adjustment.

33 - Passenger’s electric mirror

control.

1 - Speed limiter/cruise control

stalk.

2 - Lights and direction indicators

stalk.

3 - Driver’s air bag.

Horn.

4 - Instrument panel.

5 - Audio equipment steering wheel

control.

6 - Windscreen wipers/wash-wipe

stalk.

7 - Central adjustable heating/venti-

lation vents.

8 - Hazard lights button.

9 - Multifunction display or clock.

10 - Central locking button.

11 - Controls:

- Electric windows.

- Demisting of rear door windows

or tailgate.

- Air conditioning.

- ASR/ESP.

Familiarisation

6 -

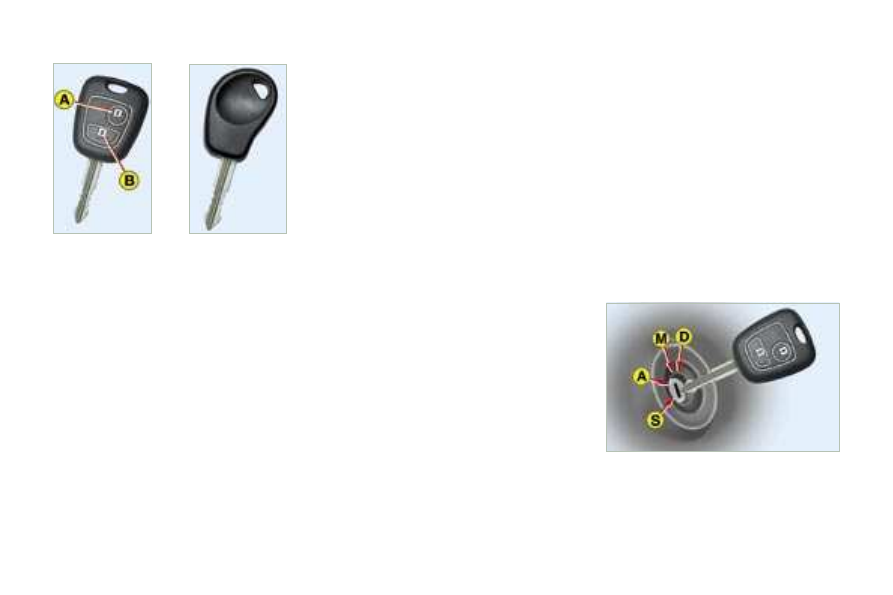

THE KEYS

The keys allow you to switch on the

ignition and operate the passenger

air bag disarming switch, as well as

to independently operate the locks

on the doors and the fuel ﬁller cap.

STARTING

STOP position (S):

the ignition is off.

Accessories position (A):

the ignition is off but the accessories

can be used.

Running position (M):

the ignition is on.

Starting position (D):

operates the starter.

The remote control

Locking

Press button

A to lock the vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.

Central locking

From the front doors, the keys allow

you to lock and unlock the doors and

tailgate.

If one of the doors or the tailgate is

open, it is impossible to operate the

central locking.

The remote control performs the

same functions at a distance.

Unlocking

Press button

B to unlock the vehicle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators.

Locating the vehicle

To locate your vehicle, previously

locked, in a car park:


press button

A, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.



Familiarisation -

WINDSCREEN WIPERS

Front

2 Rapid wipe (heavy rain).

1 Normal wipe (moderate rain).

Intermittent wipe.

0 Off.


Single wipe.

Windscreen wash-wipe: pull the stalk

towards you.

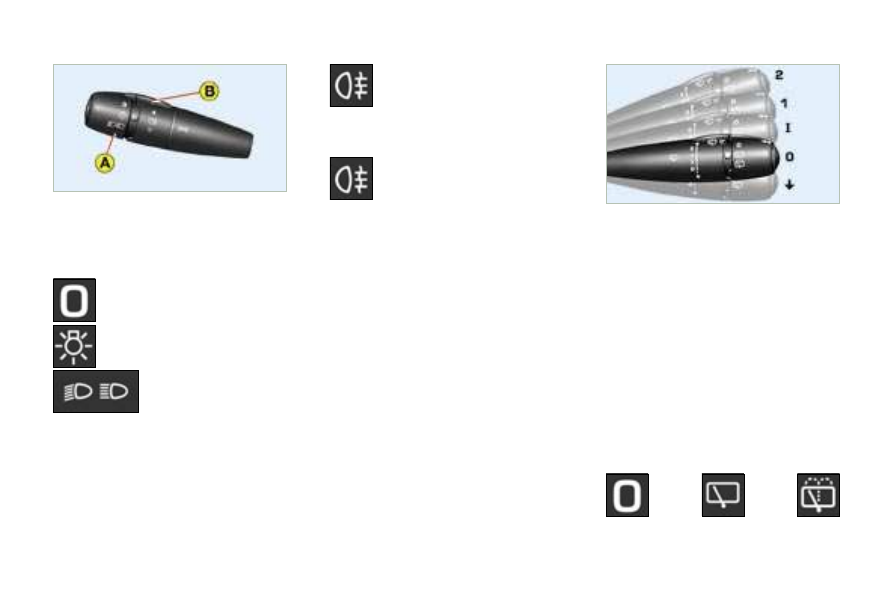

STEERING WHEEL

STALKS
LIGHTING

Front and rear lights (ring A)

Front fog lamps (1st turn of the ring

forwards).

Front fog lamps and rear fog lamp

(2nd turn of the ring forwards).

To switch off: turn the ring rear-

wards.

Lights off

Side lights

Dipped

beam/Main

beam

Vehicles ﬁtted with a rear

fog lamp (ring B)

Turn the ring forwards.

Vehicles ﬁtted with front

fog lamps and a rear fog

lamp (ring B)

Rear

Off

Intermit-

tent wipe

Wash-

wipe



Familiarisation

8 -

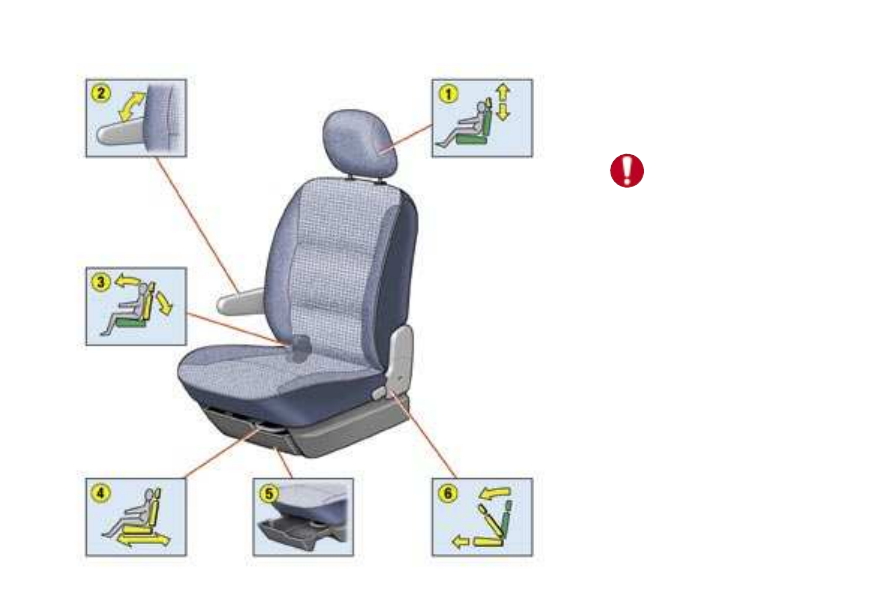

FRONT SEATS

Driver and passenger seats

1 - Head restraint height adjust-

ment.

2 - Armrest.

3 - Seat back angle adjustment.

4 - Forwards-backwards adjust-

ment.

5 - Storage drawer (passenger).

6 - Access to rear seats.

Never travel with the head

restraints removed.



Familiarisation -

AIR BAGS

The air bag system has been de-

signed to maximise the safety of the

occupants in the event of serious col-

lisions. It works in conjunction with

the pretensioning seat belts.

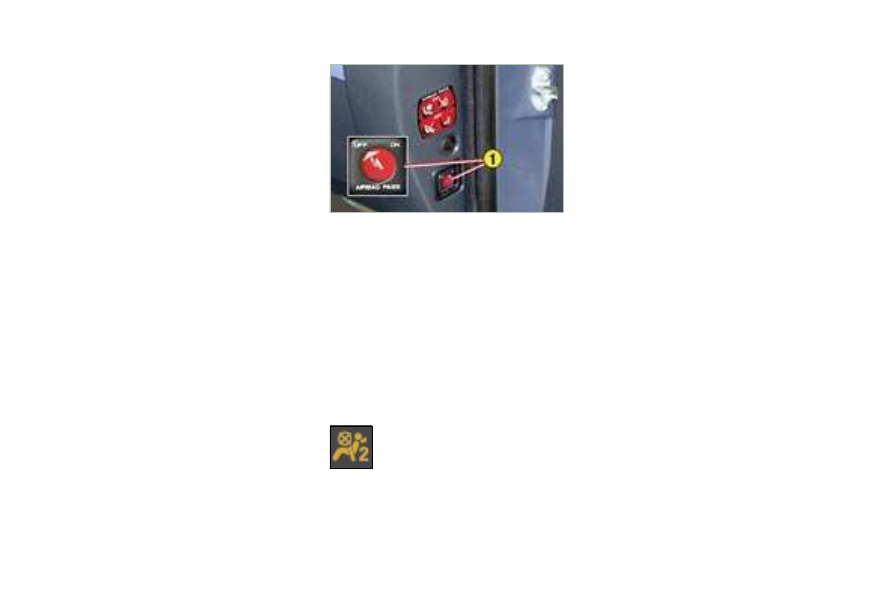

Disarming the passenger

air bag


With the ignition off, insert the

ignition key into the passenger

air bag switch

1 and turn it to the

"OFF" position.

As soon as you remove the child

seat, turn the air bag switch to the

"ON" position, to activate the air bag

again.

Disarming check

Side air bags

Side air bags are incorporated into

the front seat back frame, on the

door side.

They are deployed independently of

each other, on whichever side the

collision occurs.

With the ignition switched on

(2nd notch), illumination of this

warning light indicates that the

passenger air bag is disarmed

(switch in the

"OFF" position).

The warning light remains on through-

out the duration of disarming.

Front air bags

These are folded in the centre of the

steering wheel for the driver and in

the fascia for the front passenger.

They are deployed simultaneously,

except in cases where the passenger

air bag is disarmed.

Precautions regarding the

passenger air bag


disarm the air bag if you install a

rear-facing child seat,



activate the air bag for an adult

passenger.



Familiarisation

10 -

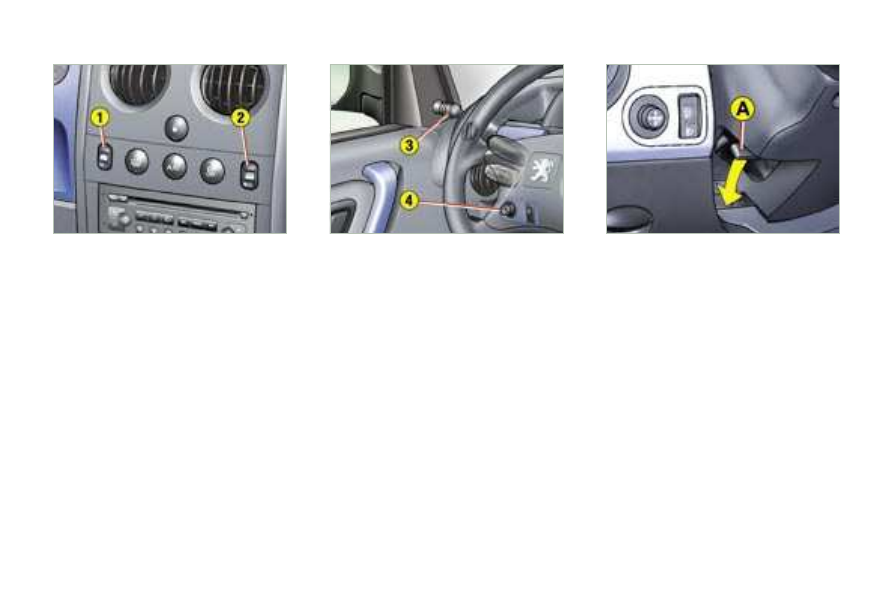

ELECTRIC

WINDOWS

1 - Driver’s electric window

2 - Passenger’s electric window.

EXTERIOR

MIRRORS



Move the manual control

3 in all

four directions to adjust.

STEERING WHEEL HEIGHT

ADJUSTMENT



When stationary, push the control

A forwards to unlock the steering

wheel.



Adjust the height of the steering wheel.



Lock it by pulling control

A to-

wards you fully.

Electric control for the

passenger’s side mirror



From the driver's seat, adjust in

all four directions by operating the

control

Manual mode:



Press the switch. The window tops

as soon as the switch is released.

Automatic mode

(driver):



Press and hold the switch. One

touch completely opens or closes

the window.



Familiarisation -

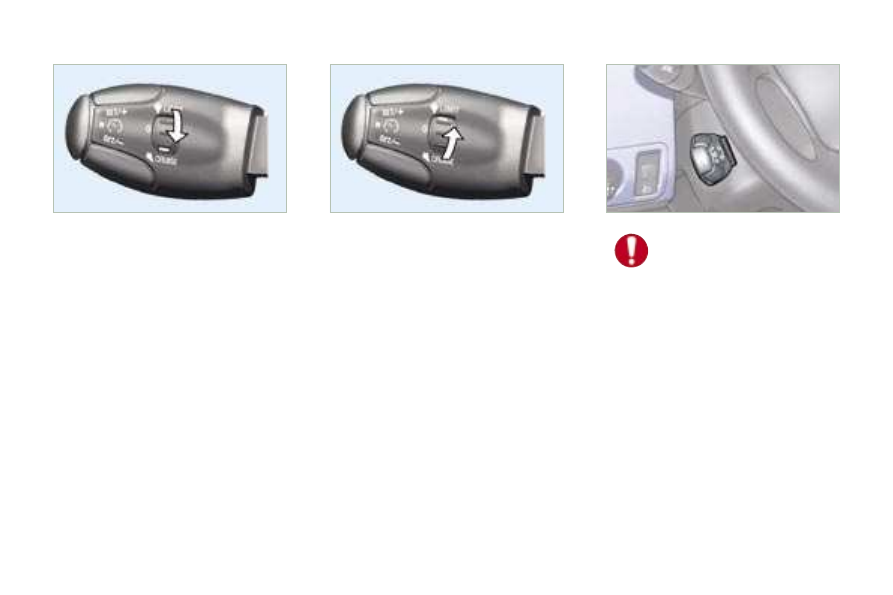

CRUISE CONTROL

The cruise control has a display on

the instrument panel to indicate the

programmed reference speed.

It enables the vehicle to maintain the

reference speed programmed by the

driver.

In order for it to be programmed or

activated, the vehicle speed must be

greater than 25 mph (40 km/h) with

at least fourth gear engaged.

SPEED LIMITER

This limiter indicates the status of

selection of the function on the in-

strument panel and displays the

programmed speed. The minimum

speed which can be programmed is

at least 18 mph (30 km/h).

It prevents exceeding of the speed

programmed by the driver, this

function remains active regardless

of any action on the brake or clutch

pedals. On the other hand, pressing

the accelerator pedal to the point of

resistance does not have any effect.

If the driver wishes to exceed the

programmed limit, he must force the

accelerator pedal travel beyond this

point of resistance.

If the vehicle is ﬁtted with

a speed limiter and cruise

control, these functions can-

not be activated at the same

time.

The operating actions must be

carried out when stationary, with

the engine running, or with the

vehicle moving.



Familiarisation

12 -

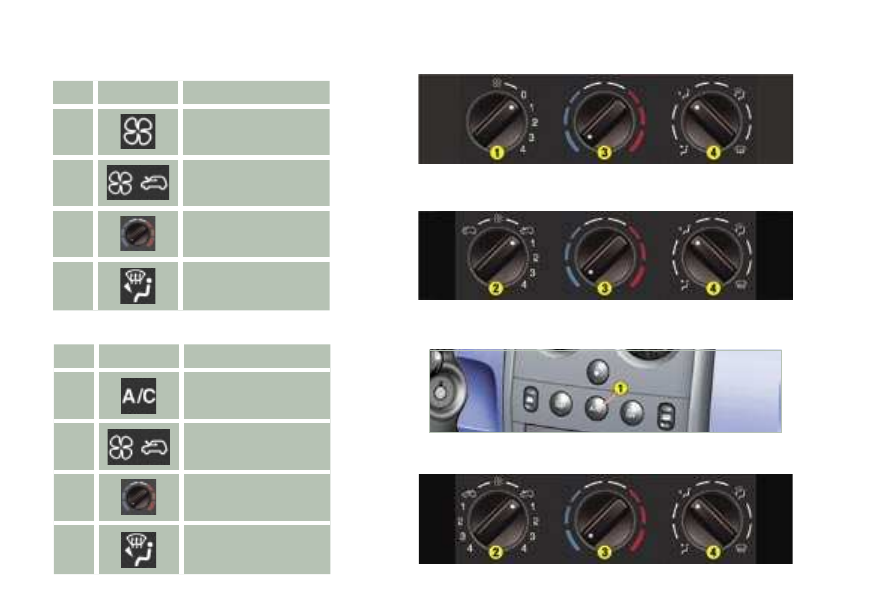

HEATING

N°

Symbol

Function

Air ﬂow

adjustment.

Air ﬂow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

AIR CONDITIONING



N°

Symbol

Function

Air conditioning

control.

Air ﬂow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

Familiarisation -

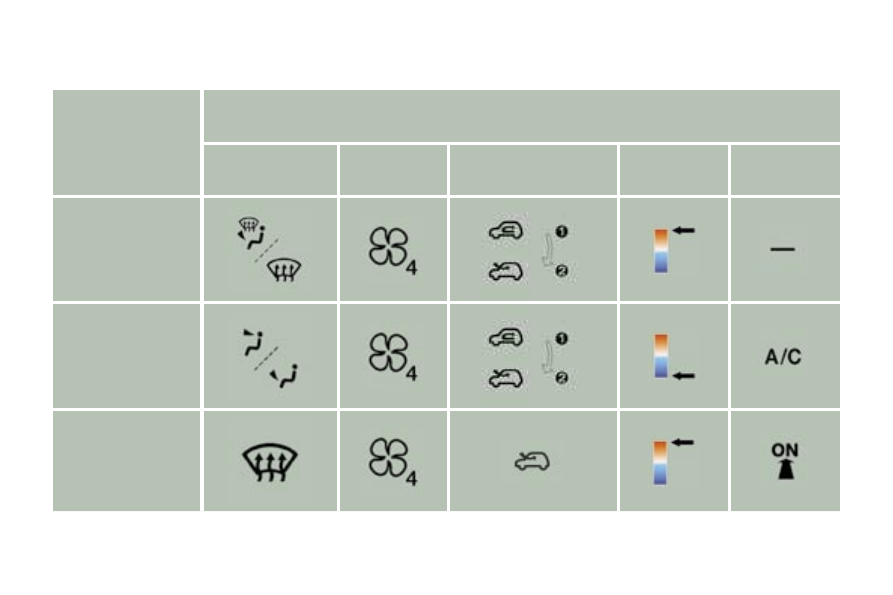

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂow

Air recirculation/Intake

of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

RECOMMENDED INTERIOR SETTINGS

Familiarisation

14 -

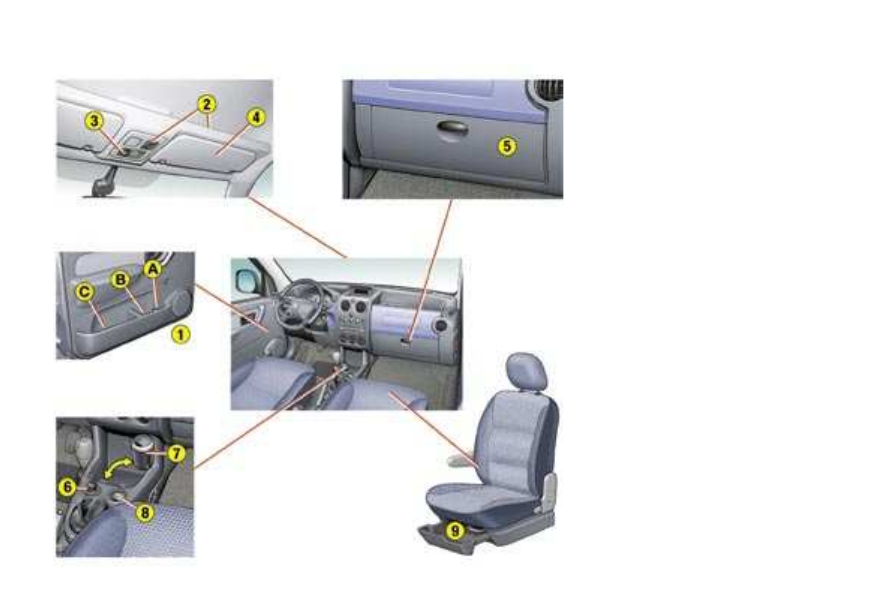

FRONT FITTINGS

1. Storage compartments in the doors

A. Bottle holder.

B. Can holder.

C. Storage compartment.

2. Overhead storage with map

reading light

3. Courtesy light

4. Sun visors

5. Glove box

6. Lighter

7. Removable ashtray

8. 12 V accessories socket.

9. Storage drawer



Familiarisation -

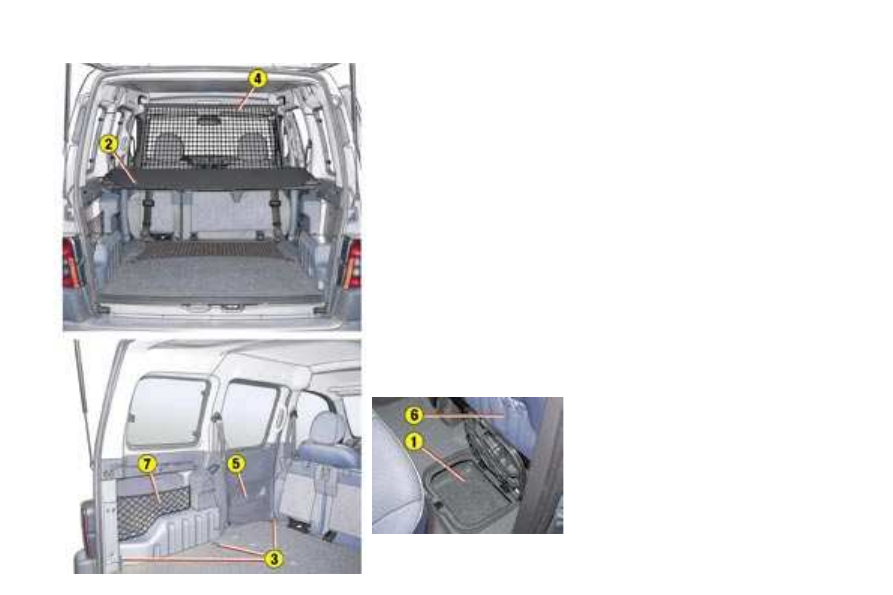

REAR FITTINGS

1. Trays between the front and

rear seats

2. Load space cover

3. Stowing rings

4. High load retaining net

5. Side door storage compart-

ments

6. Seat back storage pockets

7. Storage net



Familiarisation

16 -

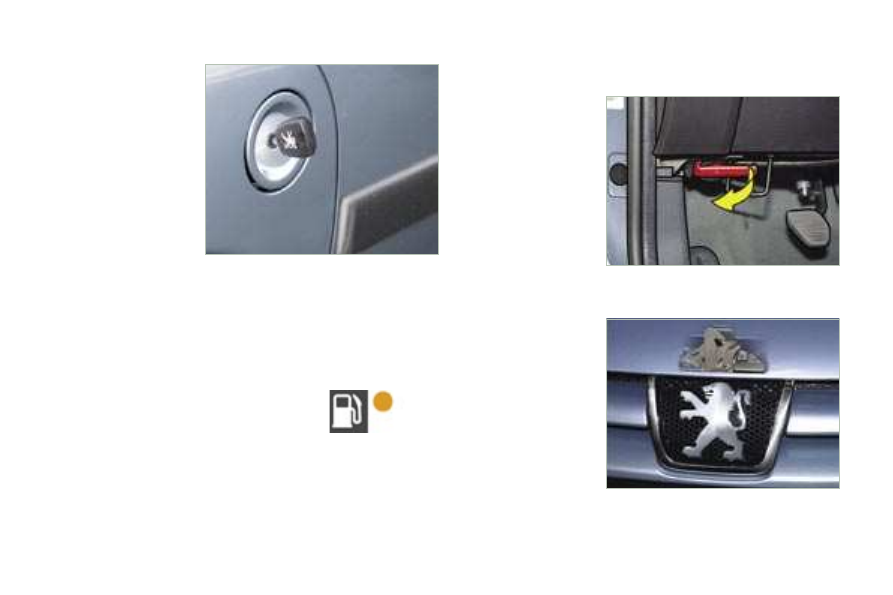

FILLING WITH FUEL

This operation must be carried out

with

the engine switched off.



Insert the key then turn it to the

left.



Remove the cap.

An indication shows which type of

fuel to use.

When you ﬁll your tank, do not continue

after the third cut-off of the pump.

This could cause a malfunction.

The capacity of the tank is approx-

imately 55 litres for petrol engines

and 60 litres for Diesel engines.

Note: the right-hand sliding side door

cannot be opened while the fuel tank

cap is removed.

Low fuel level warning

light

From the time this light comes on,

you have enough fuel left to cover

approximately 30 miles (50 km).

OPENING THE BONNET

Inside the vehicle: Pull the control

on the left-hand side, under the fascia

panel.

Outside the vehicle: Lift the control,

raise the bonnet and secure the strut

to keep the bonnet open.



18 -

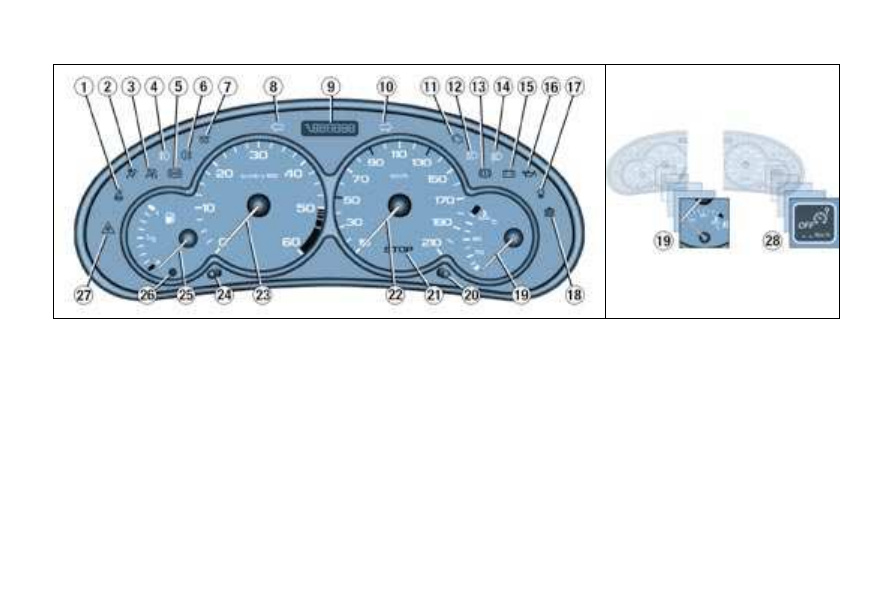

1. Seat belt not fastened warning

light

2. Passenger air bag disarmed

warning light

3. Front and side air bags warning

light

4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)

warning light

6.  Rear fog lamp indicator light
7.  Diesel pre-heat warning light
8.  Left hand direction indicator
9.  Total distance recorder, service

indicator and engine oil level

indicator

10. Right hand direction indicator

11. Emission control system

warning light

12. Main beam headlamps indicator

light

13. Handbrake, low brake ﬂuid

level and electronic brake force

distribution warning light

14. Dipped beam headlamps

indicator light

15. Battery charge warning light

16. Engine oil pressure and

temperature warning light

17. Water in diesel ﬁlter warning

light

18. Low coolant level warning light

19.  Coolant temperature indicator
20.  Total distance recorder button
21.  Central (STOP) warning light
22.  Speedometer
23.  Rev counter
24.  Lighting rheostat button
25.  Fuel level indicator
26.  Low fuel level warning light
27.  Electronic stability control (ESP/

ASR) warning light

28. Speed limiter/cruise control

display

INSTRUMENT PANEL: PETROL - DIESEL

Instruments, controls and displays

Instruments, controls and displays -

INSTRUMENTS AND

CONTROLS

A permanently lit warning light

or one ﬂashing, with the engine

running, indicates an operating

fault of the unit concerned. The

illumination of certain warning

lights may be accompanied by

an audible signal and a message

on the multifunction display. Do

not ignore this warning: consult

a PEUGEOT dealer as soon as

possible.

If the central STOP warning light

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

Central (STOP)

warning light

Linked to the warning

lights:

- "engine oil pressure and tempera-

ture",

- "low coolant level",

- "handbrake",

- "low brake ﬂuid level",

- "electronic brake force distribution

system fault".

Linked with the "coolant tempera-

ture" indicator.

You must stop if the light ﬂashes

with the engine running.

Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

Linked to the central (STOP) warn-

ing light.

You must stop.

This warning light indicates one of

the following:

- insufﬁcient oil pressure indicated

by the message

"Oil pressure

insufﬁcient" on the multifunction

display.

- a lack of oil in the lubrication circuit.

Top up the level,

- an oil temperature which is too

high. To lower the oil temperature,

reduce your speed.

Lighting of the warning light is ac-

companied by an audible signal.

Consult a PEUGEOT dealer.

Diesel engine low

coolant level warning

light

Linked to the central (STOP) warn-

ing light.

This comes on for a few seconds

when the ignition is switched on.

Lighting of this warning light is accom-

panied by an audible signal and the

message

"Top up engine coolant

level" on the multifunction display.

You must stop.

Wait for the engine to cool before

topping up the level.

The cooling circuit is pressurised.

Handbrake, low

brake fluid level and

Electronic Brake Force

Distribution system

fault warning light

Linked to the central (STOP) warn-

ing light.

This comes on each time the ignition

is switched on.

Lighting of this warning light is ac-

companied by an audible signal and

a message on the multifunction dis-

play indicating the cause of the warn-

ing:

"Handbrake on", if the handbrake

is applied or not fully released,

"Brake ﬂuid level low" if there is

an excessive drop in brake ﬂuid

level (if the warning light remains

on even when the handbrake is re-

leased),

"Braking fault" is displayed to-

gether with the ABS warning light,

indicating a malfunction of the elec-

tronic brake force distribution sys-

tem.

You must stop.

Consult a PEUGEOT dealer.

In the event of breakdown and to

pre-

vent any risk of burns, unscrew the

cap by two turns to allow the pres-

sure to drop.

When the pressure has dropped, re-

move the cap and top up the level.

Consult a PEUGEOT dealer.

Instruments, controls and displays

20 -

Electronic stability

control system (ESP/

ASR) warning light

This comes on for a few seconds each

time the ignition is switched on.

Contact a PEUGEOT dealer if the

ESP/ASR switch indicator light

ﬂashes, accompanied by an audible

signal and the message

"ESP/ASR

not functioning" on the multifunction

display, and this warning light remains

on or comes on while the engine is

running and the vehicle is moving.

While the engine is running and the

vehicle is moving, it ﬂashes if the

system is activated.

It comes on permanently when it is

disarmed.

Battery charge warning

light

This comes on for a few sec-

onds when the ignition is

switched on.

Lighting of this warning light, when

the engine is running, accompanied

by an audible signal and the mes-

sage

"Battery charge fault" on the

multifunction display, indicates one

of the following:

- faulty operation of the charging

circuit,

- slack battery or starter terminals,

- a cut or slack alternator belt,

- an alternator failure.

Consult a PEUGEOT dealer.

Emission control

system warning light

This comes on for a few

seconds each time the

ignition is switched on.

If it comes on with the engine running,

accompanied by an audible signal

and the message on the multifunction

display:

"Antipollution fault", this indicates

a failure of the emission control

system.

"Catalytic converter fault", this

indicates a malfunction of the

injection or ignition system. There

is a risk of damage to the catalytic

converter (petrol engine only).

Consult a PEUGEOT dealer.

Diesel engine pre-heat

warning light

Wait until the warning light

goes out before starting the

engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

Low fuel level

warning light

This comes on for a

few seconds when the

ignition is switched on.

When the ignition is on, it is accom-

panied by an audible signal and the

message

"Fuel level low" on the

multifunction display.

If it ﬂashes and the fuel gauge needle

is in the lowest position, with the igni-

tion on, this indicates a malfunction

of the fuel gauge.

When this light ﬁrst comes on, you

have enough fuel to drive

approxi-

mately 30 miles (50 km) (The tank

capacity is approximately 55 litres for

petrol engines and 60 litres for Diesel

engines).

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds

each time the ignition is switched

on.

If the warning light remains on or

comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.

However, the vehicle retains conven-

tional servo-assisted braking.

Lighting of this warning light, accom-

panied by an audible signal and the

message

"ABS fault" on the multi-

function display, indicates an ABS

fault.

Consult a PEUGEOT dealer.

Content .. 1 2 3 ..
