Peugeot 5008 (2017 year). Instruction - part 7

3

95

Ease of use and comfort

Recommendations for ventilation and air
conditioning
In order for these systems to be fully effective,
follow the operation and maintenance
guidelines below:
F  To ensure that the air is distributed evenly,

keep the external air intake grilles at the
base of the windscreen, the nozzles, the
vents, the air outlets and the air extractor
in the boot free from obstructions.

F  Do not cover the sunshine sensor,

located on the dashboard; this is used for
regulation of the automatic air conditioning
system.

F  Operate the air conditioning system for

at least 5 to 10 minutes once or twice a
month to keep it in perfect working order.

F  Ensure that the passenger compartment

filter is in good condition and have the
filter elements replaced regularly. We
recommend the use of a combined
passenger compartment filter. Thanks to
its special active additive, it contributes
to the purification of the air breathed by
the occupants and the cleanliness of the
passenger compartment (reduction of
allergic symptoms, bad odours and greasy
deposits).

If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.

The condensation created by the air
conditioning results in a discharge of
water under the vehicle which is perfectly
normal.

F  To ensure correct operation of the

air conditioning system, you are also
advised to have it checked regularly
as recommended in the Warranty and
Maintenance Record.

F  If the system does not produce cold air,

switch it off and contact a PEUGEOT
dealer or a qualified workshop.

When towing the maximum load on a steep
gradient in high temperatures, switching off
the air conditioning increases the available
engine power and so improves the towing
ability.

Stop & Start
The heating and air conditioning systems
only work when the engine is running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Start,
refer to the corresponding section.

96

Ease of use and comfort

Manual air conditioning

1.

Temperature settings.

2.

Air conditioning On/Off.

3.

Air distribution adjustment.

4.

Air flow adjustment.

5.

Recirculation of interior air.

The air conditioning system operates only with
the engine running.

Temperature adjustment

F  Turn this knob from blue (cold)

to red (hot).

Air distribution adjustment

Windscreen and side windows.

Central and side vents.

Footwells.

F  Press this button as many times as

necessary to obtain the desired air
distribution.

The air distribution can be adapted by
combining the corresponding indicator lamps.

Air flow adjustment

F  Press the "large fan" or "small

fan" button to increase or
decrease the air flow.

The corresponding indicator lamps
come on.

If you keep pressing the "small fan" until all
of the indicator lamps go off (system off), the
temperature is no longer controlled.
However, a slight flow of air can still be felt,
resulting from the forward movement of the
vehicle.

Air conditioning On / Off

The air conditioning is designed to operate
effectively in all seasons, with the windows
closed.
It enables you to:
-  lower the temperature, in summer,
-  increase the effectiveness of the demisting

in winter, above 3°C.

Switching on

F  Press this button, its indicator

lamp comes on.

The air conditioning does not operate
when the air flow adjustment is set to off.
To obtain cool air more quickly, you can
activate recirculation of the interior air for
a few moments.

Switching off

F  Press this button again; its

indicator lamp goes off.

Switching off the air conditioning may result in
some discomfort (humidity, condensation).

3

97

Ease of use and comfort

Semi-automatic mono-
zone air conditioning

Press the Air conditioning menu
button to display the system controls
page.

The temperature at the nozzles and vents
is regulated by the system according to the
temperature in the passenger compartment
and the temperature setting.

Temperature adjustment

F  Press one of these buttons to

decrease (blue) or increase
(red) the value.

The value indicated corresponds to a level of
comfort and not to a precise temperature.

Air flow adjustment

1.

Automatic visibility programme.

2.

Recirculation of interior air.

3.

Air flow adjustment.

4.

Temperature adjustment.

5.

Air distribution adjustment.

6.

System off.

7.

Air conditioning On / Off.

8.

Maximum air conditioning.

Air distribution adjustment

Press one of these buttons to
increase (+) or decrease (-) the
speed of the booster fan.

The symbol for air flow (a fan) fills progressively
according to the air flow setting made.

By reducing the air flow to minimum, you are
stopping ventilation.

Avoid driving too long without ventilation –
Risk of condensation and deterioration of
air quality!

The air conditioning system operates only with
the engine running.

These buttons are used to arrange
the distribution of air in the passenger
compartment by combining several air outlets.

Windscreen and side windows.

Central and side vents.

Footwells.

The air distribution can be adapted by using
several buttons: illumination of the indicator
lamp confirms the presence of fan boosted air
in the direction indicated, the indicator lamp off
indicates the absence of fan boosted air in the
direction indicated.

For a uniform distribution of air in the
passenger compartment, the three buttons can
be activated simultaneously.

98

Ease of use and comfort

Air conditioning On / Off

The air conditioning is designed to operate
effectively in all seasons, with the windows
closed.
It enables you to:
-  lower the temperature, in summer,
-  increase the effectiveness of the demisting

in winter, above 3°C.

Switching on

F  Press this button, its indicator

lamp comes on.

The air conditioning does not operate
when the air flow adjustment is set to off.
To obtain cool air more quickly, you can
use recirculation of the interior air for a
few moments. Then return to the intake of
exterior air.

Switching off

F  Press this button again, its

indicator lamp goes off.

Switching off the air conditioning may result in
some discomfort (humidity, condensation).

Maximum air conditioning

This function allows faster cooling of the air in
the passenger compartment.
The system automatically adjusts the
temperature setting to the lowest possible, air
distribution towards the centre and outer vents,
air flow to maximum and activates recirculation
of interior air.

F  Press this button to activate

the function; its indicator lamp
comes on.

Automatic visibility
programme

For more information on Front demisting –
defrosting, refer to the corresponding section.

Switching off the system

F  Press this button; its indicator

lamp comes on and all other
indicator lamps of the system go
off.

This action deactivates all functions of the air
conditioning system.
Temperature is no longer regulated. However,
a slight flow of air can still be felt, resulting from
the forward movement of the vehicle.

Avoid driving for too long with the system
switched off – Risk of condensation and
deterioration of air quality!
Pressing any button reactivates the
system with the settings that were
previously in use.

F   Press this button again to deactivate

the function and return to the previous
settings; its indicator lamp goes off.

3

99

Ease of use and comfort

Automatic dual-zone air
conditioning

Press the Air conditioning menu
button to display the system controls
page.

1.

Automatic visibility programme.

2.

Recirculation of interior air.

3.

Adjusting the temperature on driver's
side.

4.

Adjusting the temperature on passenger's
side.

5.

Adjusting the air distribution.

6.

Adjusting the air flow.

7.

System switch-off.

8.

Air conditioning on/off.

9.

Automatic comfort programme on/off.

10. Maximum air conditioning.

11.

Access to the secondary page.

12. Selection of settings for the automatic

comfort programme (Soft/Normal/Fast).

13. "AQS (Air Quality System)" function (with

pollution sensor).

14. Mono-zone / Dual-zone.

15. "REAR" function (depending on version).

The air conditioning system operates with
the engine running, but the ventilation and its
controls are available with the ignition on.
Operation of the air conditioning and regulation
of temperature, air flow and air distribution in
the passenger compartment are automatic.

Temperature adjustment

Automatic comfort
programme

F  Press this button to activate or

deactivate the automatic mode
of the air conditioning system.

The driver and front passenger can each
choose their own temperature setting.

The value indicated corresponds to a level of
comfort and not to a precise temperature.

F  Press one of these buttons to

increase the value.

F  Press one of these buttons to

decrease the value.

It is recommended that you avoid a difference
of more than 3°C in the settings for left and
right.

When the indicator lamp in the button is on, the
air conditioning system operates automatically:
the system manages the temperature, air
flow and air distribution in the passenger
compartment in an optimum way according to
the comfort level you have selected.

100

$872

)$67

$872

1250$/

62)7

$872

Ease of use and comfort

It is possible to modulate the intensity of the
automatic comfort programme by choosing one
of three settings offered in the secondary page,
accessible from the "OPTIONS" button.

To change the current setting, shown by
illumination of the corresponding indicator
lamp, press this button repeatedly until the
desired setting is displayed:

"Normal": offers the best
compromise between a
comfortable temperature and
quiet operation (default setting).

"Fast": provides strong and
effective air flow.

Use the "Normal" or "Fast" setting to assure
the comfort of passengers in the rear seats.
This setting is associated with automatic mode
only. However, on deactivation of AUTO mode,
the indicator for the last setting remains on.
Changing the setting does not reactivate AUTO
mode if deactivated.

In cold weather with the engine cold, the
air flow is increased gradually until the
comfort setting has been reached, in order
to limit the delivery of cold air into the
passenger compartment.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort setting requested, there
is no need to alter the value displayed
in order to reach more quickly the
required level of comfort. The system
compensates automatically and corrects
the temperature difference as quickly as
possible.

Automatic visibility
programme

For more information on Front demisting –
defrosting, refer to the corresponding section.

"Air Quality System" (AQS)
function

Using a pollution sensor, this function
automatically activates recirculation of the
interior air once it detects a certain level of
polluting substances in the exterior air.
When the air quality returns to a satisfactory
level, recirculation of interior air is automatically
deactivated.

To activate or deactivate the function, go to the
secondary page by pressing the "OPTIONS"
button.

Manual control

You can manually adjust one or more settings,
while retaining automatic control of the other
functions:
-  air flow,
-  air distribution.

As soon as you modify a setting, the indicator
lamp in the "AUTO" button goes off.

F  Press this button again to

reactivate the automatic comfort
programme.

Air flow adjustment

F  Press one of these buttons to

increase or decrease the speed
of the booster fan.

"Soft": provides soft and quiet
operation by limiting air flow.

This function is not designed to detect
unpleasant odours.
Recirculation is automatically activated when
the front screenwash is used or when reverse
gear is engaged.
The function does not operate if the exterior
temperature is below 5°C, to avoid the risk of
misting of the windscreen and side windows.

3

101

Ease of use and comfort

By reducing the air flow to minimum, you are
stopping ventilation.
"OFF" is displayed alongside the fan.

Avoid driving too long without ventilation –
Risk of condensation and deterioration of
air quality!

Air distribution adjustment

You can vary the distribution of air in the passenger
compartment using these three buttons.

Windscreen and side windows.

Central and side vents.

The air flow symbol (a fan) is filled in
progressively as the speed of the fan is
increased.

Footwells.

Each press on a button activates or deactivates
the function. The indicator lamp is on when the
button is activated. For a uniform distribution
of air in the passenger compartment, the three
buttons can be activated simultaneously.

In AUTO mode, the indicator lamps in all three
buttons are off.

Air conditioning On / Off

The air conditioning is designed to operate
effectively in all seasons, with the windows
closed.
It enables you to:
-  lower the temperature, in summer,
-  increase the effectiveness of the demisting

in winter, above 3°C.

Switching on

F  Press this button, its indicator

lamp comes on.

The air conditioning does not operate
when the air flow adjustment is set to off.

Switching off

F  Press this button again, its

indicator lamp goes off.

Maximum air conditioning

This function allows faster cooling of the air in
the passenger compartment.
The system automatically adjusts the
temperature setting to the lowest possible, air
distribution towards the centre and outer vents,
air flow to maximum and activates recirculation
of interior air.

Switching off the air conditioning may result in
some discomfort (humidity, condensation).

F  Press this button to activate

the function; its indicator lamp
comes on.

F   Press this button again to deactivate the

function and return to the previous settings;
its indicator lamp goes off.

Mono-zone / Dual-zone

The passenger temperature setting can be
linked to the driver's setting (mono-zone
function).
It is available in the secondary page by
pressing the "OPTIONS" button.

F  Press this button to activate

the "MONO" function; its "ON"
status is displayed.

The function is automatically deactivated if the
passenger uses their temperature adjustment
buttons (dual-zone function).

102

Ease of use and comfort

"REAR" function

Ventilation with the
ignition on

When the ignition is switched on, you can
use the ventilation system to adjust the air
flow settings and the air distribution in the
passenger compartment depending on the
battery charge.
This function does not operate the air
conditioning.

System switch-off

F  Press this button.
Its indicator lamp comes on and all
other indicator lamps for the system
go off.
This action deactivates all functions
of the air conditioning system.

Avoid driving for too long with the
ventilation off or the system deactivated –
Risk of misting and deterioration of the air
quality!
Pressing any button reactivates the
system with the settings that were
previously in use.

When this function is activated, the rear air
vents blower starts up. In this case, the rear
passengers can control the air flow from these
air vents independently of the air conditioning
air flow control for the front air vents.
When the function is deactivated, the maximum
air flow distributed by the rear air vents is
limited by the air conditioning air flow setting for
the front air vents.
The function is available on the secondary
page, which can be accessed by pressing the
"OPTIONS" button.

F  Press this button to activate the

"REAR" function; its status is
displayed as "ON".

F  Press the "large fan" or "small

fan" button to increase or
decrease the air flow.

The corresponding indicator lamps
come on.

If all of the indicator lamps are off, a slight air
flow can still be felt as a result of the vehicle's
movement.

By reducing the air flow to a minimum, you are
stopping ventilation.
Temperature is no longer regulated. A slight air
flow can still be felt however, resulting from the
forward movement of the vehicle.

3

103

Ease of use and comfort

Recirculation of the
interior air

The intake of exterior air avoids misting of the
windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.

F  Press this button to activate

the function; its indicator lamp
comes on.

Avoid prolonged use of air recirculation –
Risk of condensation and deterioration of
air quality!

The system activates automatically when
reverse gear is engaged.

F  Press this button again to deactivate the

function; its indicator lamp goes off.

Front demist – defrost

With manual air
conditioning

F  Adjust the temperature to maximum (red).
F  Adjust the air flow to maximum; all the

indicator lamps come on.

F  Adjust the air distribution to the

"Windscreen" position; its associated
indicator lamp comes on.

F  Check that recirculation of interior air is

deactivated; its indicator lamp must be off.

F  Switch on the air conditioning by pressing

the "A/C" button; its indicator lamp comes
on.

With Stop & Start, when the demisting,
air conditioning and air flow functions are
activated, STOP mode is not available.

With semi-automatic and
automatic air conditioning

Automatic visibility programme

F  Press this button to demist or

defrost the windscreen and side
windows as quickly as possible;
its indicator lamp comes on.

The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.
F  To switch it off, press this button; its

indicator lamp goes off.

The system allows the manual modification of
air flow without causing automatic deactivation
of the automatic visibility programme.

With Stop & Start, when demisting
has been activated, STOP mode is not
available.

In wintry conditions, remove all snow or
ice on the camera on the windscreen
before moving off.
Otherwise, this can affect the function
of the equipment associated with the
camera.

104

Ease of use and comfort

Heated windscreen

Switching on

Switching off

Pressing the button again switches
off the system; its indicator lamp
goes off.

Rear screen demist –
defrost

Switching on

F  Press this button to demist/

defrost the rear screen and,
depending on version, the door
mirrors.

The indicator lamp associated with the button
comes on.

In cold weather, this system heats the bottom of
the windscreen, as well as the areas alongside
the windscreen pillars.
Without changing the settings for the air
conditioning system, it allows faster release
of the windscreen wiper blades when they
are frozen to the windscreen and avoids
the accumulation of snow resulting from the
operation of the windscreen wipers.

With the engine running, press this
button; its indicator lamp comes on.

The system is active if the exterior temperature
is below 0°C.

The system is automatically deactivated every
time the engine is switched off.

Rear screen demisting – defrosting can
only be operated when the engine is
running.

3

105

Ease of use and comfort

Switching off

Demisting/defrosting switches off automatically
to prevent an excessive consumption of
current.

F  It is possible to stop the

demisting/defrosting operation
before it is switched off
automatically by pressing the
button again.

The indicator lamp associated with the button
goes off.

Switch off the demisting/defrosting of
the rear screen and door mirrors as
soon as appropriate, as lower current
consumption results in reduced fuel
consumption.

Programmable heating

The programmable heating operates
independently of the engine.
With the engine off, it preheats the coolant
circuit to ensure optimal engine operating
temperature as soon as it is started up.
The programmable heating is switched on
by the long range remote control. It may be
immediate or deferred depending on the
programming.

Always switch off the programmable
heating when refuelling to avoid any risk of
fire or explosion.
The programmable heating is supplied by
the vehicle's fuel tank. Before use, ensure
that there is enough fuel left in the tank. If
the fuel in the tank is at the reserve level,
we strongly recommend that you do not
programme the heating.
To avoid the risks of poisoning or
asphyxia, the programmable heating must
not be used, even for short periods, in a
closed environment such as a garage or
workshop which are not equipped with an
exhaust gas extraction system.
Do not park the vehicle on a flammable
surface (dry grass, dead leaves, paper,
etc.) – Risk of fire!

106

Ease of use and comfort

Adapting the programmable heating
enables you to use it to preheat the
passenger compartment of your vehicle.
Contact a PEUGEOT dealer or a qualified
workshop.

Presentation

Remote control

Operating indicator lamp

Function display

The volumetric alarm movement detector
may be disrupted by the programmable
heating air flows when it is operating.
To avoid any untimely triggering of the
alarm when using the programmable
heating, it is advisable that the volumetric
monitoring is deactivated.

1.

Buttons for functions scroll-down menu.

2.

Function symbols:
clock, temperature, operating time,
programmed time, heater operation,
heating management.

3.

Digital displays:
time, temperature, operating time,
programmed time or heating level.

4.

Off button.

5.

On button.

lit up: deferred programmed start-
up.
flashing: heating on.
unlit: heating off.

F  Press the buttons 1 several times to display

the functions.

3

107

Ease of use and comfort

The passenger compartment temperature
information is only available when the
engine is off.

Setting the time

F  Set the time with the buttons 1.
F  Press simultaneously on buttons 4 and 5 to

save it.

Immediate switching on

The first press on the left or right button
displays the time.
Then, the left button is used to scroll to the
programmed time then the heating level ("C1"
to "C5").
The right button is used to scroll to the
passenger compartment temperature then
the heater operating time when immediately
switched on.

F  After having displayed the time using

the buttons 1, press on buttons 4 and
5 simultaneously within 10 seconds.

This symbol will flash.

This symbol will be displayed.

F  Press button 5 until the message "OK" is

displayed.

When the signal has been received, the
message "OK" is displayed along with the
operating time.

F  To deactivate the function, press

button 4 until the message "OK" is
displayed.

During these operations, if the message
"FAIL" is displayed, it means that the signal
has not been received. Follow the procedure
again after having changed position.

Adjusting the operating time

F  Press the buttons 1 to display the operating

time.

The heater starts and this symbol is
displayed.

This indicator lamp flashes during
heating.

This symbol and the indicator lamp
will turn off.

This symbol will be displayed.

108

Ease of use and comfort

F  After having displayed the operating time,

press buttons 4 and 5 simultaneously within
10 seconds.

F  Adjust the time by pressing buttons 1: in

10 minute increments to a maximum of
30 minutes.

F  Simultaneously press buttons 4 and 5 to

save the operating time.

The factory value setting is 30 minutes.

Deferred switching on

You must program your departure time for the
system to automatically calculate the optimal
time to start the heater.

Programming the departure time

F  Press buttons 1 to display the programmed

time.

This symbol will flash.

F  Set the time by pressing the buttons 1.
F  Simultaneously press buttons 4 and 5 to

save it.

Activation/Deactivation

F  After having displayed the programmed

time using button 1, press button 5 until the
message "OK" is displayed.

HTM: Heat Thermo Management

This symbol will flash.

This symbol will be displayed.

This symbol will be displayed.

F  After having displayed the programmed

time, press buttons 4 and 5 simultaneously
within 10 seconds.

This symbol will be displayed.

When the signal has been received,
the message "OK" is displayed
along with this symbol.

This indicator lamp lights up until the
heater starts.

This symbol is displayed when the
heater starts.

3

109

Ease of use and comfort

F  To deactivate the programming, press

on button 4 until the message "OK" is
displayed.

During these operations, if the message
"FAIL" is displayed, it means that the
signal has not been received. Follow the
procedure again after having changed
position.

Stopping the heating

F  Press button 5.

Changing the heating level

The system has 5 heating levels: C1 (lowest
level) to C5 (highest level).
F  After having displayed the heating level

using buttons 1, press simultaneously on
buttons 4 and 5.

The letter "C" will flash.

This symbol will disappear.

This symbol will remain lit.

This indicator lamp turns off.

F  Adjust the heating level by pressing

buttons 1.

F  Simultaneously press buttons 4 and 5 to

save the selected level.

The letter "C" will be displayed.

The presets are replaced by the new
entries. The programmed times are
memorised until the next change.
When the start time is activated, it is not
possible to change the heating level. You
must first deactivate the start time.

Operating fault

In the event of a fault with the programmable
heating, contact a PEUGEOT dealer or a
qualified workshop.

Changing the battery

The remote control is powered by a 6V-28L
battery, which is provided.
Information on the screen indicates when this
battery needs to be changed.

F  Unclip the case.
F  Replace the battery observing the

polarities.

F  Reset the remote control.

Reinitialising the remote control

If the battery is disconnected or when changing
the battery, the remote control must be
reinitialised.
F  After turning on the power, within the next

5 seconds, press button 4 for 1 second.

If the operation is successful, the message
"OK" will be displayed on the remote
control's screen.
If there is a fault, the message "FAIL" will
appear.

F  Start the operation again.

Do not throw away used batteries, take
them to an approved collection point.

110

Ease of use and comfort

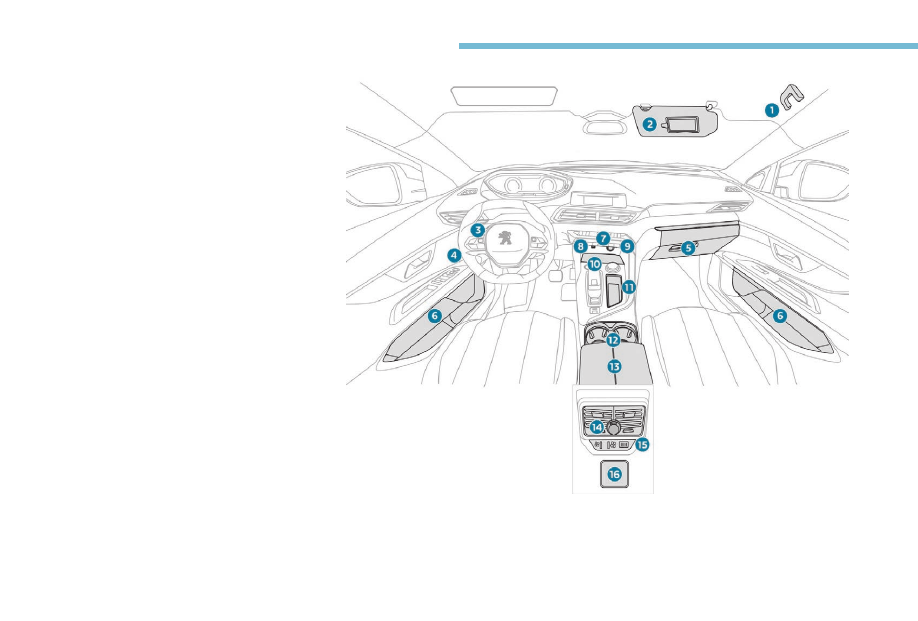

Front fittings

1.

Grab handle

2.

Sun visor

3.

Card holder

4.

Storage compartment below the
steering wheel

5.

Illuminated glove box

6.

Door pockets

7.

Scented air freshener

8.

USB socket

9.

Front 12 V accessory socket (120 W)

10. Storage compartment or CD player or

Wireless charger

11.

Storage compartment

12. Cup holder

13. Front armrest with storage

compartment

14. Rear 12 V accessory socket (120 W)

15. Rear blower

16. 230 V socket
