Peugeot 5008 (2017 year). Instruction - part 6

Ease of use and comfort

Front head restraints

Adjusting the height

The adjustment is correct when the upper
edge of the head restraint is level with the
top of your head.

Removing a head restraint

F Pull the head restraint up as far as it will go.
F Press the lug A to release the head restraint

and remove it completely.

F Stow the head restraint securely.

Refitting a head restraint

F Introduce the head restraint rods into the

guides in the seat backrest.

F Push the head restraint down as far as it will

go.

F Press the lug A to free the head restraint

and push it down.

F Adjust the height of the head restraint.

Never drive with the head restraints
removed; they should be in place and
correctly adjusted for the occupant of the
seat.

Upward:
F pull the head restraint up to the desired

position; the head restraint can be felt to
click into position.

Downward:
F press the lug A and push the head restraint

down to the desired position.

Electric driver's seat

To adjust the seat electrically, switch
on the ignition, or start the engine if the
vehicle has gone into energy economy
mode.
These are accessible approximately one
minute after opening the driver’s door.
They are deactivated approximately one
minute after switching off the ignition.

Ease of use and comfort

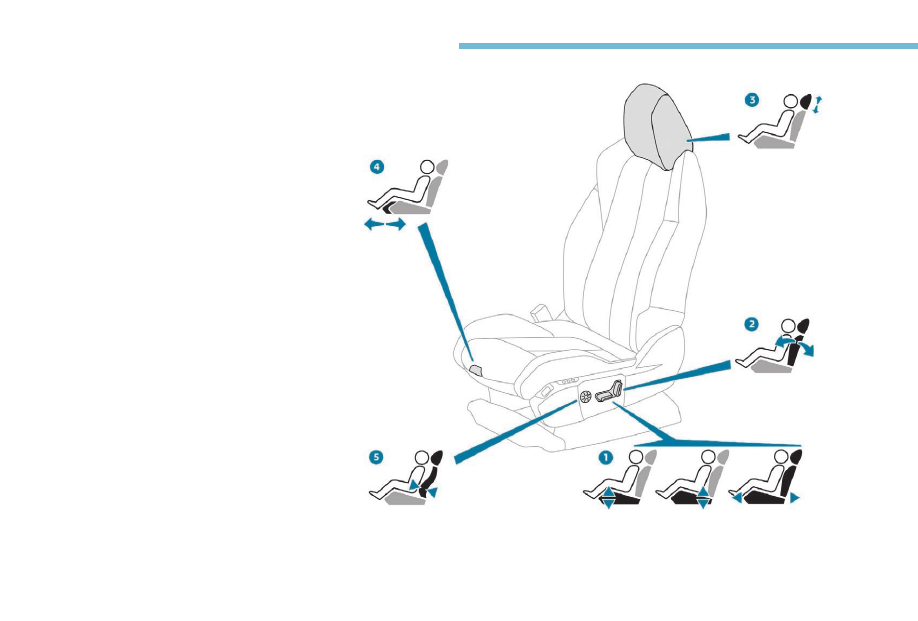

1. Adjusting the angle and height of the seat
cushion / Adjusting the seat forwards and
backwards
F Raise or lower the front of the control to

obtain the desired seat cushion angle.

F Raise or lower the rear of the control to

raise or lower the seat cushion.

F Slide the control forwards or backwards to

move the seat forwards or backwards.

2. Adjusting the seat backrest angle
F Turn the control forwards or backwards to

recline the backrest to the desired angle.

3. Adjusting the height of the head restraint
Refer to the corresponding section.

4. Adjusting the length of the seat cushion
F Pull the handle forwards to release the

cushion, then move the front part of the seat
cushion forwards or backwards.

5. Adjusting the lumbar support
The control allows independent adjustment of
the depth and vertical position of the lumbar
support.
F Press and hold the front or rear of the

control to increase or reduce the lumbar
support.

F Press and hold the top or bottom of the

control to raise or lower the lumbar support
area.

Ease of use and comfort

Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat.
There is a risk of trapping or pinching
passengers if present in the rear seats
or jamming the seat if large objects are
placed on the floor behind the seat.

Storing driving positions

Associated with adjustments of the electrical
driver’s seat, this function allows two driving
positions to be memorised, to make these
adjustments easier if there are frequent driver
changes.
It takes account of the electric adjustments of
the seat and the door mirrors.

Storing a position

Using buttons M / 1 / 2
F  Sit in the driver’s seat.
F  Switch on the ignition.
F  Adjust your seat and the door mirrors.
F  Press button M, then press button 1 or

2 within four seconds.

An audible signal indicates that the position has
been stored.

Storing a new position cancels the
previous position.

Recalling a stored position

Ignition on or engine running
F Press button 1 or 2 to recall the

corresponding position.

An audible signal confirms that adjustment is
complete.

You can interrupt the current movement by
pressing button M, 1 or 2 or by using one
of the seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45 seconds after switching off the ignition.

Heated seats

The function is active only with the engine
running.

Switching on

F Press the button corresponding to your

seat.

F Each press changes the level of heating; the

corresponding number of indicator lamps
come on:
•  1 indicator lamp = low.
•  2 indicator lamps = medium.
•  3 indicator lamps = high.

Switching off

F Press the button again until all the indicator

lamps are off.

The state of the system is not kept in memory
when the ignition is switched off.

Do not use the function when the seat is
not occupied.
Reduce the intensity of the heating as
soon as possible.
When the seat and passenger
compartment have reached an adequate
temperature, you can stop the function;
reducing the consumption of electrical
current reduces fuel consumption.

Ease of use and comfort

Prolonged use is not recommended for
those with sensitive skin.
There is a risk of burns for people whose
perception of heat is impaired (illness,
taking medication, etc.).
There is a risk of overheating the system if
material with insulating properties is used,
such as cushions or seat covers.
Do not use the system:
-  if wearing damp clothing,
-  if child seats are fitted.
To avoid breaking the heating element in
the seat:
-  do not place heavy objects on the seat,
-  do not kneel or stand on the seat,
-  do not place sharp objects on the seat,
-  do not spill liquids onto the seat.
To avoid the risk of short-circuit:
-  do not use liquid products for cleaning

the seat,

- never use the heating function when

the seat is damp.

Multipoint massage

System with a choice of type of massage and
adjustment of its intensity.
This system operates with the engine running,
as well as in STOP mode of Stop & Start.

Activation / Settings

The massage settings are adjusted in the touch
screen.
The system is switched on, either directly using
the button on the front seat, or by activating
a personalised ambience with the i-Cockpit
Amplify function.

Using the button on the front seat:

F Press this button, its indicator

lamp comes on.

The system is activated immediately with the
last settings used and the settings page is
displayed in the touch screen.

If the settings suit you and you make no
changes, the display returns to its previous
state.

The multipoint massages are also
managed by the i-Cockpit Amplify
function.

For more information on the i-Cockpit Amplify
function, refer to the corresponding section.

If you want to modify the settings:
F select another type of massage from the

five offered,

F select a massage intensity from the three

levels offered: "1" (Low), "2" (Normal) or
"3" (High).

The modifications are taken into account
immediately.
Once activated, the system starts a one hour
massage cycle, made up of sequences of
6 minutes of massage followed by 3 minutes
at rest.
The system stops automatically at the end of
the cycle; the indicator lamp in the button goes
off.

Ease of use and comfort

Steering wheel adjustment

As a safety measure, these adjustments
should only be carried out with the vehicle
stationary.

F When stationary, pull the control lever

to release the steering wheel adjustment
mechanism.

F Adjust the height and reach to suit your

driving position.

F Push the control lever to lock the steering

wheel adjustment mechanism.

Mirrors

Door mirrors

Demisting / Defrosting

If your vehicle is so equipped,
demisting / defrosting of the heated
door mirrors is performed when the
heated rear screen is switched on.

For more information on Demisting and
defrosting the rear screen, refer to the
corresponding section.

Adjustment

As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
The objects observed are, in reality, closer
than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.

Each fitted with an adjustable mirror glass
permitting the lateral rearward vision
necessary for overtaking or parking.
They can also be folded for parking in narrow
spaces.

F Move control A to the right or to the left to

select the corresponding mirror.

F Move control B in any of the four directions

to adjust.

F Return control A to the central position.

Ease of use and comfort

F From outside: lock the vehicle using the

remote control or the key.

F From inside: with the ignition on, pull the

control A in the central position rearwards.

If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked. Pull again on control A.

Unfolding

F From outside: unlock the vehicle using the

remote control or the key.

F From inside: with the ignition on, pull the

control A in the central position rearwards.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.

If necessary the mirrors can be folded
manually.

Automatic tilting in reverse gear

System which provides a view of the ground
during parking manoeuvres in reverse gear.

With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
- a few seconds after coming out of reverse

gear,

- once the speed of the vehicle exceeds

6 mph (10 km/h),

- on switching off the engine.

This function is activated /
deactivated via the "Vehicle
settings" tab in the Vehicle /
Driving menu of the touch screen.

Rear view mirror

Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles, etc.

Manual model

Folding

Adjustment
F Adjust the mirror so that the glass is

directed correctly in the "day" position.

Day / night position
F Pull the lever to change to the "night" anti-

dazzle position.

F Push the lever to change to the normal

"day" position.

Automatic "electrochrome"
model

In order to ensure optimum visibility during
your manoeuvres, the mirror lightens
automatically when reverse gear is
engaged.

This system automatically and progressively
changes between day and night use by means
of a sensor measuring the light coming from the
rear of the vehicle.

Ease of use and comfort

Second row seats

Rear head restraints

The rear head restraints can be removed.
To remove a head restraint:
F pull the head restraint as far up as it will go,
F press the lug A to release the head restraint

and remove it completely,

F stow the head restraint.

To refit a head restraint:
F insert the head restraint rods into the guides

in the corresponding seat backrest,

F push the head restraint down as far as it will

go,

F press the lug A to free the head restraint

and push it down.

Never drive with passengers seated at
the rear when the head restraints are
removed; they must be in place and in the
high position.

Seat adjustments

They have two positions:
- a

high position, for when the seat is in use:

F pull the head restraint fully up.

- a

low position, for stowing, when the seat

is not in use:
F press the lug A to release the head

restraint and push it fully down.

The three 2nd row seats are independent and
of the same width. Their backrests can be
folded to alter the boot loading space.

Longitudinal adjustment

Adjusting the seat backrest angle and
folding

Folding the backrest from behind and
emergency exit for 3rd row passengers

Access to 3rd row seats (7-seat versions)

Ease of use and comfort

Adjusting the seat backrest angle

Lateral seats

F Lift control handle B1 and guide the

backrest backwards or forwards, raising
yourself slightly if needed.

F Release the handle and ensure the backrest

is properly locked on one of the positions
offered.

Central seat

F Lift control handle B2 and guide the

backrest backwards or forwards, raising
yourself slightly if needed.

F Release the strap and ensure the backrest

is properly locked on one of the positions
offered.

Flat floor

Folding the backrests

F Check that the "aircraft" type tables of the

front seats are properly folded.

F Place the 2nd row seats in the maximum

rear position.

Before and while performing operation
on the seats, check that the passengers,
children in particular, keep their hands and
their feet far from the moving elements of
the seats (hinges, slides, etc.) – Risk of
serious injury!

Folding from the outside

Longitudinal adjustment

F Raise the control bar A and slide the seat

forwards or backwards.

F Release the bar and ensure the seat is

properly locked.

F Pull the handle B1 or the strap B2 until the

backrest is fully folded back.

F Release the control.
F Push the backrest slightly forward so that

the backrest tilts and the cushion is folded
flat on the floor.

Ease of use and comfort

Folding from the boot

Replacing the seat

Before performing any operations on
the rear seats, to avoid damage to the
seat belts check that the lateral belts are
properly tensioned. The central safety belt
must be stored in the headlining.

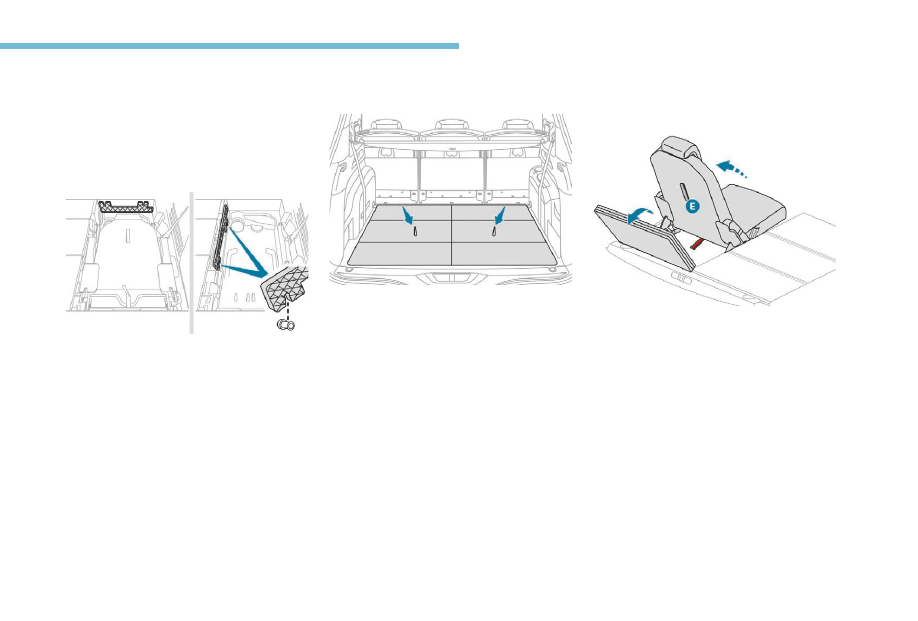

Continuity panels

When loading, for example, or from the 3rd row
seats:
F Pull strap C to unlock the desired seat and

give the backrest a slight push forward.

F Place the continuity panels of the 2nd row of

seats against the backrests again.

F Straighten the backrest until it locks.

Each seat has a continuity panel at the bottom
of the backrest, which, once unfolded:
- allows for a continuous loading surface in

the boot, whatever the position of the seats,

- prevents objects from sliding beneath the

2nd row seats.

These continuity panels are not designed
to support a mass greater than 30 kg.

The continuity panels are held against the
backrests with a magnetic fixing element.

Before deploying the continuity panels,
check that the 2nd row seats are pulled as
far back as possible.

Ease of use and comfort

Access to third row seats

Third row seats

Third row seats are accessed via the second
row lateral seats.

From the outside or from the 3rd row seats:
F Check that the "aircraft" type tables of the

front seats are properly folded.

F Pull lever D and guide the backrest forwards

to tilt it and move the seat to the front.

To put the seat back in place:
F Straighten the backrest until the seat locks.
Whatever the initial position of the seat, it
is placed automatically in the third of the
longitudinal adjustment range in order to
preserve enough space for passengers in the
3rd row seats.

If this system fails (lever D) the 3rd row
passengers can also get out after having
folded back the backrest of the 2nd row
seats using strap C.
Do not let children manipulate the seats
unsupervised.

The two seats in the 3rd row are stored in the
folded position at the back of the boot. Each is
covered with a rigid concertina floor attached
to the vehicle.

Do not let children manipulate the seats
unsupervised.

Each concertina floor can support a maximum
load of 100 kg with the 3rd row seats folded
away.
With the 3rd row seats removed and the
removable concertina floor carriers installed,
the maximum load is limited to 40 kg.

Ease of use and comfort

Folding the concertina
boards

When the 3rd row seats are straightened, these
folded concertina floors can be left:
- either flat behind the seats,
- or in the vertical position,
thus clearing the inside of the seat as a storage
space.

Installing the seats

This is done from the boot sill.

When there is a seat at the back of the boot,
the removable carrier is fixed against the wall in
front of its holder.
If you remove the seat from the back of the
boot for extra storage space, you must place
the removable carrier on the two lugs on the
central wall.

F Pull one of the straps; the 3 parts of the

corresponding floor fold into concertina
form.

F Remove the load space cover.
F Straighten the continuity panels of the

2nd row seats.

F Fold back the concertina board and

straighten it vertically.

F Pull the black strap E, located behind the

backrest.

The backrest tilts backwards bringing the
seat cushion with it; the seat locks in the open
position. The load space cover can be stored
behind the backrests of the seats in the 3rd
row.
For more information on the Interior fittings
and particularly on the load space cover, refer
to the corresponding section.

Ease of use and comfort

Rear head restraints

The rear head restraints can be removed.
To remove a head restraint:
F pull the head restraint as far up as it will go,
F press the lug A to release the head restraint

and remove it completely,

F stow the head restraint.

Never drive with passengers seated at
the rear when the head restraints are
removed; they must be in place and in the
high position.

Removal of the seats

Seat storage

F Straighten the continuity panels of the 2nd

row of seats.

F Put the head restraints in the low position.
F Check that the seat belts in the 3rd row are

properly stored along the side trims without
being folded or twisted.

F Pull strap F, located at the bottom of the

backrest.

The seat is unlocked.

F Push the backrest slightly forwards.
The backrest tilts and folds back on the
cushion; the folded seat is stored at the back of
its storage area.

F Put the concertina boards back above the

folded seats.

Before doing anything to the seats on the
3rd row, straighten the continuity panels of
the seats on the 2nd row.
Do not try to fold back a seat in the 3rd
row without having opened it until the
backrest is fully locked.
Do not leave anything on or underneath
the seats on the 3rd row when they are
being folded.
Do not guide strap F when storing the seat
– your fingers may get jammed!

They have two positions:
- a

high position, for when the seat is in use:

F pull the head restraint fully up.

- a

low position, for stowing, when the seat

is not in use:
F press the lug A to release the head

restraint and push it fully down.

To refit a head restraint:
F insert the head restraint rods into the guides in

the corresponding seat backrest,

F push the head restraint down as far as it will go,
F press the lug A to free the head restraint and

push it down.

Removing the right-hand seat first is
recommended in order to facilitate access to
the left-hand seat unlocking control.

The seat must be in the folded away position.

This is done from the boot sill.

Ease of use and comfort

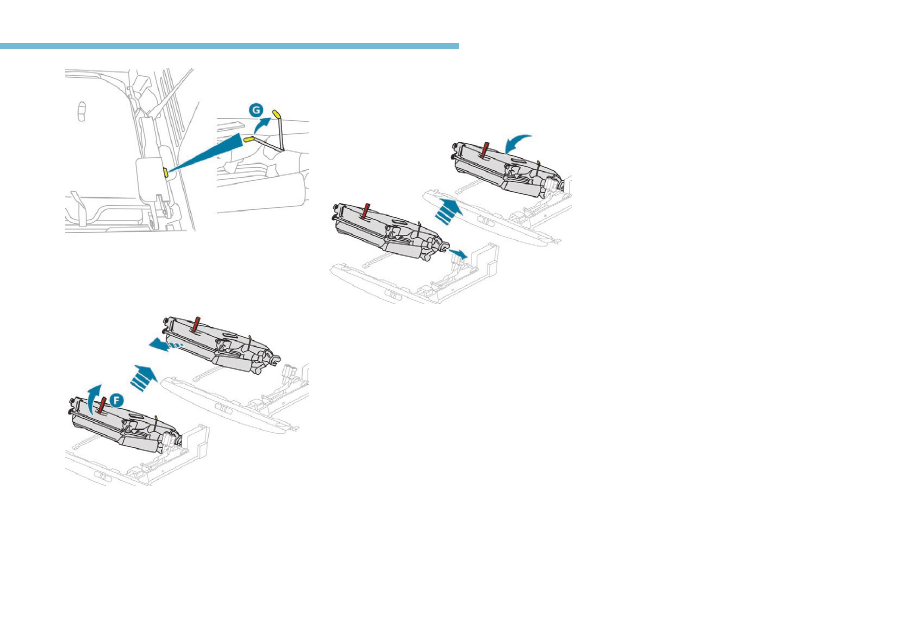

F Fold back the concertina boards.
F Lift the yellow lever G by pulling the red

strap F, located on the right, to unlock the
seat.

F Gripping the seat by the side, by the plastic

covers, lift the rear part of the seat.

F Pull the seat away to the rear while keeping

it tilted.

Returning the seats to their original position

This is done from the boot sill.

F Set the seat in a tilted position in the front

fixing lugs.

F Lower the rear part of the seat until it is

locked.

The yellow lever G folds automatically.

Ease of use and comfort

Seat modularity

Configuration examples

7 seats

5 seats

Transport of objects

6 seats

4 seats

By folding the 2nd row of seats and
retracting the 3rd row of seats, you can
create a continuous storage floor through
to the back of the front seats.
By folding the front passenger seat
into a table position, you can create a
continuous storage floor through to the
dashboard.

Folding or unfolding the seats must only
be done with the vehicle stationary.

Ease of use and comfort

i-Cockpit Amplify function

This function allows the driving ambiences to
be managed.
Specific system settings are offered for each
ambience.
These ambiences can be personalised in the
touch screen.

Content of an ambience

An ambience is defined by the settings for each
of the following systems:

Access to the i-Cockpit
Amplify system home page

Direct access by this button

Access via the Applications menu

F Select "i-Cockpit Amplify".

Activating an ambience

From the home page:
F Select an ambience: "Relax" or "Boost".
Depending on the settings made for the
ambience, the systems are activated
immediately.

Deactivating an ambience

From the home page:
F Press "Deactivate ambience".
or
F Select another ambience.
The ambience is automatically deactivated
when the ignition is switched off.

the passenger compartment
ambient lighting,

(activation / deactivation and
adjustment of brightness)

the audio ambience,

(choice of predetermined settings for
the audio system equaliser).

scented air freshener,

(activation / deactivation, choice of
an air freshener and adjusting the
amount of diffusion).

multipoint massage,

(selection of the seat, activation /
deactivation, selection of a type of
massage and a setting for intensity).

Dynamic pack,

(activation / deactivation).

Personalising an ambience

From the home page:
F Select an ambience to activate it.
F Press "Settings" to display the settings

page for the ambience.

F Select a system for which you wish to

modify the settings.

F After making the modifications, press any

area of the screen outside the system
settings window to return to the ambience
settings page.

F After making all of the desired modifications

to settings, press "Save settings".

The modifications are taken into account
immediately.

It is possible to temporarily modify an
ambience at any time, by modifying the
settings for one or more of the systems
managed in the ambience, without going
via the i-Cockpit Amplify function.
For example, you can deactivate or modify
the intensity of the current massage by
pressing the massage activation button
in your seat or activate / deactivate
the ambient lighting in the passenger
compartment from the Vehicle / Driving
menu.
In this case, the new settings will not be
saved as part of the current ambience.

Ease of use and comfort

Heating and Ventilation

Air intake

The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.

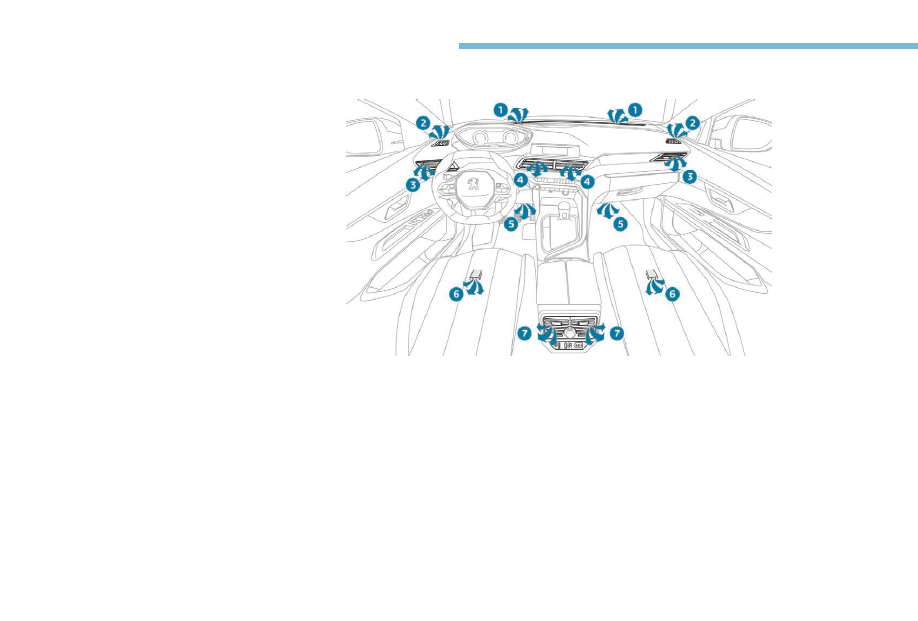

Controls

The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment .
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
Depending on your vehicle, the controls are
accessible in the "Air conditioning" menu of
the touch screen or are grouped together on
control panel on the centre console.

Air distribution

Windscreen demisting/defrosting vents.

Front side window demisting/defrosting
vents.

Side adjustable air vents.

Central adjustable air vents.

Air outlets to the front footwells.

Air outlets to the rear footwells.

Adjustable air vents with blower.

To close the air vents:
F side vents; place the cursor in the central

position, then move it sideways towards the
door.

F central vents; place the cursor in the central

position, then move it sideways towards
you.

Content .. 4 5 6 7 ..
