Peugeot 5008 (2017 year). Instruction

Dashboard instruments

PEUGEOT Connect Radio

The functions available through the upper menu bar are detailed in the table below.

Button

Comments

Turn off the screen (black screen).
To return to the current screen, press the black screen or one of the menu
buttons.

Adjustment of the brightness of the instrument panel ambient lighting.

Choice and settings for three user profiles.

Settings for the touch screen and the digital instrument panel.

Activation and configuration of the settings for the Wi-Fi.

Dashboard instruments

Settings for the touch screen and the digital
instrument panel

Button

Comments

Adjustment of the display parameters (text scrolling, animations, etc.) and
brightness.

Choice of units:
- temperature (°Celsius or °Fahrenheit),
- distances and fuel consumption (l/100 km, mpg or km/l).

Choice of display language on the touch screen and digital instrument panel.

Setting the date and time.

Choice of the type of information displayed in the digital instrument panel.

Access

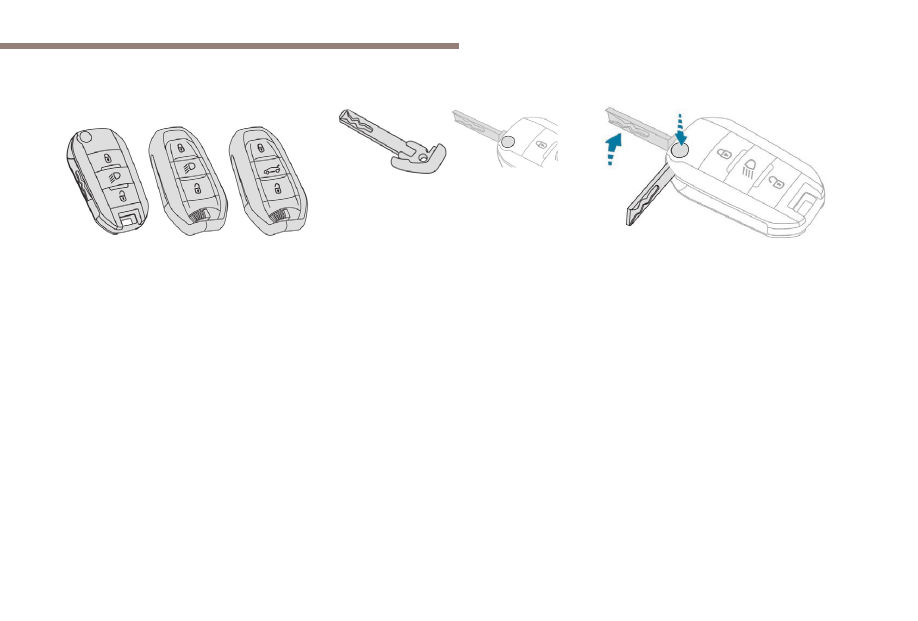

Remote control

General information

Ejecting the key

Version without Keyless Entry and Starting
F Press this button; the key is ejected from its

housing.

To avoid damaging the mechanism, first press
this button to fold it.

The remote control can be used for the
following functions, depending on version:
- unlocking / locking / deadlocking the

vehicle,

-  unlocking – opening / closing the boot,
-  turning the lighting on,
-  folding / unfolding the door mirrors,
-  activating / deactivating of the alarm,
-  opening the windows,
-  closing the windows and the sunroof,
-  locating the vehicle,
-  vehicle immobiliser.

The key, integral with the remote control, can
be used for the following functions, depending
on version:
- unlocking / locking / deadlocking the

vehicle,

- turning the mechanical child lock on or off,
- activating / deactivating the passenger front

airbag,

- back-up door locking,
- switching on the ignition and starting /

switching off the engine.

Access

Locking the vehicle

Normal locking

F Press this button.

On the first press of the locking button,
illumination of the direction indicators for a few
seconds indicates:
- locking of the vehicle for versions without

alarm,

- activation of the alarm for other versions.
Depending on version, the door mirrors fold.

Unlocking the vehicle

Version with Keyless Entry and Starting
F Pull on this button to remove the key from

the housing.

To return it to the housing, first pull on this
button.

Complete unlocking

F Press this button.

Selective unlocking

Driver door and fuel flap
The setting is done in the vehicle configuration
menu.

Opening the windows

F Press this button.
F To unlock the other doors and

the boot, press this button again.

On the first press of the unlocking button,
flashing of the direction indicators for a few
seconds signals:
- complete or selective unlocking of the

vehicle for versions without alarm,

- deactivation of the alarm for other versions.
Depending on version, the door mirrors unfold.

Depending on version, pressing and
holding the unlocking buttons opens
the windows to the desired position.
The windows stop when you release
the button.

An access that is not properly closed
(door or tailgate) prevents locking of the
vehicle. However, if your vehicle has an
alarm, this will be fully activated after
about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically lock
itself again after about 30 seconds. If the
alarm was previously activated, it will be
reactivated automatically.

Access

Deadlocking

F Within five seconds, press this

button again to deadlock the
vehicle.

For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button.

Closing the windows and sunroof

Maintaining pressure on the locking
button allows the windows and,
depending on version, the sunroof to
be closed to the desired position.
This operation also closes the
sunroof blind.

Locating your vehicle

This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.

F Press this button.

This will switch on the courtesy lamps and door
mirror spot lamps and the direction indicators
will flash for around ten seconds.

Welcome lighting

Availability of this function depends on version.

F Make a short press on this

remote control button.

Pressing again before the end of the timed
period switches off the lighting immediately.

The sidelamps, dipped beam headlamps,
number plate lamps and door mirror spotlamps
come on for 30 seconds.

The automatic folding and unfolding of the
door mirrors with the remote control can
be deactivated by a PEUGEOT dealer or a
qualified workshop.

Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside the
vehicle when it is deadlocked.

Ensure that nothing could prevent the
correct closing of the windows and
sunroof.
If, on versions with alarm, you want to
leave the windows and/or sunroof partly
open, you must first deactivate the
volumetric alarm protection.
For more information on the Alarm, refer
to the corresponding section.

Access

Keyless Entry and
Starting

System that allows the unlocking, locking
and starting of the vehicle, while keeping the
electronic key in the recognition zone.

Unlocking the vehicle

Complete unlocking

F With the electronic key in recognition

zone A, pass your hand behind the door
handle of one of the front doors or press the
tailgate opening control (middle button).

If motorised operation of the tailgate is
activated, this action triggers its automatic
opening.

Selective unlocking and
opening of the tailgate

The settings for the selective tailgate unlocking
and motorised operation are made in the
vehicle configuration menu.
By default, selective tailgate unlocking is
activated and the motorised function is
deactivated.

F Make a long press on the button

to unlock the boot and trigger the
motorised opening of the tailgate.

The doors and fuel filler flap remain locked.

If selective unlocking of the tailgate is
deactivated, pressing the unlocking button
unlocks the whole vehicle.

If motorised operation of the tailgate is
deactivated, pressing the unlocking button
releases the tailgate.
To lock the vehicle, it is necessary to close
the tailgate again.

The electronic key can also be used as a
remote control.
For more information on the operation
of the Remote control, refer to the
corresponding section.

Access

Opening the windows
Depending on version, keeping your hand
behind the door handle or pressing the tailgate
control allows the windows to be opened to the
desired position.

Flashing of the direction indicators for a few
seconds signals:
- the unlocking of the vehicle for versions

without alarm,

- the deactivation of the alarm for other

versions.

Depending on version, the door mirrors unfold.

Selective unlocking

Driver door and fuel flap

F Pass your hand behind the driver's door

handle.

F To unlock the complete vehicle, pass your

hand behind the front passenger door
handle with the electronic key close to
the passenger door, or press the tailgate
opening control (middle button) with the
electronic key close to the rear of the
vehicle.

The setting for selective unlocking of
the driver's door is done in the vehicle
configuration menu.

When unlocking the driver's door, flashing
of the direction indicators for a few seconds
signals:
- the selective unlocking of the vehicle for

versions without alarm,

- the deactivation of the alarm for other

versions.

Depending on version, the door mirrors unfold.

Selective unlocking of the
tailgate

F Press the tailgate opening button to unlock

just the boot.

The doors remain locked.

If selective unlocking of the tailgate is
deactivated, pressing this control also
unlocks the doors.

Activation or deactivation of selective
unlocking of the tailgate is done in
the Vehicle / Driving menu of the
touch screen.

If one of the doors or the boot is still open
or if the electronic key for the Keyless
Entry and Starting system has been left
inside the vehicle, the central locking does
not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.

If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically lock
itself again after about 30 seconds.
If fitted to your vehicle, the alarm will also
be reactivated automatically.

The automatic folding and unfolding of
the door mirrors can be deactivated by a
PEUGEOT dealer or a qualified workshop.

Access

Locking the vehicle

Normal locking

Closing the windows and sunroof
Maintaining pressure on the door handle or
the tailgate control allows the windows and,
depending on version, the sunroof to be closed
to the desired position.
This operation also closes the sunroof blind.

Illumination of the direction indicators for a few
seconds signals:
- locking of the vehicle for versions without

alarm,

- activation of the alarm for other versions.
Depending on version, the door mirrors fold.

F With the electronic key in recognition

zone A, press with your finger or thumb on
the door handle of one of the front doors
(at the markings) or on the locking control
located on the tailgate (on the right).

It is not possible to lock the vehicle if one of the
electronic keys is left inside the vehicle.

As a safety measure (children on board),
never leave the vehicle without taking the
electronic key for the Keyless Entry and
Starting system with you, even for a short
period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.

In order to preserve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21 days without
use. To restore these functions, press
one of the remote control buttons or start
the engine with the electronic key in the
reader.
For more information on starting with
Keyless Entry and Starting, refer to the
corresponding section.

Ensure that nothing could prevent the
correct closing of the windows and
sunroof.
Be particularly aware of children when
operating the windows.

Access

Deadlocking

At the first press on one of the locking controls,
illumination of the direction indicators for a few
seconds signals:
- the locking of the vehicle for versions

without alarm,

- the activation of the alarm for other

versions.

Depending on version, the door mirrors fold.
At the second press, illumination of the
direction indicators for a few seconds signals
the deadlocking of the vehicle for versions
without alarm.

F With the electronic key in recognition

zone A, press with your finger or thumb on
the door handle of one of the front doors
(at the markings) or on the locking control
located on the tailgate (on the right).

F Within five seconds, press one of these

locking controls again to deadlock the
vehicle.

For safety and theft protection reasons,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it with
you.

Accumulations (water, dust, grime, salt,
etc.) on the inner surface of the door
handle may affect detection.
If cleaning the inner surface of the door
handle using a cloth does not restore
detection, contact a PEUGEOT dealer or a
qualified workshop.
A sudden splash of water (stream of water,
high pressure jet washer, etc.) may be
identified by the system as the desire to
open the vehicle.

Access

Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's
registration certificate, your personal
identification documents and if possible, the
label bearing the key code.
The PEUGEOT dealer will be able to retrieve
the key code and the transponder code
required to order a new key.

Remote control
The high frequency remote control is a
sensitive system; do not operate it while it is
in your pocket as there is a possibility that
it may unlock the vehicle, without you being
aware of it.
Do not repeatedly press the buttons of your
remote control out of range and out of sight of
your vehicle. It may become inoperative. It will
then be necessary to reinitialise it again.
The remote control does not operate when
the key is in the ignition, even when the
ignition is switched off.

Locking the vehicle
Driving with the doors locked may make
access to the passenger compartment by
the emergency services more difficult in an
emergency.
As a safety precaution (with children on
board), remove the key from the ignition or
take the electronic key when you leave the
vehicle, even for a short time.

Electrical interference
The Keyless Entry and Starting electronic key
may not operate if close to certain electronic
devices: telephone, laptop computer, strong
magnetic fields, etc.

Anti-theft protection
Do not make any modifications to the
electronic engine immobiliser system; this
could cause malfunctions.
For vehicles with an ignition switch, do not
forget to remove the key and turn the steering
to engage the steering lock.

When purchasing a second-hand vehicle
Have the key codes memorised by a
PEUGEOT dealer, to ensure that the keys in
your possession are the only ones which can
start the vehicle.

Do not throw away the remote control
batteries, they contain metals which are
harmful to the environment.
Take them to an approved collection
point.

Access

Back-up procedures

Complete unlocking /
locking of the vehicle with
the key

These procedures should be used in the
following cases:
-  remote control cell battery flat,
-  remote control fault,
-  vehicle in an area subject to strong

electromagnetic interference.

In the first case, you can also replace the
remote control cell battery.
Refer to the corresponding section.
In the second case, you can also reinitialise the
remote control.
Refer to the corresponding section.

Unlocking

F Insert the key in the door lock barrel.
F Turn the key towards the front of the vehicle.

For versions without alarm, the unlocking is
confirmed by flashing of the direction indicators
for a few seconds.
Depending on version, the door mirrors unfold.

Normal locking

Deadlocking

F Insert the key in the door lock barrel.
F Turn the key towards the rear of the vehicle.
For versions without alarm, the locking is
confirmed by flashing of the direction indicators
for a few seconds.
Depending on version, the door mirrors fold.

If the alarm is activated, the siren sounds
on opening the door; switch on the ignition
to stop it.

If your vehicle is fitted with an alarm, this
function will not be activated when locking
with the key.

F Insert the key in the door lock barrel.
F Turn the key towards the rear of the vehicle

to lock it.

F Within five seconds, turn the key towards

the rear of the vehicle again to deadlock it.

For versions without alarm, at the second
manoeuvre the deadlocking is confirmed by
flashing of the direction indicators for a few
seconds.
Depending on version, the door mirrors fold.

Access

Reinitialising the remote
control

Following replacement of the battery or in
the event of a remote control fault, it may be
necessary to reinitialise the remote control.

Without central locking

These procedures should be used in the
following cases:
- central locking fault,
- battery disconnected or discharged.

Driver's door

F Turn the key towards the rear of the vehicle

to lock it, or towards the front to unlock it.

Passenger doors

Unlocking a door
F Pull the interior opening control for the door.

Locking

Changing the battery

A message is displayed on the instrument
panel screen when replacement of the battery
is needed.

F Open the doors.
F For the rear doors, check that the child lock

is not on.

Refer to the corresponding section.

F Remove the black cap on the edge of the

door, using the key.

F Without forcing, insert the key into the

aperture; then, without turning it, move the
latch sideways towards the inside of the
door.

F Remove the key and refit the black cap.
F Close the doors and check from the outside

that the vehicle is locked.

Version without Keyless Entry and Starting
Battery type: CR1620 / 3 volts.

Version with Keyless Entry and Starting
Battery type: CR2032 / 3 volts.

F Unclip the cover using a small screwdriver

at the cut-out.

F Remove the cover.
F Remove the discharged battery from its

housing.

F Fit the new battery into its housing

observing the polarity.

F Clip the cover onto the casing.
The remote control must be reinitialised after
replacing the battery.
For more information on reinitialising the
remote control, refer to the corresponding
section.

Access

Version without Keyless Entry
and Starting

F  Switch off the ignition.
F  Turn the key to position 2 (Ignition).
F  Press the closed padlock button for a few

seconds.

F Switch off the ignition and remove the key

from the switch.

The remote control is now fully operational
again.

Version with Keyless Entry
and Starting

F With a manual gearbox, place the gear

lever in neutral then fully depress the clutch
pedal.

F With an automatic gearbox, select

position P, then firmly press the brake
pedal.

F Switch on the ignition by pressing the

"START/STOP" button.

The electronic key is now fully operational
again.

If the fault persists after reinitialisation, contact
a PEUGEOT dealer or a qualified workshop
without delay.

F Place the mechanical key (integral with the

remote control) in the lock to unlock your
vehicle.

F Place the electronic key against the back-up

reader on the steering column and hold it
there until the ignition is switched on.

Access

Anti-intrusion security

Operation

If one of the doors or the boot is open, the
automatic central locking does not take place.

This is signalled by the sound of
the locks rebounding, accompanied
by illumination of this symbol in the
instrument panel, an audible signal
and the display of an alert message.

Carrying long or voluminous objects
If you want to drive with the boot open, you
should press the central locking button
to lock the doors. Otherwise, every time
the speed of the vehicle exceeds 6 mph
(10 km/h), the locks will rebound and the
alerts mentioned above will appear.
Pressing the central locking button
unlocks the vehicle.
Above 6 mph (10 km/h), this unlocking is
temporary.

This system allows automatic simultaneous
locking of the doors and boot as soon as the
speed of the vehicle exceeds 6 mph (10 km/h).

Unlocking

Central locking

This function allows the doors and boot to be
locked or unlocked simultaneously from inside
the vehicle.

Manual mode

Locking

F Press this button again to unlock

the vehicle.

The red indicator lamp in the button
goes off.

Automatic mode

This is the automatic central locking of the
vehicle when driving, also called anti-intrusion
security.
For more information on Anti-intrusion
security, refer to the corresponding section.

When locking / deadlocking from the
outside
When the vehicle is locked or deadlocked
from the outside, the red indicator lamp
flashes and the button is inactive.
F After normal locking, pull one of the

interior door levers to unlock the
vehicle.

F After deadlocking, it is necessary to

use the remote control, Keyless Entry
and Starting or the integral key to
unlock the vehicle.

F Press this button to lock the

vehicle.

The red indicator lamp in the button
comes on.

If one of the doors is open, the central
locking from the inside does not take
place.

Access

Activation / Deactivation

You can activate or deactivate this function
permanently.

F With the ignition on, press this

button until an audible signal is
triggered and a corresponding
message of confirmation is
displayed.

The state of the system stays in memory when
switching off the ignition.

Driving with the doors locked may render
access for the emergency services
difficult in an emergency.

Alarm

(Depending on version)

System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:

- perimeter monitoring

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet, etc.

- volumetric monitoring

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.

- anti-tilt monitoring

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.

Self-protection function

The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.

For all work on the alarm system, contact
a PEUGEOT dealer or a qualified
workshop.

Locking the vehicle with full
alarm system

Activation

F Switch off the ignition and get out of the

vehicle.

F Lock the vehicle using the remote control or

the " Keyless Entry and Starting" system.

The monitoring system is active: the
indicator lamp in the button flashes
once per second and the direction
indicators come on for about
2 seconds.

Access

Locking the vehicle
with exterior perimeter
monitoring only

Following an instruction to lock the
vehicle, the exterior perimeter monitoring
is activated after a delay of 5 seconds
and the interior volumetric and anti-tilt
monitoring after a delay of 45 seconds.

If an opening (door, boot or bonnet) is not
fully closed, the vehicle is not locked but
the exterior perimeter monitoring will be
activated after a delay of 45 seconds at
the same time as the interior volumetric
and anti-tilt monitoring.

Deactivation

F Press the unlocking button on the remote

control.

or
F Unlock the vehicle with the " Keyless Entry

and Starting" system.

The monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2 seconds.

When the vehicle automatically locks itself
again (as happens if a door or boot is not
opened within 30 seconds of unlocking),
the monitoring system is also reactivated
automatically.

Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-  leaving a pet in the vehicle,
-  leaving a window or sunroof partially open,
-  washing your vehicle,
-  changing a wheel,
-  having your vehicle towed,
-  transport by ship.

Deactivating the interior
volumetric and anti-tilt
monitoring

To be effective, the deactivation must
be carried out each time the ignition is
switched off.

F Switch off the ignition and within

10 seconds, press this button
until the indicator lamp is on
continuously.

F Get out of the vehicle.
F Immediately lock the vehicle using the

remote control or the Keyless Entry and
Starting system.

The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.

Reactivating the interior volumetric
and anti-tilt monitoring

F Deactivate the perimeter monitoring by

unlocking the vehicle with the remote
control or the " Keyless Entry and Starting"
system.

The indicator lamp in the button goes off.
F Reactivate all monitoring by locking the

vehicle with the remote control or the
"Keyless Entry and Starting" system.

The indicator lamp in the button flashes once
per second again.

Peugeot 5008 (2017 year). Instruction - part 4
