Peugeot 5008 (2017 year). Instruction - part 3

Dashboard instruments

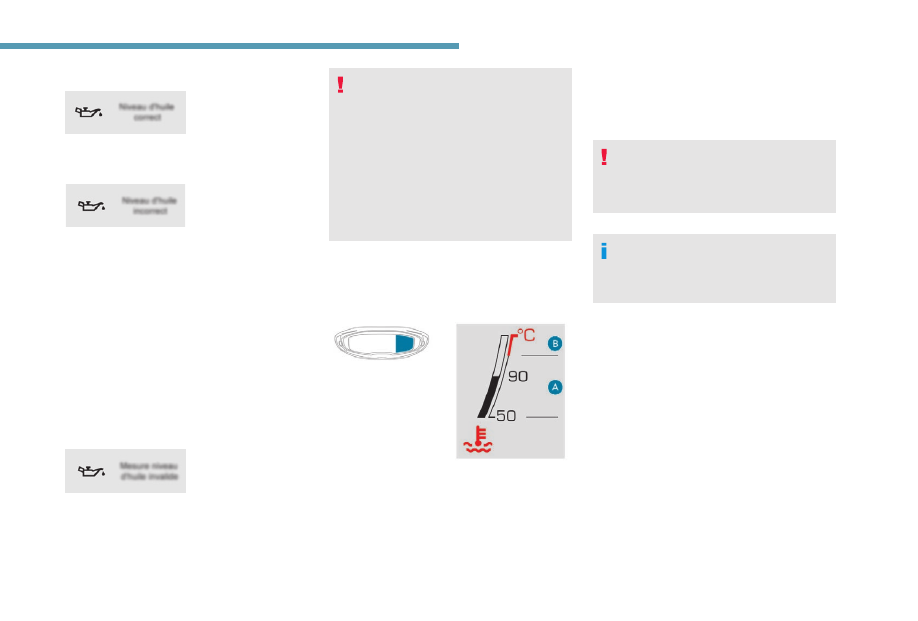

Oil level correct

Oil level incorrect

This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the Service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.

Oil level indicator fault

Coolant temperature
gauge

With the engine running:

- in zone A, the temperature is correct,
- in zone B, the temperature is too high; this

warning lamp and the central STOP warning
lamp come on, accompanied by the display
of a message and an audible signal.

You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.

After first switching off the ignition, open
the bonnet cautiously and check the
coolant level.

For more information on Checking levels,
refer to the associated section.

This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.

In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels,
refer to the corresponding section.

Dashboard instruments

AdBlue

range indicators

These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue

tank is on reserve or after

detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.

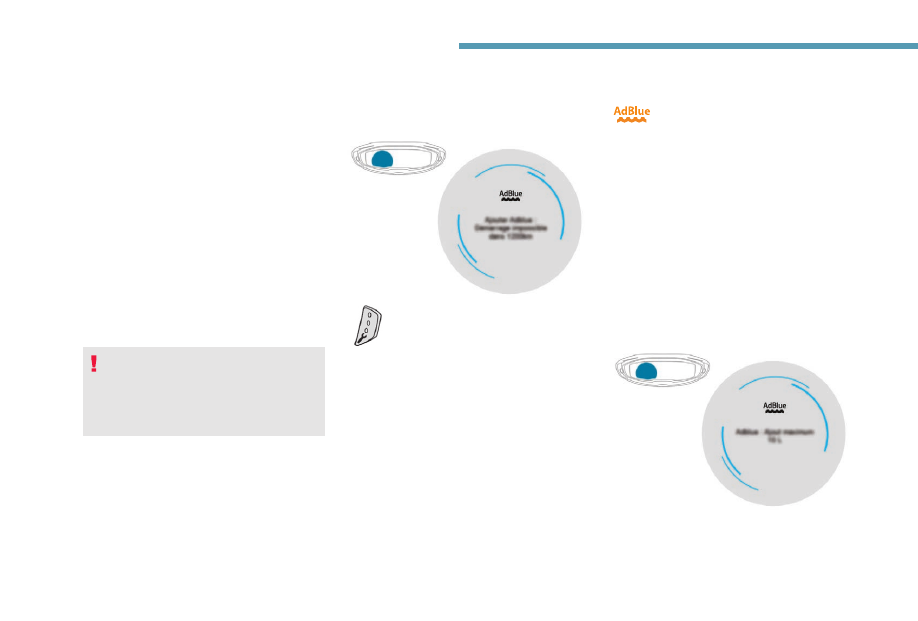

Remaining range between 1,500 and 375 miles (2,400 and 600 km)

When switching on the ignition, the
AdBlue warning lamp comes on,
accompanied by an audible signal
and the display of a message
(e.g. "Top up AdBlue: Starting
impossible in 930 miles (1,500 km)")
indicating the remaining range
expressed in miles or kilometres.

When driving, this message is displayed every
185 miles (300 km) until the AdBlue level has
been topped up.
The reserve level has been reached; it is
recommended that you top up as soon as
possible.

These messages are complemented by the
recommendation to not top up with more than
10 litres of AdBlue.

In the event of the risk of non-
starting related to a lack of
AdBlue

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank is

empty.

Range greater than 1,500 miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.

Pressing this button temporarily
displays the driving range with the
message "AdBlue: Range greater
than 1,500 miles (2,400 km)"
followed, if the tank level of AdBlue
permits, with a message indicating
that you can add at least 10 litres.

Dashboard instruments

Range less than 375 miles

When switching on the ignition,
the AdBlue warning lamp flashes,
accompanied by an audible signal
and the display of a message
(e.g. "Top up AdBlue: Starting
impossible in 185 miles (300 km)")
indicating the remaining range
expressed in miles or kilometres.

When driving, this message is displayed every
30 seconds until the AdBlue level has been
topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.

For more information on AdBlue

and the SCR

system, and in particular topping it up, refer to
the corresponding section.

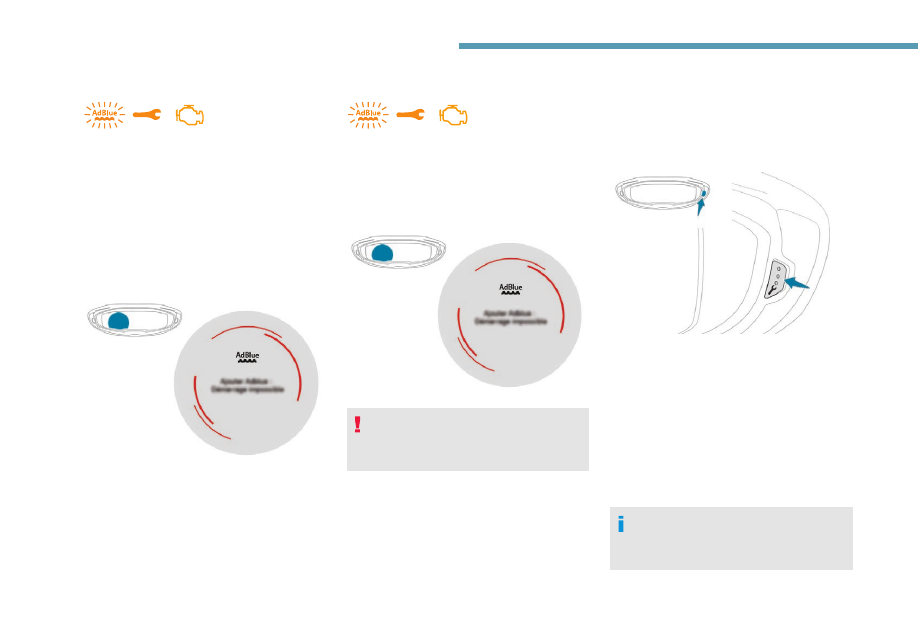

Breakdown related to a lack of AdBlue

When switching on the ignition,
the AdBlue warning lamp flashes,
accompanied by an audible signal
and the display of the message "Top
up AdBlue: Starting impossible".

The AdBlue

tank is empty: the starting inhibition system

required by legislation prevents starting of the engine.

To be able to restart the engine, it is
essential to add at least 4 litres of AdBlue

to its tank.

In the event of a fault with the
SCR emissions control system

A system that prevents engine starting is
activated automatically beyond 685 miles
(1,100 km) travelled after confirmation of
a fault with the SCR emissions control
system. Have the system checked by a
PEUGEOT dealer or a qualified workshop
as soon as possible.

In the event of the detection of a fault

The AdBlue, Service and engine diagnostic
warning lamps come on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.

If it is a temporary fault, the alert
disappears during the next journey, after
self-diagnosis of the SCR system.

Dashboard instruments

During the permitted driving phase
(between 685 and 0 miles) [1,100 km and 0 km)

Starting prevented

If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the Service and engine diagnostic
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g. "Emissions fault: Starting prevented in
185 miles (300 km)") indicating the remaining
range in miles or kilometres.

While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the ignition.
You should go to a PEUGEOT dealer or a qualified
workshop as soon as possible.
Otherwise, you will not be able to restart your engine.

Every time the ignition is switched on, the Service
and engine diagnostic warning lamps come on and
the AdBlue warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".

You have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.

To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.

Manual test in the
instrument panel

This function allows you, at any time, to check
certain indicators and display the alerts log.

F With the engine running, briefly press this

button.

The following information is displayed in the
instrument panel:
-  the engine oil level,
-  when the next service is due,
-  the driving range for the AdBlue and the

SCR system for BlueHDi Diesel versions,

- current alerts.

This information is also displayed
automatically every time the ignition is
switched on.

Dashboard instruments

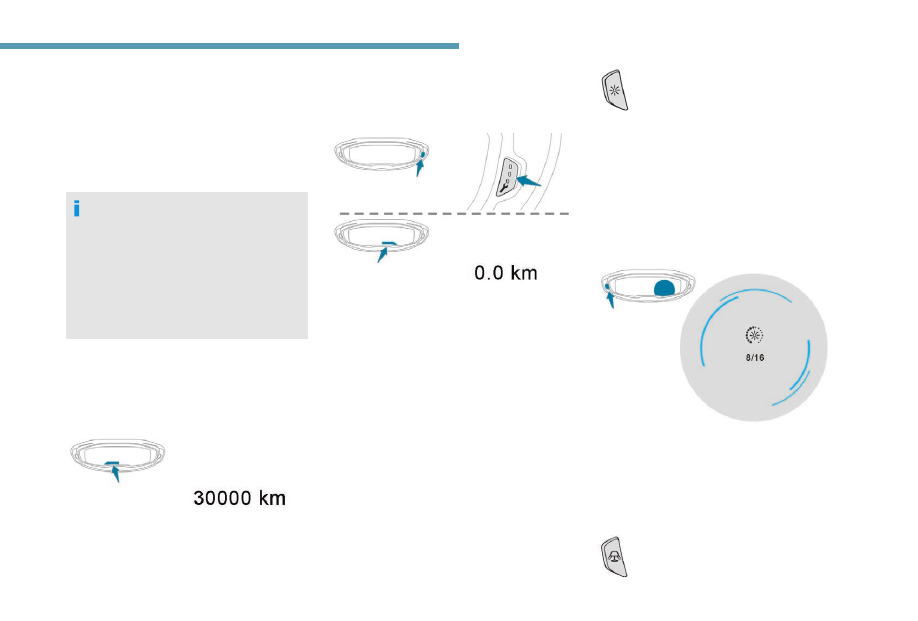

Distance recorders

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.

When travelling abroad, you may have to
change the distance unit: the display of
road speed must be in the official units
(miles or km) for the country.
The change of units is done via the screen
configuration menu, with the vehicle
stationary.

Total distance recorder

It measures the total distance travelled by the
vehicle since its first registration.

Trip recorder

It measures the distance travelled since it was
reset by the driver.

Resetting the trip recorder

F With the ignition on, press the button until

zeroes appear.

Instrument panel lighting
dimmer

Version with monochrome
screen

Only works when the vehicle lighting is on
("night" mode).
It allows the brightness of the instruments and
controls to be adjusted.

F Press this button to adjust the

brightness.

F When the lighting reaches the

minimum setting, release the
button, then press it again to
increase brightness.

Instrument panel ambient
lighting

Version with touch screen

It allows the instrument panel ambient lighting
to be switched on or off.

or
F When the lighting reaches the maximum

setting, release the button, then press it
again to decrease brightness.

F Release the button once the desired level of

brightness is reached.

F Press this button.

Dashboard instruments

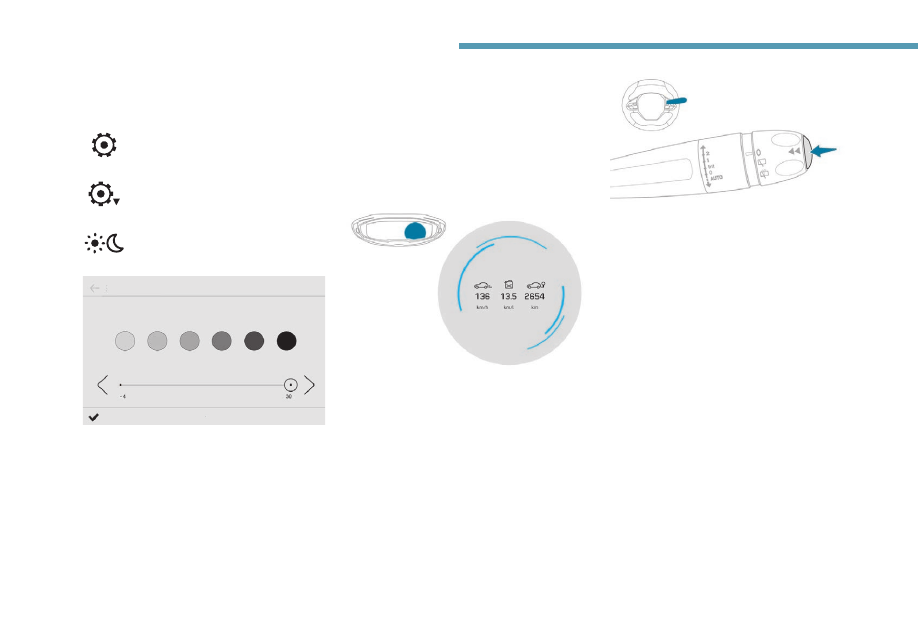

Trip computer

Information displayed about the current journey
(range, fuel consumption, average speed, etc.).

Display of data on the
instrument panel

Trip computer data is displayed permanently
when you select the display mode "TRIP
COMPUTER" or "PERSONAL", depending on
the version.

In all other display modes, pressing the end of
the wiper control stalk will cause this data to
appear temporarily on a specific screen.

- Instant information with:

• range,
• current fuel consumption,
• time counter of the Stop & Start.

- Journey "1" with:

•  average speed,
•  average fuel consumption,
•  distance travelled,

for the first journey.

- Journey "2" with:

•  average speed,
•  average fuel consumption,
•  distance travelled,

for the second journey.

F Press this button, located on the end of the

wiper control stalk, to display the different
tabs in turn.

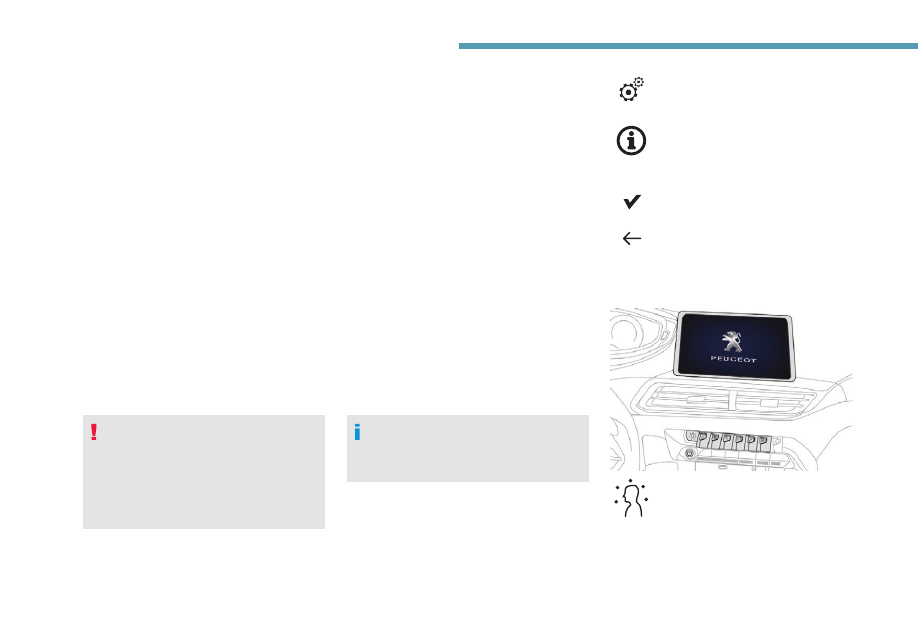

The brightness of the instrument panel ambient
lighting is adjusted in the touch screen.

F Select the Settings menu in the

upper bar of the touch screen.

F Press the "Brightness" button.

F Adjust the brightness by pressing the

arrows or moving the cursor.

F Confirm to save and quit.

Dashboard instruments

Resetting the trip recorder

A few definitions…

Range

(miles or km)

The distance which can still be
travelled with the fuel remaining
in the tank (at the average fuel
consumption seen over the last few
miles (kilometres) travelled).

This value may vary following a change in
the style of driving or the terrain, resulting
in a significant change in the current fuel
consumption.

When the range falls below 18 miles (30 km),
dashes are displayed.

After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).

If dashes are displayed continuously while
driving in place of the digits, contact a
PEUGEOT dealer or a qualified workshop.

Current fuel consumption

(mpg or l/100 km or km/l)

Calculated over the last few
seconds.

This function is only displayed from
18 mph (30 km/h).

Average fuel consumption

(mpg or l/100 km or km/l)

Calculated since the last trip
computer reset.

Average speed

(mph or km/h)

Calculated since the last trip
computer reset.

Distance travelled

(miles or km)

Calculated since the last trip
computer reset.

Stop & Start time counter

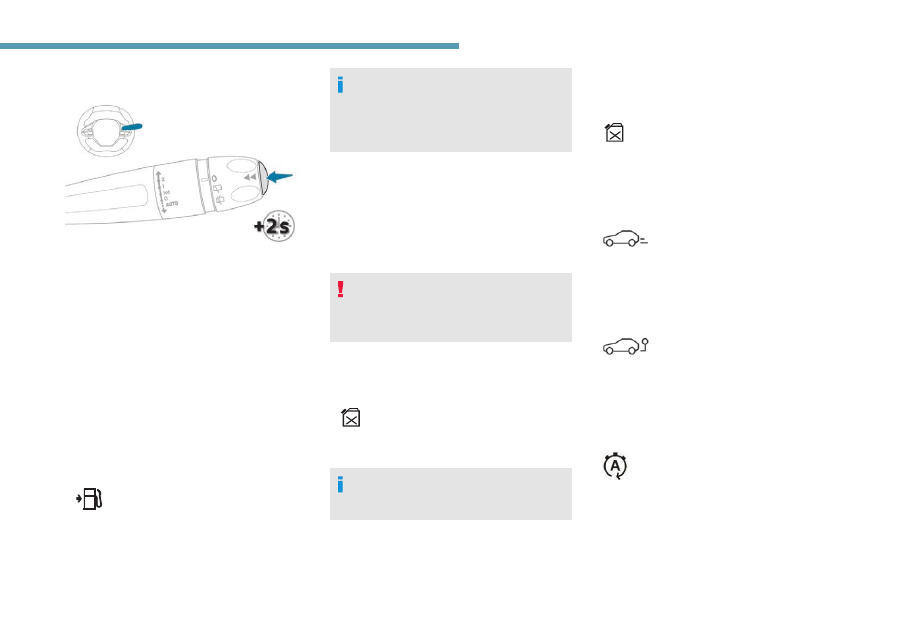

F When the desired trip is displayed press the

button on the end of the wiper control stalk
for more than two seconds.

Trips "1" and "2" are independent and are used
identically.
Trip "1" allows daily calculations to be carried
out, for example, and trip "2" allows monthly
calculations.

(minutes / seconds or hours /
minutes)

If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on.

Dashboard instruments

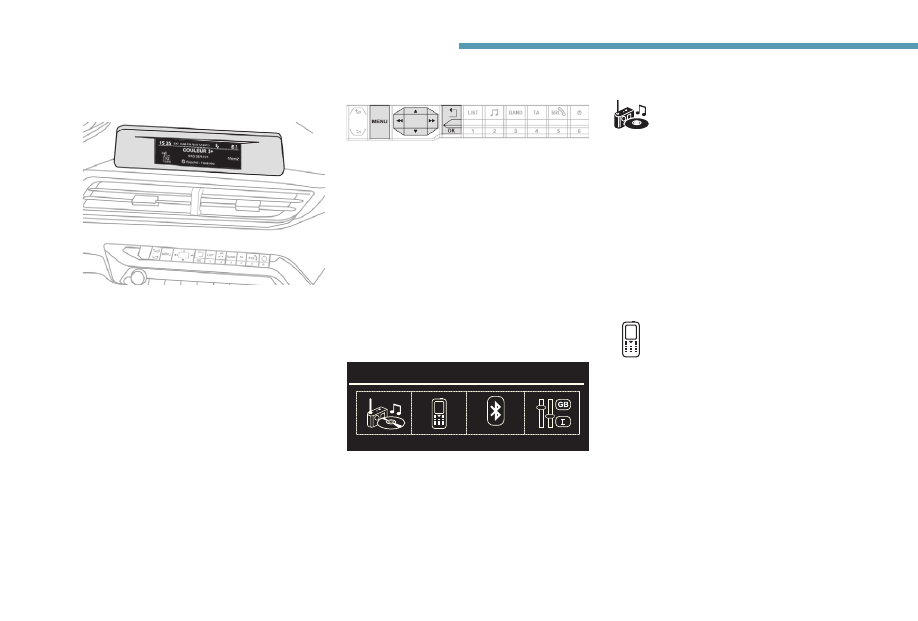

Monochrome screen C

Displays

Controls

Depending on the context, it displays:
- time,
- date,
- exterior temperature (this flashes if there is

a risk of ice),

-  visual parking sensor information,
-  audio source being listened to,
-  telephone or hands-free kit information,
-  settings menus for the screen and the

vehicle equipment.

From the audio system control panel, press:
F the "MENU" button to access the main

menu,

F the "5" or "6" buttons to scroll through the

items in the screen,

F the "7" or "8" buttons to change a setting

value,

F the "OK" button to confirm,
or
F the "Back" button to abandon the operation

in progress.

Main menu

F Press the MENU button:

- "Multimedia",
- "Telephone",
- "Connections",
- "Personalisation-configuration".

F Press the "7" or "8" button to select the

menu required, then confirm by pressing the
"OK" button.

"Multimedia" menu

With the audio system switched on,
this menu allows you to activate or
deactivate the functions associated
with use of the radio (Frequency
search (RDS), DAB / FM auto tracking,
RadioText (TXT) display) or to choose
the media play mode (Normal,
Random, Random all, Repeat).

For more information on the "Multimedia"
application, refer to the "Audio equipment and
telematics" section.

"Telephone" menu

With the audio system switched
on, this menu allows you to make a
call, view the calls log or the various
telephone directories.

For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.

Dashboard instruments

"Connections" menu

With the audio system on, this
menu allows a Bluetooth device
(telephone, media player) to be
paired and the connection mode
to be defined (hands-free, playing
audio files).

For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section.

"Personalisation-
configuration" menu

This menu gives access to the
following functions:
-

"Define the vehicle parameters",

"Choice of language",

"Display configuration".

Define the vehicle parameters

This menu allows the activation or deactivation
of the following equipment, depending on
version:
- "Access to the vehicle":

• "Plip action".

For more information on the Remote control
and driver door selective unlocking in
particular, refer to the "Access" section.

- "Comfort":

• "Rear wipe in reverse gear".

For more information on the Wipers, refer
to the "Lighting and visibility" section.

• "Parking assistance".

For more information on Parking
assistance, refer to the "Driving" section.

• "Fatigue Detection System".

For more information on the Fatigue
detection system, refer to the "Driving"
section.

- "Driving assistance":

• "Auto. emergency braking".

For more information on the Active Safety
Brake, refer to the "Driving" section.

• "Speed recommendation".

For more information on Speed limit
recognition, refer to the "Driving" section.

• "Tyre inflation".

For more information on Under-inflation
detection and reinitialisation in particular,
refer to the "Driving" section.

Choice of language

This menu allows selection of the language
used by the screen and the instrument panel.

Display configuration

This menu gives access to the following
settings:
-  "Choice of units",
-  "Date and time adjustment",
-  "Display parameters",
- "Brightness".

Adjusting the date and time
F Press the "7" or "8" button to display the

"Display configuration" menu, then press
OK.

F Press the "5" or "6" button to select the

"Date and time adjustment" button, then
press OK.

F Press the "7" or "8" button to select the

setting to modify. Confirm by pressing OK,
then modify the setting and confirm again to
save the modification.

F Adjust the settings one by one, confirming

with the OK button.

F Press the "5" or "6" button, then the OK

button to select the OK box and confirm or
the Back button to cancel.

As a safety measure, the driver must only
carry out operations that require sustained
attention when stationary.

Dashboard instruments

Touch screen

This system gives access to:
- the permanent display of the time and

the exterior temperature (a blue symbol
appears when there is a risk of ice),

- the heating/air conditioning controls,
- menus for adjusting settings for vehicle

functions and systems,

- audio system and telephone controls and

the display of associated information,

- the display of visual parking aids (visual

parking sensor information, Park
Assist,etc.),

- Internet services and the display of

associated information.

and, depending on equipment, allows:
- access to the navigation system controls

and the display of associated information.

As a safety measure, the driver should
only carry out operations that require
close attention with the vehicle
stationary.
Some functions are not accessible when
driving.

General operation

Recommendations

This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.

Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
Some menus may display across two pages:
press the "OPTIONS" button to access the
second page.

Menus

Principles

After a few moments with no action
on the second page, the first page is
displayed automatically.

To deactivate or activate a function, select
"OFF" or "ON".

Use this button to adjust the settings
for a function.

Use this button for access to
additional information on the
function.

Use this button to confirm.

Use this button to return to the
previous page.

i-Cockpit Amplify function.
Allows a driving ambience to be
personalised.

For more information on the i-Cockpit Amplify
function, refer to the corresponding section.

Dashboard instruments

Upper bar

Certain information is always displayed in the
upper bar of the touch screen:
- Time and exterior temperature (a blue

warning lamp appears when there is a risk
of ice).

- Repeat of the air conditioning information,

and direct access to the corresponding
menu.

- Summary of information from the Radio

Media, Telephone menus and navigation
instructions*.

- Notifications.
- Access to the Settings for the touch screen

and the digital instrument panel (date/time,
languages, units,etc.).

* Depending on equipment

Radio Media.
See the "Audio equipment and
telematics" section.

Air conditioning.
Allows control of the settings for
temperature, air flow, etc.

For more information on Semi-automatic
mono-zone air conditioning and Automatic
dual-zone air conditioning, refer to the
corresponding sections.

Connected Navigation or Mirror
Screen*.
See the "Audio equipment and
telematics" section.

* Depending on equipment.

Vehicle or Driving*.
Allows the activation, deactivation
and adjustment of settings for
certain functions.

The functions accessible from this menu are
arranged under two tabs: "Vehicle settings"
and "Driving functions".

Telephone.
See the "Audio equipment and
telematics" section.

Applications.
Allows direct access to certain
i-Cockpit Amplify functions
(scented air freshener, etc.).

For more information on the Scented air
freshener, refer to the corresponding section.
For the other functions, refer to the setting
"Audio equipment and telematics" section.

You can also press with three fingers
on the touch screen to display the menu
carousel.

Volume adjustment / mute.
See the "Audio equipment and
telematics" section.

Dashboard instruments

Vehicle / Driving menu

"Vehicle settings" tab

Families

Functions

"Driving lighting"

- "Directional headlamps": activation / deactivation of cornering lighting.

"Vehicle access"

-  "Plip action: Driver only": activation / deactivation of selective unlocking of the driver’s door.
-  "Unlock boot only": activation / deactivation of selective unlocking at the tailgate.
-  "Motorised tailgate": activation / deactivation of motorised operation of the tailgate.
-  "Hands-Free Tailgate Access": activation / deactivation of the hands-free tailgate access system.

"Comfort lighting"

-  "Rear wiper in reverse": activation / deactivation of the rear wiper on with reverse gear.
-  "Mirror adaptation in reverse": activation / deactivation of the automatic door mirror tilt when engaging reverse gear.
-  "Guide-me-home lighting": activation / deactivation of automatic guide-me-home lighting.
-  "Welcome lighting": activation / deactivation of exterior welcome lighting.
-  "Ambient lighting": activation / deactivation of ambient lighting and adjustment of brightness.

"Security"

-  "Collision risk alert": activation / deactivation of the collision risk alert and automatic emergency braking.
-  "Recommended speed display": activation / deactivation of speed limit sign recognition.
-  "Fatigue Detection System": activation / deactivation of the driver fatigue detection system.

PEUGEOT Connect Nav

Dashboard instruments

PEUGEOT Connect Radio

Families

Functions

"Headlamps"

-  "Directional headlamps": activation / deactivation of cornering lighting.
-  "Guide-me-home lighting": activation / deactivation of automatic guide-me-home lighting.
-  "Welcome lighting": activation / deactivation of exterior welcome lighting.

"Vehicle access"

-  "Unlock driver's door": activation / deactivation of selective unlocking of the driver’s door.
-  "Unlock boot only": activation / deactivation of selective unlocking at the tailgate.
-  "Motorised tailgate": activation / deactivation of motorised operation of the tailgate.
-  "Hands-Free Tailgate Access": activation / deactivation of the hands-free tailgate access system.

"Comfort"

"Security"

For more information on one of these functions, refer to the corresponding section.

Dashboard instruments

"Driving functions" tab

Function

Comment

"Adjusting Speeds"

Memorisation of speed settings for the speed limiter or programmable
cruise control.

" Under-inflation initialisation"

Reinitialisation of the under-inflation detection system.

"Lane departure warning system"
