Peugeot 807 (2013 year). Instruction

127

QUICK HELP

Changing a fuse

N°

Rating

(Amps)

Functions

1 *

Electric sliding side door.

2 *

Electric sliding side door.

3 *

Not used.

4 *

Trailer fuse box.

Main brake switch.

Driver's seat memorisation.

Passenger's seat memorisation.

Sunroof row 3.

Sunroof row 2.

Passenger's heated seat.

Driver's heated seat.

Not used.

12 V accessories socket row 3.

12 V accessories socket row 2.

* The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer.

128

Changing a fuse

Fuse box

To access the fuses located in the

engine compartment (to the left of the

coolant reservoir):
-

unclip the cover.

GINE COMPARTMENT

ENGIN

USES

FUS

The designations communicated

only relate to the fuses which can

be changed by the user using

the pliers and spare fuses, located in

the glove box behind the instrument

panel fuse box, on the right-hand side.

For any other work, visit a PEUGEOT

dealer.

Carefully close the cover when you

have fi nished.

The electrical system of your vehicle is

designed to operate with standard or

optional equipment.
Before installing other electrical

equipment or accessories on your

vehicle, consult a PEUGEOT dealer.

PEUGEOT will not accept

responsibility for the cost incurred in

repairing your vehicle or for rectifying

the malfunctions resulting from the

installation of accessories not supplied

and not recommended by PEUGEOT

and not installed in accordance with

its instructions, in particular where the

equipment in question consumes more

than 10 milliamperes.

Intended for professionals: for full

fuse and relay information, consult the

"Methods" diagram via the PEUGEOT

network.

129

QUICK HELP

Changing a fuse

N°

Rating

(Amps)

Functions

Engine control unit, Fuel supply and air supply systems, Fan assembly.

Horn.

Front and rear wash-wipe pump.

Headlamp wash pump.

Fuel supply system.

Power steering, Secondary brake pedal switch, Automatic gearbox control unit, Air fl ow sensor,

Automatic beam corrector with xenon bulbs.

Braking system (ABS/ESP).

Starter control.

Main brake switch.

Fuel supply and air supply systems, Emission control systems.

Front air conditioning.

Windscreen wipers.

Built-in systems interface.

Not used.

Child lock locking/unlocking/deadlocking control.

130

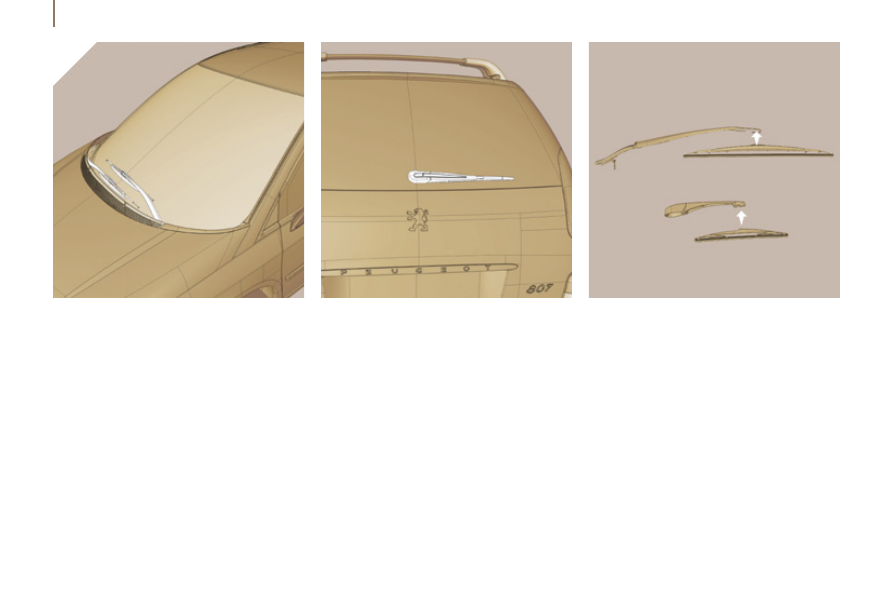

Changing a wiper blade

CHANGING A WINDSCREEN
WIPER BLADE

Reconnect the windscreen-wash

pipe and push back the wiper arm.

To return the windscreen wipers to

their normal position, switch on the

ignition and operate the wipers stalk.

Placing the wiper blades in the

special position

Less than a minute after switching

off the ignition, operate the wipers

stalk to position the wiper blades

along the windscreen uprights

(special position).

Changing a windscreen wiper blade
-

Lift the wiper arm, then disconnect

the windscreen-wash pipe.

Unclip the blade and remove it.

Fit the new blade.

Changing the rear wiper blade
-

Lift the wiper arm, then unclip the

blade and remove it.

Fit the new blade and push back

the wiper arm.

131

QUICK HELP

Having your vehicle towed

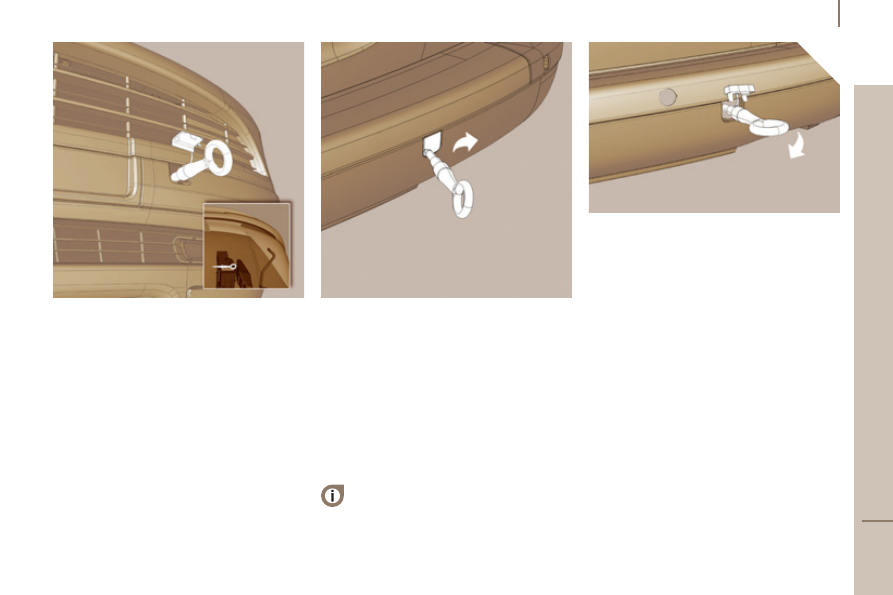

From the rear
-

unclip the top of the cover using a

coin,

screw in the removable towing eye

until it locks.

TOWING YOUR VEHICLE

Special features of the

automatic gearbox

When being towed with four wheels on

the road, it is essential to observe the

following rules:
-

selector lever in position N ,

tow the vehicle at a speed below

30 mph (50 km/h) over a distance

limited to 30 miles (50 km)

maximum,

do not add oil to the gearbox.

When towing with the engine switched

off, there is no braking or steering

assistance.

Without lifting (4 wheels on the

road)
You should always use a towbar.
The removable towing eye is inside the

engine compartment.

From the front
-

unclip the cover by pressing the

bottom part,

screw in the removable towing eye

until it locks.

Lifting (2 wheels on the road only)
It is preferable to raise the vehicle

using professional lifting equipment.

VEHICLES FITTED WITH A

MANUAL GEARBOX (diesel

version)

In the case of vehicles fi tted with a

manual gearbox, the gear lever must

be in the neutral position. Failure to

observe this special condition may

result in damage to certain braking

components and the absence of

braking assistance the next time the

engine is started.

Put the gear lever in neutral.

Failure to observe this rule may

result in damage to certain

components.

Diesel technical data

132

This table presents the Model Codes

Engine, __xxx__

Diesel

2.0 HDi PEF

__RHR__

Number of seats, xx_____

7 seats maximum

EA_____

Base model: 5 individual seats

8 seats maximum

EB_____

Type of gearbox , _____xx

Manual

(6-speed)

_____H

Automatic

(6-speed)

_____J

Category and type of towing device

A 50 X

Part number, instructions concerning

fi tting

R 06-0049

133

Diesel technical data

TECHNICAL

DIESEL ENGINE

Model codes

E_RHRH

E____H

E____J

Engine

2.0 HDi PEF

Manual

Automatic

(6-speed)

Power (bhp)

140

163

Max. power: EU standard (KW)

100

120

Capacity (cm

)

1 997

Bore x stroke (mm)

85 x 88

Number of valves

Max. power engine speed (rpm)

4 000

Max. torque: EU standard (Nm)

320

Max. torque engine speed (rpm)

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle emission fi lter (PEF)

Yes

Electronic injection

Yes

Oil capacities (in litres)

Engines (with fi lter replacement)

Diesel technical data

134

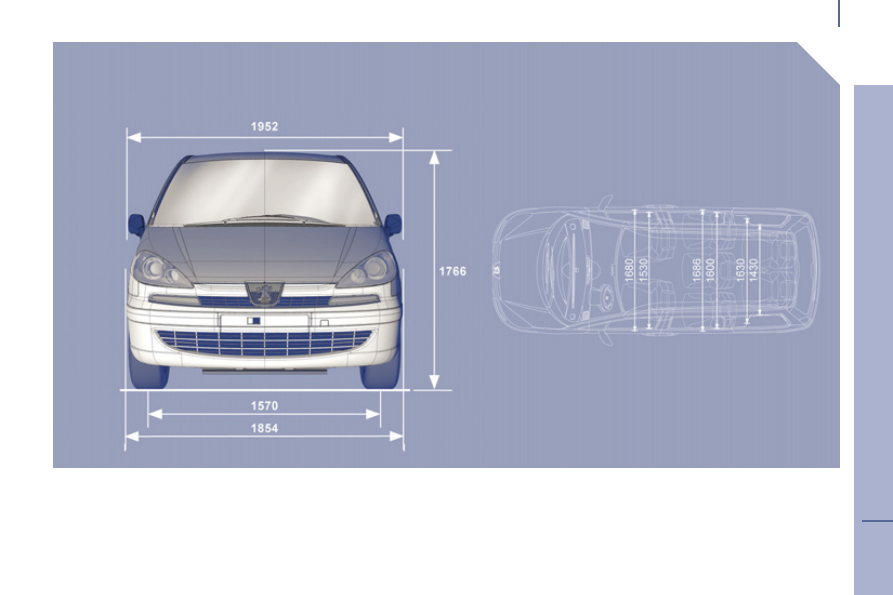

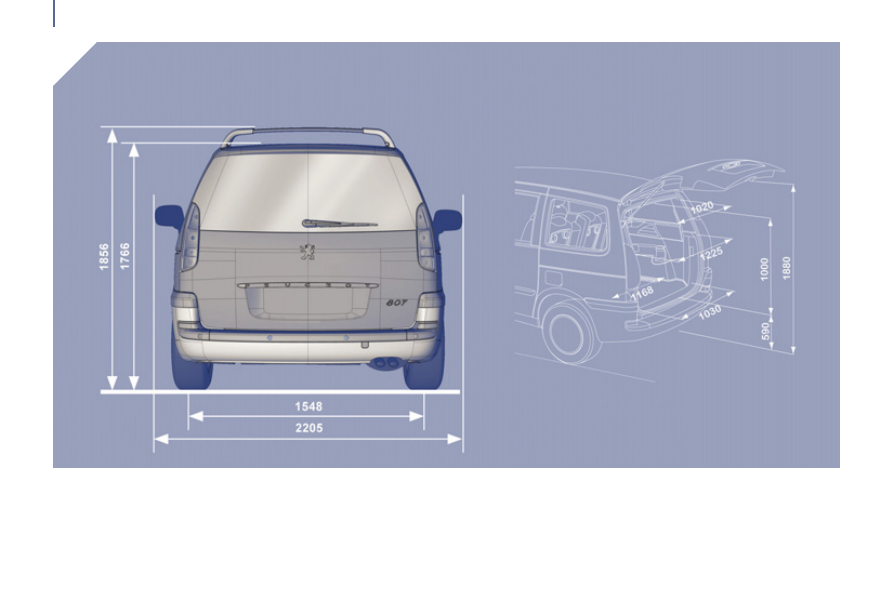

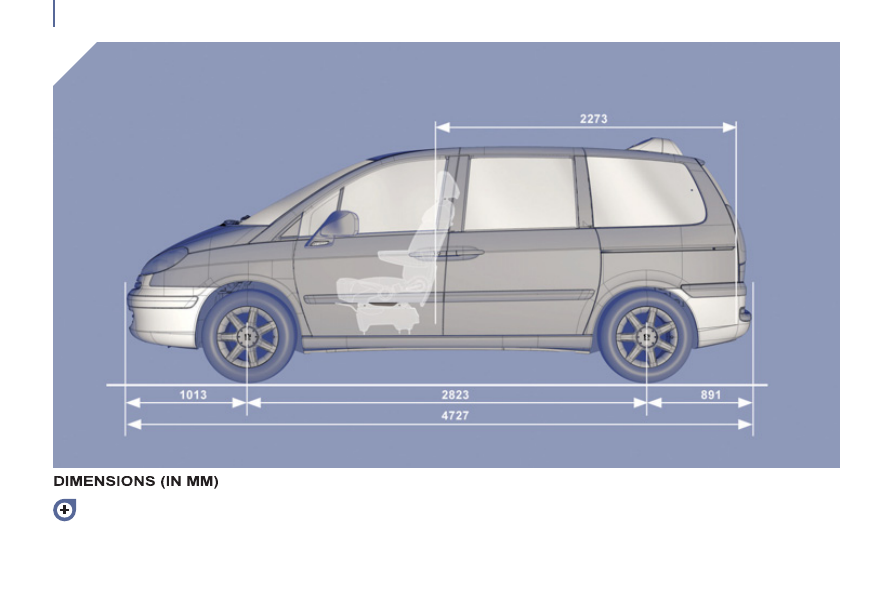

DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)

Model codes

EARHRH

EBRHRH

EA___H

EA___J

EB___H

EB___J

7 seats

8 seats

7 seats

8 seats

Engine

2.0 HDi PEF

Wheelbase(s) (at full load)

2 823

on Axle 1

1 570

on Axle 2

1 548

Length

4 727

Width

1 850

Height at kerb weight

without roof bars

1 745 to 1 759

with fi xed roof bars

1 854 to 1 863

Kerb weight

1 854 to 1 957

1 818 to 1 983

on Axle 1

1 121 to 1 157

1 117 to 1 161

on Axle 2

733 to 800

701 to 822

135

Diesel technical data

TECHNICAL

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the exterior temperature is above 45 °C, restrict the towed weight.

Model codes

EARHRH

EBRHRH

EA___H

EA___J

EB___H

EB___J

7 seats

8 seats

7 seats

8 seats

Engine

2.0 HDi PEF

Gross train weight (GTW)

3 945

Gross vehicle weight (GVW)

2 530

on Axle 1

1 256

1 263

on Axle 2

1 274

1 267

Gross weight

on Axle 1

1 270

on Axle 2

1 300

Gross towed weight

1 850

Gross weight of unbraked trailer

750

Gross weight on towing attachment

9.1

The system is protected in such a way that it will only

operate in your vehicle.

01 First steps - Control panel

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.
When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

CONTENTS

  02 General operation
  03 Steering mounted controls
  04 Audio settings
  05 Navigation - Guidance
  06 Traffic information
  07 Using the telephone
  08 Radio
  09  Music media players
  10 Configuration
  11 Trip computer

p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

9.2
9.4
9.6
9.7
9.8

9.21
9.25
9.36
9.40
9.46
9.49

PEUGEOT CONNECT NAVIGATION (RT6)

12 Screen menu map

9.50

Frequently asked questions

9.54

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO

SYSTEM

9.2

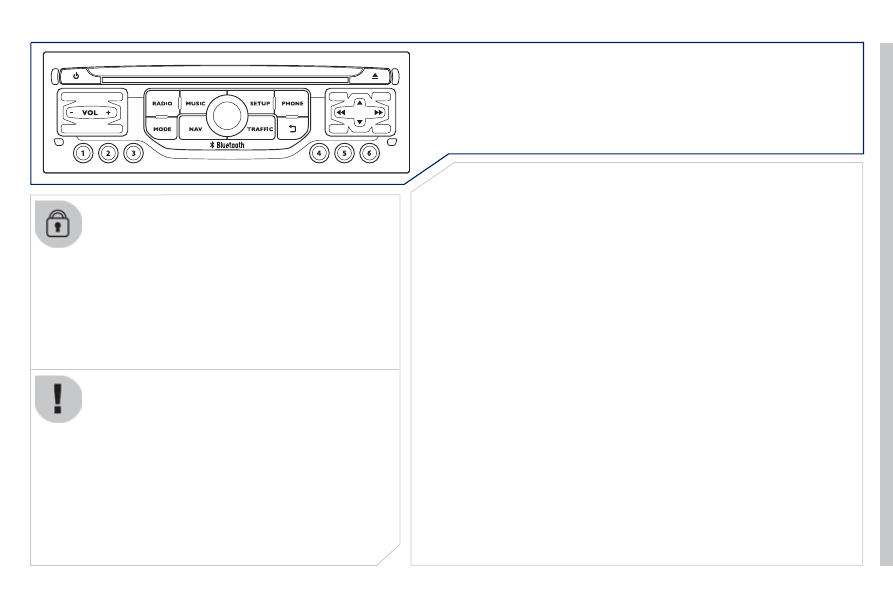

01 FIRST STEPS

Access to the

" Navigation - guidance"

menu and display the

recent destinations.

Short press without the

engine running: on / off.
Short press with the engine

running: audio source off /

restore.

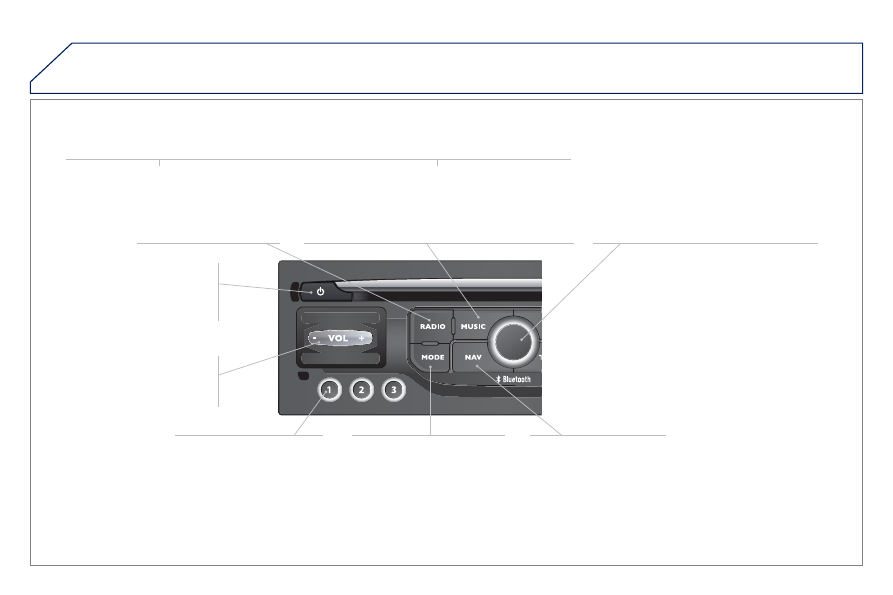

Short press: select pre-set

radio station.
Long press: pre-set the

current station.

MODE button: Selection of the

type of permanent display.
Long press: black screen

(DARK).

Access to the " MUSIC" menu, and display of the

CD/MP3/Apple

tracks and folders.

Long press: display the audio settings screen for the

"MEDIA (CD/USB/iPod/Streaming/AUX)" sources.

Long press: open the "Audio settings" menu: music ambience, bass, treble, loudness, left/right

balance, front/rear fader, automatic volume adjustment.

Access to the " RADIO " menu and

display the list of stations received.
Long press: display the audio settings

screen for the radio tuner source.

Selection and confi rmation OK dial:
Selection of an item on the screen or in

a list or a menu, then confi rmation with a

short press.
Other than for menus and lists, a short

press displays a contextual menu

depending on the current screen.
Rotation with map displayed: zoom the

map scale in and out.

Volume adjustment (each

source is independent,

including TA messages and

navigation instructions).

9.3

Select:
-

the next lower / higher radio frequency automatically.

- the

/ next CD track, MP3 track or media.

- the

left / right of the screen when a menu is displayed.

Move left / right in "Move the map " mode.

Abandon the current

operation, up one level in

the menu.
Long press: return to the

permanent display.

Continuous press:

reinitialisation of the system.

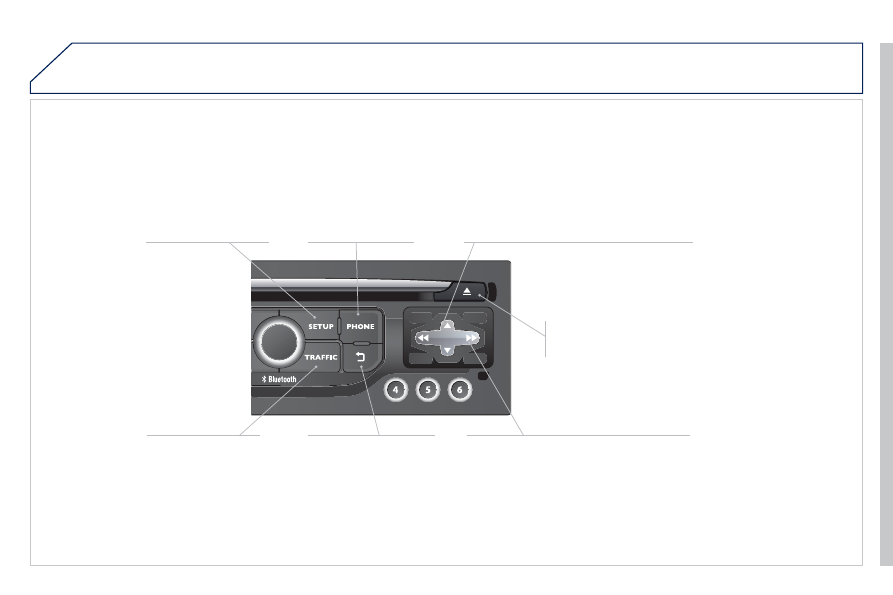

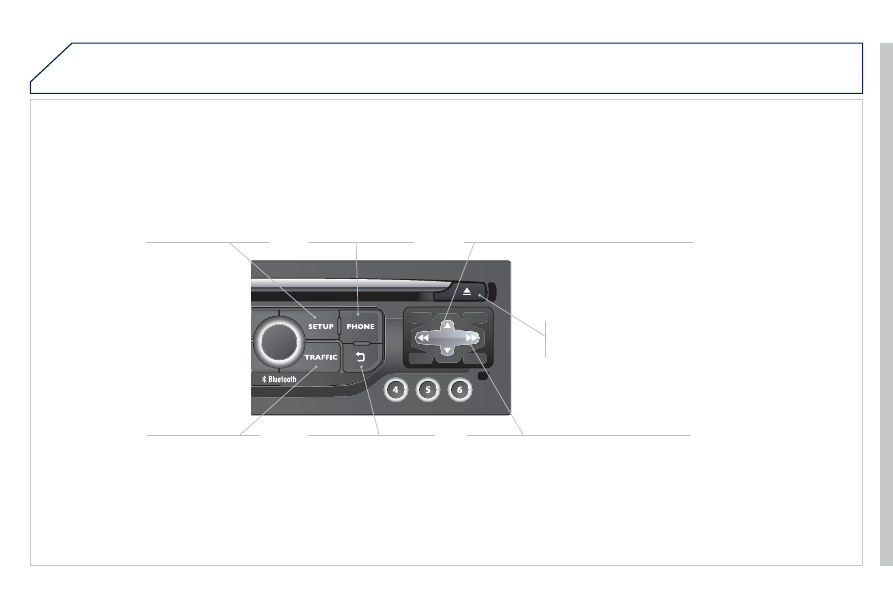

Open the

" Telephone" menu

and display the list of

recent calls or accept

an incoming call.

Open the

"Confi guration " menu.
Long press: access

to the GPS coverage

and the navigation

demonstration mode.

Open the "Traffi c

information " menu

and display the

current traffi c alerts.

Select:
- the

previous/next line in a list or menu.

- the

/ next media folder.

- step

by step selection of the previous/next radio frequency.

the previous / next MP3 folder.

Move up/down, in "Move the map " mode.

FIRST STEPS

9.4

For a detailed global view of the menus available, refer to the

"Screen menu map" section.

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

"RADIO "

"TELEPHONE"
(If conversation in progress)

SETUP: PARAMETERS
date and time, display confi guration, sound.

Changing the audio source:
RADIO:   RADIO broadcasts.
MUSIC: playing MUSIC.

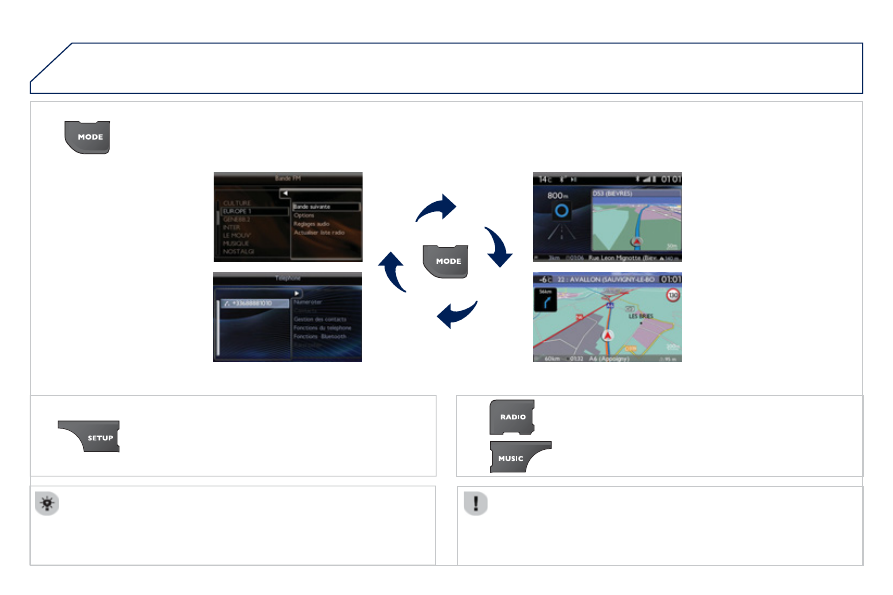

Press the MODE button several times in succession for access to the following displays:

GENERAL OPERATION

"FULL SCREEN MAP"

"MAP IN WINDOW"
(If navigation guidance in

progress)
