Peugeot 807 (2013 year). Instruction - part 8

111

CHECKS

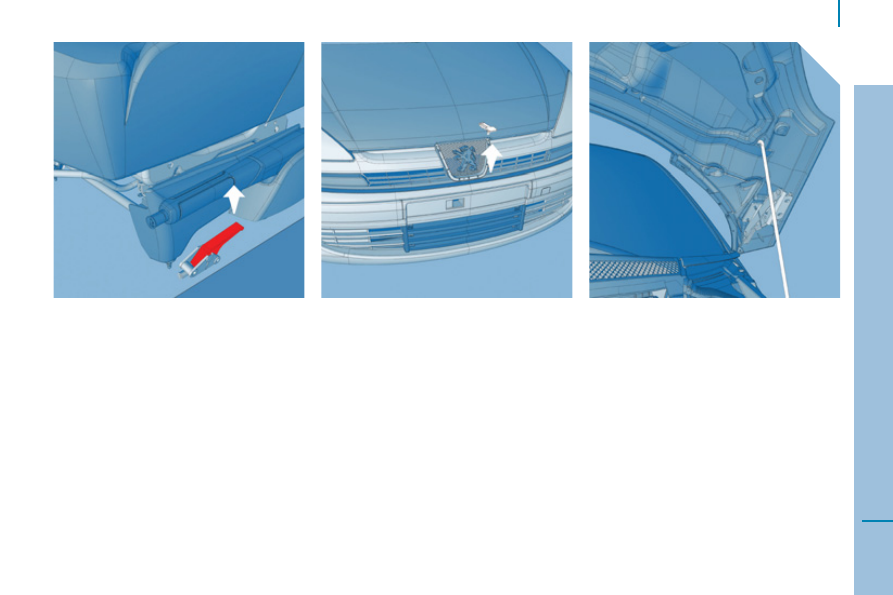

Opening the bonnet

OPENING THE BONNET

From inside:
-

lift the cover located at the left foot

of the driver’s seat.

pull the control upwards.

"Bonnet open" warning
This warning is linked to the alarm

option only.
With the engine running or the vehicle

moving, a diagram on the display

accompanied by an audible signal,

warns you that the bonnet is not

properly closed.

From outside:
-

lift the catch and raise the bonnet.

Bonnet strut

Secure the strut to hold the bonnet

open.
Before closing the bonnet, replace the

strut in its housing.

To close
Lower the bonnet and release it at the

end of its travel. Check that the bonnet

is properly locked.

Under the bonnet

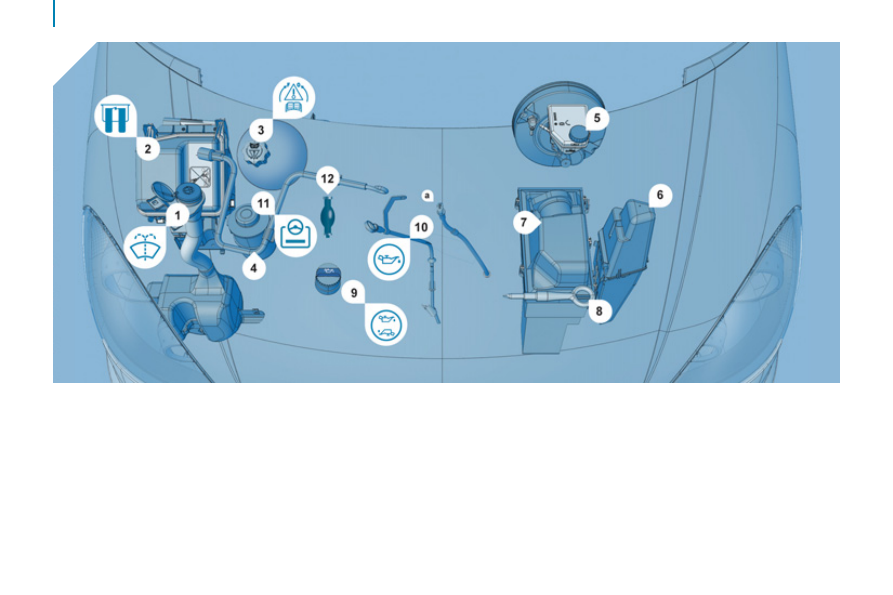

UNDER-BONNET LAYOUT
DIESEL ENGINES

1. Windscreen/headlamp wash

reservoir.

2. Fuse box.
3. Coolant reservoir.

  4.  Wheelbrace.
  5.   Brake and clutch fl uid reservoir.
  6.  Jack housing.
  7.  Air fi lter.

  8.   Removable towing eye.
  9.  Engine oil fi ller cap.
  10.  Dipstick
(

a : 2.0 HDi).

11. Power steering reservoir.
12. Repriming pump.

Levels

CHECKS

These regular maintenance

operations will keep your vehicle

in good running order. Consult the

instructions at PEUGEOT dealerships

or in the servicing booklet enclosed in

the handbook pack.

To maintain the reliability of engines

and emission control systems, the use

of additives in engine oil is prohibited.

Oil change

It is imperative that this is carried out at

the intervals specifi ed and the viscosity

grade of the oil selected must fulfi l the

requirements in accordance with the

manufacturer’s servicing schedule.

Consult the instructions at PEUGEOT

dealerships.
Remove the dipstick before fi lling.
Check the level after fi lling (never

exceed the max mark).
Screw the cap back onto the sump

before closing the bonnet.

LEVELS

If you have to remove/refi t the

engine style cover, handle it with

care to avoid damaging the fi xing

clips.

Dipstick

Warning lights

Oil level

Check the level regularly and top up

between changes. The maximum

consumption is 0.5 litre per 600 miles

(1 000 km).
Check the level with the vehicle level,

engine cold, using the dipstick.

Viscosity selection
In all cases, the oil selected must meet

the manufacturer’s requirements.

Checking by means of the

warning lights on the instrument

panel is described in chapter 2,

"Instruments and controls" section.

Changing the brake fluid

The brake fl uid must be changed at

the intervals stated, according to the

manufacturer’s servicing schedule.
Use fl uids recommended by

the manufacturer, which fulfi l

DOT4 standards.
The level must be between the MIN

and MAX marks on the reservoir.
If fl uid has to be added frequently,

this indicates a failure which must be

checked by a PEUGEOT dealer as

soon as possible.

There are two marks

on the dipstick:
A = maximum
If you fi ll past this

mark, contact a

PEUGEOT dealer.
B = minimum
Never allow the level

to fall below this

mark.

Levels

Cooling system

Only use the fl uid recommended by the

manufacturer.
Otherwise, you risk seriously damaging

your engine.
When the engine is warm, the

temperature of the coolant is controlled

by the engine fan. As this fan can

operate with the ignition key removed

and because the cooling system is

pressurised, wait for at least one hour

after the engine has stopped before

carrying out any work.
Slacken the cap by 1/4 of a turn to

release the pressure to prevent any

risk of scalding. When the pressure

has dropped, remove the cap and top

up the level with coolant.
If fl uid has to be added frequently,

this indicates a failure which must be

checked by a PEUGEOT dealer as

soon as possible.

Power steering fluid level

The vehicle must be parked on level

ground with the engine cold. Unscrew

the cap integrated with the gauge and

check the level which must be between

the MIN and MAX marks.

During regeneration of the particle

emission fi lter, relay noise may be

heard under the fascia.
If the message is still displayed and

the service warning light remains on,

contact a PEUGEOT dealer.

Diesel additive level (Diesel with

particle emission filter)

When this occurs with the engine

running, this is due to the start of

saturation of the particle emission fi lter

(exceptionally prolonged urban driving

conditions: low speed, long traffi c

jams, ...).
In order to regenerate the fi lter, you

are advised to drive at a speed of

more than 40 mph (60 km/h) as soon

as possible, when traffi c conditions

permit, for at least fi ve minutes (until

the message disappears and the

service warning light is switched off).

Topping up
The level must be between the MIN

and MAX marks on the expansion

bottle. If more than 1 litre of fl uid is

required to top up the level, have

the system checked by a PEUGEOT

dealer.

Windscreen wash and headlamp

wash level

For best quality cleaning and for your

safety, we would advise that you use

products of the PEUGEOT range.
To avoid ice forming, do not use water.

Topping up
It is imperative that this additive is

topped up by a PEUGEOT dealer

without delay.

Used oil

Avoid prolonged contact of used oil

with the skin.
Brake fl uid is harmful to health and

very corrosive.
Do not dispose of used oil, brake

fl uid or coolant into drains or onto

the ground but into the containers

dedicated to this use at PEUGEOT

dealerships.

The minimum level of this

additive is indicated by

lighting of the service warning

light, accompanied by an

audible signal and a message

on the display.

Checks

CHECKS

To check the main levels

and certain components,

in accordance with the

manufacturer's servicing schedule,

refer to the pages of the servicing

booklet which correspond to your

vehicle's engine.

Only use products recommended

by PEUGEOT or products

of equivalent quality and

specifi cation.

In order to optimise the operation

of units as important as the braking

system, PEUGEOT selects and offers

specifi c products.
In order to avoid damaging the

electrical units, high pressure washing

to clean the engine compartment is

strictly prohibited.

Oil filter

Change the fi lter regularly, in

accordance with the servicing

schedule.

Refer to the servicing booklet to

fi nd out the replacement interval

for these components.

Depending on the environment (dusty

atmosphere...) and the use of the

vehicle (urban driving...), change them

twice as often if necessary.
Refer to the "Under the bonnet" section

of chapter 6.

Particle emission filter (Diesel)

It is imperative that particle emission

fi lter maintenance is carried out by a

PEUGEOT dealer.
On acceleration after the vehicle has

been running for a prolonged period

at very low speed or at idle, you may,

in exceptional circumstances, notice

the emission of water vapour at the

exhaust. This water vapour does not

have any adverse effect on vehicle

handling or the environment.

Battery

At the start of winter, have your battery

checked by a PEUGEOT dealer.

Brake pads

Brake pad wear depends on the style

of driving, in particular for vehicles

which are used in town, over short

distances. It may be necessary to

check the thickness of the pads, even

between services.
Unless there is a leak on the circuit, a

drop in the brake fl uid level indicates

that the brake pads are worn.

Brake disc/drum wear status

For any information relating to

checking the brake disc/drum wear

status, contact a PEUGEOT dealer.

Handbrake

Where the handbrake travel is too

great or there is a reduction in the

performance of the system, the

handbrake should be adjusted, even

between services.
Have the system checked by a

PEUGEOT dealer.

Carbon filter and passenger

compartment filter

The carbon fi lter permits continuous

and effective fi ltering of dust.
If the passenger compartment fi lter

becomes clogged, this may reduce

the performance of the air conditioning

system and generate unpleasant

odours.
We recommend the use of a combined

passenger compartment fi lter. By

means of its second special active

fi lter, it contributes to the purifi cation

of the air breathed by the occupants

and to the cleanness of the passenger

compartment (reduction of allergic

symptoms, unpleasant odours and

greasy deposits).

Manual gearbox

Have the level checked in accordance with

the manufacturer’s servicing schedule.

Battery

ECONOMY MODE FUNCTION

After the engine has stopped, with

the key in the ignition position, certain

functions (windscreen wiper, electric

windows, courtesy lights, audio

equipment, etc.) can only be used for a

cumulative duration of thirty minutes, to

prevent discharging the battery.
Once the thirty minutes are over, the

message "Economy mode active"

appears on the display and the active

functions are put on standby.
To resume the use of these functions

immediately, start the engine and let it

run for a few seconds.
A fl at battery will prevent the engine

from starting.

To charge the battery using a

battery charger

disconnect the battery,

follow the instructions for use

given by the battery charger

manufacturer,

reconnect starting with the negative

(-) terminal,

check that the terminals and

connectors are clean. If they are

covered with sulphate (white or

greenish deposit), disconnect them

and clean them.

TERY

BATT

This is housed in a compartment

located underneath the fl oor, in front of

the driver's seat.

Before disconnecting the battery, you

must wait for 2 minutes after switching

off the ignition.
Never disconnect a terminal when the

engine is running.
Never charge a battery without fi rst

disconnecting the terminals.
Close the sunroof and the windows

before disconnecting the battery. If

they do not operate normally following

reconnection of the battery, they must

be reinitialised.

It is advisable to disconnect the

battery if the vehicle is not to be used

for a period of more than one month.

After every reconnection of the battery,

switch on the ignition and wait 1 minute

before starting to allow the electronic

systems to be initialised. If slight

diffi culties are experienced after this,

please contact a PEUGEOT dealer.
The door open monitoring electrical

system consumes power, remember

to close the sliding doors when your

vehicle is parked for long periods.

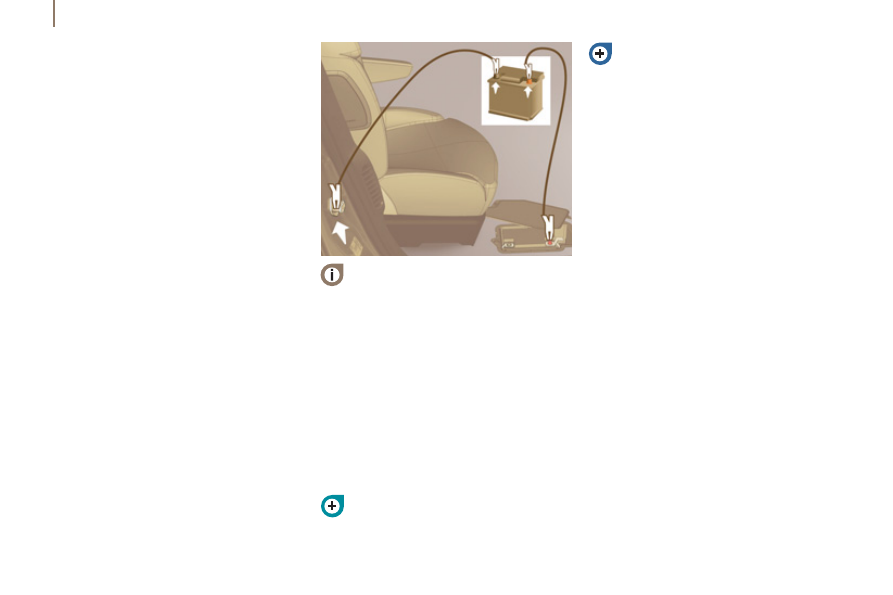

To start the vehicle from

another battery

connect the red cable to the

positive (+) terminals of the two

batteries,

connect one end of the green or

black cable to the negative (-)

terminal of the slave battery,

connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery,

operate the starter, let the engine run,

wait for the engine to return to idle,

then disconnect the cables.

For the sunroofs safety auto-

reverse, refer to the "Accesses"

section of chapter 2.

For the electric windows safety

auto-reverse, refer to the "Mirrors

and windows" section of chapter 3.

QUICK HELP

Changing a wheel

CHANGING A WHEEL

1. PARKING THE VEHICLE

If possible, park the vehicle on

level, stable and non-slippery

ground.

It is imperative that you ensure

that the occupants get out of the

vehicle and wait in a safe location.

Depending on the country of

sale and for your own safety, use

the safety jackets and warning

triangles.

Apply the handbrake, switch off the

ignition and engage fi rst or reverse

gear (position P for the automatic

gearbox).

If possible, place a chock under the

wheel diagonally opposite the one

to be changed.

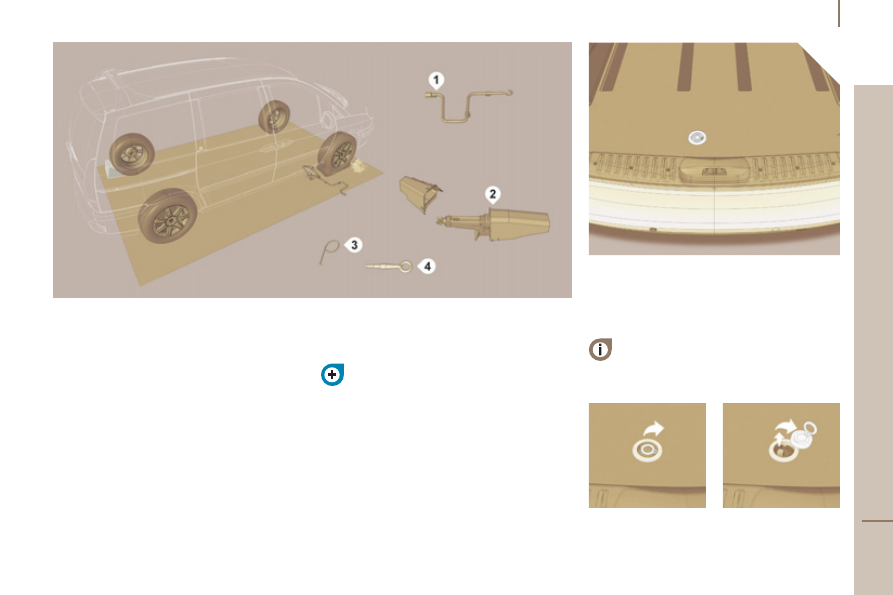

   1.  Wheelbrace.
  2.  Jack housing.
  3.   Alloy wheel embellisher remover.
  4.   Removable towing eye.
The jack and the tools are specifi c to

your vehicle. Do not use them for other

purposes.

Refer to the location of the

tools (situated in the engine

compartment) in the "Under the

bonnet" section of chapter 6.

2. TOOLS

3. SPARE WHEEL

Gain access to the spare wheel

from the boot.

Open the cover to release the

winch and access its bolt.

You can switch on the row 3

courtesy light to increase the light

in the boot.

Changing a wheel

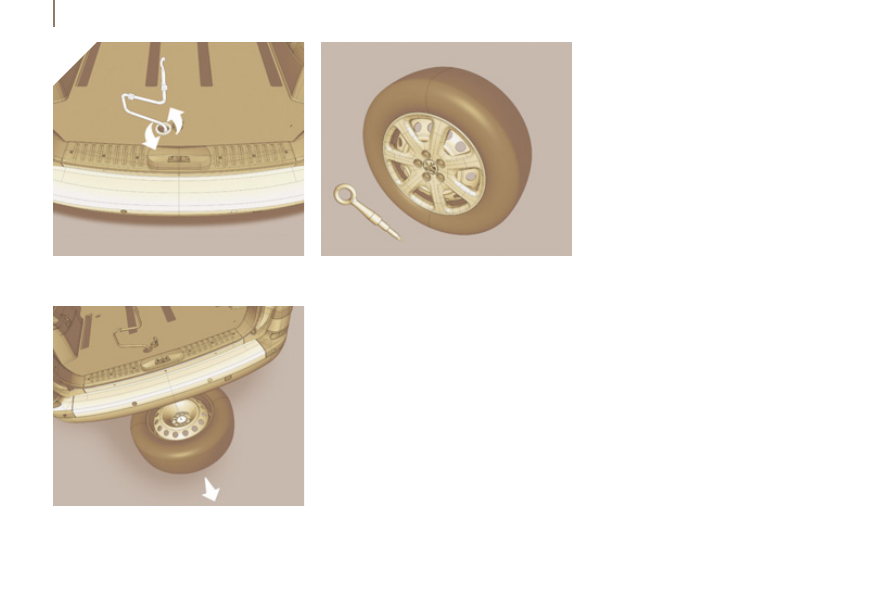

Unwind the winch cable by

unscrewing the bolt using the

wheelbrace.

Detach the spare wheel from the

rear of the vehicle and place it near

the wheel to be changed.

4. OPERATING PROCEDURE

Remove the trim pulling at the

valve passage hole. Use the fl at

end of the towing eye as a lever.

Loosen the wheel bolts and start

unscrewing them.

QUICK HELP

Changing a wheel

Do not extend the jack until you

have started unscrewing the bolts

on the wheel to be changed and

have placed the chock under the wheel

diagonally opposite.

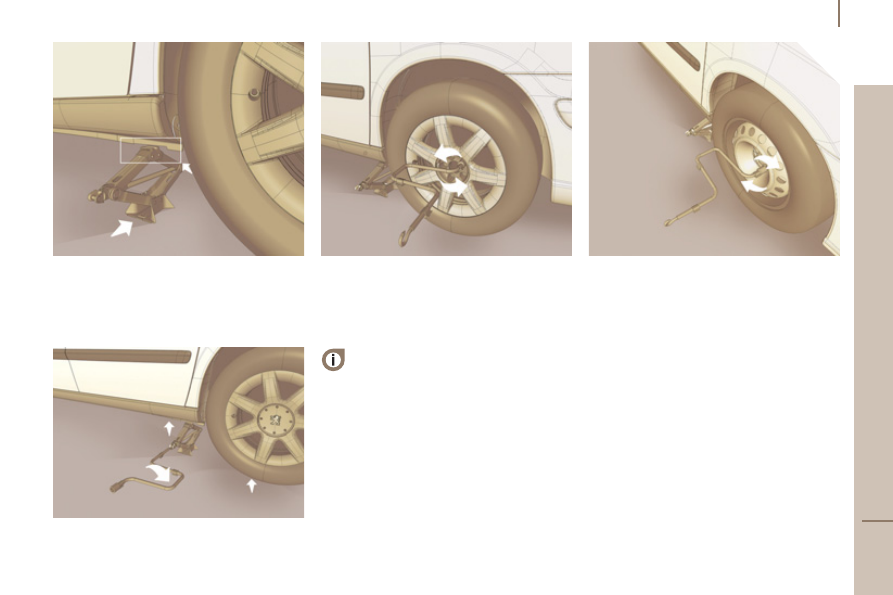

Place the jack in contact with the

locating point provided, the one

which is closest to the wheel to

be changed. Ensure that the base

of the jack is in contact with the

ground, and straight above.

Extend the jack to lift the wheel

clear of the ground.

Resume and complete the

unscrewing of the wheel bolts.

Remove the bolts and remove the

wheel.

5. FITTING THE SPARE WHEEL

Position the wheel on the hub and

start tightening the bolts by hand.

Initially tighten the bolts using the

wheelbrace.

120

Changing a wheel

Lower the vehicle completely by

folding the jack, then remove the

jack.

Tighten the bolts again using the

wheelbrace, tighten them fully

without forcing them.

Place the wheel to be repaired in the

boot well, with the valve uppermost

and the locating tab in place.

Raise the winch cable using the

wheelbrace and tighten fully.

Check that the wheel is horizontal

and fl ush against the rear fl oor to

ensure that it is retained correctly

while driving.

Remember to close the fl ap,

located in the boot, it permits

securing of the winch.

Store the trim in the boot.

Never go underneath a vehicle

that is supported only by a

jack (use a ramp). Never use a

screwdriver in place of the wheelbrace

to unwind or wind the winch cable.

6. REFITTING THE REPAIRED

WHEEL

The wheel is refi tted as described in

step 5, not forgetting to refi t the wheel

trim.

The spare wheel is not designed

to be used over long distances.

Have the tightening of the bolts

and the tyre pressure checked by a

PEUGEOT dealer as soon as possible.

Also, have the original wheel repaired

and refi tted by a PEUGEOT dealer as

soon as possible.

121

QUICK HELP

Changing a bulb

CHANGING A BULB

Handle the bulbs with a dry cloth.

Make access easier on the right-hand

side by removing the wash-wipe pipe

and the fuse box cover.
High pressure washing: when using

this type of washing on stubborn dirt,

do not persist on the headlamps, the

lights and their surrounds to avoid

damaging their coating and their seal.

2 - Main beam headlamps

H7-55 W or xenon bulb.

Turn the protective cover

corresponding to the faulty bulb

a quarter of a turn to the left and

remove it.

Disconnect the connector.

Press the end of the securing clip

to free it. Change the bulb.

When fi tting the new bulb, ensure that

the direction notches are positioned

correctly and the securing clip is fi xed

properly.
-

Reconnect the connector.

- Refi t the protective cover, then turn

it a quarter of a turn to the right.

3 - Fog lamps
H1-55

3W.

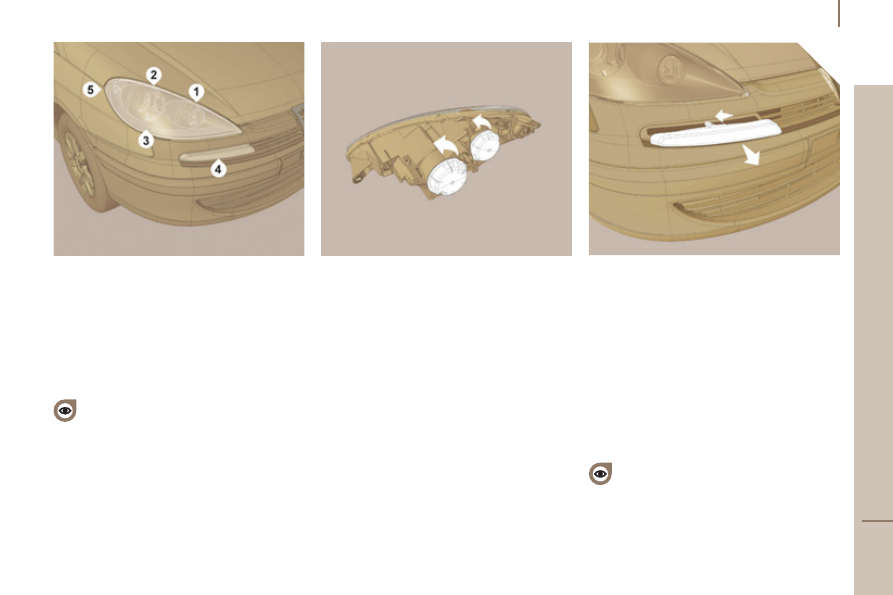

FRONT LIGHTS

   1.    Dipped headlamps
  2.    Main beam headlamps
  3.    Fog lamps
  4.    Side lights
  5.    Direction indicators

1 - Dipped beam headlamps

H7-55 W or xenon bulb.

4 - Side lights

W 5 W.

Push the light from the inside

towards the outside of the bumper.

Pull the light forwards.

Turn the bulb holder a quarter of a

turn to the left and remove it.

Turn the bulb a quarter of a turn to

the left, remove it and change it.

When refi tting, engage the light

towards the outside and move it

towards the inside of the bumper.

WARNING: RISK OF

ELECTROCUTION

Xenon bulbs must be changed by a

PEUGEOT dealer.

122

Changing a bulb

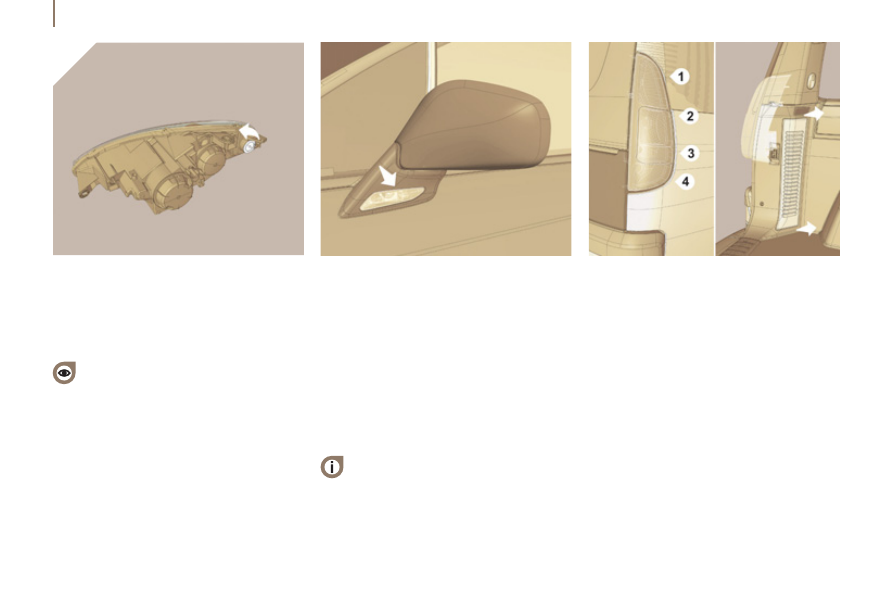

Rear lights

1. Direction indicators

PY 21 W (amber).

2. Brake/side lights

P 21 W/5 W.

3. Reversing lights

P 21 W.

4. Fog lamps

P 21 W.

5 - Direction indicators

PY 21 W (amber).

Turn the bulb holder a quarter of a

turn to the left and remove it.

Change the bulb.

The headlamps are fi tted with

polycarbonate glass with a

protective coating. Do not clean

them with a dry or abrasive cloth, nor

with a detergent or solvent product.

Use a sponge and soapy water.
In certain climatic conditions (low

temperature, humidity), condensation

inside the headlamp glass is normal;

it disappears a few minutes after the

lights are switched on.

Direction indicator side repeaters
WY 5 W (amber).
-

Push the repeater rearwards and

release it from the mirror.

Hold the connector and turn the

bulb holder a quarter of a turn to

the left.

Turn the bulb a quarter of a turn to

the left, remove it and change it.

When refi tting, engage the repeater

towards the rear and move it towards

the front of the mirror.

Amber coloured bulbs (direction

indicators and side repeaters)

must be changed for bulbs of

identical specifi cation and colour.

These 4 bulbs are changed from inside

the vehicle:
-

open the tailgate,

remove the air extraction grille on

the side concerned,

unclip the light harness,

123

QUICK HELP

Changing a bulb

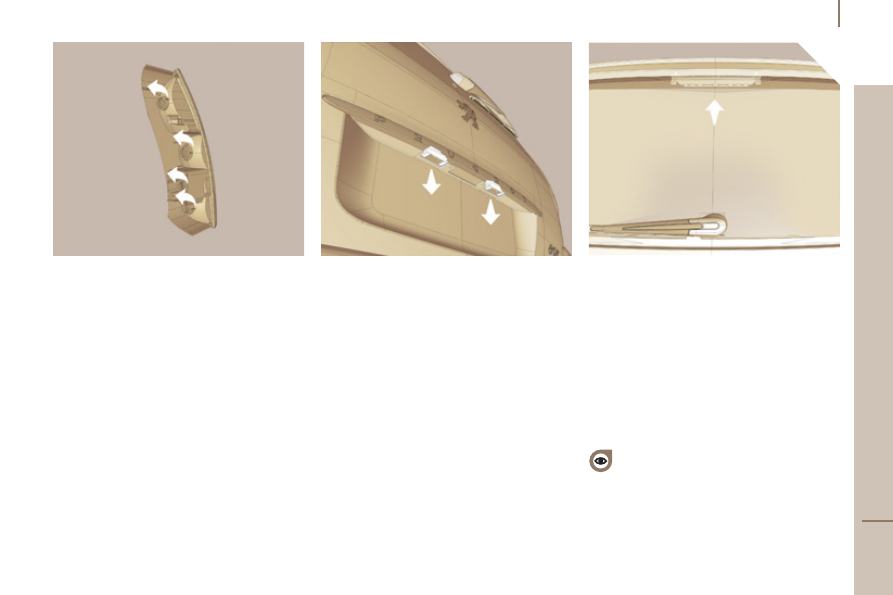

THIRD BRAKE LIGHT

5 W 5 W bulbs.
) Remove the tailgate upper trim by

unclipping it on each side.

) Squeeze the two tabs 1 to release

the bulb holder.

) Change the faulty bulb.
) When refi tting, ensure that the

tailgate upper trim has been put

back in place correctly.

unscrew the two interior nuts and

remove the light,

unscrew the bulb holder concerned

an eighth of a turn to the left and

remove it,

unscrew the faulty bulb an eighth of

a turn to the left and change it.

When two or more bulbs are

faulty, you must replace them

immediately.

When refi tting:
-

take care to position the bulb

correctly and press on it to engage it,

take care to position the bulb holder

correctly and screw it in an eighth

of a turn to the right,

take care to position and secure the

light correctly.

NUMBER PLATE LIGHTS

W 5 W.
-

Remove the lens.

Change the faulty bulb.

124

Changing a fuse

CHANGING A FUSE

The fuse boxes are located in:
-

the instrument panel lower glove

box (right-hand side),

the battery compartment (right-

hand side fl oor),

the engine compartment.

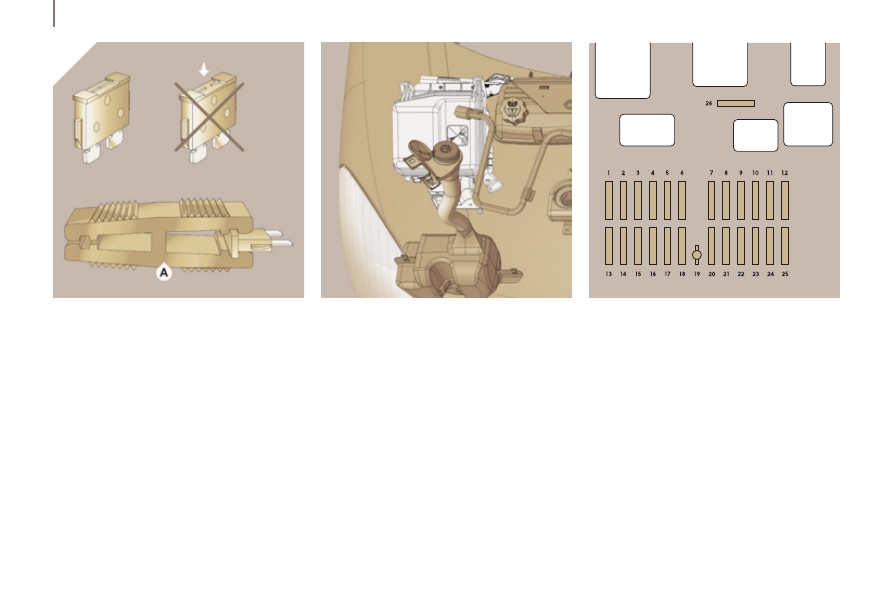

The spare fuses and special pliers A

are fi xed to the inside of the lid of the

instrument panel fuse box.

Before changing a fuse you must

establish the cause of the fault and

have it corrected. The fuse numbers

are indicated on the fuse box.
-

Use the special pliers A .

Always change a faulty fuse for one

of the same rating.

Removing and changing a fuse

PEUGEOT will not accept

responsibility for the cost incurred in

repairing your vehicle or for rectifying

the malfunctions resulting from the

installation of accessories not supplied

and not recommended by PEUGEOT

and not installed in accordance with

its instructions, in particular when

the combined consumption of all of

the additional equipment connected

exceeds 10 milliamperes.

125

QUICK HELP

Changing a fuse

INSTRUMENT PANEL FUSES

Open the lower glove box on the right-hand side.

Pull the handle to open the cover and access the fuses.

N°

Rating

(Amps)

Functions

Rear wiper.

Not used.

Airbag control unit.

Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual air conditioning, Clutch

switch, Headlamp beam height, Particle emission fi lter pump, Electrochromatic interior mirror.

Electric mirrors, Passenger's electric window motor, Sunroof row 1.

Front electric windows supply.

Courtesy lights, Glove box light, Courtesy mirror lights, Entertainment screen lights row 2.

Multifunction display, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/

telephone, Diesel additive control unit, Tyre under-infl ation detection control unit, Sliding doors

module control unit.

Lighter.

Steering wheel switching, Trailer fuse box.

Diagnostic socket, Ignition switch, Automatic gearbox (4-speed).

Driver's seat memory unit, Passenger's electric seat, Airbag control unit, Parking assistance

control unit, Sliding side door buttons, Hands-free kit, Automatic gearbox (6-speed).

Engine fuse box, Trailer fuse box.

Rain sensor, Automatic air conditioning, Instrument panel, Sunroofs, Odometer warning lights

unit, Audio-telematics control.

Passenger's lock locking.

Locking/unlocking of the accesses.

Heated rear screen.

126

Changing a fuse

TERY COMPARTMENT

BATT

USES

FUS

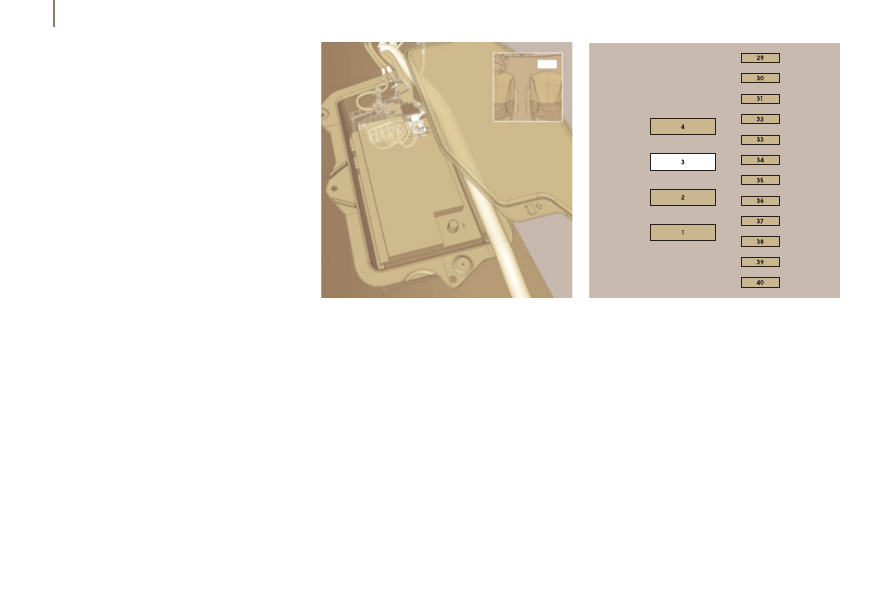

Fuse box

The fuses are located in the battery

compartment, housed underneath the

fl oor in front of the seat on the right-

hand side:
-

unclip the cover.

Carefully close the cover when you

have fi nished.

Content .. 6 7 8 9 ..
