Peugeot 807 (2013 year). Instruction

Steering wheel controls

EASE OF USE and COMFORT

Activation

Press the control downwards.

Activation of the function is

accompanied by a message on the

display.

The automatic windscreen wipers

function must be reactivated if the

ignition has been switched off for more

than one minute, by pressing the stalk

downwards.

Rear windscreen wiper

Turn the ring to the fi rst

notch. The wiping speed is

inversely proportional to the

speed of the vehicle.

Rear windscreen wash

Turn the ring past the fi rst

notch: the windscreen wash

then the windscreen wiper

operate for a fi xed time.

Good practice

When using an automatic car

wash, switch off the ignition without

setting the alarm.
In winter, it is advisable to wait until the

windscreen is completely clear of ice

before activating the automatic wiping.
In the event of a considerable amount

of snow or ice, switch on the rear

screen demister. Once de-icing is

complete, remove the snow or ice

which has accumulated on the rear

wiper blade. You can now operate the

rear windscreen wiper.

If a tailgate bicycle carrier

is used, deactivate the rear

wiper by going to the display's

confi guration menu.

Deactivation/Switching off
Place the windscreen wipers stalk in

position I , 1 or 2 . Deactivation of the

function is accompanied by a message

on the display.

In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in

intermittent mode.
Contact a PEUGEOT dealer to have

the system checked.

Automatic wiping - reverse gear
-

place the front wipers stalk in a

position other than 0 .

engage reverse gear.

the rear wiper operates with

intermittent wiping.

When using an automatic car

wash, switch off the engine.
In winter, it is advisable to wait

until the windscreen is completely

clear of ice before activating the

automatic wiping.

Steering mounted controls

CRUISE CONTROL "CRUISE"

On vehicles fi tted with an automatic

gearbox, the lever must be in position D

(Drive) or at least 2nd gear must be

engaged in manual mode.

Function selected,

displaying of the

"Cruise Control"

symbol.

Function deactivated,

OFF (example at

65 mph (107 km/h)).

Function activated

(example at 65 mph

(107 km/h)).

Vehicle speed above

(e.g. 70 mph

(118 km/h)),

the programmed

speed is displayed

fl ashing.

Operating fault

detected,

OFF - the dashes

fl ash.

This cruise control shows the function

selection status on the instrument

panel and displays the programmed

speed:

"This is the speed at which the driver

wishes to drive".
This aid to driving in free-fl owing

traffi c enables the vehicle to maintain

the speed programmed by the driver,

unless a steep gradient makes this

impossible.
In order for it to be programmed or

activated, the vehicle speed must be

greater than 25 mph (40 km/h) with at

least 4th gear engaged in the case of

vehicles fi tted with a manual gearbox.

If the vehicle is fi tted with a speed

limiter and cruise control (according

to the country in which the vehicle is

sold and the engine), these functions

cannot be activated at the same time.

Steering wheel controls

EASE OF USE and COMFORT

Selecting the function

Place the switch in the CRUISE

position. The cruise control is

selected but is not yet active and

no speed has been programmed.

First activation/

programming a

speed

- Reach the chosen

speed by pressing the

accelerator.

- Press the SET - or

SET + button.

This programmes/activates the

reference speed and the vehicle will

maintain this speed.

Temporary exceeding of the

speed

It is possible to accelerate and drive

momentarily at a speed greater than

the programmed speed. The value

programmed fl ashes.
When the accelerator pedal is

released, the vehicle will return to the

programmed speed.

Reactivation

Following deactivation of the cruise

control, press this button.

Your vehicle will return to the last

programmed speed.

Alternatively, you can repeat the "fi rst

activation" procedure.

Deactivation (off)

- Press this button or

the brake or clutch

pedal.

Steering mounted controls

Switching the function off

Place the dial in position 0 or switch

off the ignition to switch everything

off.

Good practice

When changing the programmed

reference speed by means of a

maintained press, pay attention as

the speed can increase or decrease

rapidly.
Do not use the cruise control on

slippery roads or in heavy traffi c.
In the event of a steep slope, the cruise

control cannot prevent the vehicle from

exceeding the programmed speed.
In any event, the cruise control cannot

replace the need to observe the speed

limits, nor can it replace the need for

vigilance and responsibility on the part

of the driver.
You are advised to keep your feet near

the pedals.
To avoid any jamming under the

pedals:
-

ensure that the mat and its fi xings

on the fl oor are positioned correctly,

never place one mat on top of

another.

Changing the

programmed speed

There are two methods

of memorising a

speed higher than the

previous one:

Without using the accelerator:
-

press the Set + button.

A brief press increases the speed by

1 mph (km/h).
A maintained press increases the

speed in steps of 5 mph (km/h).

Operating fault

The programmed speed is cleared and

the dashes fl ash for a few seconds.
Consult a PEUGEOT dealer to have

the system checked.

Using the accelerator:
-

exceed the memorised speed until

the speed required is reached,

press the Set + or Set - button.

To memorise a speed lower than the

previous one:
-

press the Set - button.

A brief press decreases the speed by

1 mph (km/h).
A maintained press decreases the

speed in steps of 5 mph (km/h).

Cancelling the programmed

reference speed

When the vehicle becomes stationary,

after switching off the ignition, the

system no longer memorises a speed.

Steering wheel controls

EASE OF USE and COMFORT

SPEED LIMITER "LIMIT"

To resume use of the limiter, simply

reduce the pressure on the accelerator

pedal gradually and return to a speed

below that programmed.
If the vehicle is fi tted with a speed

limiter and cruise control (according

to the country in which the vehicle is

sold and the engine), these functions

cannot be activated at the same time .
The operating actions can be carried

out when stationary, with the engine

running, or with the vehicle moving.

Function selected,

displaying of the

"Speed Limiter"

symbol.

Function deactivated,

last programmed

speed - OFF

(example at 65 mph

(107 km/h)).

Function activated

(example at 65 mph

(107 km/h)).

Vehicle speed above

(example at 70 mph

(118 km/h)), the

programmed speed is

displayed fl ashing.

Operating fault

detected, OFF - the

dashes fl ash.

This speed limiter shows the function

selection status on the instrument

panel and displays the programmed

speed:

"This is the selected speed which the

driver does not wish to exceed".
This selection is made with the engine

running while stationary or with the

vehicle moving. The minimum speed

which can be programmed is 20 mph

(30 km/h).
The speed of the vehicle responds

to the pressure of the driver's foot as

far as the accelerator pedal point of

resistance which indicates that the

programmed speed has been reached.
However, pressing the pedal beyond

this point of resistance to the fl oor

permits exceeding of the programmed

speed.

Steering mounted controls

Selecting the function

Place the dial in the LIMIT position.

The limiter is selected but is not yet

active. The display indicates the

last programmed speed.

Programming a speed

A speed can be programmed without

activating the limiter but with the

engine running.
To memorise a speed higher than the

previous one:
-

press the Set + button.

A brief press increases the speed by

1 mph (km/h).
A maintained press increases the

speed in steps of 5 mph (km/h).

Activation/Deactivation (off)

Pressing this button once activates

the limiter, pressing the button again

deactivates it (OFF).

To memorise a speed lower than the

previous one:
-

press the Set - button.

A brief press decreases the speed by

1 mph (km/h).
A maintained press decreases the

speed in steps of 5 mph (km/h).

Steering wheel controls

EASE OF USE and COMFORT

Switching the function off

Place the dial in position 0 or switch

off the ignition to switch the system

off. The last programmed speed

remains in the memory.

Exceeding the programmed

speed

Pressing the accelerator pedal in order

to exceed the programmed speed

will have no effect unless you press

the pedal fi rmly beyond the point of

resistance .
The limiter is deactivated temporarily

and the programmed speed fl ashes.
To return to the limiter function, reduce

your speed to below the programmed

speed.

Operating fault

The programmed speed is cleared and

the dashes fl ash for a few seconds.
Contact a PEUGEOT dealer to have

the system checked.

Flashing of the speed
The speed fl ashes:
-

following forcing of the accelerator

point of resistance,

when the limiter cannot prevent an

increase in the vehicle speed due

to the profi le of the road or on a

steep descent,

in the event of sharp acceleration.

Good practice
In any event, the speed limiter cannot

replace the need to observe speed limits,

nor can it replace the need for vigilance

and responsibility on the part of the driver.
Always pay attention to the profi le of the

road, take care on sharp acceleration and

stay in complete control of your vehicle.

To avoid any jamming under the

pedals:
-

ensure that the mat and its fi xings

positioned correctly,

never place one mat on top of

another.

Ventilation

VENTILATION
CORRECT USE OF THE
VENTILATION AND AIR
CONDITIONING

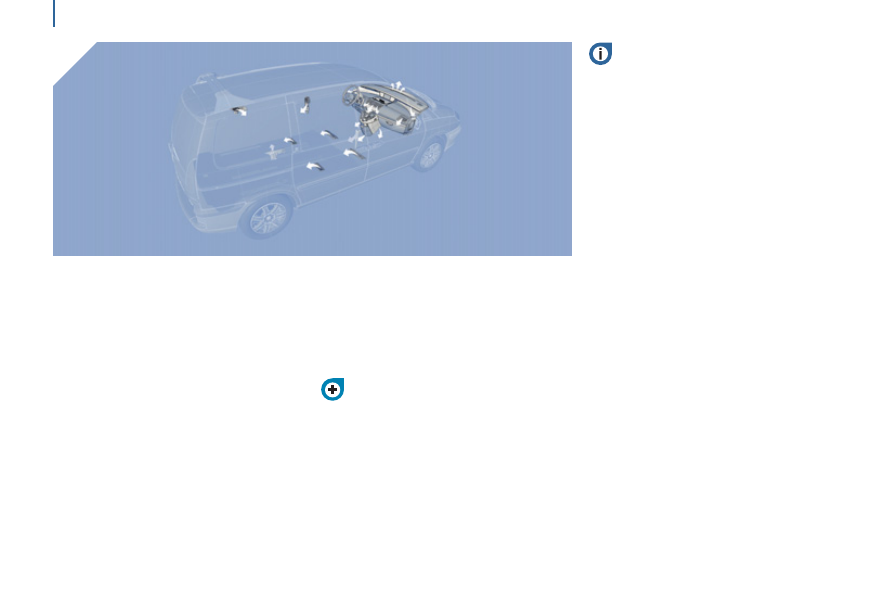

Vents

"Leave them open"
For optimum distribution and diffusion

of hot or cool air in the passenger

compartment, there are adjustable

central and side vents which can be

directed sideways (right or left) towards

the top of the body. For your comfort

while driving, do not close them, direct

the fl ow of air towards the windows

instead.
The air vents directed towards the fl oor

of the vehicle complete the equipment.

Passenger compartment filter,

carbon filter

Ensure that this fi lter is in good

condition and have all of the fi lter

elements replaced regularly.

Refer to the "Checks" section of

chapter 6.

Air conditioning

In all seasons, the air conditioning

should only be used with the windows

closed. However, if the interior

temperature remains high after a

prolonged period parked in the sun, do

not hesitate to ventilate the passenger

compartment for a few minutes.
Use the AUTO mode as much as

possible as it permits optimised

control of all of the functions: air fl ow,

passenger compartment comfort

temperature, air distribution, air

intake mode or air recirculation in the

passenger compartment.
Operate the air conditioning system for

5 to 10 minutes, once or twice a month,

to keep it in perfect working order.
It is normal that the condensation

created by the air conditioning system

results in a fl ow of water which may

form a puddle under the vehicle when

parked.
If the system does not produce cold air,

do not use it and consult a PEUGEOT

dealer.

EASE OF USE and COMFORT

Ventilation

De-icing the rear screen and

mirrors

Demisting, visibility programme

DE-ICING AND DEMISTING

The comfort programme

may not be suffi cient to

quickly demist or de-ice the

windows (humidity, several

passengers, ice).

In this case, select the visibility

programme. The visibility programme

indicator light comes on.

It activates the air conditioning, the air

fl ow, the de-icing of the rear screen

and provides optimum distribution of

the ventilation to the windscreen and

side windows.
It deactivates the air recirculation.

Press this button, with the

engine running, to de-ice the

rear screen and mirrors.
The de-icing indicator light

comes on. The duration

of de-icing depends on the exterior

temperature.
Pressing the button again reactivates

the de-icing.

It is possible to stop the de-

icing before it is switched off

automatically by pressing this

button again.

ADDITIONAL HEATER

To improve your comfort, vehicles fi tted

with an HDi engine may be fi tted with

automatic additional heating.
However, with the engine at idle

or when the vehicle is stationary, it

is normal to notice a high-pitched

whistling and a slight emission of

smoke and odour.

Ventilation

Do not cover the sunshine sensor

located in the centre of the fascia.

This is used to regulate the air

conditioning.

Located on the centre console, the

control panel is to the right of the gear

lever.

1 - AUTO mode
This is the normal air

conditioning operating mode.

Refer to the beginning of the

"Ventilation" section of chapter 6.

The driver and front passenger can

each adjust the air temperature to suit

their requirements.
They can also activate or disarm the

rear ventilation adjustment controls.

For your comfort, the settings selected

when the ignition is switched off will be

retained when it is switched on again, if the

temperature in the passenger compartment

has not changed signifi cantly; otherwise,

operation will resume in automatic mode.

Press the "AUTO" button.

Depending on the comfort temperature

selected, the system controls the air

distribution, fl ow and intake so that the

passenger compartment is comfortable

and has an adequate circulation of air.

You do not have to make any further

adjustments.
When the engine is cold, in order

to prevent a rush of cold air, the

ventilation will reach its optimum level

progressively.
The "AUTO" symbol is displayed.

EASE OF USE and COMFORT

Ventilation

2 - Driver's temperature

adjustment

4 - Adjustment of the air

distribution

Pressing the corresponding

button(s) 4 allows you to

position the air fl ow towards:

- the

windscreen,

the side vents and the

central vents,

the side vents, the central

vents and the footwells,

the windscreen and the

footwells,

- the

footwells.

The indicator light corresponding to the

position selected 4 comes on.

5 - Adjustment of the rear

ventilation ("REAR" version)

To permit adjustment of

the ventilation to the rear

passengers, press the REAR

button.

The rear ventilation symbol is

displayed.

3 - Passenger's temperature

adjustment

The required value is displayed (from

14 to 28: comfort value = 21).
The maximum difference between the

value displayed for the driver and for the

passenger may not be greater than 5.
If you use these manual adjustments,

the AUTO symbol switches off.
Press the corresponding + and -

buttons to adjust.
To make the driver and passenger

setting the same:
-

air conditioning with "MONO"

version, press the MONO button.

air conditioning with "REAR"

version, press the + button for more

than two seconds.

On entering the vehicle, the

interior temperature may be

considerably lower (or higher)

than is comfortable. It is not necessary

to change the value displayed in order

to quickly obtain the desired level of

comfort. The system will operate at

maximum performance to reach the

comfort value set.

MONO Version
Press this button once to

obtain an even temperature

throughout the passenger

compartment. The reference

value is selected by the

driver.

Take care not to obstruct

the side vents and the

air outlets on the fl oor.

The row 2 side vents air

fl ow adjustment controls

are operational and can

be adjusted.
To deactivate the rear

ventilation controls,

press the REAR button

again.
The rear ventilation

symbol switches off.

Ventilation

6 - Adjustment of the air

fl ow

- Turn control knob 6 to

the right or to the left

respectively to increase or

decrease the air fl ow.

On the display, the blades of the fan

darken when the air fl ow is increased.

8 - Intake of exterior air/

Recirculation of interior air

- Press this button to

recirculate the air inside.

The air recirculation symbol and

indicator light 8 are displayed.
Recirculation insulates the passenger

compartment from outside smells and

smoke.

9 - Air conditioning On/Off
- Press this button to

activate automatic

operation of the air

conditioning.

The symbol and the indicator light 9

are displayed.
-

Press this button again to switch off

the air conditioning.

The symbol and the indicator light 9

switch off.

Avoid prolonged operation of

interior air recirculation (risk

of misting of the windows and

deterioration of air quality).

Press this button again to return air

intake to automatic control.

7 - Switching the system off
- Turn

air

fl ow control knob 6 to the

left until the display switches off.

The action disarms all the system

functions, with the exception of

demisting of the rear screen. Your

comfort setting is no longer maintained

and switches off.
For your comfort, avoid remaining in

the off position.
-

Operating control knob 6 again or

the "Visibility" button or "AUTO"

button reactivates the system with

the values which were present

before it was switched off.

Flashing of the points in the

temperature setting values indicates

that there is a malfunction of the air

conditioning.
Consult a PEUGEOT dealer.

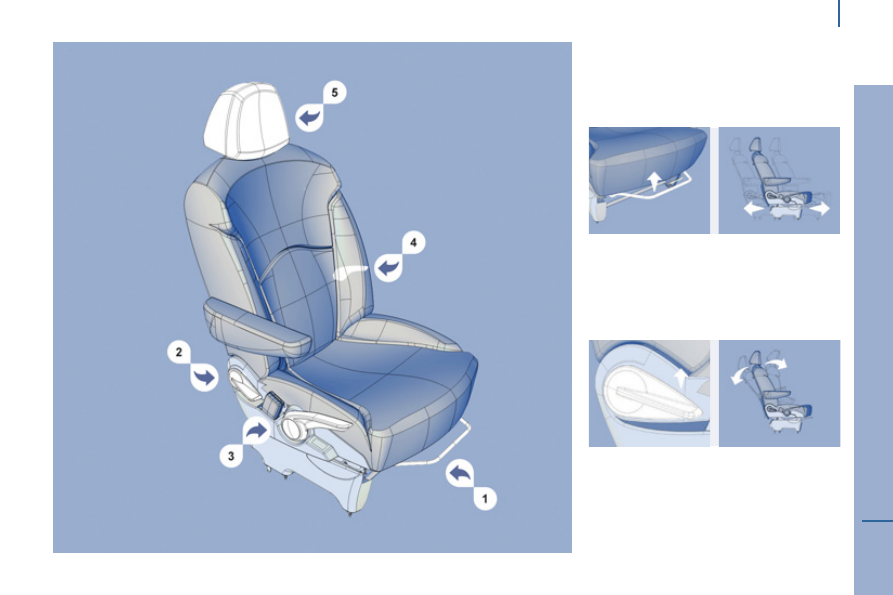

Seats

3 - Driver's seat height adjustment
Manoeuvre the handle upwards or

downwards until the desired position is

reached.

4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain

the required position.

5 - Head restraint height and angle

adjustment

To raise or lower the restraint, pull it

forwards, then slide it.
The adjustment is correct when the

upper edge of the head restraint is

level with the top of the head.
To remove it, set it in the high position,

lift the tab using a coin and pull

upwards and forwards at the same

time.
To re-install, engage the head restraint

rods in the holes, making sure they are

aligned with the seat back.

Never drive with the head

restraints removed; they must be

in place and correctly adjusted.

Seats

3 - Seat back angle adjustment
Tilt the control to the front or the rear to

obtain the angle required.

The electrical functions of the seats

are cancelled one minute after the

ignition has been switched off.

4 - Driver's seat lumbar adjustment

(mechanical)

Raise or lower the lever to obtain the

correct position.

5 - Head restraint height and angle

adjustment (manual)

To raise or lower the head restraint,

pull it forwards, then slide it.

Never drive with the head

restraints removed; they must be

in place and correctly adjusted.

6 - Rotating of seats (mechanical)
Place the seat back in the upright

position.
Place the seat in the highest

intermediate longitudinal position.
On the driver's side, push the steering

wheel, apply the handbrake. To

allow rotation of the seat, lower the

handbrake handle pulling on the end.
Pull the control upwards and rotate the

seat inwards.

This rotating operation must

be carried out with the engine

switched off. The handbrake,

the lever of which is now in the lower

position, remains applied. Do not forget

to raise the lever and release the brake

before setting off.
Driving with a passenger seated facing

the rear is prohibited.

For further information regarding

the disengaging of the handbrake,

refer to the "Driving safety" section

of chapter 4.

The setting is correct when the upper

edge of the head restraint is level with

the top of the head.

To remove the head restraint, place it

in the high position, lift the tab using a

coin and pull upwards and forwards at

the same time.
To re-install, engage the head restraint

rods in the holes, making sure they are

aligned with the seat back.

Peugeot 807 (2013 year). Instruction - part 4
