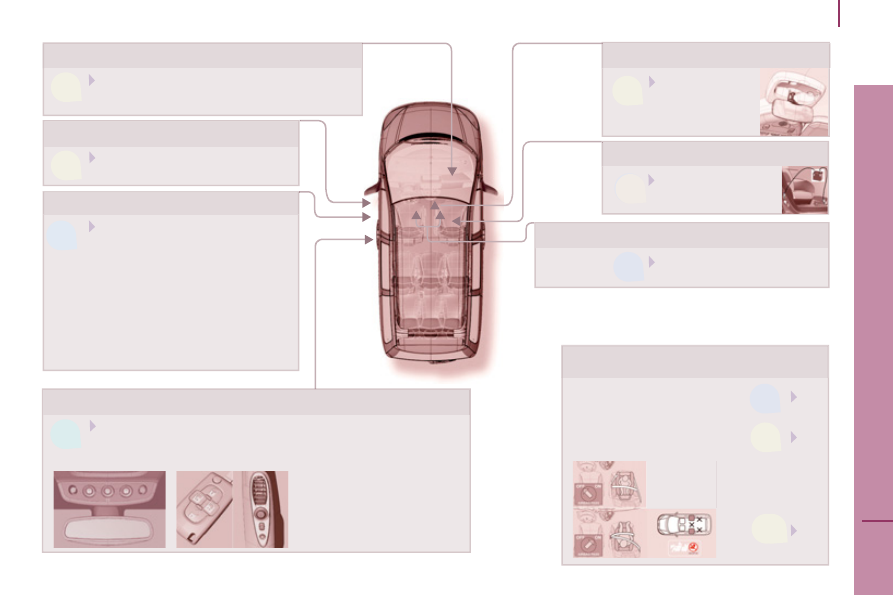

Interior

Battery

116

Child monitoring mirror

102

Disarming the passenger's front airbag

Opening control

Sliding side doors from the

inside.

Handbrake

Bonnet opening controls

The bonnet opening control

is a red handle under a

cover. Release the bonnet

from inside the vehicle then

go to the front and insert

your hand under the badge

to open and raise the bonnet,

place the strut in its location

securely.

111

Safety auto-reverse.

102

Electric windows/Safety auto-reverse

CHILD SAFETY

Monitoring mirror.

Child seats.

On a steep gradient,

guide the side door

manually to assist

closing.

closing

Interior

VENTILATION

65 - 73

ADAPT CORRECTLY

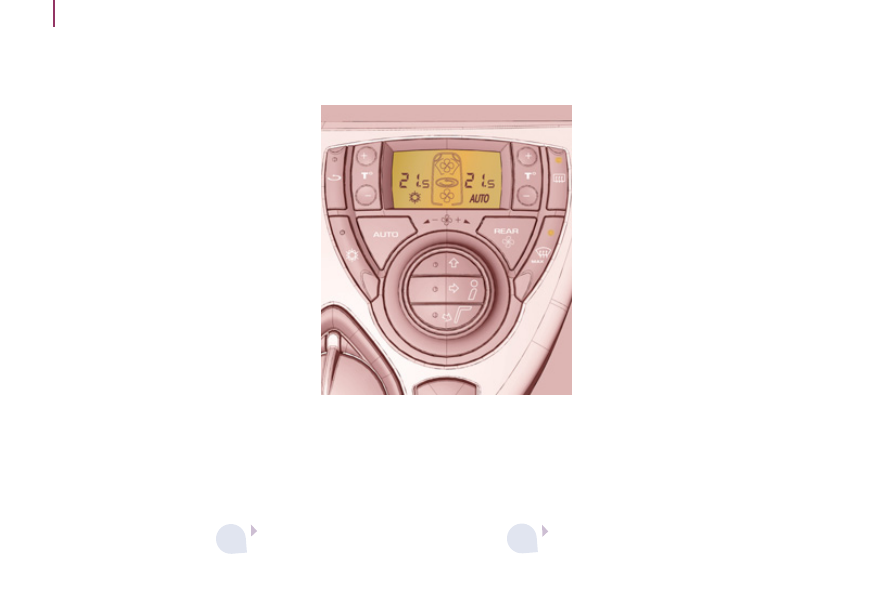

Automatic with separate adjustment
Press, AUTO is displayed, this is the

usual mode.

Details of the modularity of the seats

are indicated in chapter 3.
Good practice when moving a seat.
Observe the order of the steps referred

to in the document, place the head

restraint in the lowest position, fold

the seat back onto the seat cushion,

ensure that the refi tting position is

compatible with the type of seat, offer

up the front feet of the seat directly

above the slides or retaining hooks on

the fl oor before triggering the refi tting

of the rear feet.

Air conditioning

AMILIARISA

TIO

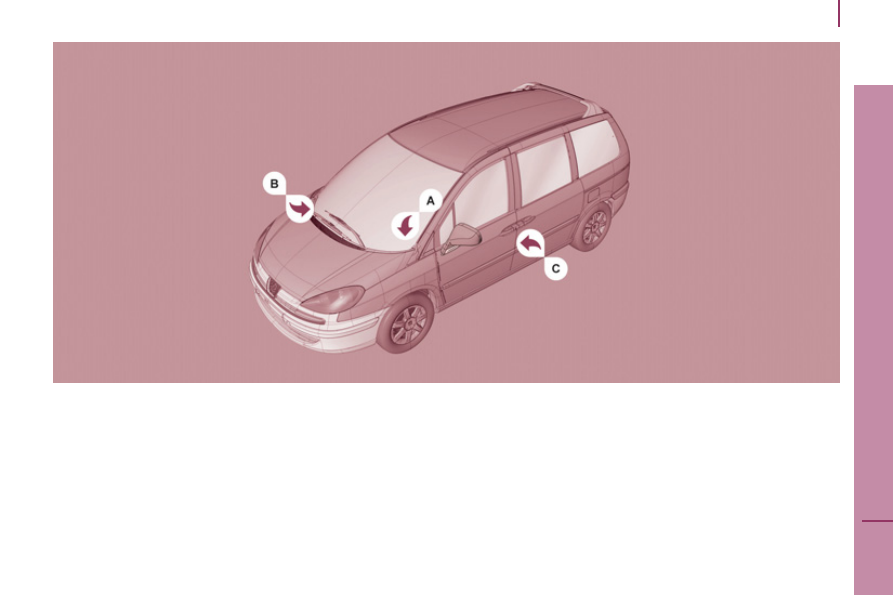

Identifi cation markings

IDENTIFICATION FEATURES

the wheel and tyre sizes,

the brands of tyres approved by

the manufacturer,

the tyre pressures (the tyre

pressure must be checked when

the tyre is cold, at least once a

month) ,

the paint colour reference.

   A.    Manufacturer's plate.
  B.    Model serial number.
  C.    Tyres and paint colour reference.
The label C on the driver's door gives:

Access

REMOTE CONTROL

Deadlocking

KEYS

Deadlocking renders the internal

and external door locking

controls inoperative. Never leave

anyone inside the vehicle when it is

deadlocked.
If the deadlocking is operated from

inside the vehicle, it will change to

normal locking when the vehicle is

started.

ACCESS

Press the closed padlock to

lock the vehicle.
This is confi rmed by fi xed

lighting of the direction

indicators for approximately

two seconds.

Central locking

From the driver’s door or passenger

door, the keys allow you to lock,

deadlock or unlock the doors and

tailgate, as well as fold back the

exterior mirrors.
If one of the doors or the tailgate is open,

the central locking does not work.
The remote control performs the

same functions at a distance.

The key allows you to switch on the

ignition and to mechanically operate

the lock on the fuel fi ller cap, the glove

box, the passenger airbag disarming

switch and the mechanical child lock.

Normal locking

If your vehicle is fi tted with

deadlocking, a second press

on the closed padlock within

fi ve seconds of locking

changes this to deadlocking.

This is confi rmed by fi xed lighting

of the direction indicators for

approximately two seconds.

Access

READY

SET OFF

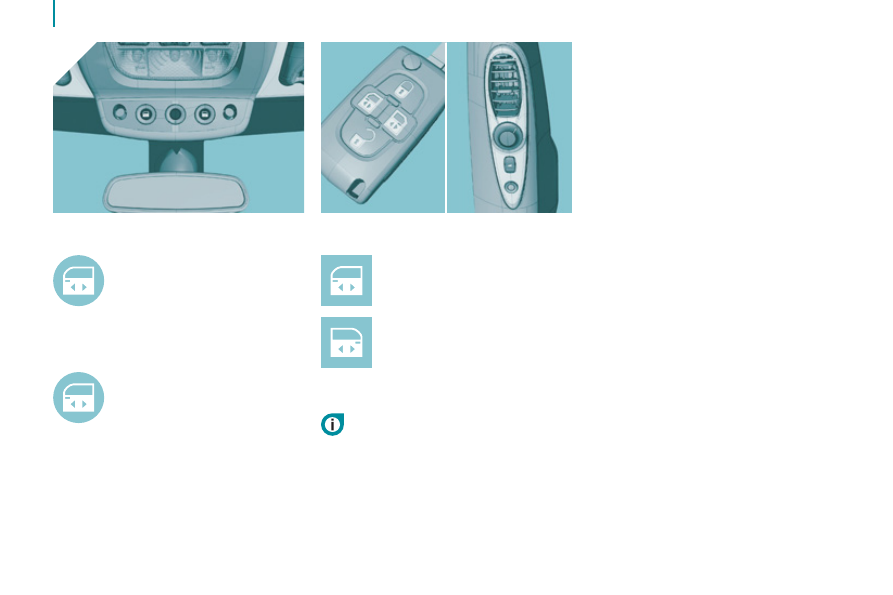

Pressing one of the buttons

opens or closes the

corresponding rear door

(right or left).

Locating your vehicle

Key in ignition

A buzzer sounds on opening the

driver's door, if the key has been left in

the ignition.

Folding/opening out the key

Unlocking

Press the open padlock to

unlock the vehicle.
This is confi rmed by rapid

fl ashing of the direction

indicators.

If the vehicle is locked and unlocking

is activated inadvertently, unless the

doors are opened within 30 seconds,

the vehicle will lock automatically.

This press unlocks the entire vehicle

before opening the sliding door.

Opening/Closing the electric

sliding side doors

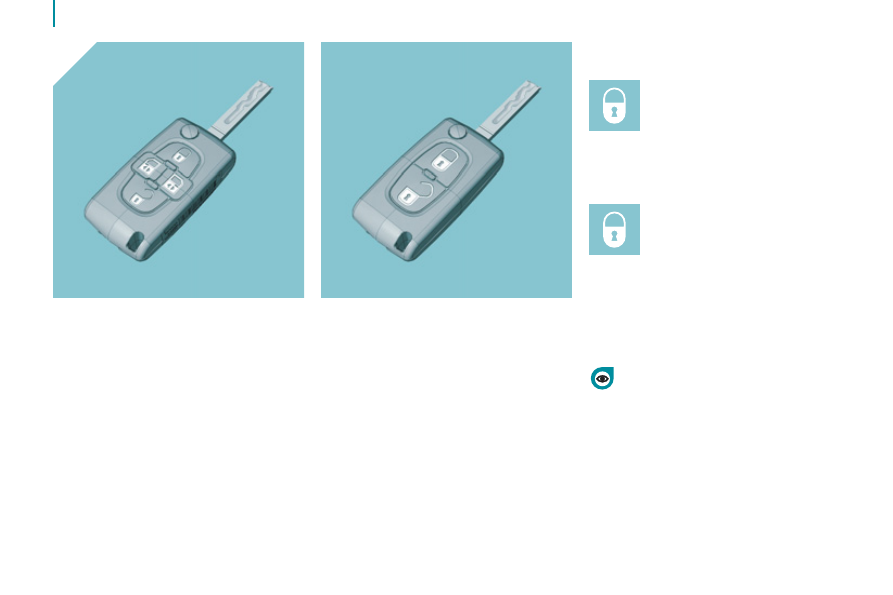

To tuck away the key blade,

press the button, then fold it

down into the remote control

module.
To open out the key, press

the button.

To locate your vehicle, if you

have locked it, in a car park.
Press the closed padlock, the

courtesy lights come on and

the direction indicators fl ash

for a few seconds.

Pressing the closed

padlock for more than

2 seconds , in addition to

locking or deadlocking,

permits automatic closing of

the windows and places the sunroofs

in the partially open position, if they

were open. To close them completely,

you must press their switch before

leaving the vehicle.

Access

Changing the remote control

battery

Battery ref.: CR1620/3 volts.
The information "battery fl at" is given

by an audible signal, accompanied by

a message on the multifunction display.

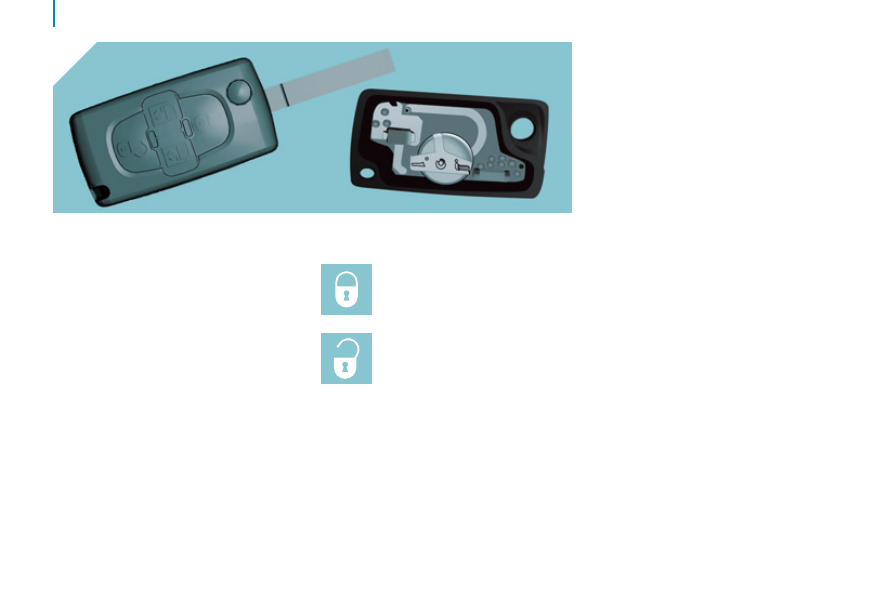

To replace the battery, unclip the

casing using a coin at the ring.
If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Reinitialising the remote control

Following changing of the

remote control battery or

disconnection of the vehicle

battery, the remote control

may have to be reinitialised.

Do not discard the remote control

batteries, they contain metals which

are harmful to the environment.
Take them to a PEUGEOT dealer, or to

any other approved collection point.

Wait at least one minute before

using the remote control.
Insert the key in the ignition

switch with the buttons

(padlocks) of the remote

control facing you.

Switch on the ignition.
Press the locking padlock for at least

fi ve seconds within the next ten

seconds.
Switch off the ignition.
Wait at least one minute before using

the remote control.
The remote control is now working

again.

Access

READY

SET OFF

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system as

soon as the ignition has been switched

off and therefore prevents starting of

the vehicle by anyone who does not

have the key.
The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code

must be recognised for starting to be

possible.

If the system does not function

correctly, the central locking button

indicator light, situated on the courtesy

light console, fl ashes rapidly when the

ignition is switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon

as possible.

Good practice

If the keys are lost
A PEUGEOT dealer will be able

to retrieve the key code and the

transponder code to order a replacement

key if you show him your V5 registration

certifi cate and personal identifi cation.

Key, remote control
Take care not to allow the key to come

into contact with grease, dust, rain or a

damp environment.
A heavy object attached to the key

(key ring, …) weighing on the shaft

of the key in the switch may cause a

malfunction.

The high frequency remote control is

a sensitive system; do not operate it

while it is in your pocket as there is

a possibility that it may unlock your

vehicle, without you being aware of it.

Do not repeatedly press the buttons of

your remote control out of range and

out of sight of your vehicle. You run

the risk of stopping it from working and

the remote control would have to be

reprogrammed.

The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off,

except for reprogramming.

Do not make any modifi cations to the

electronic engine immobiliser system.

Safety
In the event of a serious impact the

doors are unlocked automatically

to permit access by the emergency

services.
Remove the ignition key when you

leave the vehicle, even for a short time,

if there are children on board.

Purchasing a second-hand vehicle
Ensure that you are given the anti-theft

socket for alloy wheels (remember to

note the code engraved on the head of

the socket).
Have the key codes memorised by

a PEUGEOT dealer, to ensure that

the keys in your possession are the

only ones which can start the vehicle.

Access

ALARM

If fi tted on your vehicle, this provides

two types of protection:
-

exterior protection: it sounds if a

door, the tailgate or the bonnet is

opened.

interior protection: it sounds if

the volume inside the passenger

compartment changes (breaking of

a window or a movement inside the

vehicle).

A red indicator light, located in the

centre of the fascia, indicates the

information detailed below.

To lock your vehicle without setting

the alarm, insert the key in the

lock then lock the vehicle (e.g. for

washing).

When the alarm is triggered, the siren

sounds and the direction indicator

lights fl ash for thirty seconds.
Warning - alarm triggered: the red indicator

light fl ashes rapidly, insert the key and

switch on the ignition to switch it off.
When the alarm has been triggered ten

times in succession (on the eleventh time)

the alarm is deactivated. Repeat the rules

for setting the alarm.

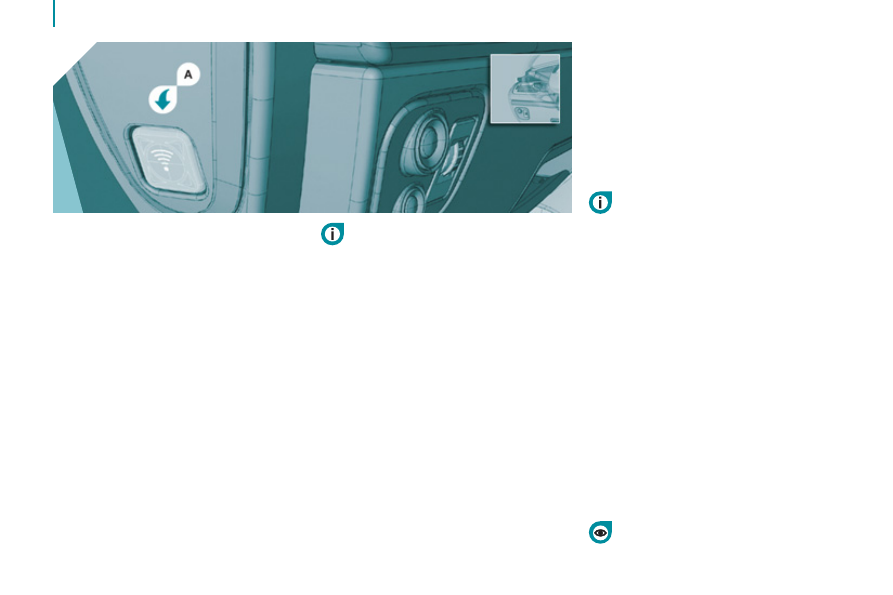

Close the sunroofs,

Switch off the ignition,

In the next ten seconds, press

button A , located on the left-hand

side of the fascia, until the red

indicator light is on continuously,

Get out of the vehicle,

Within the next fi ve minutes, set the

alarm by locking or deadlocking using

the remote control (the red indicator

light fl ashes once a second).

Do not make any modifi cations

to the alarm system as this could

cause faults.

Setting the alarm

Switch off the ignition and get out of

the vehicle.

Set the alarm within fi ve minutes of

getting out of the vehicle, by locking

or deadlocking using the remote

control (the red indicator light

fl ashes once per second).

Disarming

Unlock the vehicle with the remote

control (the red indicator light goes out).

To set the alarm with exterior

protection only

If, while you are away from the vehicle,

you wish to leave a window partially

open or a pet inside the vehicle, you

should choose exterior protection only.

Incorrect operation

When the ignition is switched on, if the red

indicator light remains on for ten seconds,

there is a fault in the siren connection.
Consult a PEUGEOT dealer to have the

system checked.

Automatic setting of the alarm

If fi tted on your vehicle, the alarm is set

automatically 2 minutes after the last

door or the tailgate is closed.
To prevent triggering of the alarm when

a door or the tailgate is opened, it is

imperative to press the remote control

unlocking button again.

When the alarm is set but the

remote control does not operate:

Unlock the doors with the key

and open the door. The alarm is

triggered.

Switch on the ignition in the

next ten seconds. The alarm is

disarmed.

Access

READY

SET OFF

DOORS

Automatic central locking

The doors can lock automatically when

you are driving (at a speed of more

than 6 mph (10 km/h)).
You can activate or deactivate this

function.

To deactivate

With the ignition on, press

and hold the padlock.
Deactivation of the function

is accompanied by an audible signal.

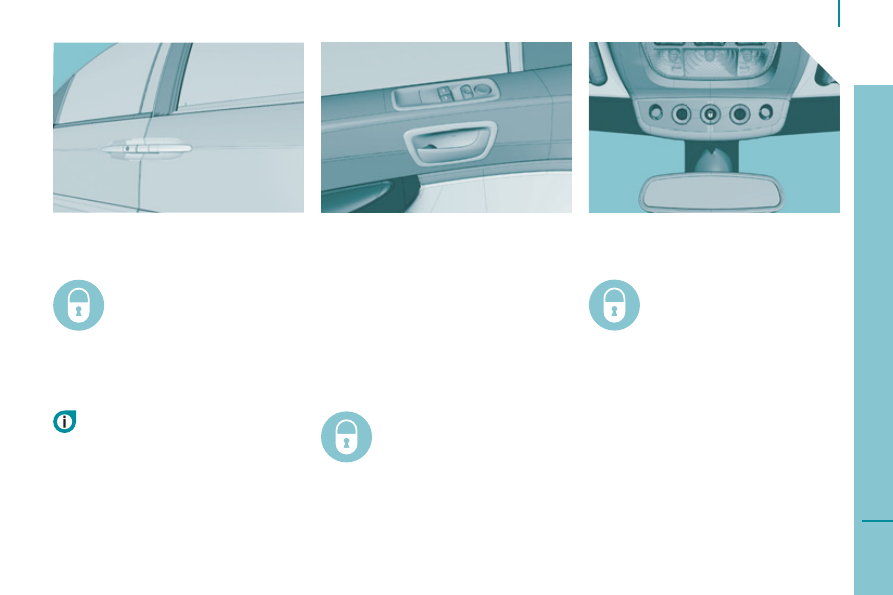

Opening the doors from outside

Opening the doors from inside

If the vehicle is locked or

deadlocked from the outside, the

red warning light fl ashes and the

padlock does not function. In this case,

use the key or the remote control to

unlock from the outside.
The door opening switches do

not function when the vehicle is

deadlocked.

Locking/Unlocking from

the inside

Press the padlock, the red

warning light comes on when

the vehicle is locked and switches off

when it is unlocked.
This locks/unlocks the doors and the

tailgate.

To activate

With the ignition on, press

and hold the padlock.
Activation of the function is

accompanied by an audible signal and

a message on the display .

"Door open" alert

If a door or the tailgate is not closed

properly:
-

when the engine is running , you

are warned by a graphic and a

message on the display for a few

seconds,

when the vehicle is moving

(speed above 6 mph (10 km/h)),

the service warning light comes on.

It is accompanied by an audible

signal, a message and a graphic on

the display for a few seconds.

Access

Opening/Closing using

the remote control

Press one of the buttons to

open or close the corresponding

rear door (right or left).

Opening/Closing from

the front

Press the corresponding

control.

An audible signal accompanies the

opening and closing of the door.

ELECTRIC SLIDING SIDE DOORS

Remember to close the sliding

doors when your vehicle is parked

for long periods, the electric open

door monitoring system consumes

power.
On a steep gradient, guide the side

door manually to assist closing.

Opening/Closing from

row 2

Press the corresponding

control.

General recommendations

It is imperative that the doors are

only operated when the vehicle is

stationary.
Always ensure that the door is

operated safely. Check that no person,

animal or object is preventing the

required operation, either inside or

outside the vehicle.
Do not lean through an open window,

do not leave any object protruding

through the door during opening or

closing.
Do not leave children or pets near the

opening and closing controls without

supervision.

Obstacle detection

The detection system is triggered

when an obstacle which has a certain

physical resistance hinders the

movement of the door.
If an obstacle is detected during:
-

closing of the door, the door opens

fully,

opening of the door, the door stops.

When the obstacle has been removed,

complete or restart the action using the

remote control or the interior controls.
Failure to observe these

recommendations may result in injury

or damage if part of the body or an

object becomes jammed or caught.

Access

READY

SET OFF

ELECTRIC CHILD SAFETY

Simultaneous locking or

unlocking of the tailgate and the

doors

The tailgate is locked or unlocked by

the remote control or the driver’s door

or passenger door lock.

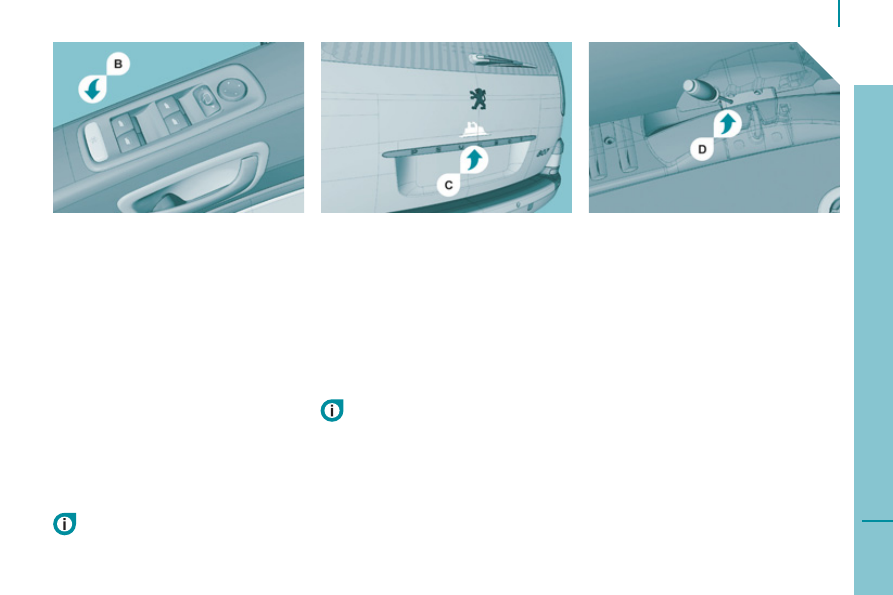

To open, operate the handle C and lift

the tailgate.

Tailgate release

The tailgate locks automatically

when the vehicle is being driven

at more than 6 mph (10 km/h) and

unlocks when one of the front doors is

opened.

TAILGATE

"Tailgate open" warning

When the engine is running or the

vehicle is being driven, you are warned

if the tailgate is not closed correctly by

a diagram on the display, accompanied

by an audible signal.

This enables the tailgate to be

unlocked in the event of a central

locking fault.
-

Fold back a row 2 rear seat,

Fold back a row 3 rear seat or the

bench seat to gain access to the

lock from inside the boot,

Insert a small screwdriver into

hole D in the lock and push it

towards the left to unlock the

tailgate.

B - Electric
This disarms all the electrical controls

in the rear:
- electric

windows,

sliding side doors,

sunroofs in rows 2 and 3.

With the ignition on, press button B .
A message appears on the display,

accompanied by an audible signal,

indicating the status of the function:

activated or not activated.
Always check the status before setting off.
This safety system is independent of

the central locking.
In the event of a serious impact, the

doors are unlocked automatically

to permit access by the emergency

services.

Always remove the ignition key

when leaving the vehicle, even for

a short time.

Access

SUNROOFS

You have three sunroofs each with an

independent control.
However, the front passenger’s control

can also operate the two rear sunroofs

simultaneously.

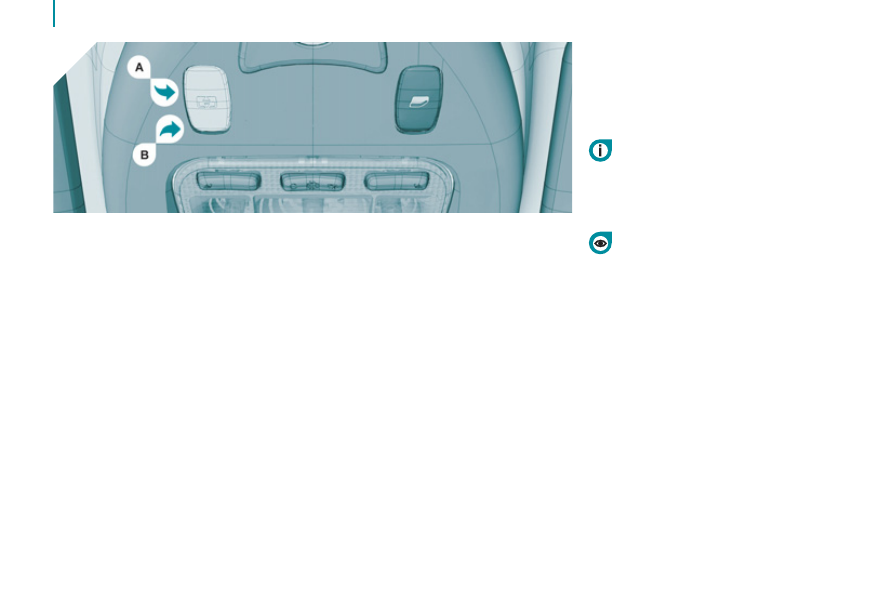

To partially open the roof: press and

hold part A of the control.
To open the roof completely: press

part A of the control briefl y.
To close it completely: press part B

of the control briefl y to slide it, then

press the control again continuously to

close it completely.

Malfunction

In the event of a malfunction, unwanted

opening of the roof on closing (for

example, in the presence of ice),

following reconnection of the battery or

if the sunroof does not close:
- press

A until the roof is fully open,

- press

B within one second to close

the roof,

if the roof does not close, press B

several times until the roof is fully

closed,

release then continue to press

the control B for approximately

fi ve seconds after closing of the

roof.

The safety auto-reverse function is

not active during these operations.

Disarming of the row 2 and

3 controls

Press the rear electrical functions

disarming switch.

The sunroof shutter is manual.
To open it, lift the handle and slide

it rearwards.

To close it, slide it forwards until the

handle locks.

Good practice

Do not open the sunroofs

immediately after a shower or

immediately after washing the car.
Always ensure that the sunroofs are

closed correctly before leaving the

vehicle.
In the event of contact during operation

of the roof, you must reverse the

movement of the roof. To do this, press

the switch concerned.
When the driver operates the roof

switch, he must ensure that no one is

preventing correct closing of the roof.

Be aware of children when operating

the roof.
The driver must ensure that the

passengers use the sunroof correctly.

Safety auto-reverse

When the sunroof is sliding closed

and meets an obstacle, it stops then

partially opens again.

Instruments and controls

READY

SET OFF

INSTRUMENTS AND CONTROLS

CONTROL BLOCK

Display

Instruments and controls

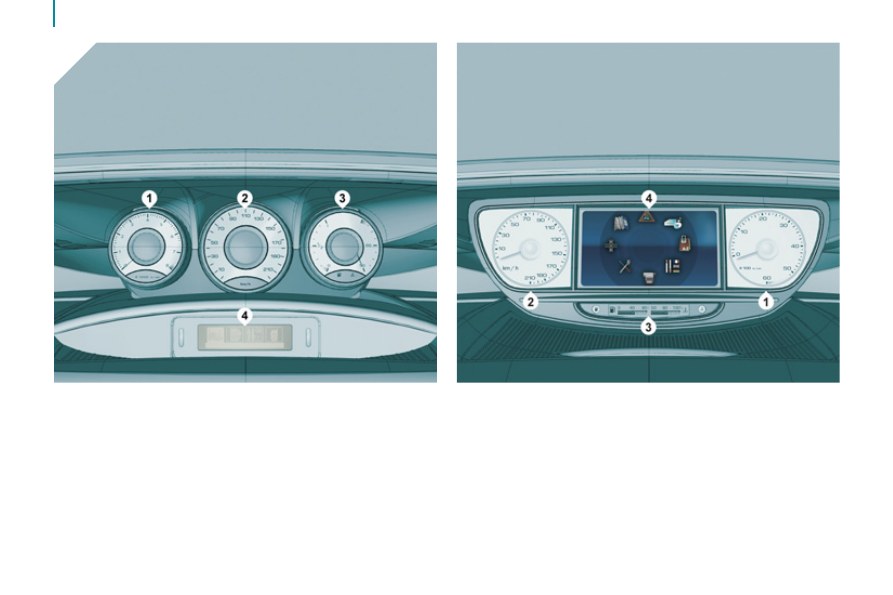

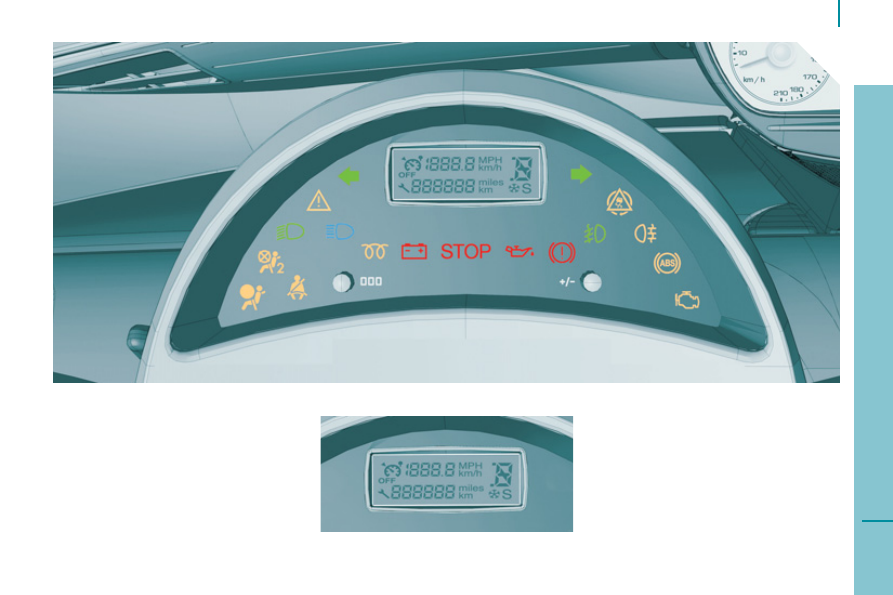

INSTRUMENT PANELS

With monochrome display

With colour display

   1.  Rev counter.
  2.  Speedometer.
  3.   Fuel level and coolant temperature.
  4.  Display.

Instruments and controls

READY

SET OFF

WARNING LIGHTS

Each time the engine is started: a series of warning lights comes on applying a self-test check. They switch off almost

immediately. With the engine running: the warning light becomes a warning if it remains on continuously or fl ashes. This

initial warning may be accompanied by an audible signal and a message which appears on the display. "Do not ignore

these warnings."

Warning light

indicates

Solution - action

STOP

lit, associated

with another

warning

light and

accompanied

by a message

on the display.

major faults linked with the

"Brake fl uid level", "Engine

oil pressure", "Coolant

temperature", "Electronic

brake force distribution",

"Power steering" and

"Punctured tyre" warning

lights.

You must stop, park, switch off the ignition

and call a PEUGEOT dealer.

Handbrake/

Brake fl uid

level/EBFD

lit.

handbrake applied or not

released correctly.

Releasing the handbrake switches off the warning

light. Chapter 2, "Starting and stopping" section.

lit.

low brake fl uid level.

Top up using a fl uid recommended by PEUGEOT.

remaining on,

even though the

level is correct and

associated with the

ABS warning light.

failure of the electronic

brake force distribution.

You must stop, park, switch off the ignition

and call a PEUGEOT dealer.

Engine oil

pressure

lit while driving. insuffi cient pressure.

Park, switch off the ignition and allow to cool.

Visually check the level. Chapter 6, "Levels"

section.

remaining on,

even though

the level is

correct.

major fault.

Call a PEUGEOT dealer.

Instruments and controls

Warning light

indicates

Solution - action

Coolant

temperature

and level

lit.

an abnormal increase in

the temperature.

Park and switch off the ignition then allow to cool.

Visually check the level. Chapter 2, "Instruments

and controls" section.

fl ashing.

a drop in the coolant level.

Chapter 6, "Levels" section. Contact a PEUGEOT

dealer.

Service

lit temporarily.

minor faults or warnings.

Consult the warnings log on the display or on the

screen. See chapter 9 In-car Technology, "Audio

equipment - Trip computer" section, depending on

the seriousness of the fault, contact a PEUGEOT

dealer.
In the case of a low diesel additive level, see

chapter 6 "Levels" section.

remaining on.

major faults.

Row 1 seat

belt not

fastened

lit.

the driver or a front

passenger has not fastened

his seat belt.

Pull the strap then insert the tongue in the buckle.

fl ashing,

accompanied

by an audible

signal of

increasing

volume.

the vehicle is moving with

the driver or front passenger

seat belt not fastened.

Check that the seat belt is fastened by pulling the

strap. Chapter 4, "Seat belts" section.
The driver must ensure that all passengers fasten

and use the seat belts correctly.

Front/side/

curtain airbag

fl ashing or

remaining on.

failure of an airbag.

Have the system checked by a PEUGEOT dealer

without delay. Chapter 4 "Airbags" section.

Front

passenger

airbag

disarmed

lit.

intentional disarming of this

airbag in the presence of a

rear facing child seat.

Chapter 4, "Airbags-children on board" section.

Content .. 1 2 3 ..
