Peugeot 807 Dag (2007.5). Instruction

3
3

MAIN FUNCTION

CHOICE A

choice A1

choice A2

CHOICE B...

NAVIGATION - GUIDANCE

SELECT DESTINATION

enter an address

country:

town:

road:

N°/_:

curr. loc

directory

previous destinations

order/delete journey legs

divert route

chosen destination

GUIDANCE OPTIONS

deﬁne calculation criteria

fastest

shortest

distance/time

with tolls

with ferry

trafﬁc info

DISPLAY FLOW CHARTS

set speech synthesis

activate/deactivate road names

map data base description

delete last destinations

STOP/RESUME GUIDANCE

MAP

MAP ORIENTATION

vehicle direction

north direction

3D view

MAP DETAILS

administration and safety

town halls, town centre

universities, colleges

hospitals

hotels, restaurants and shops

hotels

restaurants

vinyards

112

business centres

supermarkets, shopping

culture, tourism and shows

tourism

culture and museums

casinos and nightlife

cinemas and theatres

shows and exhibitions

sports and open air centres

sports centres

golf courses

skating rinks, bowling alleys

winter sports resorts

parks, gardens

theme parks

transport and automobile

airports, ports

stations, bus stations

vehicle rental

lay-bys, car parks

service stations, garages

DISPLAY MAP

full screen map

map in window

MOVE THE MAP

CONFIGURE MESSAGE ANNOUNCEMENT

read messages

new message display

SELECT TMC STATION

automatic TMC

manual TMC

list of TMC stations

TRAFFIC INFORMATION

READ MESSAGES

FILTER TRAFFIC INFORMATION

geographic ﬁlter

around the vehicle

around location

on the route

road information

trafﬁc information

road closure

size limit

road condition

weather and visibility

urban/city information

parking

public transport

demonstrations

AUDIO FUNCTIONS

RADIO FAVOURITES

enter a frequency

activate/deactivate RDS mode

activate/deactivate regional mode

display/hide radio text

CD, JUKEBOX FAVOURITES

activate/deactivate Introscan (SCN)

activate/deactivate Random mode (RDM)

activate/deactivate Repeat (RPT)

activate/deactivate display of CD info

STOP THE COPY

COPY CD TO JUKEBOX

copy complete CD

TELEMATICS

CALL

call list

dial

directory

mailbox

services

customer contact centre

PEUGEOT assistance

messages received

multiple selection

current album

current track

JUKEBOX

jukebox management

jukebox conﬁguration

hi-ﬁ (320 kbps)

high (192 kbps)

normal (128 kbps)

delete jukebox data

PLAYLIST MANAGEMENT

send a text message

write a text message

delete list of text messages

TELEPHONE FUNCTIONS

network

network search mode

automatic mode

manual mode

networks available

length of calls

zero reset

manage PIN code

activate/deactivate

save PIN number

modify PIN code

call options

conﬁgure calls

display my number

automatic reply after x ring(s)

ring options

for voice calls

for text messages (SMS)

DIRECTORY

managing directory ﬁles

consult or modify a ﬁle

add a ﬁle

delete a ﬁle

delete all ﬁles

conﬁgure directory

select a directory

name directory

select starting directory

ﬁle transfer

exchange by infrared

send all records

send one record

receive by infrared

exchange with SIM card

send all records to SIM

send one record to SIM

receive all SIM ﬁles

receive a SIM ﬁle

TEXT MESSAGES (SMS)

read received text messages

MENU

114

Flow chart version 7.0

text message ring

call diversion to mailbox n°

delete calls log

Press the MENU button for more

than 2 seconds to access the

following ﬂow chart.

VOICE COMMANDS LIST

AUDIO/TELEPHONE DIAGNOSTICS

GPS COVERAGE

UNIT BACKUP POWER

UNIT DESCRIPTION

NAVIGATION DEMONSTRATION

SERVICES CONFIGURATION

Press the Music button several

times in succession to access the

following settings.

MUSICAL AMBIENCE

BASS

TREBLE

LOUDNESS CORRECTION

FR-RR BALANCE

LH-RH BALANCE

AUTO VOLUME CORRECTION

Settings to be adapted to each audio

source Radio, CD, MP3, Jukebox, CD

changer.

CONFIGURATION

DISPLAY CONFIGURATION

choose colour

adjust luminosity

set date and time

select units

SOUND

voice commands setting

speech synthesis setting

guidance instructions volume

other message volume

select female/male voice

activate/deactivate auxiliary source

SELECT LANGUAGE

DEFINE VEHICLE PARAMETERS*

PARKING ASSISTANCE

OPERATION OF THE WIPERS

VIDEO

ACTIVATE VIDEO MODE

VIDEO PARAMETERS

display formats

adjust luminosity

set colours

set contrasts

VEHICLE DIAGNOSTICS

ALERT LOG

STATUS OF FUNCTIONS*

RESET TYRE PRESS. DETEC. SYS.*

LIGHTING CONFIGURATION

FOLLOW-ME-HOME LIGHTING DURATION

Automatic follow-me-home lighting

* The parameters vary according to vehicle

RD4

AUDIO EQUIPMENT/HANDS-FREE KIT

CONTENTS

• 01 First steps

pg. 116

• 02 Display and general menu pg. 117

• 03 Audio

pg. 118

• 04 Hands-free kit

pg. 121

• 05 Trip computer

pg. 122

• 06 Control short-cuts

pg. 123

• 07 Conﬁguration

pg. 124

• 08 Display ﬂow charts

pg. 125

The RD4 audio equipment is coded in such a way that

it will only operate in your vehicle. If it is to be installed

in another vehicle, contact your PEUGEOT dealer for

conﬁguration of the system.

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.

When the engine is switched off and to prevent

discharging of the battery, the RD4 audio system may

switch off after a few minutes.

Information on the functions offered by this equipment

can be found on the site:

http://public.infotec.peugeot.com - access is free.

From your vehicle’s interactive telematic guide, make

your selection, process, follow the actions step by step,

print.

Refer to the "Expert mode" section for answers to the

most frequently asked questions.

116

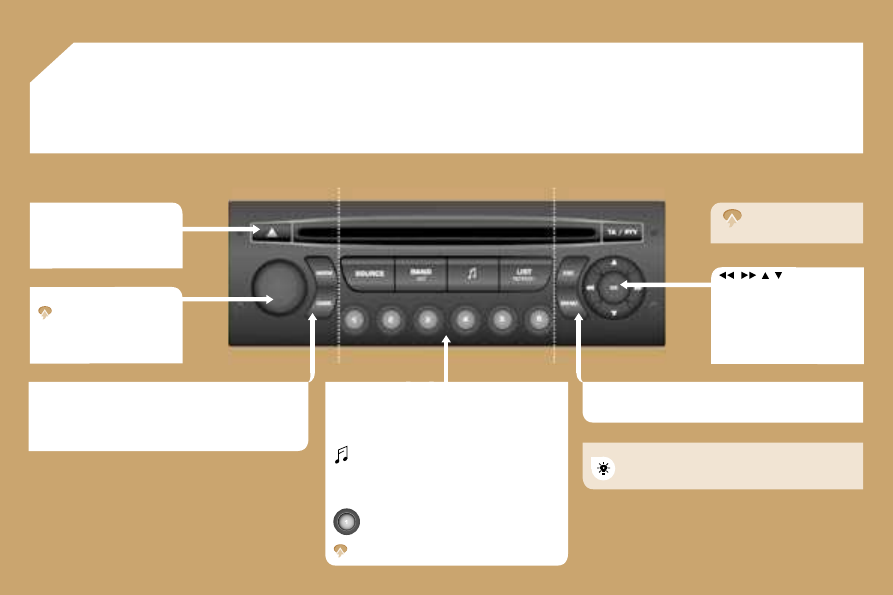

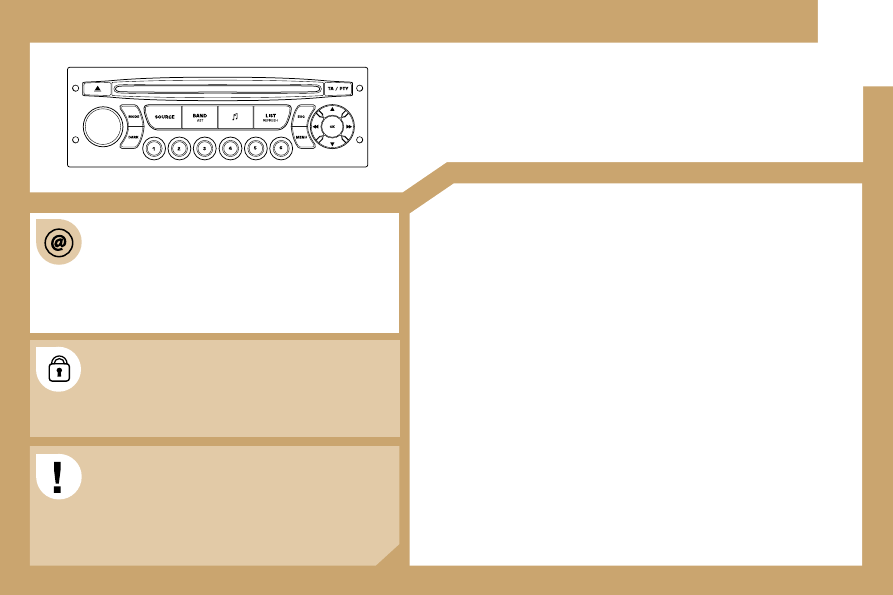

FIRST STEPS

CD eject

On-Off

Volume dial

Mode: Selection of the screen display mode.

Dark: Hide the screen display, until completely black,

by successive presses. Pressing again reactivates the

display.

Source: Selection of the source; radio, CD and

CD changer.

Band: Selection of the FM1, FM2, FMast and

AM wavebands.

: Setting the audio options:

Front/rear balance, left/right balance,

loudness, sound ambiences.

List: Displaying of the local stations, of the

tracks on the CD or of the MP3 directories.

- Storing of a station.

- Selection of a stored radio station.

- Selection of a CD in the CD changer.

updating of the stations received.

ESC: Abandon current operation.

Menu: Displaying of the general menu.

Navigator

which selects the choices

above or the step by step or

rapid advances.

Pressing the navigation dial

conﬁrms the choice, but does

not store it.

A long press is

required.

For a detailed global view of the menus available,

refer to the "Display ﬂow chart" section of this

RD4 chapter.

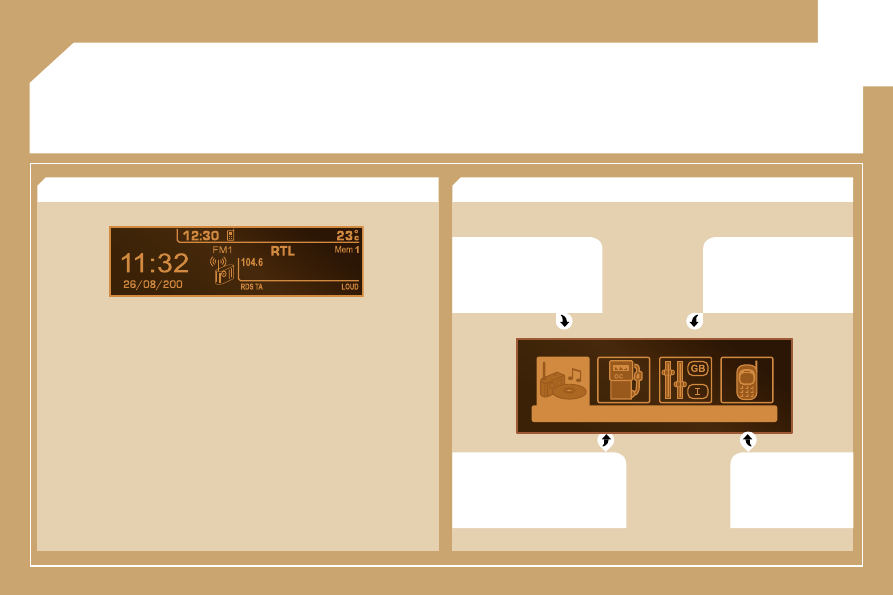

DISPLAY AND GENERAL MENU

AUDIO FUNCTION: radio,

CD, options.

PERSONALISATION-

CONFIGURATION: vehicle

parameters, display,

languages.

TRIP COMPUTER: distance

entering, warnings, status of

functions.

> GENERAL MENU

> DISPLAY

This displays the following information, via the RD4 audio equipment control pad:

- the time,

- the date,

- the exterior temperature (this ﬂashes if there is a risk of ice),

- the audio source displays (radio, CD, ...),

- the accesses check (doors, boot, ...),

- the warning messages (e.g.: "Antipollution fault") or information messages

(e.g.: "Auto lighting activated") displayed temporarily, can be cleared by

pressing the "ESC" button,

- the trip computer,

- the location of a faulty wheel,

- the detection of a rear obstacle.

TELEPHONE: hands-

free kit, matching,

management of a call.

MENU

118

AUDIO

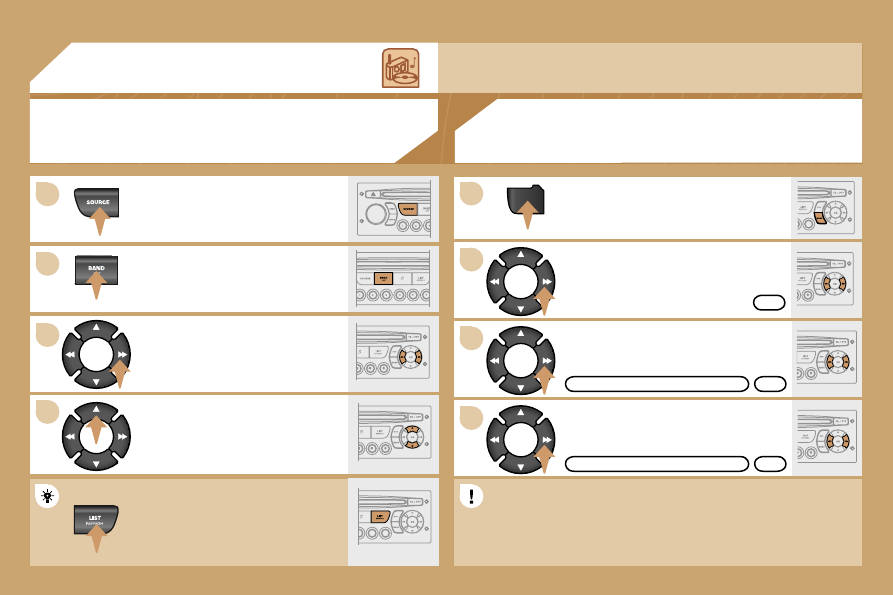

RADIO

SELECTING A STATION

Press the SOURCE button several

times in succession and select the

radio.

Press the BAND AST button to select

a waveband: FM1, FM2, FMast, AM.

Brieﬂy press one of the buttons to

carry out an automatic search of the

radio stations.

Press one of the buttons to carry out a

manual search of the radio stations.

Press the LIST REFRESH button to

display the list of stations received

locally (30 stations maximum).

To update this list, press for more than

two seconds.

Select ACTIVATE FREQUENCY

FOLLOWING (RDS) then press OK.

RDS appears on the display.

Select the FM WAVEBAND

PREFERENCES function then

press OK.

Select AUDIO FUNCTIONS then

press OK.

Press the MENU button.

FM WAVEBAND PREFERENCES

ACTIVATE FREQUENCY FOLLOWING (RDS)

The external environment (hills, buildings, tunnels, basement car parks) may

block reception, including in RDS mode. This is a normal effect of the way

in which radio waves are transmitted and does not indicate any failure of the

audio equipment.

RDS

The RDS, if displayed, enables you to continue listening to the

same station by means of frequency following. However, in certain

conditions, this RDS station is not followed throughout the country

as radio stations do not cover 100 % of the territory. This explains

the loss of reception of the station during a journey.

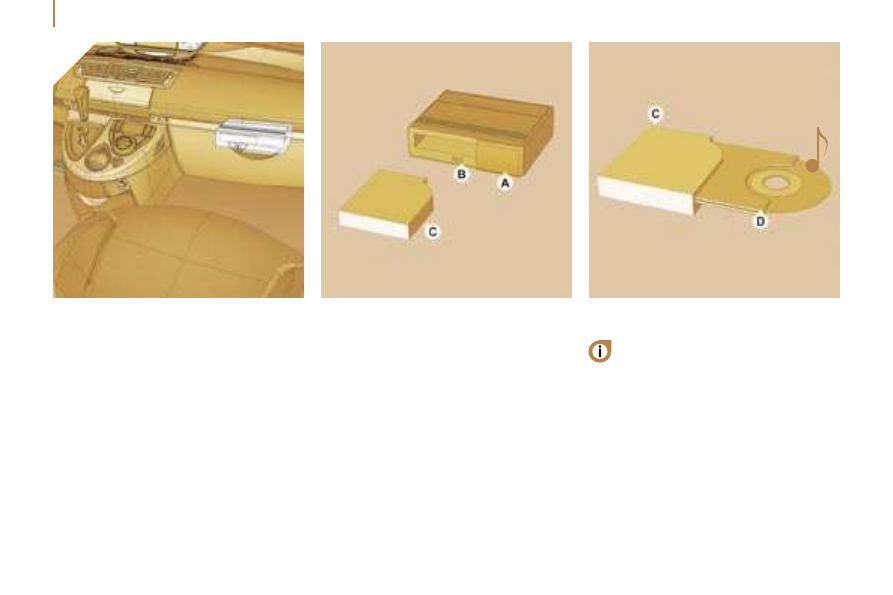

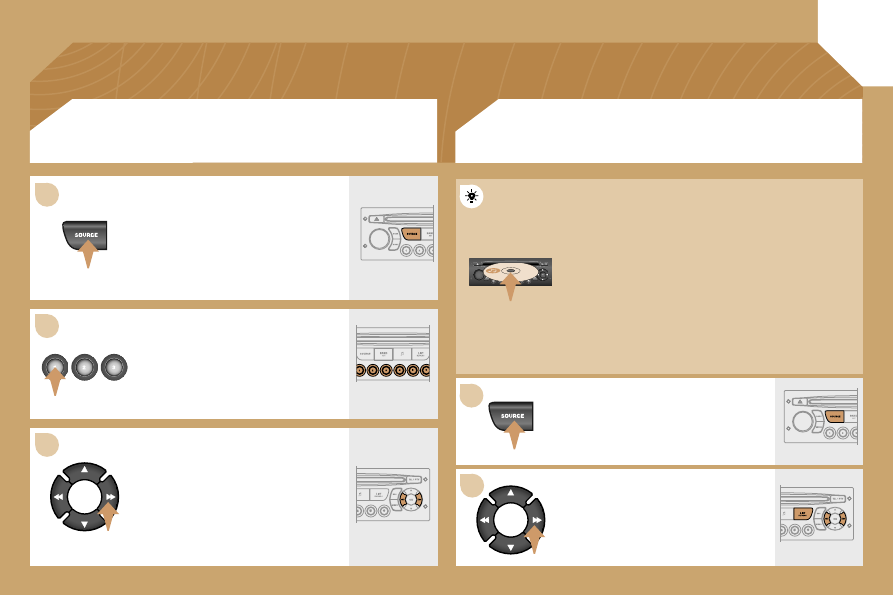

CD CHANGER

PLAYING A CD (NOT MP3 COMPATIBLE)

Insert the CDs in the changer one by

one.

Press the SOURCE button several

times in succession and select CD

CHANGER.

Press one of the buttons on the

numeric keypad to select the

corresponding CD.

Press one of the buttons to select a

track on the CD.

Press and hold one of the buttons for

fast forwards or backwards play.

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CDs

copied using a personal recorder, may cause faults

which are no reﬂection on the quality of the original

player.

Without pressing the EJECT button, insert a CD in the

player, play begins automatically.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and

select CD.

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to

display the list of tracks on the CD.

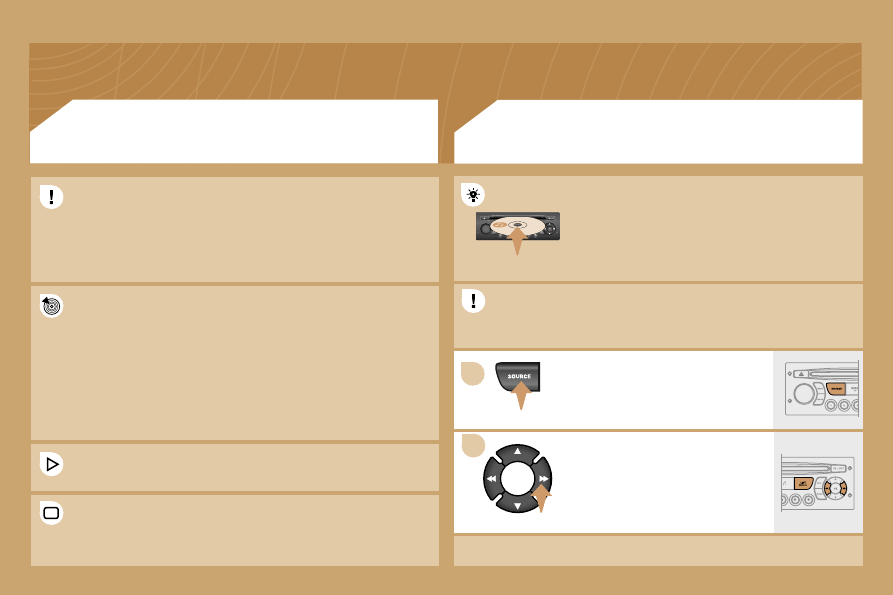

PLAYING A CD

120

Insert an MP3 compilation in the player.

The audio equipment searches for all of the music

tracks, which may take anything between a few

seconds and several tens of seconds, before play

begins.

On a single disc, the CD player can read up to 255 MP3 ﬁles spread

over 8 directory levels. However, it is advisable to keep to a limit of

two levels to reduce the access time before the CD is played.

PLAYING AN MP3 COMPILATION

MP3 CD

INFORMATION AND ADVICE

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music ﬁles on a single disc.

The playing and displaying of an MP3 compilation may depend on

the recording programme and/or the parameters used.

In order to be able to play a recorded CDR or CDRW, when recording

select standards ISO 9660 level 1.2 or Joliet. If the disc is recorded in

another format, it may not be played correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible for optimum

sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The audio equipment will only play ﬁles with the extension ".mp3". No

other type of ﬁle (.wma, .mp4...) can be played.

It is advisable to restrict ﬁle names to 20 characters without using

special characters (e.g.: " " ? ; ù) to avoid any playing or displaying

problems.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and select

CD.

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to

display the list of directories of the

MP3 compilation.

HANDS-FREE KIT

During the year.

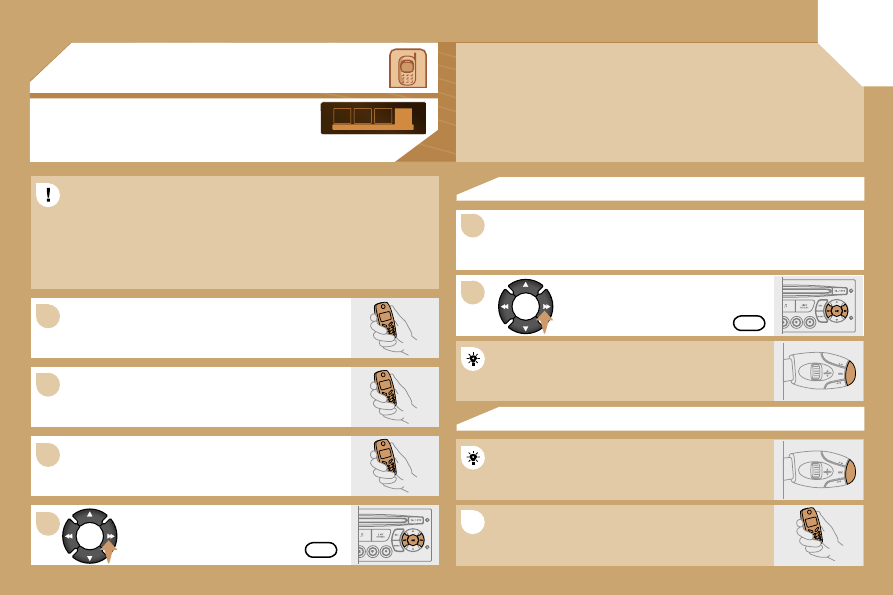

MATCHING A TELEPHONE

DISPLAY C

For safety reasons and because they require prolonged attention on

the part of the driver, the operations for matching of the Bluetooth

mobile telephone with the RD4 hands-free kit must be carried out

with the vehicle stationary and the ignition on.

Select the accessory which corresponds to the

name of the vehicle, a superimposed conﬁguration

display appears on the multifunction display.

Activate the telephone’s Bluetooth function and

carry out a search of the Bluetooth accessories

present for the telephone.

Select the YES tab on the display

using the buttons then conﬁrm by

pressing OK.

Enter the vehicle’s authentication code (=1234).

Depending on the telephone, you may be asked

to enter this code before the superimposed

conﬁguration display appears.

YES

The services offered by the hands-free kit depend on the network,

the SIM card and the compatibility of the Bluetooth equipment

used.

Consult your telephone’s manual and your operator to ﬁnd out

which services are available to you. A list of mobile telephones

which offer the best range of services is available from the

network. Contact a PEUGEOT dealer.

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed display

on the multifunction display.

Select the YES tab on the display

using the buttons and conﬁrm by

pressing OK.

Press the end of the steering wheel stalk to accept

the call.

Press the end of the steering wheel stalk for more

than two seconds to access your directory.

To dial a number, use the keypad on your telephone.

MAKING A CALL

122

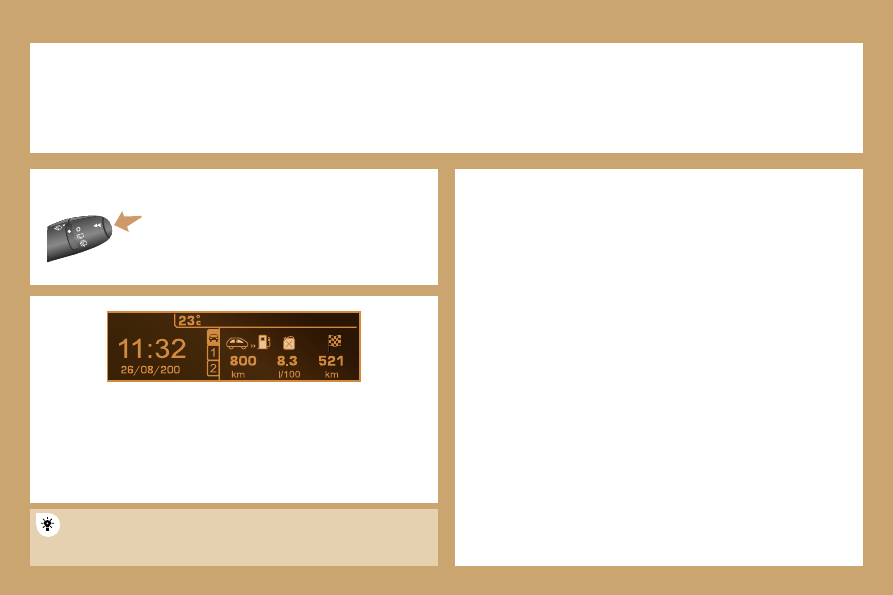

TRIP COMPUTER

Each press of the button, located at the end of the

wipers stalk, permits displaying of the different trip

computer data in succession, depending on the display.

- the

"vehicle" tab with:

• the range, the current consumption and the distance remaining to the

destination,

- the

"1" tab (route 1) with:

• the average speed, the average consumption and the distance

travelled calculated over route

"1",

- the

"2" tab (route 2) with the same characteristics for a second route.

A few deﬁnitions

Range: Displays the distance which can be travelled with the remaining fuel

detected in the tank, in relation to the average consumption over the last few

miles (kilometres).

This displayed value may vary signiﬁcantly following a change in the

vehicle speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed. After

ﬁlling with at least 5 litres of fuel, the range is recalculated and is displayed

when it exceeds 60 miles (100 km).

If, whilst driving, dashes are displayed continuously in place of digits, contact

a PEUGEOT dealer.

Current consumption: only calculated and displayed above 20 mph

(30 km/h).

Average consumption: this is the average quantity of fuel consumed since

the last trip recorder zero reset.

Distance travelled: calculated since the last trip computer zero reset.

Distance remaining to the destination: calculated with reference to the

ﬁnal destination, entered by the user. If guidance is activated, the navigation

system calculates it as a current value.

Average speed: this is the average speed calculated since the last trip

computer zero reset (ignition on).

Zero reset

When the required route is displayed, press the control for more than

two seconds.

RADIO: selection of the next stored station.

CD CHANGER: selection of the next CD.

Selection of the next item on a menu.

RADIO: selection of the previous stored station.

CD CHANGER: selection of the previous CD.

Selection of the previous item on a menu.

RADIO: automatic search for a higher frequency.

CD/CD CHANGER/MP3: selection of the next track.

CD/CD CHANGER: continuous press: fast forwards

play.

Selection of the previous item.

RADIO: automatic search for a lower frequency.

CD/CD CHANGER/MP3: selection of the previous

track.

CD/CD CHANGER: continuous press: fast backwards

play.

Selection of the next item.

Volume increase.

Volume decrease.

CONTROL SHORT-CUTS

Mute: by pressing

the volume increase

and decrease buttons

simultaneously.

The sound is restored by

pressing one of the two

volume buttons.

- Change of sound source.

- Conﬁrmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the telephone menu.

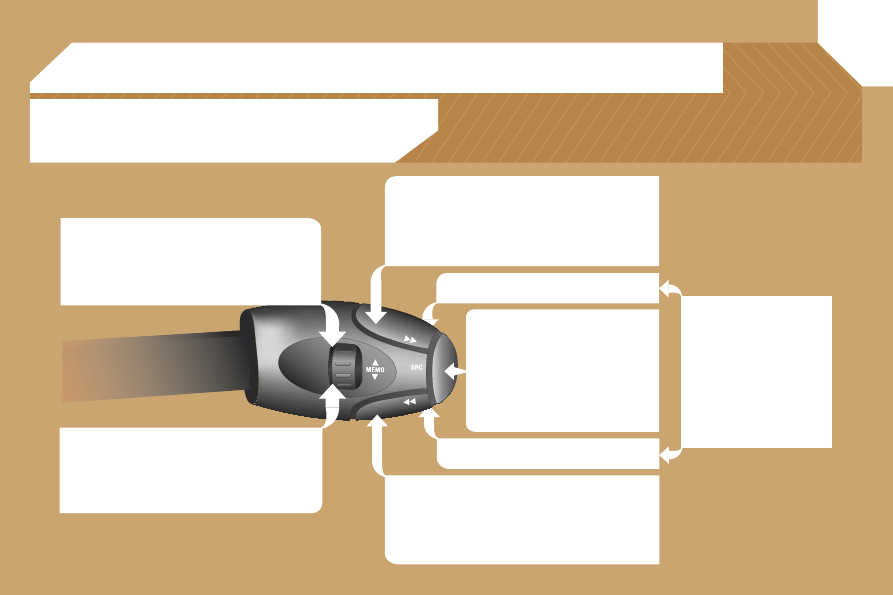

STEERING WHEEL CONTROLS

MENU

124

CONFIGURATION

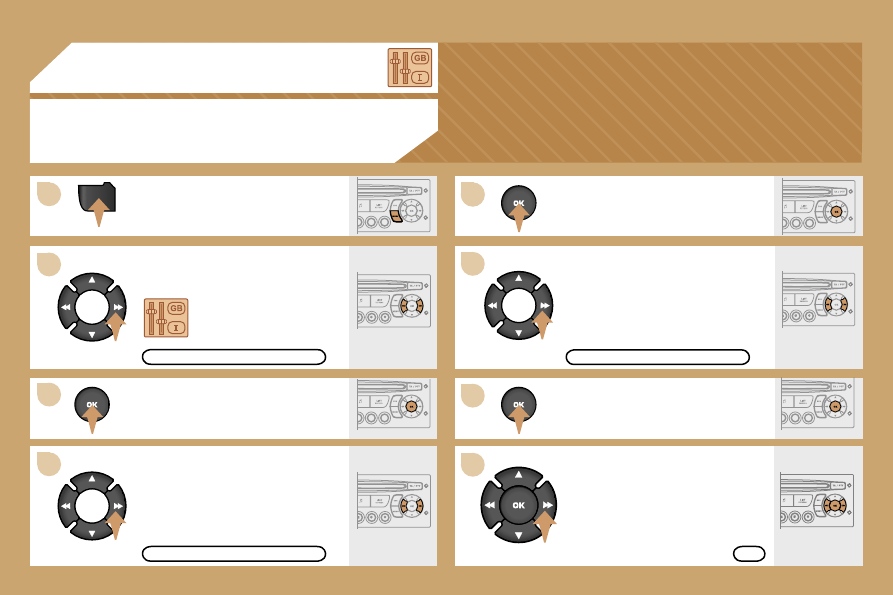

ADJUSTING THE DATE AND TIME

DISPLAY C

Press the MENU button.

Using the arrows, select

the PERSONALISATION

CONFIGURATION function.

Press to conﬁrm the selection.

Using the arrows, select the DISPLAY

CONFIGURATION function.

Press to conﬁrm the selection.

Using the arrows, select the ADJUST

DATE AND TIME function.

Adjust the parameters one by one

conﬁrming by pressing the OK button.

Next select the OK tab on the display

then conﬁrm.

ADJUST DATE AND TIME

DISPLAY CONFIGURATION

PERSONALISATION CONFIGURATION

PERSONALISATION-CONFIGURATION

DEFINE THE VEHICLE PARAMETERS*

DISPLAY CONFIGURATION

video brightness adjustment

normal video

inverse video

brightness (- +) adjustment

date and time adjustment

day/month/year adjustment

hour/minute adjustment

choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l

°Celsius/°Fahrenheit

CHOICE OF LANGUAGE

AUDIO FUNCTIONS

FM BAND PREFERENCES

alternative frequencies (RDS)

activate/deactivate

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)

activate/deactivate

AUDIO CD PREFERENCES

CD changer repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate

DISPLAY FLOW CHART

monochrome C

* The parameters vary according to vehicle.

** According to compatibility of Bluetooth telephone and service

contract.

TELEPHONE

CONSULTING DIRECTORIES**

telephone directory

call log

services directory

customer contact centre

breakdown call

emergency call

CONFIGURATION

deletion of a match

list of matches

consulting matches

list of matches

choice of a mobile to connect

list of mobiles

MANAGEMENT OF A COMMUNICATION

switch**

terminate the current call

secret mode

activate/deactivate

STATUS OF FUNCTIONS*

functions activated or deactivated

TRIP COMPUTER

ENTER DISTANCE TO DESTINATION

distance: x km

WARNING LOG

diagnostics

CD changer

This holds up to 6 discs.

Do not insert in the changer:

- discs in MP3 format,

- the navigation assistance (GPS) CD-ROM.

To insert a disc into the changer:

- open sliding panel

- press button

B to eject the cartridge C,

- open one of the six compartments of the

cartridge by pulling tab

insert the disc with the printed face

upwards and close the compartment,

- insert the cartridge into the changer,

- close the sliding panel

The use of copied compact discs may

cause faults.

Insert circular compact discs only.

CD CHANGER

Peugeot 807 Dag (2007.5). Instruction - part 8
