Mirrors and windows

80

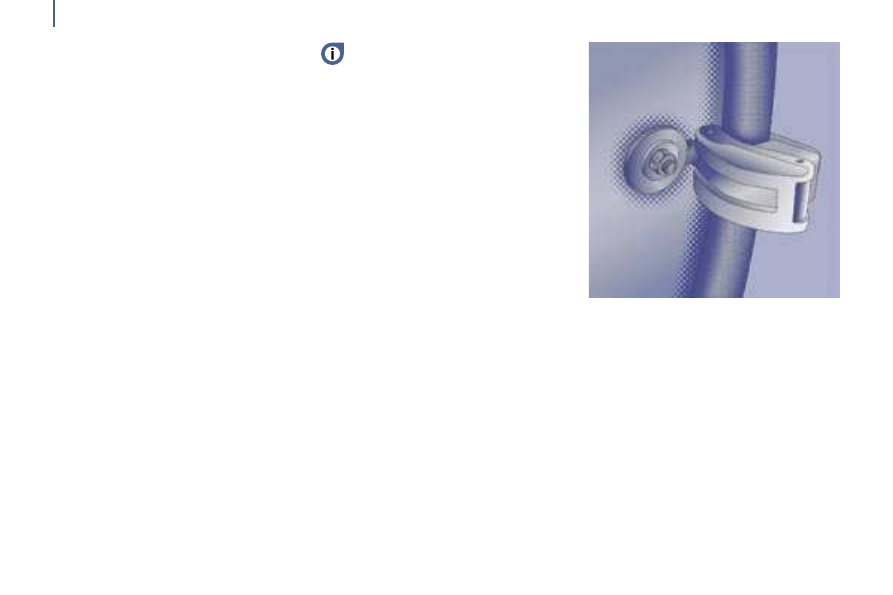

REAR WINDOWS

To partially

 open the rear windows, tilt the

lever and push it fully to lock the windows in

the open position.

Reinitialising the window

In the event of unwanted opening of

the window on closing (for example, in

the presence of ice), in the event of a

malfunction or following reconnection of the

battery, the window must be reinitialised:

press the switch until the window is fully

open,

then pull it again until the window is fully

closed,

continue to hold the switch for

approximately one second after the

window has closed.

The safety auto-reverse function is not

active during these operations.

Safety auto-reverse

When the window rises and meets an

obstacle, it stops and partially lowers again.

In the event of contact during operation

of the windows, you must reverse the

movement of the window. To do this, press

the switch concerned.

Always remove the key from the

ignition when leaving the vehicle, even

for a short time.

The driver must ensure that:

-   no one is preventing correct closing of the

windows,

-   the passengers use the electric windows

correctly,

-   children do not hinder the movement of

the windows.

Mirrors and windows

80

REAR WINDOWS

To partially

 open the rear windows, tilt the

lever and push it fully to lock the windows in

the open position.

Reinitialising the window

In the event of unwanted opening of

the window on closing (for example, in

the presence of ice), in the event of a

malfunction or following reconnection of the

battery, the window must be reinitialised:

press the switch until the window is fully

open,

then pull it again until the window is fully

closed,

continue to hold the switch for

approximately one second after the

window has closed.

The safety auto-reverse function is not

active during these operations.

Safety auto-reverse

When the window rises and meets an

obstacle, it stops and partially lowers again.

In the event of contact during operation

of the windows, you must reverse the

movement of the window. To do this, press

the switch concerned.

Always remove the key from the

ignition when leaving the vehicle, even

for a short time.

The driver must ensure that:

-   no one is preventing correct closing of the

windows,

-   the passengers use the electric windows

correctly,

-   children do not hinder the movement of

the windows.

S
O
S

SOURCE

MODE

BAND

ESC

2

abc

5

jkl

8

tuv

3

def

6

mno

9

wxyz

1

4

ghi

7

pqrs

0

#

MENU

LIST

TA

PTY

DARK

81

RT4

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

Information on the functions offered by this equipment

can be found on the site:

http://public.infotec.peugeot.com - access is free.

From your vehicle’s interactive telematic guide, make

your selection, process, follow the actions step by step,

print. Refer to the "Expert mode" section for answers to

the most frequently asked questions.

The RT4 GPS audio/telephone is coded in such a

way that it will only operate in your vehicle. If it is to be

installed in another vehicle, contact your PEUGEOT

dealer for configuration of the system.

For safety reasons, it is imperative that the driver carries

out operations which require prolonged attention while

the vehicle is stationary.

When the engine is switched off and to prevent

discharging of the battery, the RT4 audio/telephone may

switch off after a few minutes.



CONTENTS

• 01 First steps

pg. 82

• 02 Display and general menu  pg. 83

• 03 GPS

pg. 85

• 04 Traffic information

pg. 93

• 05 Audio

pg. 95

• 06 Telephone

pg. 102

• 07 Trip computer

pg. 105

• 08 Control short-cuts

pg. 107

• 09 Configuration

pg. 110

• 10 Display flow charts

pg. 111

IN

-C

A

R

 T

EC

H

N

O

LO

G

Y

4

01

82

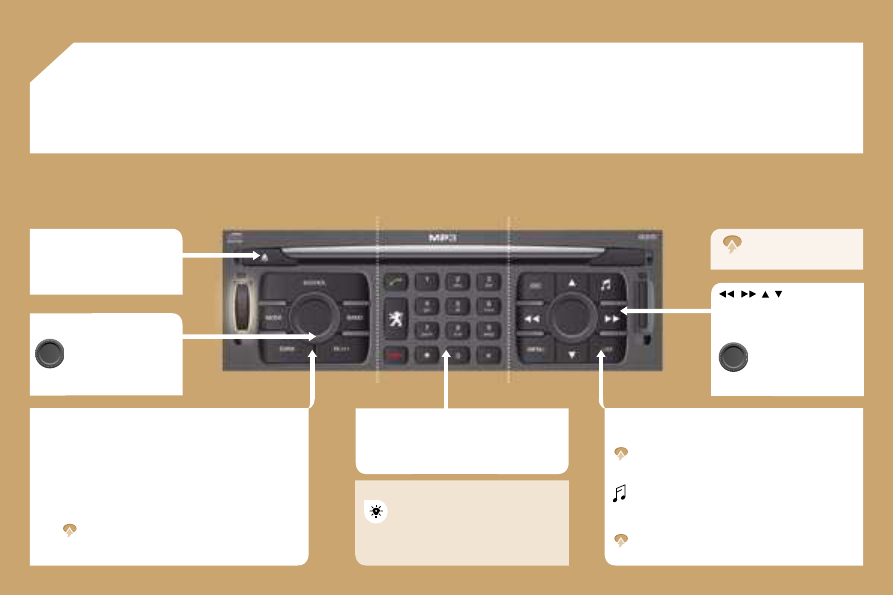

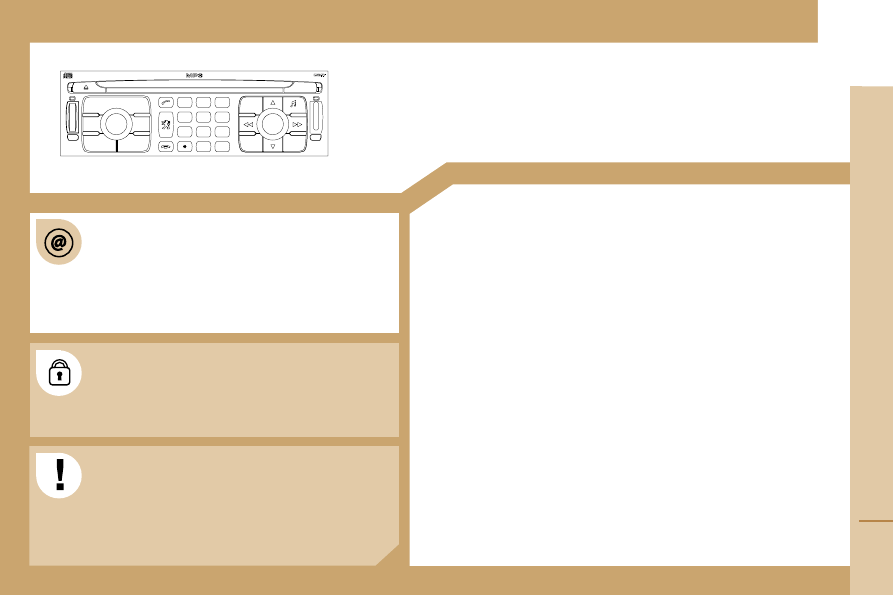

FIRST STEPS

CD eject

On-Off
Volume dial

Source: selection of the radio or Jukebox, CD changer.
Mode: selection with displaying of the TRIP, TEL, NAV or AUDIO
mode chosen.
Dark: hide the screen display, until completely black, by successive
presses. Pressing again reactivates the display.
Band: selection of the FM1, FM2, FMast, AM wavebands.
TA: TA Traffic Announcements function on/off.
PTY:

Types of Programme function on/off by means of a long

press.

Alpha-numeric telephone keypad for the same
uses, dial, call, hang up, enter.
Lion: Direct access to the "PEUGEOT" services.

ESC: clears the current selection

return to the previous selection

Menu: displays the general screen

: sound settings

List: displays the list of radio stations received
the list of CD tracks or MP3/Jukebox directories

updating of the stations received.

Navigator which

selects the choices above or the
step by step or rapid advances.

Pressing the navigation
dial confirms the choice,
but does not store it.

A long press is required.

For a detailed global view of the menus
available, refer to the "Display flow chart"
section of this RT4 chapter.

audio

02

83

DISPLAY AND GENERAL MENU

> COLOUR DISPLAY

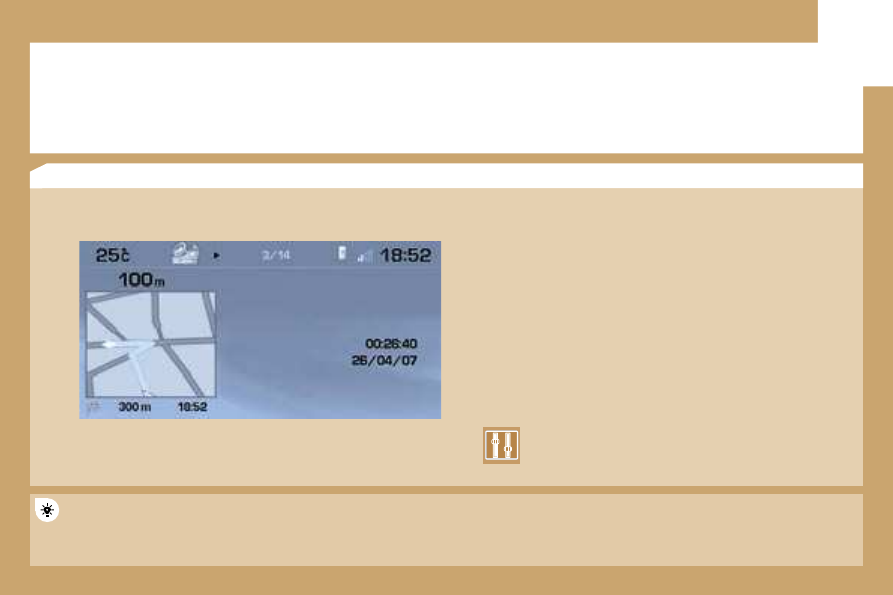

This displays the following information, via the RT4 GPS audio/telephone

control pad:

-  the time,

-  the date,

-  the exterior temperature (if there is a risk of ice, you are warned by a

message),

-  the audio source displays (radio, CD, jukebox, ...),

-  the telematic system displays (telephone, services, ...),

-  the accesses check (doors, boot, ...),

-  the warning messages (e.g.: "Fuel level low") and vehicle function

status messages (e.g.: "Auto lighting activated") displayed temporarily,

-  the trip computer display,

-  the GPS (Europe) satellite navigation system displays.

New

The RT4 system uses the complete and detailed NAVTEQ maps installed directly on the equipment’s hard disc. There is no longer any need to insert a map CD in the

CD player. The updates of the maps of France and of the other European countries, offered by our partner NAVTEQ, will be available from the PEUGEOT network.

Display configuration: refer to 10 - Display flow chart.

Telephone

Orange

Time:
Date:

02

84

DISPLAY AND GENERAL MENU

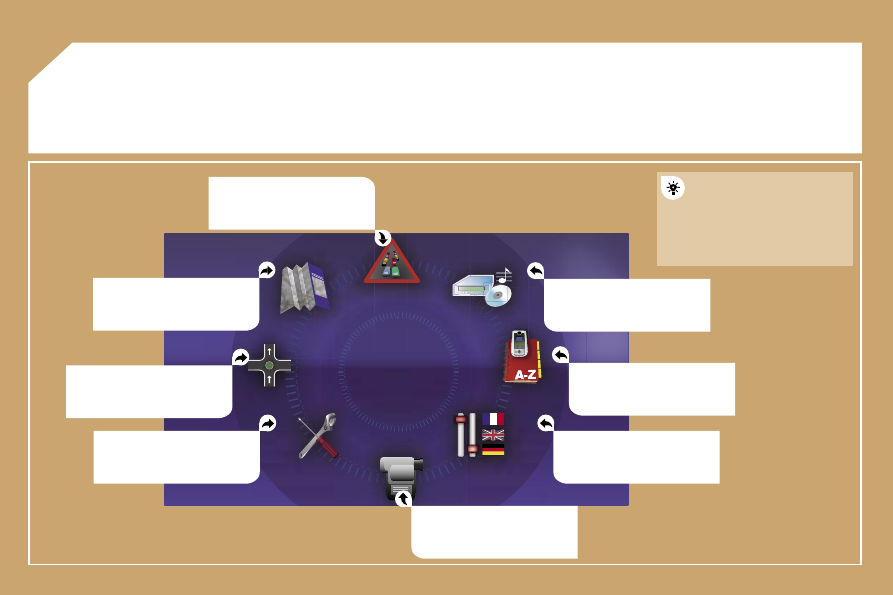

MAP: orientation, details,

display.

AUDIO FUNCTIONS: radio,

CD, Jukebox, options.

For maintenance of the

display, the use of a

soft, non-abrasive cloth

(spectacles cloth) is

recommended without any

additional product.

TELEMATIC: telephone,

directory, SMS.

CONFIGURATION: vehicle,

display, time, languages,

voice, auxiliary socket (AUX)

parameters.

VIDEO: activation, parameters.

VEHICLE DIAGNOSTICS:

warnings log.

NAVIGATION GUIDANCE:

GPS, stages, options.

TRAFFIC INFORMATION: TMC

information, messages.

MENU

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

1

2

3

5

7

4

6

8

ESC

MENU

LIST

ESC

MENU

LIST

03

85

GPS

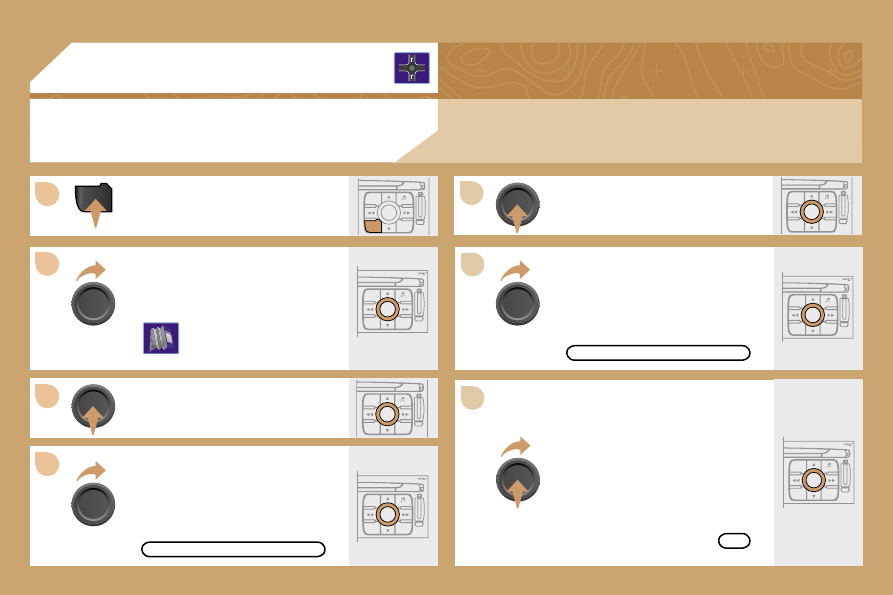

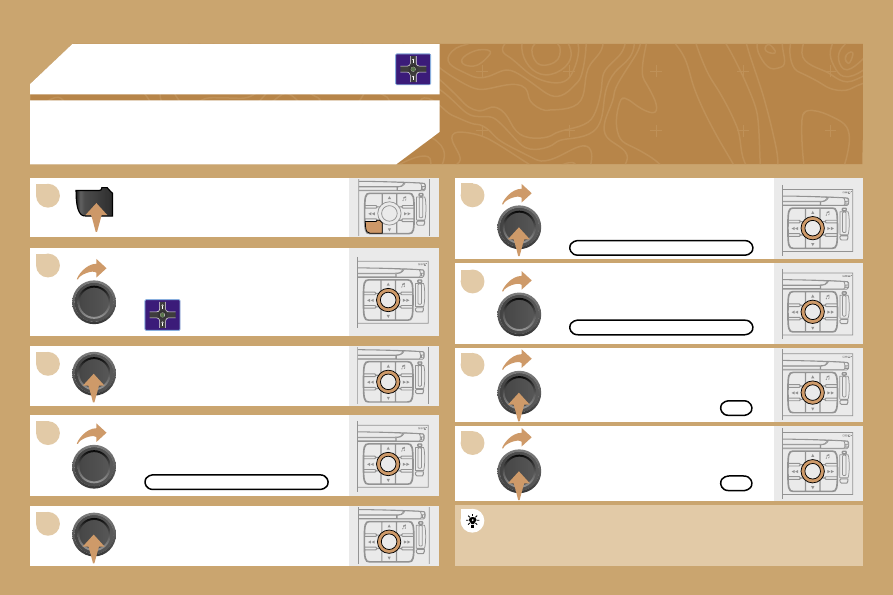

SELECTING A DESTINATION

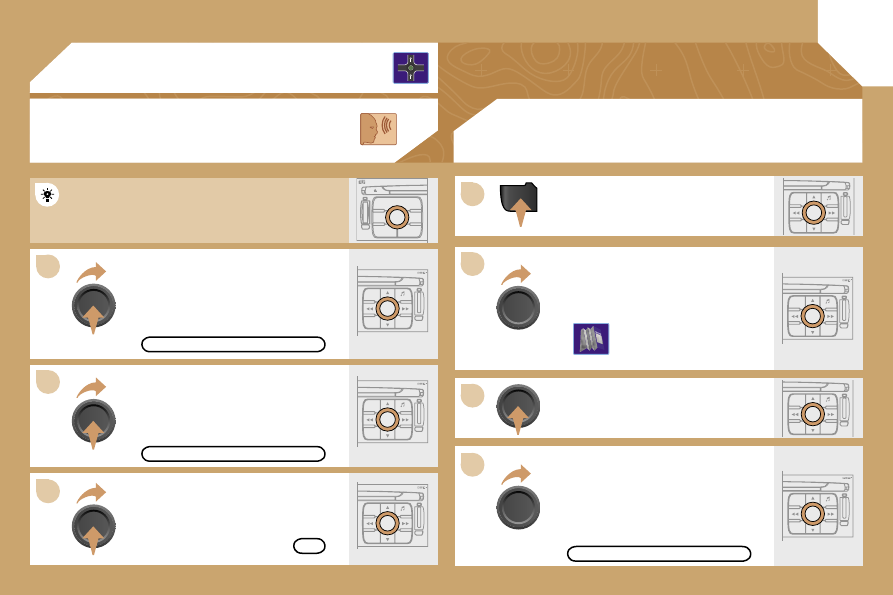

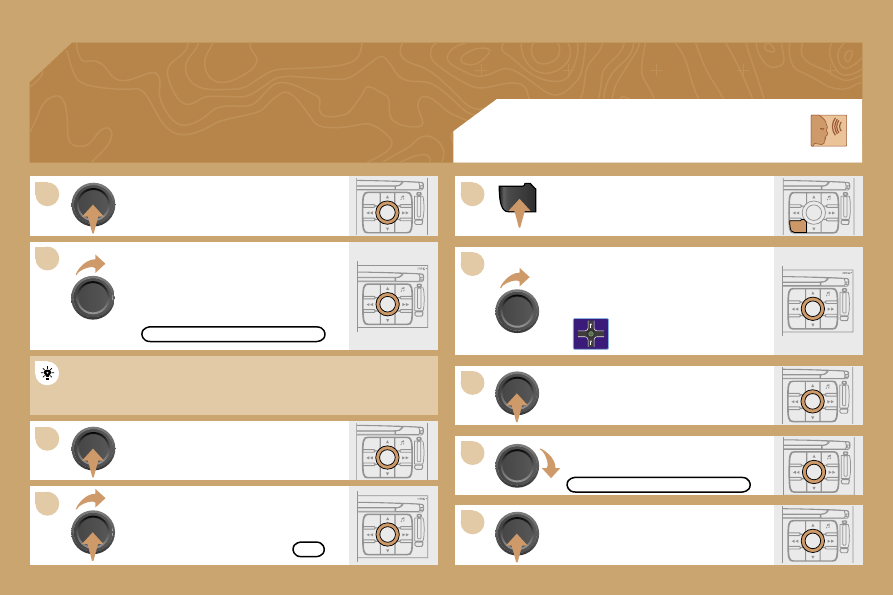

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confirm the selection.

Turn the dial and select the

DESTINATION CHOICE function.

Press the dial to confirm the selection.

Press the dial to confirm the selection.

Turn the dial and select the ENTER

AN ADDRESS function.

When the country has been selected,

turn the dial and select the TOWN

function.

TOWN

ENTER AN ADDRESS

DESTINATION CHOICE

Tip: for a detailed global view of the menus available, refer to the "Display flow

charts" section of this RT4 chapter.

ESC

MENU

LIST

2

abc

5

jkl

8

tuv

3

def

6

mno

9

wxyz

1

4

ghi

r

7

pq s

0

#

ESC

MENU

LIST

9

12

14

10

13

ESC

MENU

LIST

ESC

MENU

LIST

11

ESC

MENU

LIST

86

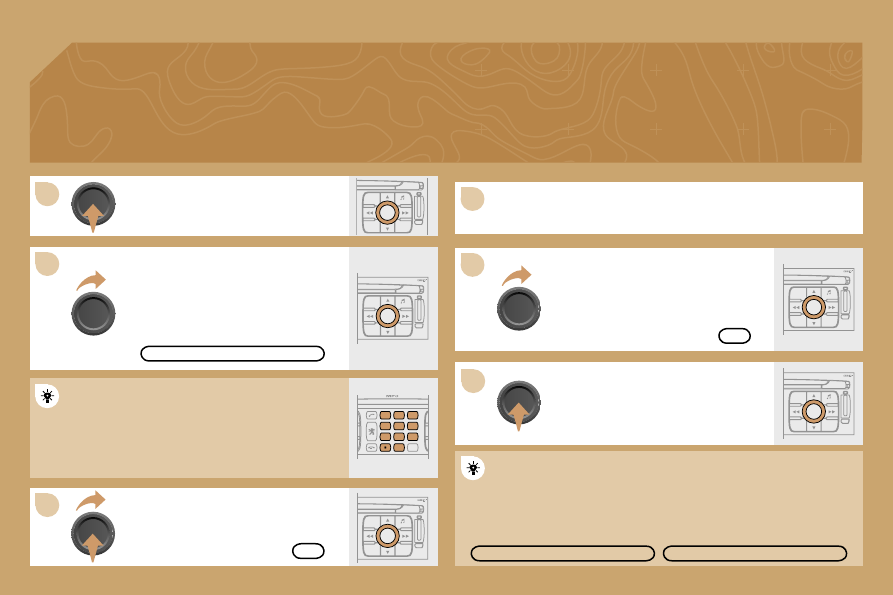

Press the dial to confirm the selection.

Turn the dial and select the letters of

the town one by one confirming each

time by pressing the dial.

Select OK and press the dial to

confirm.

 To speed up the process, the POST CODE can be

entered instead of the name of the town.

Use the alphanumeric keypad to enter the letters and

digits and "*" to correct.

Press the dial to confirm the selection.

Select OK on the ENTER AN

ADDRESS page.

Repeat steps 8 to 12 for the ROAD and N° functions.

OK

OK

Select the STORE function to record the address entered in a

directory record and press the dial to confirm the selection.

The points of interest (POI) indicate all of the service locations in the

vicinity (hotels, various businesses, airports...).

STORE

PARIS

POI

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

MENU

1

2

3

4

5

6

7

8

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

03

87

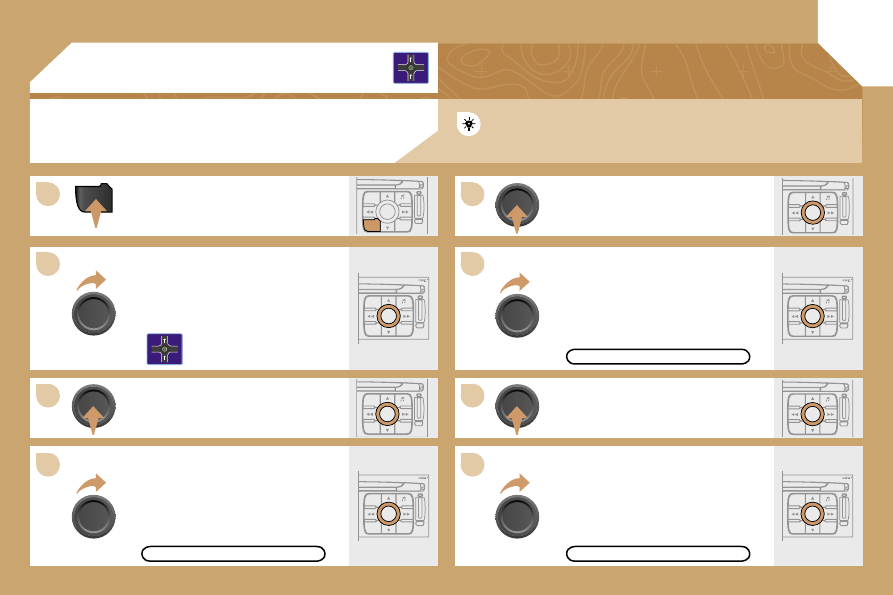

GUIDANCE OPTIONS

GPS

The route chosen by the RT4 GPS audio/telephone depends directly on the guidance

options.

Changing these options may completely change the route.

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confirm the selection.

Turn the dial and select the

GUIDANCE OPTIONS function.

Turn the dial and select the DEFINE

CALCULATION CRITERIA function.

Press the dial to confirm the selection.

Press the dial to confirm the selection.

GUIDANCE OPTIONS

DISTANCE/TIME

DEFINE CALCULATION CRITERIA

Turn the dial and select, for example,

the DISTANCE/TIME function.

ESC

MENU

LIST

ESC

MENU

LIST

MENU

9

10

11

12

1

2

3

4

5

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

88

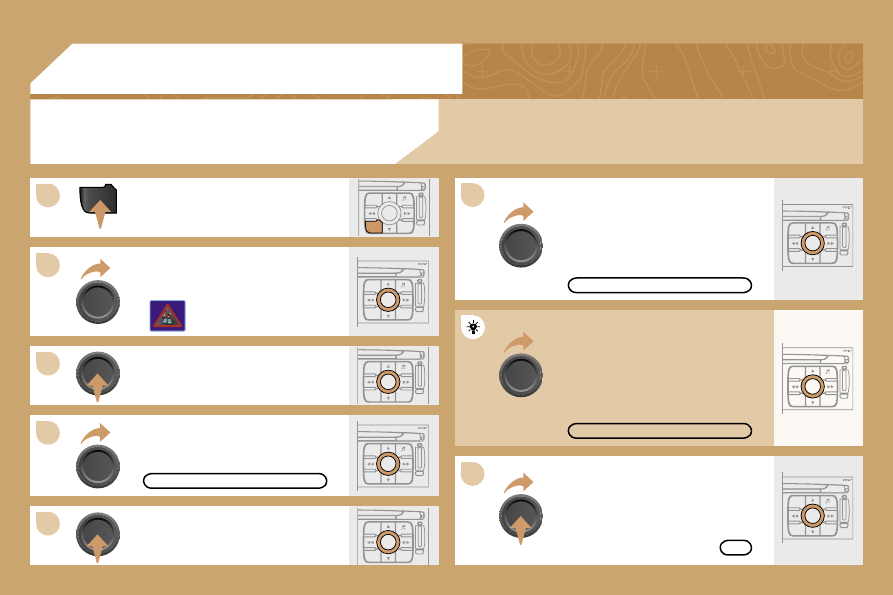

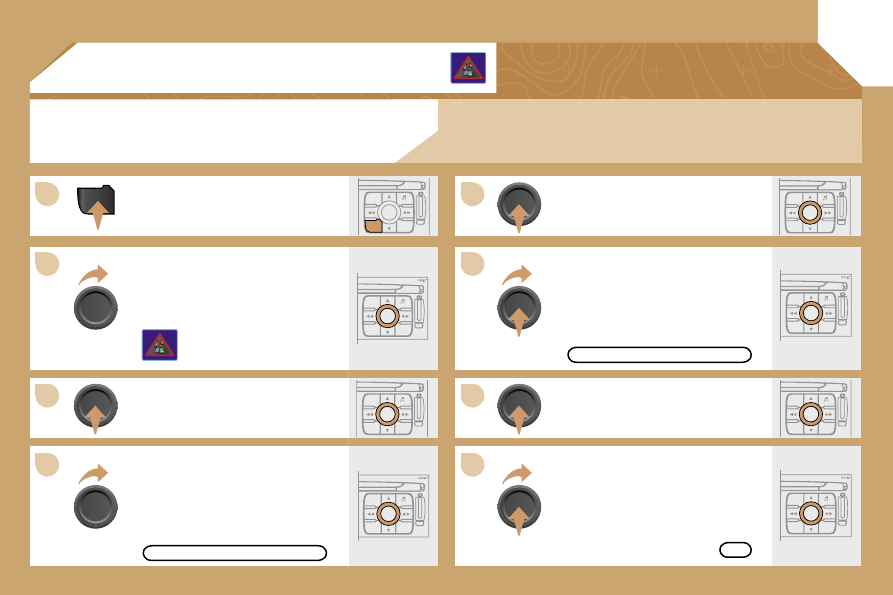

Turn the dial and select the TRAFFIC

INFO function if it is not ticked.

Press the dial to confirm the selection.

Select OK and press the dial to

confirm.

TRAFFIC INFO

Press the dial to confirm the selection.

Tick this box for optimum operation of the traffic information,

diversions will be suggested.

OK

GUIDANCE SPEECH SYNTHESIS

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confirm the selection.

GUIDANCE OPTIONS

Turn the dial and select the

GUIDANCE OPTIONS function.

Press the dial to confirm the selection.

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

MENU

6

8

1

2

3

4

ESC

MENU

LIST

ESC

MENU

LIST

S
O
S

SOURCE

MODE

BAND

T PT

A  Y

DARK

ESC

MENU

LIST

7

ESC

MENU

LIST

03

89

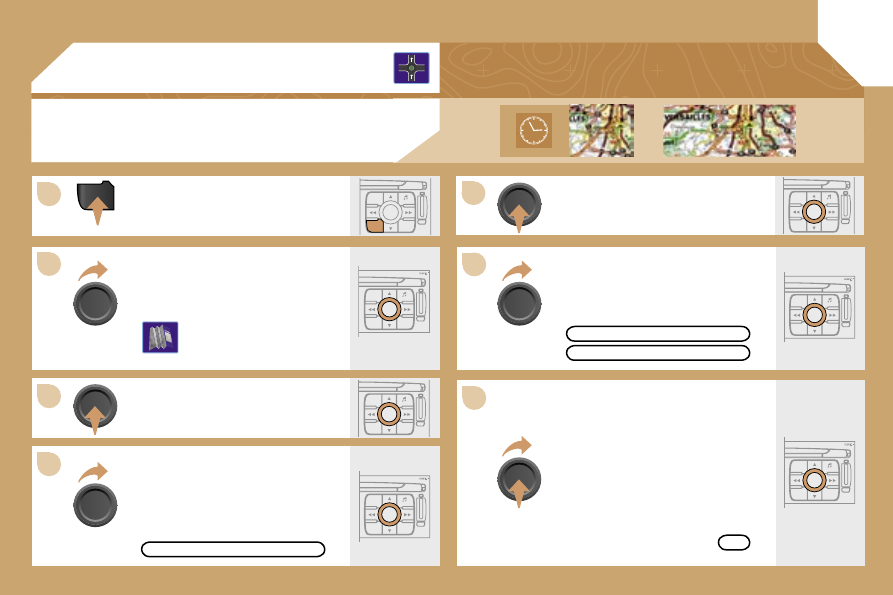

Press the MENU button.

Turn the dial and select the MAP

function.

Press the dial to confirm the selection.

Turn the dial and select the

MAP DETAILS function.

Permits selection of the services

which can be seen on the map

(hotels, restaurants...).

ACTIONS ON THE MAP

MAP DETAILS

During the announcements, the volume of each

speech synthesis function (guidance, traffic

information...) can be adjusted directly.

GUIDANCE SPEECH

SYNTHESIS

Select the ADJUST SPEECH

SYNTHESIS function and press the

dial to confirm.

GPS

ADJUST SPEECH SYNTHESIS

DEACTIVATE

Select the DEACTIVATE function and

press the dial to confirm.

OK

Select OK and press the dial to

confirm.

ESC

MENU

LIST

MENU

ESC

MENU

LIST

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

1

2

3

4

5

6

ESC

MENU

LIST

ESC

MENU

LIST

7

03

90

For improved visibility, beyond the scale of 10km, the map automatically switches to

North Orientation.

Turn the dial and select the MAP

function.

Press the MENU button.

Press the dial to confirm the selection.

Turn the dial and select the 3D VIEW

tab.

Select OK and press the dial to

confirm.

Turn the dial and select the

MAP ORIENTATION function.

Press the dial to confirm the selection.

3D VIEW

GPS

MAP ORIENTATION

OK

3D VIEW

ESC

MENU

LIST

MENU

ESC

MENU

LIST

ESC

LIST

MENU

ESC

MENU

LIST

ESC

MENU

LIST

1

2

3

4

5

6

7

ESC

MENU

LIST

ESC

MENU

LIST

03

91

Press the MENU button.

Press the dial to confirm the selection.

Turn the dial and select the MAP

function.

Turn the dial and select the

MAP IN WINDOW or

FULL SCREEN MAP tab.

Select OK and press the dial to

confirm.

Press the dial to confirm the selection.

Turn the dial and select the

DISPLAY MAP function.

DISPLAYING THE MAP IN A WINDOW OR

IN FULL SCREEN MODE

GPS

DISPLAY MAP

FULL SCREEN MAP

OK

MAP IN WINDOW

ESC

LIST

MENU

MENU

1

ESC

MENU

LIST

2

3

4

5

ESC

MENU

LIST

9

ESC

MENU

LIST

8

ESC

MENU

LIST

7

ESC

MENU

LIST

6

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

03

92

ADDING A STAGE

During guidance, press the MENU

button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confirm the selection.

Turn the dial and select the

JOURNEY LEGS AND ROUTE

function.

JOURNEY LEGS AND ROUTE

Select OK and press the dial to

confirm the order of the stages.

When the new address has been

entered, select OK and press the dial

to confirm.

Enter for example a new address.

Select the ADD A STAGE function

(9 stages maximum) and press the

dial to confirm.

Press the dial to confirm the selection.

The stage must be completed or deleted before the guidance can

continue to the next destination.

Otherwise, the RT4 GPS audio/telephone will always guide you

back to the previous stage.

ENTER AN ADDRESS

ADD A STAGE

GPS

OK

OK

ESC

LIST

MENU

MENU

1

ESC

MENU

LIST

2

3

ESC

MENU

LIST

4

5

ESC

MENU

LIST

6

7

ESC

MENU

LIST

8

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

04

93

ACTIVATING THE FILTER ON THE ROUTE

We recommend a filter on the route and a filter around the vehicle of:

- 5 km or 10 km for a region with heavy traffic,

- 20 km for a region with a normal level of traffic,

- 100 km for long journeys (motorway).

Press the MENU button.

Turn the dial and select the TRAFFIC

INFORMATION function.

Press the dial to confirm the selection.

FILTER TRAFFIC INFORMATION

Turn the dial and select the FILTER

TRAFFIC INFORMATION function.

Press the dial to confirm the

selection.

GEOGRAPHIC FILTER

Select the GEOGRAPHIC FILTER

function and press the dial to confirm.

Turn the dial and select the

ON THE ROUTE tab.

OK

TRAFFIC INFORMATION

Select OK and press the dial to

confirm.

ESC

LIST

MENU

MENU

1

ESC

MENU

LIST

2

3

4

6

5

ESC

MENU

LIST

ESC

MENU

LIST

7

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

ESC

MENU

LIST

04

94

Press the MENU button.

READ MESSAGES

NEW MESSAGE DISPLAY

OK

CONFIGURING THE TMC MESSAGE

ANNOUNCEMENTS

We recommend that you do not tick the NEW MESSAGE DISPLAY tab for regions

with heavy traffic.

Turn the dial and select the

TRAFFIC INFORMATION function.

Press the dial to confirm the selection.

Press the dial to confirm the selection.

Turn the dial and select the

CONFIGURE MESSAGE

ANNOUNCEMENT function.

Select the READ MESSAGES tab.

The Traffic Information Messages will

be read by the voice synthesiser.

Select the NEW MESSAGE DISPLAY

tab.

The traffic information messages

are extended to the filters selected

(geographic...) and can also be

displayed when guidance is not

active.

CONFIGURE MESSAGE ANNOUNCEMENT

TRAFFIC INFORMATION

Select OK and press the dial to

confirm.















Content   ..  4  5  6  7   ..
