Rear head restraints

The rear head restraints can be removed

and have two positions:


high, position for use,



low, storage position.

To raise or lower a head restraint, pull it

forwards sliding it at the same time.

To remove it, place it in the high position,

push the lug and pull it forwards and upwards.

To refit it, engage the head restraint rods

in the holes taking care to remain in the

centreline of the seat back.

Never drive with the head restraints

removed, they must be in place and

correctly adjusted.

Refitting the centre seat

Check that there is no obstacle

obstructing the slides or preventing

correct locking of the seat anchorages.

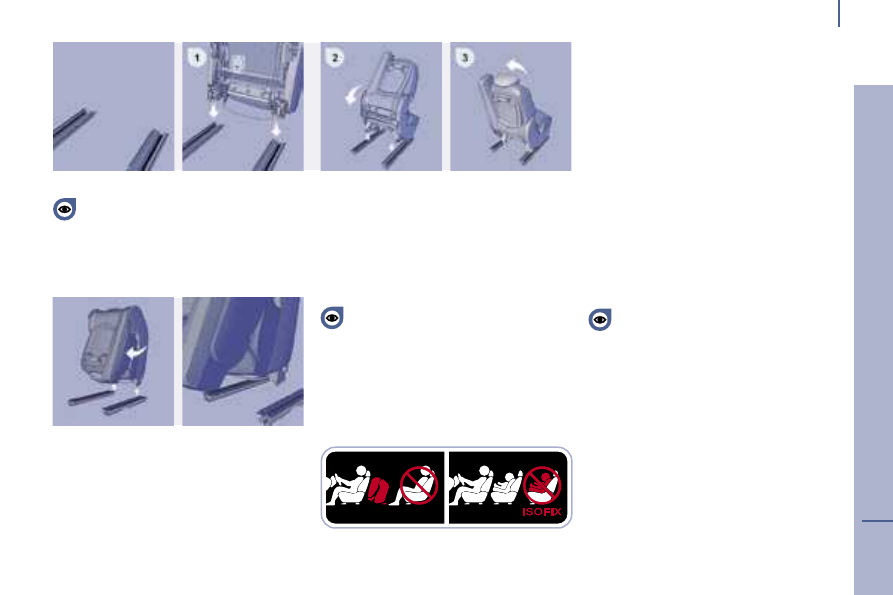

1 - Place the front anchorages at the front

stop in the slides. Support the strap

firmly for easier positioning of the seat.

2 - Tilt the folded seat towards the rear.

The rear anchorages lock.

3 - Raise the seat back and slide the seat.

Turning a rear seat round

The rear seats can be placed in a "face to

face" position.

Carry out the operations described for

removal then turn the seat round and

resume with the procedure for

refitting the

seat.

This turning operation must be carried

out when stationary.

Driving with a passenger seated facing the

rear is prohibited.

When the vehicle is being driven, placing

a row 2 seat in the closed position while a

passenger is sitting in row 3 is prohibited.

Seats

Rear head restraints

The rear head restraints can be removed

and have two positions:


high, position for use,



low, storage position.

To raise or lower a head restraint, pull it

forwards sliding it at the same time.

To remove it, place it in the high position,

push the lug and pull it forwards and upwards.

To refit it, engage the head restraint rods

in the holes taking care to remain in the

centreline of the seat back.

Never drive with the head restraints

removed, they must be in place and

correctly adjusted.

Refitting the centre seat

Check that there is no obstacle

obstructing the slides or preventing

correct locking of the seat anchorages.

1 - Place the front anchorages at the front

stop in the slides. Support the strap

firmly for easier positioning of the seat.

2 - Tilt the folded seat towards the rear.

The rear anchorages lock.

3 - Raise the seat back and slide the seat.

Turning a rear seat round

The rear seats can be placed in a "face to

face" position.

Carry out the operations described for

removal then turn the seat round and

resume with the procedure for

refitting the

seat.

This turning operation must be carried

out when stationary.

Driving with a passenger seated facing the

rear is prohibited.

When the vehicle is being driven, placing

a row 2 seat in the closed position while a

passenger is sitting in row 3 is prohibited.

Seats

Seats

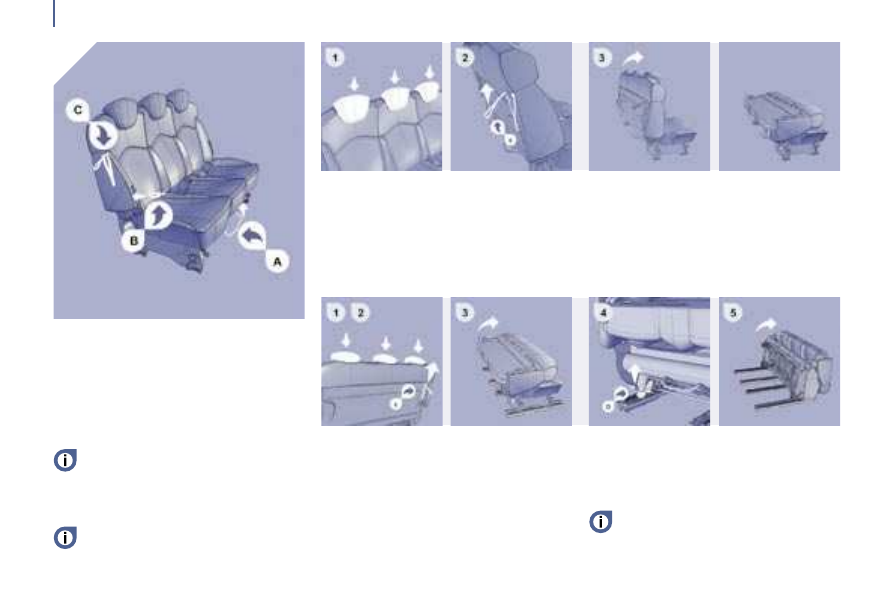

REAR BENCH SEAT

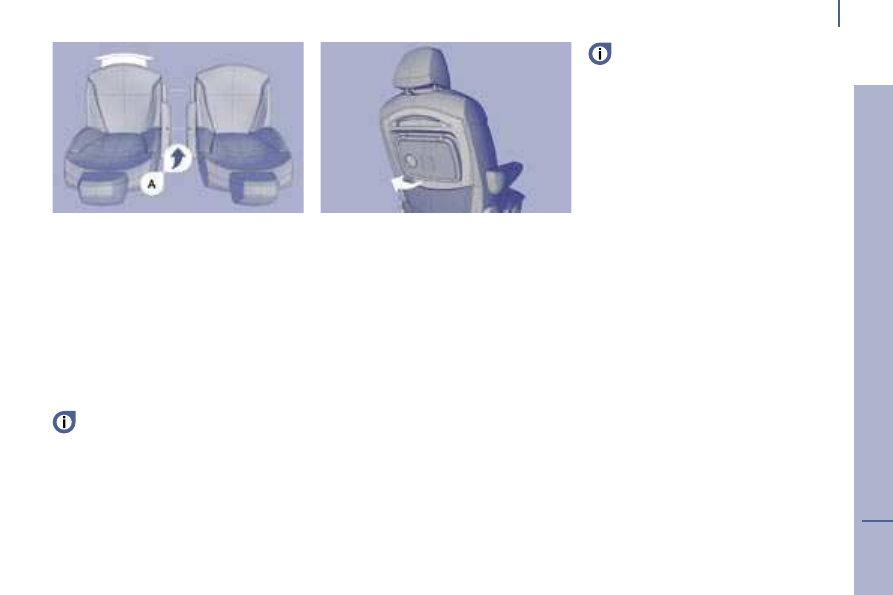

Forwards/backwards adjustment
From the seat cushion, lift bar

A and slide

the seat towards the front or the rear.

From the boot, you can pull on strap

and slide the seat forwards to make it

easier to load the vehicle.

The rear bench seat must only be

fitted in row 3.

Seat back folded position

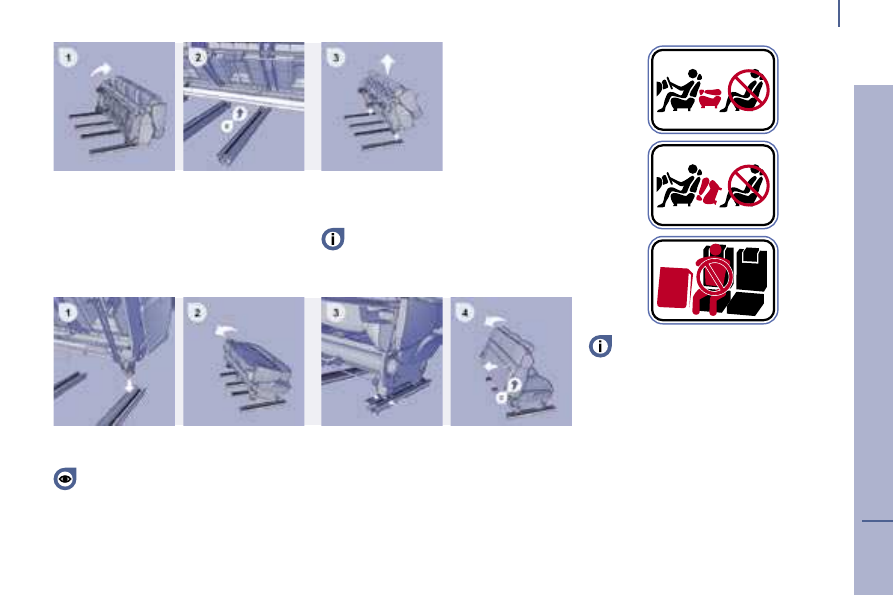

1 - Place the head restraints in the low

position.

2 - Pull the strap C upwards, from the

tailgate.

3 - Tilt the seat back on the seat cushion.

Vertical position of the bench seat
1 - Place the head restraints in the low

position.

2 - Pull the strap C upwards, from the

tailgate.

3 - Fold the seat back onto the seat

cushion.

4 - Pull the lever D to unlock the rear

anchorages.

5 - Place the seat in the vertical "folded"

position.

When driving, attach the retaining

straps to the handles.

Removing the bench seat
1 - Fold the seat to the vertical position.

2 - Grasp the two bars E underneath the

seat.

3 - The front anchorages

unlock.

Refitting the bench seat

For removal and refitting, pass the rear

seat, in the "folded" position, through

the sliding side doors.

Check that there is nothing blocking

the runners which could prevent correct

locking of the bench seat anchorages.

1 - Position the front anchorages at the

front stop of the runners.

2 - Tilt the folded seat rearwards.

3 - The rear anchorages then lock.

4 - Unlock the seat back and lift it using the

strap

Good practice

When the vehicle is being driven, it is

prohibited for a passenger to sit:

- in the 3rd row if the seat back in front

(2nd row) is in the table position.

- in the 3rd row if the seat/bench in front

(2nd row) is in the vertical folded position.

- in the centre seat if the right-hand side

seat is in the vertical folded position.

Seats

Seats

The centre seat may be installed in the

central position in row 2 and in the left

side position in row 3.

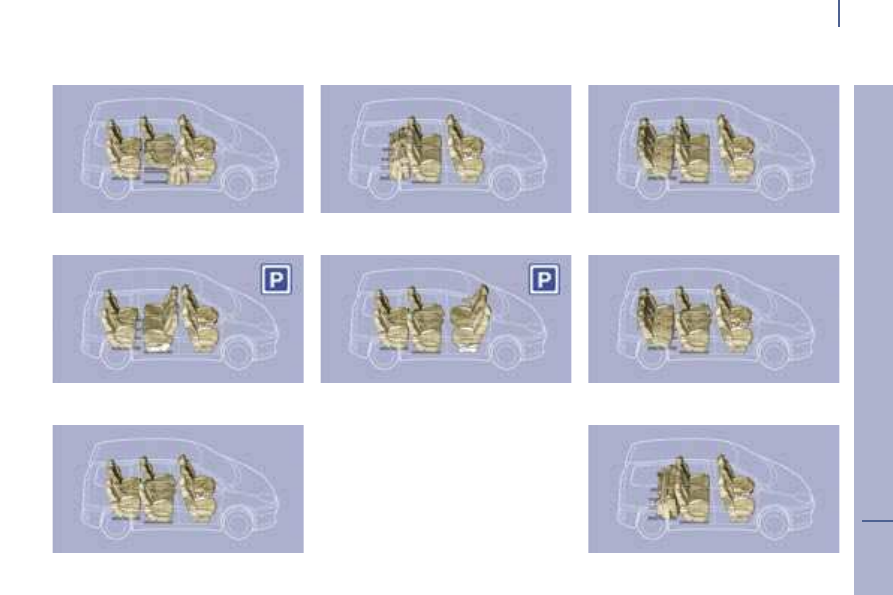

MODULARITY AND POSSIBLE SEAT CONFIGURATIONS

Examples of various arrangements

combining pleasure and practicality:

The various operations modifying the

existing configuration must be carried

out with the engine switched off (See section

on "Seats").

It is prohibited to be in a rearwards facing

position when the vehicle is being driven.

The rotating of the seats depends on the

vehicle equipment and the country.

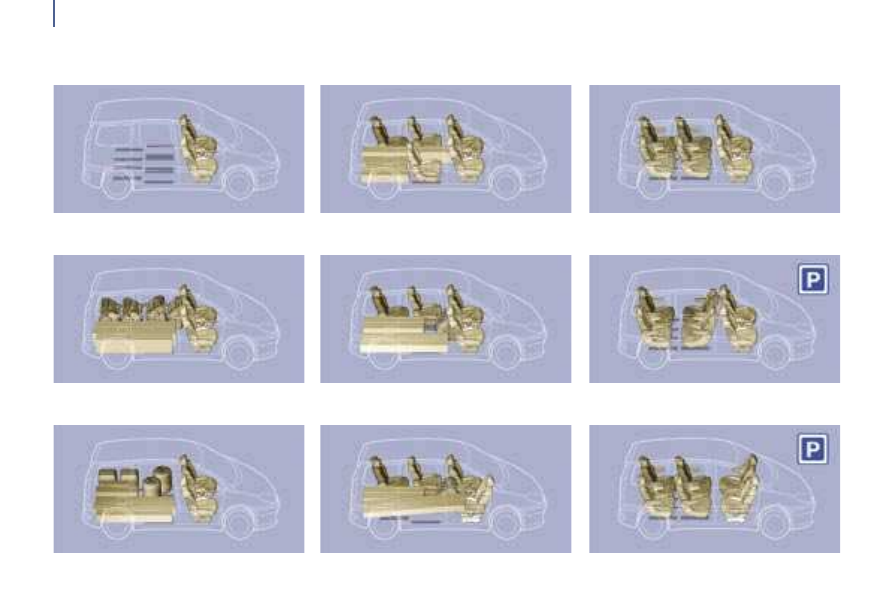

5 seats with picnic position when parked

5 seat arrangements

7 seats with access to row 3

8 seats with bench seat

Seats

Seats

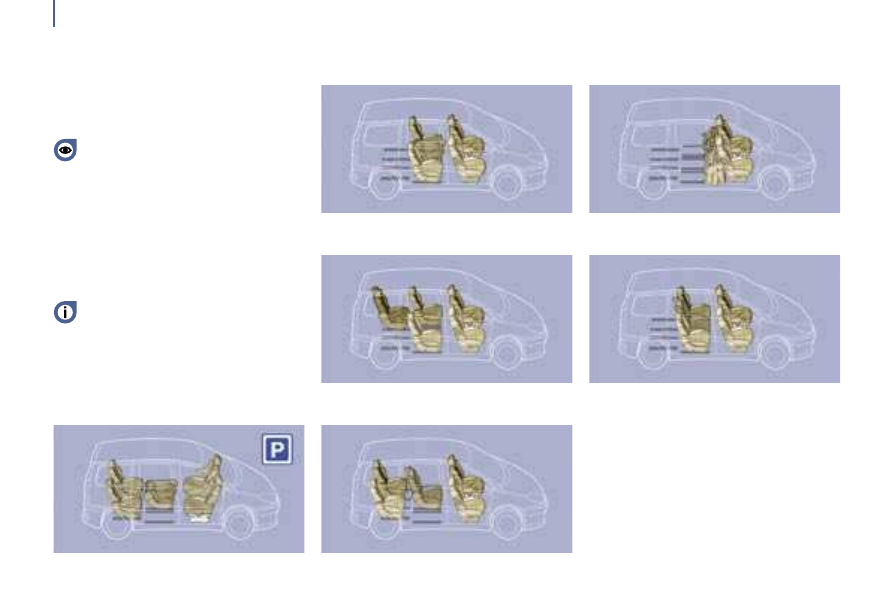

"Cargo"/transportation of long objects configuration

6 seats "Pullman"

Practical information

FRONT SEAT LAYOUT

Storage drawers
There is a storage drawer under each front

seat.

- To open it, lift and pull.

- To take it out, open it to its full extent, lift

the two tabs on either side of the drawer,

then remove it completely.

Each front seat also has a storage

pocket on the seat back.

12 V socket
You have a 12 V accessory socket at the

foot of the driver"s seat, which is accessible

to passengers of row 2.

Front and rear armrests
To place the armrest in its rest position:
- Lift the armrest until it is aligned with the

seat back.

To place the armrest in the position in

which it is used:

- Push it towards the rear,

- Fold it down completely,

- Raise it slowly to the required position,

- If you lift it past the required position,

restart the above operations.

Elastic retaining straps
There is an elastic retaining strap on each

front seat, on the centre side.

- In the side position (elastic strap on its

own seat), this can be used as a magazine

holder.

- In the transverse position (elastic straps

hooked between the two seats), they can

hold a bag.

"Aircraft" type table
You have an "aircraft" type table with a rim,

equipped with a cup holder, fitted to the rear

of each front seat.

Do not forget to fold this before pivoting the

seat.

PRACTICAL INFORMATION

Under the front seat on the passenger

side, if the vehicle has an amplifier, the

storage drawer will be locked.

Practical information

Practical information

The light comes on when the cover is

opened.

It contains three sockets for the connection

of video equipment and access to the fascia

fuse box.

It includes special compartments for

storing maps, a packet of cigarettes, an A4

document etc.

6. Lighter or 12 V socket for accessories

This permits the connection of a mobile

telephone charger, a baby's bottle warmer,

etc.

7. Cooled compartment

It can hold up to three cans.

Slide the closer, located on the right, to

open (upwards) or close (downwards) the

air inlet.

8. Can holder and ashtray

This retractable and lit support contains up

to two can holders, a removable ashtray and

a location for the lighter when it is used as a

12 V socket.

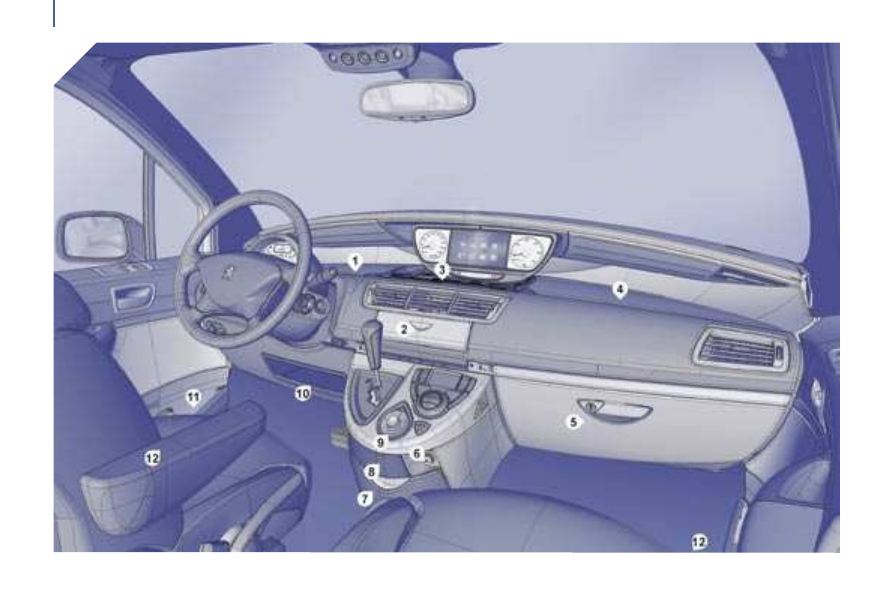

1. Driver's upper glove box

To open, press the button.

To close, press the cover.

It includes special compartments for storing

a pen, a mobile telephone, coins or tokens

and credit cards.

2. Audio equipment concealing flap

Lower the flap fully to lock it in place.

Press the flap to raise it.

3. Central storage compartment

4. Passenger's upper glove box

To open, press the button.

To close, press the cover.

It includes special compartments for storing

a pair of spectacles, keys, five CDs and four

audio cassettes or nine audio CDs.

5. Passenger's lower glove box

This is fitted with a lock.

To open the glove box, lift the handle.

FRONT INTERIOR LAYOUT

9. Storage compartment or additional

telematics control

The storage compartment must not be used

as an ashtray.

If fitted on your vehicle, the additional

telematics control is located on the centre

console.

10. Storage compartment

11. Door tray with space for a bottle of

water

12. Mat fitting/removal

When removing the front mat, push the

seats as far back as possible and remove

the fixings.

When refitting, position the mat correctly on

the pins and clip the fixings.

Check that the mat is secured correctly.

To prevent the mat from becoming caught

under the pedals:

- only use mats suited to the fixings already

present in the vehicle.

It is imperative that these fixings are used.

- never fit one mat on top of another.

Practical information

Practical information

REAR INTERIOR LAYOUT

6. Can holder

7. Storage compartment

8. Bottle holder or portable bin with

ashtray

9. Luggage retaining net "hammock"

position fastenings

Fold the net in two.

Secure the two centre hooks in the stowing

rings on the floor.

Secure the net's remaining four hooks on

the tailgate pillars.

10. 12 V socket for accessories

This permits the connection of a mobile

telephone charger, a baby's bottle warmer, ...

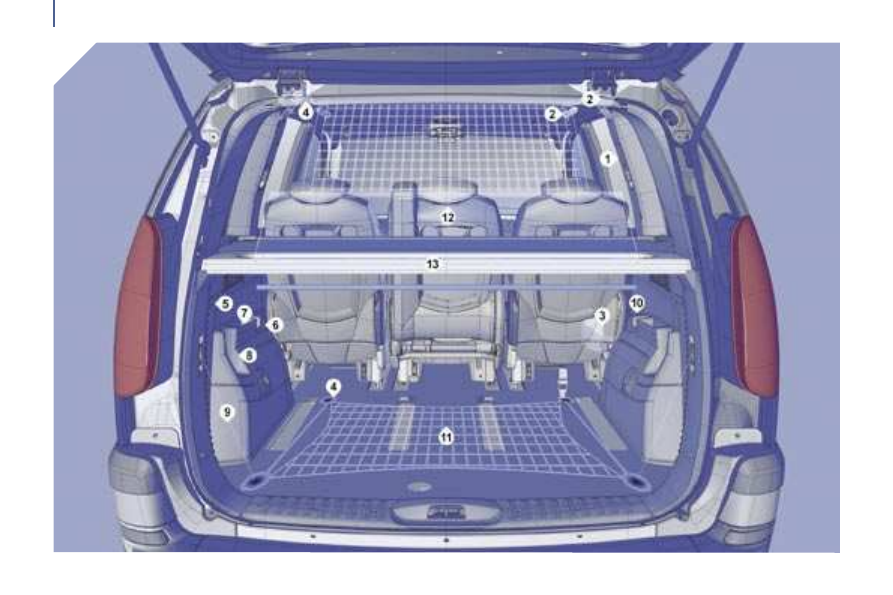

11. Luggage retaining net "octopus"

position

Secure the net's four hooks in their stowing

rings on the floor.

1. Access handle

2. Grab handle and coat hook

3. Door tray with storage for a can and

a bottle of water or for the portable

bin with ashtray

4. High load retaining net fastenings

Open the covers of the upper fastenings in

row 3.

Install the ends of the metal bar in these

fastenings.

Secure the two tray strap hooks in the

stowing rings on the floor.

Pull the two straps taut.

Secure the two hooks on the elastic parts of

the tray in these rings.

The rings are located directly below the

corresponding upper fastenings.

5. Storage compartment

12. Load space cover (5 seat version)

To install it:

- position one end of the roller in row 2,

- compress the opposite end of the roller and

position it,

- release it to allow it to engage,

- unroll the cover as far as the pillars,

- secure the two hooks on the pillars,

To remove it:

- pull the cover towards you to detach it from

its fastenings,

- return the cover into its roller,

- compress it and remove it from its support

in row 2.

13. Rear shelf with umbrella holder

(6-7-8 seat version)

To remove the shelf:

- pull it rearward

- lift it slightly, then remove it

To install it:

- tilt it forwards slightly,

- push to engage it in its fastenings.

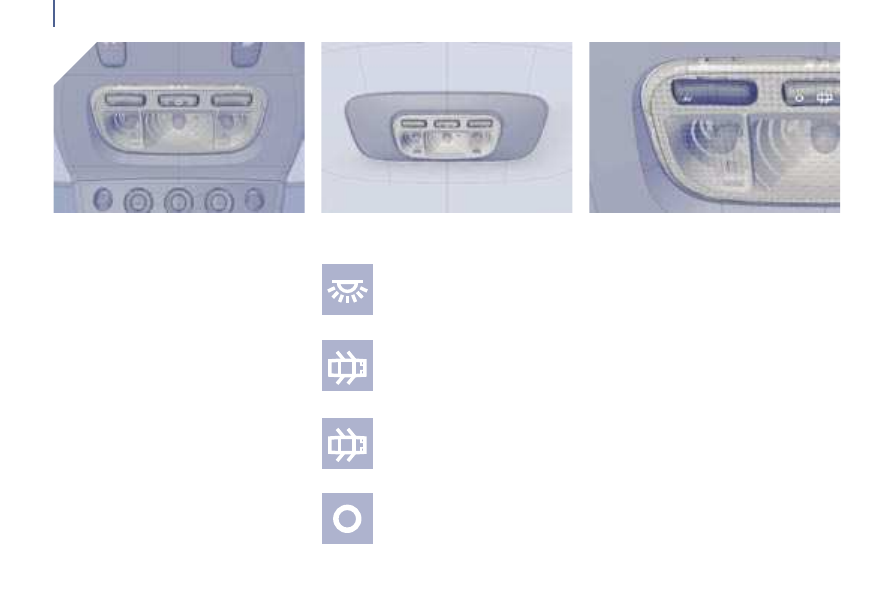

Front courtesy light

Automatic switching on/off
The front courtesy light comes on when the

key is removed from the ignition, when the

vehicle is unlocked, when one of the front

doors is opened or for location of the vehicle

using the remote control.

It switches off gradually after the ignition is

switched on and when the vehicle is locked.

Permanently on, ignition on.

Front: comes on when one of the

front or rear doors is opened.

Permanently off.

Individual reading light

Rear courtesy light rows 2 and 3
These are switched on and off by means of

a manual switch.

COURTESY LIGHTS

Rows 2 and 3: comes on when

one of the rear doors is opened.

Rear courtesy light

Practical information

Practical information

AREAS FOR TOLL

CARDS/CAR PARK TICKETS

The athermic windscreen has two

non-reflective zones located either side of

the base of the interior mirror.

They are intended for affixing toll cards

and/or car park tickets.

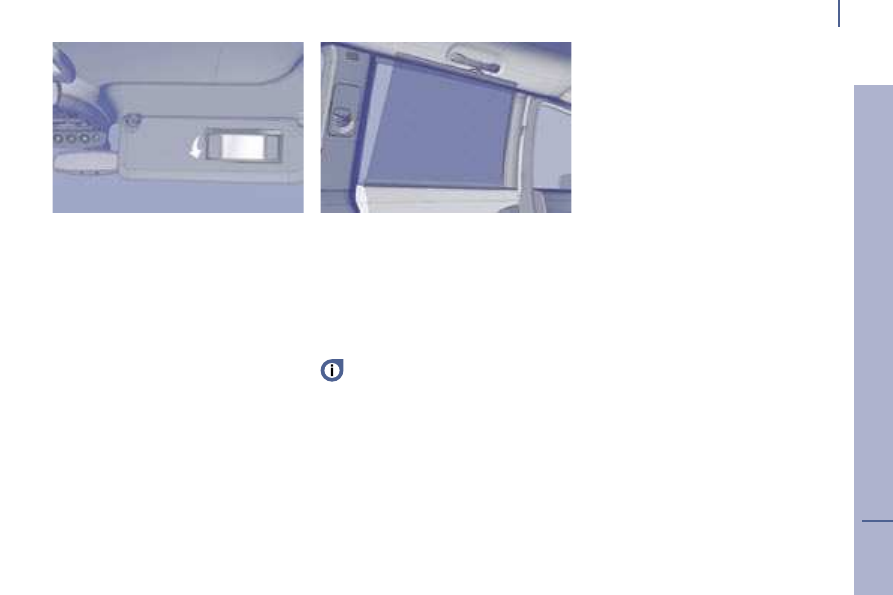

SUN VISOR WITH ILLUMINATED

COURTESY MIRROR

With the ignition on, the mirror is illuminated

automatically when the concealing flap is

raised.

SIDE BLINDS

Side blinds are available in rows 2 and/or 3.

Pull the side blind by the tab(s).

Position the blind's attachment(s) on the

corresponding hook(s).

Ensure that the tabs are hooked

correctly to prevent any damage to the

blind when the corresponding sliding side

door is opened.

Mirrors and windows

Manual interior mirror

The interior mirror has two positions:



day (normal),



night (anti-dazzle).

To change from one to the other, push or

pull the lever on the lower edge of the mirror.

Automatic day/night interior mirror

This automatically and gradually changes

between the day and night positions. To

prevent dazzling, the glass of the mirror

darkens automatically depending on the

intensity of the light from behind. It clears

as the light (headlamps of following vehicles,

sunlight) decreases, ensuring maximum

visibility.

Operation

Switch on the ignition and press switch



Indicator light

2 lit (switch pressed):

automatic operation.

MIRRORS

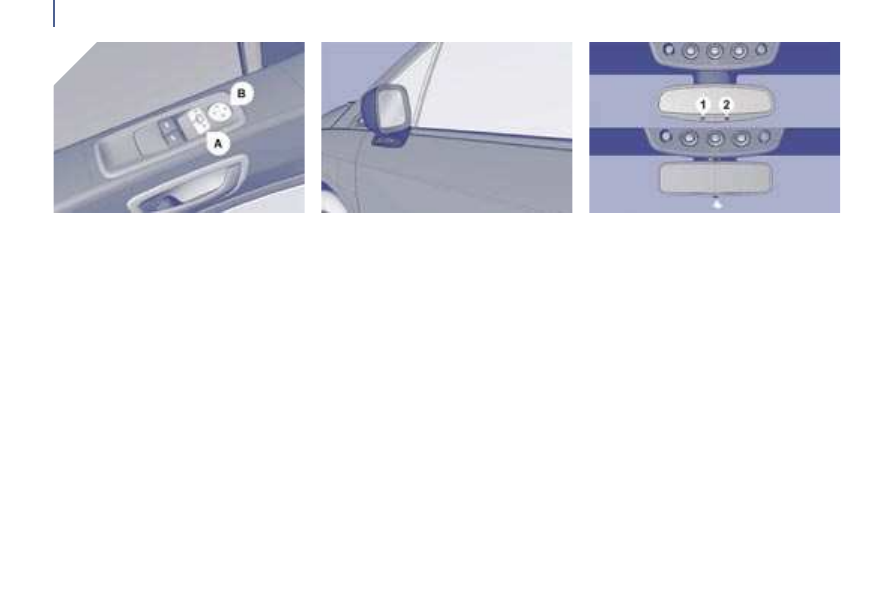

Electric exterior mirrors



Move switch

A to the right or to the left to

select the corresponding mirror.



Move knob

B in all four directions to

adjust.



Return switch

A to the centre

position.

When parked, the mirrors can be folded

back manually, or electrically by pulling

switch

A rearwards.

Electric unfolding of the mirrors is possible

with the key on unlocking the vehicle.



Indicator light

2 off: automatic system off.

The mirror remains at its most clear.

MIRRORS AND WINDOWS

Special feature

To ensure maximum visibility during

manoeuvres, the mirror clears automatically

when reverse gear is engaged.

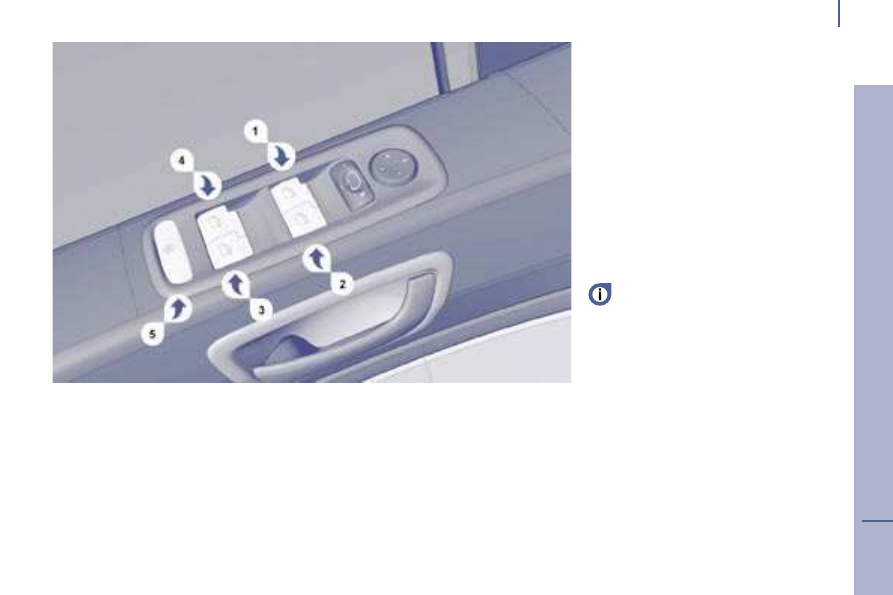

ELECTRIC WINDOWS

1 - Driver's electric window switch.

2 - Passenger electric window switch.

3 - Rear right electric window switch.

4 - Rear left electric window switch.

5 - Rear electric windows disarming

switch (child safety).



red strip visible: the rear switches are

activated.



red strip covered: the rear switches are

disarmed.

You have two options:

Manual operation:


press or pull switch 1, without going

beyond the point of resistance. The

window stops when the switch is

released.

Automatic operation:


press or pull switch

1, beyond the point of

resistance: the window opens or closes

completely when the switch is released.

Pressing the switch again stops the

movement of the window.

The electrical functions of the electric

windows are disarmed one minute after

switching off the ignition.

Disarming the rear controls
For the safety of your children, press switch

5 to disarm all of the electrical controls in

the rear:


electric windows,



sliding side doors,



sunroofs.

Mirrors and windows

Content .. 3 4 5 6 ..
