PEUGEOT CONNECT SOUND

Your Peugeot Connect Sound is coded in such a way

that it will only operate in your vehicle. If it is to be

installed in another vehicle, contact your PEUGEOT

dealer for conﬁ guration of the system.

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.
When the engine is switched off and to prevent

discharging of the battery, the audio equipment may

switch off after a few minutes.

AUDIO SYSTEM/BLUETOOTH

  01  First steps
  02  Steering mounted controls
  03  Main menu
  04  Audio
  05  Peugeot Connect USB
  06  Bluetooth
  07  Configuration
  08  Trip computer
  09  Screen menu map
  Frequently asked questions

p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

212
213
214
215
218
221
223
224
225
228

CONTENTS

212

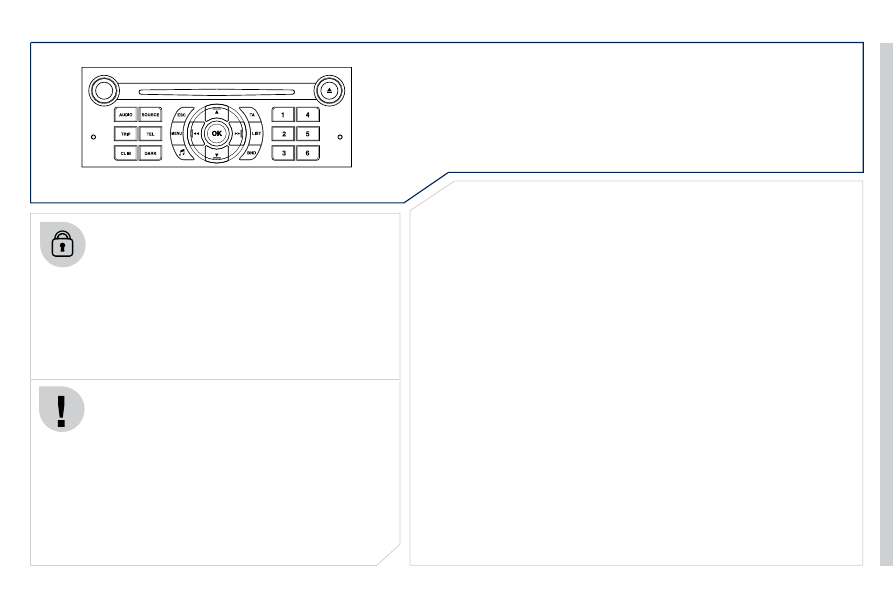

FIRST STEPS

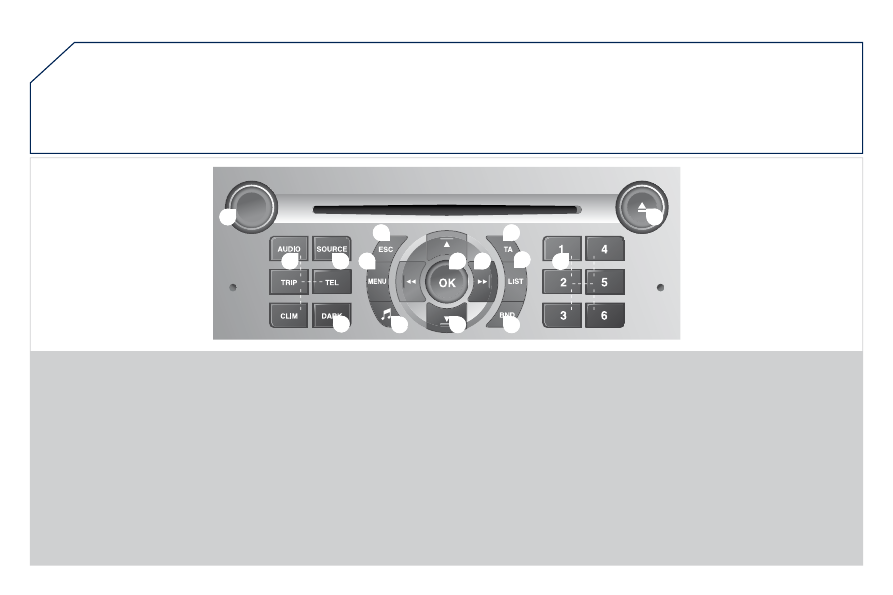

1. On/Off and volume adjustment.

2. Selection of the display on the screen from

the modes: AUDIO, trip computer (TRIP),

air conditioning (CLIM) and Bluetooth

hands-free (TEL).

The TEL button is not active if the Bluetooth

option is not ﬁ tted.

3. Selection of source: radio, CD, USB.

4. Display the main menu.

5. Cancel the current operation/return to the

previous screen.

6. Conﬁ rmation.

7. Automatic search for a lower/higher

frequency.

Select previous/next CD, MP3 or USB track.

8. TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY

(radio Programme TYpes) mode.

9. Display the list of local stations, the tracks on

the CD or the MP3 directories.

10. CD eject.

11. Buttons 1 to 6:

Select a stored radio station.

Long press: store a station.

12. Select the FM1, FM2, FMast and AM

wavebands.

13. Select a lower/higher radio frequency

Select the previous/next MP3 folder

Select the previous/next USB folder/genre/

artist/playlist.

14. Set audio options: front/rear balance, left/

right balance, loudness, sound ambience.

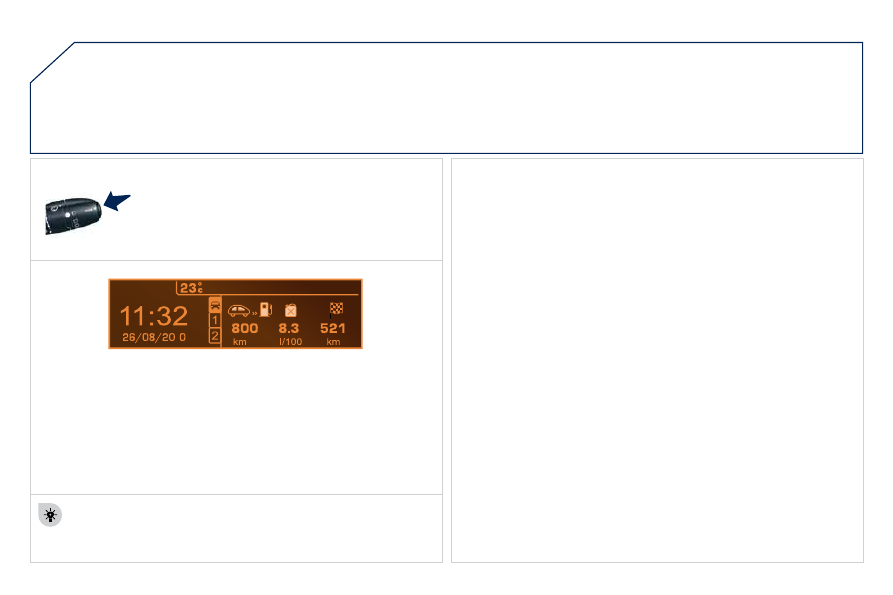

15. The DARK button changes the screen

display for greater driving comfort at night.

1st press: lighting of the upper band only.

2nd press: black screen.

3rd press: return to the standard display.

213

02 STEERING MOUNTED CONTROLS

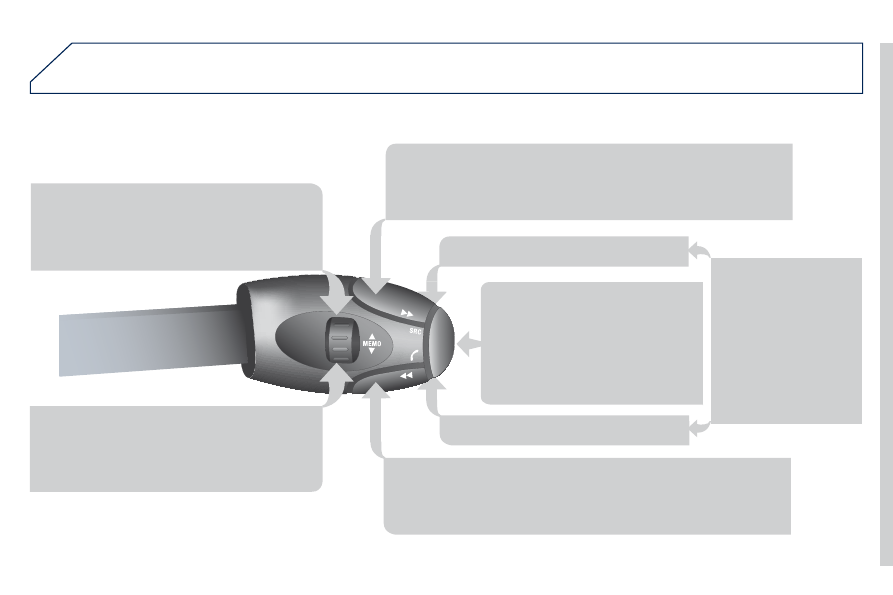

RADIO: selection of the next stored station.

USB: selection of the next genre/artist/folder from

the classiﬁ cation list.

Selection of the next item on a menu.

RADIO: selection of the previous stored station.

USB: selection of the previous genre/artist/folder

from the classiﬁ cation list.

Selection of the previous item on a menu.

RADIO: automatic search for a higher frequency.

CD/MP3/USB: selection of the next track.

CD/USB: continuous press: fast forwards play.

Selection of the previous item.

RADIO: automatic search for a lower frequency.

CD/MP3/USB: selection of the previous track.

CD/USB: continuous press: fast reverse.

Selection of the next item.

- Change of sound source.

- Conﬁ rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the telephone menu.

Volume increase.

Volume decrease.

Mute: press the volume

increase and decrease

buttons simultaneously.

The sound is restored by

pressing one of the two

volume buttons.

214

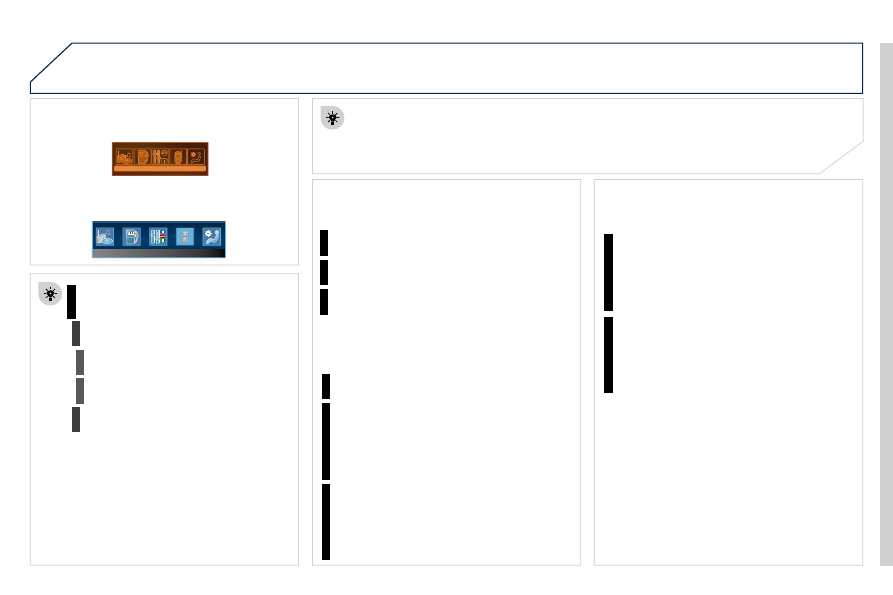

03 MAIN MENU

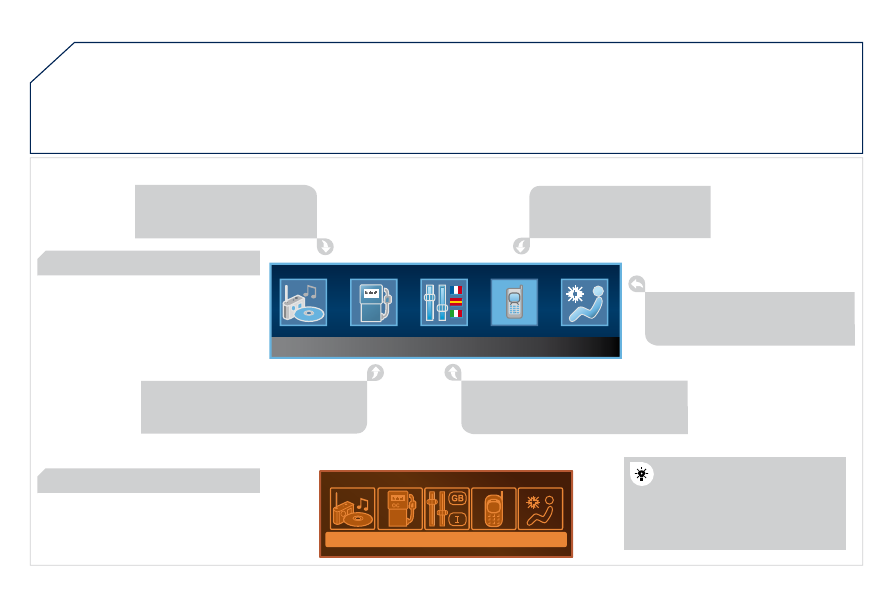

AUDIO FUNCTIONS

: radio,

CD, USB, options.

PERSONALISATION-CONFIGURATION

vehicle parameters, display, languages.

TELEPHONE

: Bluetooth

hands-free, pairing,

management of a call.

TRIP COMPUTER

: entering of

distances, alerts, status of functions.

> MONOCHROME SCREEN C

> COLOUR SCREEN C

For a detailed global view of the

menus available, refer to the

"Screen menu map" section.

AIR CONDITIONING

: on/off and

dual-zone control (according to

equipment).

215

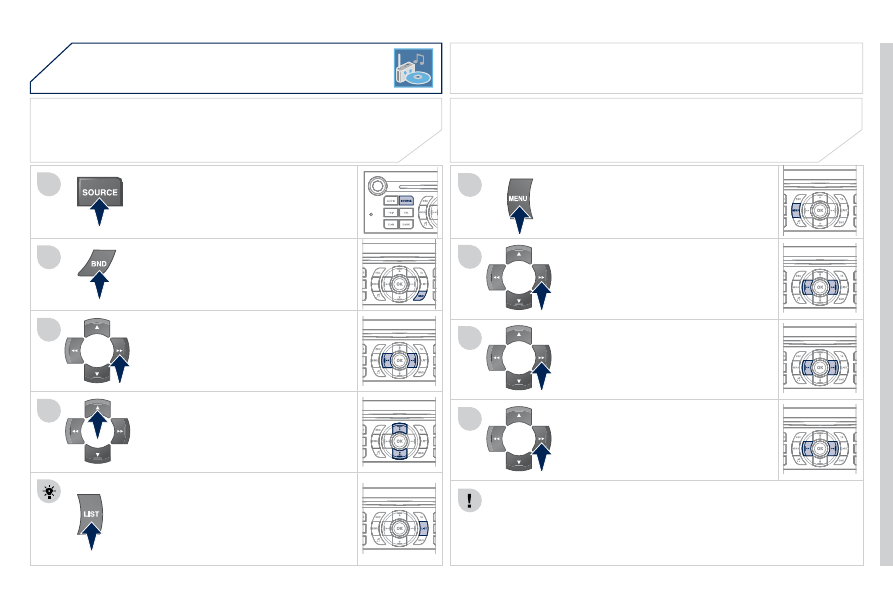

AUDIO

Press the SOURCE button several

times in succession and select the

radio.

Press the BAND AST button to select

a waveband: FM1, FM2, FMast, AM.

Brieﬂ y press one of the buttons to

carry out an automatic search of the

radio stations.

Press one of the buttons to carry

out a manual search of the radio

stations.

Press the LIST REFRESH button to

display the list of stations received

locally (30 stations maximum).

To update this list, press for more

than two seconds.

The external environment (hills, buildings, tunnels, basement car parks, …) may

block reception, including in RDS mode. This is a normal effect of the way in which

radio waves are transmitted and does not indicate any failure of the audio system.

RDS

RADIO

SELECTING A STATION

Press the MENU button.

Select AUDIO FUNCTIONS then

press OK.

Select the FM WAVEBAND

PREFERENCES function then press

OK.

Select ACTIVATE RDS then press

OK. RDS appears on the screen.

The RDS, if displayed, enables you to continue listening to the same

station by automatic retuning to alternative fequencies. However, in

certain conditions, coverage of an RDS station may not be assured

throughout the country as radio stations do not cover 100 % of the

territory. This explains the loss of reception of the station during a journey.

216

AUDIO

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CDs copied using a

personal recorder, may cause faults which are no reﬂ ection on the

quality of the original player.

Without pressing the EJECT button, insert a CD in the player, play

begins automatically.

PLAYING A CD

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and

select CD.

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to display the list of tracks

on the CD.

Press and hold one of the buttons for

fast forward or backward.

RECEIVING TA MESSAGES

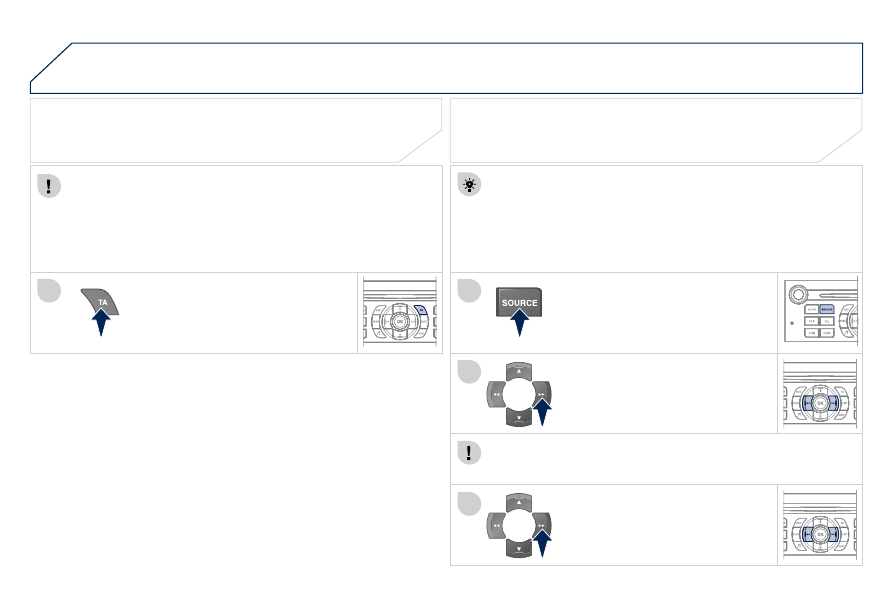

Press the TA button to activate or

deactivate trafﬁ c messages.

The TA (Trafﬁ c Announcement) function gives priority to TA alert

messages. To operate, this function needs good reception of a

radio station transmitting this type of message. When a trafﬁ c

report is transmitted, the current audio source (Radio, CD, …) is

interrupted automatically to play the TA message. Normal playback

of the audio source resumes at the end of the transmission of the

message.

217

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music ﬁ les on a single disc.

In order to be able to play a recorded CDR or CDRW, when

recording, the ISO 9660 level 1.2 or Joliet ﬁ le format is

recommended.

If the disc is recorded in another format, it may not be played

correctly.

It is recommended that the same recording format is always used

for an individual disc, with as low a speed as possible

(4x maximum) for optimum sound quality.

In the particular case of a multi-session CD, the Joliet format is

recommended.

The audio system will only play ﬁ les with the extension ".mp3" with

a sampling rate of 22.05 KHz or 44.1 KHz. No other type of ﬁ le

(.wma, .mp4, .m3u…) can be played.

It is advisable to restrict ﬁ le names to 20 characters without using

special characters (e.g. " ? ; ù) to avoid any playing or displaying

problems.

MP3 CD

INFORMATION AND ADVICE

AUDIO

Empty CDs are not recognised and may damage the system.

Insert an MP3 compilation in the player.

The audio equipment searches for all of the music tracks, which

may take anything between a few seconds and several tens of

seconds, before play begins.

MP3 CD
PLAYING AN MP3 COMPILATION

On a single disc, the CD player can read up to 255 MP3 ﬁ les spread

over 8 folder levels. However, it is advisable to keep to a limit of two

levels to reduce the access time before the CD is played.

While the CD is being played, the folder structure is not followed.

All of the ﬁ les are displayed on a single level.

To play a disc which has already

been inserted, press the SOURCE

button several times in succession

and select CD.

Press one of the buttons to select a

track on the CD.

Press the LIST REFRESH button to display the list of directories of

the MP3 compilation.

Press and hold one of the buttons for

fast forward or backward play.

218

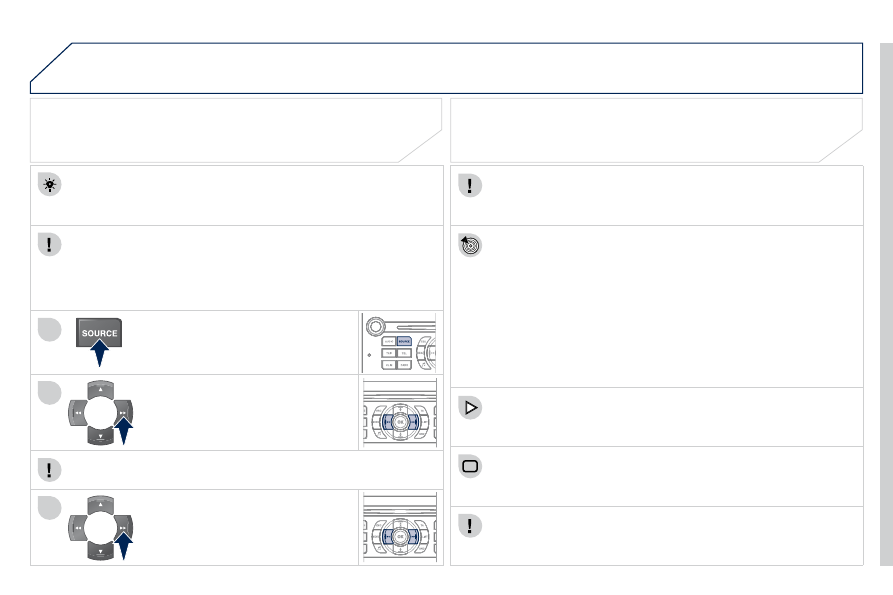

PEUGEOT CONNECT USB

The system puts together playlists (temporary memory) created

over a period which depends on the capacity of the USB device.

The other sources are available during this time.

The playlists are updated each time the ignition is switched off or

each time a USB memory stick is connected.

When connecting for the ﬁ rst time, the classiﬁ cation suggested

is by folder. When you reconnect, the classiﬁ cation selected

previously is retained.

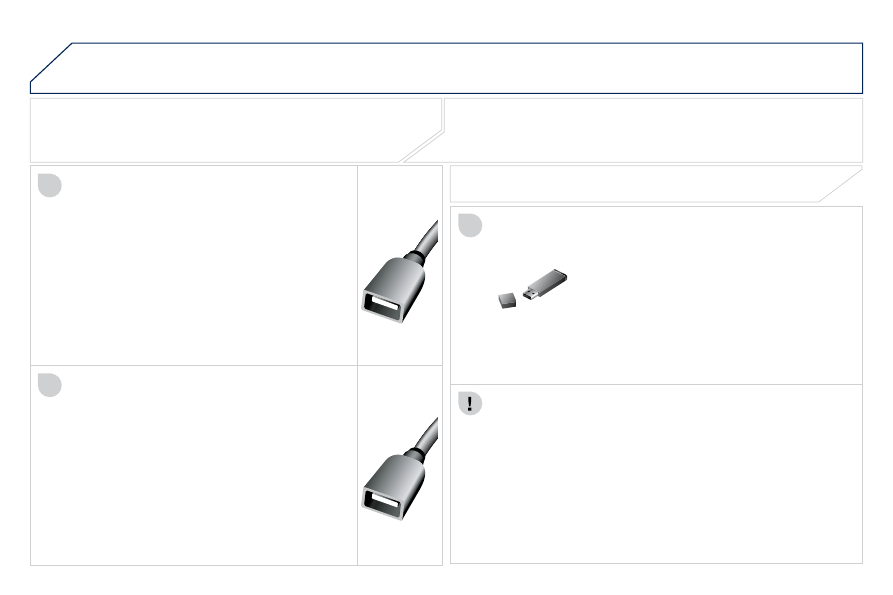

Connect the memory stick to the port, directly or

using a lead. If the audio equipment is switched

on, the USB source is detected as soon as it

is connected. Play begins automatically after a

delay which depends on the capacity of the USB

stick.
The ﬁ le formats recognised are .mp3

(mpeg1 layer 3 only), .wma (standard 9 only,

128 kbits/sec compression), .wav and .ogg.

The playlists types accepted are m3u, .pls, .wpl.

You have a USB port. The audio ﬁ les are

transmitted from a portable device such as a

digital player or a USB memory stick to your

Peugeot Connect Sound to be listened to via the

vehicle's speakers.

USB memory stick (1.1, 1.2 and 2.0) or iPod

generation 5 or later:

- USB memory sticks should be formatted

FAT or FAT 32 (NTFS is not supported),

- the iPod

lead is essential,

- navigation through the ﬁ le database is by

means of the steering wheel controls,

- the iPod

software should be regularly

updated for the best connection.

The list of compatible devices and the compression rates supported

are available from PEUGEOT dealers.

USING THE PEUGEOT CONNECT USB

CONNECTING A USB MEMORY STICK

219

PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB

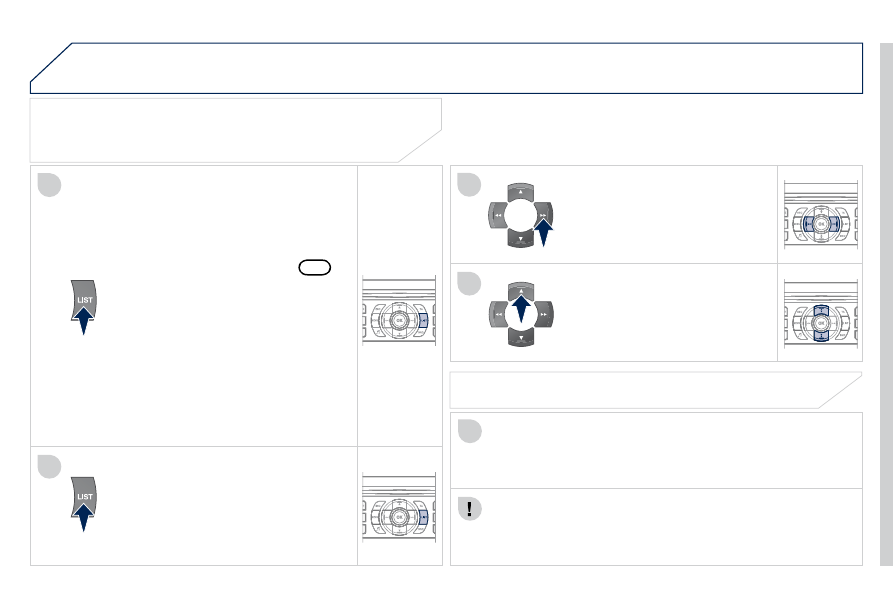

Press LIST brieﬂ y to display the

previously selected classiﬁ cation.

Navigate through the list using the left/

right and up/down buttons.

Conﬁ rm the selection by pressing OK.

The lists available are Artist, Genre and Playlist

(as deﬁ ned on the iPod

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio

equipment to the USB port. This could damage your installation.

CONNECTING AN iPod

AN iPod

AN iPod VIA THE USB PORT

Press one of these buttons to gain

access to the previous/next track on

the classiﬁ cation list currently being

played.

Press and hold one of the buttons for

fast forward or backward play.

Press one of these buttons to gain

access to the previous/next Genre,

Folder, Artist or Playlist on the

classiﬁ cation list currently being

played.

Press and hold LIST to display the

different classiﬁ cations.

Select by Folder/Artist/Genre/Playlist,

press OK to select the classiﬁ cation

required, then press OK again to conﬁ rm.

- by Folder: all folders containing audio

ﬁ les recognised on the portable

device, classiﬁ ed in alphabetical

order without following the folder

structure.

- by Artist: all of the artist names

deﬁ ned in the ID3 Tags, sorted in

alphabetical order.

- by Genre: all of the genres deﬁ ned in

the ID3 Tags.

- by Playlist: in accordance with the

playlists recorded on the USB device.

220

The display and control is via the portable device.

First adjust the volume of your portable device.

Then adjust the volume of your audio

system.

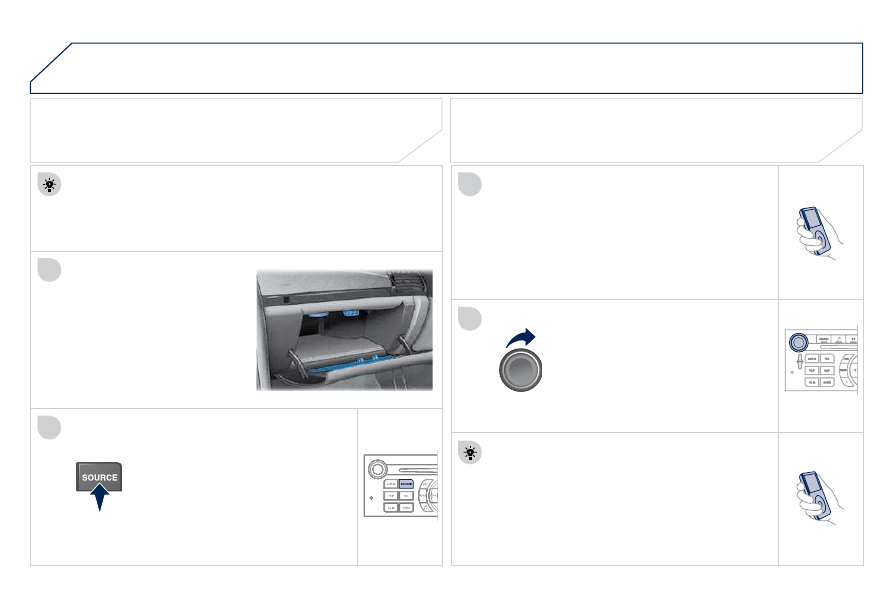

USING THE AUXILIARY SOCKET (AUX)
RCA SOCKET

ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE

PEUGEOT CONNECT USB

The RCA auxiliary socket permits the connection of a portable

device (MP3 player…).

Connect the portable device

(MP3 player…) to the audio

sockets (white and red,

RCA type) using a suitable

cable (not supplied).

Press the SOURCE button several

times in succession and select AUX.

221

Saisir code authentification

Del

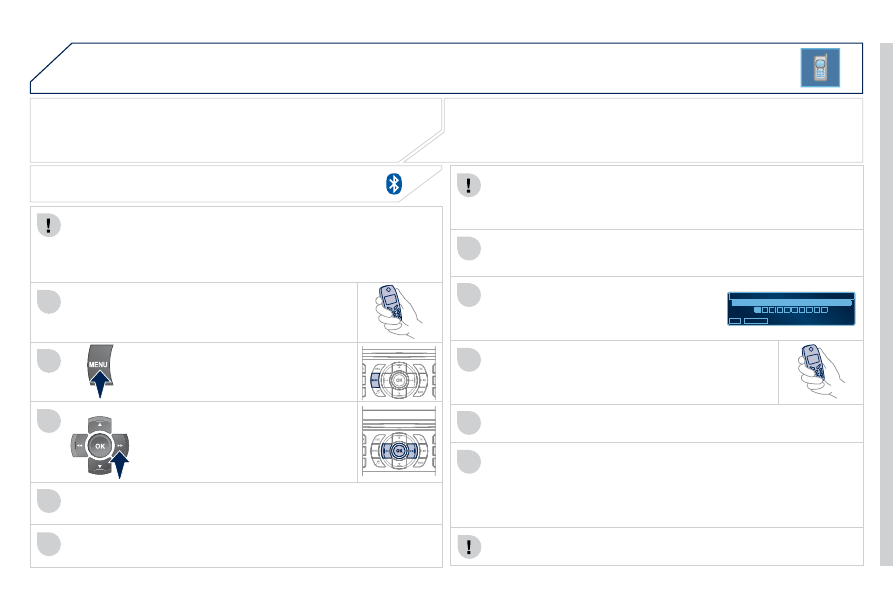

BLUETOOTH

For reasons of safety and because they require prolonged

attention on the part of the driver, the operations for pairing of the

Bluetooth mobile telephone with the Bluetooth system of your audio

equipment should only carried out with the vehicle stationary.

The ignition must be on.

Activate the telephone’s

Bluetooth function.

A window is displayed with "Searching…".

Press the MENU button.

In the menu, select:

- Bluetooth telephone function -

Audio

- Bluetooth conﬁ guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the

compatibility of the Bluetooth equipment used.

Consult your telephone's manual and your operator to ﬁ nd out which services

compatibility of the Bluetooth equipment used.

compatibility of the Bluetooth equipment used.
are available to you. A list of mobile telephones which offer the best range of

Consult your telephone's manual and your operator to ﬁ nd out which services

Consult your telephone's manual and your operator to ﬁ nd out which services
services is available from PEUGEOT dealers.

BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu gives access to the following functions in

particular: Directory * , Call list, Pairing management.

The ﬁ rst 4 telephones recognised are displayed in this window.

A virtual keypad is displayed on the

screen: enter a code with at least 4 digits.

Conﬁ rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.

Select the telephone to be connected from the list. Only one

telephone can be connected at a time.

A message is displayed on the screen of the telephone

chosen: to accept the pairing, enter the same code on

the telephone, then conﬁ rm by pressing OK.

If pairing fails, the number of attempts is not limited.

The automatic connection authorised is only active after the

telephone has been conﬁ gured.

The directory and the call list can be accessed after the

synchronisation period.

PAIRING A TELEPHONE

* if your telephone hardware is fully compatible.

The pairing can also be initiated from the telephone.

(AVAILABLE ACCORDING TO MODEL AND VERSION)

222

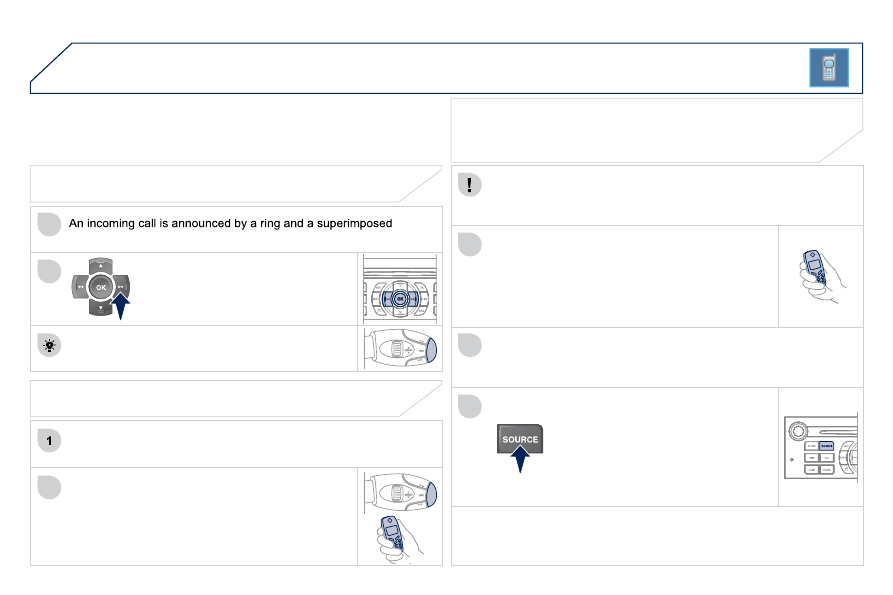

RECEIVING A CALL

display on the multifunction screen.

Initiate the pairing between the telephone and

the vehicle. This pairing can be initiated from

the vehicle's telephone function menu or via the

telephone's keypad. See steps 1 to 10 on the

previous pages. During the pairing phase, the vehicle

must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function

menu.

The audio system connects to a newly paired telephone automatically.

Select the YES tab on the screen

using the buttons and conﬁ rm by

pressing OK.

Press TEL or OK on the steering wheel controls to

accept the call.

BLUETOOTH AUDIO STREAMING

Wireless transmission of the telephone's music ﬁ les via the audio

equipment. The telephone must be able to manage the appropriate

bluetooth proﬁ les (Proﬁ les A2DP/AVRCP).

* In certain cases, playing of the Audio ﬁ les must be initiated from the

keypad.

** If the telephone supports the function.

Activate the streaming source by

pressing the SOURCE button * . The

tracks to be played can be controlled

as usual via the buttons on the

Radio control panel and the steering

mounted controls ** . The contextual

information can be displayed on the

screen.

BLUETOOTH

MAKING A CALL

From the Bluetooth telephone function Audio menu, select Manage

the telephone call then call, call list or directory.

Press the TEL steering wheel control, or press and

hold OK for access to your directory.
Or
To dial a number, use your telephone’s keypad,

with the vehicle stationary.

223

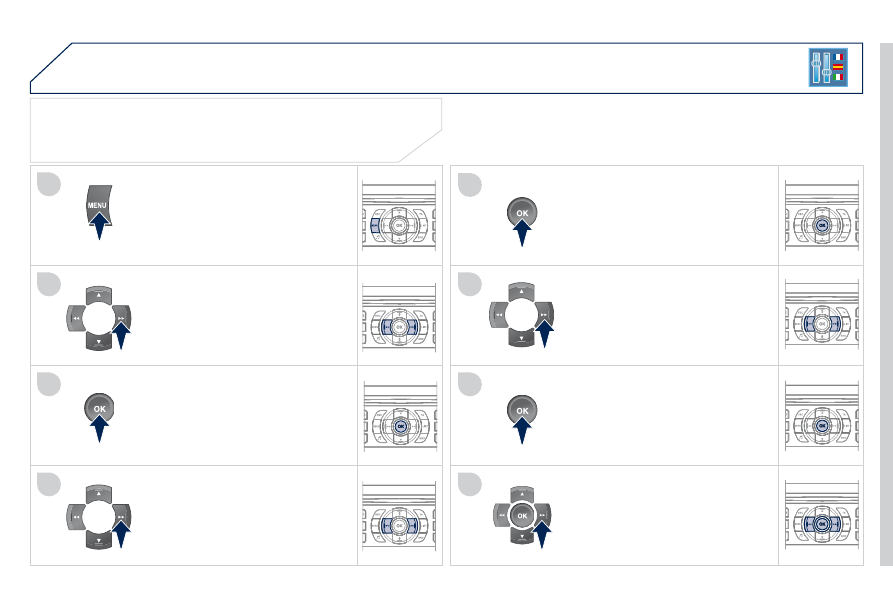

CONFIGURATION

Press the MENU button.

Using the arrows, select

PERSONALISATION

CONFIGURATION.

Press to conﬁ rm the selection.

Using the arrows, select DISPLAY

CONFIGURATION.

Press to conﬁ rm the selection.

Using the arrows, select ADJUST

DATE AND TIME.

Adjust the settings one by one

conﬁ rming by pressing the OK

button. Next select the OK tab on the

screen then conﬁ rm.

SETTING THE DATE AND TIME

SCREEN C

224

Each press of the button, located at the end of the

wiper stalk, displays the different trip computer

information in succession, depending on the screen.

- the "vehicle" tab with:

the range, the current fuel consumption and the distance remaining

to the destination,

- the "1" tab (trip 1) with:

the average speed, the average consumption and the distance

travelled calculated over trip "1" ,

- the "2" tab (trip 2) with the same information for a second trip.

A FEW DEFINITIONS

Zero reset

When the required trip is displayed, press the control for more than

two seconds.

TRIP COMPUTER

Range:

displays the distance which can travelled with the remaining fuel

detected in the tank, based on the average fuel consumption over the last

few miles (kilometres).

This displayed value may vary signiﬁ cantly following a change in the

vehicle speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed.

After ﬁ lling with at least 5 litres of fuel, the range is recalculated and is

displayed when it exceeds 60 miles (100 km).

If, whilst driving, dashes are displayed continuously in place of the digits,

contact a PEUGEOT dealer.
Current fuel consumption:

only calculated and displayed above 20 mph (30 km/h).

Average fuel consumption:

this is the average fuel consumption since

the last trip computer zero reset.

Average speed:

this is the average speed calculated since the last trip

computer zero reset (ignition on).

Distance travelled:

calculated since the last trip computer zero reset.

Distance remaining to the destination:

calculated with reference to

the ﬁ nal destination, entered by the user. If guidance is activated, the

navigation system calculates it as a current value.

225

09 SCREEN MENU MAP

MONOCHROME C

COLOUR C

A press on OK gives access to the short cut menus, depending on the display on

the screen:

activate/deactivate RDS

activate/deactivate REG mode

activate/deactivate radiotext

RADIO

activate/deactivate Intro

CD/MP3 CD

activate/deactivate track repeat
(the entire current CD for CD,
the entire current folder for MP3 CD)

activate/deactivate random play (the
entire current CD for CD, the entire
current folder for MP3 CD)

activate/deactivate track repeat
(of the current folder/artist/genre/playlist)

USB

activate/deactivate random play (of the
current folder/artist/genre/playlist)

MAIN FUNCTION

OPTION A

OPTION B

Option A1

Option A2

226

AUDIO FUNCTIONS

alternative frequencies (RDS)

activate/deactivate

FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)

activate/deactivate

PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate

TRIP COMPUTER

Distance: x miles

ENTER DISTANCE TO DESTINATION

Diagnostic s

ALERT LOG

Functions activated or deactivated

STATUS OF THE FUNCTIONS *

SCREEN MENU MAP

Pressing the MENU button displays:

video brightness adjustment

DISPLAY CONFIGURATION

DEFINE THE VEHICLE PARAMETERS *

PERSONALISATION-CONFIGURATION

normal video

inverse video

brightness (- +) adjustment

date and time adjustment

day/month/year adjustment

hour/minute adjustment

choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l

°Celsius/°Fahrenheit

CHOICE OF LANGUAGE

* The parameters vary according to vehicle.

Content .. 13 14 15 16 ..
