Peugeot 407 C (2010.5). Instruction

In order to ensure optimum vis-

ibility during your manoeuvres,

the mirror lightens automati-

cally when reverse gear is en-

gaged.

By means of a sensor, which mea-

sures the light from the rear of the ve-

hicle, this system automatically and

progressively changes between the

day and night uses.

It has an anti-dazzle system which

darkens the mirror glass: this reduces

any driver discomfort caused by the

light beams of following vehicles, the

sun...

Automatic day/night model

Rear view mirror

Adjustable mirror providing a central

rearward view.

Equipped with an anti-dazzle system,

useful in poor light.

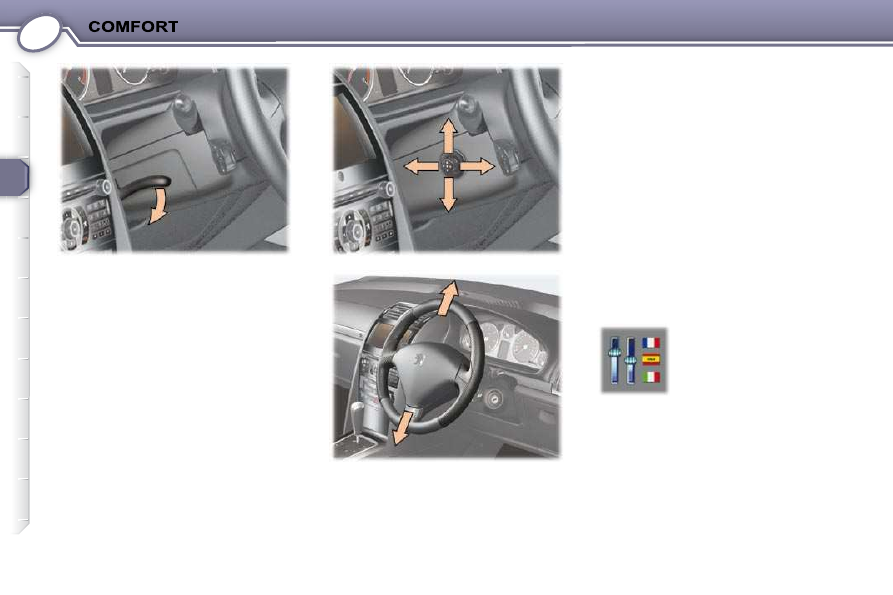

ELECTRIC ADJUSTMENT OF
STEERING WHEEL HEIGHT
AND REACH

When stationary, adjust the height or

reach of the steering wheel by moving

the control:


forwards or backwards to adjust

the reach.



up or down to adjust the height.

You can activate or deac-

tivate this function via the

"personalisation - conﬁ gu-

ration" menu in the multi-

function screen.

WELCOME FUNCTION

When the driver's door is opened with

the ignition off, the steering wheel rises

to make access to or exit from the ve-

hicle easier.

MANUAL ADJUSTMENT OF
STEERING WHEEL HEIGHT
AND REACH

When the vehicle is stationary, un-

lock the steering wheel adjustment by

pushing the lever forwards.

Adjust the height and reach of the

steering wheel then lock the adjust-

ment by pulling the lever fully back.

Reinitialisation

Following reconnection of the battery,

the welcome function must be reini-

tialised:

- move the control in the direction of

the required adjustment,

- release the control,

- move the control again until it

reaches its stop.

This procedure must be carried out for

all four directions.

Heated seat adjustment
With the engine running, turn the knob.

The temperature of the seat is regu-

lated automatically.
0: Off.
1:

Low.

Medium.

3: High.

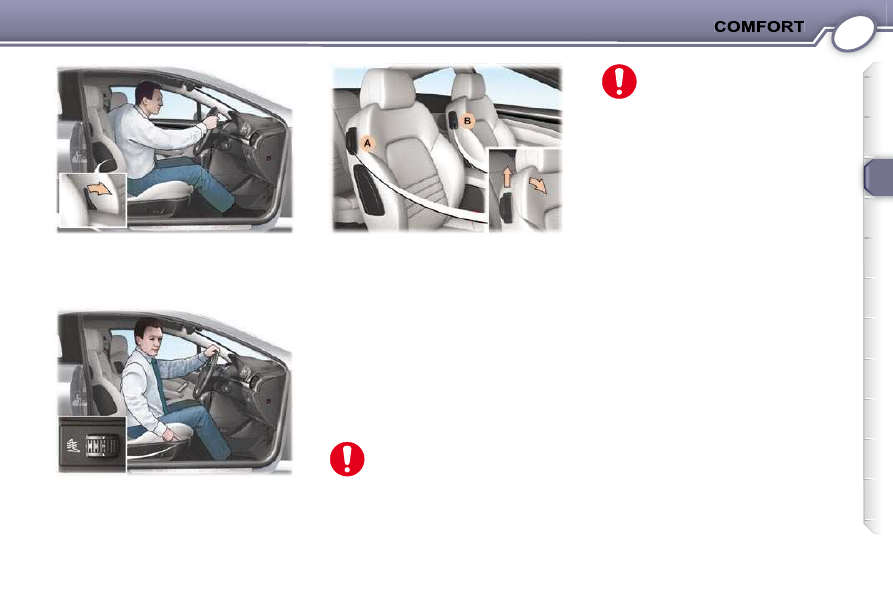

   Driver and passenger seat lumbar
adjustment *
Operate  the  lever  to  obtain  the  re-

quired position.

Access to the rear seats
If necessary, detach the seat belt from

the handle and position it along the

door pillar.

Pull the handle A upwards and for-

wards to fold the seat back, then move

the seat forward pushing the seat

back.
The driver has a courtesy handle B

to enable him to move the passenger

seat from his seat.

When it is put back in place, the seat

returns to its initial position.

No person or object must pre-

vent the seat from returning

to its initial longitudinal

and

angle position.
Depending on your seat's set-

tings, it is possible that the access

to the rear seats manoeuvre may be

limited. In this case, the seat settings

must be altered ﬁ rst.

The seat must return to this position

for correct locking of the seat back.

Ensure that the seat back returns to

its position correctly and never drive

with the seat back disengaged (able to

move freely).

If the seat back jams on repositioning,

operate the handle A again to release

it and return it to its initial position.

* With electric seat only.

Do not use the seat back an-

gle adjustment control when

using the access to the rear

seats (risk of disengaging of

the seat back with loss of the angle

adjustment function).

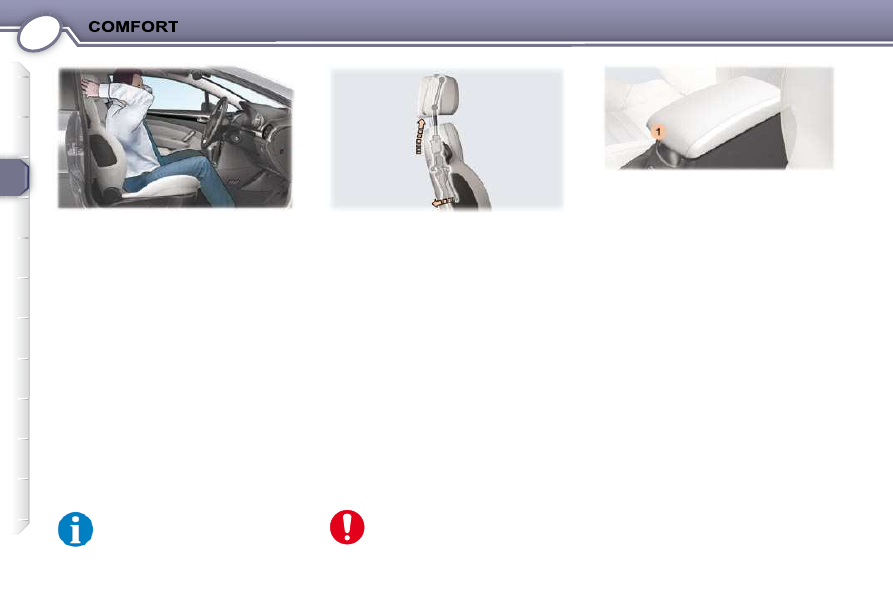

Head restraint height and angle
adjustment
To raise or lower the head restraint,

pull it forwards then slide it.

To tilt the head restraint, tilt the lower

part forwards or backwards.

To remove the head restraint, move it

almost to the highest position, lift the

tab using a coin and pull the head re-

straint forwards and upwards at the

same time.

To reﬁ t the head restraint, engage the

stalks in the holes keeping in line with

the seat back.

Front seat active head restraint
This system prevents whiplash.

In the event of a rear impact, the action

of the body on the seat back moves

the head restraint forwards and up-

wards preventing the head from being

thrown backwards.

Front armrest

To change the position of the armrest:


Lift the lever 1 .

The adjustment is correct

when the top of the head re-

straint is level with the top of

the head.

Never drive with the head

restraints removed; they must

be in place and adjusted

correctly.

The armrest folds forwards and up-

wards.

To return to the initial position, push

the armrest backwards and press it to

engage.

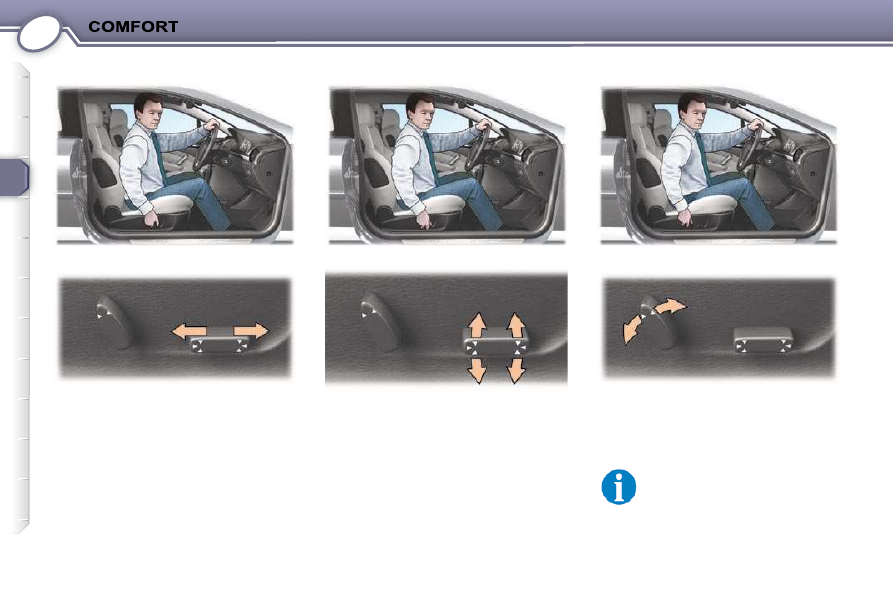

ELECTRIC FRONT SEATS

Longitudinal adjustment
Push the control forwards or back-

wards to slide the seat.

Driver and passenger seat cushion
height and angle adjustment
Height

: tilt the rear of the control up

or down.
Angle

: tilt the front of the control up

or down.

Seat back angle adjustment
Tilt the control forwards or backwards

to adjust the angle of the seat back.

The electrical functions of the

driver's seat (with the exception

of the access to the rear seats)

are deactivated approximately

one minute after the ignition is switched

off.
To reactivate them, open the door or

switch on the ignition.

Heated seat adjustment
With the engine running, turn the knob.

The temperature of the seat is regu-

lated automatically.
0: Off.
1:

Low.

Medium.

3: High.

   Driver and passenger seat lumbar
adjustment *
Operate  the  lever  to  obtain  the  re-

quired position.

Access to the rear seats
If necessary, detach the seat belt from

the handle and position it along the

door pillar.

Pull the handle A upwards and for-

wards to fold the seat back, then move

the seat forward pushing the seat

back.
The driver has a courtesy handle B

to enable him to move the passenger

seat from his seat.

When it is put back in place, the seat

returns to its initial position.

No person or object must pre-

vent the seat from returning

to its initial longitudinal

and

angle position.
Depending on your seat's set-

tings, it is possible that the access

to the rear seats manoeuvre may be

limited. In this case, the seat settings

must be altered ﬁ rst.

The seat must return to this position

for correct locking of the seat back.

Ensure that the seat back returns to

its position correctly and never drive

with the seat back disengaged (able to

move freely).

If the seat back jams on repositioning,

operate the handle A again to release

it and return it to its initial position.

* With electric seat only.

Do not use the seat back an-

gle adjustment control when

using the access to the rear

seats (risk of disengaging of

the seat back with loss of the angle

adjustment function).

Head restraint height and angle
adjustment
To raise or lower the head restraint,

pull it forwards then slide it.

To tilt the head restraint, tilt the lower

part forwards or backwards.

To remove the head restraint, move it

almost to the highest position, lift the

tab using a coin and pull the head re-

straint forwards and upwards at the

same time.

To reﬁ t the head restraint, engage the

stalks in the holes keeping in line with

the seat back.

Front seat active head restraint
This system prevents whiplash.

In the event of a rear impact, the action

of the body on the seat back moves

the head restraint forwards and up-

wards preventing the head from being

thrown backwards.

Front armrest

To change the position of the armrest:


Lift the lever 1 .

The adjustment is correct

when the top of the head re-

straint is level with the top of

the head.

Never drive with the head

restraints removed; they must

be in place and adjusted

correctly.

The armrest folds forwards and up-

wards.

To return to the initial position, push

the armrest backwards and press it to

engage.

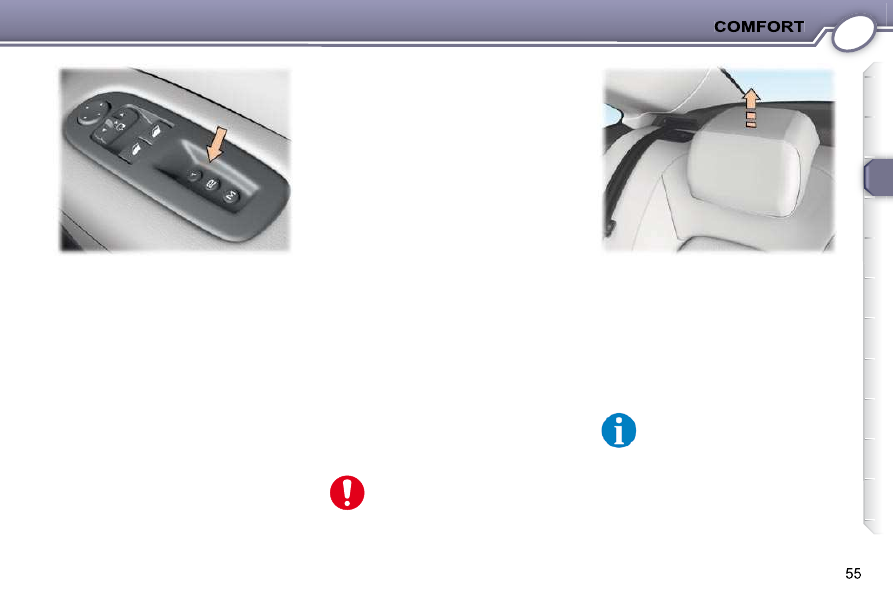

Storing driving positions

The electrical adjustments of the

driver's seat, steering wheel and door

mirrors are stored.

Two driving positions can be stored

using buttons M/ 1 and M/2 .

An audible signal conﬁ rms that a posi-

tion has been stored.

Storing a new position cancels the

previous one.

Recalling a stored driving position

During access to the rear seats,

the storing and recalling of the

driving positions are deactivated.

Vehicle moving


Keep button 1 or 2 pressed down

until the audible signal indicates

that setting of the corresponding

memorised position is complete.

REAR HEAD RESTRAINTS

The rear head restraints have a high

position for use and a low position for

stowing.

They can also be removed.

To remove them, pull upwards fully

and press the lug.

Never drive with the head

restraints removed; they must

be in place and adjusted

correctly.

Storing using the controls on the
driver's door
To store a driving position:


Switch on the ignition,



Adjust your seat, steering wheel

and mirrors,



Press button M , then button 1 "ﬁ rst

driving position" or button 2 "second

driving position" within four seconds.

Ignition on, vehicle stationary


Brieﬂ y press button 1 or 2 to recall

the corresponding stored position.

The end of the setting is indicated

by an audible signal.

After recalling a stored position a few

times in succession, the function will be

cancelled until the engine is started.

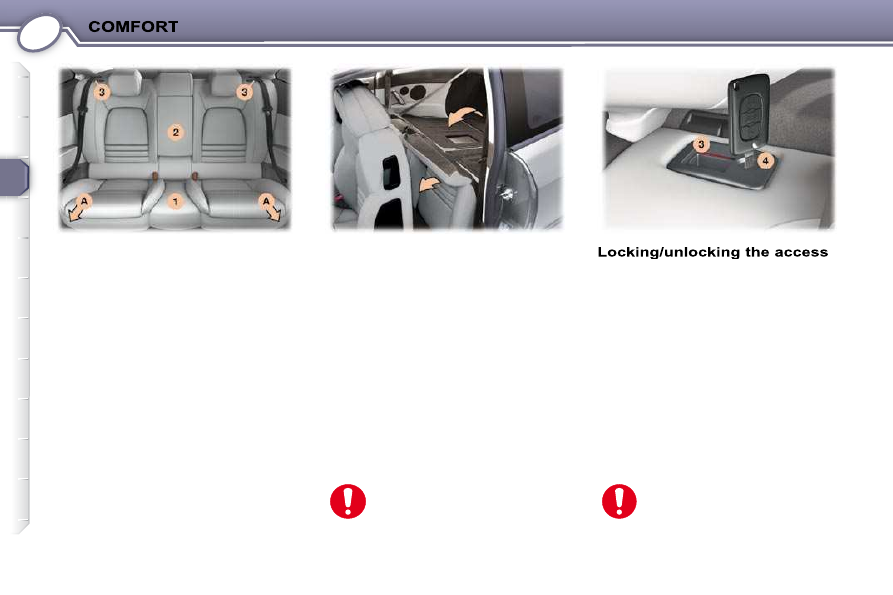

REAR SEATS

To fold down the rear left seat or the

rear right seat, always start with the

seat cushion, never with the seat back

(risk of damage):


move the front seat(s) forward if

necessary,



place the head restraints in the low

position or remove them if necessary.

Check that the seat belt strap is

positioned correctly at the side of

the seat back,



release the front of the seat cushion 1

by passing your hands underneath and

lifting at each end A ,



lift the front of the seat cushion 1 ,



tilt the seat cushion 1 against the

front seat(s),

 pull control 3

forwards to release

the seat back 2 ,



fold down the seat back 2 (left 1/3

or right 2/3).

Note:

the one-piece seat cushion 1

can be removed, with care, to increase

the volume of the load space.

Squeeze the seat cushion ﬁ xings to

detach them from their fastenings.

When repositioning:


fold up the seat back 2 and lock it

(the red marker of control 3 should

no longer be visible),



fold up the seat 1 ,



reﬁ t the head restraints if they were

removed.

to the boot via the rear seats

Your vehicle's boot can be isolated

from the passenger compartment.

The red indicator on the control 3

should no longer be visible. If it is,

push the seat fully.

Insert the ignition key in the lock 4 .

Transporting long objects

In exceptional circumstances

, a rear

seat back can be folded without folding

the seat cushion 1 in order to transport

long, light objects (risk of damage to

the seat cushion).

When putting the seat backs

and the seat cushion back in

place, ensure that they are

secured correctly to ensure

your safety and take care not to trap

the seat belts.

When transporting long ob-

jects, do not place a load

weighing more than 30 kg on

the rear of the seat back.

Do not place rough objects on the rear of

the seat back as this could damage it.

Although one of PEUGEOT's main cri-

teria when designing your vehicle, the

safety of your children also depends

on you.

"Forwards-facing"

* The rules for carrying children are

speciﬁ c to each country. Refer to the

current legislation in your country.

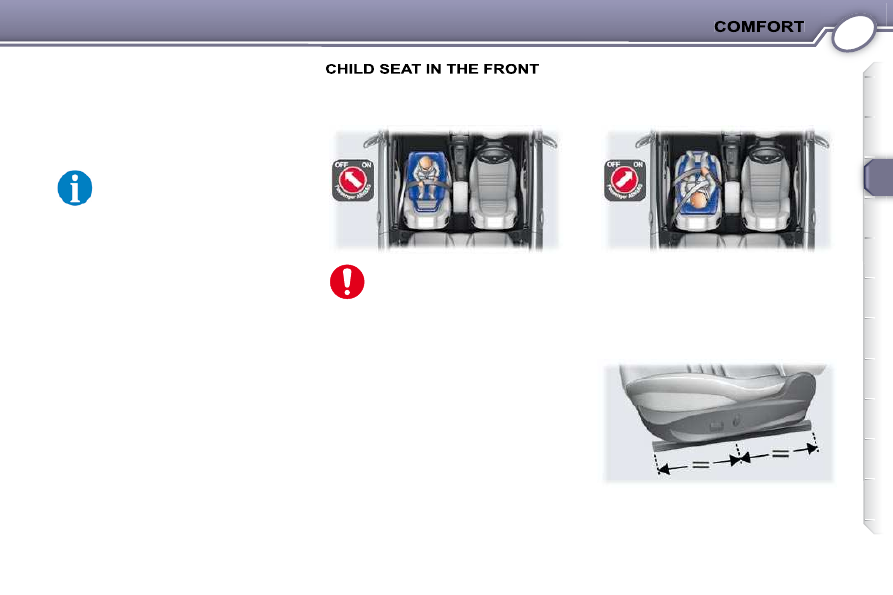

GENERAL POINTS RELATING
TO CHILD SEATS

"Rearwards-facing"

For maximum safety, please

observe the following recom-

mendations:

When a "rearwards-facing"

child seat is installed on the

front passenger seat , it is

essential that the passenger

airbag is deactivated. Otherwise, the

child would risk being seriously in-
jured or killed if the airbag were to

inﬂ ate .

- in accordance with European reg-

ulations,   all  children  under  the
age  of  12  or  less  than  one  and
a  half  metres  tall  must  travel  in
approved  child  seats  suited  to
their weight

, on seats ﬁ tted with a

seat belt or ISOFIX mountings * ,

- statistically, the safest seats in

your vehicle for carrying chil-
dren are the rear seats,

- a child weighing less than 9 kg

must travel in the "rearwards-
facing" position both in the front
and in the rear.

PEUGEOT recommends

that chil-

dren should travel in the rear seats of

your vehicle:

- "rearwards-facing" up to the age of 2,

- "forwards-facing" over the age of 2.

When a "forwards-facing" child seat

is installed on the front passenger

seat

, adjust the vehicle's seat to the

intermediate longitudinal position with

the seat back upright and leave the

passenger airbag activated.

Intermediate

longitudinal position

ADVICE ON CHILD
SEATS

If the head restraint has to be removed,

ensure that it is stored or attached se-

curely to prevent it from being thrown

around the vehicle in the event of

sharp braking.
Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied by

other children, cannot be used or are

absent.

Deactivate the passenger airbag *

when a "rear facing" child seat is in-

stalled on the front seat.

Otherwise, the child would risk being

seriously injured or killed if the airbag

were to inﬂ ate.

As a safety precaution, do not leave:

- one or more children alone and un-

supervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

* According to country.

The incorrect installation of a child seat

in a vehicle compromises the child's

protection in the event of an accident.

Remember to fasten the seat belts or

the child seat harness keeping the

slack

in relation to the child's body to

a minimum

, even for short journeys.

To install a child seat using the ve-

hicle's seat belt, ensure that the belt

is well tightened on the child seat

and that it holds the child seat ﬁ rmly

against the vehicle's seat.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle's seat and

that the head restraint does not cause

any discomfort.

Installing a booster seat
The chest part of the seat belt must

be positioned on the child's shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child's

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder

level.

Passenger airbag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-

cured using a three point seat belt :

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER Baby-

Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining cushion

is compulsory for

carrying young

children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age of

6 years

(approximately

22 kg), the booster

is used on its own.

"RÖMER KIDFIX"

Can be ﬁ tted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

LOCATIONS FOR CHILD SEATS ATTACHED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt

and universally approved in accordance with the weight of the child and the seat in the vehicle.

: group 0: from birth to 10 kg.

: consult the legislation in force in

your country before installing your

child on this seat.

: vehicle seat in the intermediate lon-

gitudinal position.

: seat suitable for the installation of

a universally approved child seat

secured using a seat belt, "rear fac-

ing" and/or "forward facing".

Installation of the L1 (RÖMER

Baby-Safe Plus) child seat on

the rear seats of your vehicle

is not recommended.

Weight of the child and indicative age

Seat

Under 13 kg

(groups 0 (a) and 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

1 to 3 years approx

From 15 to 25 kg

(group 2)

3 to 6 years approx

From 22 to 36 kg

(group 3)

6 to 10 years approx

Front passenger

seat (b)

U(c)

Rear seats

ADVICE ON CHILD
SEATS

If the head restraint has to be removed,

ensure that it is stored or attached se-

curely to prevent it from being thrown

around the vehicle in the event of

sharp braking.
Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied by

other children, cannot be used or are

absent.

Deactivate the passenger airbag *

when a "rear facing" child seat is in-

stalled on the front seat.

Otherwise, the child would risk being

seriously injured or killed if the airbag

were to inﬂ ate.

As a safety precaution, do not leave:

- one or more children alone and un-

supervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

* According to country.

The incorrect installation of a child seat

in a vehicle compromises the child's

protection in the event of an accident.

Remember to fasten the seat belts or

the child seat harness keeping the

slack

in relation to the child's body to

a minimum

, even for short journeys.

To install a child seat using the ve-

hicle's seat belt, ensure that the belt

is well tightened on the child seat

and that it holds the child seat ﬁ rmly

against the vehicle's seat.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle's seat and

that the head restraint does not cause

any discomfort.

Installing a booster seat
The chest part of the seat belt must

be positioned on the child's shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child's

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder

level.

"ISOFIX" MOUNTINGS

Your vehicle has been approved in

accordance with the new ISOFIX reg-

ulation .
The seats * , represented below, are ﬁ tted

with regulation ISOFIX mountings:

These are three rings for each seat:

This ISOFIX mounting system pro-

vides fast, reliable and safe ﬁ tting of

the child seat in your vehicle.

The ISOFIX child seats are ﬁ tted with

two latches which are secured easily

on these lower rings A .

Some also have an upper strap which

is attached to the upper ring B .

- two lower rings A , located between

the vehicle seat back and cushion,

indicated by a label,

* According to version.

- an upper ring B , referred to as the

TOP TETHER

, indicated by a label.

To attach this strap, raise the

vehicle seat's head restraint

then pass the hook between

its rods. Then ﬁ x the hook on

the upper ring B and tighten the upper

strap.

The incorrect installation of a

child seat in a vehicle compro-

mises the child's protection in

the event of an accident.

For information on where ISOFIX child

seats can be installed in your vehicle,

refer to the table showing the locations

for ISOFIX child seats.

Peugeot 407 C (2010.5). Instruction - part 4
