NAVIGATION - GUIDANCE

SEARCHING FOR POINTS OF INTEREST

Press the NAV button.

Press the NAV button again or select
the NAVIGATION MENU function and

press the dial to conﬁ rm.

Select the POI NEARBY function to
search for POIs around the vehicle.

Select the SEARCH POINTS OF
INTEREST function and press the

dial to conﬁ rm.

NAVIGATION MENU

SEARCH POINTS OF INTEREST

POI NEARBY

Select the POI IN CITY function to
search for POIs in the city required.
Select the country then enter the

name of the city using the virtual
keypad.

Select the POI NEAR ROUTE
function to search for POIs near the
route.

Select the POI IN COUNTRY function
to search for POIs in the country
required.

Select the POI NEAR DESTINATION
function to search for POIs near the
point of arrival of the route.

POI NEAR DESTINATION

POI IN COUNTRY

POI NEAR ROUTE

A list of cities present in the country selected can be acc

be accessed via

the LIST button on the virtual keypad.

POI IN CITY

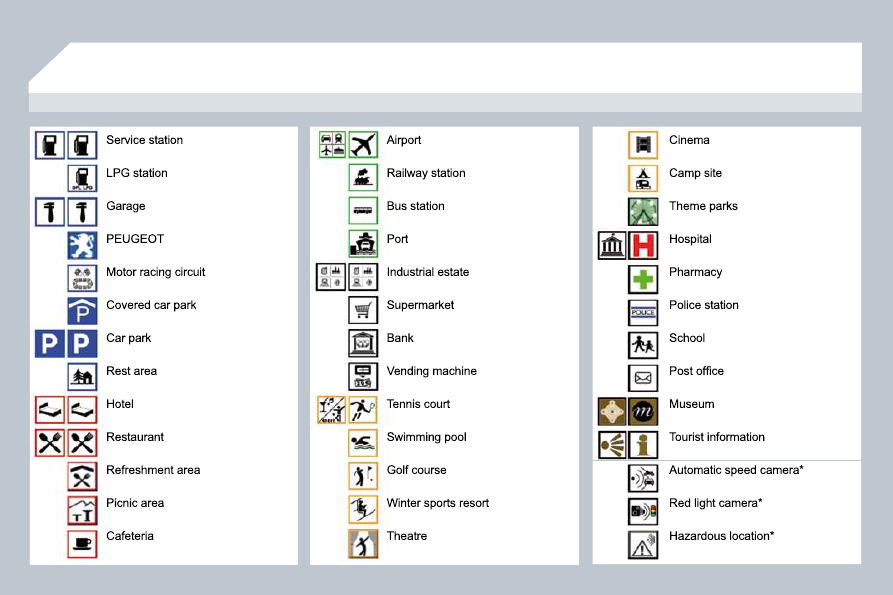

The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various

businesses, airports...).

Select the NAVI VOLUME function
and turn the dial to set the volume

of each voice synthesiser (trafﬁ c

information, alert messages…).

Select HAZARDOUS LOCATION

POIs to gain access to the DISPLAY
ON MAP, VISUAL ALERT and
SOUND ALERT functions.

Select the POI CATEGORIES ON
MAP function to select the POIs to be
displayed on the map by default.

NAVI VOLUME

Press the NAV button.

Press the NAV button again or select
the NAVIGATION MENU function and

press the dial to conﬁ rm.

Select the SETTINGS function and

press the dial to conﬁ rm.

NAVIGATION MENU

SETTINGS

POI CATEGORIES ON MAP

HAZARDOUS LOCATION POIs

NAVIGATION - GUIDANCE

Contact a PEUGEOT dealer for details of the procedure for obtaining the HAZARDOUS LOCATION
POIs.

TRAFFIC INFORMATION

CONFIGURE THE FILTERING AND

DISPLAYING OF THE TMC MESSAGES

On the list which appears, select
the distance radius required in
accordance with the route.

Press the dial to conﬁ rm the selection.

Press the TRAFFIC button again or
select the TRAFFIC MENU function

and press the dial to conﬁ rm.

GEOGRAPHICAL FILTER (NONE)

Press the TRAFFIC button.

The ﬁ lters are independent and their results are cumulative.
We recommend a ﬁ lter on the route and a ﬁ lter around the vehicle of:
   -   2 miles (3 km) or 3 miles (5 km) for a region with heavy trafﬁ c,
  -   6 miles (10 km) for a region with normal trafﬁ c,
  -   30 miles (50 km) for long journeys (motorway).

Select the GEOGRAPHICAL FILTER
(NONE) function and press the dial to

conﬁ rm.

The list of TMC messages appears under the TRAFFIC MENU

The list of TMC messages appears under the TRAFFIC MENU
sorted in order of proximity.

Select the ﬁ lter of your choice:

MESSAGES ON ROUTE

ALL WARNING MESSAGES

ONLY WARNINGS ON ROUTE

ALL MESSAGES

The messages appear on the map
and on the list.
To exit, press ESC.

MENU TRAFFIC

The TMC icon, at the bottom left of the sc

the screen, may

appear in 3 different forms:
- No TMC station available

- TMC station available, no message on route

- TMC station available and messages on route

(if guidance is active)

SELECTING A STATION

When the current radio station is
displayed on the screen, press the
dial.

The radio source short-cuts menu appears and provides

ovides access to

the following short-cuts:

Select the function required and press

the dial to conﬁ rm to gain access to

the corresponding settings.

The RDS, if displayed, allows you to continue listening to the same

station by means of the frequency following. However, in certain

conditions, this RDS station cannot be followed throughout the entire

conditions, this RDS station cannot be followed throughout the entire
country as radio stations do not cover 100% of the territ

territory. This

explains the loss of reception of the station during a journey.

The external environment (hill, building, tunnel, underground car park...) may interfere with
the reception, including in RDS following mode. This phenomenon is a normal result of the
way in which radio waves are transmitted and does not in any way indicate a failure of the

audio equipment.

RDS - REGIONAL MODE - TRAFFIC INFO

Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.

Select the station required by turning

the dial and press to conﬁ rm.

While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for mo

or more than

2 seconds to store the current station.
Press the button on the numeric keypad to recall the sto

the stored radio

station.

RDS

RADIOTEXT

REGIONAL PROG. (REG)

WAVEBAND

RADIO

A long press of one of the buttons starts the
automatic search for a station with a lower or

higher frequency.

06 MUSIC MEDIA PLAYERS

CD, MP3 / WMA SD CARD

INFORMATION AND ADVICE

If the GPS is used, the navigation SD card must remain in the WIP NAV audio/telephone reader.
In this case, it is not possible to play an SD card containing MP3 ﬁ les.

In order to be able to play a recorded CDR or CDRW, w

RW, when

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.
If the disc is recorded in another format it may not be pla

t be played

correctly.

It is recommended that the same recording standard is always used

It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4

ible (4x maximum)

for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

In the particular case of a multi-session CD, the Joliet standard is
recommended.

The audio equipment will only play audio ﬁ les with the extension

".mp3" with a speed of between 8 Kbps and 320 Kbps and the

extension ".wma" with a speed of between 5 Kbps and 384 Kbps.

extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
It also supports the VBR (Variable Bit Rate) mode.

No other type of ﬁ le (.mp4, m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A

2.5 Audio Layer 3

and the WMA format, an abbreviation of Windows Medi

Media Audio and

the property of Microsoft, are audio compression standa

standards which

permit the recording of several tens of music ﬁ les on a single disc.

It is advisable to restrict ﬁ le names to 20 characters, without using of

special characters (e.g.: " " ? ; ù) to avoid any playing and displaying

special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

During play, exit the SD Card source before removing the SD card

During play, exit the SD Card source before removing the SD card
from its reader.

To avoid any risk of theft, remove the SD card when you

en you leave your

vehicle with the roof down.

SELECTING / PLAYING MUSIC

CD, MP3 / WMA CD, MP3 / WMA SD CARD

The playing and displaying of an MP3/WMA compilation may depend

on the recording programme and/or the parameters used. We

recommend the ISO 9660 recording standard.

Press the MUSIC button.

Select the SELECT MUSIC function

and press the dial to conﬁ rm.

Press the up or down button to select
the next/previous folder.

Select the music source required:
CD, MP3/WMA CD, MP3/WMA SD

CARD… Press the dial to conﬁ rm.

Play begins.

SELECT MUSIC

Press the MUSIC button again or
select the MUSIC MENU function and

press the dial to conﬁ rm.

Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or backward play.

MUSIC MENU

The list of tracks or MP3/WMA ﬁ les appears under MUSIC MENU.

Connect the portable equipment (MP3/WMA player…) to the audio

sockets (white and red, RCA type) in the glove box using a

JACK/RCA audio cable.

Press the MUSIC button then press

it again or select the MUSIC MENU

function and press the dial to conﬁ rm.

Select the AUX music source and

press the dial to conﬁ rm. Play begins
automatically.

Select the EXTERNAL DEVICE
function and press the dial to activate it.

EXTERNAL DEVICE

Insert one or more CDs in the

changer. Press the MUSIC button.

Press one of the buttons on the
numeric keypad to select the

corresponding CD.

Select the CD CHANGER music

source and press the dial to conﬁ rm.

The displaying and management of the controls are operated via the

The displaying and management of the controls are operated via the
portable equipment.

CD CHANGER

Select the SELECT MUSIC function

and press the dial to conﬁ rm.

USING THE EXTERNAL DEVICE (AUX)

AUDIO / RCA CABLE NOT SUPPLIED

CD CHANGER

PLAYING A CD (NOT MP3 / WMA COMPATIBLE)

SELECT MUSIC

Press the MUSIC button again or
select the MUSIC MENU function and

press the dial to conﬁ rm.

MUSIC MENU

MUSIC MEDIA PLAYERS

The services offered by the telephone depend on the network, the SIM card and the compatibility of

the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which
services you have access to. A list of mobile telephones which offer the best range of services is
available from dealers.

BLUETOOTH TELEPHONE

CONNECTING A TELEPHONE

For safety reasons and because they require prolonged attention on

the part of the driver, the operations for pairing the Bluetooth mobile

the part of the driver, the operations for pairing the Bluetooth mobile
telephone to the hands-free system of the WIP Nav mus

v must be carried

out with the vehicle stationary and the ignition on.

Activate the telephone's Bluetooth function.
The last telephone connected is reconnected
automatically.

Select the TELEPHONE MENU

function and press the dial to conﬁ rm.

TELEPHONE MENU

Enter the authentication code on the
telephone. The code to be entered is
displayed on the screen.

To change the telephone connected,

press the PHONE button, then select

TELEPHONE MENU and press the

dial to conﬁ rm.

Once the telephone has been connected, the WIP Nav

Nav can

synchronise the address book and the call list. This sync

is synchronisation

may take a few minutes.

Select CONNECT PHONE. Select the

telephone and press to conﬁ rm.

The list of telephones connected previously (4 maximum

ximum) appears

on the multifunction display. Select the telephone requir

required for a new

connection.

Press the PHONE button.

For a ﬁ rst connection, select

SEARCH PHONE and press the dial

to conﬁ rm. Then select the name of
the telephone.

SEARCH PHONE

CONNECT PHONE

Press the end of the steering wheel control to

accept the call or end the call in progress.

Select the YES tab to accept or NO

to refuse and conﬁ rm by pressing the
dial.

RECEIVING A CALL

MAKING A CALL

An incoming call is announced by a ring and a superimposed display

An incoming call is announced by a ring and a superimposed display
on the multifunction display.

YES

To hang up, press the PHONE button
or press the dial and select END

CALL then conﬁ rm by pressing the
dial.

END CALL

Press the PHONE button.

Press the end of the steering wheel control for more than two

seconds to gain access to the address book.

It is also possible to select a number from the address b

ress book. You

can select DIAL FROM ADDRESS BOOK. The WIP NAV permits the

recording of up to 4000 entries.

Select DIAL NUMBER, then dial the

telephone number using the virtual
keypad.

Select the TELEPHONE MENU

function and press the dial to conﬁ rm.

DIAL NUMBER

TELEPHONE MENU

The list of the last 20 calls made and received in the veh

he vehicle appears

under TELEPHONE MENU. You can select a number and press the

under TELEPHONE MENU. You can select a number and press the
dial to make the call.

CONFIGURATION

SETTING THE DATE AND TIME

This function provides access to the options: SYSTEM LANGUAGE, DATE AND TIME, DISPLAY
(BRIGHTNESS, COLOUR, MAP COLOUR), VEHICLE PARAMETERS, UNITS, SYSTEM
PARAMETERS.

Set the parameters one by one using

the direction arrows and conﬁ rm by
means of the dial.

Select the DATE FORMAT function

and press the dial to conﬁ rm.

Select the SET DATE AND TIME

function and press the dial to conﬁ rm.

Conﬁ rm the format required using the dial.

Pressing the SET UP button for more than 2 seconds permits access

to:

Press the SET UP button.

Conﬁ rm the format required using
the dial.
Select the TIME FORMAT function

and press the dial to conﬁ rm.

SET DATE AND TIME

Select the DATE AND TIME function

and press the dial to conﬁ rm.

DESCRIPTION OF THE UNIT

GPS COVERAGE

DEMO MODE

DATE AND TIME

MP3/WMA SD CARD: selection of the previous directory.

CD CHANGER: selection of the previous CD.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.

MP3/WMA SD CARD: selection of the next directory.

CD CHANGER: selection of the next CD.
Selection of the next entry in the address book.

RADIO: change to the next radio station on the list.

Long press: automatic search for a higher frequency.

CD/MP3 SD CARD/CD CHANGER: selection of the next track.

CD/MP3 SD CARD/CD CHANGER: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.

Long press: automatic search for a lower frequency.

CD/MP3 SD CARD/CD CHANGER: selection of the previous track.

CD/MP3 SD CARD/CD CHANGER: continuous press: fast backward play.

- Change the sound source.
- Make a call from the address book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds: access to

the address book.

Volume increase.

Volume decrease

STEERING WHEEL CONTROLS

Mute: function activated by

pressing the volume increase
and decrease buttons
simultaneously.

Restore the sound by pressing
one of the two volume buttons.

CONTROL SHORT-CUTS

"RADIO" MENU

MAIN FUNCTION

CHOICE A

choice A1

choice A2

CHOICE B...

DISPLAY FLOW CHARTS

"MUSIC" MENU

"TRAFFIC" MENU

MESSAGES ON ROUTE

ONLY WARNINGS ON ROUTE

ALL WARNING MESSAGES

ALL MESSAGES

GEOGRAPHICAL FILTER

none

within 2 miles (3km)

within 3 miles (5km)

within 6 miles (10km)

within 30 miles (50km)

SELECT MUSIC

SOUND SETTINGS

balance / fader

bass / treble

equalizer

none

classical

jazz

rock/pop

techno

vocal

loudness

initialise sound settings

WAVEBAND

MANUAL TUNE

SOUND SETTINGS

balance / fader

bass / treble

equalizer

none

classical

jazz

rock/pop

techno

vocal

loudness

initialise sound settings

route type

fast route

short route

optimised route

STOPOVERS

add stopover

address input

navigate HOME

choose from address book

choose from last destinations

rearrange route

replace stopover

delete stopover

recalculate

fast route

short route

optimised route

"NAVIGATION" MENU

ABORT / RESUME GUIDANCE

DESTINATION INPUT

address input

country

city

street

number

start route guidance

post code

add to address book

intersection

city district

geo position

map

navigate HOME

choose from address book

choose from last destinations

POI SEARCH

POI nearby

POI near destination

POI in city

POI in country

POI near route

SETTINGS

route dynamics

trafﬁ c independent

semi-dynamic

avoidance criteria

avoid motorways

avoid toll roads

avoid ferries

recalculate

"TELEPHONE" MENU

SETUP

DIAL NUMBER

DIAL FROM ADDRESS BOOK

CALL LIST

CONNECT PHONE

search phone

phones connected

disconnect phone

rename phone

delete pairing

delete all pairings

show details

SETTINGS

select ring tone

phone / ring tone volume

enter mailbox number

SYSTEM LANGUAGE

deutsch

english

espanol

français

italiano

nederlands

polski

portuguese

DATE AND TIME

set date and time

date format

time format

DISPLAY

brightness

colour

pop titanium

toffee

blue steel

technogrey

dark blue

map colour

day mode for map

night mode for map

auto. day/night for map

VEHICLE PARAMETERS

vehicle information

alert log

status of functions

UNITS

temperature

celsius

fahrenheit

Distance

km and l/100

km and km/l

miles (mi) and MPG

SYSTEM PARAMETERS

factory reset

software version

automatic scrolling

sound quality between
the different audio
sources (radio, CD, CD

changer...).

Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle

position, select the musical ambience "None"

and set the loudness correction to the "Active"

position in CD mode or to the "Inactive" position
in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio, CD,

CD changer...).

The CD is ejected
automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the Audio section.

- The audio equipment's CD player does not

play DVDs.

- Due to inadequate quality, certain recorded

CDs will not be played by the audio system.

- The CD changer does not play MP3 CDs.

The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

The CD player sound
is poor.

Insert good quality CDs and store them in
suitable conditions.

The CD used is scratched or of poor quality.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting
an ambience.

The table below groups together the answers to the most frequently asked questions concerning the WIP Nav.

QUESTION

SOLUTION

RESPONSE

FREQUENTLY ASKED QUESTIONS

Peugeot 407 C Dag (2008 year). Instruction - part 13
