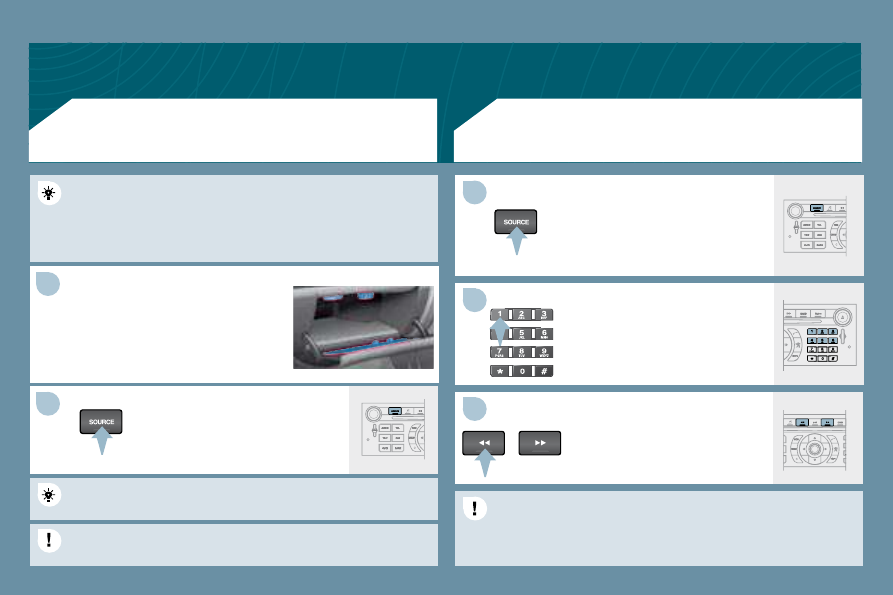

Press the MENU button then select the CONFIGURATION function,
then SOUNDS, then ACTIVATE AUXILIARY SOURCE to activate
the auxiliary input of the WIP Com audio and telematics system.

Connect the portable equipment (MP3

player…) to the audio sockets (white and

red, RCA type) located in the glove box
using a JACK/RCA audio cable.

Press the SOURCE button several
times in succession and select AUX.

PLAYING A CD (NOT MP3 COMPATIBLE)

Insert one or more CDs in the
changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.

Press one of the buttons on the
alphanumeric keypad to select the
corresponding CD.

Press one of the buttons to select a
track on the CD.

The displaying and management of the commands takes place via
the portable equipment.

It is not possible to copy the ﬁ les onto the hard disc from the
auxiliary input.

It is not possible to copy the ﬁ les onto the hard disc from the
CD changer.

JACK/RCA AUDIO CABLE NOT SUPPLIED

CD CHANGER

USING THE AUXILIARY INPUT (AUX)

149

TELEPHONE

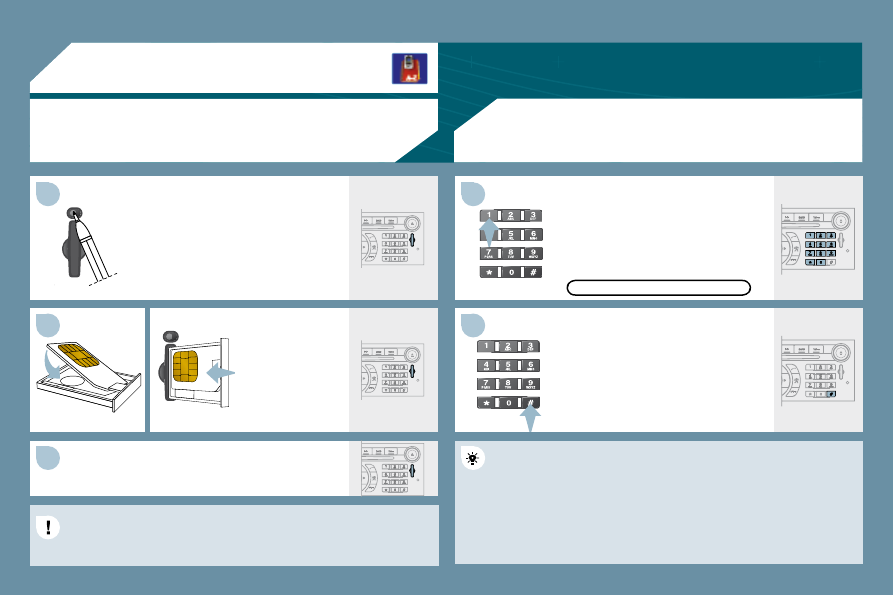

INSTALLING YOUR SIM CARD

ENTERING THE PIN CODE

Access the slot by pressing the button
using the tip of a pen.

Install the SIM card
in the holder and
then insert it in the
slot.

To remove the SIM card, repeat step 1.

Your SIM card must be installed and removed with the WIP Com
audio and telematics system switched off and the ignition off.

Enter the PIN code on the keypad.

Conﬁ rm the PIN code by pressing
button #.

PIN CODE

When entering your PIN code, tick the STORE PIN tab to gain
access to the telephone without having to enter this code when it is
used subsequently.

(NOT SUPPLIED)

150

TELEPHONE

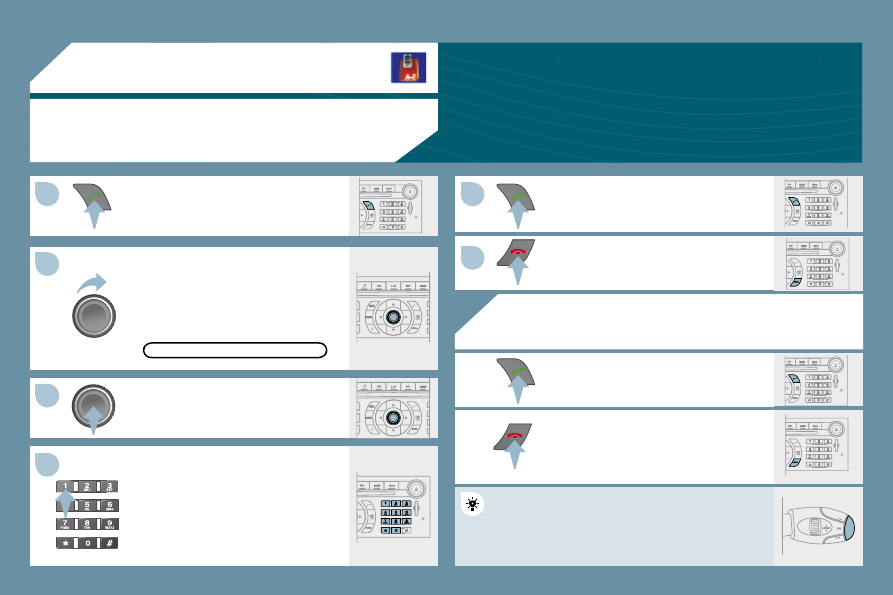

Turn the dial and select the DIAL
function.

Press the PICK UP button to display
the superimposed telephone menu.

Press the dial to conﬁ rm the selection.

Dial the telephone number of your
contact using the alphanumeric
keypad.

Press the PICK UP button to call the
number dialled.

Press the HANG UP button to end
the call.

ACCEPTING OR REFUSING A CALL

Press the PICK UP button to accept
a call.

Press the HANG UP button to refuse
a call.

DIAL

Press the end of the steering wheel stalk for more
than 2 seconds to access the telephone menu:
calls log, directory, voice mailbox.

CALLING A CONTACT

151

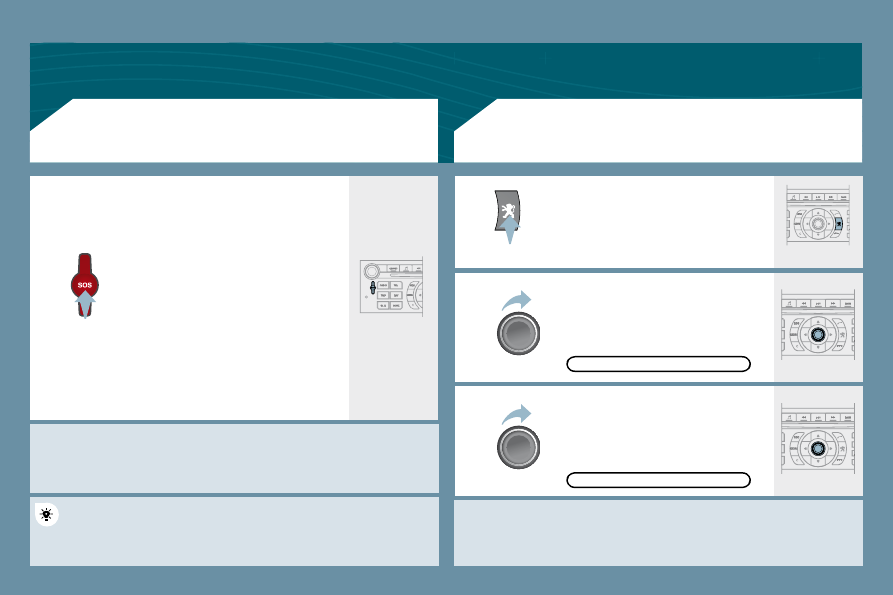

EMERGENCY CALL

In an emergency, press the SOS
button until an audible signal is
heard and a CONFIRMATION/
CANCELLATION screen is displayed

(if valid SIM card inserted).
A call is made to the emergency

services (112).
In certain countries * , this emergency
call is made directly by the PEUGEOT
Emergency team which locates the
vehicle and alerts the appropriate
emergency services as quickly as
possible.

PEUGEOT ASSISTANCE

CUSTOMER CONTACT CENTRE

When the  PEUGEOT  Emergency contract has been signed, it
is recommended that an initial call is made to the  PEUGEOT
Emergency team.

CONSULTING THE SERVICES

Press the LION button to gain access
to the PEUGEOT services * .

Select CUSTOMER CONTACT
CENTRE to request any information
about the PEUGEOT marque.

Select PEUGEOT ASSISTANCE to
make a breakdown assistance call.

* On condition that the PEUGEOT Emergency contract has been signed. This is free

and of unlimited duration. Consult a PEUGEOT dealer.

* These services and options are subject to conditions and availability.

152

RADIO: selection of the previous stored station.
MP3/JUKEBOX: selection of the previous directory.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.

RADIO: selection of the next stored station.
MP3/JUKEBOX: selection of the next directory.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.

RADIO: automatic search for a higher frequency.
CD/MP3/JUKEBOX/CD CHANGER: selection of the
next track.
CD/CD CHANGER: continuous press: fast
forwards play.

RADIO: automatic search for a lower frequency.
CD/MP3/JUKEBOX/CD CHANGER: selection of the
previous track.
CD/CD CHANGER: continuous press: fast
backwards play.

- Change of sound source.

  -   Conﬁ rmation of a selection.
  -   Pick up/Hang up the telephone.
  -   Press for more than 2 seconds:

access to the telephone menu.

Volume increase.

Volume decrease.

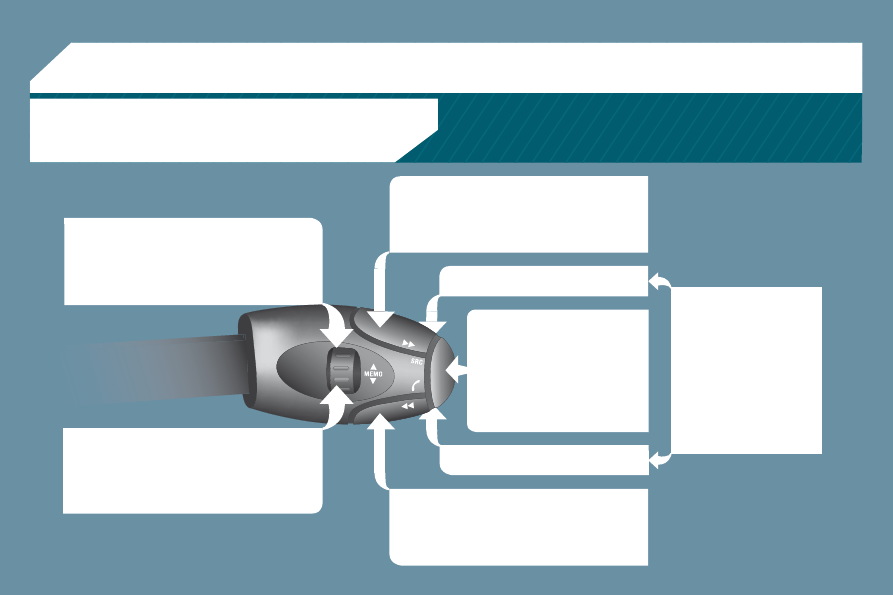

CONTROL SHORT-CUTS

STEERING WHEEL CONTROLS

Mute: by pressing the volume
increase and decrease
buttons simultaneously.

The sound is restored by
pressing one of the two
volume buttons.

153

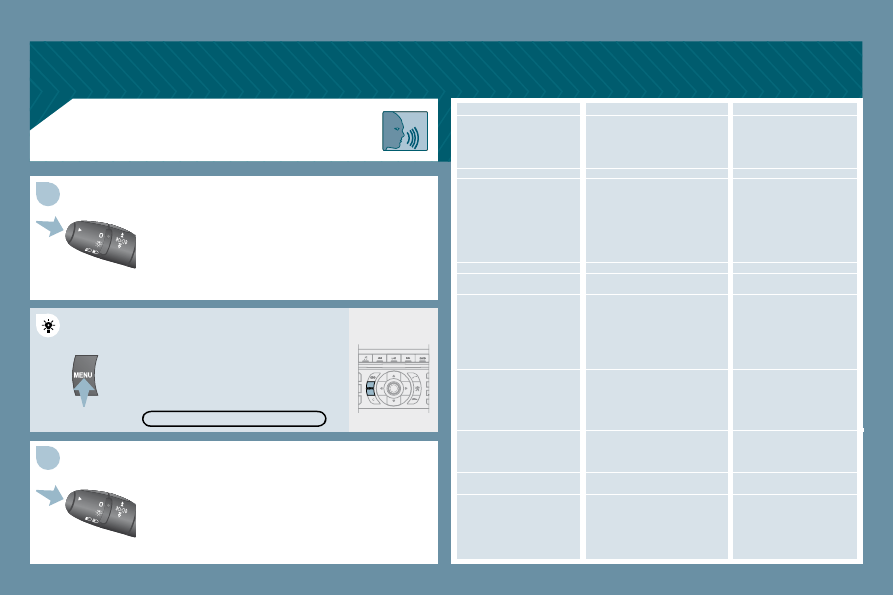

Press the end of the lights stalk to start th

tart the voice

recognition.
Say the words one by one and wait for the

for the audible

conﬁ rmation signal between each word.

conﬁ rmation signal between each word.
The list which follows is exhaustive.

DISPLAYING THE LIST AND USING THEM

To display the list of available voice comm

commands, press

the end of the lights stalk to start the voice

voice recognition,

then say HELP or WHAT CAN I SAY.

For the same operation, press and
hold the MENU button and select the
function VOICE COMMANDS LIST.

VOICE COMMANDS LIST

VOICE COMMANDS

LEVEL 1

display

call
CD changer

guide to
trafﬁ c info

CD player

navigation

radio

SMS/message

telephone

LEVEL 2

audio
guidance
navigation
trip computer
telephone
description

description
display
read
random play
list
track number
previous/next trackfolder

(CD MP3)

scan
stop/restart
address book
show

zoom in/out
autostore
list
memory
previous/next
display
read
voice mailbox
redial
voicemail
address book

LEVEL 3

1 ... 20

previous/next
repeat

destination

vehicle

1 ... 6

disk number
previous/next disk
random
list
track number
previous/next track
repeat
scan

description

154

CONFIGURATION

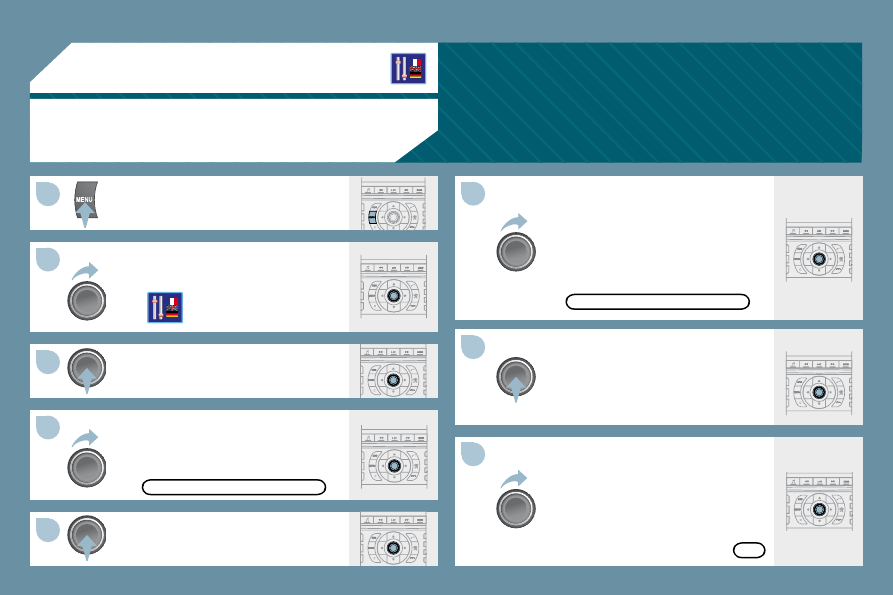

ADJUSTING THE DATE AND TIME

Press the MENU button.

Turn the dial and select the
CONFIGURATION function.

Press the dial to conﬁ rm the selection.

Turn the dial and select the DISPLAY
CONFIGURATION function.

Adjust the parameters one by one

conﬁ rming by pressing the dial. Next
select the OK tab on the display then

conﬁ rm.

Press the dial to conﬁ rm the selection.

DISPLAY CONFIGURATION

ADJUST THE DATE AND TIME

Press the dial to conﬁ rm the selection.

Turn the dial and select the ADJUST
THE DATE AND TIME function.

155

MAIN FUNCTION

NAVIGATION - GUIDANCE

previous destinations

DISPLAY FLOW CHARTS

set speech synthesis

activate/deactivate road names

map data base description

delete last destinations

MAP

CHOICE A

choice A1

choice A2

CHOICE B...

SELECT DESTINATION

enter an address

country:

town:

road:

N°/_:

curr. loc

directory

previous destinations

order/delete journey legs

divert route

chosen destination

GUIDANCE OPTIONS

deﬁ ne calculation criteria

fastest

shortest

distance/time

with tolls

with ferry

trafﬁ c info

STOP/RESUME GUIDANCE

MAP ORIENTATION

vehicle direction

north direction

3D view

MAP DETAILS

administration and safety

town halls, town centre

universities, colleges

hospitals

hotels, restaurants and shops

hotels

restaurants

vineyards

156

business centres

supermarkets, shopping

culture, tourism and shows

tourism

culture and museums

casinos and nightlife

cinemas and theatres

shows and exhibitions

sports and open air centres

sports centres

golf courses

skating rinks, bowling alleys

winter sports resorts

parks, gardens

theme parks

transport and automobile

airports, ports

stations, bus stations

vehicle rental

lay-bys, car parks

service stations, garages

DISPLAY MAP

full screen map

map in window

CONFIGURE MESSAGE ANNOUNCEMENT

read messages

new message display

TRAFFIC INFORMATION

AUDIO FUNCTIONS

MOVE THE MAP

READ MESSAGES

FILTER TRAFFIC INFORMATION

geographic ﬁ lter

around the vehicle

around location

on the route

road information

trafﬁ c information

road closure

size limit

road condition

weather and visibility

urban/city information

parking

public transport

demonstrations

SELECT TMC STATION

automatic TMC

manual TMC

list of TMC stations

RADIO FAVOURITES

enter a frequency

activate/deactivate RDS mode

activate/deactivate regional mode

display/hide radio text

CD, JUKEBOX FAVOURITES

activate/deactivate Introscan (SCN)

activate/deactivate Random mode (RDM)

activate/deactivate Repeat (RPT)

activate/deactivate display of CD info

STOP THE COPY

COPY CD TO JUKEBOX

copy complete CD

157

TELEMATICS

multiple selection

current album

current track

send a text message

write a text message

delete list of text messages

DIRECTORY

managing directory ﬁ les

consult or modify a ﬁ le

add a ﬁ le

delete a ﬁ le

delete all ﬁ les

conﬁ gure directory

select a directory

name directory

select starting directory

ﬁ le transfer

exchange by infrared

send all records

send one record

receive by infrared

exchange with SIM card

send all records to SIM

send one record to SIM

receive all SIM ﬁ les

receive a SIM ﬁ le

JUKEBOX

jukebox management

jukebox conﬁ guration

hi-ﬁ (320 kbps)

high (192 kbps)

normal (128 kbps)

delete jukebox data

PLAYLIST MANAGEMENT

CALL

call list

dial

directory

mailbox

services

customer contact centre

PEUGEOT assistance

messages received

TEXT MESSAGES (SMS)

read received text messages

TELEPHONE FUNCTIONS

network

network search mode

automatic mode

manual mode

networks available

length of calls

reset

manage PIN code

activate/deactivate

save PIN code

modify PIN code

call options

conﬁ gure calls

display my number

automatic reply after x ring(s)

ring options

for voice calls

for text messages (SMS)

158

Flow chart version 7.0

text message ring

calls diversion to mailbox n°

delete calls log

* The parameters vary according to vehicle

(refer to the "Multifunction displays" section).

CONFIGURATION

VIDEO

VEHICLE DIAGNOSTICS

Press the MENU button for more
than 2 seconds to access the

following ﬂ ow chart.

SERVICES CONFIGURATION

Press the Music button several
times in succession to access the
following settings.

Each audio source (Radio, CD, MP3,

Jukebox, CD changer) has its own
separate settings.

DISPLAY CONFIGURATION

choose colour

adjust luminosity

set date and time

select units

SOUND

voice commands setting

speech synthesis setting

guidance instructions volume

other message volume

select female/male voice

activate/deactivate auxiliary source

SELECT LANGUAGE

DEFINE VEHICLE PARAMETERS *

ACTIVATE VIDEO MODE

VIDEO PARAMETERS

display formats

adjust luminosity

set colours

set contrasts

ALERT LOG

STATUS OF FUNCTIONS *

RESET TYRE PRESS. DETEC. SYS. *

AIR CONDITIONING

ACTIVATE/SWITCH OFF AIR CON

ACTIVATE/DEACTIVATE SEPARATE LH-RH CONTROL

NAVIGATION DEMONSTRATION

UNIT DESCRIPTION

UNIT BACKUP POWER

GPS COVERAGE

AUDIO/TELEPHONE DIAGNOSTICS

VOICE COMMANDS LIST

FR-RR BALANCE

LOUDNESS CORRECTION

TREBLE

BASS

MUSICAL AMBIENCE

LH-RH BALANCE

AUTO VOLUME CORRECTION

170

There is a difference in
sound quality between
the different audio
sources (radio, CD, CD

changer...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio, CD,

CD changer...).

The CD is ejected
automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the Audio section.

- The audio equipment's CD player does not

play DVDs.

- Due to inadequate quality, certain recorded

CDs will not be played by the audio system.

- The CD changer does not play MP3 CDs.

The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

The CD player sound
is poor.

Insert good quality CDs and store them in
suitable conditions.

The CD used is scratched or of poor quality.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting
an ambience.

The table below groups together the answers to the most frequently asked questions.

QUESTION

SOLUTION

RESPONSE

FREQUENTLY ASKED QUESTIONS

171

(TA) is displayed. I do

not receive any trafﬁ c
information.

Tune to a radio station which broadcasts trafﬁ c
information.

The radio station is not part of the regional trafﬁ c information network.

QUESTION

SOLUTION

RESPONSE

The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is

displayed...).

The vehicle is too far from the transmitter used by the station listened to or
there is no transmitter in the geographical area through which the vehicle
is travelling.

The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.

This phenomenon is normal and does not
indicate a failure of the audio equipment.

Have the aerial checked by a PEUGEOT dealer.

Sound cut-outs of 1
to 2 seconds in radio
mode.

During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.

Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.

With the engine off,
the audio equipment
switches off after a
few minutes of use.

When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery
charge.

The stored stations do
not function (no sound,

87.5 Mhz is displayed...).

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.

The message "the audio
system is overheated"
appears on the display.

Switch the audio system off for a few minutes to
allow the system to cool.

In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing
of the CD.

159

AUDIO EQUIPMENT/HANDS-FREE KIT

CONTENTS

01 First steps

pg. 160

02 General menu

pg. 161

03 Audio

pg. 162

04 Hands-free kit

pg. 165

05 Control short-cuts

pg. 166

06 Conﬁ guration

pg. 167

07 Display ﬂ ow charts

pg. 168

Frequently asked questions pg. 170

The SERVICE BOX internet site provides additional
animated information about the WIP Sound. It can be
consulted at the following address:
http://public.servicebox.peugeot.com.
Simple registration permits access and free consultation
of the handbook.

The WIP Sound audio system is coded in such a way
that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer

for conﬁ guration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the WIP Sound audio system
may switch off after a few minutes.

WIP Sound

160

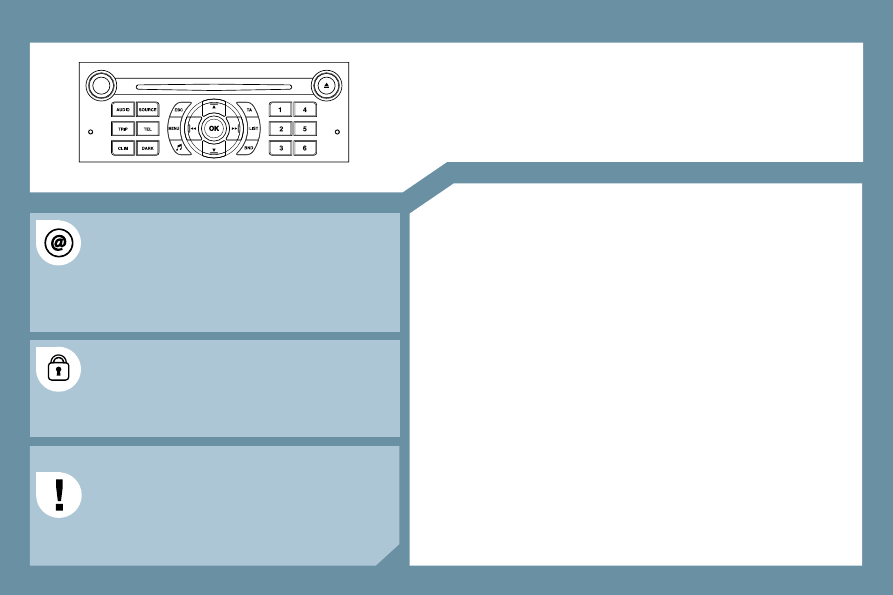

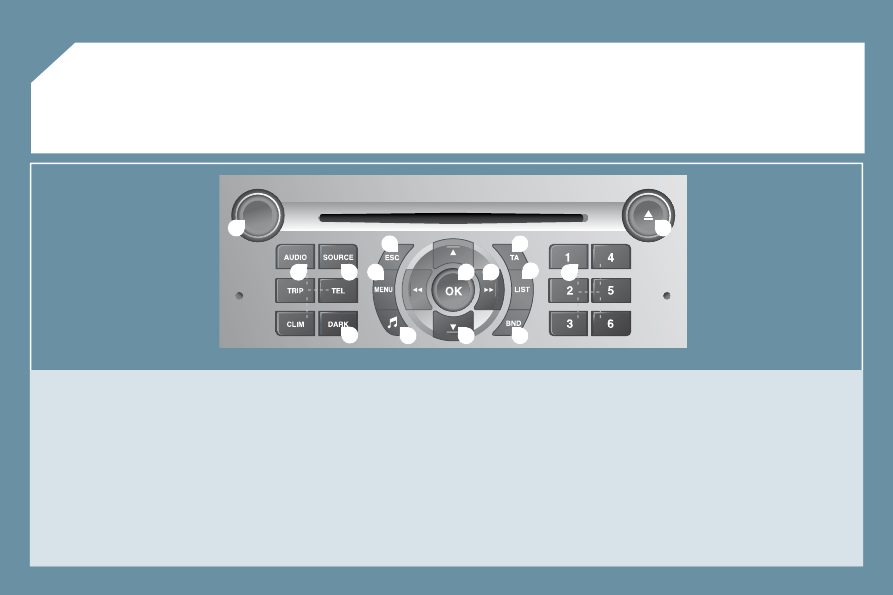

FIRST STEPS

1. On/Off and volume adjustment.

2. Selection of the display on the screen from the modes:

AUDIO, trip computer (TRIP), air conditioning (CLIM) and

hands-free kit (TEL). The TEL button is not active if the

hands-free kit option is not ﬁ tted.

3. Selection of the source: radio, CD and CD changer.

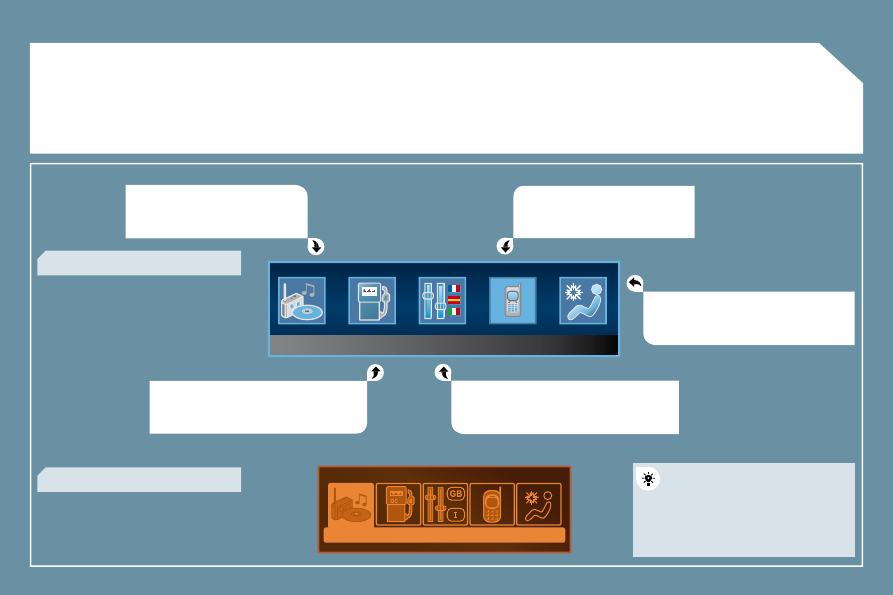

4. Displaying of the general menu.

5. Cancellation of the current operation/return to the previous

screen.

6. Conﬁ rmation.

7. Automatic search for a lower/higher frequency.

Selection of previous/next CD or MP3 track.

8. TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY

(radio Programme TYpes) mode.

9. Displaying of the list of local stations, of the tracks on the CD

or of the MP3 directories.

10. CD eject.

11. Buttons 1 to 6:

Selection of a stored radio station.

Selection of a CD in the CD changer.

Long press: storing of a station.

12. Selection of the FM1, FM2, FMast and AM wavebands.

13. Selection of a lower/higher radio frequency.

Selection of the previous/next CD.

Selection of the previous/next MP3 directory.

14. Setting the audio options: front/rear balance, left/right

balance, loudness, sound ambiences.

15. The DARK button changes the screen display for greater

driving comfort at night.

1st press: lighting of the upper banner only.

2nd press: black screen display.

3rd press: return to the standard display.

Peugeot 407 C Dag (2008 year). Instruction - part 11
