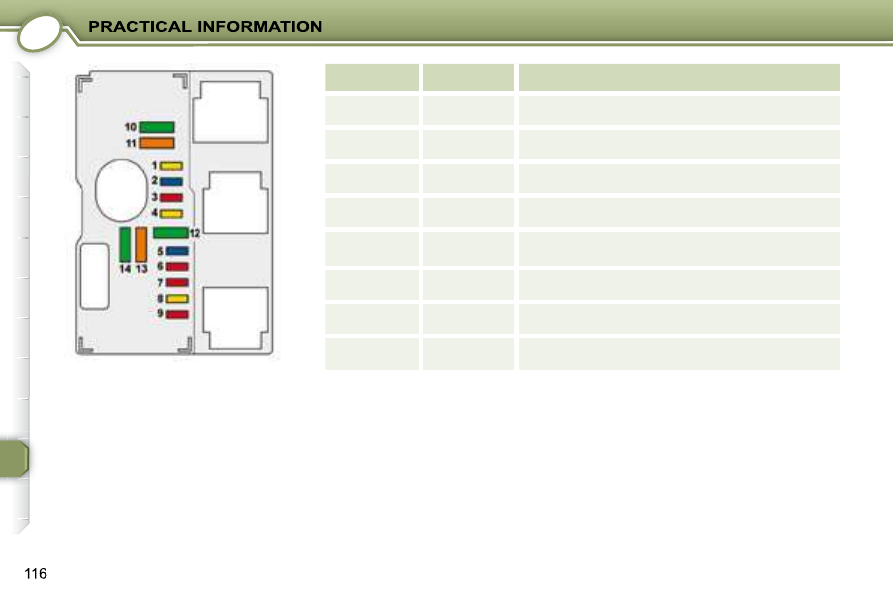

Engine compartment fuses

To  access  the  fuses  located  in  the
engine  compartment  (next  to  the  bat-
tery),  remove  the  battery  cover  and
unclip the fuse box cover.
Close the fuse box cover carefully and

reﬁ t the battery cover when you have

ﬁ nished.

Fuse N°

Rating

Functions

20 A

Engine control unit, fan assembly relay supply.

15 A

Horn.

10 A

Wash-wipe pump.

20 A

Headlamp wash pump.

15 A

Fuel pump, engine management actuators

(air ﬂ ow sensor, solenoid valves, ...).

10 A

ESP control unit.

10 A

Automatic headlamp adjustment.

20 A

Starter coil.

117

The electrical system of your
vehicle is designed to operate
with standard or optional equip-
ment.

Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.

  PEUGEOT   will  not  accept  responsi-
bility  for  the  cost  incurred  in  repairing
your  vehicle  or  for  rectifying  the  mal-
functions resulting from the installation
of  accessories  not  supplied  and  not
recommended  by   PEUGEOT   and  not
installed in accordance with its instruc-
tions,  in  particular  where  the  equip-
ment in question consumes more than
10 milliamperes.

The  maxi-fuses  provide  additional
protection  for  the  electrical  systems.
All  work  must  be  carried  out  by  a
PEUGEOT  dealer.

Fuse N°

Rating

Functions

10 A

Directional headlamps control unit, additional heating switching and protection control unit, clutch
switch.

30 A

A Engine management actuators (ignition coil, injectors, thermostats, solenoid valves, oxygen
sensors), diesel additive pump, fuel pump, engine control unit, Blow-by heater.

40 A

Air conditioning blower.

30 A

Windscreen wipers.

40 A

Built-in systems interface supply (ignition positive).

30 A

Not used.

118

CHANGING A WINDSCREEN
WIPER BLADE

ECONOMY MODE FUNCTION

After  the  engine  has  stopped,  certain
electrical  functions  can  be  used  for  a
maximum  duration  of  approximately
one hour, to prevent discharging of the
battery.

LOAD REDUCTION FUNCTION

When  driving,  certain  functions  (air
conditioning,  heated  rear  screen,
heating  system  for  passenger  com-
partment of diesel vehicles, etc.) may
be switched off temporarily, depending
on the level of battery charge.
Reactivation  of  these  functions  is  au-
tomatic,  once  the  battery  charge  is

sufﬁ cient.

  Note:   at  the  risk  of  discharg-
ing  the  battery,  the  functions
that  have  been  switched  off
may be reactivated manually.

Note: if the telephone is being
used when economy mode
starts, it will still be possible to

ﬁ nish the call.

A ﬂ at battery prevents the en-

gine from starting.

Replacing a blade
 Lift the arm, then unclip the blade

and remove it.

 Fit the new blade and fold down

the arm.

To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk.

Once  the  hour  is  over,  a  switching  to
economy  mode  message  appears  on
the  multi-function  display  and  the  ac-
tive functions are put on standby.
These  functions  are  reactivated  au-
tomatically  next  time  the  vehicle  is
driven.
In  order  to  resume  the  use  of  these
functions  immediately,  the  engine
must  be  started  and  left  to  run  for  a
few minutes.
The time available to you will then be
approximately  double  the  duration
for  which  the  engine  is  left  running.
However,  this  period  will  always  be

between ﬁ ve and thirty minutes.

This time may be signiﬁ cantly

reduced if the battery charge
is low.

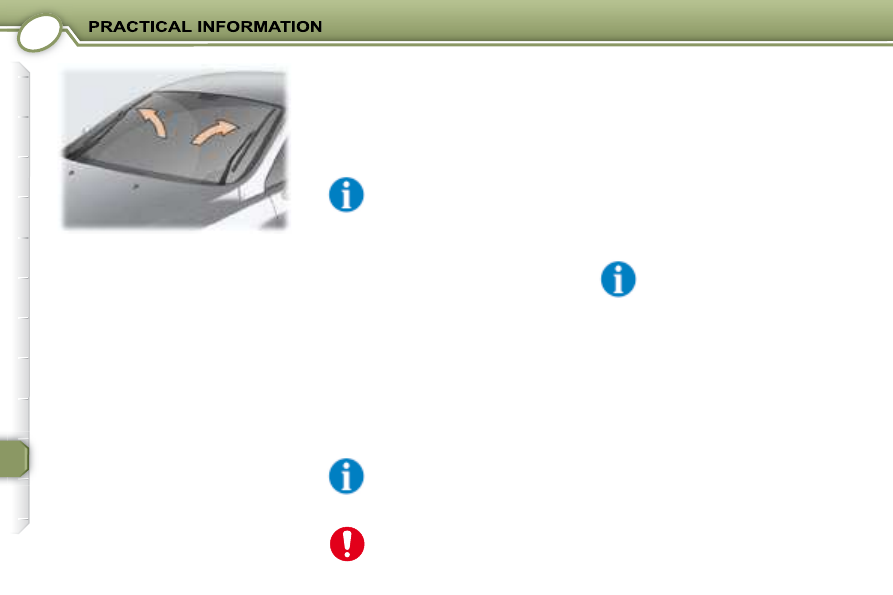

Placing the wiper blades in the
maintenance position
 Less than one minute after switching

off the ignition, press the windscreen
wiper stalk down once to position the
blades at the top of the windscreen
(maintenance position).

119

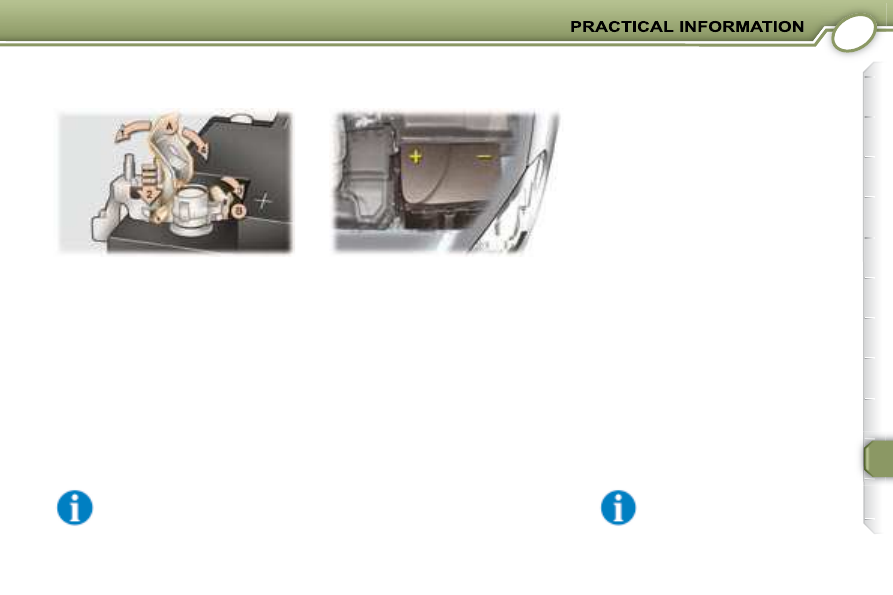

Disconnecting/Reconnecting the
cables
-

Raise the locking plate A .

Position the open clip of the cable
on the positive (+) terminal of the
battery.

Press until the position checking
system B tilts.

Lock the clip by lowering the locking
plate while pressing on the clip.

To start the vehicle from another
battery:
-

Connect the red cable to the positive
(+) terminals of the two batteries,

Connect one end of the green or
black cable to the negative (-) ter-
minal of the slave battery,

Connect the other end of the green
or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,

Operate the starter, let the engine
run.

Wait for the engine to return to idle,
then disconnect the cables.

BATTERY (LOCATED IN THE
ENGINE COMPARTMENT)

To charge the battery using a
battery charger:
-

Disconnect the battery,

Follow the instructions for use given
by the battery charger manufacturer,

Reconnect starting with the nega-
tive (-) terminal,

Check  that  the  terminals  and
connectors  are  clean.  If  they  are
covered  with  sulphate  (white  or
greenish deposit), disconnect them
and clean them.

It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.

Do not force the plate as lock-
ing is not possible if the clip is
not positioned correctly.
Start the procedure again.

120

Before disconnecting the bat-
tery, you must wait for 2 minu-
tes after switching off the
ignition.

Never disconnect a terminal when the
engine is running.
Never charge a battery without ﬁ rst

disconnecting the terminals.
Open the windows and close the sun-
roof  before  disconnecting  the  battery.
If they do not operate normally follow-
ing  reconnection  of  the  battery,  they
must  be  reinitialised  (see  paragraphs
"Reinitialisation  of  the  electric  win-
dows" and "Sunroof").
   After  every  reconnection  of  the  bat-
tery,  switch  on  the  ignition  and  wait
1  minute  before  starting  to  allow  the
electronic  systems  to  be  initialised.

However, if slight difﬁ culties are ex-

perienced  after  this,  please  contact  a
PEUGEOT  dealer.
  On  the  2.7  litre  24V  HDI  engine,  if
there  is  no  battery  in  the  boot,  do
not  connect  a  slave  battery  to  the
positive  (+)  and  negative  (-)  termi-
nals  under  the  bonnet  as  a  short
circuit may occur.

The  batteries  contain  harmful
substances such as sulphuric
acid  and  lead.  They  must  be
disposed  of  in  accordance

with regulations and must never be
discarded with household waste.
Take used batteries to an approved
collection point.

 open the bonnet,
 use the two additional positive (+)

and negative (-) terminals located
under the bonnet,

 open the red cover of the positive

(+) terminal,

 connect the red cable between the

positive (+) terminal and the positive
(+) terminal of the slave battery,

 connect the green or black cable

between the negative (-) terminal
and the negative (-) terminal of the
slave battery,

 operate the starter, let the engine

run,

 wait for the engine to return to idle,

then disconnect the cables,

 close the red cover of the positive

(+) terminal,



reﬁ t the left side cover,

 close the bonnet.

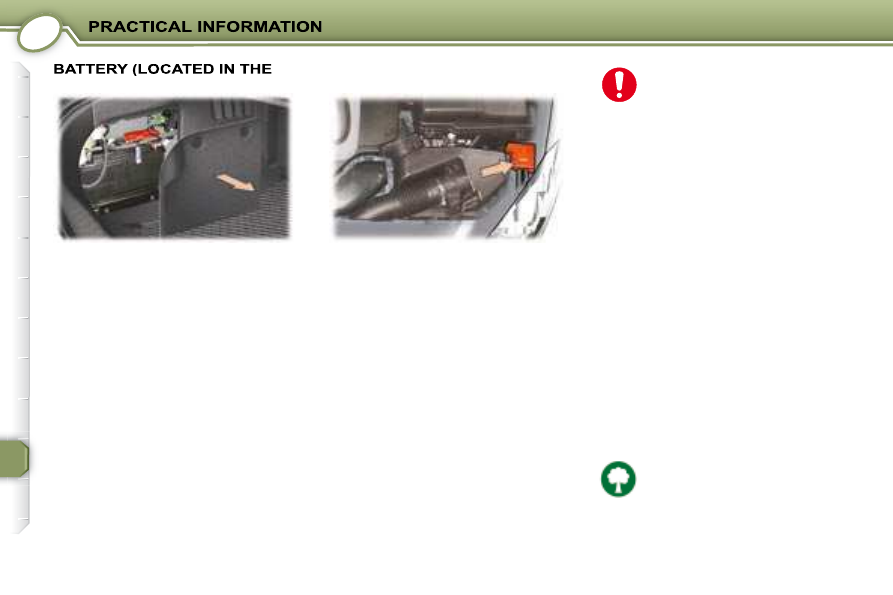

BOOT) *

* Vehicles ﬁ tted with the 2.7 litre HDI

24 V engine.

The battery is in the left boot trim.
  To charge the battery using a battery
charger (boot open):
      fold down the panel to gain access

to the battery,

 disconnect the battery,
 follow the instructions for use given

by the battery charger manufacturer,

 reconnect starting with the nega-

tive (-) terminal,

 raise the panel and close it.

To start the vehicle from another
battery:

121

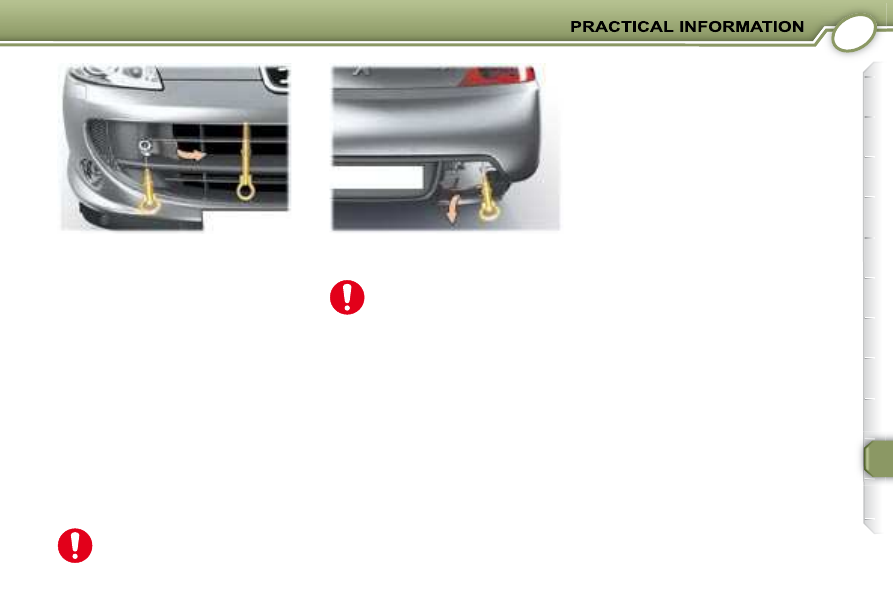

TOWING YOUR VEHICLE

From the rear:
 Unclip the cover, pulling the upper

rib towards you,

 Screw in the towing eye as far as it

will go.

Special featuresof the
automatic gearbox

Lifting
(2 wheels only on the ground)

It is preferable to raise the vehicle with
a professional lifting device.

When towing with the engine
switched off, there is no brak-
ing or steering assistance.

  From the front:
      Unclip the left part of the cover,
     Screw in the towing eye as far as it

will go.

Towing a vehicle with an auto-
matic gearbox in reverse gear
is prohibited (absence of
lubrication).

When being towed with all four wheels
on the ground, it is imperative that the
following rules are obeyed:
-

selector lever in position N ,

the vehicle must be towed at a speed
of less than 30 mph (50 km/h) over
a maximum distance of 30 miles
(50 km),

do not add oil to the gearbox.

Without lifting
(4 wheels on the ground)

You must always use a towbar.
The removable towing eye is inside
the spare wheel.

122

In all cases, pay attention to the coolant
temperature.

  Brakes:   towing  increases  the  braking
distance.  Drive  at  a  moderate  speed,
change down early and brake gradually.
  Side  wind:   sensitivity  to  side  wind  is
increased.  Drive  smoothly  and  at  a
moderate speed.

TOWING A TRAILER,
CARAVAN, BOAT, ETC...

We  recommend  the  use  of  original
PEUGEOT   towbars  which  have  been
tested  and  approved  from  the  design
stage of your vehicle and that the tow-

bar is ﬁ tted by a PEUGEOT dealer.

Driving advice

  Distribution  of  loads:   distribute  the
load  in  the  trailer  so  that  the  heavi-
est  loads  are  as  close  as  possible  to
the axle and the nose weight is close
to  the  maximum  authorised  without,
however, exceeding it.
  Cooling:  towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling  capacity  is  not  dependent  on
the engine speed.

  Note:  in certain cases of par-
ticularly  arduous  use  (towing
the  maximum  load  in  high
temperatures), the engine au-

tomatically limits its power and selects
the  appropriate  automatic  gearbox
gear  in  manual  mode.  In  this  case,
cutting  off  the  air  conditioning  allows
the engine power to be recovered, and
therefore the towing capacity to be in-
creased.

If  the  coolant  temperature
warning  light  comes  on,  stop
the  vehicle  and  switch  off  the
engine as soon as possible.

Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressure.

123

ACCESSORIES FOR YOUR
407 COUPÉ

A  wide  range  of  accessories  recom-
mended  by   PEUGEOT   and  original
parts are offered by the network.
They  all  beneﬁ t  from   PEUGEOT's

recom mendation.
These accessories and parts, having
been tested and approved for reliabil-
ity and safety, are all adapted to your
PEUGEOT vehicle.
The

product

range

offered

PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.

Anti-theft alarm, engraved
windows, wheel anti-theft

devices, ﬁ rst aid kit, warning

triangle, high visibility safety
jacket, snow chains, anti-
skid covers, ...

"Protection":

Mats, boot tray.
For  leisure  pursuits:  child
seats  and  booster  cushions,
audio/telephone console, cool
box, bicycle carrier on towbar.

Trailer towbar which must be ﬁ t-

ted by the PEUGEOT network.

"Touring":

Telephone, hands-free kits, sat-
ellite navigation, CD changer,
multimedia, USB Box.

"In-Car Technology":

Alloy  wheels,  wheel  trims,
spoiler,  seat  covers  com-
patible  with  side  air  bags,
twin exhaust tailpipe.

"Styling":

Windscreen wash ﬂ uid, inte-

rior and exterior cleaning and
maintenance products.

"Universal":

The ﬁ tting of electrical equip-

ment or accessories which
are

not

recommended

PEUGEOT may result in a fail-

ure of your vehicle's electronic system.
Please note this speciﬁ c warning. You

are  advised  to  contact  a  representa-
tive  of  the  Marque  to  be  shown  the
range  of  recommended  equipment
and accessories.
The  NINETEEN  alloy  wheels  which
are  available  as  accessories  require

the ﬁ tting of tyres of speciﬁ c dimen-

sions (235/40ZR19 96 Y), with a maxi-
mum section of 236 mm. Consult a
PEUGEOT dealer.

Depending  on  the  country  in
which  the  vehicle  is  sold,  it
is  compulsory  to  have  a  high
visibility safety jacket, warning

triangle and spare bulbs available in
the vehicle.

  Note
To  prevent  the  mat  from  becoming
caught under the pedals:
   -

ensure that the mat is positioned
and secured correctly,

- never ﬁ t one mat on top of another.

124

* Draining by gravity with oil ﬁ ller cap open.

ENGINES AND GEARBOXES

Model codes: 6J..

3FYH

XFVJ

ENGINES PETROL

2.2 litre 16V

3 litre V6 24V

Cubic capacity (cm

)

2 231

2 946

Bore x stroke (mm)

86 x 96

87 x 82.6

EU standard maximum power (kW)/(bhp)

120/163

155/211

Maximum power engine speed (rpm)

5 876

6 000

EU standard maximum torque (Nm)

220

290

Maximum torque engine speed (rpm)

4 126

3 750

Fuel

Unleaded

Catalytic converter

Yes

Gearbox

Manual (6-speed)

Automatic (6-speed)

Oil capacity (in litres)

Engine (with cartridge replacement) *

4.75

5.25

126

* Draining by gravity with oil ﬁ ller cap open.

ENGINES AND GEARBOXES

Model codes: 6J...

RHRH

UHZJ

DIESEL ENGINES

2 litre HDI 16V

2.7 litre HDI V6 24V

Cubic capacity (cm

)

1 997

2 720

Bore x stroke (mm)

85 x 88

81 x 88

EU standard maximum power (kW)/(bhp)

100

150/204

Maximum power engine speed (rpm)

4 000

EU standard maximum torque (Nm)

320

440

Maximum torque engine speed (rpm)

2 000

1 900

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter (PEF)

Yes

Gearbox

Manual

(6-speed)

Automatic

(6-speed)

Oil capacity (in litres)

Engine (with cartridge replacement) *

5.25

5.80

125

TECHNICAL DATA

The consumption ﬁ gures shown here correspond to the values communicated at the time of printing. These consumption

values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style

of driving, trafﬁ c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the

accessories.

** The kerb weight is equal to the unladen vehicle + driver (75 kg).

*** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

Petrol engines

Gearboxes Model codes

Urban driving mpg

(litres/100 km )

Inter-urban

driving mpg

(litres/100 km)

Mixed driving mpg

(litres/100 km)

Emission of

by mass

(g/km)

2.2 litre 16V

Manual

6J3FYH

21.6 (13.1)

40.9 (6.9)

30.7 (9.2)

219

3 litre V6 24V

Automatic

6JXFVJ

18.8 (15.0)

38.7 (7.3)

27.6 (10.2)

242

(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.

The braked trailer weight may be increased by (1) 250 kg, on condition that the load in the vehicle is reduced so that the GTW

is not exceeded.

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when the

exterior temperature is higher than 37 °C, limit the weight towed to 600 kg, without load transfer.

Petrol engines

2.2 litre 16V

3 litre V6 24V

Gearbox

Manual

Automatic

Model codes:

6J3FYH

6JXFVJ

Kerb weight **

1 660

1 763

Gross vehicle weight (GVW)

1 940

2 060

Gross train weight (GTW) ***

3 140

3 360

Unbraked trailer weight

750

Braked trailer weight (a)

1 200 (1)

1 300 (1)

Recommended nose weight

In accordance with EC Directive 80/1268 (as amended)

CONSUMPTION

127

TECHNICAL DATA

The consumption ﬁ gures shown here correspond to the values communicated at the time of printing. These consumption

values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style

of driving, trafﬁ c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the

accessories.

** The kerb weight is equal to the unladen vehicle + driver (75 kg).

*** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.

The braked trailer weight may be increased by (1) 250 kg, on condition that the load in the vehicle is reduced so that the GTW

is not exceeded.

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when the

exterior temperature is higher than 37 °C, limit the weight towed to 600 kg, without load transfer.

WEIGHTS AND TOWED LOADS (IN KG)

CONSUMPTION

Diesel engines

2 litre HDI 16V

2.7 litre HDI V6 24V

Gearbox

Manual

Automatic

Model codes:

6JRHRH

6JUHZJ

Kerb weight **

1 716

1 850

Gross vehicle weight (GVW)

1 989

2 130

Gross train weight (GTW) ***

3 289

3 430

Unbraked trailer

750

Braked trailer (a)

1 300 (1)

Recommended nose weight

** The kerb weight is equal to the unladen vehicle + driver (75 kg).

Diesel engines

Gearboxes

Model
codes

Urban driving

mpg (l/100 km)

Inter-urban

driving mpg

(l/100 km)

Mixed driving

mpg (l/100 km)

Emission of

by mass

(g/km)

2 litre HDI 16V

Manual

6JRHRH

36.2 (7.8)

58.8 (4.8)

47.9 (5.9)

156

2.7 litre HDI V6 24V

Automatic

6JUHZJ

23.7 (11.9)

43.5 (6.5)

33.2 (8.5)

226

In accordance with EC Directive 80/1268 (as amended)

129

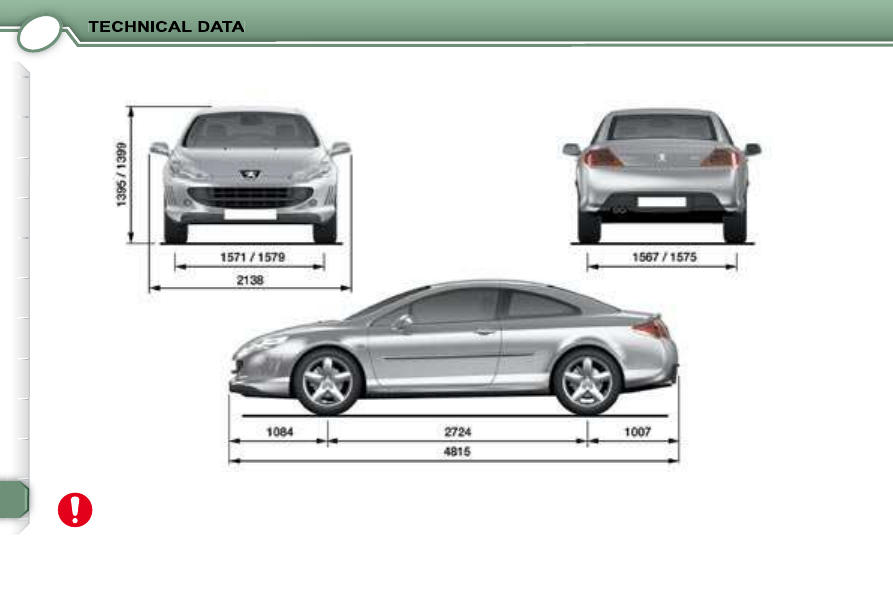

TECHNICAL DATA

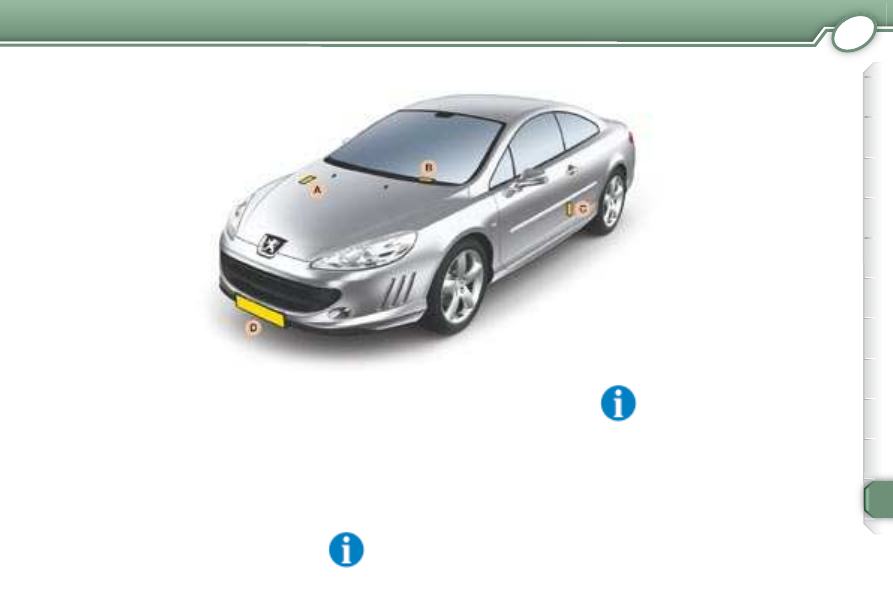

A -

Serial number on the bodywork.

B -

Serial number on the fascia (visible

at the bottom of the windscreen).

C -

Manufacturer's plates and tyre pres-

sure and paint colour reference label.

The labels C on the centre door pillars

indicate:

- the serial number (V.I.N.),

- the wheel and tyre sizes,

- the brands of tyres approved by

the manufacturer,

- the tyre pressures,

- the paint colour reference.

Tyres of sizes 215/55 R17

and 235/45 R18 can be ﬁ tted

with snow chains, contact a

PEUGEOT dealer.

IDENTIFICATION FEATURES OF YOUR 407

The pressure must be checked

cold, at least once a month.

D -

Front number plate.

In the event of replacement, a front

number plate of a height less than or

equal to 110 mm must be ﬁ tted pro-

vided that this size conforms to current

regulations.

Otherwise, contact a PEUGEOT dealer.

130

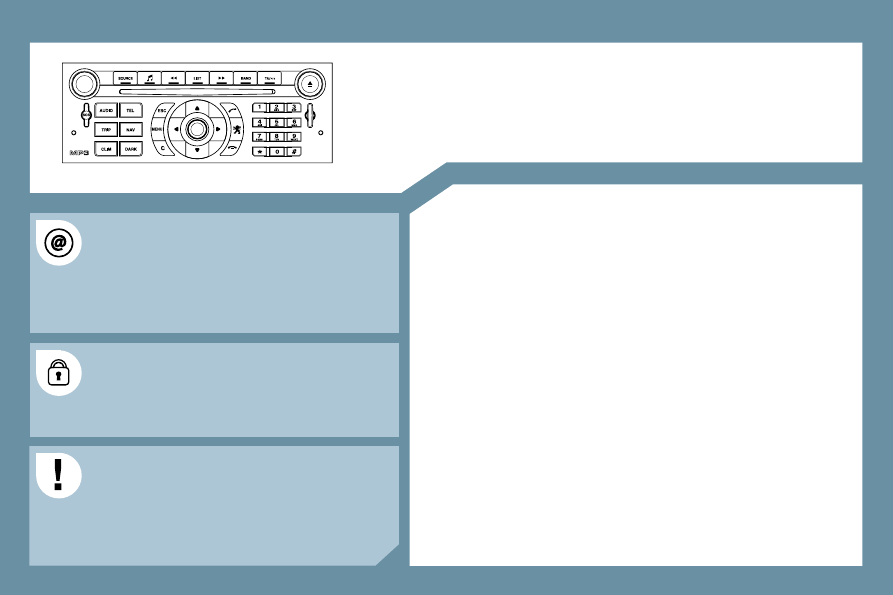

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

The SERVICE BOX internet site provides additional
animated information about the WIP Com. It can be
consulted at the following address:
http://public.servicebox.peugeot.com.
Simple registration permits access and free consultation of
the handbook.

The WIP Com audio and telematics system is coded in
such a way that it will only operate in your vehicle. If it is
to be installed in another vehicle, contact a PEUGEOT

dealer for conﬁ guration of the system.

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary. When the engine is switched off
and to prevent discharging of the battery, the WIP Com
audio and telematics system may switch off after a few
minutes.

CONTENTS

01 First steps

pg. 131

02 General menu

pg. 132

03 GPS

pg. 133

04 Trafﬁ c information

pg. 141

05 Audio

pg. 143

06 Telephone

pg. 149

07 Control short-cuts

pg. 152

08 Conﬁ guration

pg. 154

09 Display ﬂ ow charts

pg. 155

Frequently asked questions pg. 170

WIP Com

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

131

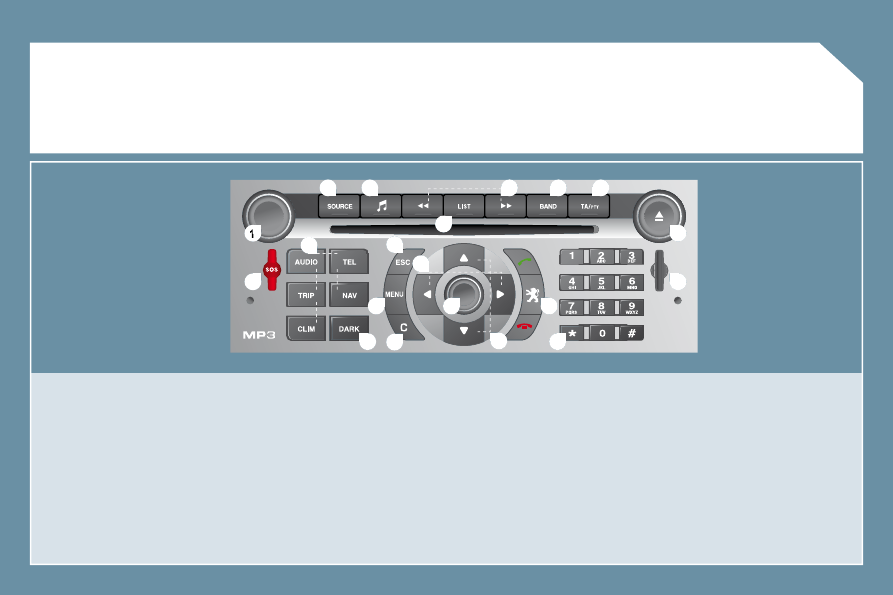

1. On/Off and Volume adjustment.

2. Selection of the source: radio, Jukebox, CD, CD changer

and auxiliary (AUX, if activated on the Conﬁ guration menu).
Long press: CD copy to hard disc.

3. Audio option adjustments: front/rear, left/right balance,

loudness, sound ambiences.

4. Displaying of the list of local radio stations, of the tracks on

the CD or of the MP3/Jukebox directories.
Long press: updating of the local radio stations.

5. Automatic search for a lower/higher frequency.

Selection of the previous/next CD, MP3 or Jukebox track.

6. Selection of the wavebands FM1, FM2, FMast, AM.

7. TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY (radio Programme TYpes) mode.

8. Ejection of the CD.

9. SIM card slot.

10. Keypad for entering descriptions by successive presses.

11. Access to the " PEUGEOT " services menu.

12. Selection and conﬁ rmation.

13. Selection of the previous/next CD. Selection of the previous/

next MP3/Jukebox directory.

14. Selection of a lower/higher frequency.

15. Cancellation of the current operation.

Long press: return to the current application.

16. Displaying of the general menu.

17. Deletion of the last character entered or of the entire line.

18. Modiﬁ cation of the screen display.

Long press: reinitialisation of the WIP Com audio and
telematics system.

19. Selection of the display on the screen from the modes:

TRIP, TEL, CLIM, NAV and AUDIO.

20. Long press on the SOS button: emergency call.

FIRST STEPS

Peugeot 407 C Dag (2008 year). Instruction - part 9
