PETROL/LPG TWIN FUEL VERSION

Models

Saloon

Estate/Family estate

Model codes

8B6FZ

8E6FZ/8F6FZ

Engine

1.8 litre 16V

Cubic capacity (cm3)

1 749

Bore x stroke

82.7 x 81.4

Number of valves

Max. power: EU standard (KW)

85 to 5 500 rpm

LPG max. power: EU standard (KW)

80 to 5 500 rpm

Max. torque: EU standard (Nm)

160 to 4 000 rpm

Fuel

Unleaded/LPG

Catalytic converter

Yes

Electronic injection

Yes

Gearbox

Manual

(5-speed)

Petrol/LPG consumption (in litres)

Urban driving

10.6/14.4

10.8/14.8

Inter-urban driving

6.0/8.1

6.2/8.5

Mixed driving

7.7/10.4

7.9/10.8

Emission of CO2 by mass

182/168

187/174

Weights and towing weights (in kg)

Kerb weight

1 472

1 527

Gross vehicle weight (GVW)

1 855

2 015

Gross train weight (GTW)

3 055

3 215

Braked trailer weight (within GTW limit)

1 200

Recommended nose weight

17-02-2003

160

TECHNICAL DATA

Consumption, saloon

As per directive 99/100 in M.P.G. (litres/100 km)

Engine

Model

Gearbox

Urban

Inter-urban

Mixed

Emission

codes

driving

of CO

driving

by mass

1.8 litre 16 valve

Manual

8B6FZ

26.6

(10.6)

47.1

(6.0)

36.7

(7.7)

182 g/km

1.8 litre 16 valve

Automatic

8B6FZ

22.9

(12.3)

45.6

(6.2)

33.6

(8.4)

201 g/km

2 litre 16 valve

Manual

8BRFN

24.6

(11.5)

43.5

(6.5)

34.0

(8.3)

197 g/km

2 litre

16 valve

Automatic

8BRF/N

22.9

(12.3)

43.5

(6.5)

32.8

(8.6)

206 g/km

2 litres 16 valve

Manual

8BR6F

2 litre 16 valve HPI

Manual

8BRLZ

27.4

(10.3)

47.1

(6.0)

37.6

(7.5)

177 g/km

2.2 litre 16V

Manual

8B3FZ

22.0

(12.8)

43.5

(6.5)

32.1

(8.8)

210 g/km

V6 24 valve

Manual

8BXFX

20.6

(13.7)

39.2

(7.2)

29.4

(9.6)

229 g/km

V6 24 valve

Automatic

8BXFX

19.7

(14.3)

37.6

(7.5)

28.2 (10)

238 g/km

2 litre HDI

Manual

8BRHY

38.2

(7.4)

64.2

(4.4)

51.4

(5.6)

148 g/km

2 litre HDI

Manual

8BRHZ/S

37.6/37.0 (7.5/7.6)

62.8/61.7 (4.5/4.6)

50.4/49.6 (5.6/5.7)

147/149 g/km

2 litre HDI

Automatic

8BRHZ

31.7

(8.9)

55.4

(5.1)

43.5

(6.5)

173 g/km

2.2 litre HDI

16V

Manual

8B4HX

32.1

(8.8)

57.6

(4.9)

44.1

(6.4)

168 gkm

Fuel consumption values correct at time of printing.

17-02-2003

161

TECHNICAL DATA

Consumption, estate

As per directive 99/100 in M.P.G. (litres/100 km)

Engine

Model

Gearbox

Urban

Inter-urban

Mixed

Emission

codes

driving

of CO

driving

by mass

1.8 litre 16V

Manual

8E6FZ

26.2

(10.8)

45.6

(6.2)

35.8

(7.9)

187 g/km

8F6FZ

1.8 litre 16V

Automatic

8E6FZ

22.8

(12.4)

44.1

(6.4)

32.8

(8.6)

206 g/km

8F6FZ

2 litre 16 valve

Manual

8ERFN

24.6

(11.5)

42.8

(6.6)

33.6

(8.4)

200 g/km

8FRFN

2 litre 16 valve

Automatic

8ERFN

22.9

(12.3)

42.8

(6.6)

32.4

(8.7)

208 g/km

8FRFN

2.2 litre 16 valve

Manual

8ER6F

2 litre HPI 16V

Manual

8ERLZ

27.2

(10.4)

45.6

(6.2)

36.7

(7.7)

185 g/km

8FRLZ

2.2 litre 16 valve

Manual

8E3FZ

22.0

(12.8)

40.4

(6.7)

31.8

(8.9)

212 g/km

8F3FZ

V6 24 valve

Manual

8EXFX

20.3

(13.9)

38.1

(7.4)

28.8

(9.8)

234 g/km

8FXFX

V6 24 valve

Automatic

8EXFX

19.4

(14.5)

36.6

(7.7)

27.6

(10.2)

243 g/km

8FXFX

2 litre HDI

Manual

8ERHY

37.8

(7.5)

61.7

(4.6)

49.6

(5.7)

151 g/km

8FRHY

2 litre HDI

Manual

8ERHZ/S

37.7 (7.5/-)

60.1 (4.7/-)

49.6 (5.7/-)

156/- g/km

8FRHZ/S

2 litre HDI

Automatic

8ERHZ

30.4

(9.3)

54.3

(5.2)

42.2

(6.7)

178 g/km

8FRHZ

2.2 litre HDI 16V

Manual

8E4HX

32.1

(8.8)

55.4

(5.1)

43.5

(6.5)

170 g/km

8F4HX

Fuel consumption values correct at time of printing.

17-02-2003

162

TECHNICAL DATA

Weights and towing weights (in kg), SALOON

Engines

1.8 litre

2 litre

2.2 litre

16 valve

16 valve 16 valve 16 valve 16 valve HPI 16V 16 valve 24 valve

Gearbox

Manual

Auto

Manual

Auto Manual Manual Manual

Model codes: 8B

LFY

6FZ

RFN

RLZ

3FZ

XFX

•Kerb weight

1 260

1 315

1 340

1 350

1 370

1 340

1 370

1 455

•Gross vehicle weight (GVW)

1 790

1 855

1 880

1 890

1 910

1 880

1 910

1 995

•Gross train weight (GTW)*

2 990

3 055

2 980

3 090

3 110

3 080

3 110

3 295

•Braked trailer weight

(within GTW limit)

1 500

1 300

1 500

•Recommended nose weight

Engines

2 litre

2.2 litre

24 valve

HDI

HDI 16V

Gearbox

Auto.

Manual

Auto. Manual

Model codes: 8B

XFX

RHY

RHZ

4HX

•Kerb weight

1 475

1 300

1 410

1 400

1 410

•Gross vehicle weight (GVW)

2 015

1 870

1 950

1 940

1 950

•Gross train weight (GTW)*

3 315

3 070

3 150

3 450

3 150

•Braked trailer weight

(within GTW limit)

1 500

•Recommended nose weight

* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).

17-02-2003

163

TECHNICAL DATA

Weights and towing weights (in kg), ESTATE

Engines

1.8 litre

2 litre

2 litre HPI

2.2 litre

16 valve

16 valve 16 valve

16 valve 16 valve 16 valve 16 valve 16 valve

Gearbox

Manual

Auto.

Manual

Auto. Manual Manual Manual Auto.

Model codes: 8E

6FZ

RFN

RLZ

3FZ

XFX

• Kerb weight

1 365

1 395

1 400

1 420

1 400

1 420

1 505

1 525

• Gross vehicle weight (GVW)

2 015

2 045

2 050

2 070

2 050

2 070

2 155

2 175

• Gross train weight (GTW)*

3 215

3 245

3 250

3 270

3 250

3 270

3 455

3 475

• Braked trailer weight (within GTW limit)

1 500

• Recommended nose weight

Engines

2 litre

2.2 litre HDI

HDI

16 valve

Gearbox

Manual

Auto. Manual

Model codes: 8E

RHY

RHZ

4HX

• Kerb weight

1 380

1 425

1 460

• Gross vehicle weight (GVW)

2 030

2 075

2 110

• Gross train weight (GTW)*

3 230

3 275

3 310

• Braked trailer weight

(within GTW limit)

1 500

• Recommended nose weight

* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).

17-02-2003

164

TECHNICAL DATA

Weights and towing weights (in kg), 7-SEATER ESTATE

Engines

1.8 litre

2 litre

2.2 litre

2 litre

litre

16 valve

16 valve HPI 16V

16 valve

HDI

Gearbox

Manual

Auto.

Manual

Auto. Manual Manual Manual Manual

Model codes: 8F

6FZ

RFN

RLZ

3FZ

RHY

RHZ

• Kerb weight

1 405

1 425

1 420

1 440

1 405

1 440

1 400

1 445

• Gross vehicle weight (GVW)

2 035

2 050

2 070

2 035

2 070

2 030

2 125

• Gross train weight (GTW)*

3 235

3 255

3 250

3 270

3 235

3 270

3 230

3 325

• Braked trailer weight (within GTW limit)

1 500

• Recommended nose weight

Engines

2 litre

2 litre HDI

HDI

16 valve

Gearbox

Auto.

Manual

Model codes: 8F

RHZ

4HX

•Kerb weight

1 460

1 465

•Gross vehicle weight (GVW)

2 140

2 145

•Gross train weight (GTW)*

3 340

3 345

•Braked trailer weight (within GTW limit)

1 500

•Recommended nose weight

* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).

17-02-2003

165

TECHNICAL DATA

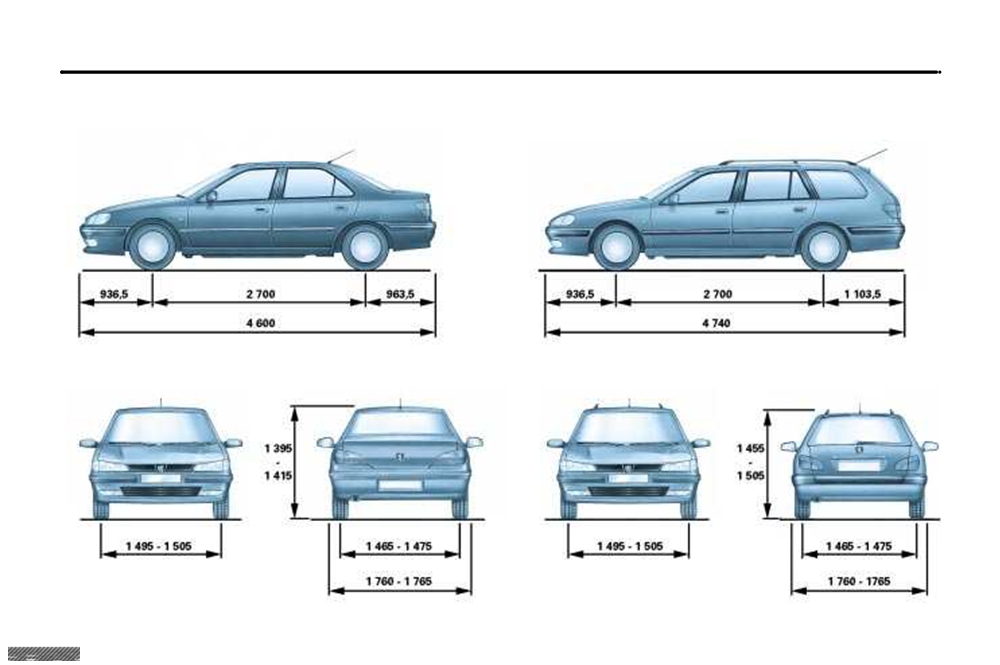

Dimensions, saloon (in mm)

Dimensions, estate (in mm)

17-02-2003

166

TECHNICAL DATA

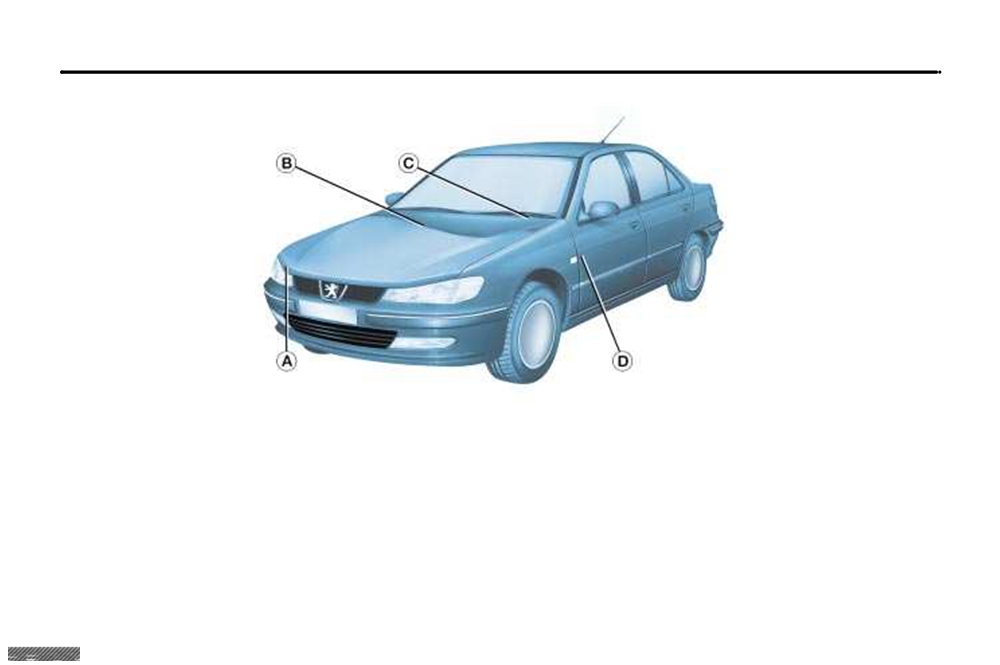

THE IDENTIFICATION FEATURES OF YOUR 406

A. Manufacturer's plate.

B. Model serial number.

C. Serial number on the fascia.

D. Tyres and paint colour reference.

The label D on the driver's door pillar, near the hinges, gives:

- the wheel and tyre sizes,

- the brands of tyres approved by the manufacturer,

- the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month)

– the paint colour reference.

17-02-2003
