CD CHANGER (RM2 and RD3)

This is located inside the boot on the left hand side. It holds up to 6 discs.

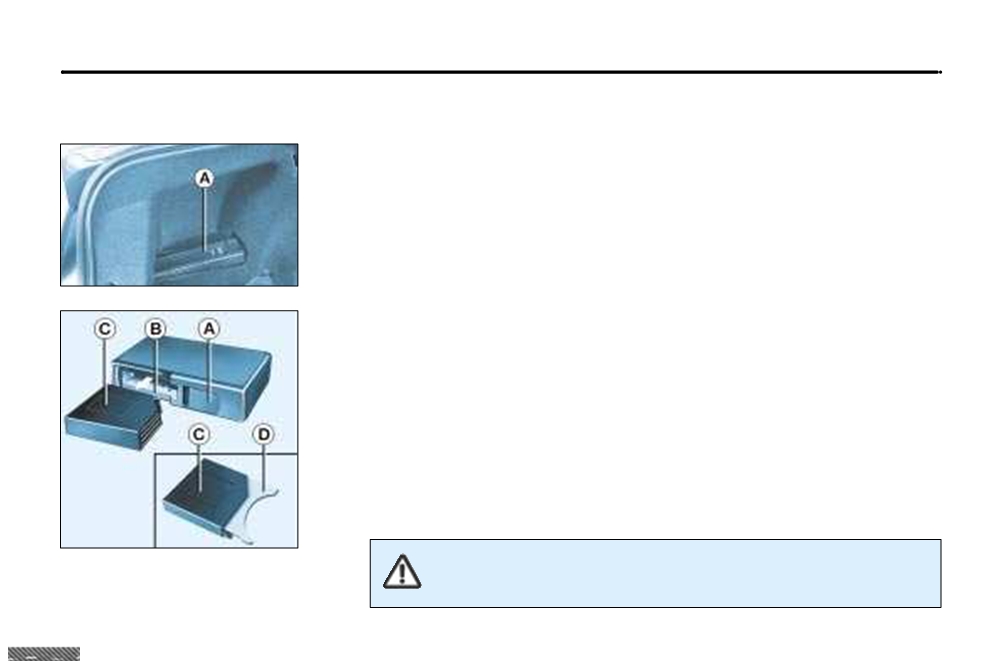

To insert a disc into the changer:

- open sliding panel A,

- press button B to eject the cartridge C,

- open one of the six compartments of the cartridge by pulling tab D,

- insert the disc with the printed face upwards and close the compartment,

- insert the cartridge into the changer,

- close the sliding panel A.

The use of copied compact discs can cause malfunctions.

17-02-2003

YOUR 406 IN DETAIL

406 Saloon AUDIO

SYSTEM (RM2 and RD3)

Presentation

Your 406 saloon is fitted with a JBL Audio Hi-Fi system, designed specifically for the passenger compartment.

At the heart of the system, a 240 watt multifunction amplifier (1) (located in the boot) independently controls 10 high

acoustic definition speakers.

These speakers provide optimal reproduction and distribution of the sound in the vehicle, both in the front and

the rear.

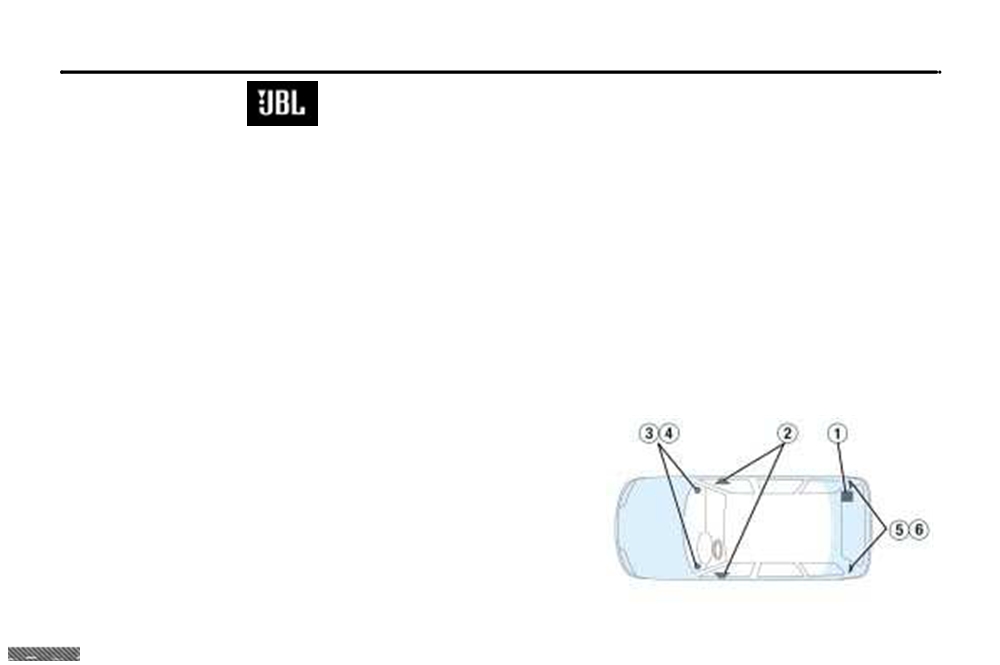

The speakers are situated:

- in the fascia: two Micro Tweeters (3) set into two Mid-Range Speakers (4) for reproduction of the sound in the front.

- in the front doors: two Woofers (2) for reproduction of bass frequencies in the front.

- on the rear parcel shelf: two Tweeters (5) for reproduction of treble (high frequencies) in the rear are set into two ellipti-

cal speakers (6) , which are adjusted to reproduce a very wide range of bass and ultra-bass frequencies throughout the

whole of the passenger compartment. You will appreciate the clarity and depth and notice that the sound fills the

whole of the vehicle perfectly.

Adjusting in CD mode

The basic functions remain those of the audio set.

There is no need for any further adjustment. However, in order to take

full advantage of your JBL audio system, you are advised to set the

AUDIO functions (BASS, TREB, FAD, BAL) to position "0"

(zero) and

the Loudness (LOUD) to the "ON" position.

17-02-2003

YOUR 406 IN DETAIL

406 Estate AUDIO

SYSTEM (RM2 and RD3)

Presentation

Your 406 estate is fitted with a JBL Audio Hi-Fi system, designed specifically for the passenger compartment.

At the heart of the system, a 180 watt multifunction amplifier (1) (located in the boot) independently controls 10 high

acoustic definition speakers.

These speakers provide optimal reproduction and distribution of the sound in the vehicle, both in the front and

the rear.

The speakers are situated:

- in the fascia: two Micro Tweeters (3) set into two Mid-Range Speakers (4) for reproduction of the sound in the front.

- in the front doors: two Woofers (2) for reproduction of bass frequencies in the front.

- on the boot pillar: two Micro Tweeters (5) for reproduction of treble (high frequencies), set into two Mid-Range Speakers

(6) giving uniform sound reproduction throughout the whole of the vehicle.

Adjusting in CD mode

The basic functions remain those of the audio set.

There is no need for any further adjustment. However, in order to take

full advantage of your JBL audio system, you are advised to set the

AUDIO functions (BASS, TREB, FAD, BAL) to position "0"

(zero) and

the Loudness (LOUD) to the "ON" position.

17-02-2003

YOUR 406 IN DETAIL

THE SATELLITE NAVIGATION

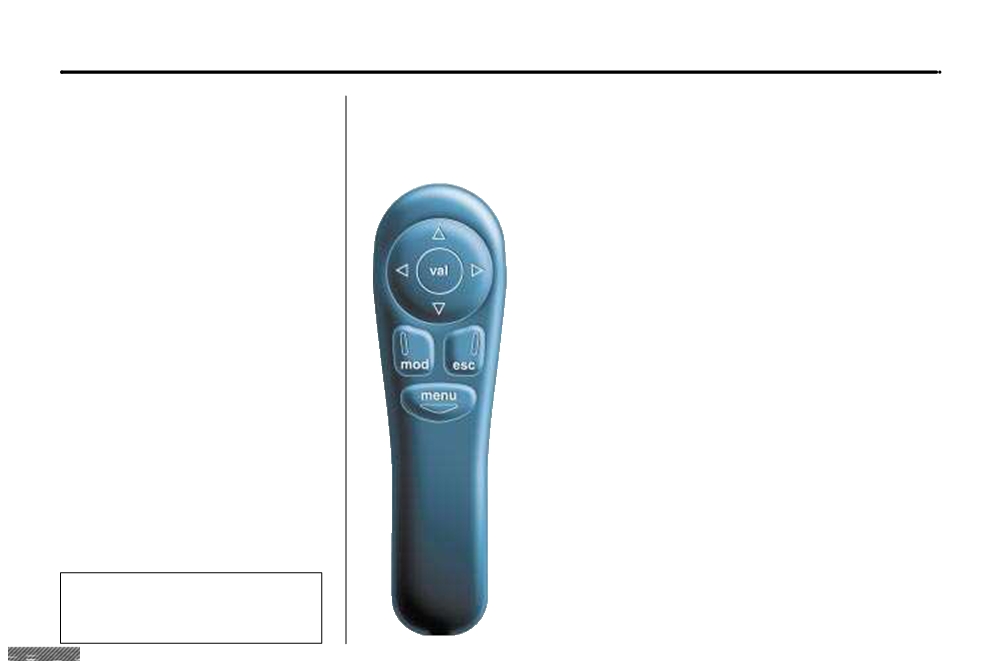

The remote control

SYSTEM

There is a storage compartment for the remote control in front of the ashtray.

Introduction

Pointing the remote control at the screen enables the information contained in

the various menus to be selected.

The satellite navigation system guides

you to the destination of your choice

by means of vocal and visual instruc-

Direction arrows:

tions.

These enable you to move around the screen and

The heart of the system lies in the use

thus select a function.

of a map database and GPS (Global

Positioning System). This enables

On the welcome screen only, the Up and Down

your position to be located by means

buttons enable the brightness of the screen to be

of several satellites.

adjusted.

The satellite navigation system con-

menu :

this button allows access to the main menu. It can

sists of the following components:

be used at any time.

- the remote control,

esc

escape button

- the display,

"Short press": cancels the current operation and

- the control unit,

returns to the previous screen.

- the last voice message recall con-

"Press for more than 2 seconds": returns to the

trol,

welcome screen.

- the CD ROM.

This button can be used in any menu. It is inactive

during guidance.

mod

mode button

"Short press": changes between date, navigation,

radio and permanent locating.

val

Confirmation button

Confirms the function selected.

Some functions or services

described in this guide may vary

depending on the CD ROM

version or the country.

17-02-2003

YOUR 406 IN DETAIL

The display

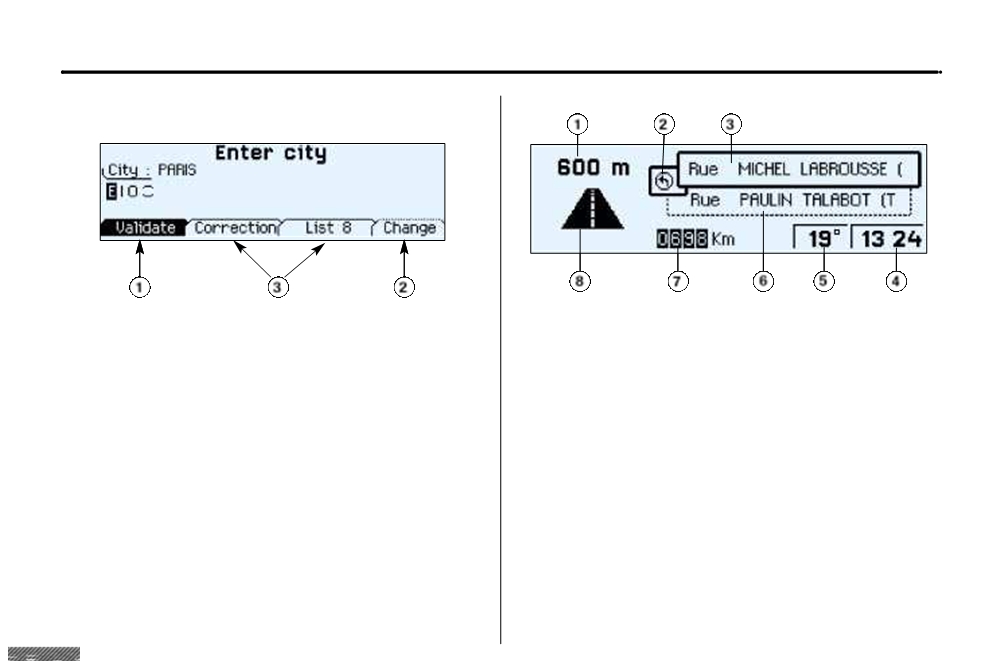

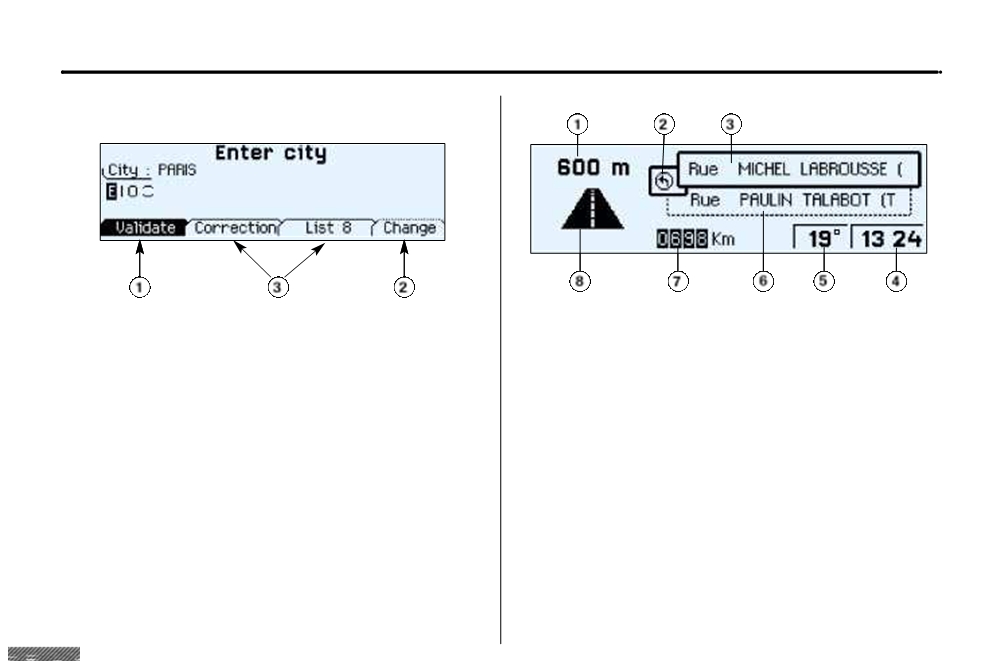

When the menus are used, the functions which appear at

During guidance the screen displays different information

the bottom of the screen are presented in various ways:

depending on the manoeuvres to be carried out:

1. Function selected.

1. Distance to next manoeuvre.

2. Function inaccessible in this situation.

2. Next manoeuvre to be carried out.

3. Function accessible.

3. Next road to take.

Note: The "List" function can hold a maximum of

4. Time.

80 addresses.

5. Exterior temperature.

6. Current road.

7. Distance to final destination.

8. Manoeuvre to be carried out.

17-02-2003

YOUR 406 IN DETAIL

The control unit

The last voice message recall control

Pressing the button briefly

on the end of the lights

stalk repeats the last voice

message.

The CD Rom

This contains all the mapping

data.

It must be inserted with the

printed face upwards.

Use only CD Roms approved by PEUGEOT.

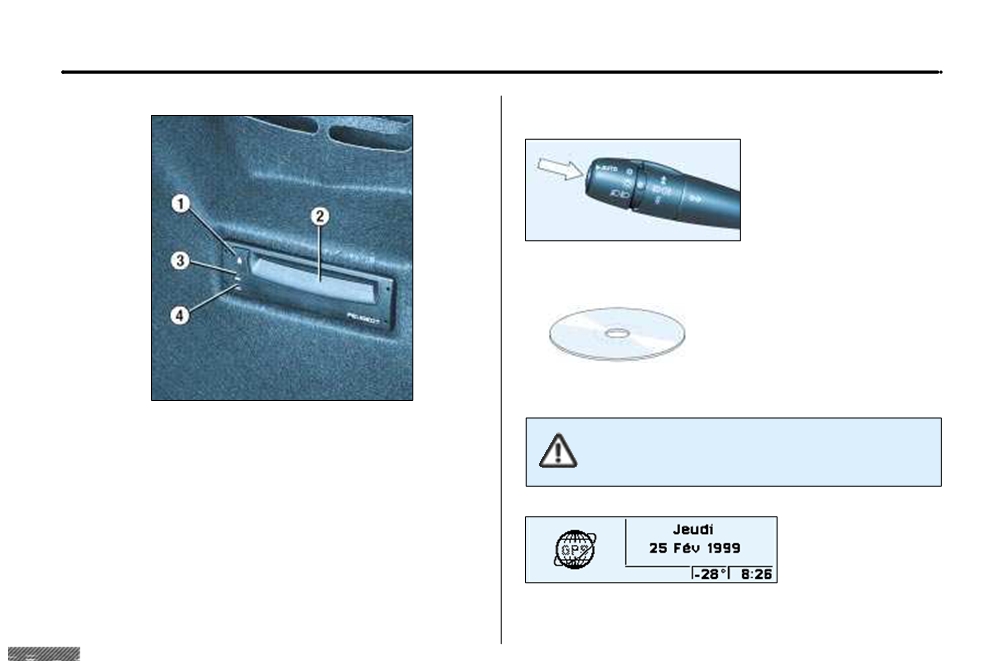

This is located in the boot on the right hand side. In the

The use of copied CDs can cause malfunctions.

estate, open the panel to access it.

1. CD ROM eject button.

2. CD ROM compartment.

3. The ON indicator light indicates that the control unit is

supplied with power.

4. The CD indicator light indicates that there is a CD

ROM in the control unit.

The satellite navigation system is active once the globe

appears in bold.

17-02-2003

YOUR 406 IN DETAIL

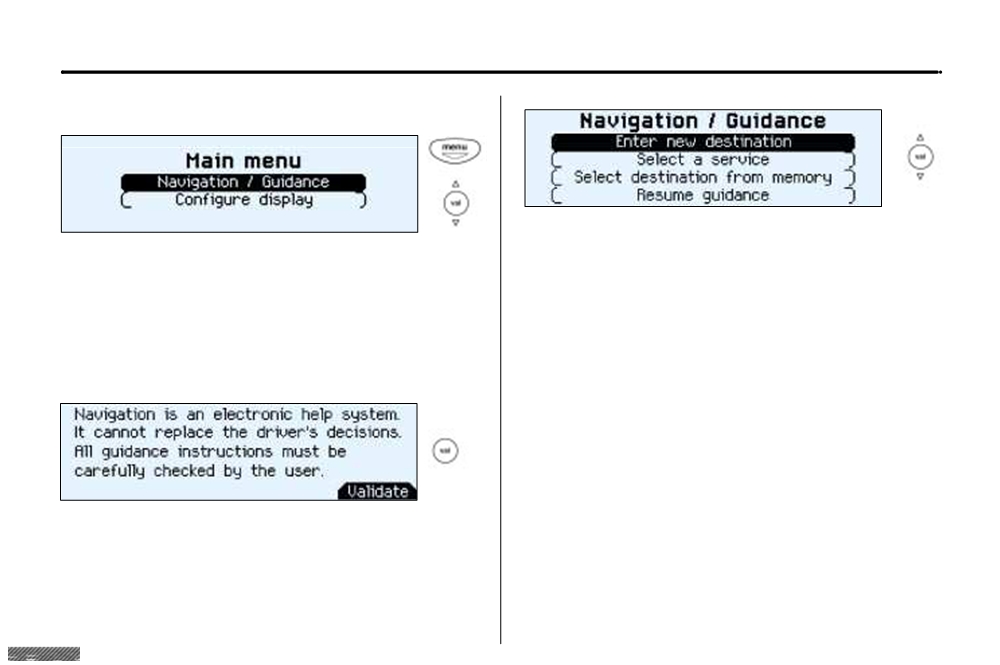

Main menu

The "Navigation/guidance"

menu offers the following

options:

Switch on the ignition.

- entering of the address of a new destination.

Press the "Menu" button to access the main menu.

- selection of a service (Hotel, station, airport...) available

in a town.

Select a function using the direction arrows, then confirm

- selection of an address stored in one of the two directories.

("VAL" button).

- access to the "Navigation options" menu;

- radio functions are suspended when the system is in

guidance mode.

Navigation/Guidance

Following selection of the "Navigation/guidance" menu,

a screen warns you about the use of the navigation sys-

tem. Follow the regulations in force and do not use the

remote control while driving.

Press the "VAL" button to access the next screen.

17-02-2003

YOUR 406 IN DETAIL

Entering a new destination

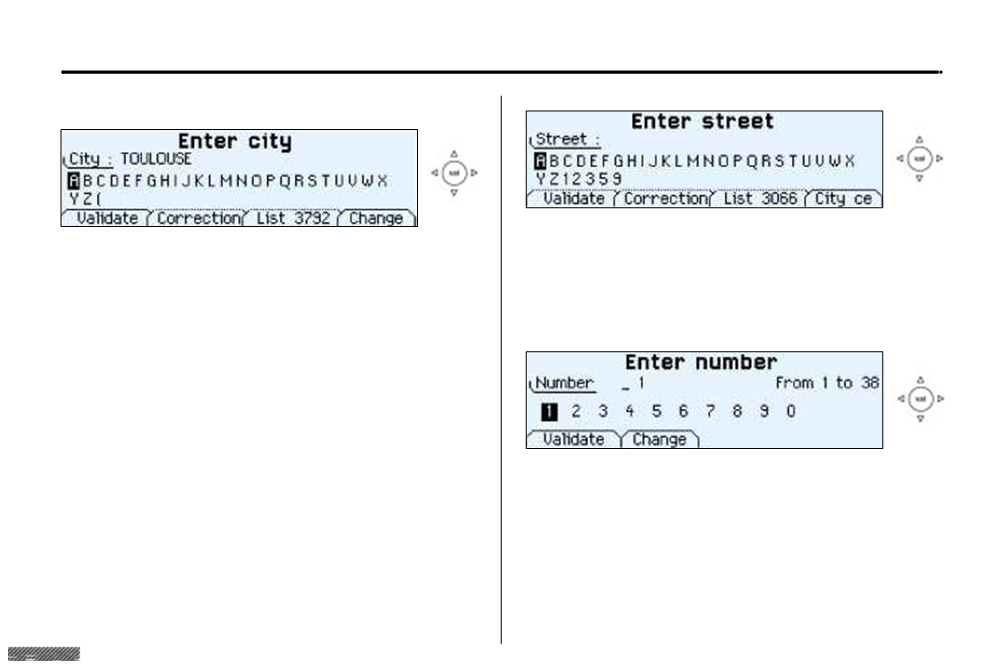

Enter the name of the street. Select the "Validate" function

The last town entered is displayed.

then press the "VAL" button.

To enter the name of another town, select each letter using

Note: the guidance can be activated from the time the

the direction arrows then confirm ("VAL" button) for each

town is entered, without the name of a street or a number.

letter.

To do this, select the "Town centre" function.

If an error is made, the "Correct" function enables the last

letter entered to be deleted.

As the name is entered, the "List" function indicates the

number of towns beginning with the same letters. If the list

contains less than 5 names, these are displayed automat-

ically. Select a town then confirm ("VAL" button).

The "Change" function enables the town entered to be

completely cleared.

When the complete name of the town is displayed, select

the "Validate" function then press the "VAL" button.

Enter the number in the street. Select the "Validate" func-

tion then press the "VAL" button.

Note: following confirmation of a letter, only those letters

which could make up an existing name appear.

Note: the guidance can be activated as soon as the town

and street are entered, without a number. To do this, select

the "Validate" function.

17-02-2003

YOUR 406 IN DETAIL

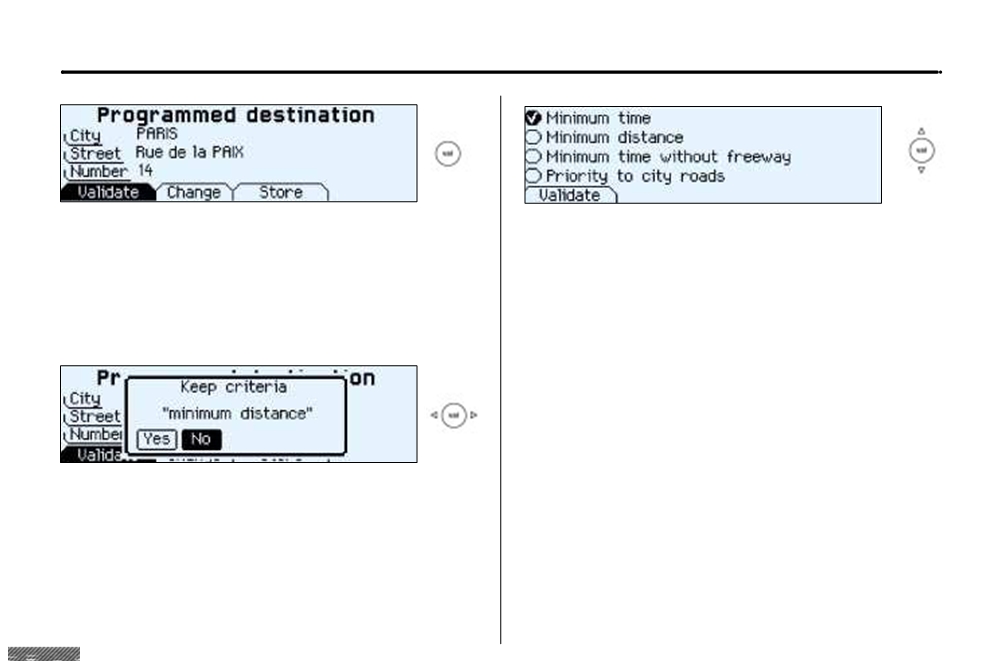

The complete destination is displayed. Select the "Vali-

Select a criterion from the list offered then confirm ("VAL"

date" function then press the "VAL" button.

button). When the criterion of your choice is selected,

select the "Validate" function then press the "VAL" button.

Note: you can also change the destination or store it in one

Guidance begins, follow the instructions.

of the two directories

(see the section on storing an

address in a directory).

The last guidance criterion used is displayed.

Guidance begins automatically, retaining this criterion if

there is no action within 5 seconds or following confirma-

tion of the "NO" function.

Follow the instructions.

If you wish to change the guidance criterion, select the

"YES" function then press the "VAL" button.

17-02-2003

YOUR 406 IN DETAIL

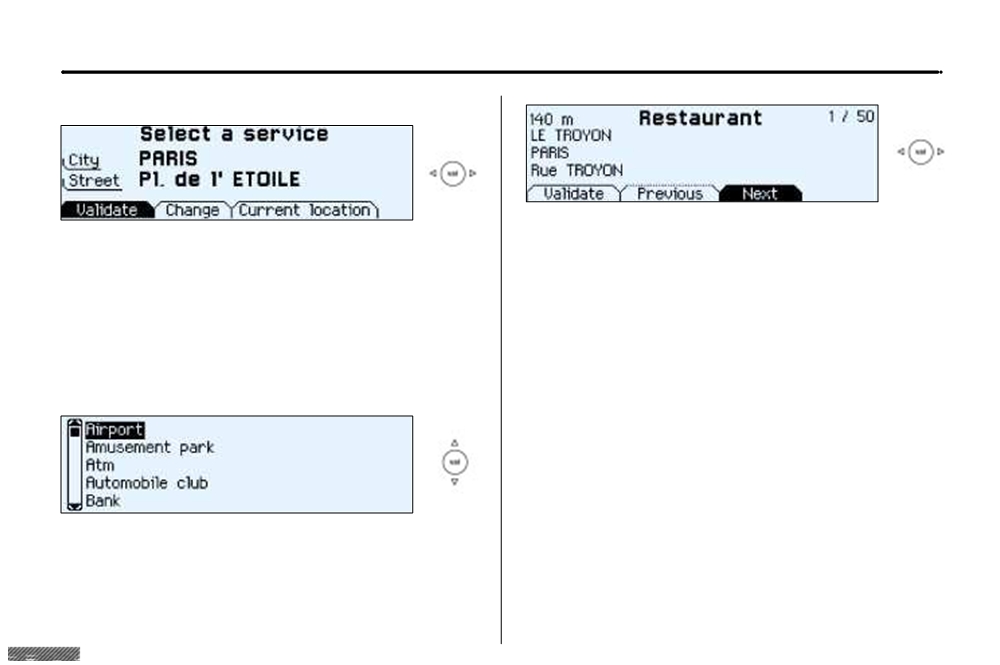

Selecting a service

The address of the required service is displayed.

The last address entered is displayed.

An indication on the right-hand side of the screen (e.g.

There are 3 options for defining the location in which you

1/50) indicates whether there are any other establishments

wish to obtain this service:

(50 maximum) which offer the same service within a radius

of approximately 30 miles (50 km), as the crow flies.

- repeat the last address entered by means of the "Vali-

date" function.

Use the "Next" or "Previous" functions to consult the list

- enter the name of a new town then enter the street (or

offered.

use the "Town centre" function) by means of the

When the establishment of your choice is displayed, select

"Change" function.

the "Validate" function then press the "VAL" button.

- automatically enter your current location by using the

Select a guidance criterion. Guidance begins, follow the

"current location" function.

instructions.

After confirming the address, select a service by scrolling

through the list using the direction arrows then press the

"VAL" button.

A cursor on the left-hand side of the screen indicates your

position in the list.

17-02-2003

100

YOUR 406 IN DETAIL

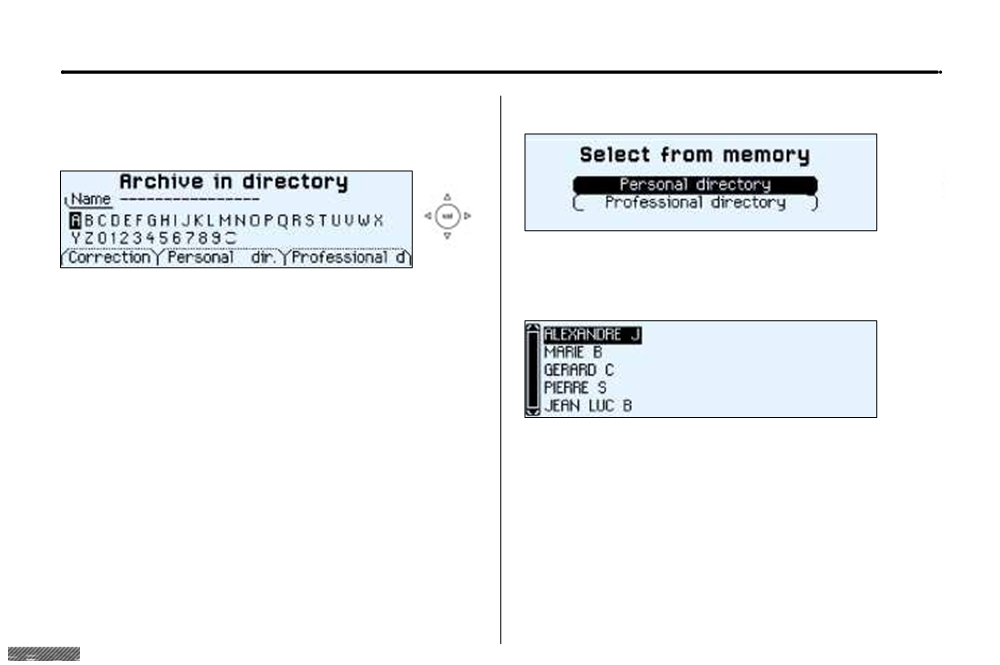

Storing an address in a directory

Selecting a stored destination

When a new address is entered, you can store it by selecting

the "Store" function.

Using the direction arrows, select the directory in which the

address you are looking for is stored, then press the "VAL"

button.

Enter the name for the address. If the name already exists

for a different address, you can replace the old address

with a new one.

Select the Personal directory or the Professional directory

then press the "VAL" button. The address is then stored in

the directory of your choice

(memory capacity:

100 addresses).

The stored addresses are displayed.

A cursor on the left-hand side of the screen indicates your

position in the list. Select a name by scrolling through the

list using the direction arrows, then press the "Val" button.

The complete address is displayed. Select the "Validate"

function then press the "Val" button. Select a guidance cri-

terion. Guidance begins, follow the instructions.

17-02-2003

101

YOUR 406 IN DETAIL

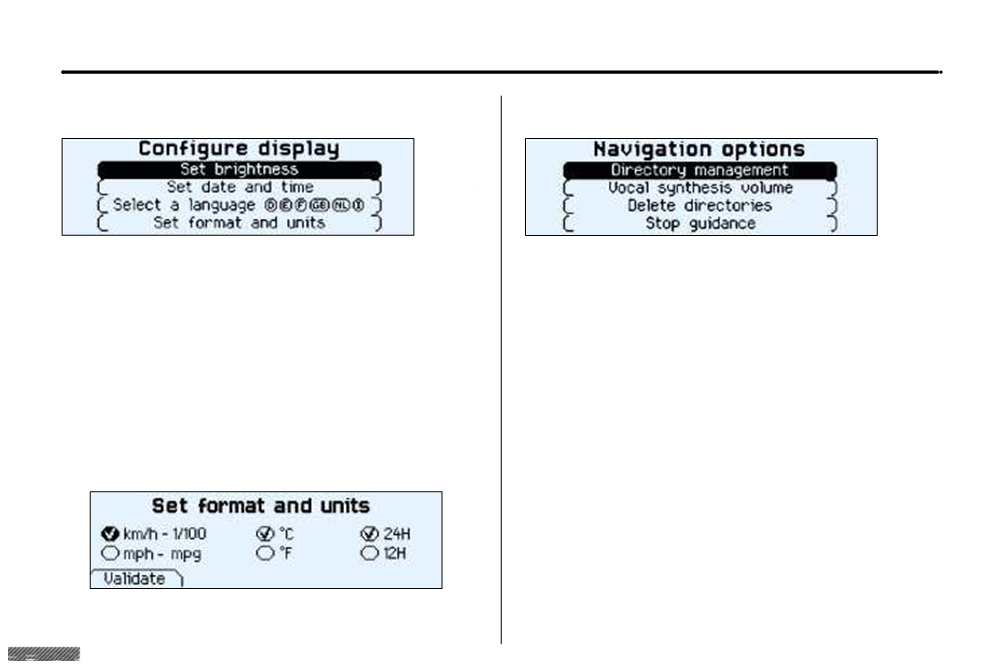

Display configuration

Navigation options

From the general menu, the "Configure display" menu

From the navigation/guidance menu, the "Navigation

gives access to the following parameters:

options" menu offers the following options:

- Adjustment of the brightness and the video display.

- Management of the directories. It enables an address

- Adjustment of the date and time.

stored under a name to be renamed or deleted. To do

this, select the directory and the name to be changed.

- Selection of the language of the display and voice infor-

mation

(English, German, Spanish, French, Italian,

- Voice synthesis volume adjustment.

Dutch).

- Deletion of all data stored in the two directories.

- Adjustment of the mode and units. This allows selection

- Stopping or resuming of guidance. Two messages may

of the display in km/h or mph, in degrees Celsius or

be displayed depending on the previous status:

Fahrenheit and selection of the time format

(12 or

"Resume guidance" or "Stop guidance"

24 hour mode).

17-02-2003

102

YOUR 406 IN DETAIL

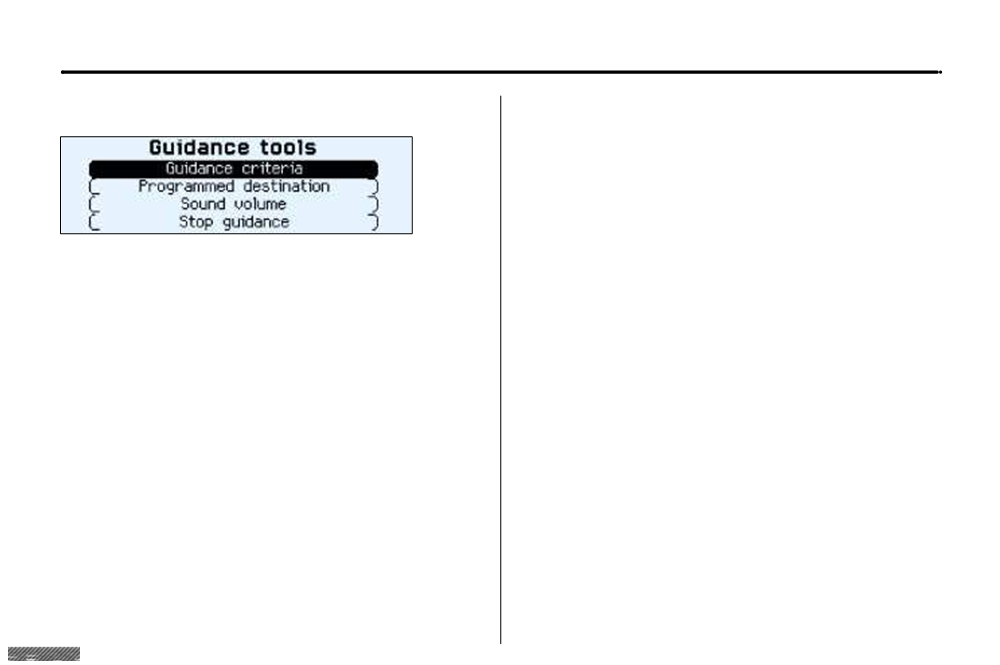

Guidance tools

Access to the "Guidance tools" menu is by pressing the

"Val" button during guidance.

It enables:

- the current guidance criterion to be changed,

- the programmed destination to be displayed or changed,

- the voice synthesis volume to be adjusted,

- the current guidance to be stopped.

17-02-2003

YOUR 406 IN DETAIL

17-02-2003

YOUR 406 IN DETAIL

VENTILATION

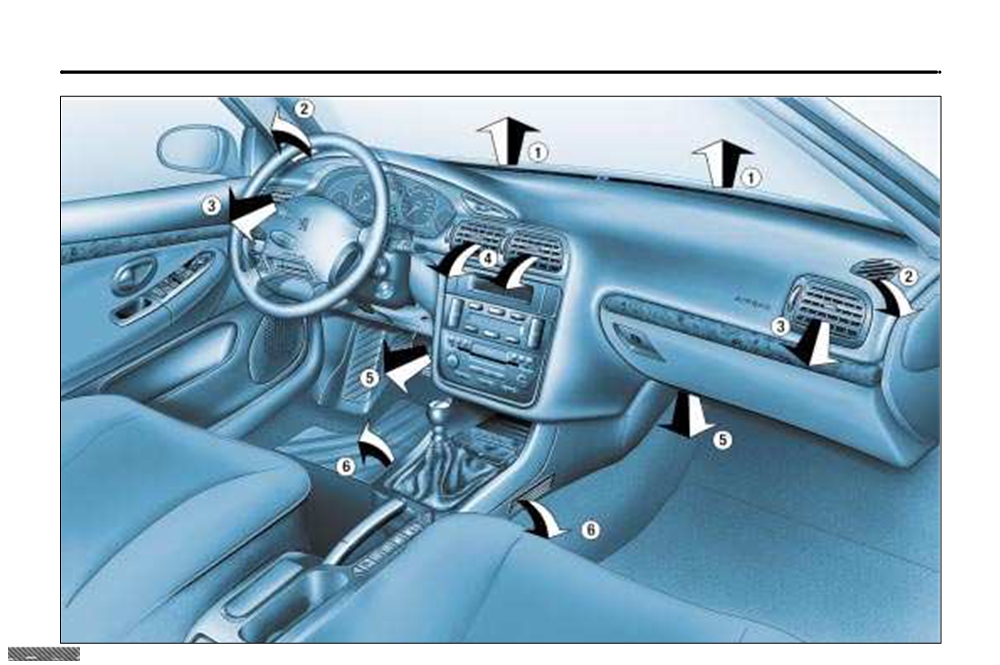

1 - Windscreen de-icing or demisting vents.

2 - Front window de-icing or demisting vents.

3 - Side vents.

4 - Central vents.

5 - Air outlet to the front passengers' feet.

6 - Air outlet to the rear passengers' feet.

Recommendations for use

☞ Position the air flow control at a level which allows adequate air circulation inside your vehicle.

☞ Select the air distribution which best suits your requirements and the climatic conditions.

☞ Select a temperature setting and only alter it gradually for your comfort.

For an even air distribution, make sure that you do not block the air inlet grille at the base of the windscreen, the vents, the

air passages under the front seats and the air extractor in the boot.

17-02-2003

YOUR 406 IN DETAIL

AIR CONDITIONING

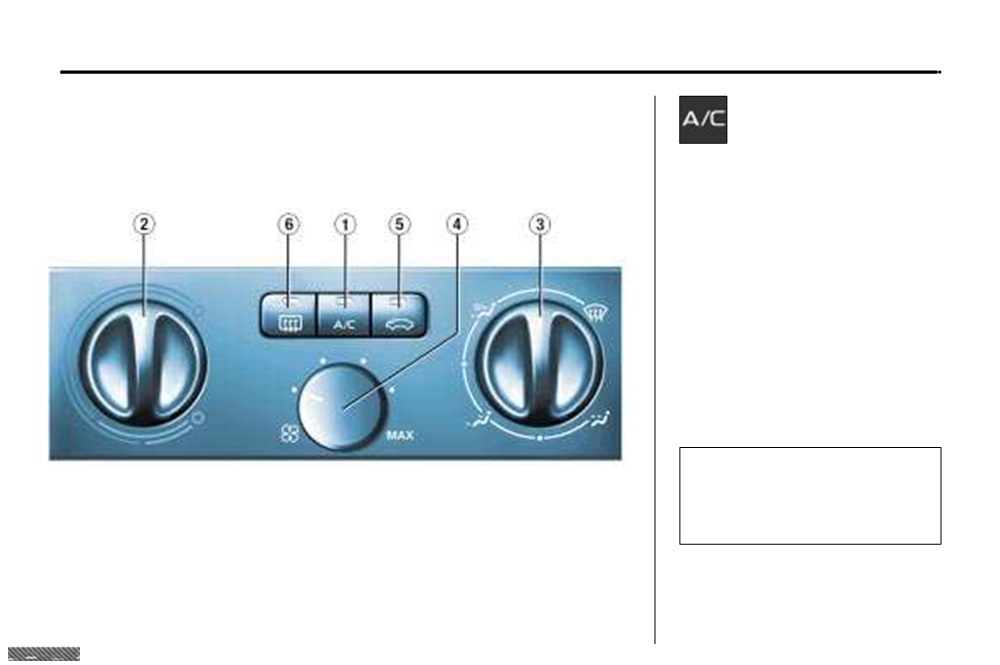

1 - Air conditioning

control

The air conditioning is intended to

operate in all seasons. In summer it

allows the temperature to be reduced

and in winter, above 0 °C, it increases

the effectiveness of the demisting.

Press the switch. The indicator light

comes on when the air conditioning

starts.

2 - Temperature adjustment

To be adjusted according to your

requirements: from blue (cold when

the air conditioning is on) to red

(hot).

Please note that for optimum

operation of the air condition-

ing, the recommended air flow

setting is with knob 4 turned to

its second position.

17-02-2003

YOUR 406 IN DETAIL

3 - Setting the air

4 - Air flow adjustment

6 - Demisting the rear

distribution

screen

Windscreen and side windows

Turn the knob to obtain sufficient

With the engine running, pressing

(de-icing/demisting).

flow.

the switch demists the rear screen

and the mirrors.

To quickly de-ice or demist the wind-

It switches off automatically after

screen and the side windows:

approximately fifteen minutes.

- set the temperature and air flow

Press again to resume demisting.

controls to maximum,

5 - Air intake control

It is possible to stop the demisting

- close the central vents,

operation before it goes off automat-

- press the A/C button.

ically, by pressing the switch again.

Recirculation of the interior air (indi-

cator light on).

Important precaution

Windscreen and side win-

This position prevents the entry of

Operate the air conditioning for 5 to

dows, central and side vents

unpleasant odours or fumes from

10 minutes, once or twice a month,

and footwells.

outside and increases the speed of

to keep it in good working order.

heating.

If the system does not produce cold

Used simultaneously with the air

air, do not use it and contact your

conditioning, recirculation improves

PEUGEOT dealer.

Central and side vents and

the performance of the system when

footwells.

set to hot as well as to cold.

Note: The condensation created by

Used in humid conditions, recircula-

the air conditioning causes a normal

These settings are recommended for

tion risks misting up the windows.

flow of water under the vehicle when

cold climates.

As soon as possible, place the con-

stationary.

trol in the outside air position.

Central and side vents.

This setting is recommend-

ed for hot climates.

17-02-2003

Content .. 3 4 5 6 ..
