YOUR 406 IN DETAIL

AUTOMATIC AIR CONDITIONING

2 - Automatic

comfort

programme

Press the "AUTO " button. The sys-

tem automatically adjusts the tem-

perature to that selected, by starting

the air conditioning if necessary.

It also manages the air flow and

intake, to ensure sufficient air circu-

lation inside the vehicle.

Adjustment of the air distribution

must be carried out manually when

you require it.

3 - Automatic

visibility

programme

In certain cases, the automatic com-

fort programme can prove inadequate

to de-ice or demist the windows

(humidity, many passengers, ice). In

such cases, select the automatic visi-

bility programme to rapidly clear the

windows.

Automatic operation

The system automatically manages

the air conditioning, the air flow and

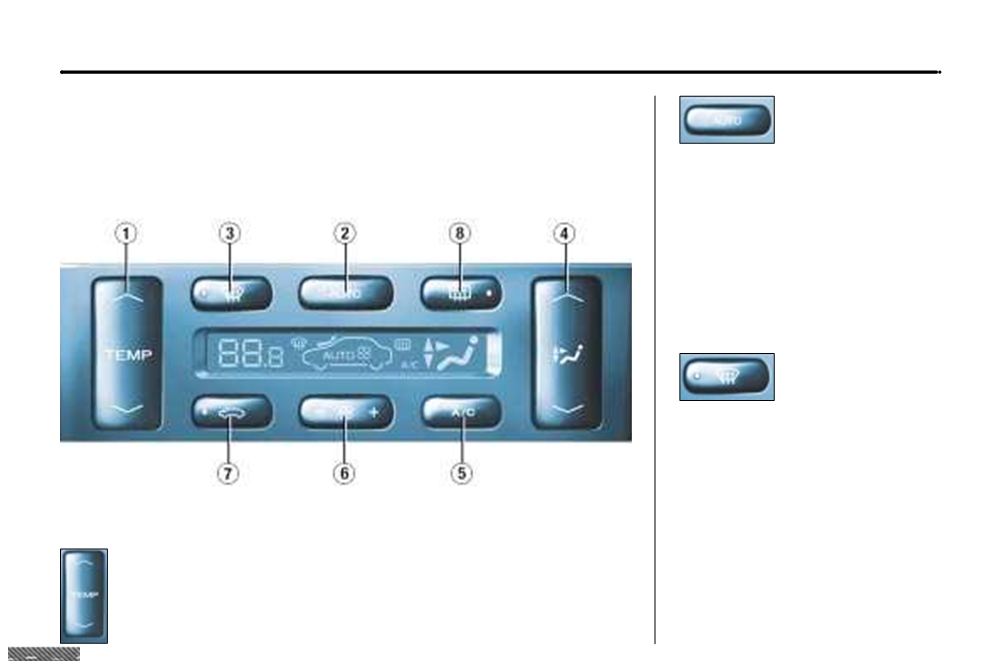

1 - Temperature adjustment

the air intake, distributing the air to

The value requested is displayed (from 15 to 30: comfortable tempera-

the windscreen and side windows.

ture = 22).

Press the up and down arrows to adjust.

17-02-2003

YOUR 406 IN DETAIL

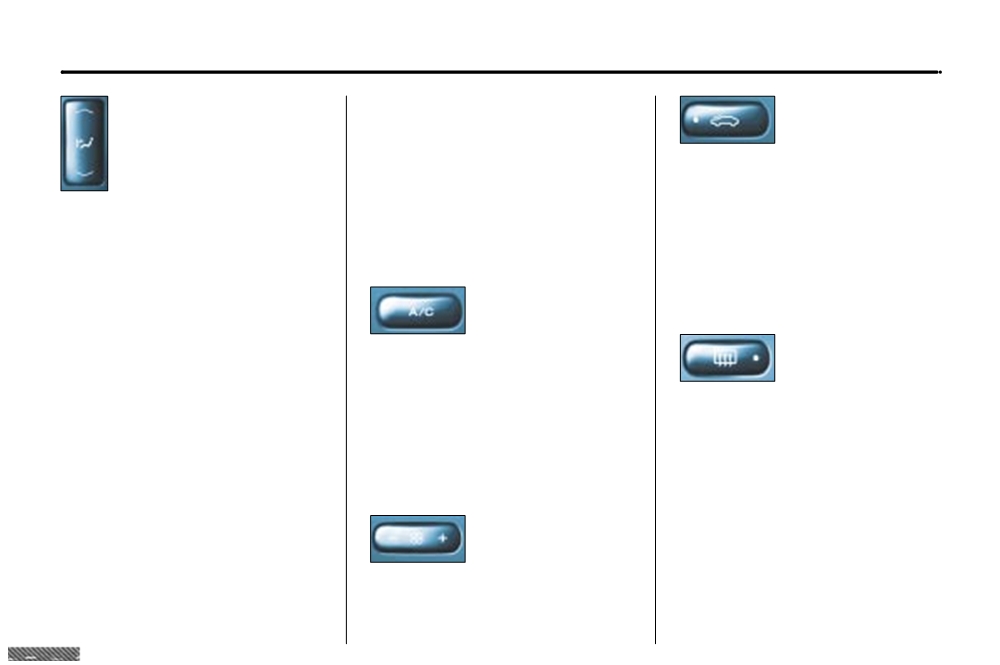

4 - Setting the air

Manual operationel

7 - Air intake

distribution

You may, if you wish, make a differ-

This

button

Successive presses on the

ent choice from that offered by the

pressed for recircula-

top or bottom part of this

system, by changing one of the set-

tion of the interior air.

button allow the air to be

tings.

Recirculation, shown on the display,

directed to:

prevents the entry of unpleasant

Press the "AUTO" button to return to

odours or fumes into the passenger

automatic operation.

compartment from outside.

- the windscreen (de-icing or demist-

Avoid prolonged operation of the

ing),

recirculation of interior air. A second

- the windscreen and footwells,

press returns the system to automat-

ic intake of air.

- the central and side vents,

Used in humid conditions, recircula-

- the central and side vents and

5 - Air conditioning

tion risks misting up the windows.

footwells,

- the footwells.

Pressing this button

stops the air condition-

Press the top or bottom part of the

ing. Pressing again

8 - Demisting the

button to select the previous or next

returns the air conditioning to automat-

rear screen

setting from the above list.

ic operation. The symbol "A/C " is dis-

With the engine run-

played.

ning, pressing the

switch demists the rear screen and

the mirrors.

It switches off automatically after

approximately fifteen minutes.

Press again to resume demisting. It

is possible to stop the demisting

operation before it goes off automat-

ically, by pressing the switch again.

6 - Air flow

Note: The condensation created by

The air flow may be

air conditioning causes a normal flow

increased or reduced

of water under the vehicle when sta-

by pressing the ''+'' or

tionary.

''-'' button respectively.

17-02-2003

111

YOUR 406 IN DETAIL

SEATS

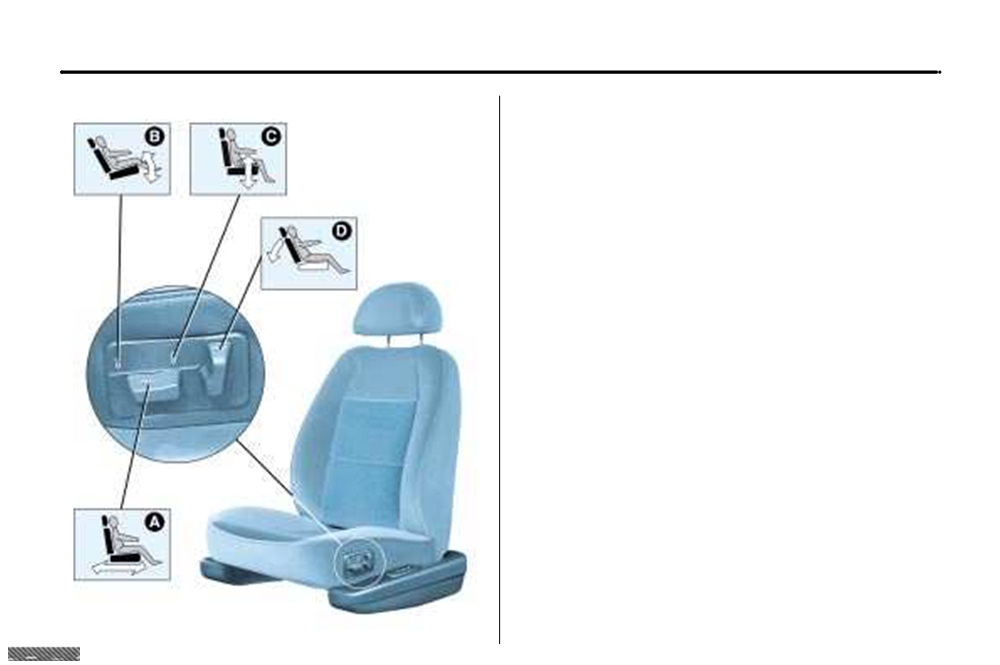

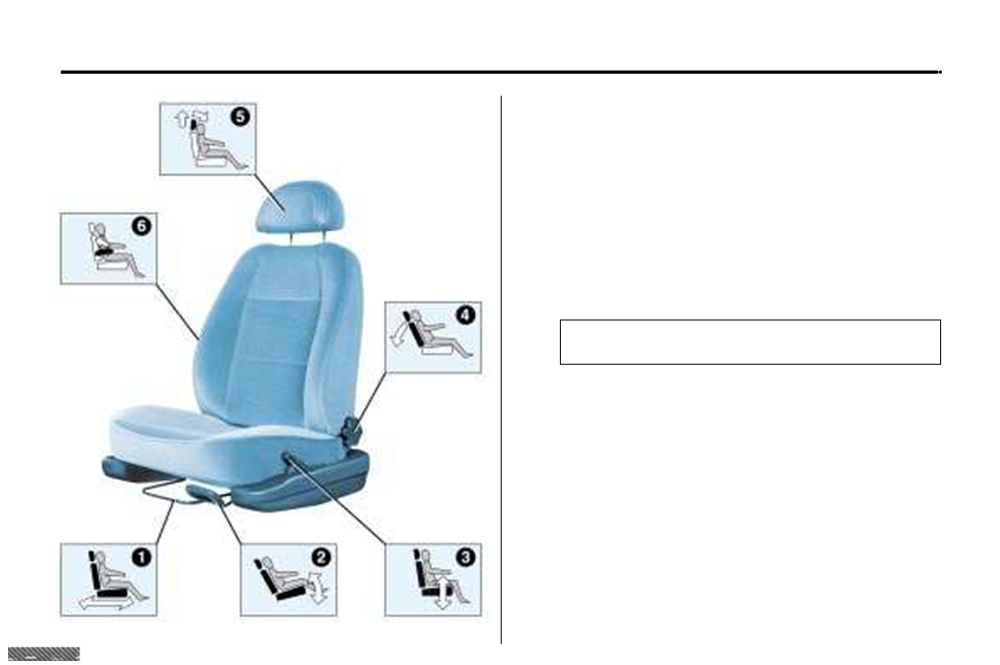

Manual adjustment of the front seats

1 - Forwards-backwards adjustment

Lift the lever and slide the seat forwards or backwards.

2 - Seat cushion angle adjustment

Lift the lever to set the best angle.

3 - Driver's seat height adjustment

Pull the telescopic handle forwards and pivot it up or

down.

4 - Seat back angle adjustment

Turn the knob to obtain the best angle.

5 - Head restraint height and tilt adjustment

The settting is correct when the top of the head

restraint is level with the top of the head.

To raise the head restraint, pull it upwards.

To lower the head restraint, it is necessary to push

simultaneously:

- the button on the left-hand side on top of the seat

back,

- the head restraint downwards.

The head restraint has a frame with notches which

prevents it from dropping down (safety device in case

of impact).

To remove the head restraint, press the tab.

Warning: never drive with the head restraints removed.

They must be in place and correctly adjusted.

6 -

Front armrests

The front armrests can be folded or removed.

To remove them, press the button between the armrest

and the side of the seat and pull the armrest.

17-02-2003

113

YOUR 406 IN DETAIL

Recalling a memorised

position

•

Door open and ignition off

Within ten minutes of switching off

the ignition and opening the door, a

short press on button 1 or 2 recalls

the memorised position of the seat,

then of the exterior mirrors.

•

Door closed or ignition on:

- keeping the button pressed

adjusts the seat and the exterior

mirrors.

When adjustment is completed a

Heated seat controls

bleep will sound.

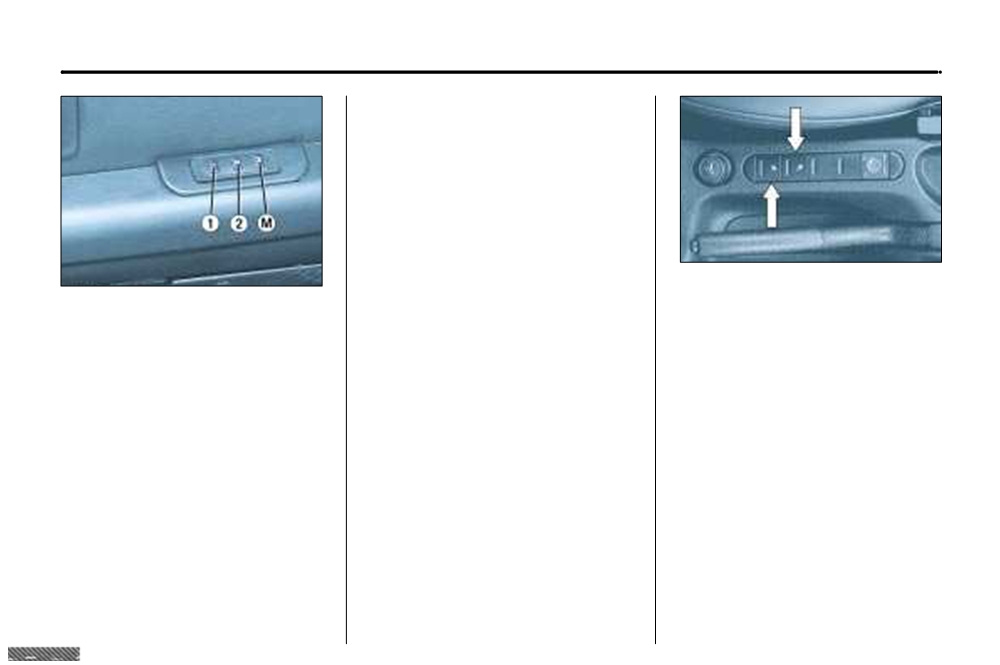

Memorising the seat and

Press the switch.

mirror positions

The temperature is controlled auto-

matically.

Two driving positions can be memo-

rised.

Pressing a second time stops opera-

tion.

To memorise:

- place the ignition key in the acces-

sories position;

- adjust your seat and mirrors;

- simultaneously press button "M"

and button "1" for the first driving

position or button "2" for the

second driving position.

When the position has been

memorised, you will hear two

bleeps.

Memorising a new position cancels

the previous one.

17-02-2003

114

YOUR 406 IN DETAIL

Ski flap

Lower the arm rest to access the ski

flap. Open the flap from the boot.

REAR SEATS

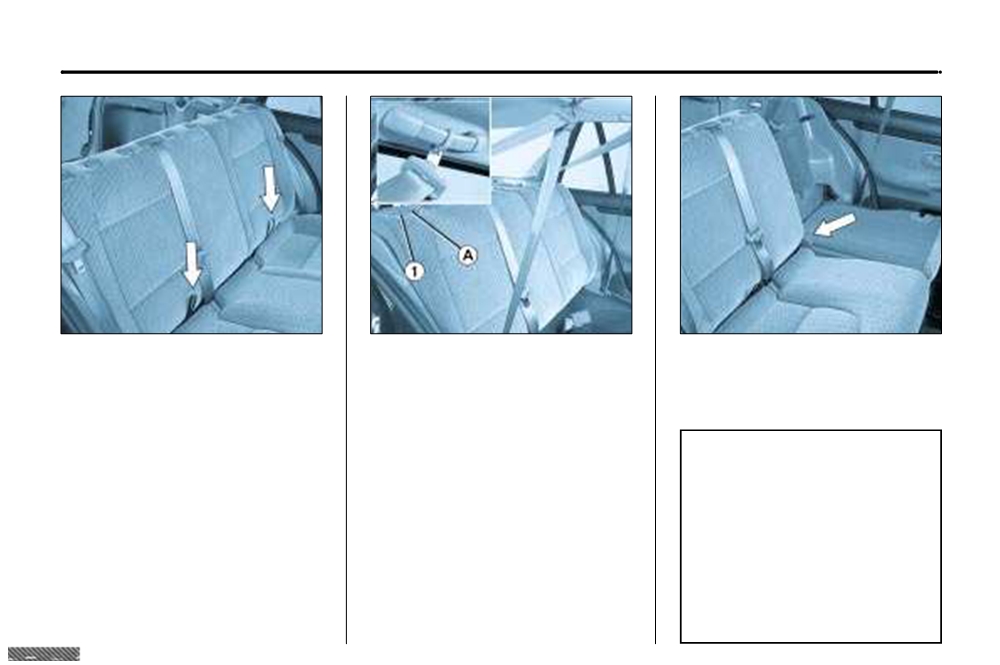

To fold down the seat back

Rear seats (saloon)

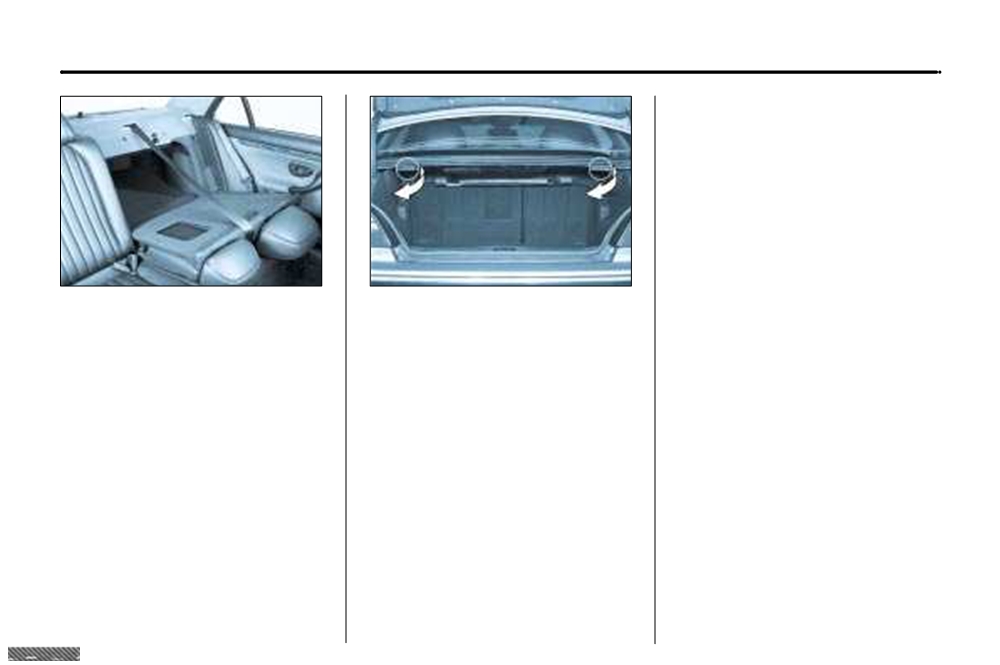

The unlocking controls are located in

the boot.

Before moving the seats, to avoid

damage to the seatbelts, carefully

Pull the control corresponding to the

place them to the side of the seat

part of the seat back that you wish to

back (for side seat belts) and gently

fold down.

lower the seat to avoid blocking the

When returning the seat back to its

centre belt.

original position, for your safety

The seat back folds down in two sec-

make sure that it is correctly locked.

tions.

17-02-2003

115

YOUR 406 IN DETAIL

Rear seats, estate

- secure the side seat belt buckles

When driving with rear passengers

on the coat hooks when manoeu-

with one third of the seat folded

To fold down the rear seat:

vring the seat back to avoid any

down, release the central seat belt

- remove the head restraints by

risk of the straps being damaged.

buckle from its catch.

pressing the lug.

- unlock the seat back by pressing

- tilt the seat cushion against the

button 1. The red marker A appears.

front seats, using the strap.

- fold down the seat back gently to

avoid blocking the centre belt.

WARNING

When returning the seat back to the

Do not remove

upright position, ensure that it is

the seat back of the estate's

correctly locked

(red marker A no

one-piece rear seat.

longer visible).

This seat is fitted with return

springs which can

cause injury.

Contact a

PEUGEOT dealer

if you wish to remove

the seat back.

17-02-2003

116

YOUR 406 IN DETAIL

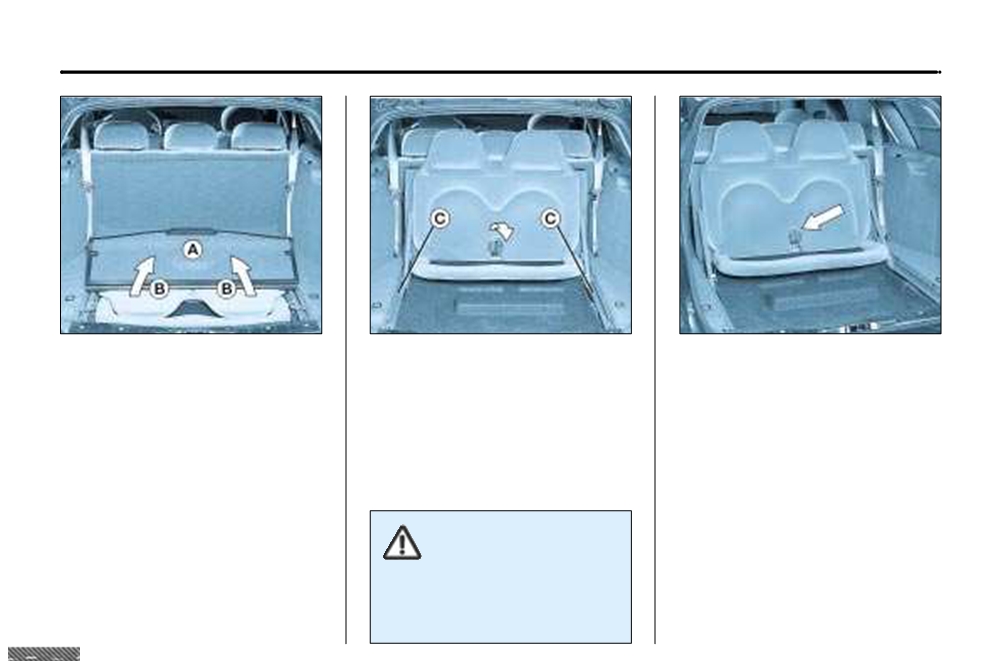

Third row seat,

- push the seat back firmly, keeping

Stowage:

7-seater estate

the seat angled upwards.

Place the seat belt buckles in their

- lower the seat and check it has

catches.

Do not use the third row seat

engaged in the notches C.

when the rear seat is folded down.

Release the seat from the notches C.

Lower the seat back by the head

Positioning the seat:

restraints, keeping the seat cushion

inclined.

- remove the rear parcel shelf.

- fold down panel A in the boot by

Lower the whole seat into the boot

using the handle.

housing.

- lift the seat back B by the head

Lock the boot panel A by pressing on

Do not install a child seat

restraints.

the edges.

on the third row seat.

17-02-2003

118

YOUR 406 IN DETAIL

GENERAL POINTS RELATING TO CHILD SEATS

Rules for transporting children on

the front passenger seat**:

Although one of PEUGEOT's main criteria when designing your vehicle, the safe-

ty of your children also depends on you.

Children under the age of 10 must

For maximum safety, please follow these precautions:

not travel in the forwards facing

position, unless the rear seats are

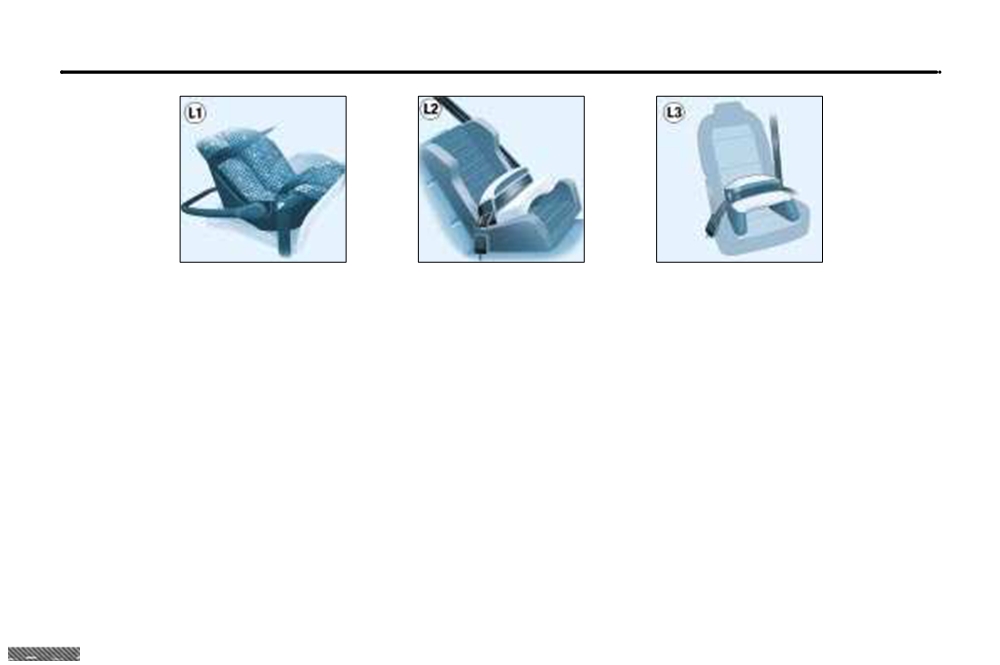

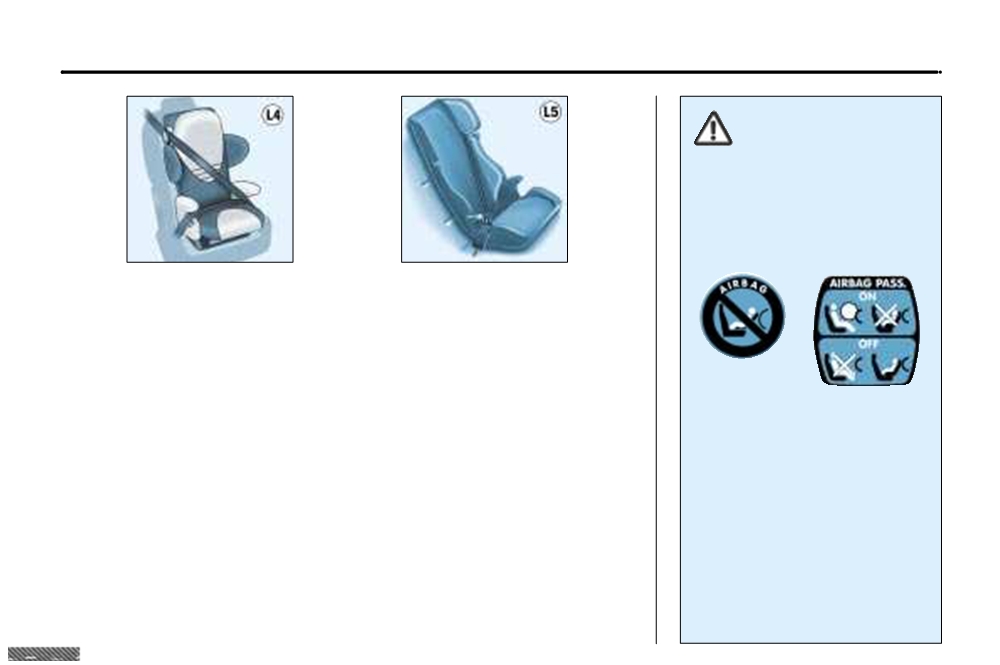

- Since 1992, all children under the age of 10 must travel in approved child

already occupied by other children

seats* suited to their weight

, on seats fitted with a seat belt.

or the rear seats cannot be used

(absent or folded). In this case,

In order to recognise a child seat which conforms to current legislation, check

adjust the front passenger seat to

that it bears an orange label indicating the weight range for its use and

the most rearward position and arm

its approval number

the passenger air bag.

The rearwards facing position is per-

– A child weighing less than 9 kg must travel in the rearwards facing posi-

mitted from birth to

18 kg. In this

tion both in the front and in the rear

position, it is essential to disarm the

passenger air bag.

– The safest seats in your vehicle for the transportation of children are the

rear seats .

- If a child is travelling on a booster seat, check that the lap section of the seat belt

passes over the child's thighs correctly. The chest section of the seat belt must be

positioned on the child's shoulder without touching the neck. PEUGEOT recom-

mends that you use a booster seat with a back, fitted with a seat belt guide.

- Remember to fasten the seat belt or the child seat harness keeping the slack

in relation to the child's body to a minimum

, even for short journeys.

* According to current legislation in the country.

** Consult the relevant administration in your country for information regarding

the rules for transporting children on the front passenger seat.

17-02-2003

119

YOUR 406 IN DETAIL

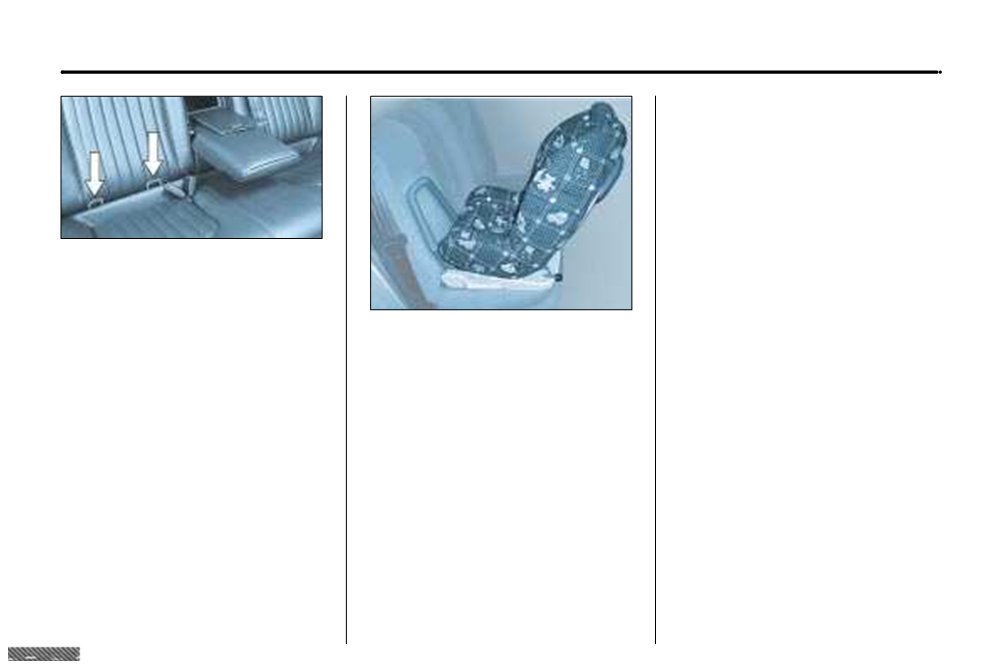

The ISOFIX KIDDY child seat may

also be used where there are no

Isofix mountings. In this case it is

compulsory to attach it to the vehi-

cle's seat using the three-point seat

belt for the rearwards facing and for-

wards facing positions.

If the ISOFIX KIDDY seat is fitted

in the rearwards facing position

on the front passenger seat, it is

essential to disarm the passenger

air bag.

"ISOFIX" MOUNTINGS

Follow the instructions for fitting

the child seat indicated in the seat

The one third side of the rear seat of

manufacturer's installation instruc-

your vehicle is fitted with ISOFIX

tions.

mountings . These are 2 rings locat-

The ISOFIX child seat approved for

ed between the seat back and seat

PEUGEOT vehicles and sold by the

Refer to the "Summary table for the

cushion of your vehicle.

PEUGEOT network is the ISOFIX

installation of child seats".

KIDDY* child seat seat. It can be

The ISOFIX child seats are fitted

installed in the rearwards facing

with

2 locks which fit onto these

position from birth to

13 kg and in

* You can only secure ISOFIX child

rings.

the forwards facing position from 9

seats, approved by PEUGEOT and

to 18 kg.

sold by its network, on your vehi-

cle's ISOFIX mountings.

In the front, in the rearwards facing

position, the front passenger seat

must be moved as far forwards as

possible so that the shell of the child

seat is in contact with, or as close as

possible to, the fascia.

In the rear, in the forwards facing

position, the front passenger seat

must be in the intermediate longitu-

dinal position, with the seat back

upright.

17-02-2003

120

YOUR 406 IN DETAIL

CHILD SEATS RECOMMENDED BY PEUGEOT

In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat

belt:

Group 0+: from birth to 13 kg)

L1 - "Britax Babysure": installed in the rear-facing position in the front or in the rear using a three-point seat belt.

In the front, it is compulsory to disarm the passenger air bag and the passenger seat must be adjusted to the 'mid-way'

position on the runner.

Group 1: from 9 to 18 kg

L2 - "Römer Prince": installed in the rear using a two or three-point seat belt.

For the safety of your child, the seat and the restraining cushion must never be separated.

Group 2: from 15 to 25 kg

L3 - "Römer Vario'': installed in the rear with a two or three-point seat belt.

17-02-2003

121

YOUR 406 IN DETAIL

Never leave one or more

children alone and unsu-

pervised in a vehicle.

Never leave a child or an

animal in a vehicle which is

exposed to the sun and has the

windows closed.

To protect your young children from

the sun, fit blinds on the rear windows.

Never leave the keys within reach

of children inside the car.

Groups 2 and 3: from 15 to 36 kg

L4 - ''Recaro Start'': installed in the rear with a three-point seat belt.

The height and width of the seat back and length of the seat cushion must

be adjusted according to the age and build of your child.

L5 - "Klippan Optima": installed in the rear with a three-point seat belt.

From the age of 6 years (approximately 22 kg), the booster is used on its own.

Disarm the passenger air bag when

installing a "rearwards facing" child

Refer to the "Summary table for the installation of child seats".

seat on the front passenger seat.

Otherwise, the child would risk

being killed or seriously injured

were the air bag to inflate.

Observe strictly the recommenda-

tions for assembling and securing

the child seat as shown in the

child seat instructions.

To prevent the doors from opening

accidentally, use the child lock*.

Also, do not open the rear win-

dows more than a third*.

* According to model.

17-02-2003

122

YOUR 406 IN DETAIL

TABLE FOR THE INSTALLATION OF CHILD SEATS

In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child

seats, in relation to the weight group and the seat in the vehicle:

Statutory weight range

Seat

Group 0 (a) at 0+

Group 1

Group 2

Group 3

< 13 kg

9 - 18 kg

15 - 25 kg

22 - 36 kg

Front passenger seat(b)

L1, L6

L2, L7

L3, L4, L5

L4, L5

without booster

Front passenger seat

U (R)

with booster (R)

L1, L6

L2, L7

L3, L4, L5

L4, L5

Saloon

L1, L6

L2, L7

L3, L4, L5

L4, L5

Rear passenger seat

Side seat

Estate

U, L1

U, L2

U, L3, L4, L5

U, L4, L5

Saloon

L3, L4, L5

L4, L5

Rear passenger seat

Centre seat

Estate

U, L1

U, L2

U, L3, L4, L5

U, L4, L5

: universal child seat, rearwards facing and forwards facing.

U (R) : universal child seat with a height setting greater than or equal to the height of the fixed seat (in conformity with §

3.3. of appendix 2 of annex XVIII of Directive 2000/3).

According to destination:

: BRITAX Babysure

E11 0344117

Universal (birth to 13 kg).

: RÖMER Prince

E1 03301058

Universal (9 to18 kg).

: RÖMER Vario

E1 03301120

Universal (15 to 25 kg).

: RECARO Start

E1 03301108

Universal (15 to 36 kg).

: KLIPPAN Optima

E17 030007

Universal (15 to 36 kg).

: KIDDY Isofix Rearwards facing E1 03301123 and

Universal (birth to 13 kg)(c).

: KIDDY Isofix Forwards facing

E2 030011

Universal (9 to 18 kg)(c).

(a) Group 0: from birth to 10 kg.

(b) Consult the current legislation in your country.

(c) See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings, or failing this

using the seat belt.

17-02-2003

123

YOUR 406 IN DETAIL

Pre-tensioning and force-limiting

To be effective, a seat

front seat belts

belt must be tightened as

Safety in the event of a frontal impact

close to the body as pos-

has been improved by the introduc-

sible.

tion of pre-tensioning and force-limit-

Depending on the nature and the

ing front seat belts. Depending on

seriousness of the impact, the

the seriousness of the impact, the

pre-tensioners may be triggered

pre-tensioning system instantly tight-

before and independently of the

ens the seat belt firmly against the

air bags.

body of the occupant.

In all cases, the air bag warning

The pre-tensioning seat belts are

light comes on.

active when the ignition is on.

Following a collision, have the

system checked by a PEUGEOT

The force-limiting device reduces the

dealer.

pressure of the seat belt against the

occupant's body in the event of an

The system has been designed to

accident.

be fully operational for ten years.

Have it replaced after this period.

Rear seat belts

The three rear seats are all fitted with

three-point inertia reel belts.

SEAT BELTS

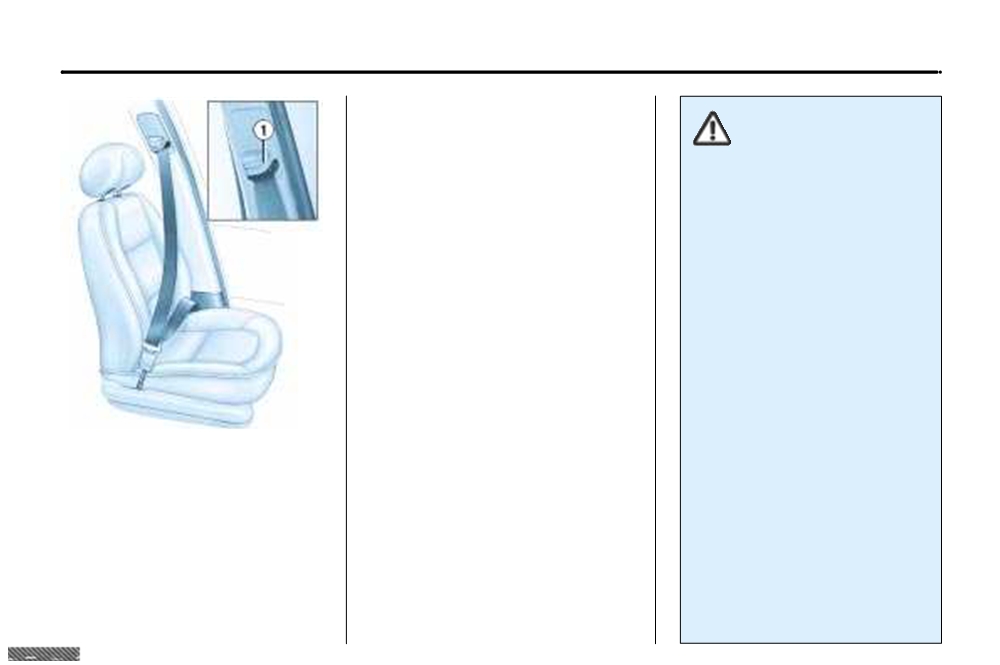

To adjust the height of the front

seat belts

Pinch control 1 and slide it.

To lock the seat belts

Pull the strap, then insert the buckle

into the stalk.

17-02-2003

103

YOUR 406 IN DETAIL

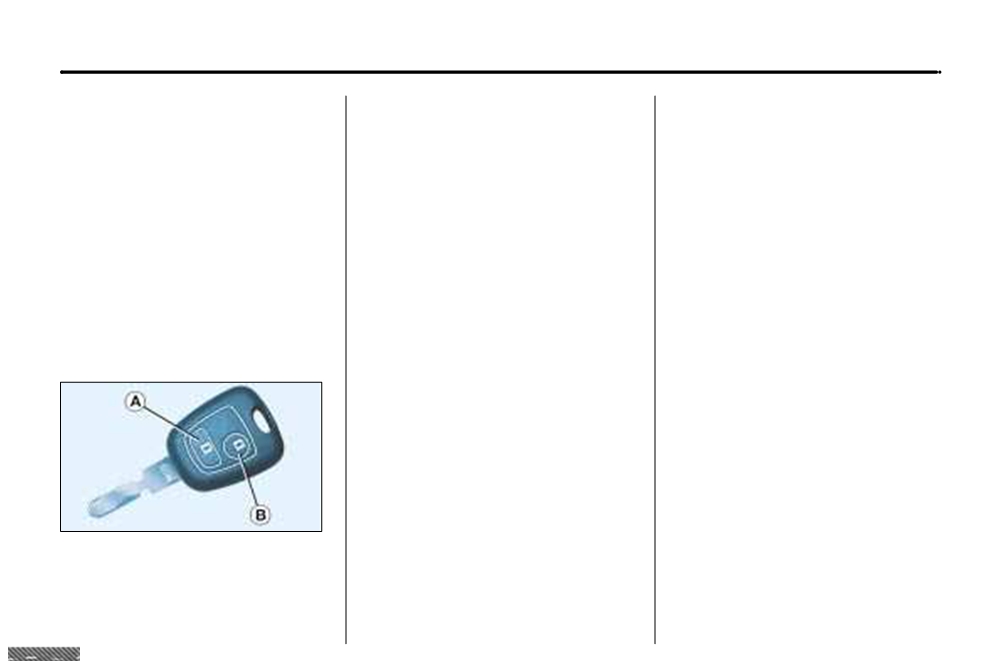

THE KEYS

This is confirmed by fixed lighting of

Locating your vehicle

the direction indicators for approxi-

The keys allow you to switch on the

mately two seconds.

To locate your vehicle, if you have

ignition and to independently operate

locked it, in a car park:

the locks on the front door, the glove

☞ press button A. The courtesy

Unlocking

box and the passenger air bag dis-

lights come on and the direction

arming switch.

Press button B to unlock the vehicle.

indicators flash for a few seconds.

This is confirmed by rapid flashing of

Central locking

the direction indicators.

From the driver's door, the keys

Note: do not repeatedly press the

allow you to lock and unlock the

button of your remote control out of

doors and boot/tailgate.

range of your vehicle. You risk caus-

If one of the front or rear doors is

ing it not to work and the remote con-

ELECTRONIC ENGINE

open, the central locking does not

trol would have to be reprogrammed.

IMMOBILISER

work.

This locks the engine management

system as soon as the ignition has

The remote control performs the

been switched off and therefore pre-

same functions at a distance.

vents starting of the vehicle by any-

one who does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code is

recognised and starting is possible.

If the system does not function cor-

rectly, you are warned by an audible

signal and a message on the multi-

function display.

Key in ignition

In this case, the vehicle will not

start.

A buzzer sounds on opening the dri-

The remote control

ver's door, if the key has been left in

Contact a PEUGEOT dealer as soon

the ignition.

as possible.

Locking

Press button A to lock the vehicle.

17-02-2003

104

YOUR 406 IN DETAIL

Programming the remote control

☞ Switch off the ignition.

☞ Switch the ignition on again.

☞ Press button A immediately.

☞ Switch off the ignition and

remove the remote control key

from the ignition lock. The remote

control is now working again.

Confidential card

Changing the battery of the

remote control

The confidential card contains the

identification code necessary for any

The information ''battery flat'' is

work carried out by a PEUGEOT

given by an audible signal accompa-

dealer on the system. This code is

nied by a message on the multi-

hidden by a film, which should be

function display.

removed only if necessary.

To replace the battery, unclip the

Keep your card in a safe place,

casing using a coin at the ring

never inside the vehicle.

(CR2016/3 volt battery).

If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

17-02-2003

105

YOUR 406 IN DETAIL

Make a careful note of the number on each key. The key number is coded on the label attached to the key.

If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys.

The high-frequency remote control is a high-performance system.

Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.

The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming.

Do not operate the deadlock if there is someone inside the vehicle.

As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a

short time.

Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from

working.

It would then be necessary to reprogramme the remote control.

When buying a second-hand car:

- ensure that you are in possession of the confidential card;

- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones

that can start your vehicle.

Do not make any modifications to the electronic engine immobiliser system.

17-02-2003

Peugeot 406 Break Dag (2003 year). Instruction - part 6
