Peugeot 308 SW BL (2013 year). Instruction - part 6

COMFORT

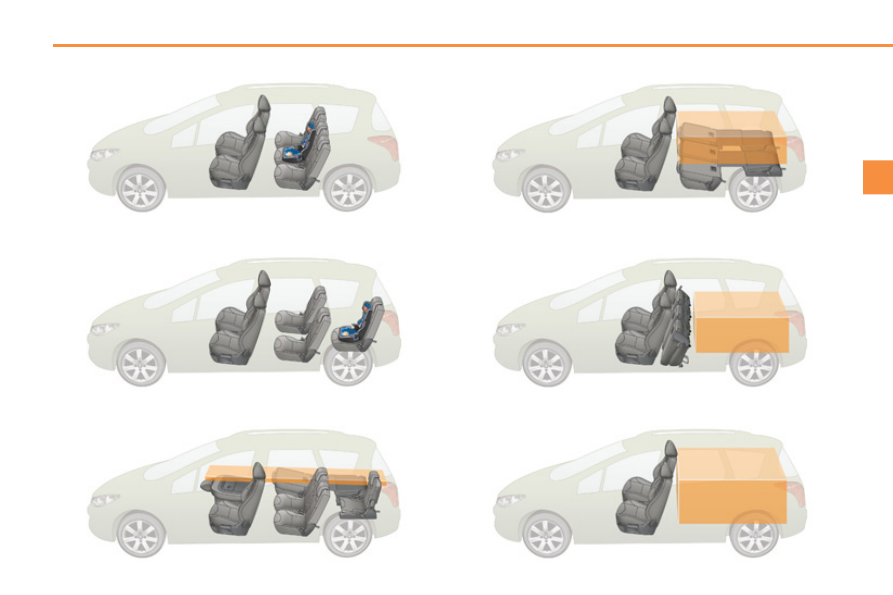

5 seats

5 seats with 2nd row seats moved inwards

Transporting long objects

Loading a large volume

COMFORT

The objects observed are, in reality,

closer than they appear.
Take this into account in order to

correctly judge the distance of ve-

hicles approaching from behind.

MIRRORS

Door mirrors

Each fi tted with an adjustable mirror

glass permitting the lateral rearward vi-

sion necessary for overtaking or parking.

They can also be folded for parking in

confi ned spaces.

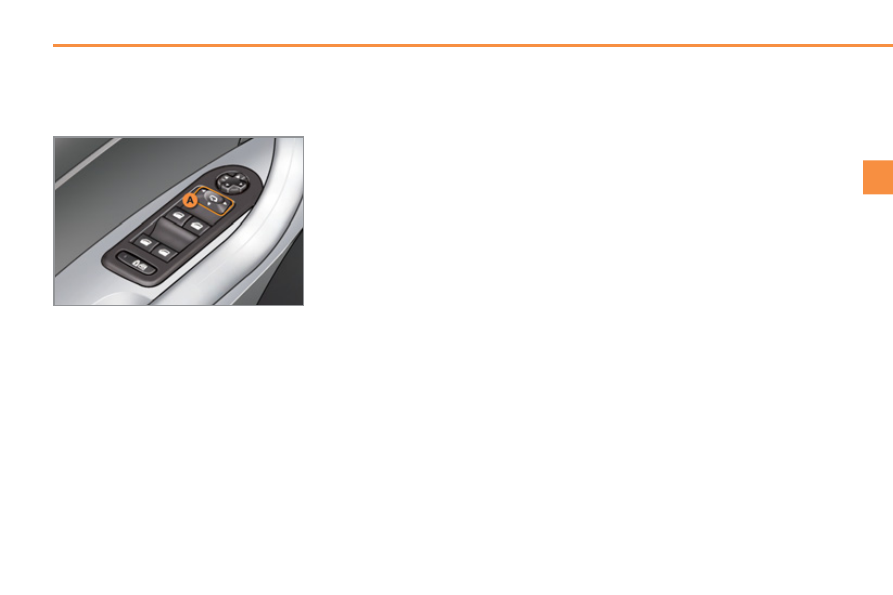

Folding
) From outside: lock the vehicle using

the remote control or the key.

) From inside: with the ignition on, pull

the control A in the central position

rearwards.

The folding and unfolding of the

door mirrors using the remote

control can be deactivated by a

PEUGEOT dealer or a qualifi ed

workshop.
Never fold or unfold the electric

folding mirrors manually.

Adjustment

Unfolding
) From outside: unlock the vehicle using

the remote control or the key.

) From inside: with the ignition on, pull

the control A in the central position

rearwards.

If the mirrors are folded using con-

trol A , they will not unfold when the

vehicle is unlocked. Pull again on

control A .

) Move control A to the right or to the left

to select the corresponding mirror.

) Move control B in all four directions

to adjust.

) Return control A to the central position.

Demisting - Defrosting

If your vehicle is fi tted with

heated mirrors, the demisting-

defrosting operates by switch-

ing on the heated rear screen

(refer to the "Rear screen demist-

defrost" page).

COMFORT

Automatic tilting in reverse gear
System which provides a view of the

ground during parking manoeuvres in

reverse gear.

Switching on
) With the engine running, engage re-

verse gear.

) Move control A to the right or to the left

to select the corresponding mirror.

The glass of the mirror selected tilts

downwards, in accordance with its pro-

gramming.

Programming
) With the engine running, engage re-

verse gear.

) Select and adjust the left-hand and

right-hand mirrors in succession.

The adjustment is stored immediately.

  Switching off
   )   Exit reverse gear and wait ten seconds.
or
   )   Return control A  to the central position.
The mirror glass returns to its initial po-

sition.
The mirror glass also returns to its initial

position:
-

if the speed exceeds 6 mph (10 km/h),

if the engine is switched off.

COMFORT

STEERING WHEEL ADJUSTMENT

) When stationary , pull the con-

trol lever to release the adjustment

mechanism.

) Adjust the height and reach to suit

your driving position.

) Push the control lever to lock the ad-

justment mechanism.

As a safety precaution, these op-

erations should only be carried out

while the vehicle is stationary.

Automatic day/night model

In order to ensure optimum vis-

ibility during your manoeuvres, the

mirror lightens automatically when

reverse gear is engaged.

By means of a sensor, which measures

the light from the rear of the vehicle, this

system automatically and progressively

changes between the day and night

uses.

Adjustment
) Adjust the mirror so that the glass is di-

rected correctly in the "day" position.

As a safety measure, the mirrors

should be adjusted to reduce the

"blind spot".

Manual day/night model

Day / night position
) Pull the lever to change to the "night"

anti-dazzle position.

) Push the lever to change to the normal

"day" position.

Rear view mirror

Adjustable mirror providing a central

rearward view.
Equipped with an anti-dazzle system,

which darkens the mirror glass: this re-

duces the nuisance to the driver caused

by the headlamps from following vehi-

cles, low sun...

ACCESS

REMOTE CONTROL KEY

System which permits central unlock-

ing or locking of the vehicle using the

lock or from a distance. It is also used to

locate and start the vehicle, as well as

providing protection against theft.

Unfolding the key
) First press this button to unfold the

key.

Unlocking the vehicle

) Press the open padlock to

unlock the vehicle.

Unlocking using the key
) Turn the key to the left in the driver's

door lock to unlock the vehicle.

Unlocking using the remote control

If one of the doors or the boot is still

open, the central locking does not

take place.
When the vehicle is locked, if it is

unlocked inadvertently, it will relock

automatically after thirty seconds

unless a door is opened.

Normal locking using the key
) Turn the key to the right in the driver's

door lock to lock the vehicle.

The folding and unfolding of the

door mirrors using the remote

control can be deactivated by a

PEUGEOT dealer or a qualifi ed

workshop.

Locking the vehicle

) Briefl

y press the closed

padlock to lock the vehicle.

or
) Press and hold the closed padlock

to close the windows automatically

in addition to locking (according to

version).

Normal locking using the remote

control

Locking is confi rmed by fi xed lighting of

the direction indicators for approximately

two seconds.
According to version, the door mirrors

fold at the same time.

Unlocking is confi rmed by rapid fl ashing

of the direction indicators for approxi-

mately two seconds.
According to version, the door mirrors

unfold at the same time.

ACCESS

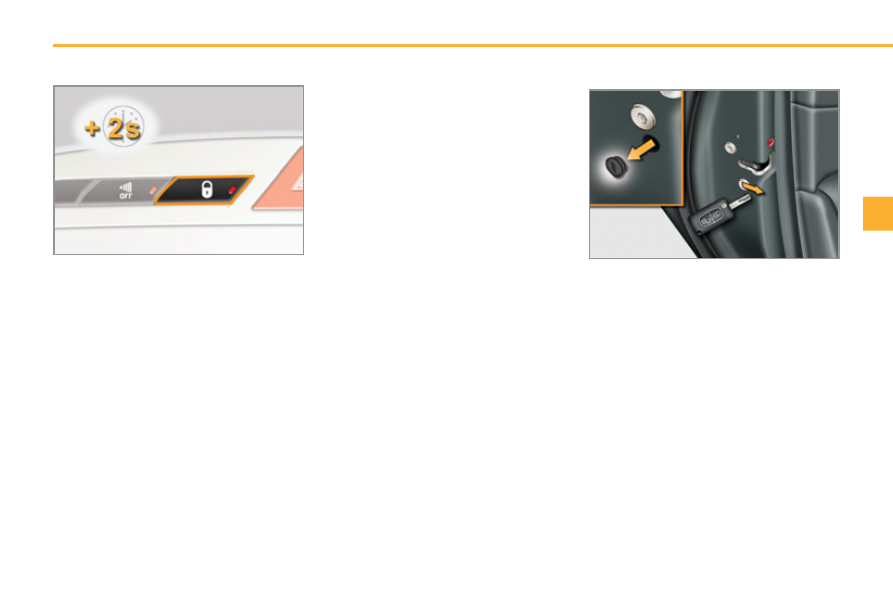

Deadlocking renders the exterior

and interior door controls inopera-

tive.
It also deactivates the manual central

control button.
Therefore, never leave anyone in-

side the vehicle when it is dead-

locked.

Deadlocking using the remote

control

Deadlocking using the key

) Short press on the closed

padlock to lock the vehicle

Deadlocking is confi rmed by fi xed light-

ing of the direction indicators for ap-

proximately two seconds.
According to version, the door mirrors

fold at the same time.

) Turn the key to the right in the driv-

er's door lock to lock the vehicle.

) Turn the key to the right again within

fi ve seconds to deadlock the vehicle.

Folding the key
) First press this button to fold the

key.

If you do not press the button when fold-

ing the key, there is a risk of damage to

the mechanism.

Locating your vehicle

This function allows you to identify your

vehicle from a distance, particularly in

poor light. Your vehicle must be locked.

Electronic engine immobiliser
The key contains an electronic chip

which has a special code. When the

ignition is switched on, this code must

be recognised in order for starting to be

possible.
This electronic engine immobiliser locks

the engine management system a few

minutes after the ignition is switched off

and prevents starting of the engine by

anyone who does not have the key.

Anti-theft protection

In the event of a fault, you are

informed by illumination of this

warning lamp, an audible signal

and a message in the screen.

In this case, your vehicle will not start;

contact a PEUGEOT dealer as soon as

possible.
Keep safely the label attached to the

keys given to you on acquisition of the

vehicle.

) Long press on the closed padlock to

lock the vehicle and also close the

windows (depending on version).

) Short press on the closed padlock

again within fi ve seconds to dead-

lock the vehicle.

) Press the closed padlock

on the remote control.

This will switch on the courtesy lamps

and the direction indicators will fl ash for

a few seconds.

ACCESS

Starting the vehicle

) Insert the key in the ignition switch.

The system recognises the starting

code.

) Turn the key fully towards the dash-

board to position 3 (Starting) .

) When the engine starts, release the

key.

Switching the vehicle off

) Immobilise the vehicle.
) Turn the key fully towards you to po-

sition 1 (Stop) .

) Remove the key from the ignition

switch.

Remote control problem

Following disconnection of the vehicle

battery, replacement of the remote con-

trol battery or in the event of a remote

control malfunction, you can no longer

unlock, lock or locate your vehicle.
) First of all, use the key in the lock to

unlock or lock your vehicle.

) Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT

dealer as soon as possible.

Changing the battery

Battery ref.: CR1620 / 3 volts.

  Reinitialisation
   )   Switch off the ignition.
  )   Turn the key to position 2 (Ignition on) .
  )   Press the closed padlock immedi-

ately for a few seconds.

) Switch off the ignition and remove

the key from the ignition switch.

The remote control is fully operational

again.

If the battery is fl at, you are in-

formed by illumination of this

warning lamp, an audible signal

and a message in the multi-

function screen.

Key left in the "Ignition on"

position
On opening the driver's door, an

alert message is displayed, accom-

panied by an audible signal, to re-

mind you that the key is still in the

ignition switch at position 1 (Stop) .
If the key has been left in the igni-

tion switch at position

2 (Ignition

on) , the ignition will be switched off

automatically after one hour.
To switch the ignition back on, turn

the key to position 1 (Stop) , then

back to position 2 (Ignition on) .

) Unclip the casing using a coin at the

notch.

) Slide the fl at battery out of its location.
) Slide the new battery into its loca-

tion observing the original direction.

) Clip the casing.
) Reinitialise the remote control.

A heavy object (key fob...), attached

to the key and weighing down on

its shaft in the ignition switch, could

cause a malfunction.

ACCESS

Lost keys

Visit a PEUGEOT dealer with the vehicle's registration document, your per-

sonal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transpond-

er code required to order a new key.

Do not throw the remote control

batteries away, they contain metals

which are harmful to the environ-

ment.
Take them to an approved collection

point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your

pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of

your vehicle. You run the risk of stopping it from working and the remote control would have

to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the

ignition is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact

causing airbag deployment.
As a safety precaution (with children on board), remove the key from the igni-

tion switch when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;

this could cause malfunctions.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT

dealer, to ensure that only your keys can be used to open and start the vehicle.

ACCESS

ALARM

System which protects and provides a de-

terrent against theft and break-ins. It pro-

vides the following types of monitoring:

Locking the vehicle with full

alarm system

For all work on the alarm system,

contact a PEUGEOT dealer or a

qualifi ed workshop.

Activation
) Switch off the ignition and get out of

the vehicle.

) Press the locking button on the re-

mote control.

The monitoring system is active: the in-

dicator lamp in the button fl ashes once

per second.
After the locking button on the remote

control is pressed, the exterior perimeter

monitoring is activated after a delay of

5 seconds and the interior volumetric

monitoring after a delay of 45 seconds.

- Exterior

perimeter

The system checks for opening of the

vehicle.
The alarm is triggered if anyone tries to

open a door, the boot, the bonnet...

- Interior

volumetric

The system checks for any variation in

the volume in the passenger compart-

ment.
The alarm is triggered if anyone breaks

a window, enters the passenger com-

partment or moves inside the vehicle.

Self-protection function
The system checks for the putting out of

service of its components.
The alarm is triggered if the battery, the

central control or the wires of the siren

are put out of service or damaged.

Deactivation
) Press the unlocking button on the

remote control.

The alarm system is deactivated: the in-

dicator lamp in the button goes off.

If an opening (door, boot...) is

not closed fully, the vehicle is not

locked but the exterior perimeter

monitoring will be activated after a

delay of 45 seconds at the same

time as the interior volumetric

monitoring.

ACCESS

Triggering of the alarm

The monitoring functions remain

active until the alarm has been trig-

gered eleven times in succession.
When the vehicle is unlocked using

the remote control, rapid fl ashing

of the indicator lamp in the button

informs you that the alarm was trig-

gered during your absence. When

the ignition is switched on, this

fl ashing stops immediately.

Failure of the remote control

To deactivate the monitoring functions:

) Lock or deadlock the vehicle using

the key in the driver's door lock.

Locking the vehicle without

activating the alarm

When the ignition is switched on, fi xed

illumination of the indicator lamp in the

button indicates a malfunction of the

system.
Have it checked by a PEUGEOT dealer

or a qualifi ed workshop.

This is indicated by sounding of the si-

ren and fl ashing of the direction indica-

tors for thirty seconds.

) Unlock the vehicle using the key in

the driver's door lock.

) Open the door; the alarm is trig-

gered.

) Switch on the ignition; the alarm

stops. The indicator lamp in the but-

ton goes off.

Malfunction

Automatic activation *

To be effective, this deactivation

must be carried out each time the

ignition is switched off.

Deactivation of the interior

volumetric monitoring
) Switch off the ignition.
) Within ten seconds, press the but-

ton until the indicator lamp is on

continuously.

) Get out of the vehicle.
) Press the locking button on the re-

mote control immediately.

The exterior perimeter monitoring alone

is activated: the indicator lamp in the

button fl ashes once per second.

Locking the vehicle with

exterior perimeter monitoring

only

Deactivate the interior volumetric moni-

toring to avoid unwanted triggering of

the alarm in certain cases such as:
-

leaving a pet in the vehicle,

leaving a window partially open,

washing your vehicle.

Reactivation of the interior

volumetric monitoring
) Press the unlocking button on the

remote control to deactivate the ex-

terior perimeter monitoring.

) Press the locking button on the re-

mote control to activate all the moni-

toring functions.

The indicator lamp in the button again

fl ashes once per second.

* According to country.

2 minutes after the last door or the boot

is closed, the system is activated auto-

matically.
) To avoid triggering the alarm on enter-

ing the vehicle, fi rst press the unlocking

button on the remote control.

ACCESS

The electric window controls re-

main operational for approximately

seconds after the ignition is

switched off or until the vehicle is

locked after a door is opened.
If one of the passenger windows

cannot be operated from the driver's

door control panel, carry out the op-

eration from the control panel of the

passenger door concerned, and vice

versa.

ELECTRIC WINDOWS

Fitted with a safety anti-pinch system

and a deactivation system to prevent

misuse of the rear controls.

Electric window controls

If the window cannot be closed (for

example, in the presence of ice),

immediately after the movement is

reversed:
) press and hold the control until

the window opens fully,

) then pull the control immediately

and hold it until the window closes,

) continue to hold the control for

approximately one second after

the window has closed.

The safety anti-pinch function is

not operational during these op-

erations.

Safety anti-pinch
When the window rises and meets an

obstacle, it stops and partially lowers

again.

automatic mode

)

Press or pull the control fi rmly.

The window opens or closes fully

when the control is released.

) Pressing the control again stops

the movement of the window.

One-touch electric windows

There are two options:
-

manual mode

) Press or pull the control gently.

The window stops when the

control is released.

After approximately ten consecutive

complete opening/closing movements

of the window, a protection function is

activated which only authorises clos-

ing of the window to prevent damage

to the electric window motor.
Once the window is closed, the controls

will become available again after ap-

proximately 40 minutes.

   1.    Driver's electric window.
  2.    Passenger's electric window.
  3.    Rear right electric window.
  4.    Rear left electric window.
  5.    Deactivation of the rear electric

window and door controls.

ACCESS

This control also deactivates the

interior controls for the rear doors

(refer to the section "Child safety -

Electric child lock").

Reinitialisation
If a window does not rise automatically,

its operation must be reinitialised:
) pull the control until the window

stops,

) release the control and pull it again

until the window closes fully,

) continue to hold the control for ap-

proximately one second after the

window has closed,

) press the control to lower the win-

dow automatically to the low posi-

tion,

) when the window has reached the

low position, press the control again

for approximately one second.

Always remove the key from the

ignition when leaving the vehicle,

even for a short time.
If an obstacle is encountered during

operation of the electric windows,

you must reverse the movement of

the window. To do this, press the

control concerned.
When the driver operates the controls

for the passengers' electric windows,

they must ensure that no one is pre-

venting correct closing of the win-

dows.
The driver must ensure that the pas-

sengers use the electric windows

correctly.
Be aware of children when operating

the windows.

Deactivation of the rear electric

window and door controls

) For the safety of your children, press

control 5 to deactivate the rear elec-

tric window controls regardless of

their position.

Indicator lamp on, the rear controls are

deactivated.
Indicator lamp off, the rear controls are

activated.

The safety anti-pinch function is not

operational during these operations.

ACCESS

DOORS

) After unlocking the vehicle completely

using the remote control or the key,

pull the door handle.

From inside

) Pull the interior control lever of a

front door; this unlocks the vehicle

completely.

Closing

When a door is not closed correctly:

- when the engine is running ,

this warning lamp comes on,

accompanied by a message in

the multifunction screen for a

few seconds,

when the vehicle is moving (speed

higher than 6 mph (10 km/h)), this

warning lamp comes on, accom-

panied by an audible signal and a

message in the multifunction screen

for a few seconds.

Opening

From outside

Version with deadlocking

The interior door controls do not

operate when the vehicle is dead-

locked.

ACCESS

When locking / deadlocking

from the outside
When the vehicle is locked or dead-

locked from the outside, the red in-

dicator lamp fl ashes and the button

is inactive.
) After normal locking, pull the

interior door lever to unlock the

vehicle.

) After deadlocking, it is neces-

sary to use the remote control or

the key to unlock the vehicle.

If one of the doors is open, the au-

tomatic central locking does not

take place.
If the boot is open, the automatic

central locking of the doors is ac-

tive.

Centralised locking control

System which provides full manual

locking or unlocking of the doors from

the inside.

Locking
) Press this button to lock the vehicle.
The red indicator lamp in the button

comes on.

Anti-intrusion security

System which provides full automatic

locking or unlocking of the doors and

boot while driving.
You can activate or deactivate this func-

tion.

Unlocking
) Above 6 mph (10 km/h), press this

button to unlock the doors and boot

temporarily.

If one of the doors is open, the central

locking from the inside does not take

place.

Unlocking
) Press this button again to unlock the

vehicle.

The red indicator lamp in the button

goes off.

Locking
When the speed exceeds 6 mph (10 km/h),

the doors and boot lock automatically.

ACCESS

Emergency control

System allowing the doors to be locked

and unlocked manually in the event of

a malfunction of the central locking sys-

tem or battery failure.

) Open the doors.
) On the rear doors, check that the child

lock is not on (see Child Safety).

) Remove the black cap, located on

the edge of the door, using the key.

) Insert the key in the socket without

forcing it, then without turning it,

move the latch sideways towards

the inside of the door.

) Remove the key and refi t the cap.
) Close the doors and check that the

vehicle has locked correctly from

the outside.

Locking the driver's door
) Insert the key in the door lock, then

turn it to the rear.

You can also apply the procedure de-

scribed for the passenger doors.

Unlocking the driver's door
) Insert the key in the door lock, then

turn it to the front.

Locking the front and rear

passenger doors

Unlocking the front and rear

passenger doors
) Pull the interior door opening control.

Activation

) Press this button for more than two

seconds.

A confi rmation message appears in the

multifunction screen, accompanied by

an audible signal.

Deactivation
) Press this button again for more

than two seconds.

A confi rmation message appears in the

multifunction screen, accompanied by

an audible signal.

ACCESS

BOOT

Opening

) After unlocking the vehicle using the

remote control or the key, pull the

handle and raise the tailgate.

Closing

) Lower the tailgate using the interior

grab handle.

when the engine is running ,

this warning lamp comes on,

accompanied by a message

in the multifunction screen for

a few seconds,

when the vehicle is moving (speed

above 6 mph (10 km/h)), this warning

lamp comes on, accompanied by an au-

dible signal and a message in the multi-

function screen for a few seconds.

If the tailgate is not closed correctly:

Opening

) After unlocking the vehicle using the

remote control or the key, pull the

handle and raise the tailgate.

BOOT

when the engine is running ,

this warning lamp comes on,

accompanied by a message

in the multifunction screen for

a few seconds,

when the vehicle is moving (speed

above 6 mph (10 km/h)), this warning

lamp comes on, accompanied by an

audible signal and a message in the

multifunction screen for a few seconds.

Tailgate release

System allowing the mechanical unlock-

ing of the boot in the event of a battery

or central locking system malfunction.

Unlocking
) Fold back the rear seats to gain

access to the lock from inside the

boot.

) Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

) Move the latch to the left.

Closing

) Lower the tailgate using the interior

grab handle.

If the tailgate is not closed correctly:

Locking after closing
If the fault persists after closing again,

the boot will remain locked.

Content .. 4 5 6 7 ..
