Peugeot 308 SW BL Dag (2009.5). Instruction

INSTRUMENTS and CONTROLS

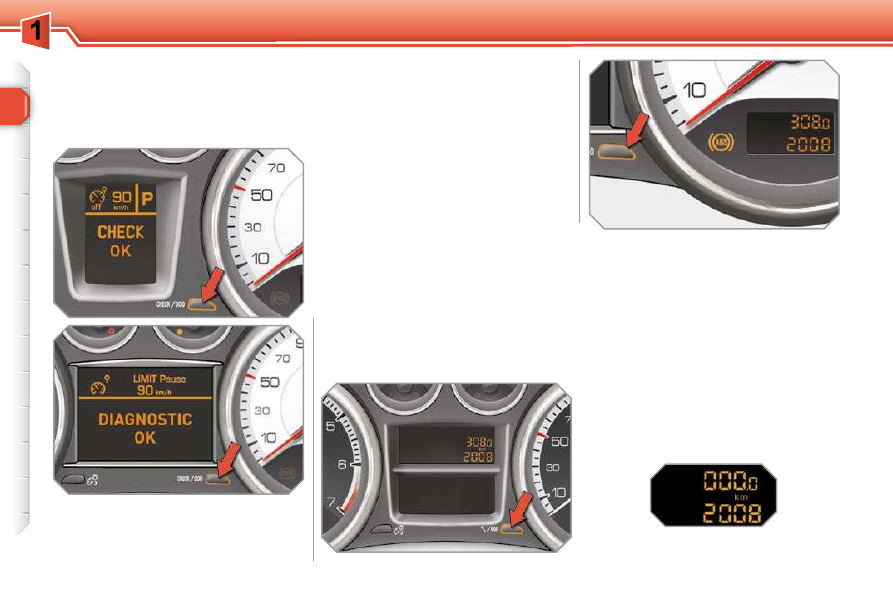

Total distance recorder

System which measures the total distance
travelled by the vehicle during its life.

The  total  and  trip  distances  are  dis-
played for thirty seconds when the igni-
tion  is  switched  off,  when  the  driver's
door is opened and when the vehicle is
locked or unlocked.

Trip distance recorder

System which measures a distance
travelled since it was reset to zero by
the driver.

 With the ignition on, press the button

until zeros appear.

Manual Check

This function allows you to check the
status of the vehicle (reminder of the
warnings and of the "activated" or "de-

activated" status of the conﬁ gurable

functions) and the service information.

 With the engine running, to start

a manual check, brieﬂ y press

the "CHECK/000" button on the
instrument panel.

If no faults have been detected,
"CHECK OK" appears on the large
central instrument panel screen.

If  a  "major"  fault  has  been  detected,
only  the  warning  lamps  concerned  ap-
pear  on  the  large  central  instrument
panel  screen.  Have  it  checked  by  a
PEUGEOT dealer.

If  a  "minor"  fault  has  been  detected,  the
warning  lamp  concerned  then   "CHECK
OK"   appear  on  the  large  central  instru-
ment panel screen. Consult a PEUGEOT
dealer.

INSTRUMENTS and CONTROLS

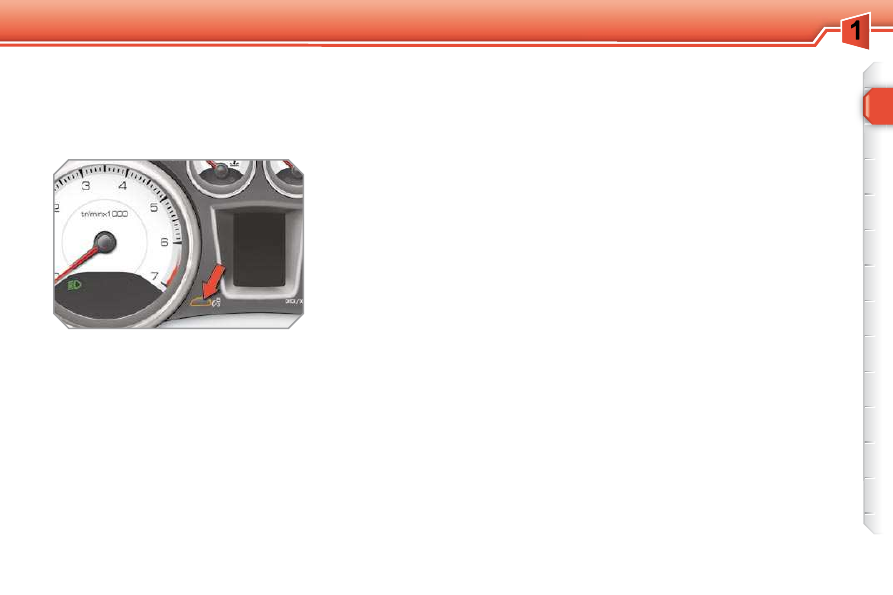

Lighting rheostat

Permits manual adjustment of the brightness
of the instruments and controls in relation to
the exterior brightness. Only operates when
the vehicle lighting is on, with the exception
of the daytime running lamps.

Activation
 Press the button to change the brightness

of the instruments and controls.

 When the lighting reaches the minimum

setting, release the button, then press
again to increase it.

or
 When the lighting reaches the maximum

setting, release the button, then press
again to reduce it.

 When the lighting reaches the level of

brightness required, release the button.

Deactivation
When the vehicle lighting is off, or in

day mode on vehicles ﬁ tted with day-

time running lamps, pressing the button
does not have any effect.

MULTIFUNCTION SCREENS

Displays on the screen

This displays the following information:
-

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

status of the openings (doors,
boot...),

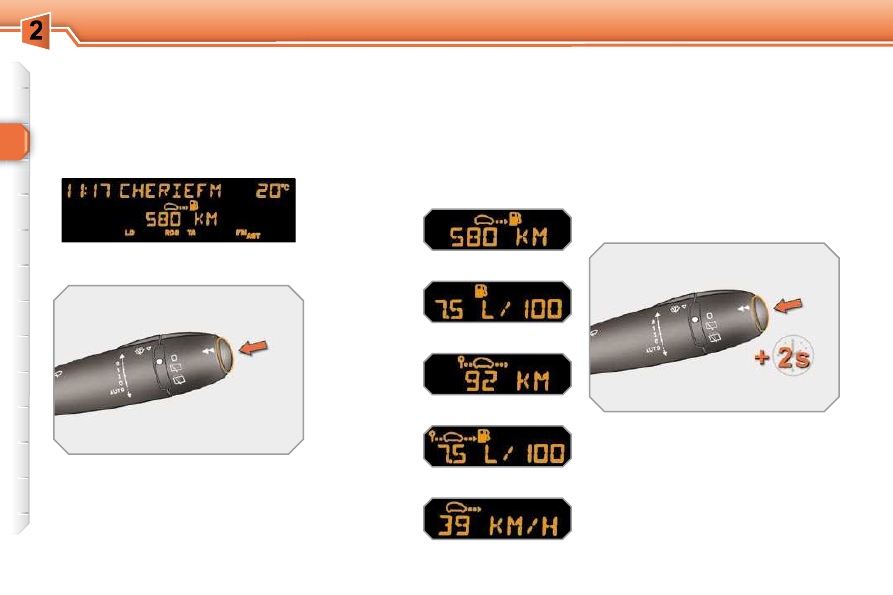

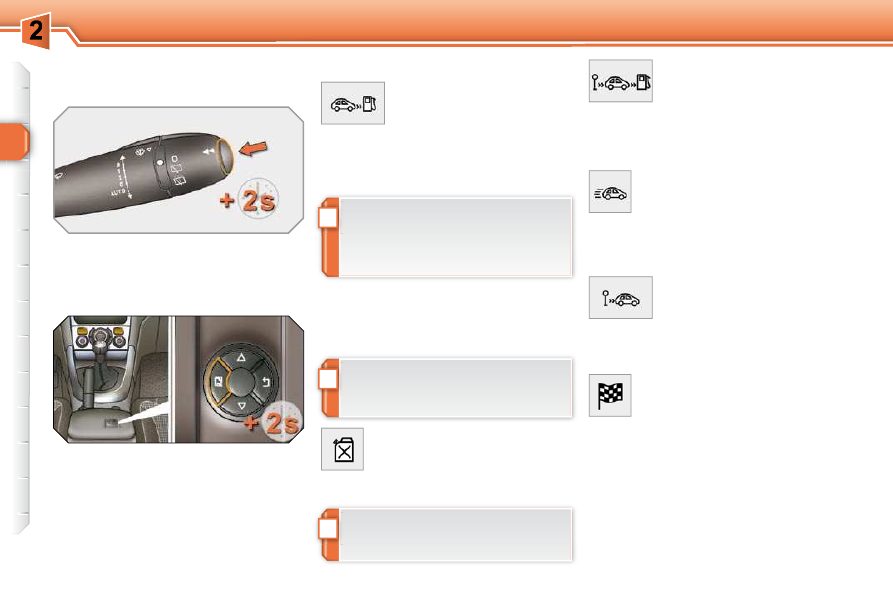

trip computer (refer to the end of the
section).

Warning  messages  (e.g.:  "Emission
control  system  faulty")  or  information
messages  (e.g.:  "Boot  open")  may  ap-
pear temporarily. These can be cleared
by pressing the  "ESC"  button.

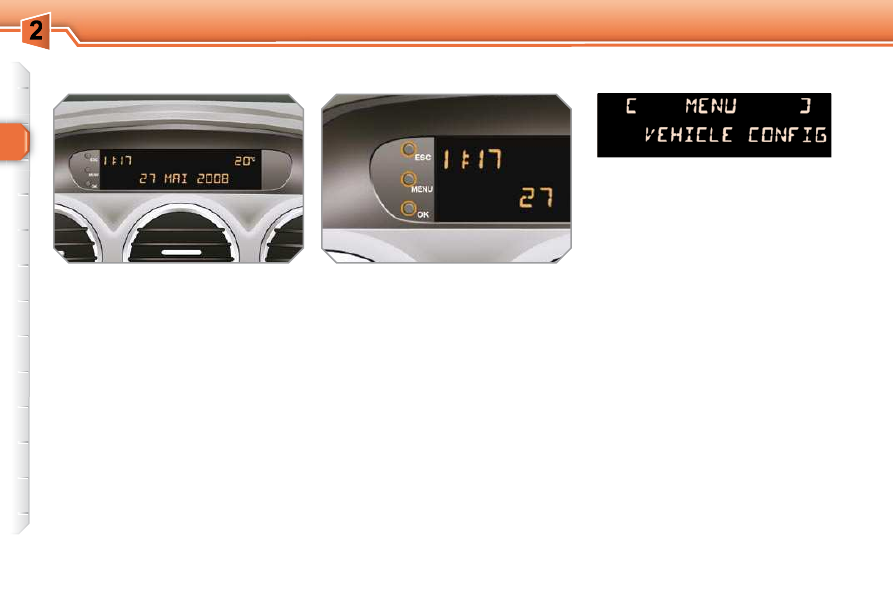

MONOCHROME SCREEN A
(WITHOUT PC SOUND)

Controls

General menu

There are three display control buttons:
-

"ESC" to abandon the operation in
progress,

"MENU" to scroll through the menus
or sub-menus,

"OK" to select the menu or sub-
menu required.

 Press the "MENU" button to scroll

through the various menus of the
main menu :

   -   vehicle conﬁ guration,
  -   options,
  -   display settings,
  -   languages,
  -   units.

 Press the "OK" button to select the

menu required.

* With air conditioning only.

MULTIFUNCTION SCREENS

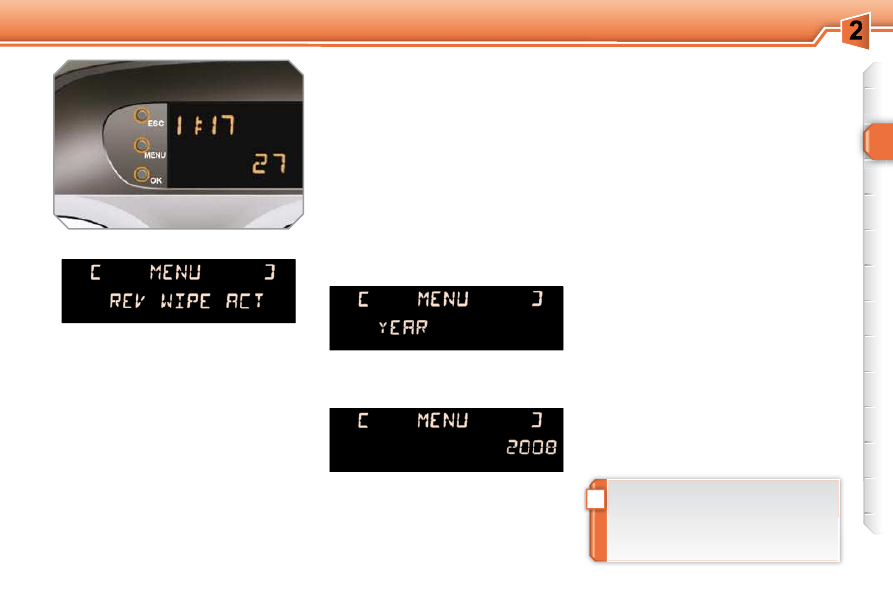

Vehicle conﬁ guration

Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).

Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands,

Portugues,

Portugues-

Brasil, Deutsch, English, Espanol).

  Display settings
Once  the  "Display  settings"  menu  has
been selected, you  can  gain  access  to
the following settings:
   -

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

  Units
Once  the  "Units"  menu  has  been  se-
lected, you can change the units of the
following parameters:
   -

temperature (°C or °F),

fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,

press the "OK" button to change its
value.

 Wait for approximately ten seconds

without  any  action  to  allow  the
changed  data  to  be  recorded  or
press the  "ESC"  button to cancel.

The screen then returns to the normal
display.

Once the "Vehicle conﬁ guration" menu

has been selected, you can activate or
deactivate the following equipment:
-

wiper linked with reverse gear (refer
to the "Visibility" section),

"guide-me-home"

and

welcome

lighting (refer to the "Visibility"
section),

daytime running lamps (refer to the
"Visibility" section),

rear parking sensors (refer to the
"Driving" section).

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

MULTIFUNCTION SCREENS

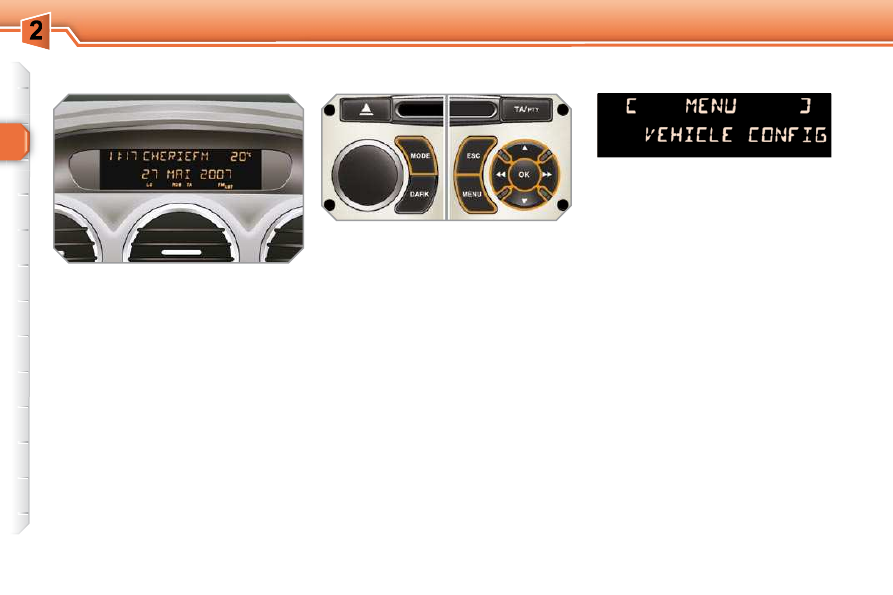

MONOCHROME SCREEN A

Controls

Displays on the screen

This displays the following information:
-

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

status of the openings (doors,
boot...),

audio sources (radio, CD...),

trip computer (refer to the end of the
section).

Warning  messages  (e.g.:  "Emission
control  system  faulty")  or  information
messages  (e.g.:  "Boot  open")  may  ap-
pear temporarily. These can be cleared
by pressing the  "ESC"  button.

Main menu

 Press the "MENU" button for access

to the main menu , then press the
"  " or "  " buttons to scroll through
the various menus:

   -   radio-CD,
  -   vehicle conﬁ guration,
  -   options,
  -   display settings,
  -   languages,
  -   units.

 Press the "OK" button to select the

menu required.

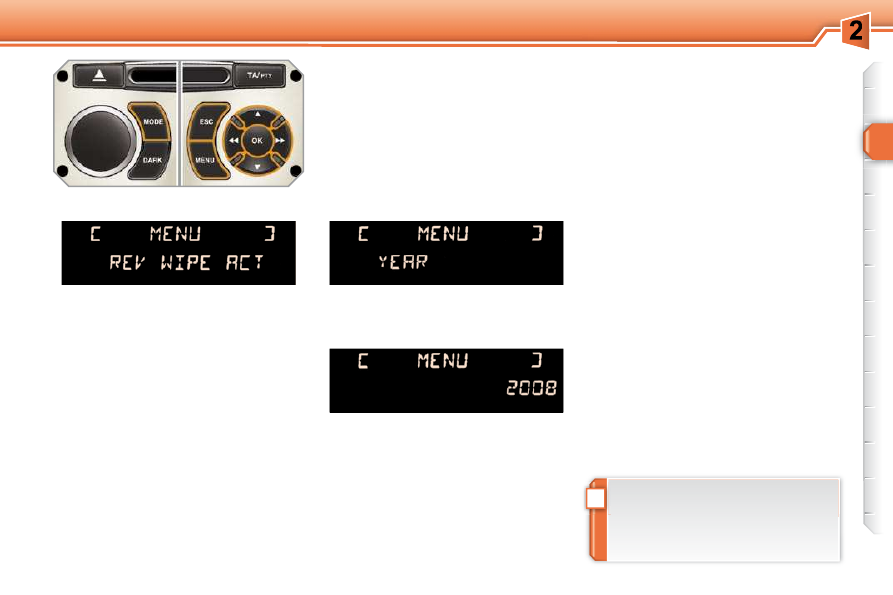

From the control panel of your PC Sound,
you can:
 press the "MENU" button for access

to the main menu ,

 press the "  " or "  " buttons to scroll

through the items on the screen,

 press the "MODE" button to change

the

permanent

application

(trip

computer, audio source...),

 press the "  " or "  " buttons to

change a setting value,

 press the "OK"

button to conﬁ rm,

or
 press the "ESC" button to abandon

the operation in progress.

  Radio-CD
With  the  PC  Sound  switched  on,  once
the "Radio-CD" menu has been select-
ed  you  can  activate  or  deactivate  the
functions  linked  with  use  of  the  radio
(RDS, REG), the CD or the CD changer

(introscan, shufﬂ e, CD repeat).
For more information on the "Radio-CD"
application, refer to the PC Sound part
of the "Audio and Telematics" section.

* With air conditioning only.

MULTIFUNCTION SCREENS

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

  Display settings
Once  the  "Display  settings"  menu  has
been selected, you can gain access to
the following settings:
   -

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Deutsch, English, Espanol).

  Units
Once  the  "Units"  menu  has  been  se-
lected, you can change the units of the
following parameters:
   -

temperature (°C or °F),

fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,

press the "  " or "  " buttons to
change its value.

 Press the "  " or "  " buttons to

switch respectively to the previous
or next setting.

 Press the "OK" button to record

the change and return to the normal
display or press the "ESC" button to
cancel.

Vehicle conﬁ guration

Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).

Once the "Vehicle Conﬁ guration" menu

has been selected, you can activate or
deactivate the following equipment:
-

wiper linked with reverse gear (refer
to the "Visibility" section),

"guide-me-home"

and

welcome

lighting (refer to the "Visibility"
section),

daytime running lamps (refer to the
"Visibility" section),

rear parking sensors (refer to the
"Driving" section).

MULTIFUNCTION SCREENS

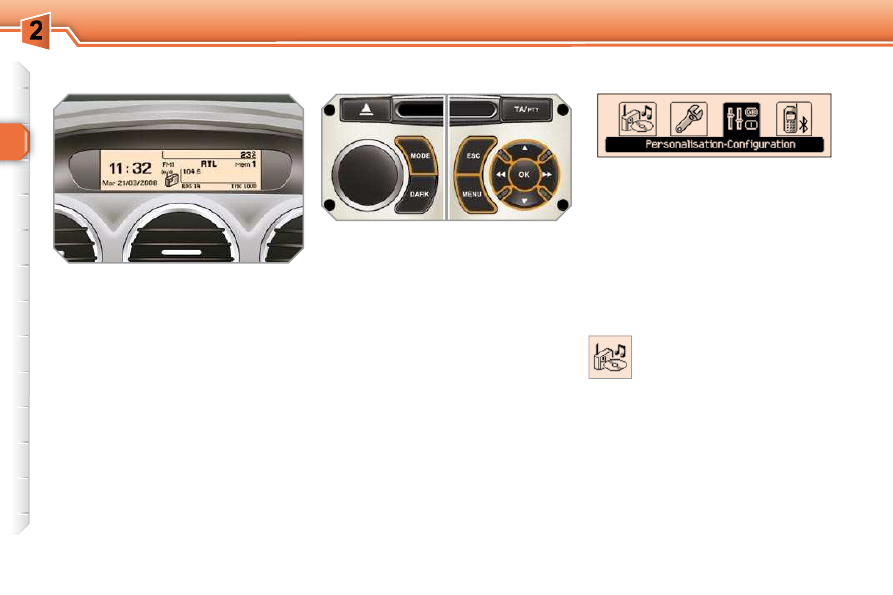

MONOCHROME SCREEN C

Main menu

Displays on the screen

This displays the following information:
-

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

status of the openings (doors,
boot...),

audio sources (radio, CD...),

trip computer (refer to the end of the
section).

Warning  messages  (e.g.:  "Emission
control  system  faulty")  or  information
messages  (e.g.:  "Automatic  switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the  "ESC"  button.

"Audio functions" menu

Controls

From the control panel of your PC Sound,
you can:
 press the "MENU" button for access

to the main menu ,

 press the "  " or "  " buttons to scroll

through the items on the screen,

 press the "MODE" button to change

the

permanent

application

(trip

computer, audio source...),

 press the "  " or "  " buttons to

change a setting value,

 press the "OK"

button to conﬁ rm,

or
 press the "ESC" button to abandon

the operation in progress.

 Press the "MENU" button for access

to the main menu :

   -   audio functions,
  -   diagnosis vehicle,
  -   personalisation-conﬁ guration,
  -   telephone (Bleutooth system).

 Press the "  " or "  " buttons to select

the menu required, then conﬁ rm by

pressing the "OK" button.

* With air conditioning only.

With  the  PC  Sound  switched  on,  once
this  menu  has  been  selected  you  can
activate  or  deactivate  the  functions
linked with use of the radio (RDS, REG,
RadioText),  the  CD  or  the  CD  changer

(introscan, shufﬂ e, CD repeat).
For  more  information  on  the  "Audio
functions"  application,  refer  to  the  PC
Sound  part  of  the  "Audio  and Telemat-
ics" section.

MULTIFUNCTION SCREENS

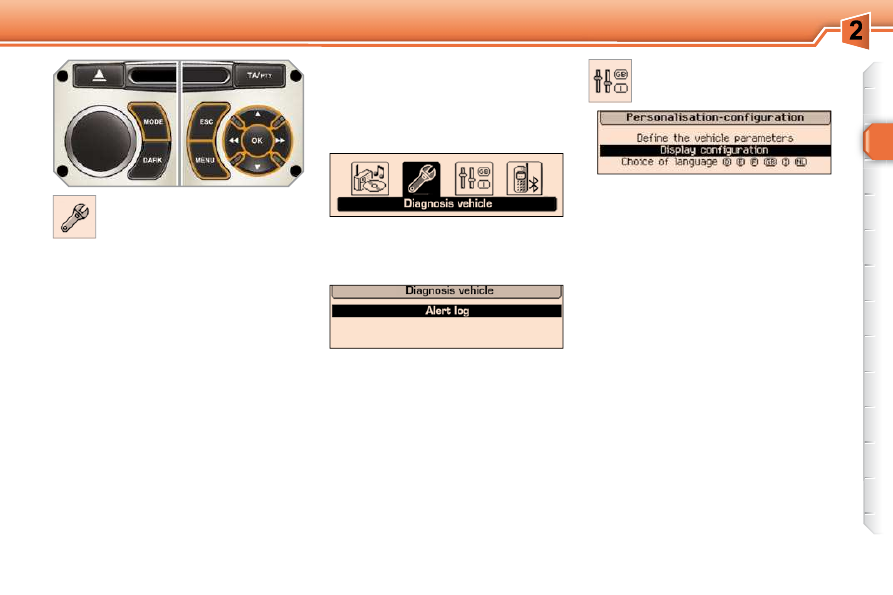

"Diagnosis vehicle"

menu

 Press the "MENU" button for access

to the main menu.

 Press the arrows, then the "OK"

button to select the "

Diagnosis

vehicle " menu.

 On the "

Diagnosis vehicle " menu,

select the following application:

  Alert log
This  summarises  the  active  warning
messages,  displaying  them  in  succes-
sion on the multifunction screen.

Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert
log.

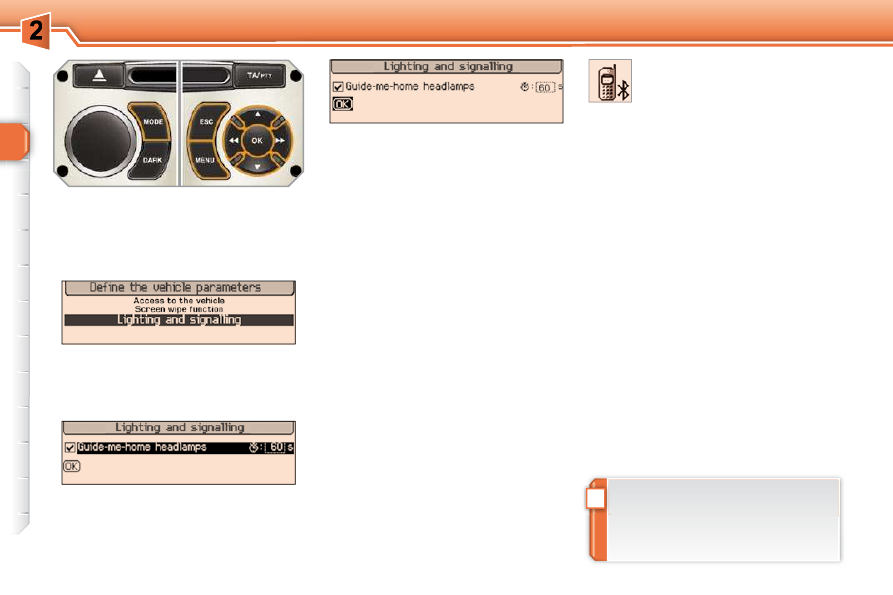

Deﬁ ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
-

wiper linked with reverse gear (refer
to the "Visibility" section),

"guide-me-home"

and

welcome

lighting (refer to the "Visibility"
section),

interior mood lighting (refer to the
"Visibility" section),

daytime running lamps (refer to the
"Visibility" section),

rear parking sensors (refer to the
"Driving" section).

"Personalisation-

Configuration" menu

Once this menu has been selected, you
can gain access to the following func-
tions:
- deﬁ ne the vehicle parameters,

- display conﬁ guration,
-

choice of language.

MULTIFUNCTION SCREENS

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

"Telephone" menu

  Display conﬁ guration
Once this menu has been selected, you
can  gain  access  to  the  following  set-
tings:
   -

brightness-video setting,

date and time setting,

choice of units.

  Choice of language
Once  this  menu  has  been  selected,
you  can  change  the  language  used
by

the

display

(Deutsch,

English,

Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).

Example: setting of the duration of the
"guideme-home" lighting

 Press the "  " or "  " buttons, then

the "OK" button to select the menu
required.

 Press the "  " or "  " buttons,

then the "OK" button to select the
"Guide-me-home headlamps" line.

 Press the "  " or "  " buttons to

set the value required (15, 30 or
60 seconds), then press the "OK"

button to conﬁ rm.

 Press the "  " or "  " buttons, then

the "OK" button to select the "OK"

box and conﬁ rm or press the "ESC"

button to cancel.

With the PC Sound switched on, once
this menu has been selected you can

conﬁ gure your Bluetooth system (pair-

ing), consult the various telephone di-
rectories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).
For more information on the "Telephone"
application, refer to the PC Sound part
of the "Audio and Telematics" section.

** According to country.

MULTIFUNCTION SCREENS

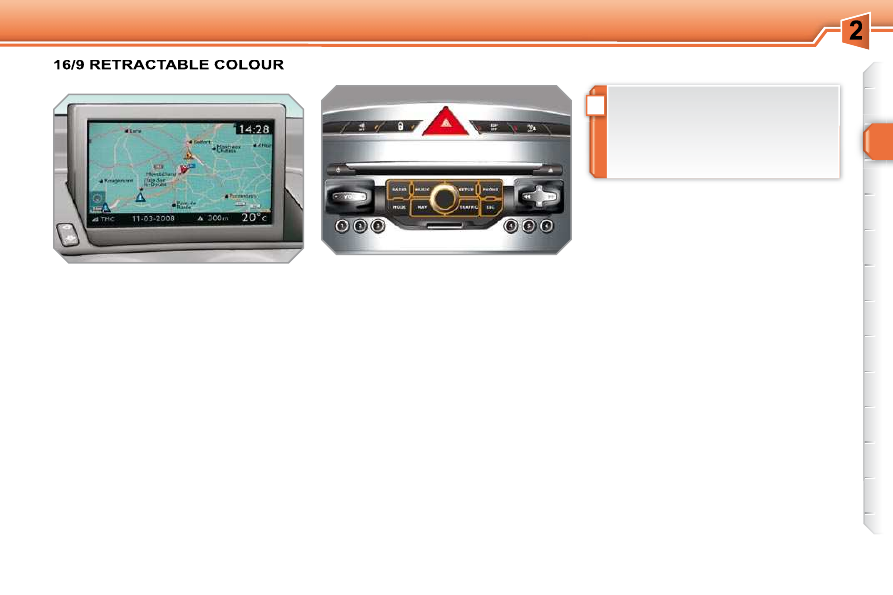

For operation of the retractable dis-
play  (opening,  closing,  adjustment
of  the  position,  etc.),  refer  to  the
paragraph  "Access  to  the  retract-
able display".

Displays on the screen

Once the screen is unfolded, it displays
the following information automatically
and directly:
-

time,

date,

altitude,

ambient temperature (the value

displayed ﬂ ashes if there is a risk of

ice),

openings check,

warning and vehicle function status
messages, displayed temporarily,

audio functions,

trip computer information,

satellite navigation system information.

From the PC Nav control panel, to se-
lect one of the applications:
 press

the

dedicated

"RADIO" ,

"MUSIC" ,

"NAV" ,

"TRAFFIC" ,

"SETUP" or "PHONE" button for
access to the corresponding menu,

 turn the navigator to move the

selection,



press the navigator to conﬁ rm the

selection,

or
 press the "ESC" button to abandon

the current operation and return to
the previous display.

SCREEN (WITH PC NAV)

Controls

For more information on these applica-
tions, refer to the "Audio and Telemat-

ics" section or to the speciﬁ c user guide

given to you with the other owner's docu-
ments.

MULTIFUNCTION SCREENS

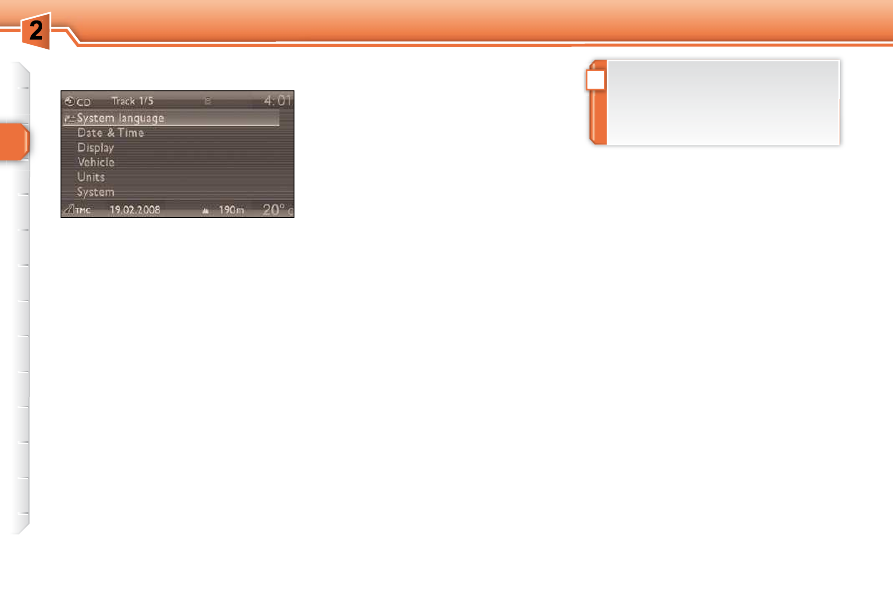

 Press the "SETUP" button to gain

access to the "SETUP" menu.
This allows you to select from the
following functions:

   -   "Languages",
  -   "Date and time",
  -   "Display",
  -   "Vehicle parameters",
  -   "Units",
  -   "System parameters".

  Languages
This menu allows you to select the language
used  by  the  display:  Deutsch,  English,
Espanol,  Français,  Italiano,  Nederlands,
Polski, Portugues, Türkçe * .

  Date and time
This  menu  allows  you  to  set  the  date
and time, the format of the date and the
format  of  the  time  (refer  to  the  "Audio

and Telematics" section or to the speciﬁ c

user guide given to you with the other
owner's documents).

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

System parameters
This menu allows you to restore the fac-

tory conﬁ guration, display the software

version and activate scrolling text.

  Vehicle parameters
This  menu  allows  you  to  activate  or
deactivate  certain  driving  and  comfort
equipment:
   -

wiper linked with reverse gear (refer
to the "Visibility" section),

guide-me-home and welcome lighting
(refer to the "Visibility" section),

interior mood lighting (refer to the
"Visibility" section),

daytime running lamps (refer to the
"Visibility" section),

directional headlamps (refer to the
"Visibility" section),

rear parking sensors (refer to the
"Driving" section).

  Display
This menu allows you to set the bright-
ness  of  the  screen,  the  screen  colour
scheme and the colour of the map (day/
night or auto mode).

  Units
This  menu  allows  you  to  select  the
units:  temperature  (°C  or  °F)  and  con-
sumption (km/l, l/100 or mpg).

"SETUP" menu

* According to country.

MULTIFUNCTION SCREENS

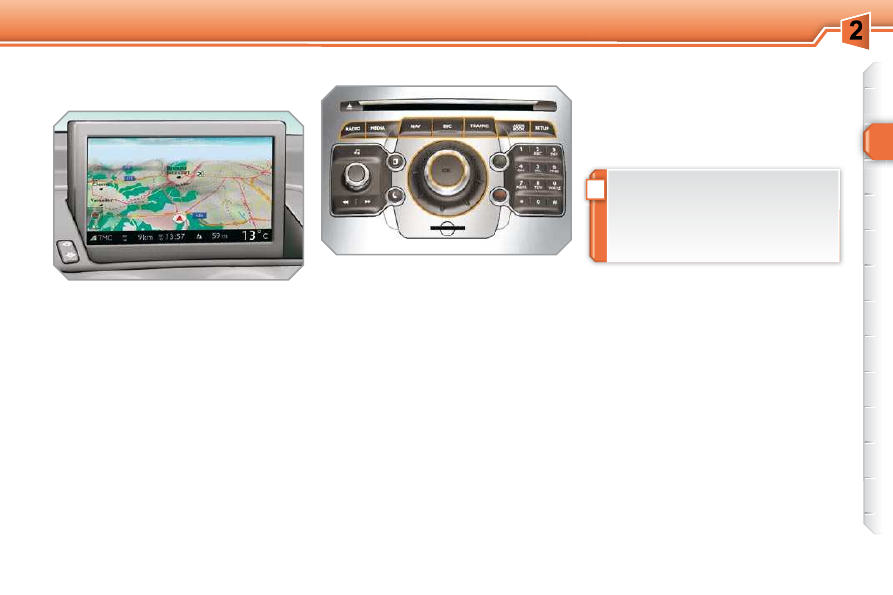

16/9 HIGH DEFINITION
RETRACTABLE COLOUR
SCREEN (WITH PC COM 3D)

Displays on the screen

Once unfolded, it displays the following
information automatically and directly:
-

time,

date,

altitude,

ambient temperature (the value

displayed ﬂ ashes if there is a risk of

ice),

audio functions,

parking sensors,

telephone and address book information,

satellite navigation system information.

From the PC Com 3D control panel, to
select one of the applications:
 press

the

dedicated

"RADIO" ,

"MEDIA" ,

"NAV" ,

"TRAFFIC" ,

"ADDR BOOK" or "SETUP" button
for access to the corresponding
menu,

 turn the navigator to move the

selection,



press the navigator to conﬁ rm the

selection,

or
 press the "ESC" button to abandon

the current operation and return to
the previous display.

For  operation  of  the  retractable
screen(opening,  closing,  adjustment
of  the  position,  etc.),  refer  to  the
paragraph "Access to the retractable
screen".

For more information on these applica-
tions, refer to the PC Com 3D part of the
"Audio and Telematics" section.

Controls

MULTIFUNCTION SCREENS

* According to country.

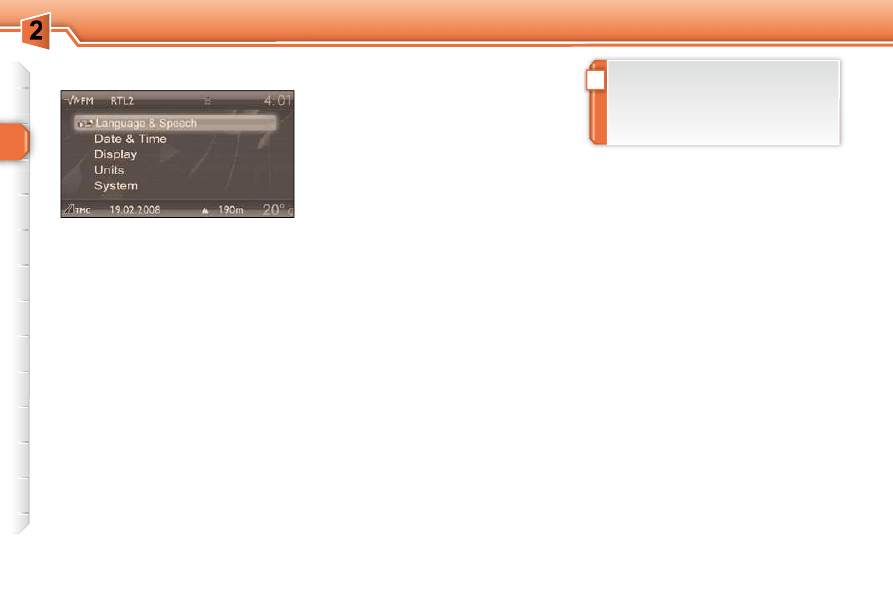

"SETUP" menu

Language and speech
This menu allows you to:
-

select the language used by the
display (Deutsch, English, Espanol,
Français,

Italiano,

Nederlands,

Polski, Portugues, Portugues-Brasil,
Türkçe * ),

select the voice recognition parameters
(activation/deactivation, advice on
use, personal voice programming,
etc.),

set

the

volume

the

voice

synthesiser.

  Date and time
This  menu  allows  you  to  set  the  date
and time, the format of the date and the
format of the time (refer to the PC Com
3D  part  of  the  "Audio  and  Telematics"
section.

  Display
This menu allows you to set the bright-
ness  of  the  screen,  the  screen  colour
scheme and the colour of the map (day/
night or auto mode).

  Units
This  menu  allows  you  to  select  the
units:  temperature  (°C  or  °F)  and  dis-
tance (miles or km).

System
This menu allows you to restore the fac-

tory conﬁ guration, display the software

version and activate scrolling text.

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when sta-
tionary.

 Press the "SETUP" button to gain

access

the

"SETUP" menu.

This allows you to select from the
following functions:

   -   "Language and speech",
  -   "Date and time",
  -   "Display",
  -   "Units",
  -   "System".

MULTIFUNCTION SCREENS

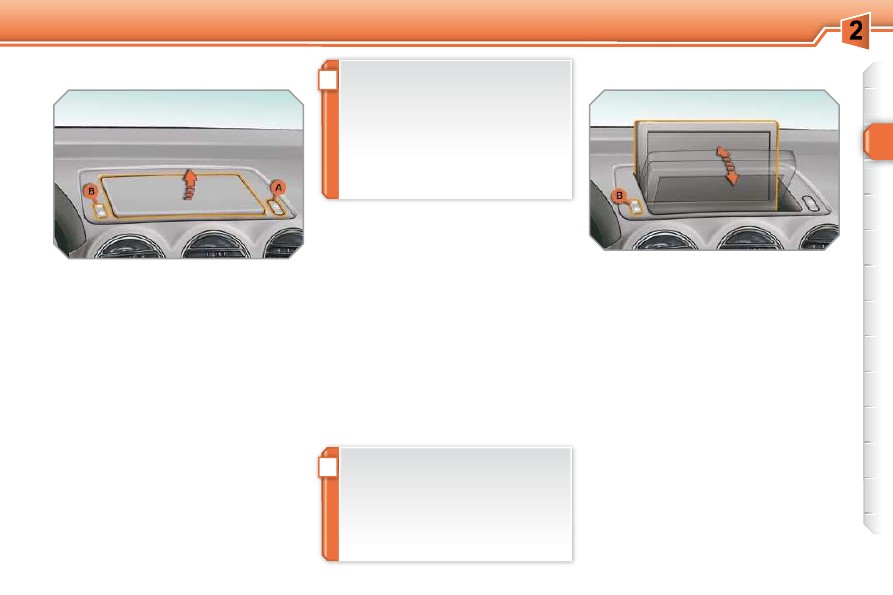

This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
-

opening or storing by means of
control A ,

angle adjustments by means of
control B .

It is also ﬁ tted with safety auto-reverse

protection.

Opening the screen
 With the screen stored, press

control A to open it.

The  screen  opens  automatically  when
the ignition is switched on, when the au-
dio  and  telematics  system  is  switched
on,  when  an  outgoing  telephone  call  is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.

Closing the screen
 With the screen open, press control A

to store it.

The screen is stored automatically when
the ignition is switched off, after approxi-
mately three seconds, if the audio and
telematics system is off.

If  you  wish  the  screen  to  open  or
close automatically when the audio
and  telematics  system  is  switched
on  or  off,  the  screen  must  not  be
closed  when  the  audio  and  tele-
matics system is operating.

When the screen is open, you can adjust
it precisely in different ways:
 press the corresponding part of

control B to move the screen towards
you or towards the windscreen,

or
 push or pull the screen gently by

hand.

Adjusting the position of the screen

  Safety auto-reverse
If  the  screen  meets  an  obstacle  as  it
opens  or  closes,  the  movement  stops
immediately  and  is  reversed  by  a  few
millimetres.
After  clearing  the  obstacle,  issue  the
command required again.

  Storing the position of the screen
The  system  has  four  pre-set  positions
in its memory.
Each  time  the  screen  is  closed,  the
system  stores  the  last  position  of  the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.

If  you  close  the  screen  during  op-
eration  of  the  audio  and  telematics
system, it will re-open automatically
when an outgoing telephone call is
made,  when  a  voice  command  is
given  or  when  a  warning  message
linked with the STOP warning lamp
is received.

Access to the retractable screen

MULTIFUNCTION SCREENS

TRIP COMPUTER

 Press the button, located at the end

of  the   wiper  stalk ,  to  display  the
various  items  of  trip  computer  data
in succession.

The trip computer provides the following
information:

System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).

 Press the control for more than

two  seconds  to  reset  to  zero  the
distance  travelled,  the  average
fuel  consumption  and  the  average
speed.

Monochrome screen A

Zero reset

Data displays

range,

current fuel consumption,

distance travelled,

average fuel consumption,

average speed.

 The next press then returns you to

the normal display.

MULTIFUNCTION SCREENS

Route zero reset
With the monochrome screen C or

the instrument panel large screen

 When the trip required is displayed,

press the control for more than two
seconds.

With the instrument panel PC Com
3D

16/9 large screen

A few definitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After ﬁ ll-

ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).

If  dashes  are  displayed  continu-
ously  while  driving  in  place  of  the
digits, contact a PEUGEOT dealer.

This function is only displayed from
20 mph (30 km/h).

This value may vary following a
change in the style of driving or

the relief, resulting in a signiﬁ cant

change in the current fuel con-
sumption.

  Range
(miles or km)
This  indicates  the  distance
which  can  still  be  travelled

with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.

  Current fuel consumption
(mpg or l/100 km or km/l)
This  is  the  average  fuel  con-
sumption  during  the  last  few
seconds.

Average fuel

consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.

Distance travelled
(miles or km)
This  indicates  the  distance
travelled  since  the  last  trip
computer zero reset.

Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).

Distance remaining to

destination
(miles or km)
This is the distance remaining

to be travelled to the ﬁ nal destination. It

is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

 When the required trip is displayed,

press  the   "OK"   button  on  the
navigator,  associated  with  the  PC
Com 3D, for more than two seconds.

Trips   "1"   and   "2"   are  independent  but
their use is identical.
Trip  "1"  permits, for example, daily calcula-
tions, and trip  "2"  monthly calculations.

Peugeot 308 SW BL Dag (2009.5). Instruction - part 2
