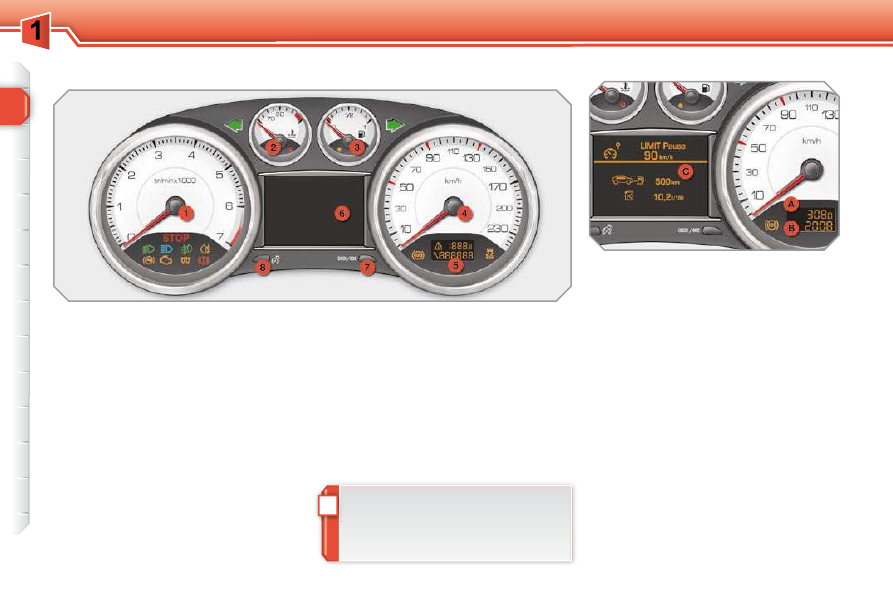

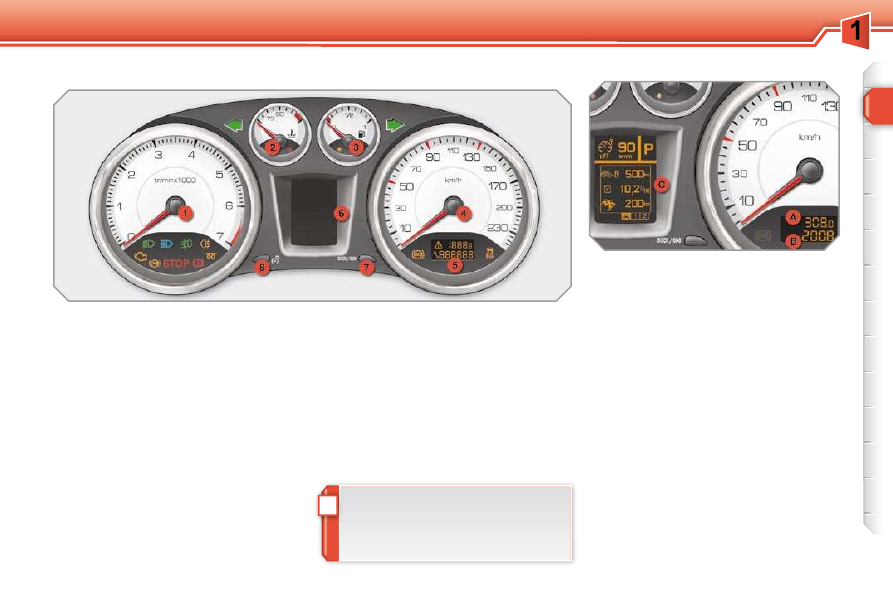

INSTRUMENTS and CONTROLS

PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR
CONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS

Panel grouping together the vehicle
operation indication dials and warning
lamps.

5. Screen .
6. Display management button.

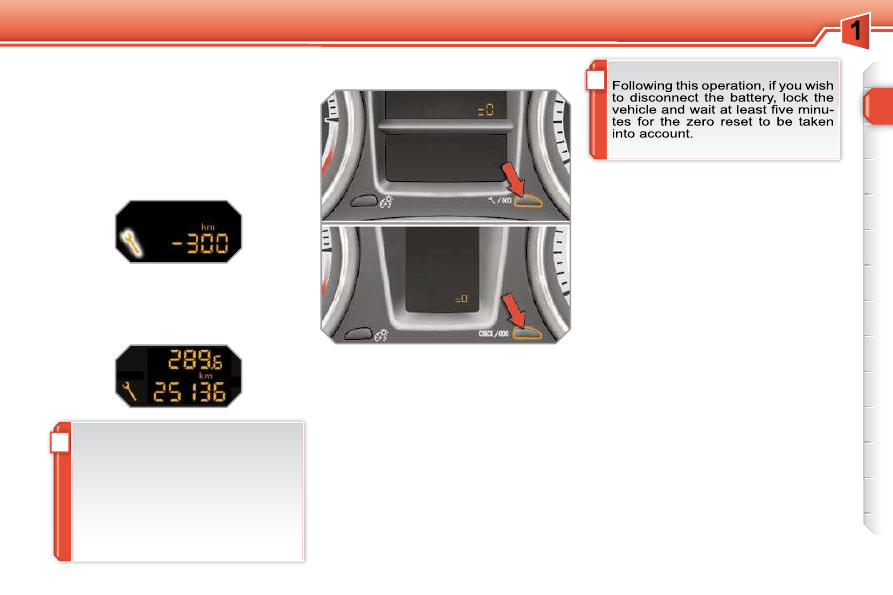

Recalls the service information.

Resets the selected function to
zero (trip distance recorder or
service indicator).

7. Instrument panel lighting button.

Adjusts the brightness of the
lighting of the instruments and
controls.

Dials

1. Rev counter.

Indicates the speed of rotation of
the engine (x 1 000 rpm).

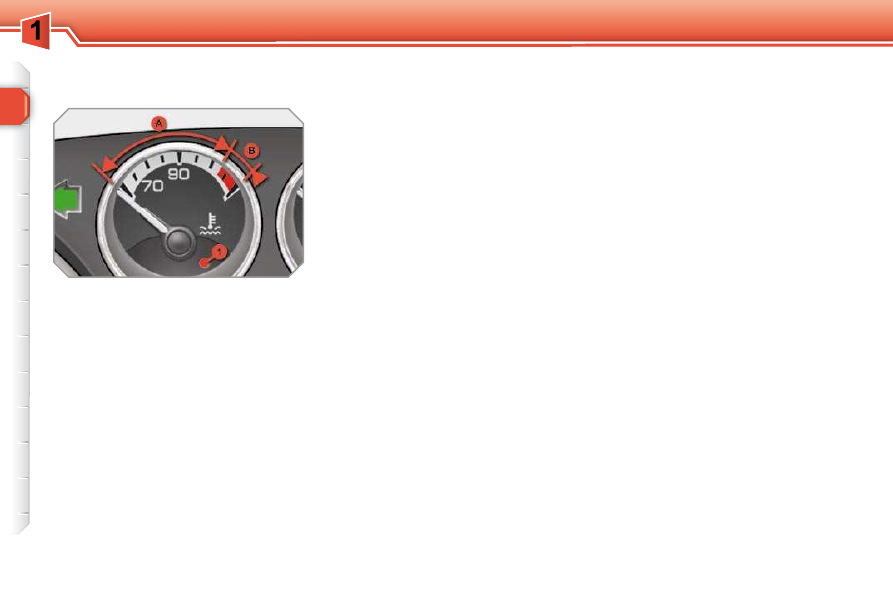

2. Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the
moving vehicle (mph or km/h).

A. Speed limiter

(mph or km/h) or

Cruise control.

B. Gear change indicator.
C. 6-speed electronic gear control

or automatic gearbox.

D. Trip distance recorder.

(miles or km)

E. Service indicator

(miles or km) then,

engine oil level indicator

then

distance recorder.

(miles or km)

These three functions are displayed
in succession when the ignition is
switched on.

Display

For further information, refer to the
paragraph relating to the button or
function and its associated display.

INSTRUMENTS and CONTROLS

PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR
CONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS

Panel grouping together the vehicle
operation indication dials and warning
lamps.

  5.    Small   screen  .
  6.    Large central   screen  .
  7.    Display management button.

Starts a manual CHECK and
recalls the service information.

Resets the function selected to
zero (trip distance recorder or
service indicator).

8. Instrument panel lighting button.

Adjusts the brightness of the
lighting of the instruments and
controls.

Dials

1. Rev counter.

Indicates the speed of rotation of
the engine (x 1 000 rpm).

2. Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the
moving vehicle (mph or km/h).

A. Trip distance recorder.

(miles or km)

B. Distance recorder.

(miles or km)

C. Engine oil level indicator,

service indicator.

(miles or km)

These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.

Displays

For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.

The following functions are displayed
depending on the selection.
-

Warning lamps /CHECK.

Tyre under-inﬂ ation detection.

Speed limiter/Cruise control.

Gear change indicator.

6-speed electronic gear control
or automatic gearbox.

Navigation - Guidance/Trip
computer.

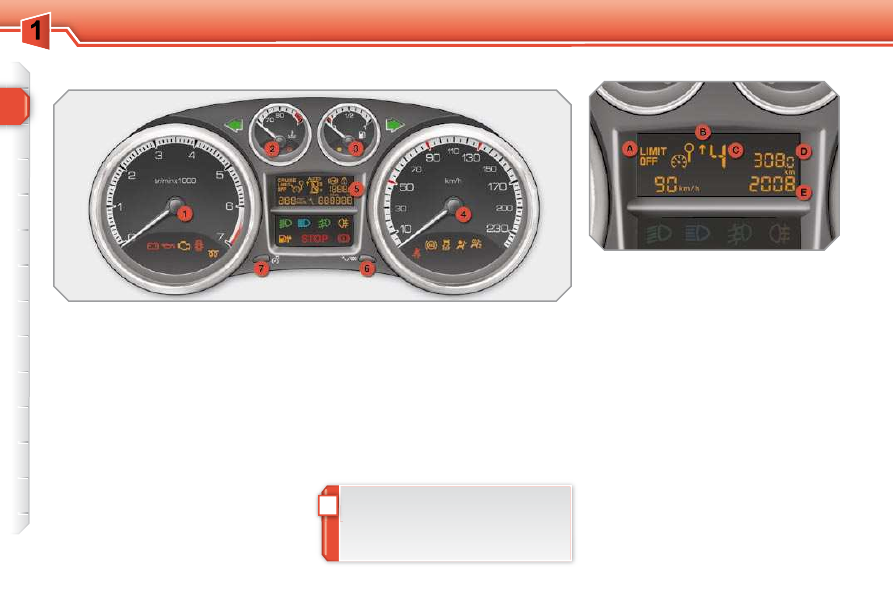

INSTRUMENTS and CONTROLS

PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR CONTROL
OR AUTOMATIC GEARBOX PC COM 3D INSTRUMENT PANELS

Dials

1. Rev counter.

Indicates the speed of rotation of
the engine (x 1 000 rpm).

2. Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the
moving vehicle (km/h or mph).

A. Trip distance recorder.

(miles or km)

B. Distance recorder.

(miles or km).

C. Engine oil level indicator,

service indicator.

(miles or km)

These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.

The following functions are displayed
depending on the selection.
-

Warning lamps /CHECK.

Tyre under-inﬂ ation detection.

Speed limiter/Cruise control.

Gear change indicator.

6-speed electronic gear control
or automatic gearbox.

Navigation - Guidance/Trip
computer.

Vehicle parameters.

Panel grouping together the vehicle
operation indication dials and warning
lamps.

Displays

5. Small screen .
6. PC Com 3D 16/9 large central

screen .

7. Display management button.

Starts a manual CHECK and
recalls the service information.

Resets the function selected to
zero (trip distance recorder or
service indicator).

8. Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.

For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.

INSTRUMENTS and CONTROLS

* According to country.

Instrument panel navigator
associated with the PC Com 3D

Controls

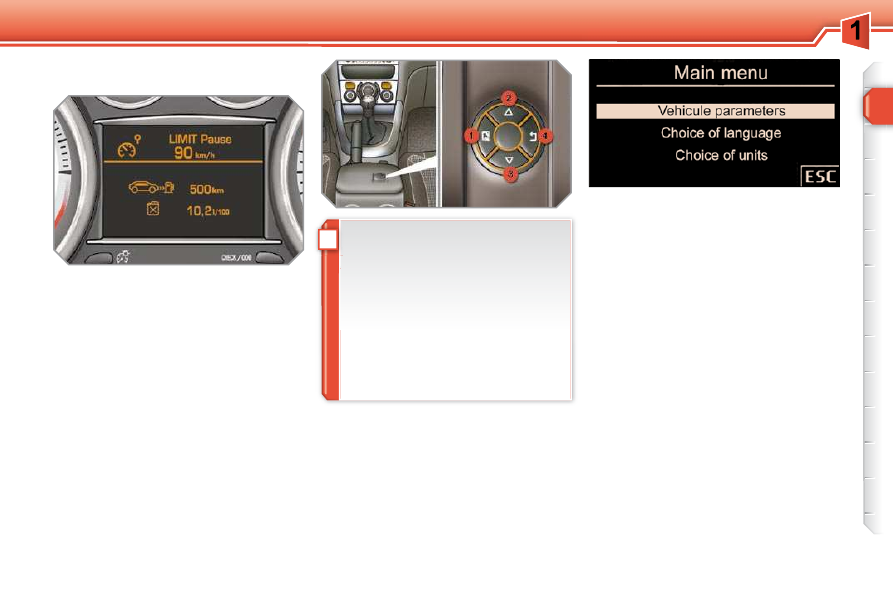

There are four buttons to control the in-
strument panel 16/9 large screen:
1.

access the main menu, conﬁ rm the

selection,

  2.   move up through the menu,
  3.   move down through the menu,
  4.   return to the previous screen, exit

from the menu.

Main menu
 Press button 1 for access to the

main menu and select one of the
following functions:

   -   "Vehicle parameters",
  -   "Choice of language",
  -   "Choice of units".

 Press button 2 or 3 to move on the

screen.

 Press button 1

again to conﬁ rm the

selection.

The main menu and its associated
functions  can  only  be  accessed
when stationary, via buttons  1  to  4 .
A message appears on the screen
above  a  certain  speed  threshold,
indicating  that  the  general  menu
cannot be displayed.
The  trip  computer  displays  can
only be accessed while driving, via
buttons   2   and   3   (refer  to  the  "Trip
computer" section).

This group of buttons permits:
-

when stationary

, conﬁ guration

of the vehicle's equipment and
of the parameters of the display
(languages, units...),

while driving , scrolling of the
active functions (trip computer,
navigation...).

Vehicle parameters
This menu allows you to activate or deacti-
vate certain driving and comfort equipment:
-

wiper linked with reverse gear
(refer to the "Visibility" section),

guide-me-home and welcome
lighting (refer to the "Visibility"
section),

interior mood lighting (refer to the
"Visibility" section),

daytime running lamps (refer to the
"Visibility" section),

directional headlamps (refer to the
"Visibility" section),

rear parking sensors (refer to the
"Driving" section).

  Choice of language
This menu allows you to select the lan-
guage  used  by  the  display:  Deutsch,
English,  Espanol,  Français,  Italiano,
Nederlands, Portugues, Türkçe * .
  Choice of units
This menu allows you to select the units:
temperature  (°Celsius  or  °Fahrenheit)
and consumption (l/100 km, mpg or km/l).

INSTRUMENTS and CONTROLS

The warning lamps may come on

continuously or ﬂ ash.
Certain  warning  lamps  may  come
on in two different modes. Only by
relating  the  type  of  lighting  to  the
operating status of the vehicle can
it  be  ascertained  whether  the  situ-
ation  is  normal  or  whether  a  fault
has occurred.

Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

  Associated warnings
The  switching  on  of  certain  warning  lamps
may  be  accompanied  by  an  audible  signal
and a message on the multifunction screen.

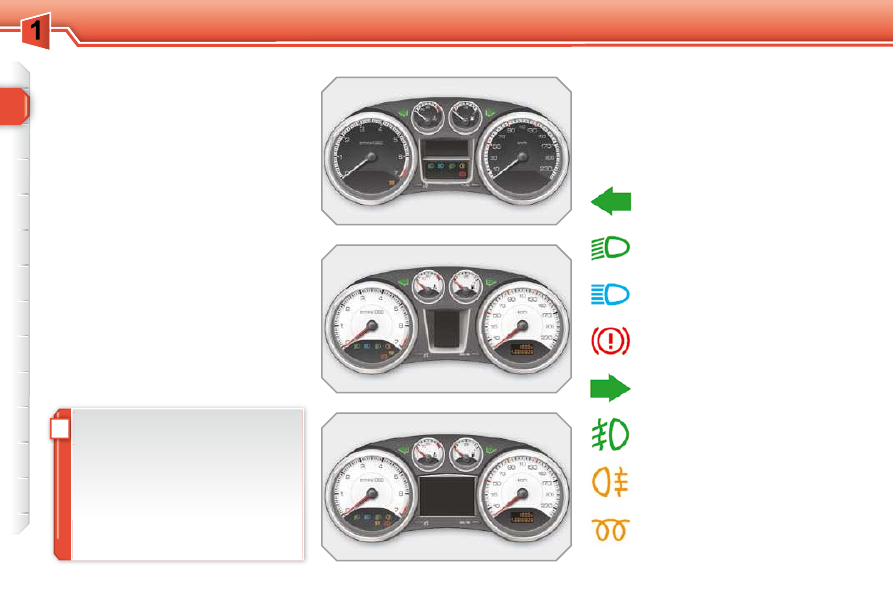

Operation indicator lamps
If one of the following indicator lamps comes

on, this conﬁ rms that the corresponding

system has come into operation.

Left-hand direction indicator.

Parking brake applied.

Right-hand direction
indicator.

Main beam headlamps.

Dipped beam headlamps.

Diesel engine pre-heating
Wait until this has gone out be-
fore operating the starter.

Front foglamps.

  When the ignition is switched on
The  warning  lamps  come  on  for  a  few
seconds  when  the  vehicle's  ignition  is
switched on.
When the engine is started, these warning
lamps should switch off.
If  they  remain  on,  before  moving  off,
consult the warning lamp concerned.

Common operation indicator lamps

Rear foglamp.

INSTRUMENTS and CONTROLS

   Foot on brake.
Press  the  brake  pedal  to  start
the  engine  with  the  6-speed
electronic gear control gearbox
or automatic gearbox.

Speciﬁ c operation indicator lamps

The  other  indicator  lamps  appear  on
the  large  screen,  located  in  the  centre
of the instrument panel.

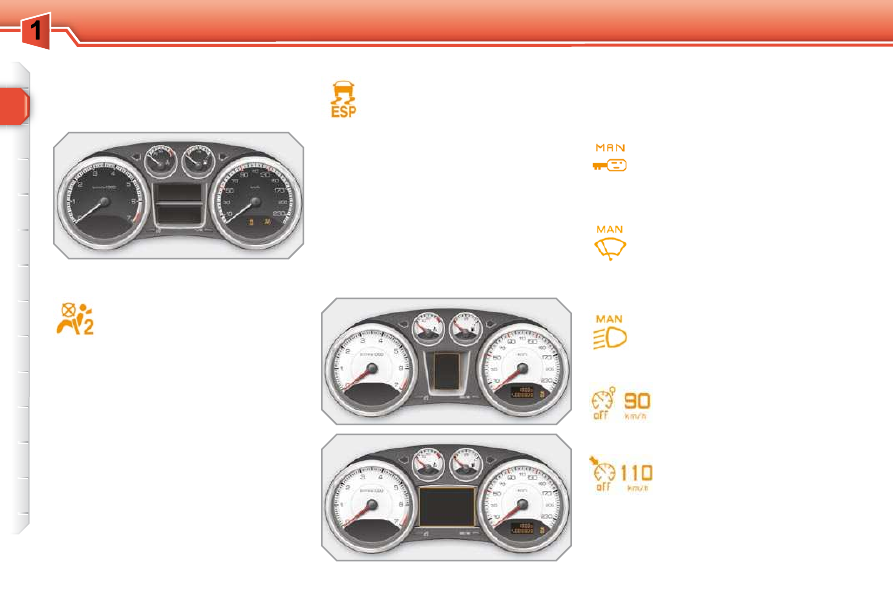

  Automatic locking.
If  this  is  displayed,  it  indicates
that  you  have  activated  auto-
matic  locking  of  the  doors  and
boot while driving.

   Speed limiter.
If this is displayed, it indicates
that  you  have  activated  the
speed limiter mode.
If  this  is  displayed,  it  indi-
cates  that  you  can  set  the
speed limiter speed value to
be stored.

  Cruise control.
If this is displayed, it indicates
that  you  have  activated  the
cruise control mode.
If  this  is  displayed  it  indi-
cates  that  you  can  set  the
cruise  control  speed  value
to be stored.

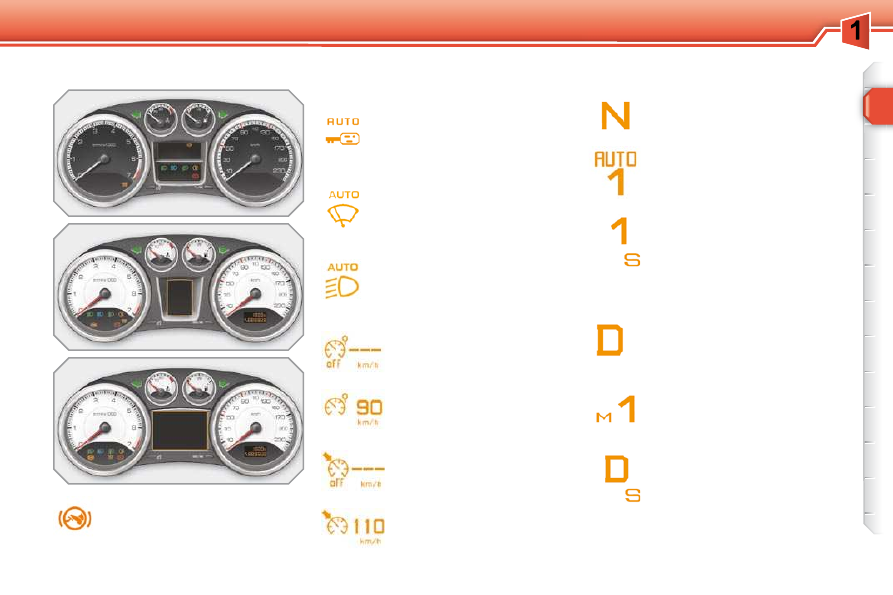

Automatic gearbox.

This display indicates the
position that you have selected
on the gear selection gate
(R, N, A or M).

   Automatic rain sensitive wipers.
If  this  is  displayed,  it  indicates
that  you  have  activated  auto-
matic rain sensitive windscreen
wipers.

Automatic illumination of headlamps.
If this is displayed, it indicates that
you have activated automatic illu-
mination of headlamps.

This display indicates the gear
engaged in automatic or manual
operating mode (1 to 6).

This display indicates the ope-
rating mode selected (auto-
matic or sport).

This display indicates the gear
engaged in the automatic or
manual operation programme.

This display indicates the ope-
rating  programme  selected
(automatic,  sport,  snow  or
manual).

6-speed electronic gear control gearbox.

This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).

INSTRUMENTS and CONTROLS

Deactivation warning lamps
If one of the following warning lamps

comes on, this conﬁ rms that the corre-

sponding system has been switched off
intentionally.

Passenger's airbag system
deactivation.
The passenger's airbag system
is put into service automatically
when the vehicle is started.

A speciﬁ c control switch, located on the

passenger's side of the dashboard, per-
mits deactivation of the system. This is

conﬁ rmed by continuous lighting of this

warning  lamp  on  the  instrument  panel
or  on  the  seat  belt  and  passenger's
front airbag warning lamps display.

Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.

A speciﬁ c button, located on the dash-

board, permits deactivation of the sys-

tem. This is conﬁ rmed by continuous

lighting of this warning lamp and of the
indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.

Common deactivation warning
lamps

Speciﬁ c deactivation warning lamps

  Automatic locking.
If  this  is  displayed,  it  indicates
that  you  have  deactivated  the
automatic  locking  of  the  doors
and boot while driving.

   Automatic rain sensitive
windscreen wipers.
If this is displayed, it indicates that
you  have  deactivated  automatic
rain sensitive windscreen wipers.

The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.

Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.

Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.

  Automatic illumination of
headlamps.
  If  this  is  displayed,  it  indicates
that you have deactivated auto-
matic illumination of headlamps.

INSTRUMENTS and CONTROLS

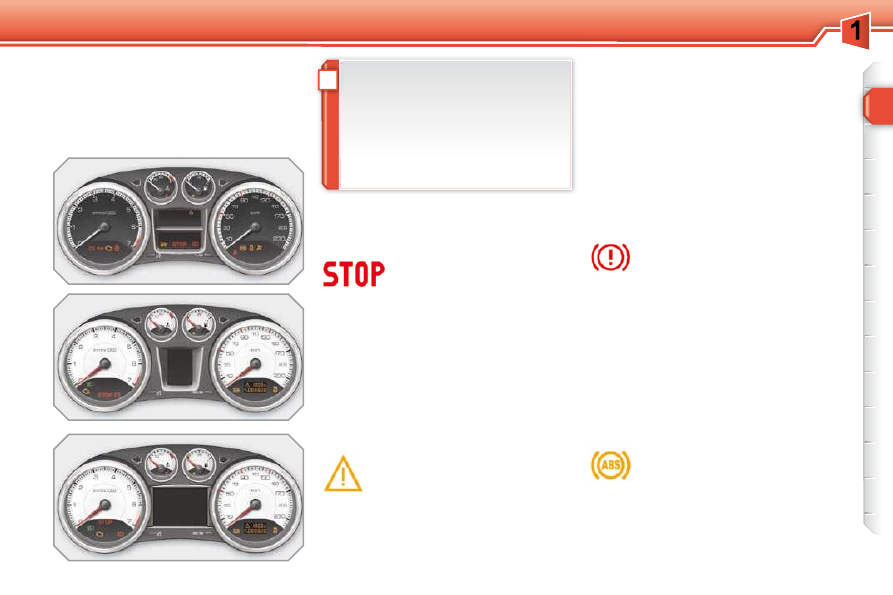

When the engine is running or the ve-
hicle is moving, the lighting of one of the
following warning lamps indicates the
occurrence of a fault requiring interven-
tion on the part of the driver.

  Central alert.
Lighting  is  associated  with
the  displaying  of  another
warning lamp:

punctured wheel,

braking,

power steering,

engine oil pressure,

coolant temperature,

stop the vehicle as soon as it is safe to
do so.

Service.
If this comes on, it indicates the
occurrence of a problem in one
of the systems which does not

have a speciﬁ c warning light.

To identify the problem, consult the
message on the multifunction screen.

Braking.
If this comes on, it indicates the
occurrence of a fault in one of
the braking systems:

- signiﬁ cant drop in the brake ﬂ uid

level,

electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp),

stop the vehicle as soon as it is safe to
do so.
When the vehicle is moving, check that
the parking brake is fully released.

Any fault resulting in the displaying
of  a  warning  lamp  must  be  investi-
gated further by reading the associ-
ated  message  on  the  multifunction
screen.
In  the  event  of  difﬁ culty,  do  not

hesitate to contact a PEUGEOT
dealer.

Warning lamps

Common warning lamps

After checking:
-

that the doors, boot, the rear
screen and bonnet are closed,

the engine oil level,

- the screenwash ﬂ uid level,
-

the remote control battery,

the pressure of the tyres,

the end of saturation of the particle

emission ﬁ lter (Diesel),

for any other situations, contact a PEUGEOT
dealer.

Anti-lock braking system
(ABS).
If this comes on, it indicates the
occurrence of a fault in the anti-
lock braking system.

However, this does not prevent operation
of the vehicle's servo-assisted braking.

INSTRUMENTS and CONTROLS

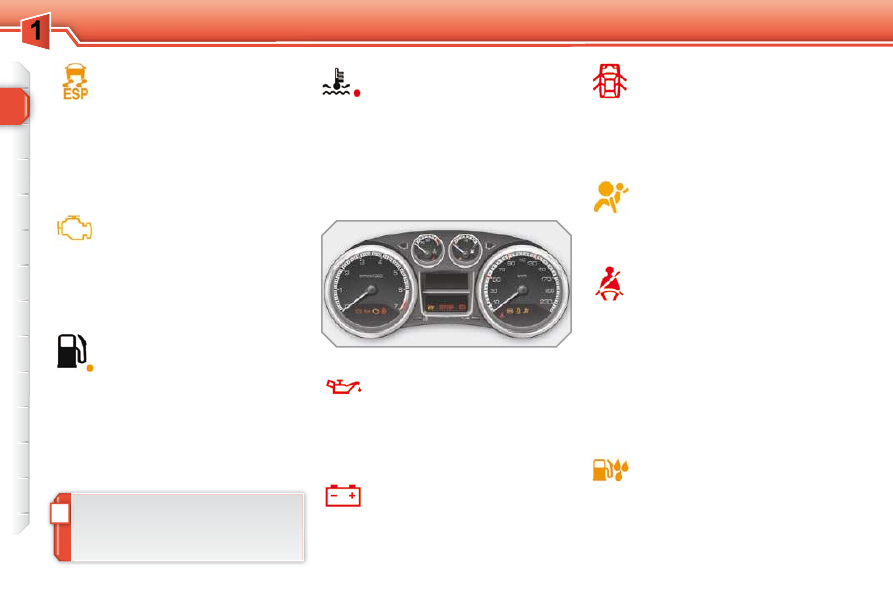

Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.

If it ﬂ ashes, it indicates the occurrence of

a fault in the emission control system.

Low fuel level.
When this ﬁ rst comes on, you

have approximately 6 litres of
fuel left in the tank.

It  is  imperative  that  you  refuel  to  avoid
running out of fuel.
This  warning  lamp  comes  on  again
each  time  the  ignition  is  switched  on,

until sufﬁ cient fuel has been added.
Capacity of the tank: approximately
60 litres .

Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling

system is too high. Stop the vehicle as
soon as it is safe to do so.

  Airbags.
  If this comes on, it indicates the
occurrence  of  a  fault  in  one  of
the  airbag  or  seat  belt  preten-
sioner systems.

  Seat belt not fastened/
unfastened.
If  this  comes  on,  it  indicates
that  the  driver  and/or  the  front

passenger has not fastened or has un-
fastened  their  seat  belt.  According  to
version and/or country, the unfastening
of the seat belt only may be detected for
the front passenger.
It  also  indicates  that  one  or  more  rear
passengers have unfastened their seat
belt (on the 2nd row rear seats only on
the SW with panoramic sunroof).

Water in diesel * .
If this comes on, it indicates the
presence of water in the diesel

ﬁ lter.

There is a risk of damage to the injection
system on Diesel engines.

Door open.
A door, the boot or the rear
screen is open:

Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or

loose terminals, slack or cut alternator
belt...).

Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the

vehicle as soon as it is safe to do so.

Speciﬁ c warning lamps

* According to country.

Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.

Unless  the  system  has  been  deactivat-
ed, if this warning lamp and the indicator
lamp on the button come on continuously,
this indicates the occurrence of a fault in
the  ESP/ASR  system  or  in  the  hill  start
assist system.

if the speed is below 6 mph (10 km/h), this
warning lamp comes on continuously.

if the speed is higher than 6 mph (10 km/h),
this warning lamp comes on continuously,
accompanied by an audible signal.

Never  continue  to  drive  until  you
run out of fuel, this could damage
the  emission  control  and  injection
systems.

INSTRUMENTS and CONTROLS

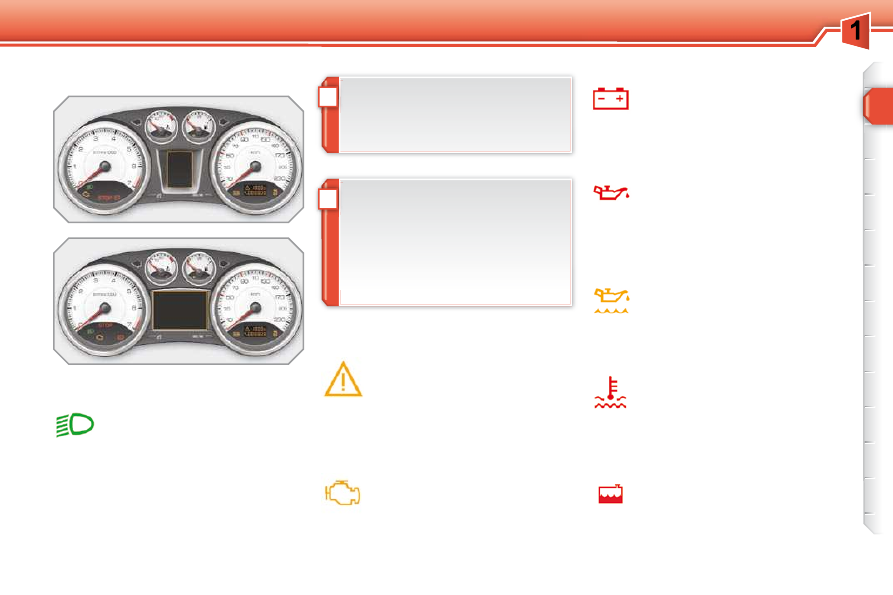

The displaying of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.

Speciﬁ c warning lamps

The other warning lamps appear on the
large  screen,  located  in  the  centre  of
the instrument panel.
Depending  on  the  seriousness  of  the
fault,  they  may  be  displayed  in  orange
or red.

Certain  warning  lamps  may  be
linked with those of the instrument
panel.
If  they  are  linked  with  the   STOP
warning  lamp,  stop  the  vehicle  as
soon as it is safe to do so.

Directional headlamps.
If this ﬂ ashes, it indicates the

occurrence of a fault in the
directional headlamps system.

  Engine oil pressure.
If  this  is  displayed,  it  indicates
the occurrence of a fault in the
engine  lubrication  circuit.  Stop

the vehicle as soon as it is safe to do so.

Service.
If this is displayed, it indicates the occur-
rence of a fault in one of the following:

  Engine autodiagnostics
system.
If  this  is  displayed,  it  indicates
the occurrence of a fault in the
engine management system.

  Engine oil level.
  If  this  is  displayed,  it  indicates
that  the  engine  oil  level  is  too
low.  Stop  the  vehicle  as  soon
as it is safe to do so.

Coolant temperature.
If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the

vehicle as soon as it is safe to do so.

  Coolant level.
  If  this  is  displayed,  it  indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.

Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or

loose terminals, slack or cut alternator
belt...).

the engine management system,

the emissions control system.

INSTRUMENTS and CONTROLS

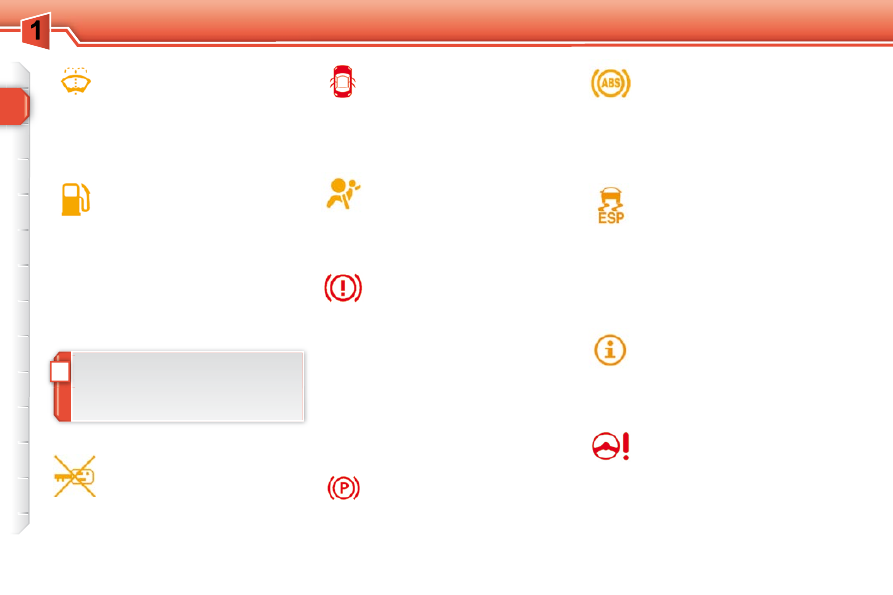

  Airbags.
  If  this  is  displayed,  it  indicates
the occurrence of a fault in one
of  the  airbag  or  pretensioning
seat belt systems.

Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:

- signiﬁ cant drop in the brake ﬂ uid

level,

electronic brake force distribution
(EBFD) faulty (simultaneous
lighting of the ABS warning lamp).

Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released.

Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.

However,  this  does  not  prevent  op-
eration  of  the  vehicle's  servo-assisted
braking.

Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.

Unless the system has been deactivated,
if this warning lamp and the indicator lamp
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR sys-
tem or in the hill start assist.

  Power steering.
  If  this  is  displayed,  it  indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.

Door open.
A door, the boot or the rear
screen is open:

   Ice warning.
If  this  is  displayed,  it  indicates
that  there  is  risk  of  the  forma-
tion of ice on the road  below  a
temperature of 3 °C.

Drive carefully.

  Parking brake.
  If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.

  Electronic immobiliser.
If  this  is  displayed,  it  indicates
the occurrence of a fault in the
electronic  engine  immobiliser

system or that the remote control bat-

tery is ﬂ at.

Fuel level.
When this ﬁ rst comes on, you

have approximately 6 litres of
fuel remaining in the tank.

Fill up as soon as possible to avoid run-
ning out of fuel.
This warning lamp reappears each time

the ignition is switched on until sufﬁ cient

fuel has been added.
Capacity of the tank: approximately
60 litres .

Screenwash ﬂ uid level.
If this is displayed, following an
action on the wiper stalk, it indi-

cates that the screenwash ﬂ uid

level is low.

Fill the screenwash/headlamp wash ﬂ uid

reservoir when you next stop.

if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,

if the speed is higher than 6 mph (10 km/h),
this warning lamp is displayed in red.

Never continue to drive until you
run out of fuel, this could damage
the emissions control and injection
systems.

INSTRUMENTS and CONTROLS

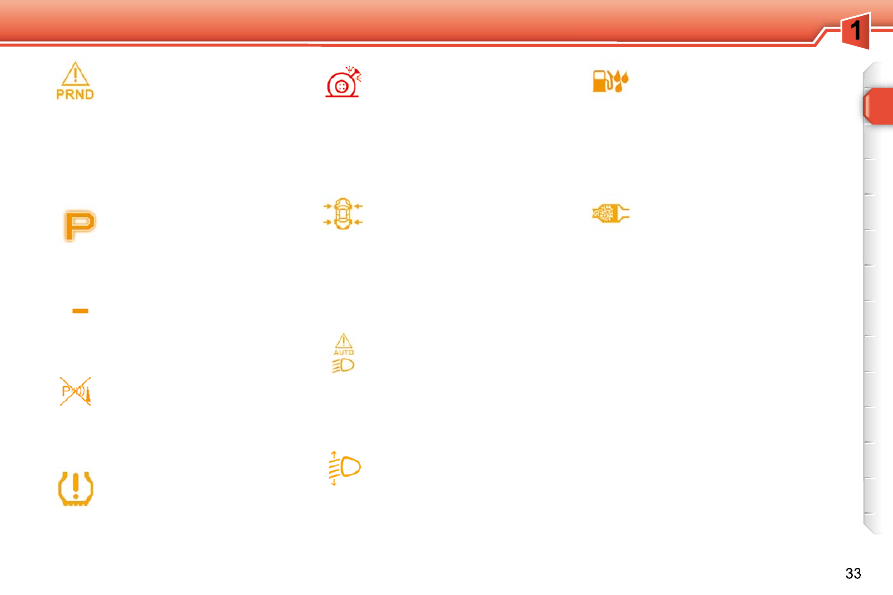

   Water in diesel * .
If  this  is  displayed,  it  indicates
the  presence  of  water  in  the

diesel ﬁ lter.

There is a risk of damage to the injec-
tion system on Diesel engines.

Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.

Particle emission ﬁ lter

(Diesel).
If this is displayed, linked with
the service warning lamp, it indi-

cates the start of saturation of the parti-

cle emission ﬁ lter or a low diesel additive

reservoir level.
As soon as trafﬁ c conditions permit, re-

generate the ﬁ lter by driving at a speed

of  at  least  40  mph  (60  km/h)  until  the
service warning lamp is switched off.
If  the  service  warning  lamp  is  still  dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer without
delay.

   Deﬂ ated tyre.
If  this  is  displayed,  it  indicates
low  pressure  in  one  or  more
wheels.

Check the tyre pressures as soon as
possible.

  Punctured tyre.
  If  this  is  displayed,  it  indicates
that  one  or  more  wheels  are
punctured.  Stop  the  vehicle  as
soon as it is safe to do so.

Change the damaged wheel and have it
repaired by a PEUGEOT dealer.

Tyre under-inﬂ ation

detection.
If this is displayed, it indicates
the occurrence of a fault on one

of the sensors or in the tyre under-inﬂ a-

tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which

does not have a sensor, is ﬁ tted in place

of a punctured wheel.

Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic lighting.

Use the other positions of the lighting
stalk to control the lighting manually.

Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a

fault in the parking sensor system.

6-speed electronic gear control
gearbox or automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the

6-speed  electronic  gear  control  gear-
box or automatic gearbox. The gearbox
will  then  operate  in  down-grade  mode,
locked on 3rd gear.
It  may  also  be  displayed  if  a  door  is
opened.

  Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme  of  the  6-speed
electronic  gear  control  gear-
box or automatic gearbox.

  Position P or N.
If this is displayed, it indicates
that  the  gear  lever  must  be
placed  in  position   P   or   N   in
order to start the engine.

* According to country.

INSTRUMENTS and CONTROLS

Coolant temperature indicator

With the engine running, when the nee-
dle is:
-

in zone A , the temperature is
correct,

in zone  B , the temperature is
too high; the max temperature
warning lamp  1  and the central
STOP  warning lamp come on,
accompanied by an audible signal
and a message on the multifunction
screen.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.

After driving for a few minutes, the tem-
perature  and  pressure  in  the  cooling
system increase.
To top up the level:
      wait for the engine to cool,
     unscrew the cap by two turns to

allow the pressure to drop,

 when the pressure has dropped,

remove the cap,

 top up the level to the "MAX" mark.

INSTRUMENTS and CONTROLS

The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

Engine oil level indicator

System which informs the driver whether
the engine oil level is correct or not.

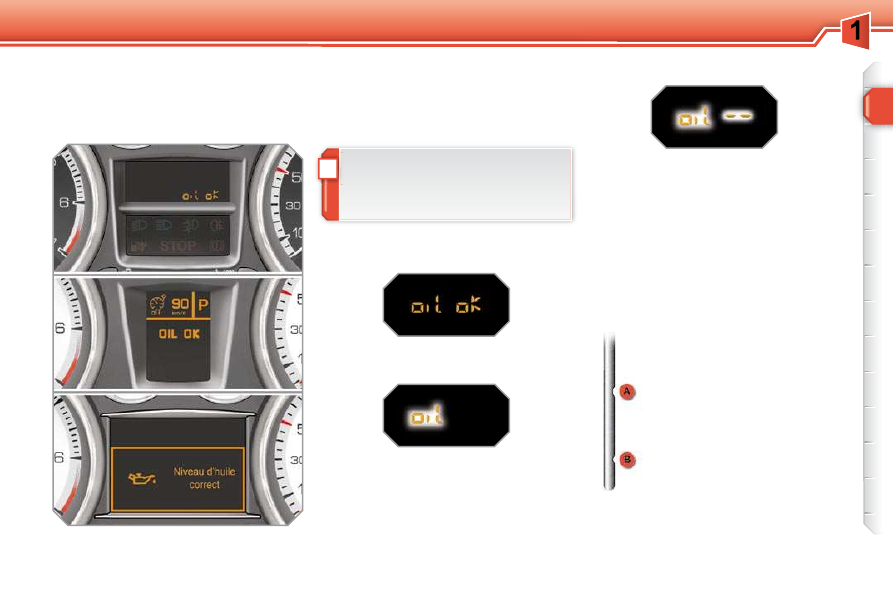

This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Lack of oil

Oil level indicator fault

Dipstick

This is indicated by the ﬂ ashing of "OIL" ,

linked with the service warning lamp, ac-
companied by an audible signal and a
message on the multifunction screen.
If the lack of oil is conﬁ rmed by a check

using  the  dipstick,  it  is  essential  that  the
level  is  topped  up  to  prevent  damage  to
the engine.

This is indicated by the ﬂ ashing of "OIL--" .

Consult a PEUGEOT dealer.

Refer to the "Checks" section to locate

the dipstick and the oil ﬁ ller cap on your

engine.

There are 2 marks on the
dipstick:
-

A = max; never exceed
this level (risk of
damage to the engine),

B = min; top up the level

via the oil ﬁ ller cap,

using the grade of oil
suited to your engine.

INSTRUMENTS and CONTROLS

Service indicator

System which informs the driver when
the next service is due, in accordance
with

the

manufacturer's

servicing

schedule.
The point at which the service is due is
calculated  from  the  last  indicator  zero
reset.  It  is  determined  by  two  parame-
ters:
   -

the distance travelled,

the time elapsed since the last
service.

  Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due

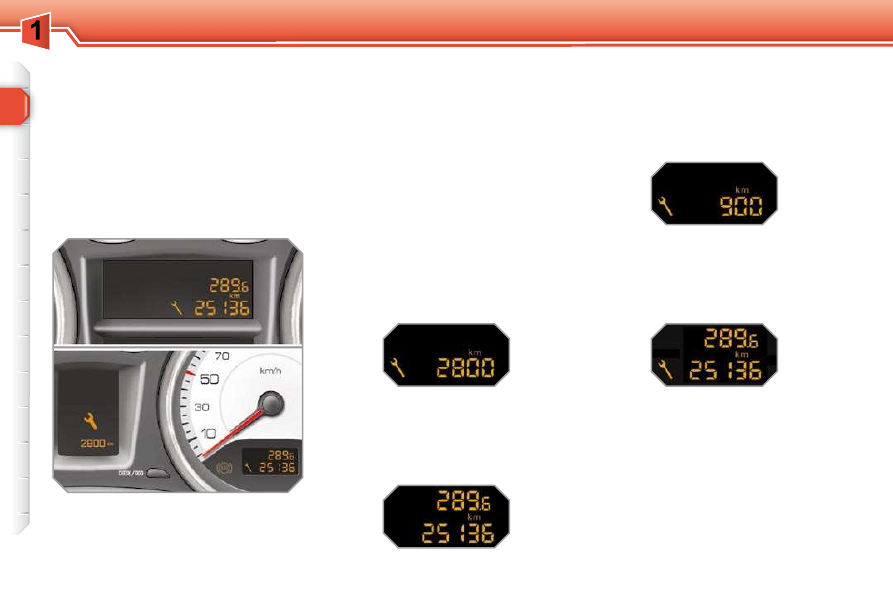

For 5 seconds after the ignition is switched
on,  the  spanner  symbolising  the  service
operations  comes  on.  The  distance  re-
corder display line indicates the distance
remaining before the next service is due.
  Example:   2 800  km  remain  before  the
next service is due.
For 5 seconds after the ignition is switched
on, the display indicates:

5 seconds after the ignition is switched
on,   the  spanner  is  switched  off ;  the
distance  recorder  resumes  its  normal
operation.  The  display  then  indicates
the total and trip distances.

  Less than 600 miles (1 000 km)
remain before the next service is due
  Example:   900  km  remain  before  the
next service is due.
For  5  seconds  after  the  ignition  is
switched on, the display indicates:

5 seconds after the ignition is switched
on,  the  distance  recorder  resumes  its
normal  operation.   The  spanner  re-
mains  on   to  indicate  that  a  service
must be carried out soon.

  More than 1 800 miles (3 000 km)
remain before the next service is due
When  the  ignition  is  switched  on,  no
service information appears on the dis-
play.

INSTRUMENTS and CONTROLS

Service indicator zero reset

After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows :
 switch off the ignition,
 press and hold the trip distance

recorder zero reset button,

 switch on the ignition; the

distance recorder display begins a
countdown,

 when the display indicates "=0" ,

release the button; the spanner
disappears.

The  distance  remaining  may  be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore,  the  spanner  may  also
come on if you have exceeded the
two year service interval.

  Service overdue
For  5  seconds  after  the  ignition  is
switched  on,

the spanner ﬂ ashes to

indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:

5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .

Retrieving the service information
You can access the service information
at any time.
 Press the trip distance recorder

zero reset button.

The service information is displayed for
a few seconds, then disappears.

Content .. 1 2 3 ..
