166

The consumption ﬁgures shown here correspond to the values communicated at the time of printing.

These consumption values were established in accordance with Directive 80/1268/CEE. They may vary depending on the

style of driving, trafﬁc conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of

the accessories.

CONSUMPTION

In accordance with directive 80/1268/CEE

Diesel engines

Gearbox

Model

codes 4C...

4A... 4G...

Urban driving

mpg

(litres/100 km)

Inter-urban

driving mpg

(litres/100 km)

Mixed driving

mpg

(litres/100 km)

Emission of

by weight

(g/km)

1.6 litre Turbo HDI

16V 90 bhp

Manual

9HX-C

1.6 litre Turbo HDI

16V 110 bhp

Manual

9HZ-C

6.2

4.1

4.9

130

Piloted

manual

9HZ-H/P

2 litre Turbo HDI

16V 136 bhp

Manual

RHR-H

7.2

4.5

5.5

146

Auto.

RHR-J

163

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre 16V 95 bhp

1.6 litre VTi 16V 120 bhp

Gearbox

Manual

Auto.

Model codes:

4C... 4A... 4G...

8FS-C

5FW-C

5FW-F

- Unladen weight

1 271 - 1 262

1 287 - 1 277

1 312 - 1 302

- Kerb weight

1 346 - 1 337

1 362 - 1 352

1 387 - 1 377

- Payload

414 - 412

453 - 450

437 - 435

- Gross vehicle weight (GVW)

1 760 - 1 749

1 815 - 1 802

1 824 - 1 812

- Gross train weight (GTW)
on a 12 % gradient

2 960 - 2 949

3 215 - 3 202

3 094 - 3 082

- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient

1 200

1 400

1 270

- Braked trailer*

(with load transfer within the GTW limit)

1 450

1 650

1 520

- Unbraked trailer

670 - 665

680 - 675

690 - 685

- Recommended nose weight

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the exterior

temperature is above 37 °C, limit the towed load.

164

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the exterior

temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre THP 16V 150 bhp

Gearbox

Manual

Auto.

Model codes:

4C... 4A...

5FX-C

5FX-F

- Unladen weight

1 327 - 1 314

1 355 - 1 343

- Kerb weight

1 402 - 1 389

1 430 - 1 418

- Payload

424 - 426

425 - 425

- Gross vehicle weight (GVW)

1 826 - 1 815

1 855 - 1 843

- Gross train weight (MTRA)
on a 12 % gradient

3 226 - 3 215

3 255 - 3 243

- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient

1 400

- Braked trailer*

(with load transfer within the GTW limit)

1 650

- Unbraked trailer

700 - 690

715 - 705

- Recommended nose weight

167

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the exterior

temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.6 litre Turbo HDI 16V 90 bhp

1.6 litre Turbo HDI 16V 110 bhp

Gearbox

Manual

Piloted manual

Model codes:

4C... 4A... 4G...

9HX-C

9HZ-C

9HZ-H/P

- Unladen weight

1 303 - 1 293

1 322 - 1 312

1 334 - 1 324

- Kerb weight

1 378 - 1 368

1 397 - 1 387

1 409 - 1 399

- Payload

426 - 424

453 - 450

452 - 450

- Gross vehicle weight (GVW)

1 804 - 1 792

1 850 - 1 837

1 861 - 1 849

- Gross train weight (GTW)
on a 12 % gradient

3 074 - 3 062

3 120 - 3 107

3 131 - 3 119

- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient

1 270

- Braked trailer*

(with load transfer with the GTW limit)

1 520

- Unbraked trailer

685 - 680

695 - 690

700 - 695

- Recommended nose weight

168

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the exterior

temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

2 litre Turbo HDI 16V 136 bhp

Gearbox

Manual

Auto.

Model codes:

4C... 4A...

RHR-H

RHR-J

- Unladen weight

1 421 - 1 408

1 447 - 1 434

- Kerb weight

1 496 - 1 483

1 522 - 1 509

- Payload

425 - 427

425 - 426

- Gross vehicle weight (GVW)

1 921 - 1 910

1 947 - 1 935

- Gross train weight (GTW)
on a 12 % gradient

3 621 - 3 610

3 597 - 3 585

- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient

1 700

1 650

- Braked trailer*

(with load transfer within the GTW limit)

1 700

1 650

- Unbraked trailer

745 - 740

750 - 750

- Recommended nose weight

169

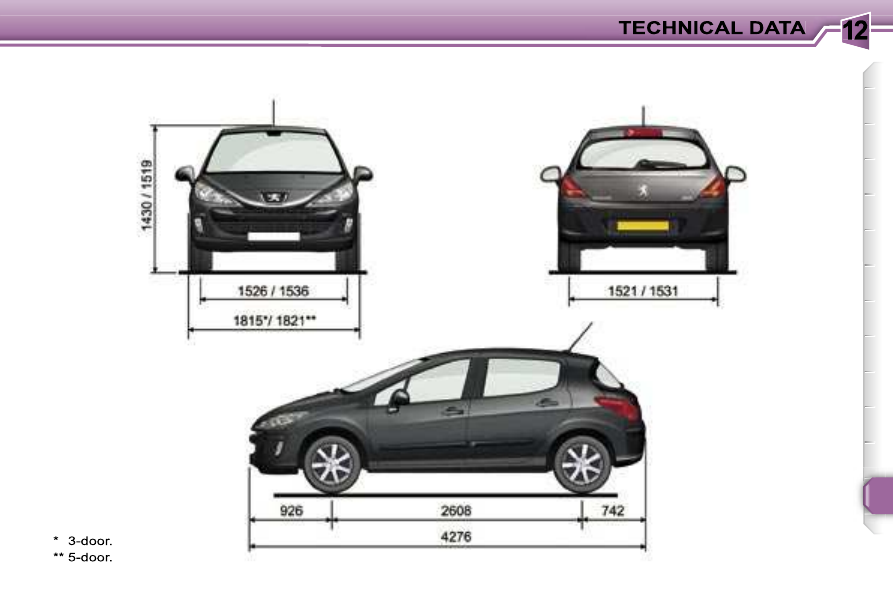

DIMENSIONS (in mm)

308 saloon (3 and 5 door versions)

** 5-door.

170

TECHNICAL DATA

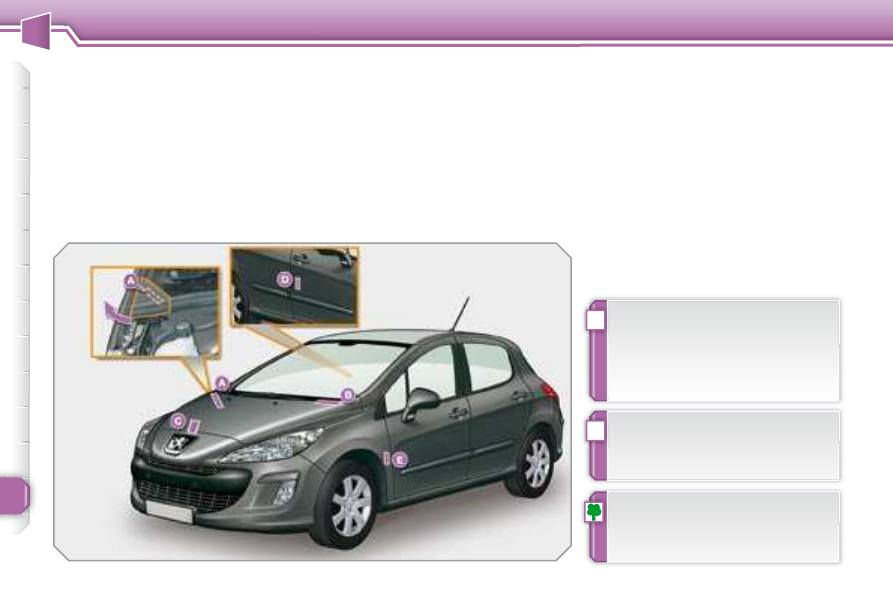

IDENTIFICATION
FEATURES

Various visible marking elements for the

identiﬁ cation and tracking of your vehi-

cle.

Wheels which are ﬁ tted with 225/45

R17 and 225/40 R18 tyres cannot be

ﬁ tted with snow chains. For further

information, contact a PEUGEOT

dealer.

If the inﬂ ation pressure is too low,

this increases fuel consumption.

The inﬂ ation pressure must be

checked when the tyres are cold,

at least once a month.

A. Chassis number under

the bonnet.

This number is etched on the bodywork

near the damper support.

To gain access to it, raise the plastic

cover.

B. Chassis number on the

windscreen lower crossmember.

This number is indicated on a gummed

label which is visible through the wind-

screen.
C. Manufacturer’s plate.
This plate is riveted onto the engine

mounting.
or
D. Manufacturer’s label.
This number is indicated on a self-de-

stroying label afﬁ xed to the centre pillar,

on the passenger side.

E. Tyre/paint label.
This label is afﬁ xed to the front pillar, on

the driver’s side.
It bears the following information:
- the tyre inﬂ ation pressures with and

without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by

the manufacturer,

- the inﬂ ation pressure of the spare

wheel,

- the paint colour reference.

171

RT4

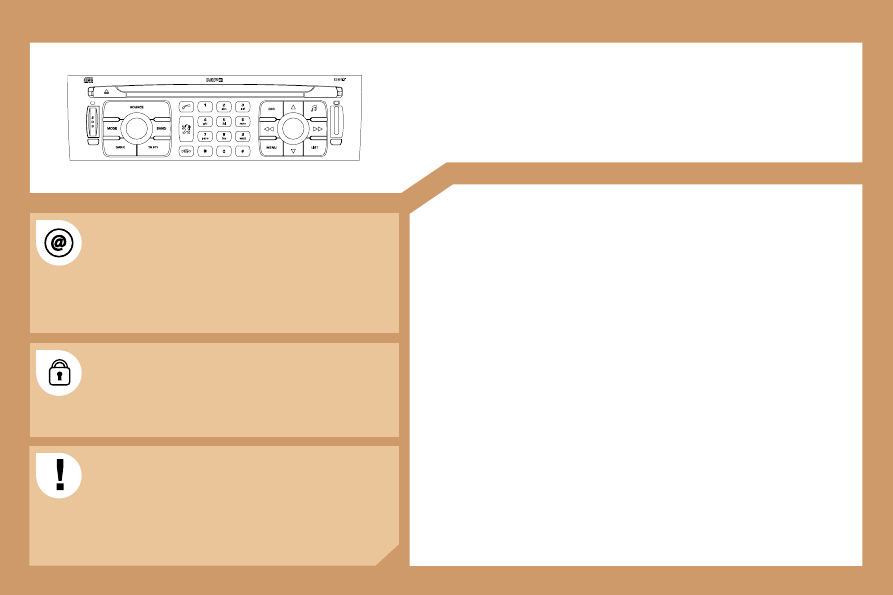

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

Information on the functions offered by this equipment can

be found on the site: http://public.servicebox.peugeot.com

- access is free. From your vehicle’s interactive telematic

guide, make your selection, process, follow the actions

step by step, print.

The RT4 GPS audio/telephone is coded in such a

way that it will only operate in your vehicle. If it is to be

installed in another vehicle, contact your PEUGEOT

dealer for conﬁguration of the system.

For safety reasons, it is imperative that the driver carries

out operations which require prolonged attention while

the vehicle is stationary.

When the engine is switched off and to prevent

discharging of the battery, the RT4 audio/telephone may

switch off after a few minutes.

CONTENTS

• 01 First steps

pg. 172

• 02 General menu

pg. 173

• 03 GPS

pg. 174

• 04 Trafﬁc information

pg. 182

• 05 Audio/Video

pg. 184

• 06 Telephone

pg. 191

• 07 Control short-cuts

pg. 194

• 08 Conﬁguration

pg. 196

• 09 Display ﬂow charts

pg. 197

• Frequently asked questions pg. 213

172

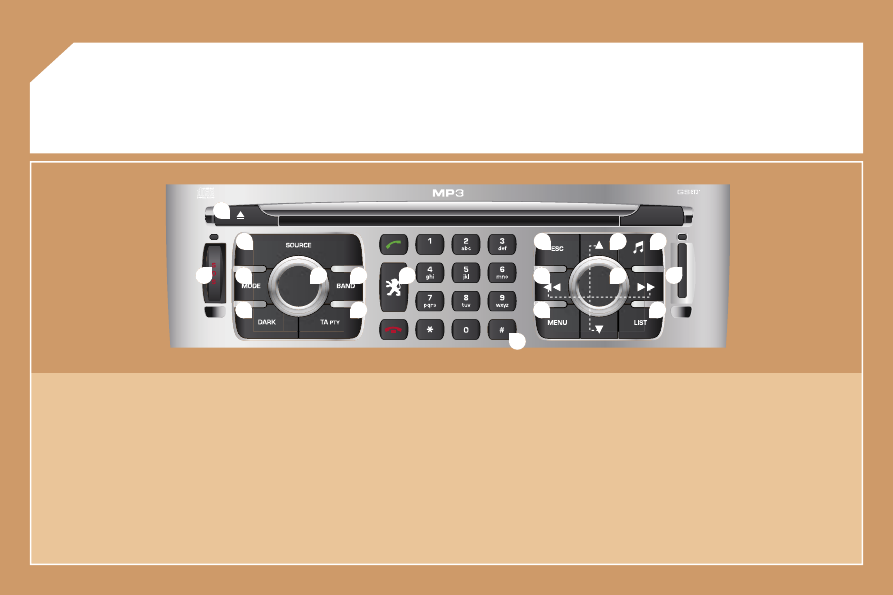

1 - Ejection of the CD.

1 -

2 - Selection of the source: radio, Jukebox, CD, CD changer and

2 -

auxiliary (AUX, if activated on the Conﬁguration menu).

Long press: CD copy to hard disc.

3 - Long press on the SOS button: emergency call.

3 -

4 - Selection of the display on the screen from the modes: TRIP,

4 -

TEL, NAV and AUDIO.

5 - Modiﬁcation of the screen display.

5 -

Long press: reinitialisation of the RT4 GPS audio/telephone.

6 - On/Off and Volume adjustment.

6 -

7 - Selection of the wavebands FM1, FM2, FMast, AM.

7 -

8 - TA (Trafﬁc Announcement) function on/off.

8 -

Long press: access to the PTY (radio Programme TYpes)

mode.

9 - Access to the "PEUGEOT" services menu.

9 -

10 - Cancellation of the current operation.

10 -

Long press: return to the current application.

11 - Automatic search for a lower/higher frequency.

11 -

Selection of the previous/next CD, MP3 or Jukebox track.

12 - Displaying of the general menu.

12 -

13 - Keypad for entering descriptions by successive presses.

13 -

14 - Selection of the previous/next CD.

Selection of the previous/next MP3/Jukebox directory.

15 - Audio option adjustments: front/rear, left/right balance,

15 -

loudness, sound ambiences.

16 - Selection and conﬁrmation.

16 -

17 - SIM card slot.

17 -

18 - Displaying of the list of local radio stations, of the tracks on

18 -

the CD or of the MP3/Jukebox directories.

Long press: updating of the local radio stations.

FIRST STEPS

173

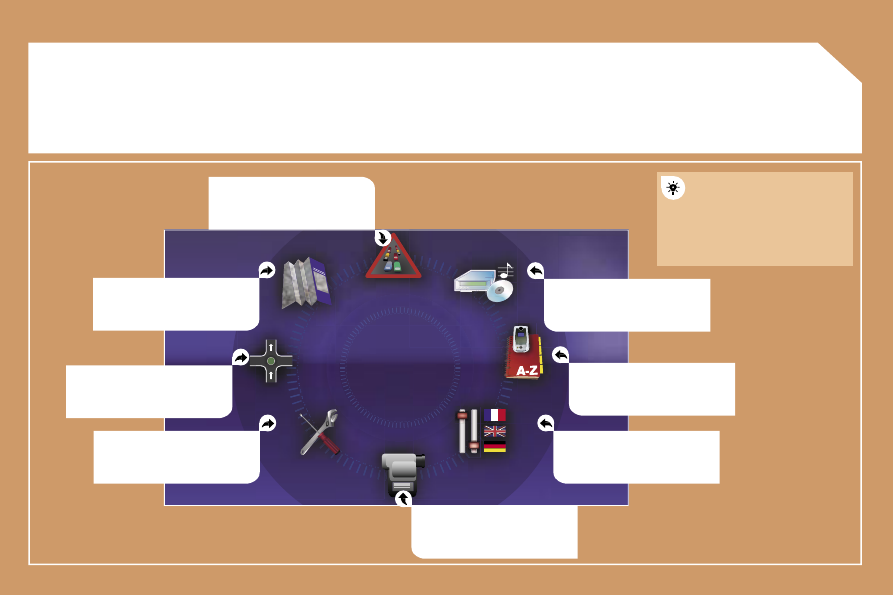

02 GENERAL MENU

MAP: orientation, details,

display.

AUDIO FUNCTIONS: radio,

CD, Jukebox, options.

For maintenance of the

display, the use of a

soft, non-abrasive cloth

(spectacles cloth) is

recommended without any

additional product.

TELEMATIC: telephone,

directory, SMS.

CONFIGURATION: vehicle,

display, time, languages,

voice, auxiliary socket (AUX)

parameters.

VIDEO: activation, parameters.

VEHICLE DIAGNOSTICS:

warnings log, status of the

functions.

NAVIGATION GUIDANCE:

GPS, stages, options.

TRAFFIC INFORMATION: TMC

information, messages.

174

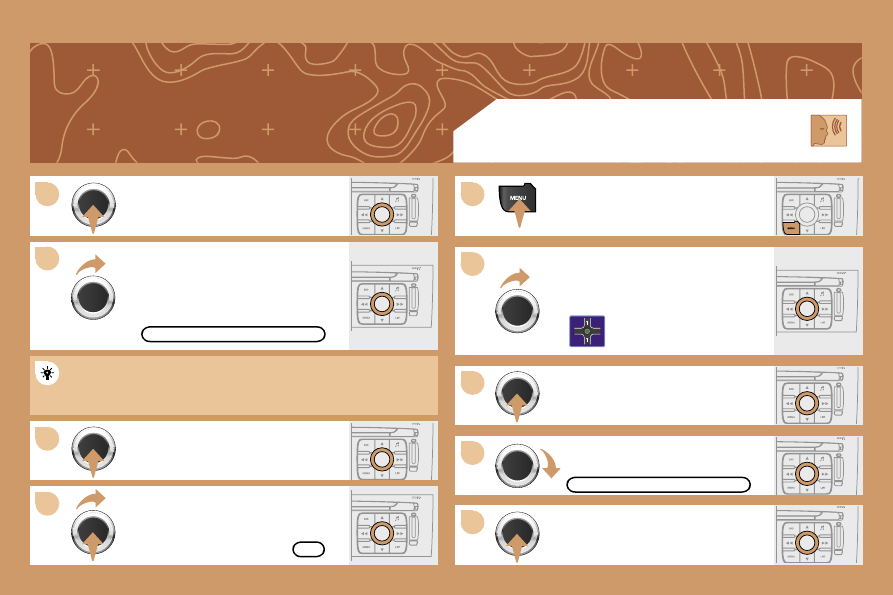

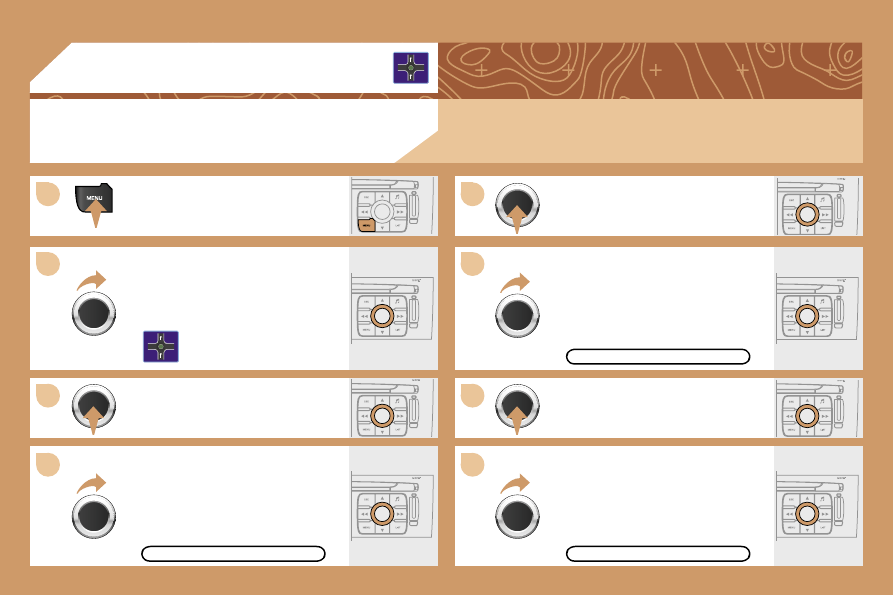

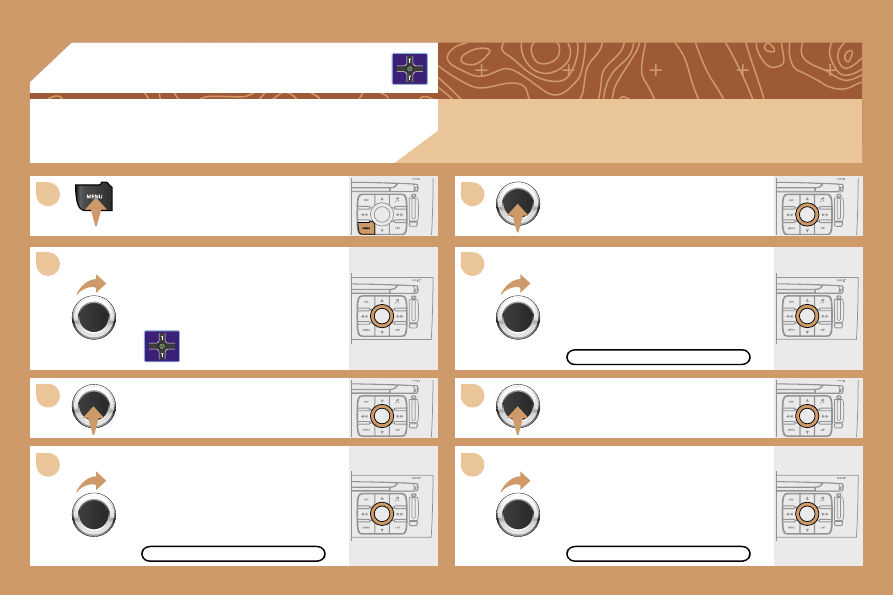

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to conﬁrm the selection.

Turn the dial and select the

DESTINATION CHOICE function.

Press the dial to conﬁrm the selection.

Turn the dial and select the ENTER

AN ADDRESS function.

When the country has been selected,

turn the dial and select the TOWN

function.

TOWN

ENTER AN ADDRESS

DESTINATION CHOICE

Tip: for a detailed global view of the menus available, refer to the "Display ﬂow charts" section of this

RT4 chapter.

GPS

SELECTING A DESTINATION

175

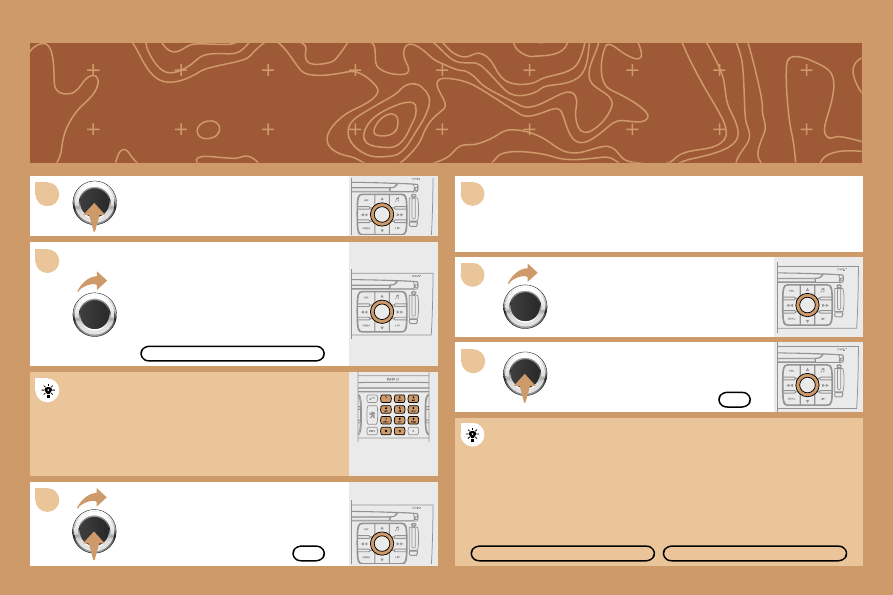

Press the dial to conﬁrm the selection.

Turn the dial and select the letters of

the town one by one conﬁrming each

time by pressing the dial.

Select OK and press the dial to

conﬁrm.

To speed up the process, the POST CODE can be

entered instead of the name of the town.

Use the alphanumeric keypad to enter the letters and

digits and "*" to correct.

Press the dial to conﬁrm the selection.

Select OK on the ENTER AN

ADDRESS page.

Repeat steps 8 to 12 for the ROAD and N° functions.

STORE

Select the STORE function to record the address entered in a

directory record and press the dial to conﬁrm the selection.

The points of interest (POI) indicate all of the service locations in the

vicinity (hotels, various businesses, airports...).

POI

PARIS

176

GUIDANCE OPTIONS

GPS

The route chosen by the RT4 GPS audio/telephone depends directly on the guidance options.

Changing these options may completely change the route.

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to conﬁrm the selection.

Turn the dial and select the

GUIDANCE OPTIONS function.

Turn the dial and select the DEFINE

CALCULATION CRITERIA function.

Press the dial to conﬁrm the selection.

DISTANCE/TIME

GUIDANCE OPTIONS

DEFINE CALCULATION CRITERIA

Turn the dial and select, for example,

the DISTANCE/TIME function.

177

Turn the dial and select the TRAFFIC

INFO function if it is not ticked.

Press the dial to conﬁrm the selection.

Select OK and press the dial to

conﬁrm.

TRAFFIC INFO

Press the dial to conﬁrm the selection.

Tick this box for optimum operation of the trafﬁc information,

diversions will be suggested.

GUIDANCE SPEECH SYNTHESIS

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to conﬁrm the selection.

GUIDANCE OPTIONS

Turn the dial and select the

GUIDANCE OPTIONS function.

Press the dial to conﬁrm the selection.

178

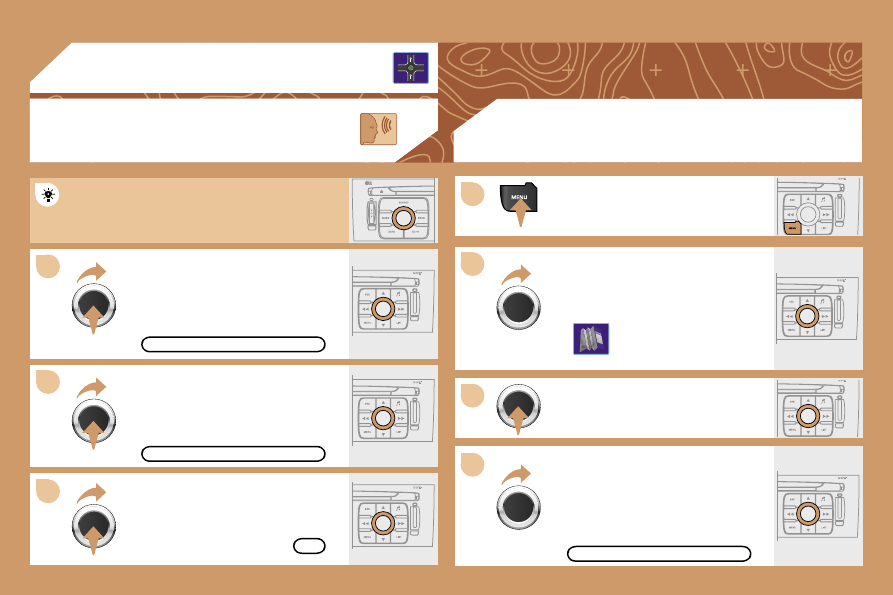

Press the MENU button.

Turn the dial and select the MAP

function.

Press the dial to conﬁrm the selection.

Turn the dial and select the MAP

DETAILS function.

Permits selection of the services

which can be seen on the map

(hotels, restaurants...).

ACTIONS ON THE MAP

MAP DETAILS

During the announcements, the volume of each

speech synthesis function (guidance, trafﬁc

information...) can be adjusted directly.

GUIDANCE SPEECH

SYNTHESIS

Select the ADJUST SPEECH

SYNTHESIS function and press the

dial to conﬁrm.

GPS

DEACTIVATE

ADJUST SPEECH SYNTHESIS

Select the DEACTIVATE function and

press the dial to conﬁrm.

Select OK and press the dial to

conﬁrm.

179

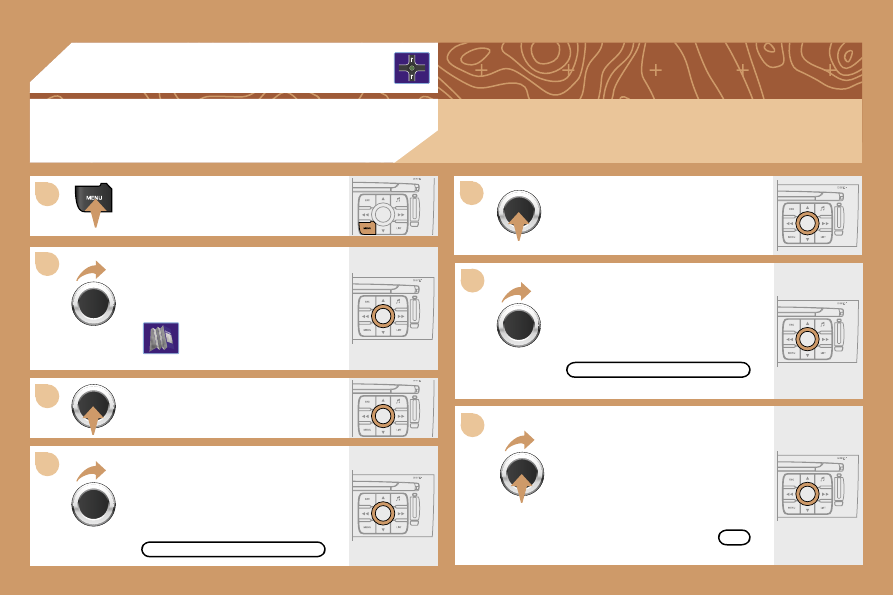

For improved visibility, beyond the scale of 10km, the map automatically switches to North Orientation.

Turn the dial and select the MAP

function.

Press the MENU button.

Press the dial to conﬁrm the selection.

Turn the dial and select the 3D VIEW

tab.

Turn the dial and select the MAP

ORIENTATION function.

Press the dial to conﬁrm the selection.

3D VIEW

GPS

3D VIEW

MAP ORIENTATION

Select OK and press the dial to

conﬁrm.

Content .. 10 11 12 13 ..
