Peugeot 308 Dag (2007.5). Instruction

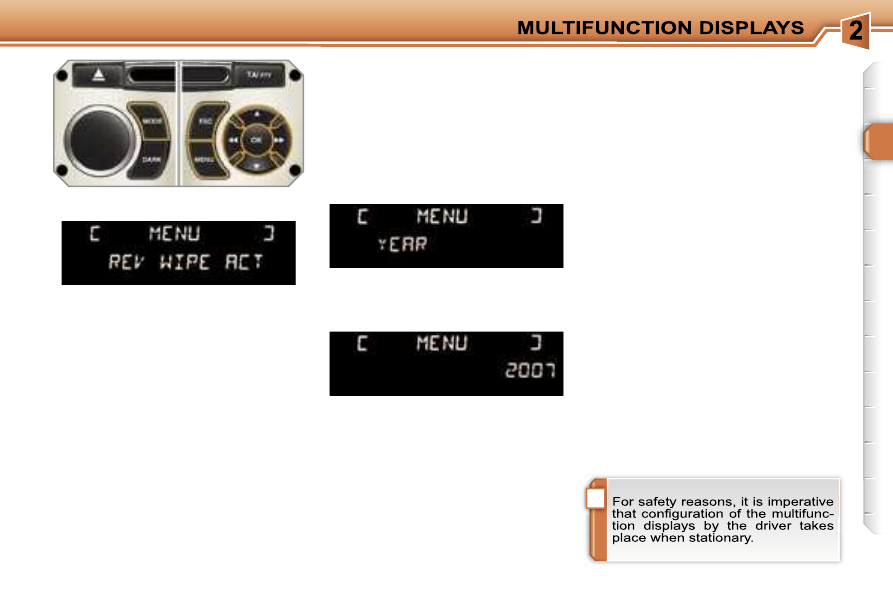

Display settings

Once the "Display settings" menu has

been selected, you can gain access to

the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

Languages

Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Units

Once the "Units" menu has been

selected, you can change the units of

the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).



Once you have selected a setting,

press the

"" or "" buttons to

change its value.



Press the

"" or "" buttons to

switch respectively to the previous

or next setting.



Press the

"OK" button to record the

change and return to the normal dis-

play or press the

"ESC" button to

cancel.

Vehicle conﬁguration

Options

Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active, not

active, faulty).

Once the "Vehicle Conﬁguration" menu

has been selected, you can activate or

deactivate the following equipment:

- selective unlocking (refer to the

"Access" section),

- wiper linked with reverse gear (refer to

the "Visibility" section),

- "follow-me-home" and welcome light-

ing (refer to the "Visibility" section),

- daytime lights (refer to the "Visibility"

section).

MONOCHROME SCREEN C AND

COLOUR SCREEN C

General menu

Displays on the screen

This displays the following information:

- the time,

- the date,

- the outside temperature* (this ﬂashes

if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the audio sources (radio, CD, ...),

- the trip computer (refer to the end of

the section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Automatic switching

on of the headlamps activated") may ap-

pear temporarily. These can be cleared

by pressing the

"ESC" button.

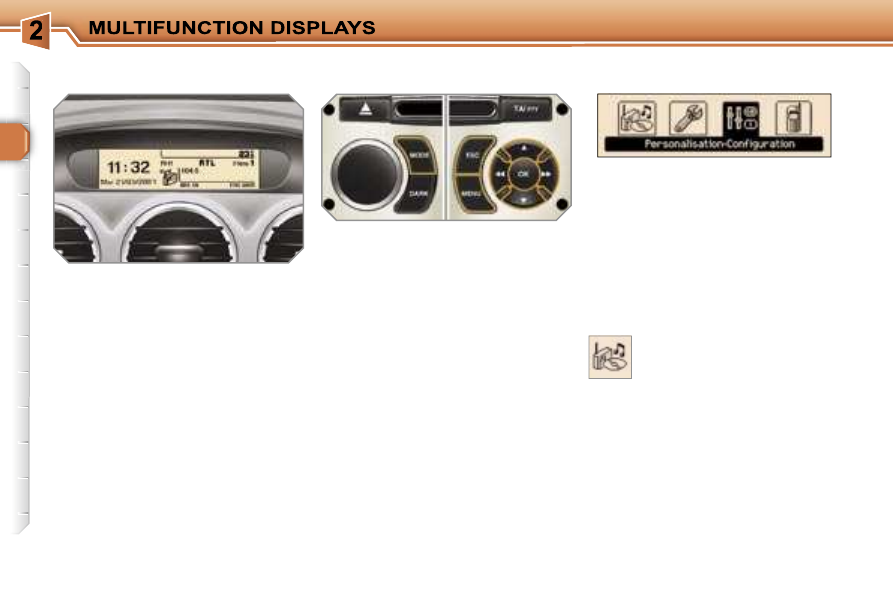

"Audio functions" menu

Controls

From the RD4 audio equipment control

panel, you can:


press the

"MENU" button to gain

access to the

general menu,



press the

"" or "" buttons to

scroll through the items on the

screen,



press the

"MODE" button to change

the permanent application (trip com-

puter, audio source, ...),



press the

"" or "" buttons to

change a setting value,



press the

"OK" button to conﬁrm,

or


press the

"ESC" button to abandon

the operation in progress.



Press the

"MENU" button to gain

access to the

general menu:

-  audio functions,
-  vehicle diagnostics,
-  personalisation-conﬁguration,
-  telephone (hands-free kit).



Press the

"" or "" buttons to se-

lect the menu required, then conﬁrm

by pressing the

"OK" button.

* With air conditioning only.

With the RD4 audio equipment switched

on, once this menu has been selected

you can activate or deactivate the func-

tions linked with use of the radio (RDS,

REG, RadioText), the CD or the CD

changer (introscan, shufﬂe, CD repeat).

For further details concerning the "Au-

dio functions" application, refer to the

RD4 part of the "Audio and Telematics"

section.

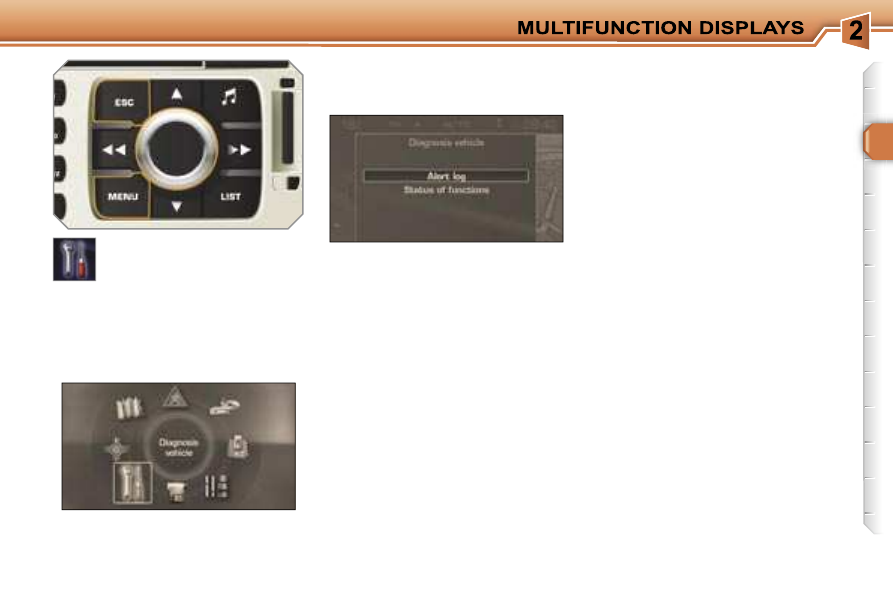

"Vehicle diagnostics"

menu



Press the

"MENU" button to gain

access to the general menu.



Press the arrows, then the

"OK"

button to select the

"Vehicle diag-

nostics" menu.



On the

"Vehicle diagnostics" menu,

select the following application:

Warnings log

This summarises the active warning

messages, displaying them in succes-

sion on the multifunction display.

Once this menu has been selected, you

can consult information concerning the

status of the vehicle, such as the warn-

ings log.

Deﬁne the vehicle parameters

Once this menu has been selected, you

can activate or deactivate the following

equipment:

- selective unlocking (refer to the

"Access" section),

- wiper linked with reverse gear (refer to

the "Visibility" section),

- "follow-me-home" and welcome lighting

(refer to the "Visibility" section),

- ambient lighting (refer to the "Visibility"

section),

- daytime lights (refer to the "Visibility"

section).

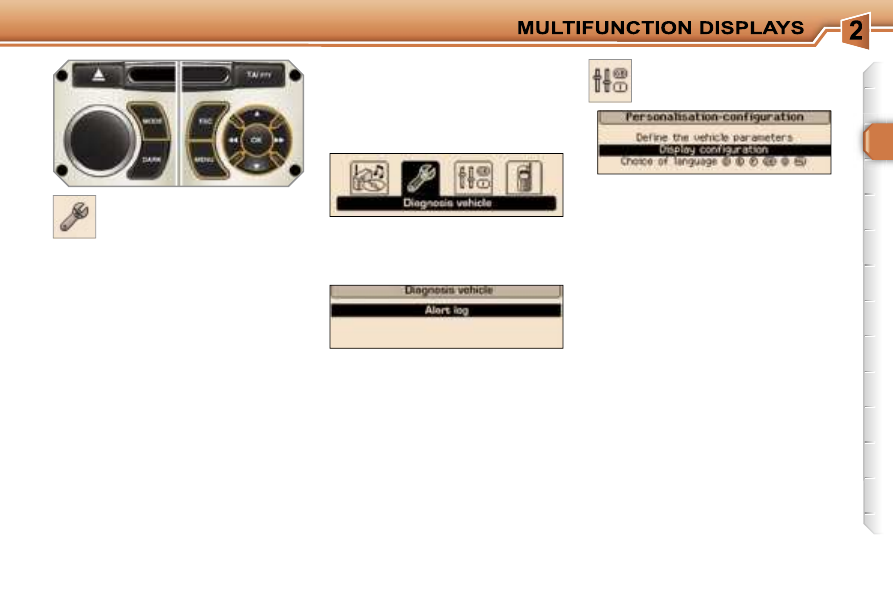

"Personalisation-

Conﬁguration" menu

Once this menu has been selected, you

can gain access to the following func-

tions:

- deﬁne the vehicle parameters,

- display conﬁguration,

- selection of the language.

"Telephone" menu

Display conﬁguration

Once this menu has been selected, you

can gain access to the following set-

tings:

- brightness-video setting,

- date and time setting,

- selection of the units.
Selection of the language

Once this menu has been selected,

you can change the language used by

the display (Deutsch, English, Espanol,

Français, Italiano, Nederlands, Portu-

gues, Portugues-Brasil).

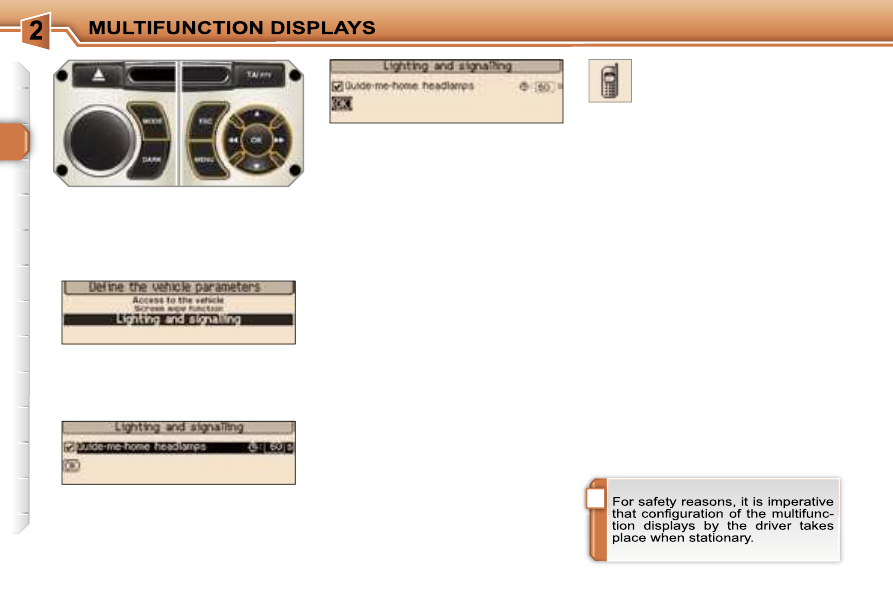

Example: setting of the duration of the

"follow-me-home" lighting



Press the

"" or "" buttons, then

the

"OK" button to select the menu

required.



Press the

"" or "" buttons, then

the

"OK" button to select the "Fol-

low-me-home lighting" line.



Press the

"" or "" buttons to set

the value required (15, 30 or 60 sec-

onds), then press the

"OK" button to

conﬁrm.



Press the

"" or "" buttons, then

the

"OK" button to select the "OK"

box and conﬁrm or press the

"ESC"

button to cancel.

With the RD4 audio equipment switched

on, once this menu has been select-

ed you can conﬁgure your Bluetooth

hands-free kit (matching), consult the

various telephone directories (calls log,

services, ...) and manage your commu-

nications (pick up, hang up, call waiting,

secret mode, ...).

For further details concerning the "Tele-

phone" application, refer to the RD4 part

of the "Audio and Telematics" section.

Displays on the screen

When the RT4 GPS audio/telephone is

switched on, select the menu which cor-

responds to the following applications:

- the satellite navigation system,

- the guidance on the map,

- the trafﬁc information,

- the audio sources (radio, CD, ...),

- the telephone and the phonebooks,

- the conﬁguration of the screen and

the setting of the vehicle equipment

parameters,

- the displaying of videos,

- the vehicle diagnostics.

Controls

When the screen is open, it displays the

following information automatically and

directly:

- the time,

- the date,

- the outside temperature (if there is

a risk of ice, you are warned by a

message).

Warning messages (e.g.: "Fuel level

low") and vehicle function status mes-

sages (e.g.: "Automatic lighting active")

may appear temporarily. These can be

cleared by pressing the

"ESC" button.

From the RT4 GPS audio/telephone

control panel, to select one of the ap-

plications:


press the

"MENU" button to gain

access to the

general menu,



turn the navigator to move the selection,



press the navigator to conﬁrm the

selection,

or


press the

"ESC" button to abandon

the operation in progress and return

to the previous display.

For further details regarding these

applications, refer to the RT4 part of

the "Audio and Telematics" section.

RETRACTABLE 16/9 COLOUR

SCREEN

General menu

Access to the screen

Opening the screen


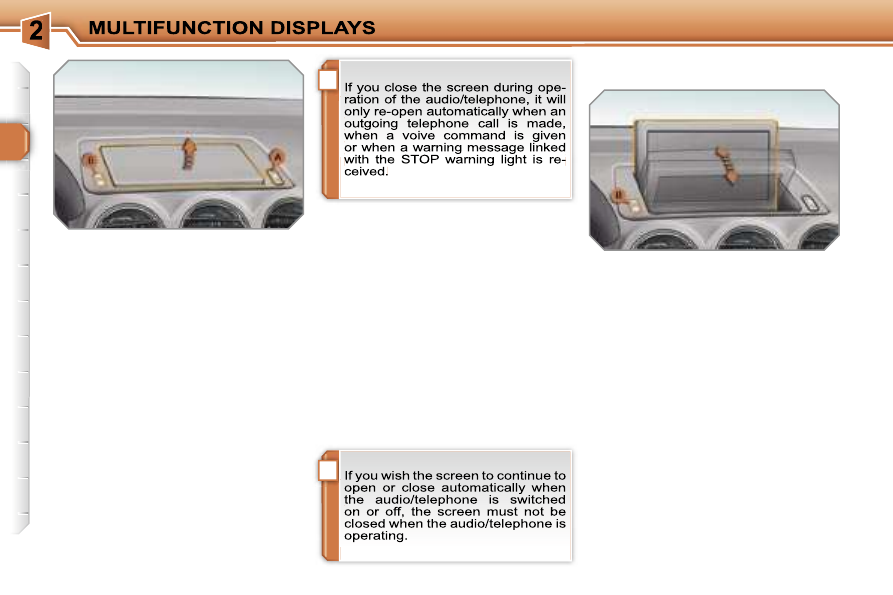

With the screen stored, press control

A to open it.

The screen opens automatically when

the ignition is switched on, when the au-

dio/telephone is switched on, when an

outgoing telephone call is made, when

a voice command is given and when a

warning message linked with the STOP

warning light is received.

This screen is opened and stored auto-

matically.

However, you can also open it, store it

and adjust it using the various manual

controls:

- opening or storing by means of control

- angle adjustments by means of con-

trol

It is also ﬁtted with safety auto-reverse

protection.

Closing the screen


With the screen open, press control

A to store it.

The screen is stored automatically

when the ignition is switched off, after

approximately three seconds, if the au-

dio/telephone is off.

When the screen is open, you can

adjust it precisely in different ways:


press the corresponding part of con-

trol

B to move the screen towards

you or towards the windscreen,

or


push or pull the screen gently by

hand.

Adjusting the position of the screen

Safety auto-reverse

If the screen meets an obstacle as it

opens or closes, the movement stops

immediately and is reversed by a few

millimetres.

After clearing the obstacle, issue the

command required again.

Storing the position of

the screen
The system has four pre-set positions

in its memory.

Each time the screen is closed, the

system stores the last position of the

screen.

Each time the screen is re-opened, the

system returns the screen to the pre-set

position closest to that stored.

Deﬁne the vehicle parameters

Once the "Deﬁne the vehicle parameters"

menu has been selected, you can activate

or deactivate certain driving and comfort

equipment:

- selective unlocking (refer to the

"Access" section),

- wiper linked with reverse gear (refer to

the "Visibility" section),

- follow-me-home and welcome lighting

(refer to the "Visibility" section),

- ambient lighting (refer to the "Visibil-

ity" section),

- daytime lights (refer to the "Visibility"

section),

- directional headlamps (refer to the

"Visibility" section).

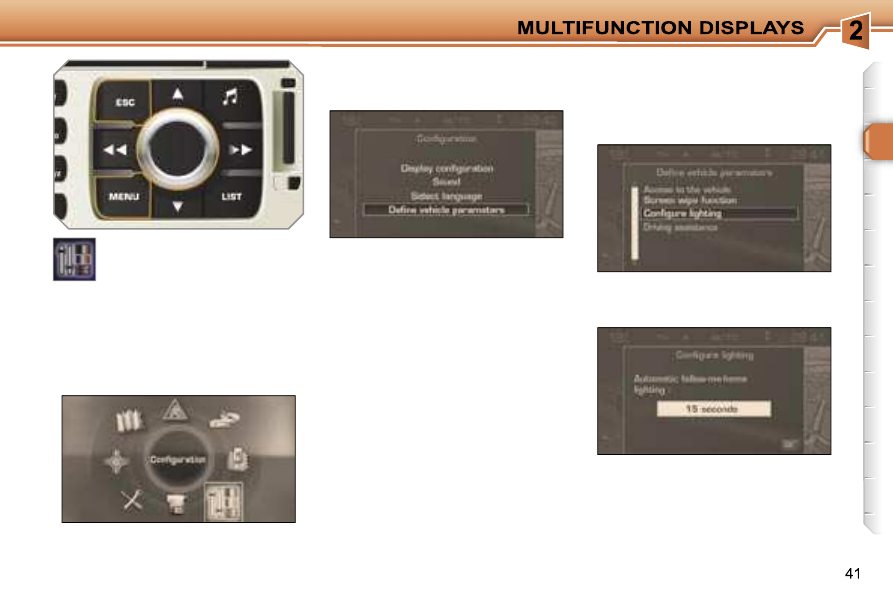

Example: setting the duration of the

follow-me-home lighting


Turn the navigator to select the

"Lighting conﬁguration" menu,

then press the navigator to conﬁrm.



Select the line "Duration of follow-

me-home lighting" then conﬁrm.

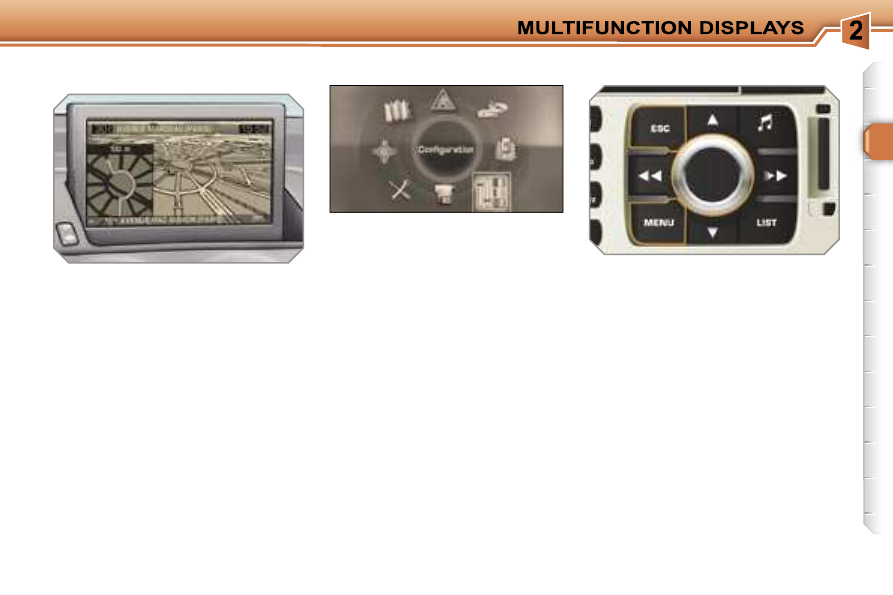

"Conﬁguration" menu

Once this menu has been selected, you

can gain access to the following func-

tions:



Select the duration then press the

navigator.



Turn the navigator to set the value

required (15, 30 or 60 seconds), then

press the navigator.



Select the

"OK" box, then conﬁrm.



Press the

"MENU" button on the

RT4 GPS audio/telephone to gain

access to the

general menu.



Turn the navigator to select the

"Conﬁguration" menu, then press

the navigator to conﬁrm.

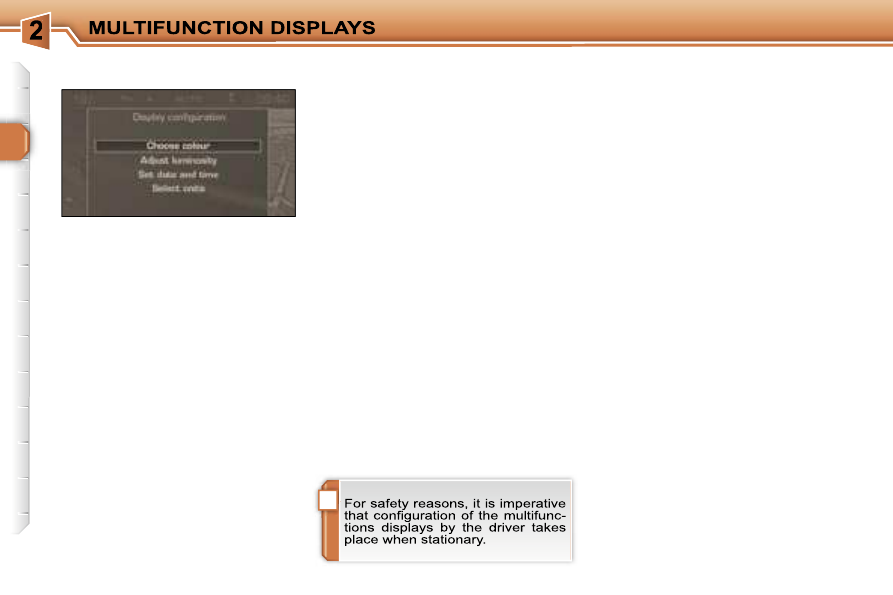

Once the "Display conﬁguration" menu

has been selected, you gain access to

the following parameters:

- selection of the palette of colours

available for the display,

- setting of the brightness and brilliance

of the display,

- setting of the date and time (12 or

24 hour mode, adjustment of the min-

utes on GPS),

- selection of the units (temperature in

°Celsius or °Fahrenheit; consumption

in l/100 km or mpg or km/l).

Display conﬁguration

Once the "Sounds" menu has been se-

lected, you gain access to the following

parameters:

- setting of the voice commands,

- setting of the voice synthesiser (volume,

male or female),

- activation of the auxiliary input AUX.

Selecting the the language

Sounds

Once the "Language selection" menu

has been selected, you gain access to

the following parameters:

- selection of the display language

(Français, English, Italiano, Portugues,

Espanol, Deutsch, Nederlands),

- selection of the language used for

the information and voice commands

(Français, English, Italiano, Portugues,

Espanol, Deutsch, Nederlands).

Warnings log

This summarises the active warning

messages, displaying them in succes-

sion on the multifunction display.

"Vehicle diagnostics"

menu



Press the

"MENU" button to gain

access to the general menu.



Turn the navigator and press it to

select the

"Vehicle diagnostics"

menu.



On the

"Vehicle diagnostics"

menu, select one of the following

applications:

Status of the functions

This summarises the active or inactive

status of the functions present on the

vehicle.

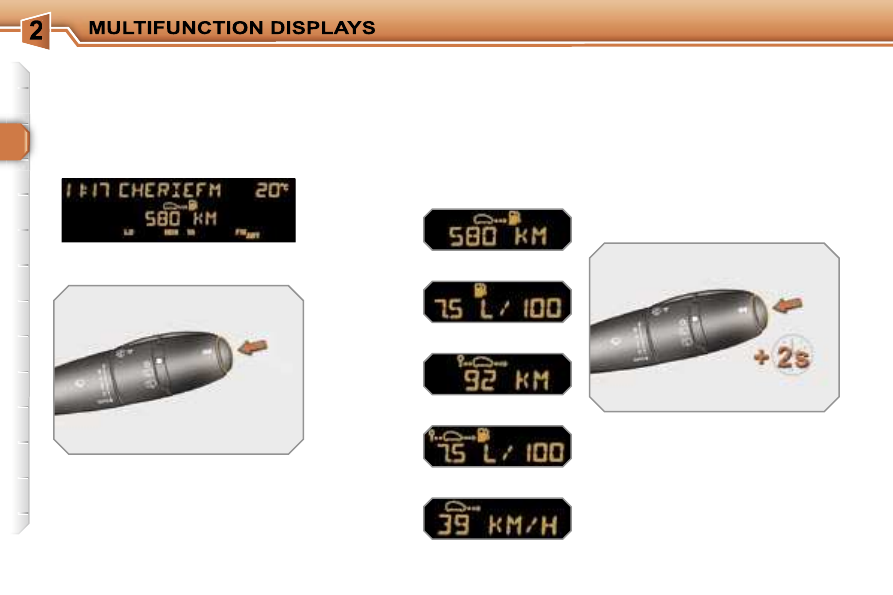

TRIP COMPUTER



Press the button, located at the end

of the

wipers stalk, to display the

various items of trip computer data

in succession.

The trip computer data is the following:

System which provides current infor-

mation concerning the route travelled

(range, consumption, ...).



Press the control for more than

two seconds to reset the distance

travelled, the average consumption

and the average speed to zero.

Monochrome screen A

Zero reset

Data displays

- the range,

- the current consumption,

- the distance travelled,

- the average consumption,

- the average speed.



The next press then returns you to

the normal display.

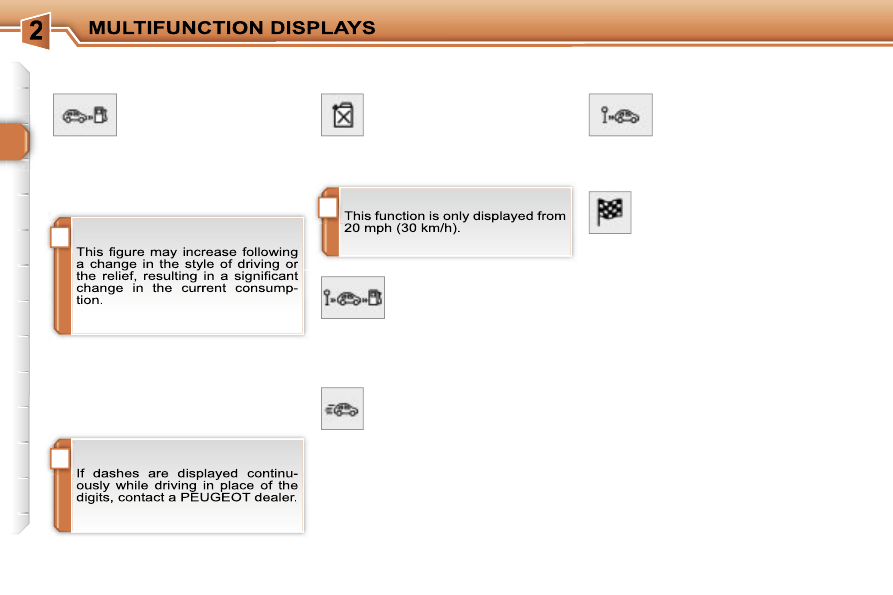

A few deﬁnitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After ﬁll-

ing with at least 5 litres of fuel, the range

is recalculated and is displayed when it

exceeds 60 miles (100 km).

Range

(km or miles)

This indicates the distance

which can still be travelled

with the fuel remaining in the tank in

relation to the average consumption

over the last few miles (kilometres) tra-

velled.

Current consumption

(l/100 km or km/l or mpg)

This is the average quantity of

fuel consumed during the last

few seconds.

Average consumption

(l/100 km or km/l or mpg)

This is the average quantity

of fuel consumed since the

last trip computer zero re-

set.

Distance travelled

(km or miles)

This indicates the distance

travelled since the last trip

computer zero reset.

Average speed

(km/h or mph)

This is the average speed cal-

culated since the last trip com-

puter zero reset (ignition on).

Distance remaining to

destination

(km or miles)

This is the distance remaining

to be travelled to the ﬁnal destination. It

is either calculated instantly by the navi-

gation system, if guidance is activated,

or entered by the user.

If the distance is not entered, dashes

are displayed in place of the digits.

- the current information tab

with:

• the range,

• the current

consumption,

• the distance remaining

to be travelled,

Route zero reset

Monochrome screen C and

colour screen C



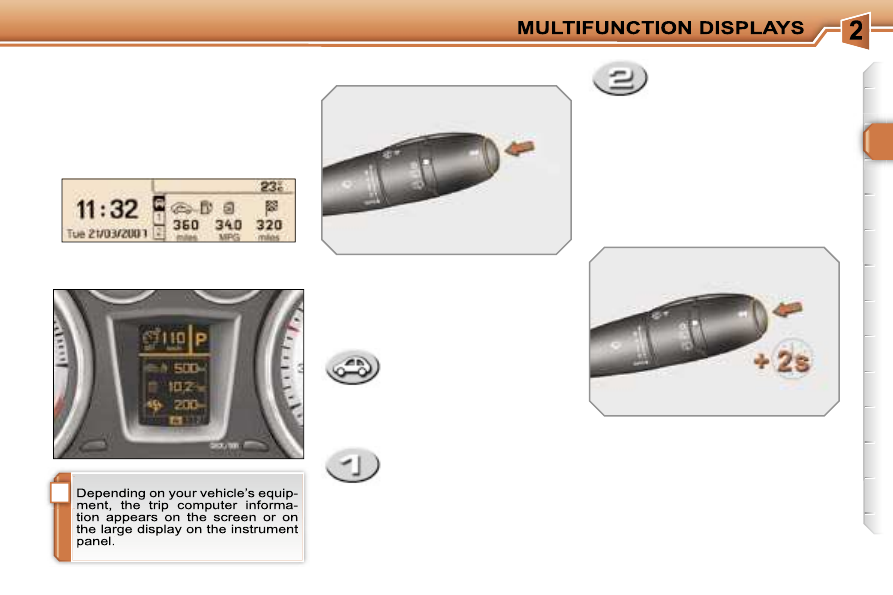

Press the button, located at the end of

the

wipers stalk, to display the vari-

ous trip computer tabs in succession:

Data displays



When the route required is displayed,

press the control for more than two

seconds.

- the route

"1" tab with:

• the distance travelled,

• the average

consumption,

• the average speed,

for the ﬁrst route.

- the route

"2" tab with:

• the distance travelled,

• the average

consumption,

• the average speed,

for the second route.

Routes

"1" and "2" are independent

but their use is identical.

Route

"1" permits, for example, daily

calculations, and route

"2" monthly cal-

culations.

TRIP COMPUTER

System which provides current infor-

mation concerning the route travelled

(range, consumption, …).

Instrument panel large display



Pressing the button again returns

you to the normal display.

A few deﬁnitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After ﬁll-

ing with at least 5 litres of fuel, the range

is recalculated and is displayed when it

exceeds 60 miles (100 km).

Range

(km or miles)

This indicates the distance

which can still be travelled

with the fuel remaining in the tank in

relation to the average consumption

over the last few miles (kilometres) tra-

velled.

Current consumption

(l/100 km or km/l or mpg)

This is the average quantity of

fuel consumed during the last

few seconds.

Average consumption

(l/100 km or km/l or mpg)

This is the average quantity

of fuel consumed since the

last trip computer zero re-

set.

Distance travelled

(km or miles)

This indicates the distance

travelled since the last trip

computer zero reset.

Average speed

(km/h or mph)

This is the average speed cal-

culated since the last trip com-

puter zero reset (ignition on).

Distance remaining to

destination

(km or miles)

This is the distance remaining

to be travelled to the ﬁnal destination. It

is either calculated instantly by the navi-

gation system, if guidance is activated,

or entered by the user.

If the distance is not entered, dashes

are displayed in place of the digits.

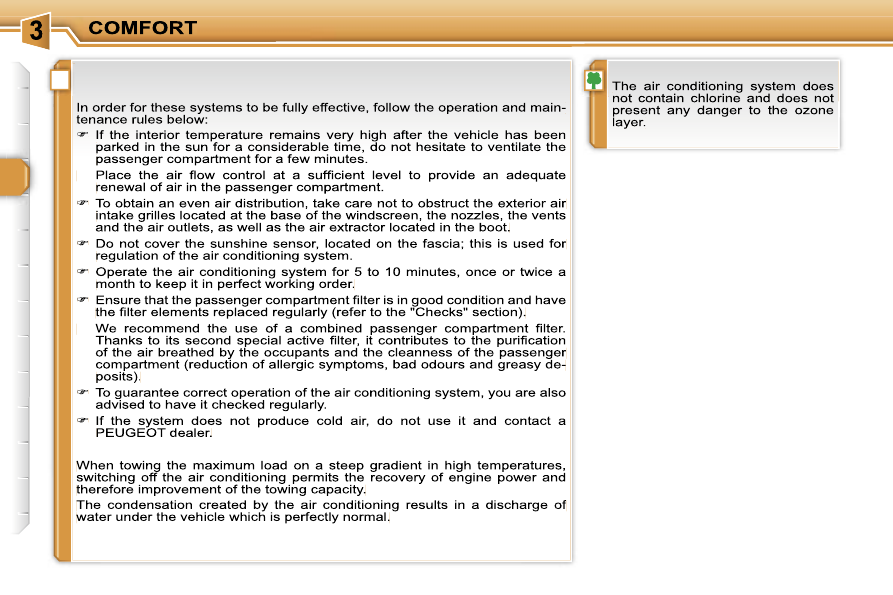

VENTILATION

System which creates and maintains

comfortable conditions in the vehicle’s

passenger compartment.

Air treatment

The incoming air follows various routes

depending on the controls selected by

the driver:

- direct arrival in the passenger com-

partment (air intake),

- passage through a heating circuit

(heating),

- passage through a cooling circuit (air

conditioning).

The temperature control enables you to

obtain the level of comfort required by

mixing the air of the various circuits.

The air distribution control enables you

to diffuse the air in the passenger com-

partment combining several air vents.

The air ﬂow control enables you to

increase or reduce the speed of the

ventilation blower.

Air intake

The air circulating in the passenger com-

partment is ﬁltered and originates either

from the outside via the grille located at

the base of the windscreen or from the

inside in air recirculation mode.

Control panel

The controls of this system are grouped

together on control panel

A on the cen-

tre console. Depending on the model,

the functions offered are:

- the level of comfort required,

- the air ﬂow,

- the air distribution,

- the de-icing and demisting,

- the manual or automatic air conditioning

controls.

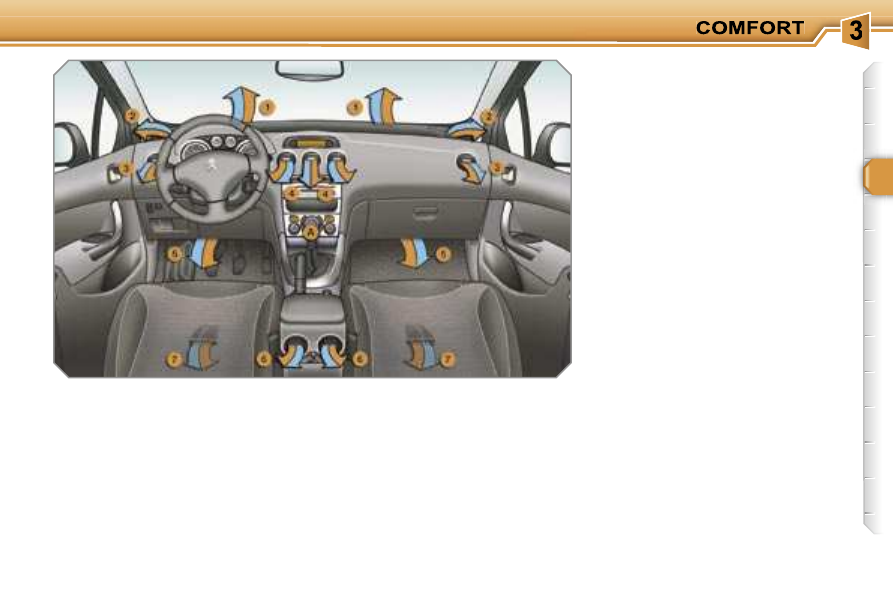

Air diffusion

1. Windscreen de-icing or demisting

vents.

2. Front side window de-icing or

demisting vents.

3. Side adjustable and closing vents.

4. Central adjustable and closing

vents.

5. Air outlets to the front footwells.

6. Adjustable and closing vents for

the rear passengers.

7. Air outlets to the rear footwells.

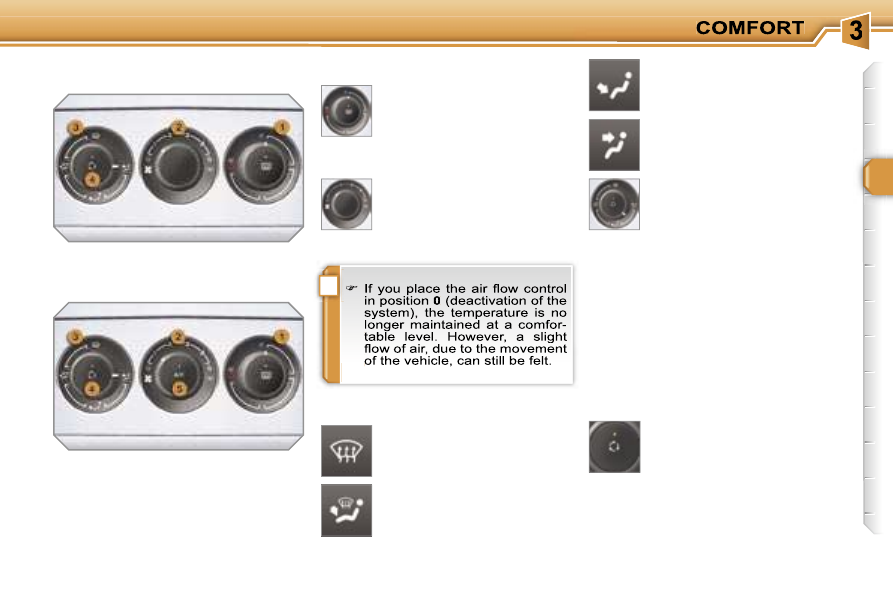

2. Air ﬂow adjustment



Turn the dial from position

1 to position 5 to obtain a

comfortable air ﬂow.

Windscreen, side windows and

footwells.

Footwells.

(vents closed)

Central and side vents.



Turn the dial from blue

(cold) to red (hot) to adjust

the temperature to your re-

quirements.

Windscreen and side windows.

1. Temperature adjustment

The air distribution can be

adapted by placing the dial in

an intermediate position.

The heating/ventilation or air conditio-

ning systems can only operate with the

engine running.

4. Air intake/Air recirculation

The intake of exterior air prevents misting

of the windscreen and side windows.

The recirculation of interior air insulates

the passenger compartment from exte-

rior odours and smoke.

Return to exterior air intake as soon as

possible to prevent deterioration of the

the air quality and avoid misting.

3. Air distribution adjustment



Press the button to recir-

culate the interior air. The

indicator light comes on to

conﬁrm this.



Press the button again to permit

the intake of exterior air. The indica-

tor light switches off to conﬁrm this.

HEATING/VENTILATION

MANUAL AIR CONDITIONING

Peugeot 308 Dag (2007.5). Instruction - part 3
