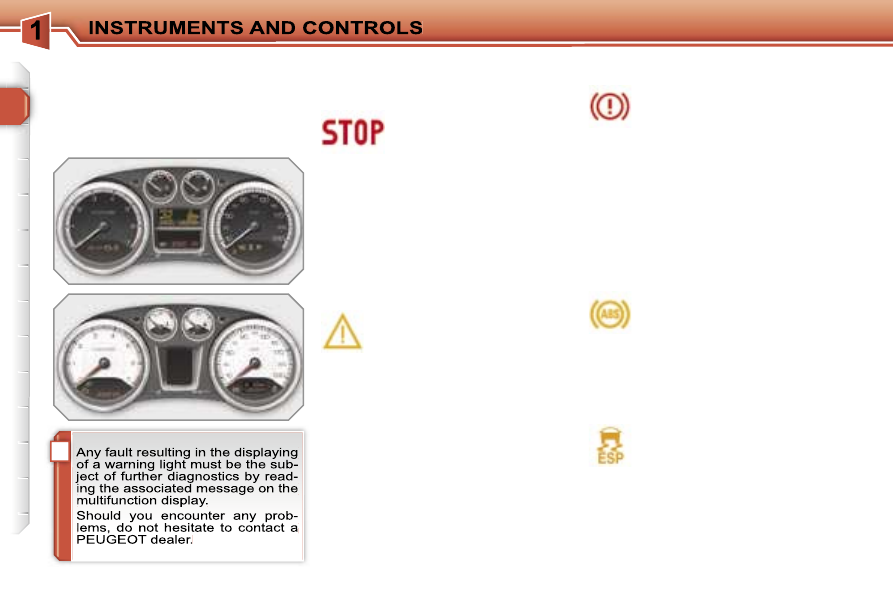

Indicator and warning lights

Visual indicators informing the driver

that a system is in operation (operation

or deactivation indicator lights) or of the

occurrence of a fault (warning light).

Associated warnings

The switching on of certain warning

lights may be accompanied by an audi-

ble signal and a message on the multi-

function display.

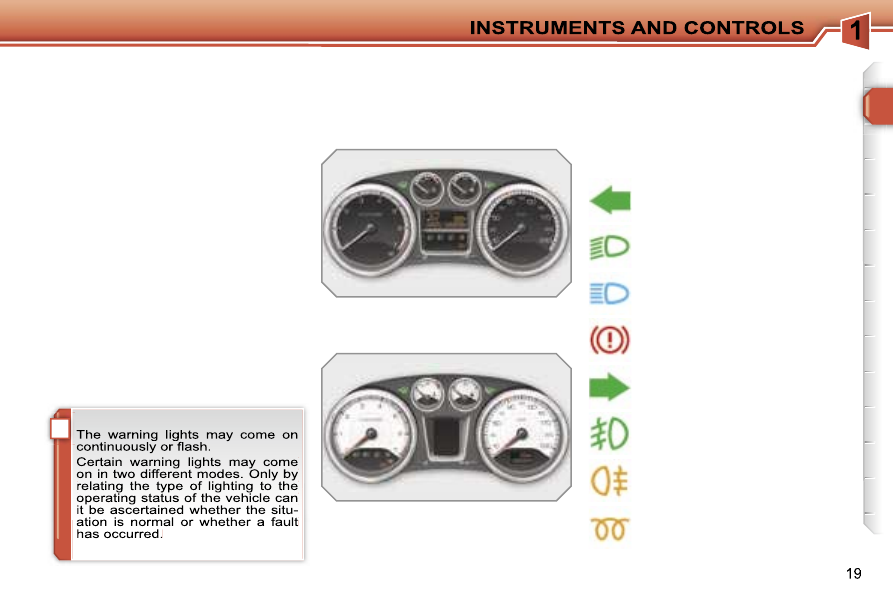

Operation indicator lights

If one of the following indicator lights comes

on, this conﬁrms that the corresponding

system has come into operation.

Left-hand direction

indicator.

Handbrake

applied.

Right-hand direction

indicator.

Main beam headlamps.

Dipped headlamps.

Diesel engine pre-heating.

Wait until this is switched off be-

fore operating the starter.

Front fog lamps.

Rear fog lamp.

When the ignition is switched on

The warning lights come on for a few

seconds when the vehicle’s ignition is

switched on.

When the engine is started, these warn-

ing lights should switch off.

If they remain on, before moving off,

consult the warning light concerned.

Common operation indicator lights

Foot on brake.

Press the brake pedal to start

the engine with the 6-speed pi-

loted manual gearbox or auto-

matic gearbox.

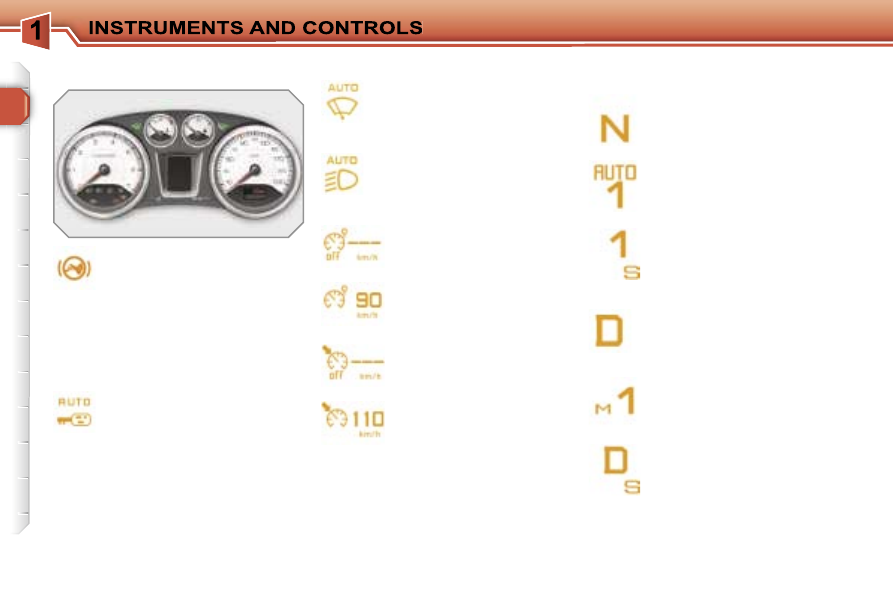

Speciﬁc operation indicator lights

The other indicator lights appear on the

large display, located in the centre of

the instrument panel.

Automatic locking.

If this is displayed, it indicates

that you have activated the au-

tomatic locking of the doors and

boot while driving.

Speed limiter.

If this is displayed, it indi-

cates that you have activat-

ed the speed limiter mode.

If this is displayed, it indi-

cates that you can set the

speed limiter speed value to

be stored.

Cruise control.

If this is displayed, it indi-

cates that you have activat-

ed the cruise control mode.

If this is displayed it indi-

cates that you can set the

cruise control speed value

to be stored.

Automatic gearbox.

This display indicates the posi-

tion that you have selected on

the gear selection gate (P, R, N

or D).

6-speed piloted manual gearbox.

This display indicates the po-

sition that you have selected

on the gear selection gate (R,

N, A or M).

Automatic wiping.

If this is displayed, it indicates

that you have activated the au-

tomatic windscreen wiping.

Automatic lighting.

If this is displayed, it indicates

that you have activated the

automatic switching on of the

headlamps.

This display indicates the gear

engaged in automatic or man-

ual operating mode (1 to 6).

This display indicates the op-

erating mode selected (auto-

matic or sport).

This display indicates the

gear engaged in the automat-

ic or manual operation pro-

gramme.

This display indicates the op-

erating programme selected

(automatic, sport, snow or

manual).

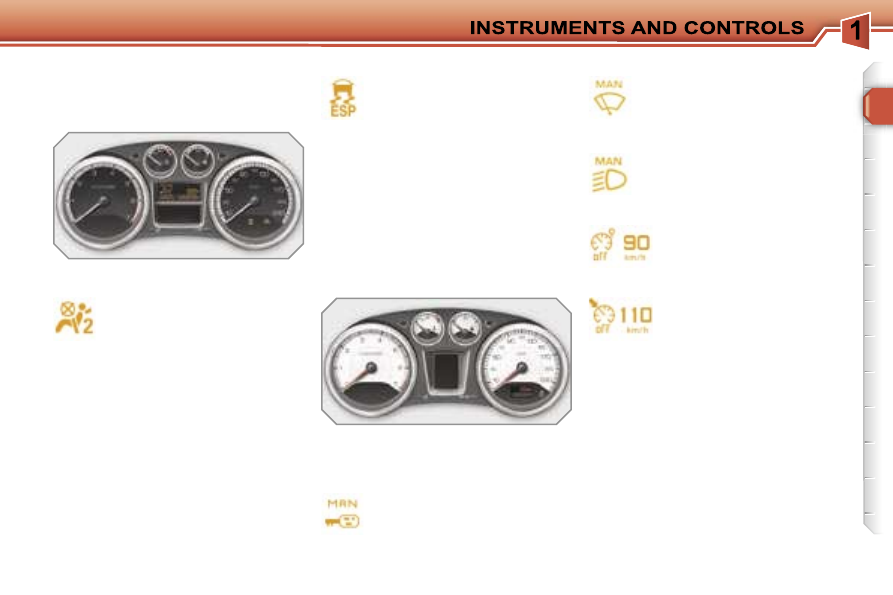

Deactivation warning lights

If one of the following warning lights

comes on, this conﬁrms that the corre-

sponding system has been switched off

intentionally.

Passenger’s air bag system

deactivation.

The passenger’s air bag system

is put into service automatically

when the vehicle is started.

A speciﬁc control, located on

the passenger’s side of the fascia, per-

mits deactivation of the system. This is

conﬁrmed by continuous lighting of this

warning light on the instrument panel or

on the seat belt and passenger’s front

air bag warning lights display.

Dynamic stability control

(ESP/ASR) deactivation.

The ESP/ASR system is put

into service automatically when

the vehicle is started.

A speciﬁc button, located in the centre

of the fascia, permits deactivation of the

system. This is conﬁrmed by continu-

ous lighting of this warning light and of

the indicator light on the button.

Common deactivation warning

lights

Speciﬁc deactivation warning lights

Automatic locking.

If this is displayed, it indicates

that you have deactivated the

automatic locking of the doors

and boot while driving.

Automatic wiping.

If this is displayed, it indicates

that you have deactivated the

automatic windscreen wiping.

The other warning lights appear on the

large display, located in the centre of

the instrument panel.

Speed limiter.

If this is displayed, it indi-

cates that you have deacti-

vated the speed limiter.

Cruise control.

If this is displayed, it indi-

cates that you have deacti-

vated the cruise control.

Automatic lighting.

If this is displayed, it indicates

that you have deactivated the

automatic switching on of the

headlamps.

When the engine is running or the vehi-

cle is moving, the lighting of one of the

following warning lights indicates the

occurrence of a fault requiring interven-

tion on the part of the driver.

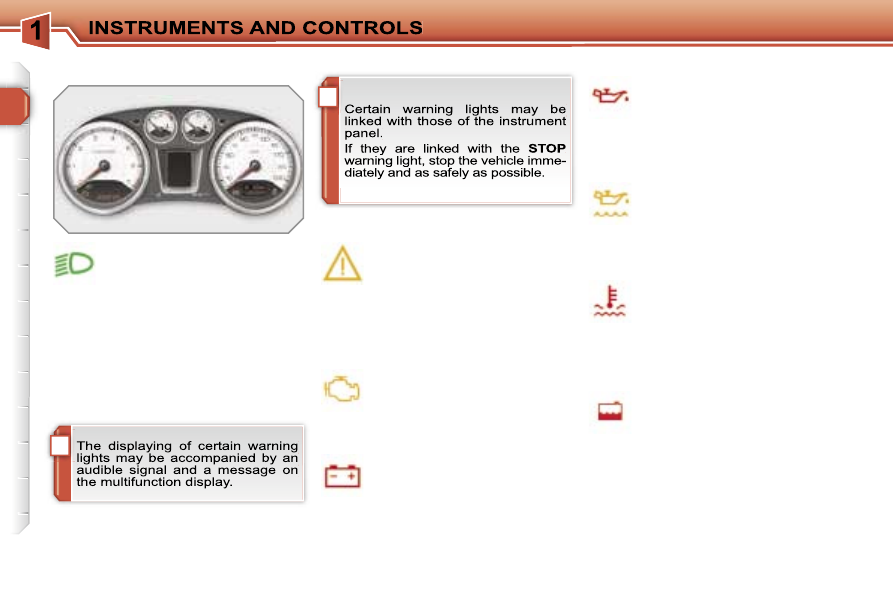

Central alert.

Lighting is associated with

the displaying of another

warning light:

- punctured wheel,

- braking,

- power steering,

- engine oil pressure,

- coolant temperature,

stop the vehicle immediately and as

safely as possible.

Service.

If this comes on, it indicates the

occurrence of a problem in one

of the systems which does not

have a speciﬁc warning light.

In order to identify it, consult the mes-

sage on the multifunction display.

After checking:

- that the doors, boot and bonnet are

closed,

- the engine oil level,

- the screenwash ﬂuid level,

- the remote control battery,

- the pressure of the tyres,

- the end of saturation of the particle

emission ﬁlter (Diesel),

for any other situations, contact a

PEUGEOT dealer.

Braking.

If this comes on, it indicates the

occurrence of a fault in one of

the braking systems:

- signiﬁcant drop in the level in the cir-

cuit,

- electronic brake force distribution

(EBFD) faulty (simultaneous lighting

of the ABS warning light),

stop the vehicle immediately and as

safely as possible.

When the vehicle is moving, check that

the handbrake is fully released.

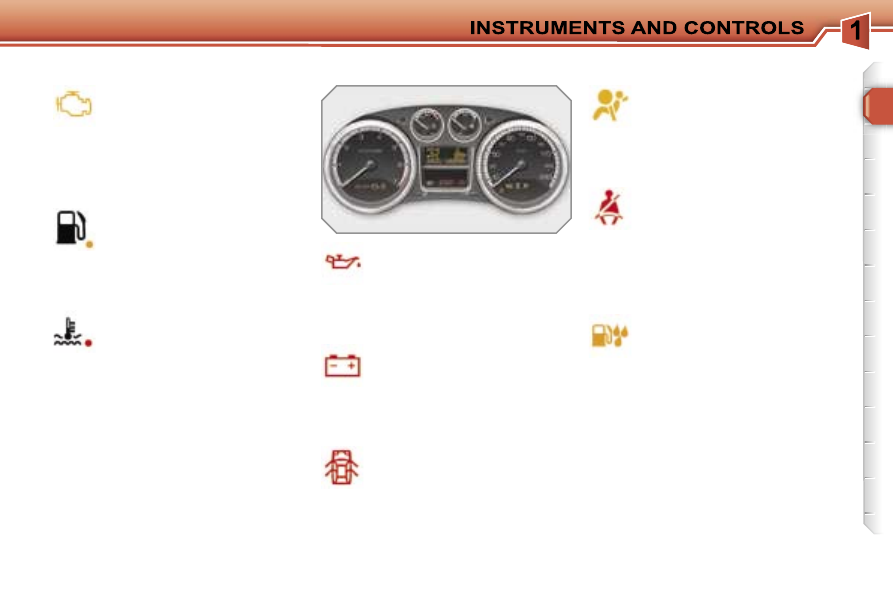

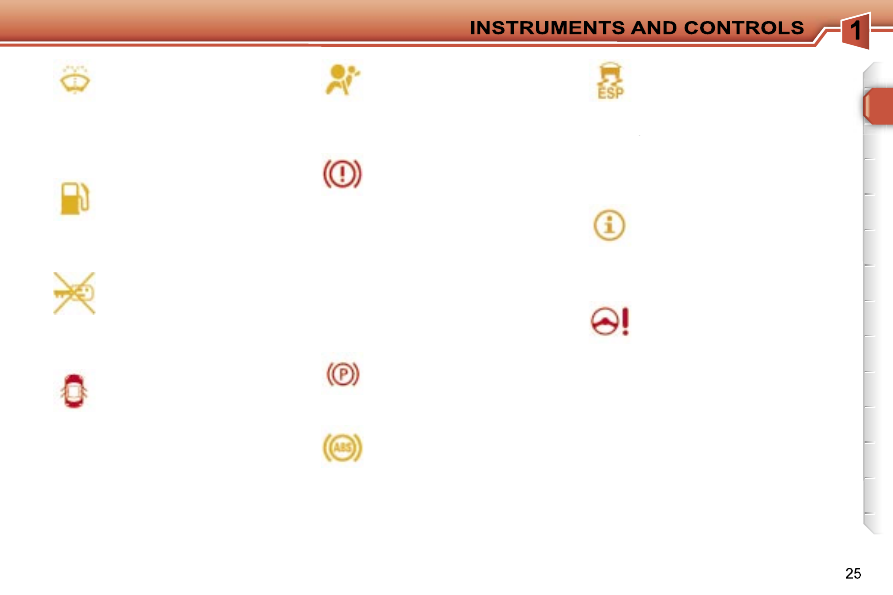

Warning lights

Anti-lock braking system

(ABS).

If this comes on, it indicates the

occurrence of a fault in the anti-

lock braking system.

However, this does not prevent opera-

tion of the vehicle’s assisted braking.

Common warning lights

Dynamic stability control

(ESP/ASR).

The ESP/ASR system is put

into service automatically when

the vehicle is started.

Unless the system has been deactivat-

ed, if this warning light and the indica-

tor light on the button come on continu-

ously, this indicates the occurrence of a

fault in the ESP/ASR system or in the

hill start assistance.

Engine autodiagnostics

system.

If this comes on, it indicates the

occurrence of a fault in the en-

gine management system.

If it ﬂashes, it indicates the occurrence

of a fault in the emission control sys-

tem.

Low fuel level.

If this comes on, it indicates that

you only have enough fuel left

to drive approximately 30 miles

(50 km).

The capacity of the tank is approximate-

ly 60 litres.

Maximum coolant

temperature.

If this comes on, it indicates that

the temperature in the cooling

system is too high. Stop the vehicle im-

mediately and as safely as possible.

Air bags.

If this comes on, it indicates the

occurrence of a fault in one of

the air bag or seat belt preten-

sioner systems.

Seat belt not fastened/

unfastened.

If this comes on, it indicates

that the driver and/or the front

passenger has not fastened or has un-

fastened his seat belt.

It also indicates that one or more rear

passengers have unfastened their seat

belt.

Water in diesel.

If this comes on, it indicates the

presence of water in the diesel

ﬁlter.

There is a risk of damage to the

injection system on Diesel engines.

Door open.

A door, the boot or the bonnet*

is open:

- if the speed is below 6 mph (10 km/h),

this warning light comes on continuously.

- if the speed is higher than 6 mph (10 km/h),

this warning light comes on continuously,

accompanied by an audible signal.

Battery charge.

If this comes on, it indicates

the occurrence of a fault in the

battery charging circuit (dirty or

loose terminals, slack or cut alternator

belt, ...).

Engine oil pressure.

If this comes on, it indicates the

occurrence of a fault in the en-

gine lubrication circuit. Stop the

vehicle immediately and as safely as

possible.

Speciﬁc warning lights

* Only with alarm.

Speciﬁc warning lights

The other warning lights appear on the

large display, located in the centre of

the instrument panel.

Depending on the seriousness of the

fault, they may be displayed in orange

or red.

Directional headlamps.

If this ﬂashes, it indicates the

occurrence of a fault in the di-

rectional headlamps system.

Engine oil pressure.

If this is displayed, it indicates

the occurrence of a fault in the

engine lubrication circuit. Stop

the vehicle immediately and as safely

as possible.

Service.

If this is displayed, it indicates

the occurrence of a fault in one

of the following:

- the engine management system,

- the emission control system,

- the lane departure warning system.

Engine autodiagnostics

system.

If this is displayed, it indicates

the occurrence of a fault in the

engine management system.

Engine oil level.

If this is displayed, it indicates

an insufﬁcient level of oil in the

engine. Stop the vehicle imme-

diately and as safely as possible.

Coolant temperature.

If this is displayed, it indicates

that the temperature in the

cooling system is too high. Stop

the vehicle immediately and as safely

as possible.

Coolant level.

If this is displayed, it indicates

an insufﬁcient level of coolant in

the circuit. Stop the vehicle im-

mediately and as safely as possible.

Battery charge.

If this is displayed, it indicates

the occurrence of a fault in the

battery charging circuit (dirty or

loose terminals, slack or cut alternator

belt, ...).

Air bags.

If this is displayed, it indicates

the occurrence of a fault in one

of the air bag or pretensioning

seat belt systems.

Braking.

If this is displayed, it indicates

the occurrence of a fault in one

of the braking systems:

- signiﬁcant drop in the level in the cir-

cuit,

- electronic brake force distribution

(EBFD) faulty (simultaneous lighting

of the ABS warning light).

Stop the vehicle immediately and as

safely as possible.

If the vehicle is moving, check that the

handbrake is released fully.

Anti-lock braking system

(ABS).

If this is displayed, it indicates

the occurrence of a fault in the

anti-lock braking system.

However, this does not prevent opera-

tion of the vehicle’s assisted braking.

Dynamic stability control

(ESP/ASR).

The ESP/ASR system is put

into service automatically when

the vehicle is started.

Unless the system has been deacti-

vated, if this warning light and the indi-

Unless the system has been deacti-

Unless the system has been deacti-
cator light on the button come on, this

indicates the occurrence of a fault in the

cator light on the button come on, this

cator light on the button come on, this
ESP/ASR system or in the hill start as-

sistance.

Power steering.

If this is displayed, it indicates

the occurrence of a fault in the

power steerin. Stop the vehicle

immediately and as safely as possible.

Door open.

A door, the boot or the bonnet*

is open:

- if the speed is below 6 mph (10 km/h),

this warning light is displayed in or-

ange,

- if the speed is higher than 6 mph (10 km/h),

this warning light is displayed in red.

Ice warning.

If this is displayed, it indicates

that there is risk of the forma-

tion of ice on the road below a

temperature of 3 °C.

Drive carefully.

Handbrake.

If this is displayed, while the ve-

hicle is moving, it indicates that

the handbrake has not been re-

leased fully.

Electronic immobiliser.

If this is displayed, it indicates

the occurrence of a fault in the

electronic engine immobiliser

system or that the remote control bat-

tery is ﬂat.

* Only with alarm.

Fuel level.

If this is displayed, it indicates

that there is only enough fuel

If this is displayed, it indicates

If this is displayed, it indicates
remaining to drive approximate-

ly 30 miles (50 km).

remaining to drive approximate-

The capacity of the tank is approximate-

ly 60 litres.

Screenwash ﬂuid level.

If this is displayed, following an

action on the wipers stalk, it in-

dicates an insufﬁcient level of

ﬂuid.

Fill the screenwash/headlamp wash ﬂu-

id reservoir when you stop.

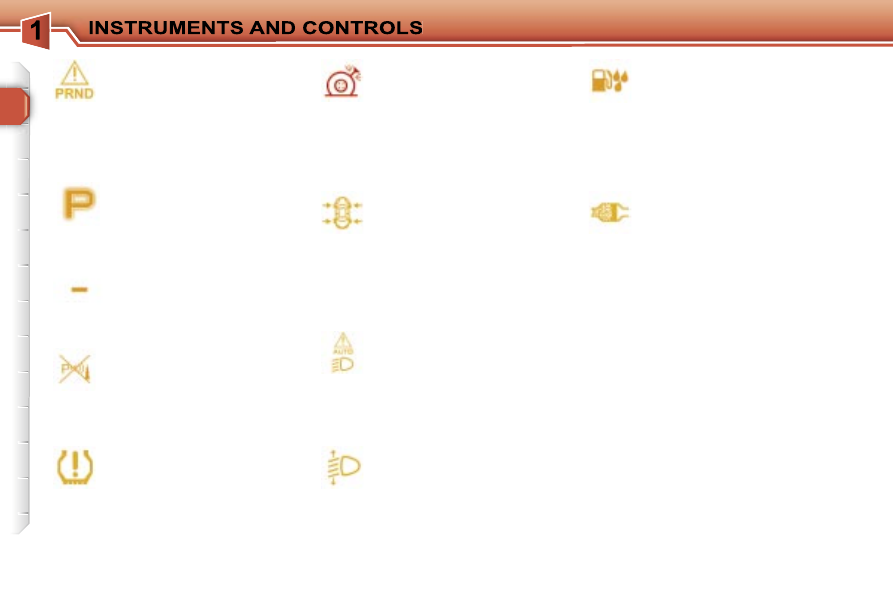

Water in diesel.

If this is displayed, it indicates

the presence of water in the

diesel ﬁlter.

There is a risk of damage to the injec-

tion system on Diesel engines.

Automatic headlamp

adjustment.

If this is displayed, it indicates

the occurrence of a fault in the

automatic headlamp adjust-

ment.

Particle emission ﬁlter

(Diesel).

If this is displayed, linked with

the service warning light, it indi-

cates the start of saturation of the parti-

cle emission ﬁlter or a low diesel additive

reservoir level.

As soon as trafﬁc conditions permit, re-

generate the ﬁlter by driving at a speed

of at least 40 mph (60 km/h) until the

service warning light is switched off.

If the service warning light is still dis-

played, the additive level is low. Have it

topped up by a PEUGEOT dealer with-

out delay.

Deﬂated wheel.

If this is displayed, it indicates

an insufﬁcient pressure in one

or more wheels.

Check the pressure of the tyres as soon

as possible.

Punctured wheel.

If this is displayed, it indicates

that one or more wheels are

punctured. Stop the vehicle im-

mediately and as safely as possible.

Change the damaged wheel and have it

repaired by a PEUGEOT dealer.

Tyre under-inﬂation

detection.

If this is displayed, it indicates

the occurrence of a fault on one

of the sensors or in the tyre under-inﬂa-

tion detection system.

It may also indicate the absence of a

sensor when the spare wheel, which

does not have a sensor, is ﬁtted in place

of a puntured wheel.

Automatic switching on of

the lights.

If this comes on, it indicates the

occurrence of a fault in the au-

tomatic switching on of the lights.

Use the other positions of the lights

stalk.

Visual and/or audible

parking assistance.

If this comes on, in forward and/

or reverse gear, it indicates a

fault in the parking assistance system.

6-speed piloted manual

gearbox or automatic

gearbox.

If this is displayed, it indicates

the occurrence of a fault in the 6-speed

piloted manual gearbox or automatic

gearbox. The gearbox will then oper-

ate in down-grade mode, locked on 3rd

gear.

Invalid value.

If this is displayed, it indicates

the occurrence of a fault in the

programme of the 6-speed pi-

loted manual gearbox or auto-

matic gearbox.

Position P or N.

If this is displayed, it indicates

that the gear lever must be

placed in position

P or N in or-

der to start the engine.

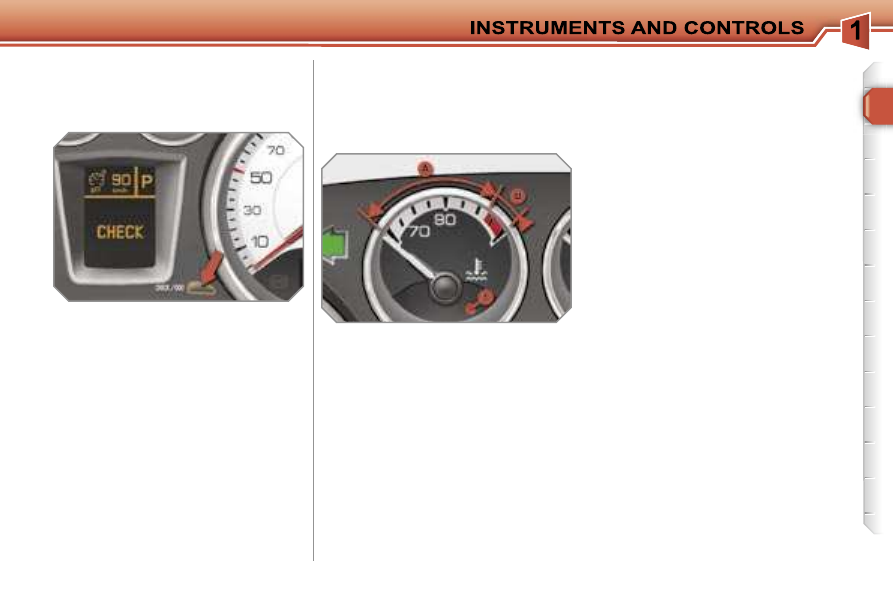

Coolant temperature indicator

System which informs the driver of the

changes in the temperature of the en-

gine coolant while driving.

With the engine running, when the nee-

dle is:

- in zone

A, the temperature is correct,

- in zone

B, the temperature is too high;

the max temperature warning light

and the central

STOP warning light

come on, accompanied by an audible

signal and a message on the multi-

function display.

You MUST stop as soon as it is safe

to do so.

Wait a few minutes before switching off

the engine.

Contact a PEUGEOT dealer.

After driving for a few minutes, the tem-

perature and pressure in the cooling

system increase.

To top up the level:


wait for the engine to cool,



unscrew the cap by two turns to al-

low the pressure to drop,



when the pressure has dropped, re-

move the cap,



top up the level to the "MAX" mark.

Manual CHECK

System which informs the driver of the

warnings present and of the activated

or deactivated status of the functions.



With the engine running, to start a

manual check, press the

"CHECK/

000" button on the instrument panel.

If no "major" faults have been detected,

"CHECK OK" appears on the large in-

strument panel display.

If a "minor" fault has been detected, the

warning lights concerned then

"CHECK

OK" appear on the large instrument

panel display. Contact a PEUGEOT

dealer as soon as possible.

If a "major" fault has been detected, only

the warning lights concerned appear on

the large instrument panel display. Con-

tact a PEUGEOT dealer without delay.

Service indicator

System which informs the driver when

the next service is due, in accord-

ance with the manufacturer’s servicing

schedule.

The point at which the service is due is

calculated from the last indicator zero re-

set. It is determined by two parameters:

- the distance travelled,

- the time elapsed since the last service.

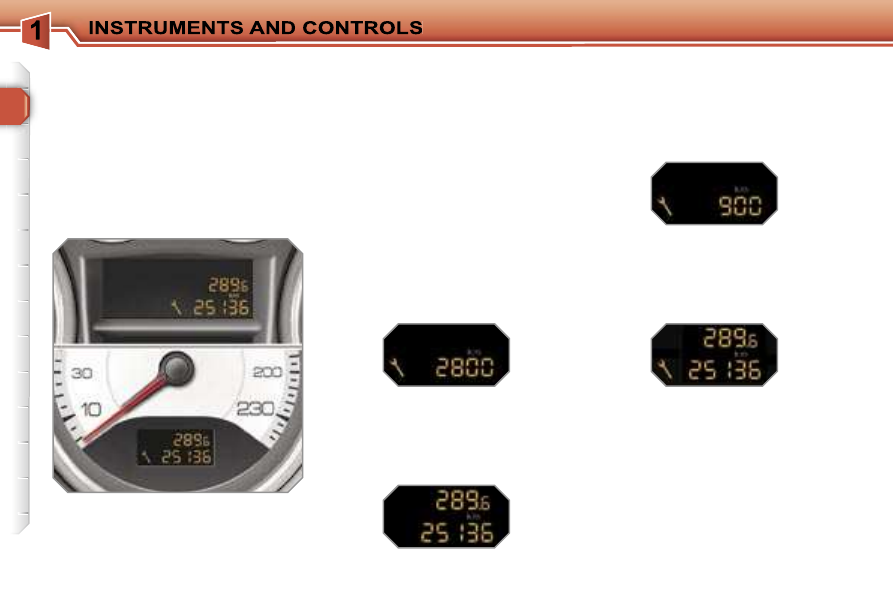

Between 600 miles (1 000 km) and

1 800 miles (3 000 km) remain before

the next service is due

For 5 seconds after the ignition is

switched on, the spanner symbolising

the service operations comes on. The

distance recorder display line indicates

the distance remaining before the next

service is due.

Example: 2 800 km remain before the

next service is due.

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is switched

on,

the spanner is switched off; the

distance recorder resumes its normal

operation. The display then indicates

the total and trip distances.

Less than 600 miles (1 000 km)

remain before the next service is due

Example: 900 km remain before the

next service is due.

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is switched

on, the distance recorder resumes its

normal operation.

The spanner re-

mains on to indicate that a service

must be carried out soon.

More than 1 800 miles (3 000 km)

remain before the next service is due

When the ignition is switched on, no

service information appears on the dis-

play.

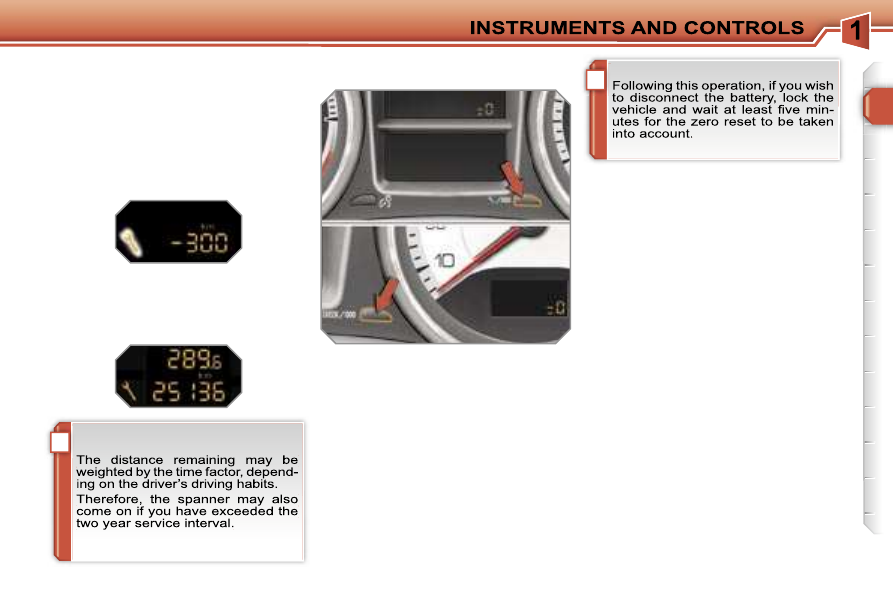

Service indicator zero reset

After each service, the service indicator

must be reset to zero.

To do this, carry out the following pro-

cedure:


switch off the ignition,



press and hold the trip distance re-

corder zero reset button,



switch on the ignition; the distance

recorder display begins a count-

down,



when the display indicates

"=0", re-

lease the button; the spanner disap-

pears.

Service overdue

For 5 seconds after the ignition is

switched on,

the spanner ﬂashes to

indicate that the service must be carried

out as soon as possible.

Example: the service is overdue by

300 miles (km).

For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition is swit-

ched on, the distance recorder resu-

mes its normal operation.

The spanner

remains lit.

Retrieving the service information

You can access the service information

at any time.


Press the trip distance recorder zero

reset button.

The service information is displayed

for a few seconds, then disappears.

Engine oil level indicator

System which informs the driver of the

validity or invalidity of the engine oil

level.

This information is indicated for a few

seconds when the ignition is switched

on, after the service information.

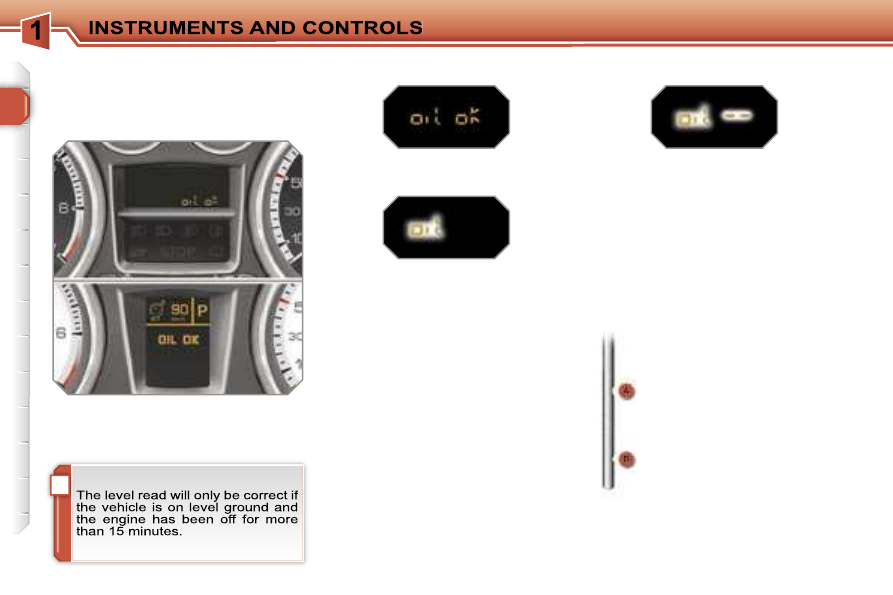

Oil level correct

Lack of oil

Oil level gauge fault

Dipstick

This is indicated by the ﬂashing of

"OIL",

linked with the service warning light, ac-

companied by an audible signal and a

message on the multifunction display.

If the lack of oil is conﬁrmed by a check

using the dipstick, it is essential that the

level is topped up to prevent damage to

the engine.

This is indicated by the ﬂashing of

"OIL --".

Contact a PEUGEOT dealer.

Refer to the "Checks" section to locate

the dipstick and the oil ﬁller cap on your

engine.

There are 2 marks on the

dipstick:

A = max; never exceed

this level,

B = min; top up the level

via the oil ﬁller cap, using

the type of oil suited to

your engine.

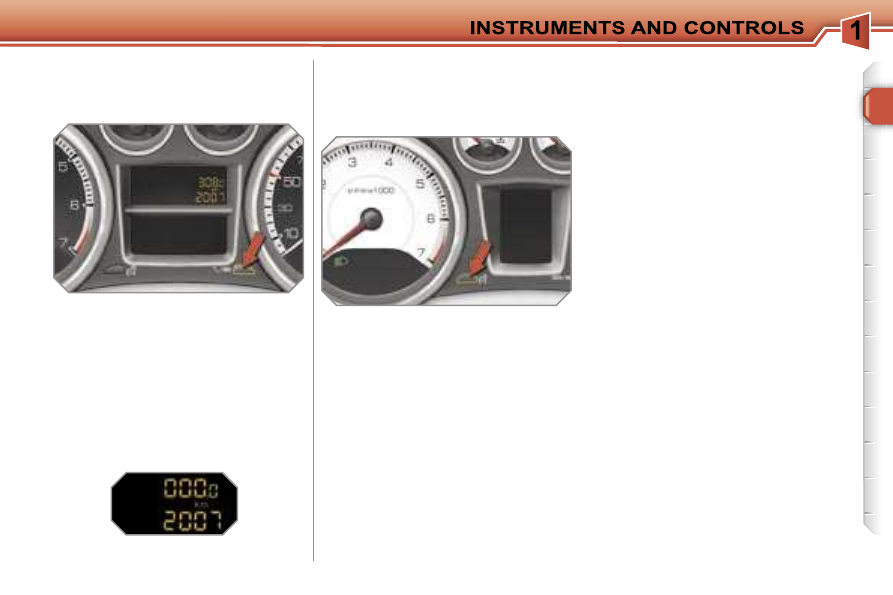

Total distance recorder

System which measures the total dis-

tance travelled by the vehicle during its

life.

Lighting rheostat

System for manual adjustment of the

brightness of the instruments and con-

trols in relation to the exterior bright-

ness.

The total and trip distances are dis-

played for thirty seconds when the ig-

nition is switched off, when the driver’s

door is opened and when the vehicle is

locked or unlocked.

Trip distance recorder

System which measures a distance

travelled during a day or other period

until it is reset to zero by the driver.



With the ignition on, press the button

until zeros appear.

Activation

When the lights are on:


press the button to change the

brightness of the instruments and

controls,



when the lighting reaches the mini-

mum setting, release the button,

then press again to increase it,

or


when the lighting reaches the maxi-

mum setting, release the button,

then press again to reduce it,



when the lighting reaches the level

of brightness required, release the

button.

Deactivation

When the lights are off, or in day mode

on vehicles ﬁtted with daytime lights,

pressing the button does not have any

effect.

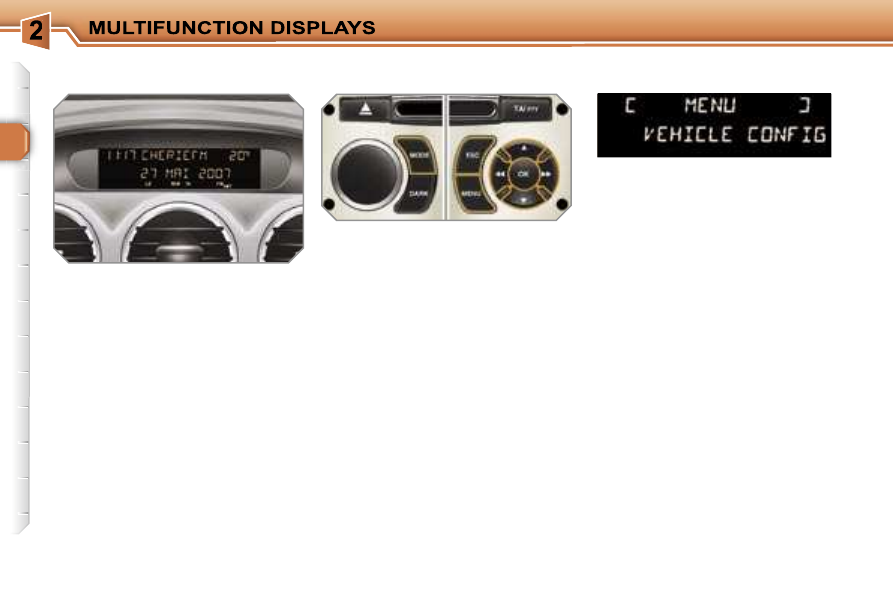

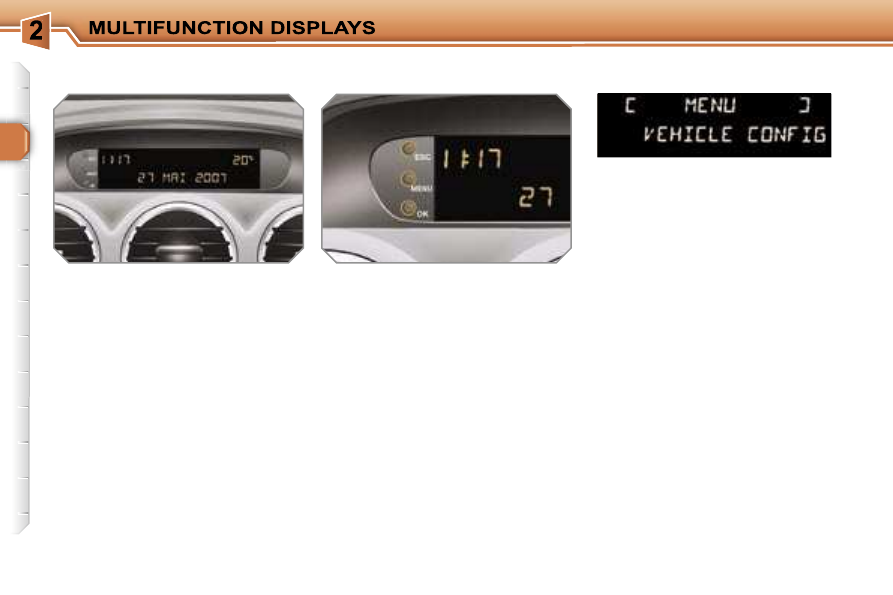

Displays on the screen

This displays the following information:

- the time,

- the date,

- the outside temperature* (this ﬂashes

if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the trip computer (refer to the end of

the section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Boot open") may ap-

pear temporarily. These can be cleared

by pressing the

"ESC" button.

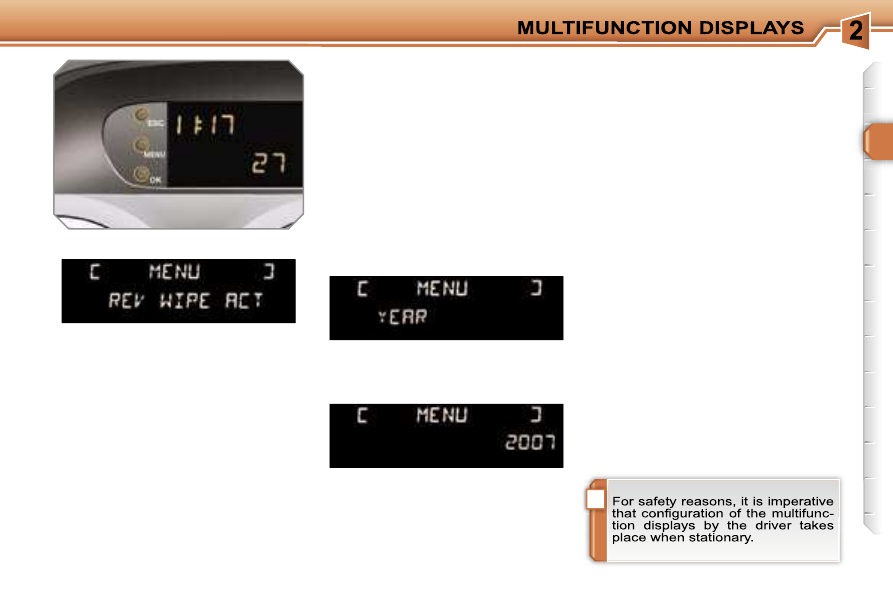

MONOCHROME SCREEN A

(without RD4 audio equipment)

Controls

General menu

There are three display control buttons:

"ESC" to abandon the operation in

progress,

"MENU" to scroll through the menus

or sub-menus,

"OK" to select the menu or sub-menu

required.



Press the

"MENU" button to scroll

through the various menus of the

general menu:

-  vehicle conﬁguration,
-  options,
-  display settings,
-  languages,
-  units.



Press the

"OK" button to select the

menu required.

* With air conditioning only.

Vehicle conﬁguration

Options

Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active, not

active, faulty).

Languages

Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Display settings

Once the "Display settings" menu has

been selected, you can gain access to

the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

Units

Once the "Units" menu has been

selected, you can change the units of

the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).



Once you have selected a setting,

press the

"OK" button to change its

value.



Wait for approximately ten sec-

onds without any action to allow

the changed data to be recorded or

press the

"ESC" button to cancel.

The display then returns to the normal

display.

Once the "Vehicle conﬁguration" menu

has been selected, you can activate or

deactivate the following equipment:

- selective unlocking (refer to the

"Access" section),

- wiper linked with reverse gear (refer to

the "Visibility" section),

- "follow-me-home" and welcome light-

ing (refer to the "Visibility" section),

- daytime lights (refer to the "Visibility"

section).

MONOCHROME SCREEN A

Controls

Displays on the screen

This displays the following information:

- the time,

- the date,

- the outside temperature* (this ﬂashes

if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the audio sources (radio, CD, ...),

- the trip computer (refer to the end of

the section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Boot open") may ap-

pear temporarily. These can be cleared

by pressing the

"ESC" button.

General menu



Press the

"MENU" button to gain

access to the

general menu, then

press the

"" or "" buttons to

scroll through the various menus:
-  radio-CD,
-  vehicle conﬁguration,
-  options,
-  display settings,
-  languages,
-  units.



Press the

"OK" button to select the

menu required.

From the RD4 audio equipment control

panel, you can:


press the

"MENU" button to gain

access to the

general menu,



press the

"" or "" buttons to

scroll through the items on the

screen,



press the

"MODE" button to change

the permanent application (trip com-

puter, audio source, ...),



press the

"" or "" buttons to

change a setting value,



press the

"OK" button to conﬁrm,

or


press the

"ESC" button to abandon

the operation in progress.

Radio-CD

With the RD4 audio equipment switched

on, once the "Radio-CD" menu has been

selected you can activate or deactivate

the functions linked with use of the radio

(RDS, REG), the CD or the CD changer

(introscan, shufﬂe, CD repeat).

For further details concerning the

"Radio-CD" application, refer to the

RD4 part of the "Audio and Telematics"

section.

* With air conditioning only.

Content .. 1 2 3 ..
