Peugeot 308 Dag (2007.5). Instruction - part 1

EXTERIOR

Welcome lighting

This additional exterior and interior light-

ing, controlled remotely, makes your

approach to the vehicle easier when the

light is poor.



79, 86

Directional lighting

This lighting automatically provides ad-

ditional visibility when cornering.



Glass panoramic roof

This roof provides incomparable visibil-

ity and light in the passenger compart-

ment.



Lane departure warning system

This equipment warns you if you inad-

vertently cross a longitudinal marking

on the ground.



127

OPEN

Remote control key

A. Unfolding/Folding of the key.

Normal locking

(press once)

(ﬁxed lighting of the direction

indicators).

Fuel tank

1. Opening of the fuel ﬁller ﬂap.

2. Opening and hooking of the fuel

tank cap.

Capacity of the tank: approximately

60 litres.

Complete or selective unlock-

ing of the vehicle

(rapid ﬂashing of the direction

indicators).

When the light is poor, detected by

a sensor, the remote switching on of

the dipped headlamps and side lights

makes your approach to the vehicle

easier.



In the same way, the passenger com-

partment lighting, such as the courtesy

lights, the sill lights and the footwell

lights, comes on.

Deadlocking of the vehicle

(press twice in succession)

(ﬁxed lighting of the direction

indicators).



INTERIOR

Ambient lighting

This dimmed lighting of the passenger

compartment facilitates visibility inside

the vehicle when the light is poor.



6-speed piloted manual gearbox

This equipment offers driving combining

a fully automatic mode, a manual mode

and an auto-sequential mode which

combines the advantages of the other

two modes.



116

Fragrance diffuser

This fragrance diffuser diffuses the fra-

grance that you have selected through-

out the passenger compartment by

means of its location in the central vent.



Audio and communication

systems

This equipment beneﬁts from the latest

technology: MP3 compatible RD4 audio

equipment, Bluetooth hands-free kit,

RT4 GPS audio/telephone with retract-

abe colour screen, JBL audio system,

auxiliary sockets.

RT4  171

RD4 201

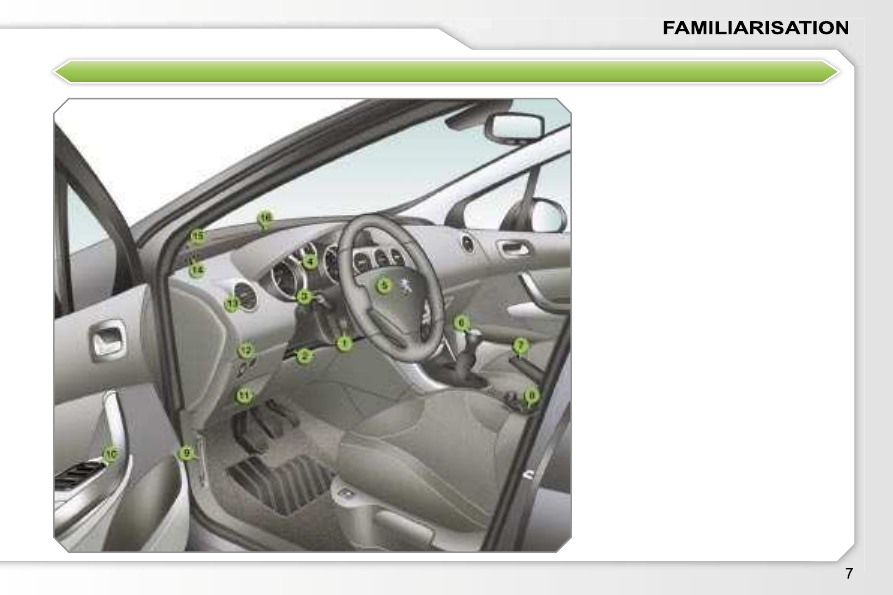

INSTRUMENTS AND CONTROLS

1.  Cruise control/speed limiter switch.
2.  Steering wheel adjustment control.
3.  Lights and direction indicators

controls.

4. Instrument panel.
5. Driver’s air bag.

Horn.

6.  Gear lever.
7.  Handbrake.
8.  Panoramic roof shutter control.
9.  Bonnet release.
10.  Exterior mirror controls.

Electric window controls.

11. Fuse box.
12. Manual headlamp height

adjustment.

Lane departure warning system

button.

13.  Side adjustable and closing vent.
14.  Front side window demisting vent.
15.  Speaker (tweeter).
16.  Windscreen demisting vent.

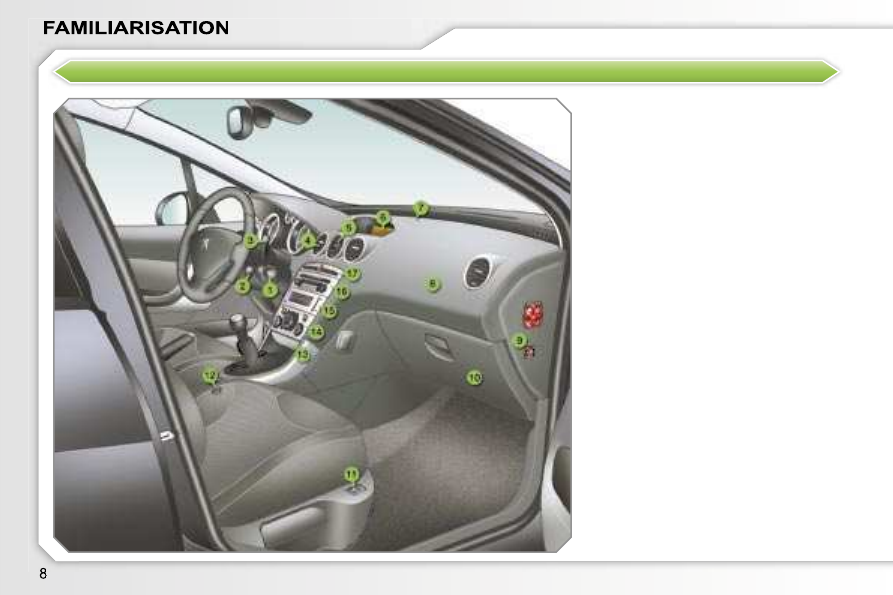

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.
2. Audio equipment steering wheel

control.

3. Wipers/wash-wipe/trip computer

controls.

4. Central adjustable and closing

vents.

5.  Fragrance diffuser.
6.  Multifunction display.
7.  Sunshine sensor.
8.  Passenger air bag.
9.  Passenger air bag disarming.
10.  Glove box/Audio/video sockets.
11.  Heated seat control.
12.  Lighter.
13.  Front ashtray.
14.  Heating/air conditioning controls.
15.  CD changer.
16.  Audio RD4 or RT4 GPS audio/

telephone.

17. Alarm button.

Central locking button.

Hazard warning lights button.

Dynamic stability control (ESP/

ASR) button.

Parking assistance button.

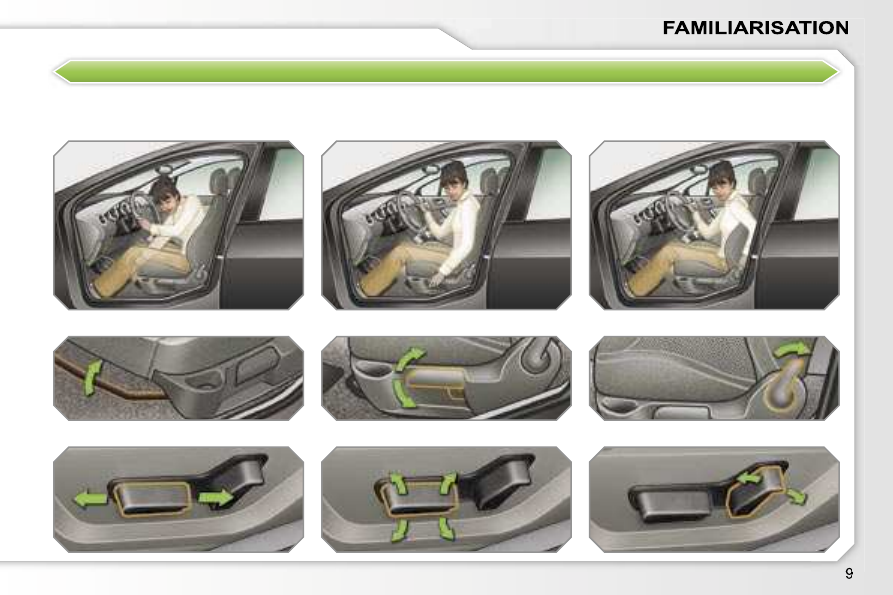

SIT COMFORTABLY

Driver’s seat adjustment

Manual

Electric

Forwards-backwards



Seat back angle

Height

Steering wheel adjustment

1. Unlocking of the control.

2. Adjustment of the height and

depth.

3. Locking of the control.

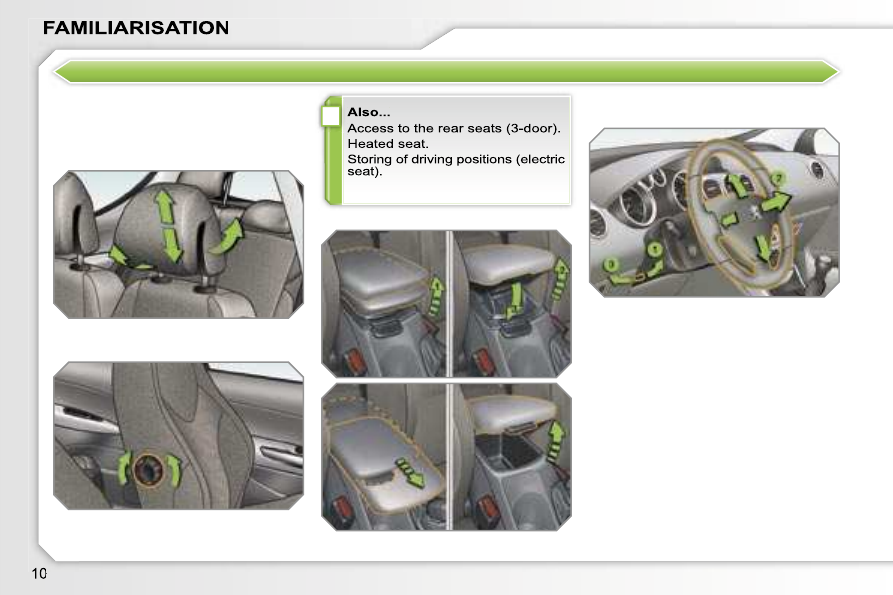

SIT COMFORTABLY

Front seat manual and

additional adjustments

Head restraint height and angle

Lumbar

Front armrest



Steering wheel adjustment

1. Unlocking of the control.

2. Adjustment of the height and

depth.

3. Locking of the control.

SIT COMFORTABLY

Front seat manual and

additional adjustments

Head restraint height and angle

Lumbar

Front armrest



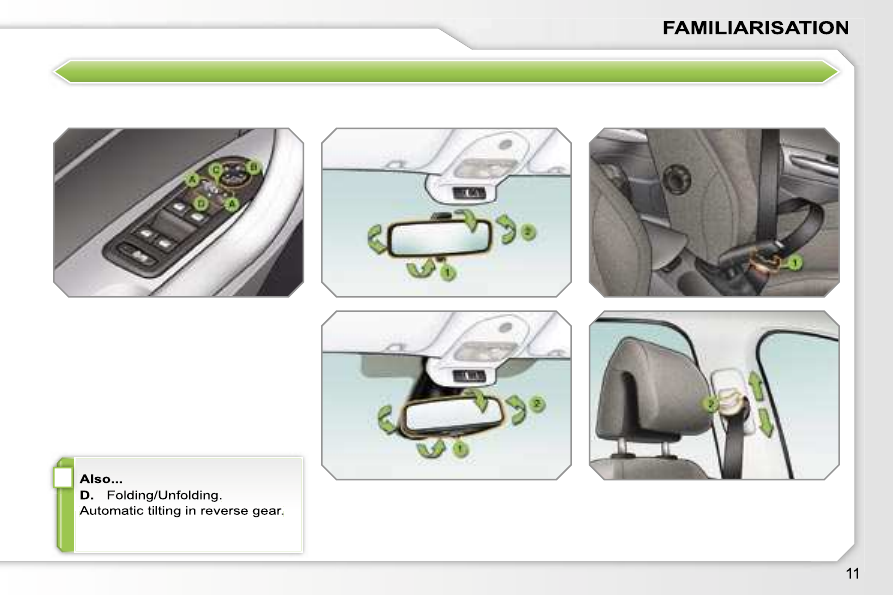

SIT COMFORTABLY

Exterior mirror adjustment

A. Selection of the mirror.

B. Adjustment of the position of the

mirror.

C. De-selection of the mirror.



Interior mirror adjustment

1. Selection of the "day" position of

the mirror.

2. Directing of the mirror.



Front seat belt

1. Fastening.

2. Height adjustment.



108

SEE CLEARLY

Lighting

Ring A

Ring B

"Motorway" function

Press up or down once, without passing

the point of resistance; the correspond-

ing direction indicators will ﬂash three

times.



104

Direction indicators

Switching on "AUTO"


Press the lever down and release it.

Ring B: rear wiper



Lights off.
Automatic switching on of the

lights.
Side lights.
Dipped/main beam headlamps.

Rear fog lamp.
or
Front and rear fog lamps.

Park.
Intermittent wipe.
Wash-wipe.

Lever A: windscreen wipers



Wipers

Switching off "AUTO"


Push the lever up and return it to

position

"0".



–

VENTILATION

Recommended interior settings

I require...

Heating or Manual Air Conditioning

Air distribution

Air ﬂow

Air recirculation/Intake

of outside air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DE-ICING

Automatic air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

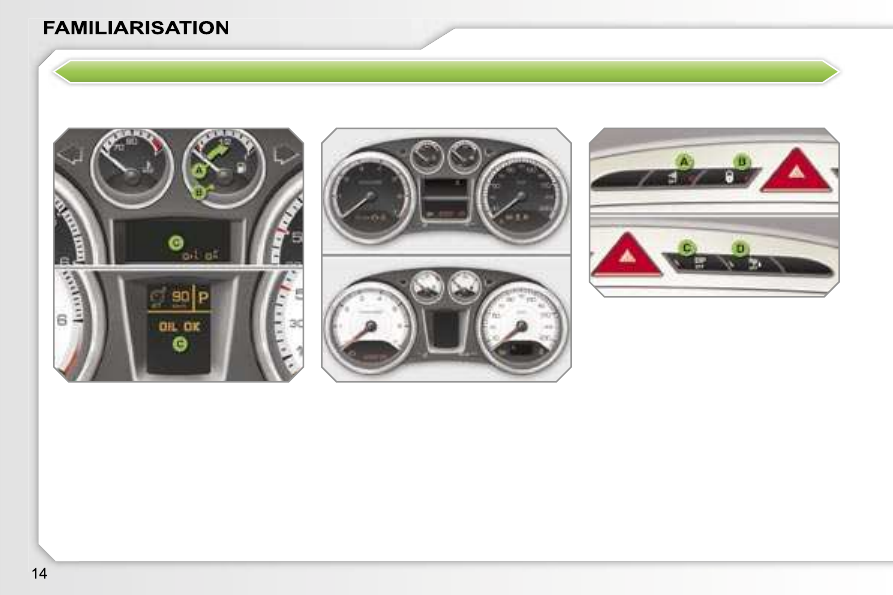

MONITOR THOROUGHLY

Instrument panel

Controls bar

A. With the ignition on, the needle

should indicate the level of fuel

remaining.

B. With the engine running, its

associated low level warning light

should switch off.

C. With the ignition on, the oil level

indicator should display

"OIL OK"

for a few seconds.

If the levels are not correct, top up the

levels which are low.



Lighting of the indicator light indicates

the status of the corresponding function.

A. Disarming of the interior protection

alarm.



B. Central locking.



C. Deactivation of the ESP/ASR

system.



107

D. Deactivation of the visual and

audible parking assistance.



128

1. With the ignition on, the orange

and red warning lights come on.

2. With the engine running, these

warning lights should switch off.

If warning lights remain on, refer to the

page concerned.



Warning lights

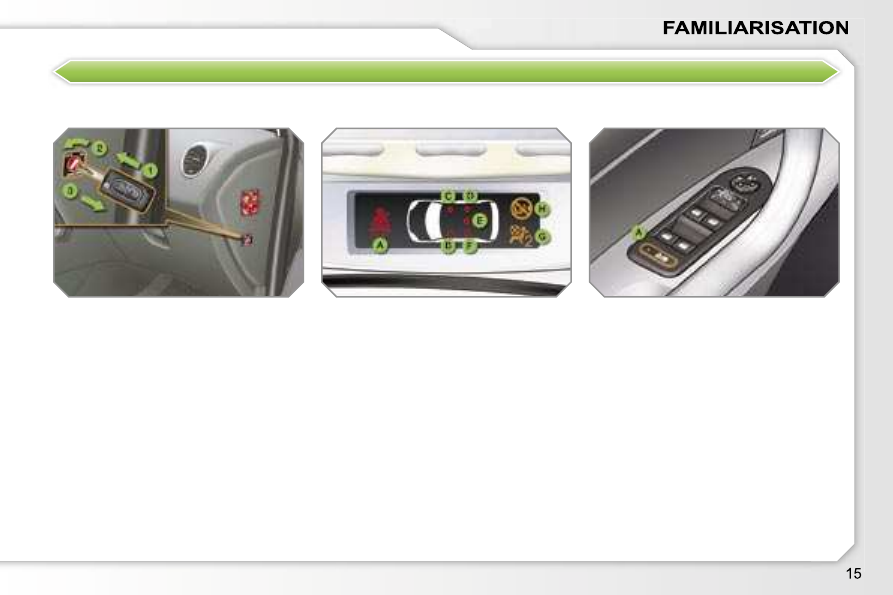

KEEP YOUR PASSENGERS SAFE

Passenger’s front air bag

Electric child lock

1. Insertion of the key.

2. Selection of the position:

"OFF" (disarming), with "rear

facing" child seat,

"ON" (activation), with front

passenger or "forwards facing"

child seat.

3. Removal of the key keeping the

switch in this position.



111

Lighting of the indicator light indicates

the status of the corresponding function.

A. Activation of the electric child lock.



103

A. Front and/or rear seat belts not

fastened/unfastened warning light.

B. Front left seat belt warning light.

C. Front right seat belt warning light.

D. Rear right seat belt warning light.

E. Rear centre seat belt warning light.

F. Rear left seat belt warning light.

G. Passenger’s front air bag disarmed

warning light.

H. Passenger’s front air bag activated

warning light.



108, 112

Seat belts and passenger’s front

air bag

DRIVE SAFELY

Speed limiter "LIMIT"

Display on the instrument panel

1. Limiter mode Selection/Off.

2. Decreasing of the programmed

value.

3. Increasing of the programmed

value.

4. Speed limiter On/Off.

The values must be set with the engine

running.

The cruise control or speed limiter mode

appears on the instrument panel when

it is selected.

1. Cruise control mode Selection/Off.

2. Programming a speed/Decreasing

of the programmed value.

3. Programming a speed/Increasing

of the programmed value.

4. Cruise control Off/Resume.

In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h), with at least fourth

gear engaged on the manual gearbox

(second gear for the 6-speed piloted

manual or automatic gearbox).

Cruise control "CRUISE"

Cruise control

Speed limiter



125



123

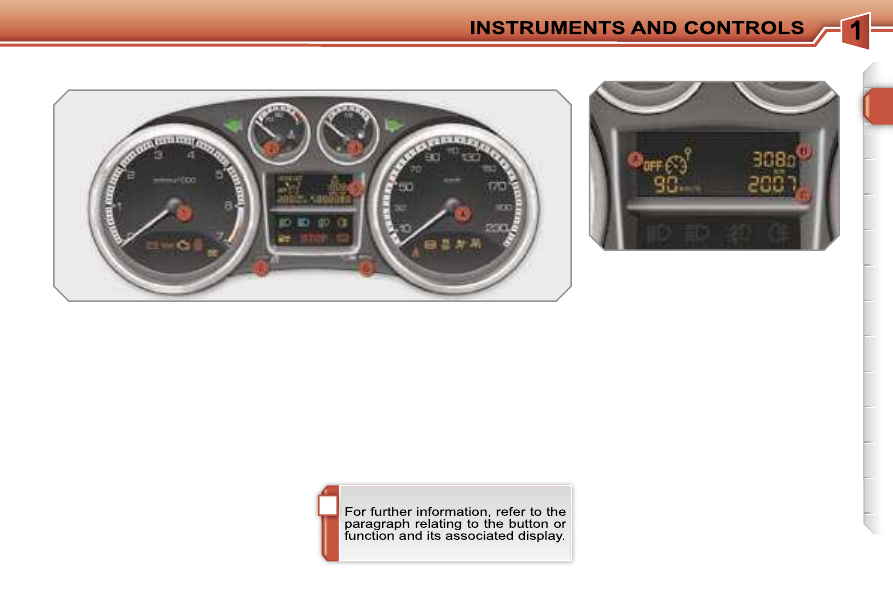

PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS

Panel grouping together the vehicle

operation indication dials and warning

lights.

5. Display.

6. Display zero reset button.

Resets the selected function to

zero (trip distance recorder or

service indicator).

7. Instrument panel lighting

button.

Adjusts the brightness of the

lighting of the instruments and

controls.

Dials

1. Rev counter.

Indicates the speed of rotation of

the engine (x 1 000 rpm).

2. Coolant temperature.

Indicates the temperature of the

engine coolant (°Celsius).

3. Fuel level.

Indicates the quantity of fuel

remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (km/h or mph).

A. Speed limiter

Cruise control.

(km/h or mph)

B. Trip distance recorder.

(km or miles)

Display

The following three functions are dis-

played in succession when the ignition

is switched on.

C. Service indicator.

(km or miles) then,

Engine oil level indicator.

then

Distance recorder.

(km or miles)

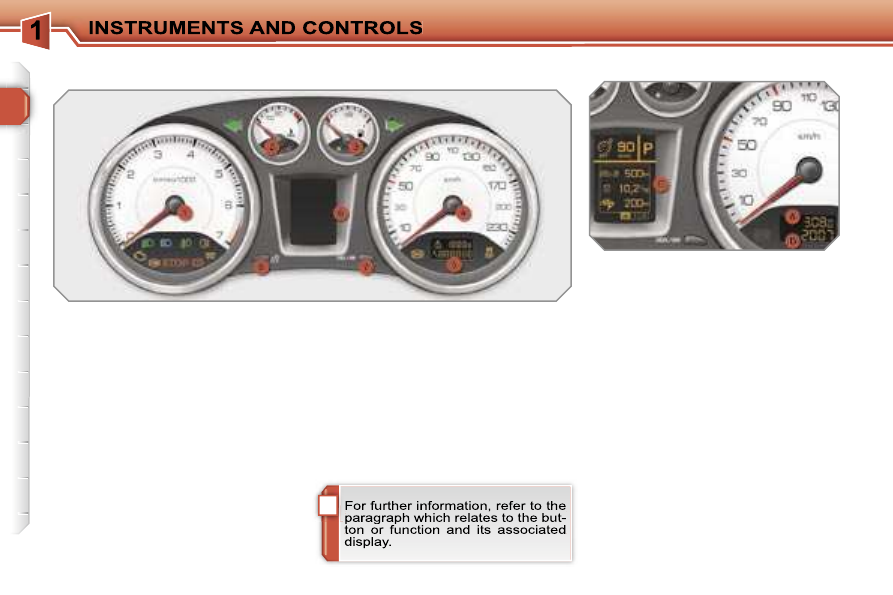

PETROL - DIESEL MANUAL OR 6-SPEED PILOTED MANUAL OR

AUTOMATIC GEARBOX INSTRUMENT PANELS

Panel grouping together the vehicle

operation indication dials and warning

lights.

5. Small display.

6. Large display.

7. CHECK/display zero reset

button.

Starts a manual CHECK.

Resets the function selected to

zero (trip distance recorder or

service indicator).

8. Instrument panel lighting

button.

Adjusts the brightness of the lighting

of the instruments and controls.

Dials

1. Rev counter.

Indicates the speed of rotation of

the engine (x 1 000 rpm).

2. Coolant temperature.

Indicates the temperature of the

engine coolant (°Celsius).

3. Fuel level.

Indicates the quantity of fuel

remaining in the tank.

4. Vehicle speed.

Indicates the current speed of the

moving vehicle (km/h or mph).

A. Trip distance recorder.

(km or miles)

B. Distance recorder.

(km or miles)

Displays

The following two functions are dis-

played in succession when the ignition

is switched on.

C. Service indicator.

(km or miles) then,

Engine oil level indicator.

The following functions are displayed in

accordance with the selection.

- Warning lights/CHECK.

- Tyre under-inﬂation detection.

- Speed limiter/Cruise control.

- 6-speed piloted manual or automat-

ic gearbox.

- Navigation - Guidance/Trip compu-

ter information.
