HANDBRAKE

   Applying
Pull  the  handbrake  to  immobilise
your vehicle.

When the vehicle is being
driven, illumination of this

warning light and of the

STOP

warning light, ac-

companied by an audible

signal and a message on the multi-

function display, indicates that the

handbrake is still on or has not been

properly released.

When parking on a slope, di-

rect your wheels towards the

pavement and pull the hand-

brake.

Releasing
Pull on the handle and press the but-

ton to release the handbrake.

The four or six speed automatic

gearbox offers a choice between the

comfort of integral automatic op-
eration , enhanced by a sport and a
snow

programme, or manual gear

changing .

ark: to immobilise the vehicle or

start the engine

, with the handbrake

on or off.
R

everse: to reverse (select this

position with the vehicle stationary,

engine at idle).

eutral: to start the engine and to

park

, with the handbrake on.

Note

: if position N is engaged in-

advertently while driving, allow the

engine to return to idle before en-

gaging position D to accelerate.

rive: for driving in automatic mode.

anual: to select the gears.

: sport programme.



: snow programme.

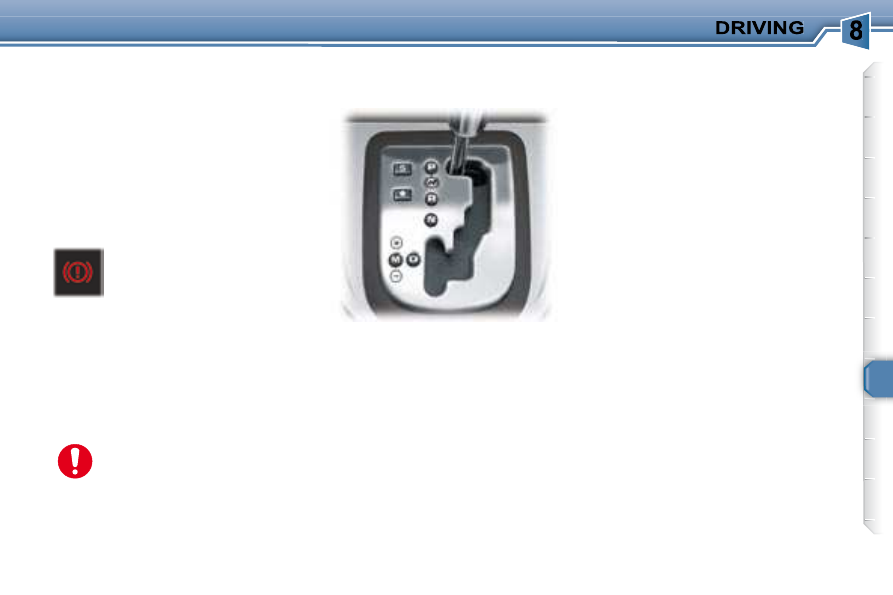

Gear selection gate



Move the lever in the gate to se-

lect a position.

The indicator light for the selec-

tion is displayed on the instrument

panel display.

Starting the engine



with the handbrake applied, se-

lect position P or N in the gate,

 turn the ignition key to the Starting

position.

Otherwise, you are warned by an au-

dible signal and a message on the

multifunction display.

"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX

Moving off

With the engine running, to move off

from position P :
 it is essential to press the brake

pedal,

 release the handbrake,


select position R , D or M , then

gradually release the pressure

on the brake pedal; the vehicle

moves off immediately.

You can also move off from position N .

When the engine is at idle,

brakes not applied, if posi-

tion R , D or M is selected the

vehicle moves even without

the accelerator being pressed.
For this reason,  do not leave children
unsupervised  inside  the  vehicle,
with the engine running .
If  the  lever  is  not  in  position   P ,  an

audible signal is heard and a mes-

sage appears when the driver's door

is opened or approximately 45 sec-

onds after the ignition is switched

off. Move the lever to P . The audible

signal stops and the message disap-

pears.

When maintenance opera-

tions need to be carried out

with the engine running, ap-

ply the handbrake and select

position P .

Never select position N when

the vehicle is moving.
Never select positions P or R

unless the vehicle is stationary.

Never change between positions to

optimise braking on a slippery sur-

face.

Sport and snow programmes

In addition to the auto-adaptive pro-

gramme, there are two special pro-

grammes.
The programme is displayed on the

instrument panel screen.

Automatic operation

Automatic changing of the four or

six gears:


select position D in the gate.

The gearbox automatically adapts

the gear in relation to the style of

driving, the road proi le and the ve-

hicle load.
The gearbox is then operating in

auto-adaptive mode, without any ac-

tion on your part.

For immediate maximum accelera-

tion without touching the gear lever,

press the accelerator pedal down as

far as it will go (kickdown). The gear-

box will automatically change down

or maintain the gear selected until

maximum engine speed is reached.

When braking, the gearbox will au-

tomatically change down in order to

provide efi cient engine braking.

If you take your foot off the accel-

erator suddenly, the gearbox will not

change to a higher gear for reasons
of safety.

Sport programme
 Press button S once the engine

has been started.

The gearbox automatically favours

sporty driving and more dynamic ac-

celeration.

Snow programme
This programme improves starting

and drive when traction is poor.
 Press button  once the engine

has been started.

The gearbox adapts to driving on

slippery roads.
Note:

you can return to the auto-

adaptive programme at any time.
 Press button S or

 again to

switch off the programme you are

in.

Manual operation

Manual

changing of the four or six

gears:


select position M in the gate,



push the lever to the + sign to

change to a higher gear,



pull the lever to the - sign to

change to a lower gear.

You can change from position D

(driving in automatic mode) to posi-

tion M (driving in manual mode) at
any time.

Invalid value during manual
operation

Notes
It is only possible to change from one

gear to another if the vehicle speed

and engine speed permit. If they do

not, the vehicle will operate tempo-

rarily in automatic mode.
In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear

engaged is displayed.
When the vehicle is stationary or

moving very slowly, the gearbox au-

tomatically selects gear M1 .
Programme S

(sport) and  (snow)

do not operate in manual mode.

Operating abnormality

Any operating abnormality

is indicated by the display-

ing of this warning light, an

audible signal and a mes-

sage on the multi-function

display.

In this situation the gearbox oper-

ates in downgrade mode (locked in

3rd gear). You may feel a substan-

tial knock when changing from P to

R and from N to R

(this will not cause

any damage to the gearbox).

Do not exceed 60 mph (100 km/h),

keeping within the limit of local speed

restrictions.
Contact a PEUGEOT dealer as soon

as possible.

If the battery is l at and the

lever is in position P , it will be

impossible to change to an-

other position.

Above all, do not force the le-

ver as there is a risk of damage to the

automatic gearbox.

This is displayed if a gear

is not engaged correctly

(selector between two posi-

tions).

100

This speed limiter, of the new gener-

ation, has a display on the instrument

panel to indicate the programmed

speed.

It prevents exceeding of the vehicle

speed programmed by the driver.

When the programmed speed is

reached, pressing the accelerator

pedal no longer has any effect.

The limiter operates with a pro-

grammed speed of at least 18 mph

(30 km/h); it remains active regard-

less of any action on the brake and

clutch pedals.
  The  operating  actions  must  be
carried out:
   -    when  stationary,  with  the  en-

gine running,

or
- with the vehicle moving.

When the speed limiter function is

active, pressing this button displays

the distance recorders.
After a few seconds or when this

button is pressed again, the display

returns to the speed limiter function.

Storing a speed
A speed can be stored without acti-

vating the limiter.
Press buttons 2 and 3

briel y to de-

crease or increase by 1 mph (1 km/h).

An extended press decreases or in-

creases by 5 mph (5 km/h).

A maintained press decreases or

increases the programmed speed

in steps of 5 mph (5 km/h).

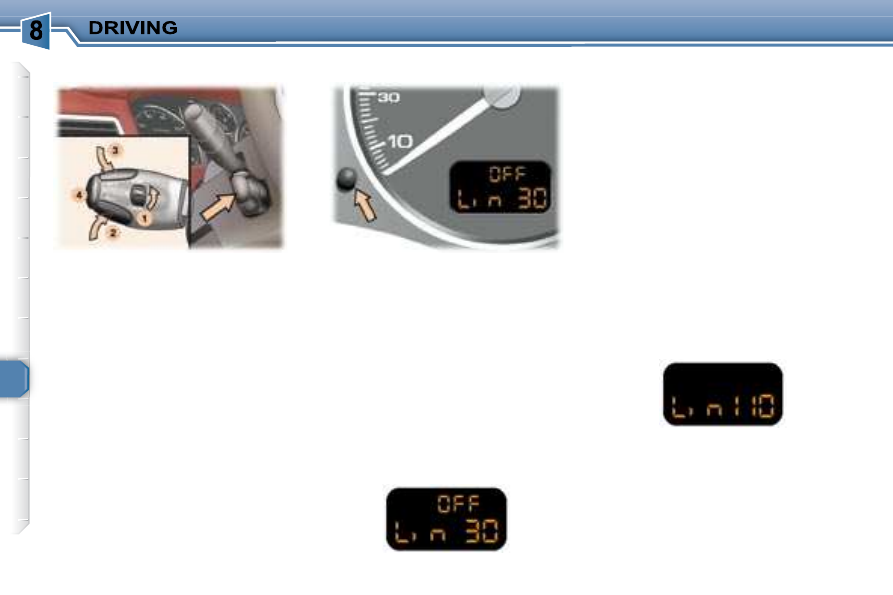

Selecting the function
 Place the dial 1 in the LIMIT

posi-

tion. The limiter is not yet active.

By default, the display indicates:

Activating/deactivating the limiter
Pressing button 4 once activates

the limiter, pressing the button

again deactivates it.

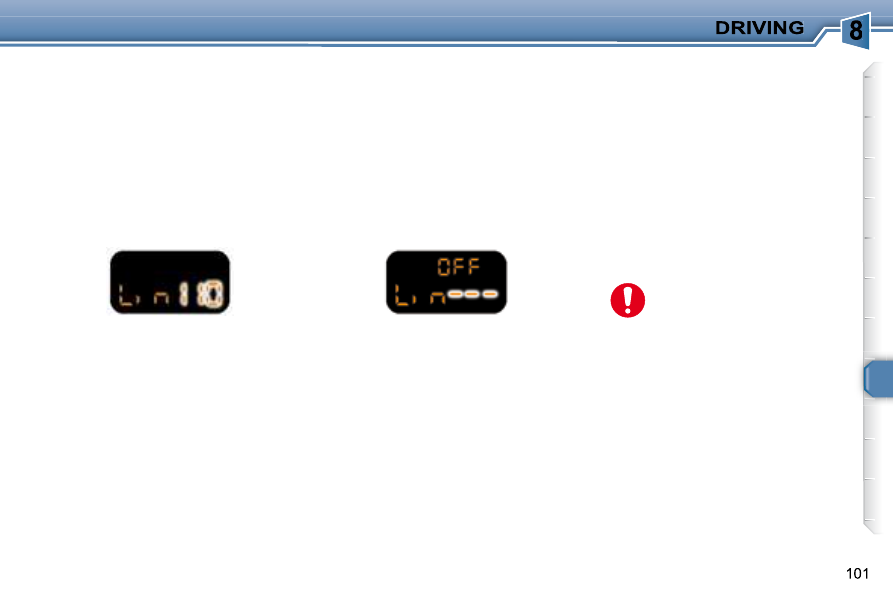

When the limiter is active, the display

indicates (e.g. at 70 mph (110 km/h)):

Instrument panel display

SPEED LIMITER *

* According to country.

Note:

the speed also l ashes when

the limiter cannot prevent the vehicle

from exceeding the programmed

speed (on a steep descent, in the

event of sharp acceleration).
To reactivate the limiter, release the

accelerator to slow down to a speed

below the programmed speed.

Switching the function off
 Place dial 1

in position 0 or switch

off the ignition to switch the sys-

tem off. The last programmed

speed remains in the memory.

Operating fault
In the event of a limiter malfunction,

the programmed speed is cleared,

the dashes l ash for a few seconds:

Contact a PEUGEOT dealer to have
the system checked.

In the event of a steep de-

scent or sharp acceleration,

the speed limiter will not be

able to prevent the vehicle

from exceeding the programmed

speed.

In any event, the speed limiter cannot

replace the need to observe speed

limits, nor can it replace the need for

vigilance and responsibility on the

part of the driver.

To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

correctly.

- never i t one mat on top of another.

Exceeding the programmed
speed
In exceptional circumstances, use

this mode to exceed the programmed

speed.
Pressing the accelerator in order to

exceed the programmed speed will

have no effect unless you press the

pedal

i rmly beyond the point of re-

sistance .
The limiter is deactivated temporar-

ily and the speed displayed on the

instrument panel l ashes (e.g. at

70 mph (110 km/h)):

102

This cruise control, of the new genera-

tion, is linked with the speed limiter. It

has a display on the instrument panel

to indicate the memorised reference

speed.
It enables the vehicle to maintain a

steady speed programmed by the

driver.
In order for it to be memorised or ac-

tivated, the vehicle speed must be

greater than 25 mph (40 km/h) with

at least fourth gear engaged for ve-

hicles i tted with a manual gearbox.

On vehicles i tted with an automatic

gearbox, the lever must be in posi-

tion D , or in at least second gear in

sequential mode.

When the cruise control function is

activated, pressing this button en-

ables you to display the distance

recorders.
After a few seconds or when this

button is pressed again, the display

returns to the cruise control func-

tion.

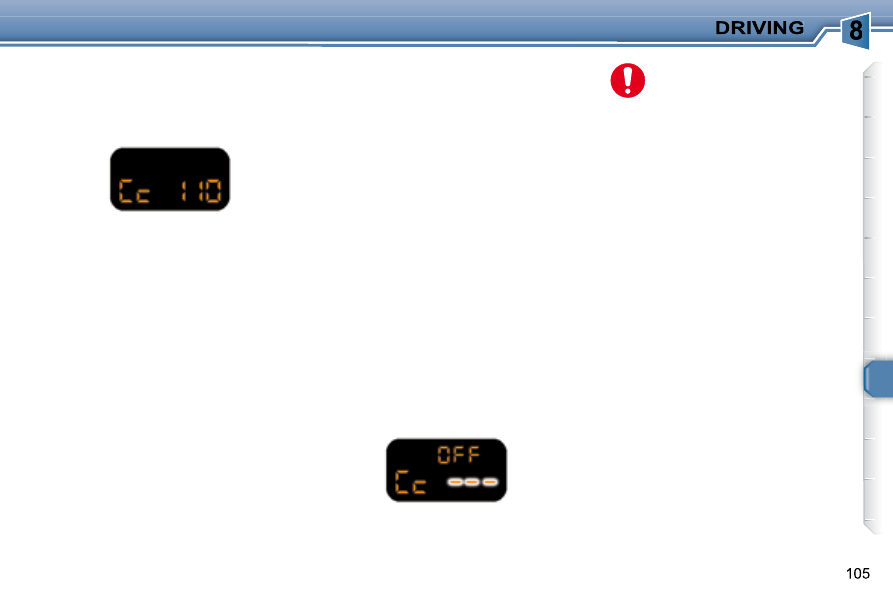

First activation/memorising a
reference speed
As soon as you reach the chosen

speed, press button 2 or 3 . This

memorises the speed and the display

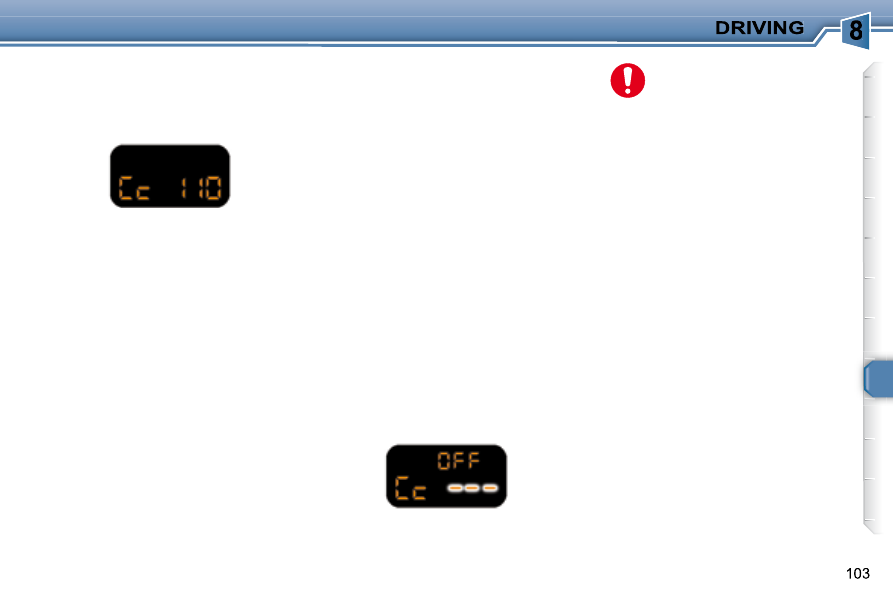

indicates (e.g. at 70 mph (110 km/h)):

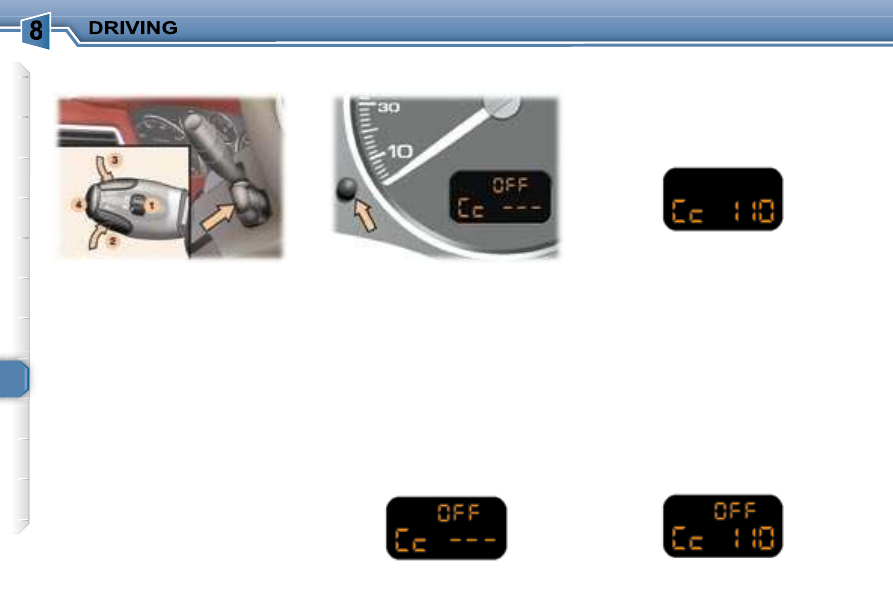

Selecting the function


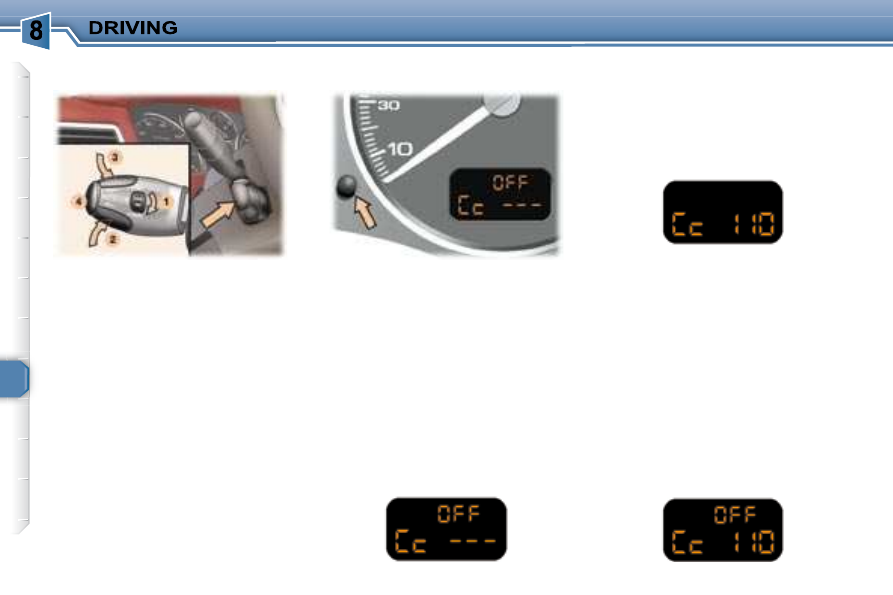

Place switch 1 in the CRUISE

position. The cruise control is

not yet active and no speed has

been memorised. The display in-

dicates:

Note:

It is possible to accelerate

and drive momentarily at a speed

greater than the memorised speed.

The value memorised l ashes. When

the accelerator pedal is released, the

vehicle will return to the memorised

speed.

Cancelling the cruise control
If you wish to cancel the cruise con-

trol:
 Press button 4 or the brake or

clutch pedal.

The display indicates (e.g. at 70 mph

(110 km/h)):

CRUISE CONTROL *

Instrument panel display

* According to country.

Cancelling the memorised
reference speed


When the vehicle becomes sta-

tionary, after switching off the

ignition, the system no longer

memorises a speed.

When changing the memo-

rised reference speed by

means of a maintained press,

pay attention as the speed

can increase or decrease rapidly.

Do not use the cruise control on slip-

pery roads or in heavy trafi c.

In the event of a steep slope, the

cruise control cannot prevent the

vehicle from exceeding the pro-

grammed speed.

In any event, the cruise control can-

not replace the need to comply with

speed limits, nor can it replace the

need for vigilance and responsibility

on the part of the driver.

To prevent the mat from becoming

caught under the pedals:

- ensure that the mat is positioned

correctly.

- never i t one mat on top of another.

Reactivating the cruise control
After cancellation of the cruise con-

trol, press button 4

. Your vehicle will

return to the last memorised speed.

The display indicates (e.g. at 70 mph

(110 km/h)):

Changing the memorised
reference speed
To memorise a speed higher than the

previous one, there are two options:

Without using the accelerator:


press button 3 ;

A brief press increases by 1 mph

(1 km/h).
An extended press increases by

5 mph (5 km/h).

A maintained press increases in

steps of 5 mph (5 km/h).

Using the accelerator:


exceed the memorised speed un-

til the required speed is reached,



press button 2 or 3 .

Operating fault
In the event of a cruise control mal-

function, the memorised speed is

erased, the dashes l ash for a few

seconds:

To memorise a speed lower than the

previous one:


press button 2 ;

A brief press decreases by 1 mph

(1 km/h).

An extended press decreases by

5 mph (5 km/h).

A maintained press decreases in

steps of 5 mph (5 km/h).

Contact a PEUGEOT dealer to have
the system checked.

Switching the function off
 Place dial 1

in position 0 to switch

the system off.

104

This cruise control has a display on

the instrument panel to indicate the

memorised reference speed.
It enables the vehicle to maintain a

steady speed programmed by the

driver.
In order for it to be memorised or ac-

tivated, the vehicle speed must be

greater than 25 mph (40 km/h) with

at least fourth gear engaged for ve-

hicles i tted with a manual gearbox.

On vehicles i tted with an automatic

gearbox, the lever must be in posi-

tion D or at least second gear must

be engaged in sequential driving

mode.

When the cruise control function is

activated, pressing this button en-

ables you to display the distance

recorder.
After a few seconds or when this

button is pressed again, the display

returns to the cruise control func-

tion.

First activation/memorising a
reference speed
As soon as you reach the chosen

speed, press button 2 or 3 . This

memorises the speed and the display

indicates (e.g. at 70 mph (110 km/h)):

Selecting the function


Place switch 1 in the ON position.

The cruise control is not yet active

and no speed has been memo-

rised. The display indicates:

Note:

It is possible to accelerate

and drive momentarily at a speed

greater than the memorised speed.

The value memorised l ashes. When

the accelerator pedal is released, the

vehicle will return to the memorised

speed.

Cancelling the cruise control
If you wish to cancel the cruise con-

trol:
 Press button 4 or the brake or

clutch pedal.

The display indicates (e.g. at 70 mph

(110 km/h)):

Instrument panel display

CRUISE CONTROL *

* According to country.

Reactivating the cruise control
After cancellation of the cruise con-

trol, press button 4

. Your vehicle will

return to the last memorised speed.

The display indicates (e.g. at 70 mph

(110 km/h)):

Cancelling the memorised
reference speed


When the vehicle is stationary, af-

ter the ignition has been switched

off, the system no longer stores

any speed.

Changing the memorised
reference speed
To memorise a speed higher than the

previous one, there are two options:

Without using the accelerator:


press button 3 ;

A brief press increases by 1 mph

(1 km/h).
An extended press increases by

5 mph (5 km/h).

A maintained press increases in

steps of 5 mph (5 km/h).

Using the accelerator:


exceed the memorised speed un-

til the required speed is reached,



press button 2 or 3 .

Switching the function off
 Place dial 1 in the OFF

position to

switch the system off.

Operating fault
In the event of a cruise control mal-

function, the memorised speed is

erased, the dashes l ash for a few

seconds:

When changing the memo-

rised reference speed by

means of a maintained press,

pay attention as the speed

can increase or decrease rapidly.

Do not use the cruise control on slip-

pery roads or in heavy trafi c.

In the event of a steep slope, the

cruise control cannot prevent the

vehicle from exceeding the pro-

grammed speed.

In any event, the cruise control can-

not replace the need to observe the

speed limits, nor can it replace the

need for vigilance and responsibility

on the part of the driver.

To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

correctly.

- never i t one mat on top of another.

To memorise a speed lower than the

previous one:


press button 2 ;

A brief press decreases by 1 mph

(1 km/h).

An extended press decreases by

5 mph (5 km/h).

A maintained press decreases in

steps of 5 mph (5 km/h).

Contact a PEUGEOT dealer to have
the system checked.

106

VISUAL AND AUDIBLE REAR
PARKING ASSISTANCE

This system consists of four proximity

sensors, located in the rear bumper.

This detects any obstacle (person,

vehicle, tree, gate, etc.) behind the

vehicle. Nevertheless, it cannot de-

tect obstacles located just below the

bumper.

An object, such as a stake, a road-

works cone or any other similar object

may be detected at the beginning of
the manoeuvre, but may no longer

be detected when the vehicle comes

close to it.
Note:

this function will be disarmed

automatically when the vehicle is

towing a trailer or when a bicycle car-

rier is i tted (vehicle i tted with towing

attachment or bicycle carrier recom-

mended by PEUGEOT).
In bad or wintry weather, ensure that

the sensors are not covered with

mud, frost or snow. When reverse

gear is engaged, an audible signal

(long bleep) indicates that the sen-

sors may be dirty.

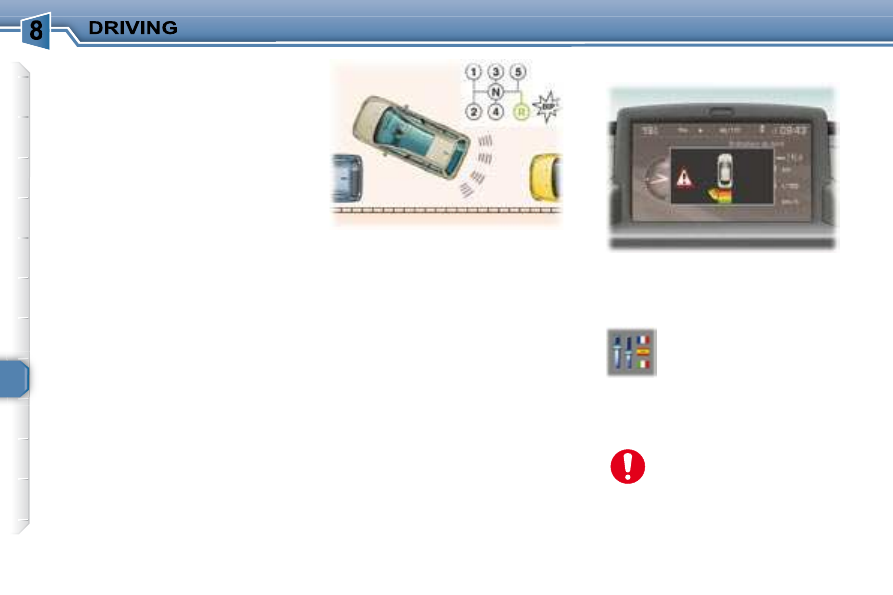

The proximity information is given

by:

- an audible signal, which be-

comes more rapid as the vehicle

approaches the obstacle,

- a graphic on the multifunction dis-

play, with blocks which become

progressively closer to the vehicle.

Depending on the multifunction dis-

play, the audible signal is transmitted

by a buzzer or by the rear speakers

which transmit:

- on the right if an obstacle is de-

tected on the right,

- on the left if an obstacle is detect-

ed on the left,

- on the right and on the left if an

obstacle is detected in the centre.

When the distance between the rear

of the vehicle and the obstacle is

less than approximately thirty centi-

metres, the audible signal becomes
continuous and the "Danger" symbol

appears depending on the multifunc-

tion display.

 Change to neutral, the system is

again inactive.

If there is an operating fault,

when reverse gear is en-

gaged, the service warning

light comes on, accompanied

by an audible signal (short bleep)

and a message on the multifunction

display.
Contact a PEUGEOT dealer.

Activation/Deactivation

Activation

The system is activated as soon as
reverse gear is engaged.
This is accompanied by an audible

signal and displaying of the vehicle,

depending on the multifunction dis-

play.

The system can be activat-

ed or deactivated from the

multifunction display con-

i guration menu.

The activation and deacti-

vation of the system are memorised

when the engine is switched off.

Switching the system off

108

CHECKS

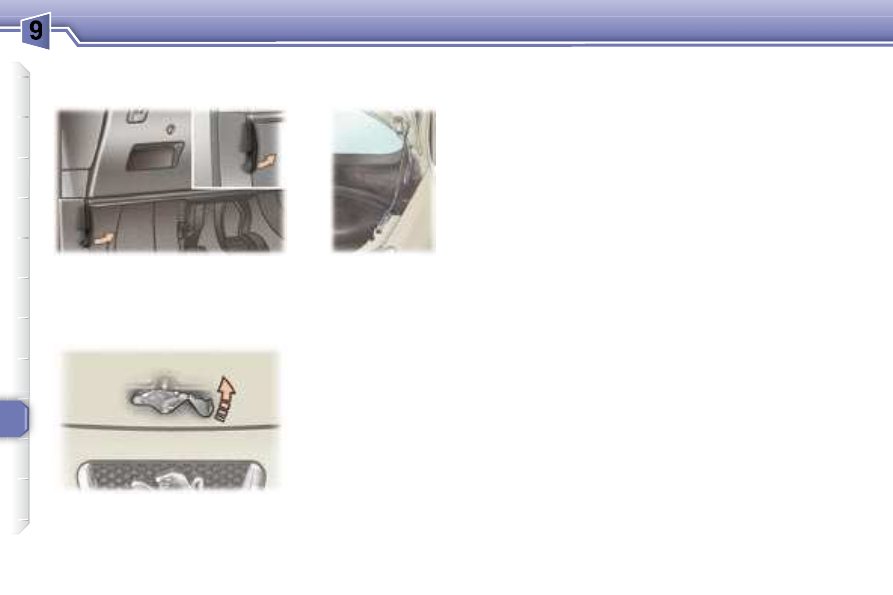

Tilt the handle on the left-hand side

under the fascia to the right.

Lift the catch and raise the bonnet.

Bonnet strut

RUNNING OUT OF FUEL
(DIESEL)

If you should run out of fuel, it is ne-

cessary to re-prime the circuit.

The repriming pump, the degas screw

and the transparent pipe are located

under the bonnet (see corresponding

drawing):

1.6 litre HDI 16V engine

- i ll the fuel tank with at least i ve

litres of diesel,

- unclip the style cover to access

the repriming pump,

- squeeze and release the manual

repriming pump until fuel appears

in the transparent pipe with the

green connector,

- operate the starter until the en-

gine starts.

2 litre HDI 16V engine

- i ll the fuel tank with at least i ve

litres of diesel,

- unclip the style cover to access

the repriming pump,

- unscrew the degas screw,

- squeeze and release the ma-

nual repriming pump until diesel

is seen escaping via the degas

screw,

- retighten the degas screw,

- operate the starter until the en-

gine starts.

OPENING THE BONNET

From outside

Secure the strut
to hold the bonnet

open.
Before closing the

bonnet, replace the

strut in its housing.

To close
Lower the bonnet and release it at

the end of its travel.
Check that the bonnet is properly locked.

From inside

109

CHECKS

Power steering reservoir.

Windscreen/headlamp

wash reservoir.

3. Coolant reservoir.

Brake l uid reservoir.

5. Battery.

Fuse box.

Air i lter.

Dipstick.

9. Engine oil reservoir.

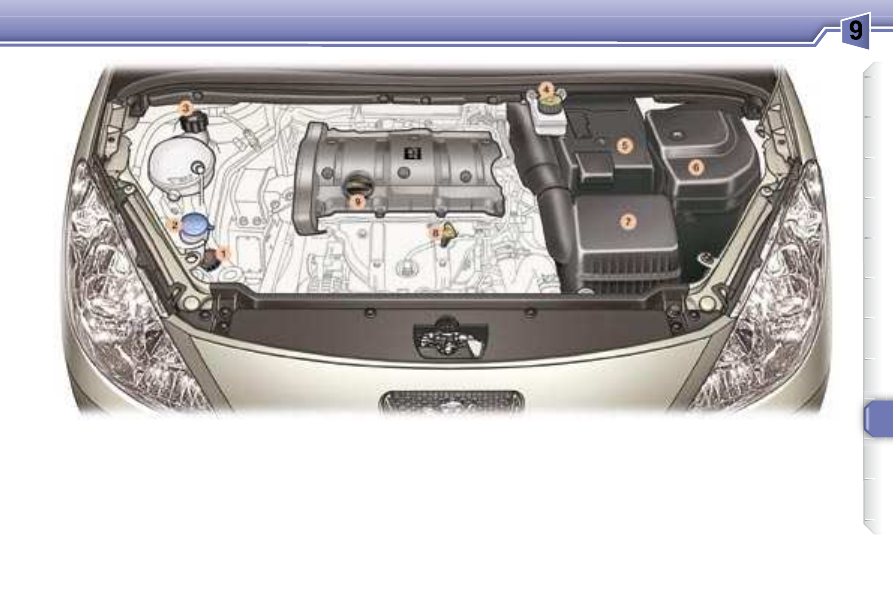

1.6 LITRE 16V PETROL AND 1.6 LITRE 16V BIOFLEX ENGINE

110

CHECKS

1. Power steering reservoir.

2. Windscreen/headlamp wash

reservoir.

3. Coolant reservoir.

Brake l uid reservoir.

5. Battery.

6. Fuse box.

Air i lter.

8. Dipstick.

9. Engine oil reservoir.

2 LITRE 16V PETROL ENGINE

111

CHECKS

1. Power steering reservoir.

2. Windscreen /headlamp wash

reservoir.

3. Coolant reservoir .

Brake l uid reservoir.

5. Battery .

6. Fuse box.

7. Dipstick .

8. Engine oil reservoir.

9. Priming pump.

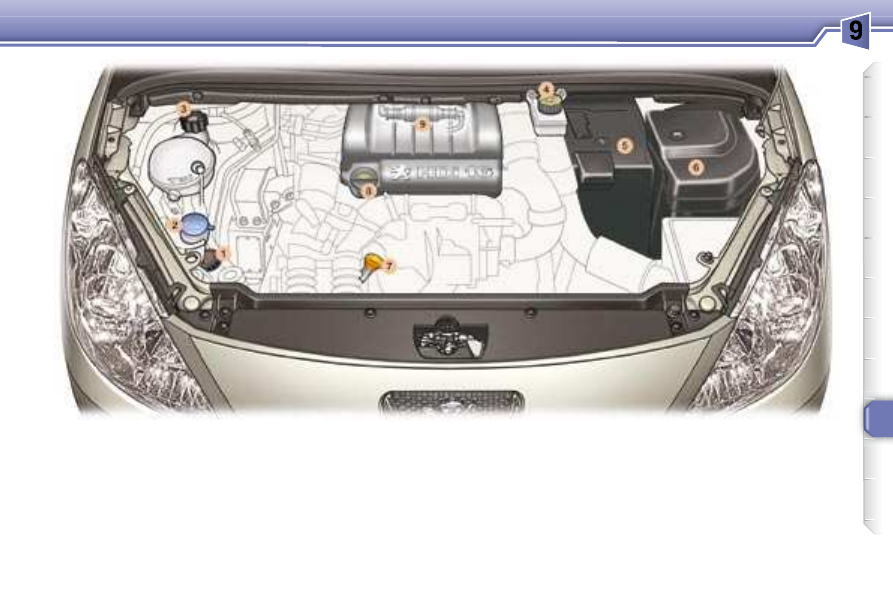

1.6 LITRE 16V TURBO DIESEL HDI ENGINE (90 BHP / 110 BHP)

112

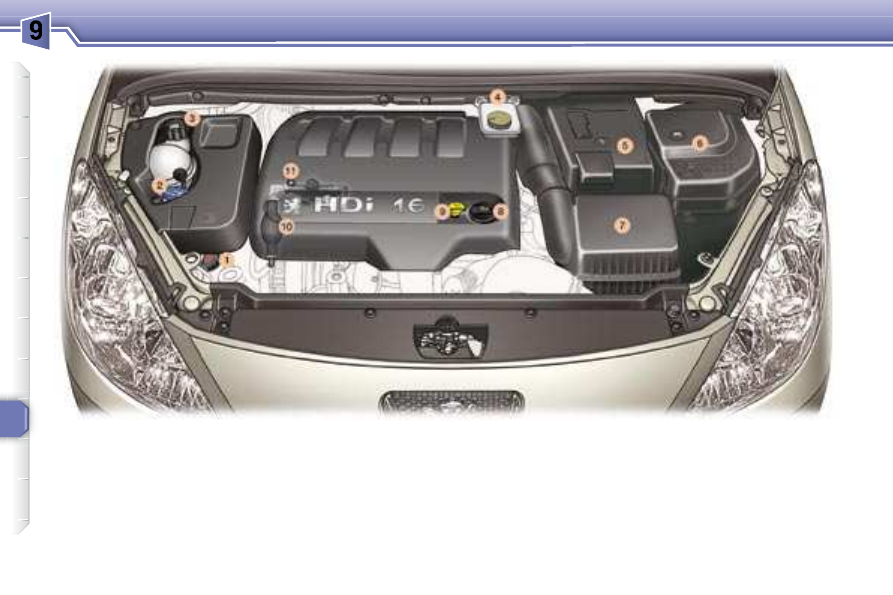

CHECKS

1. Power steering reservoir.

2. Windscreen/headlamp wash

reservoir.

3. Coolant reservoir.

Brake l uid reservoir.

5. Battery.

6. Fuse box.

Air i lter.

8. Engine oil reservoir.

9. Dipstick.

10. Priming pump.

11. Degas screw.

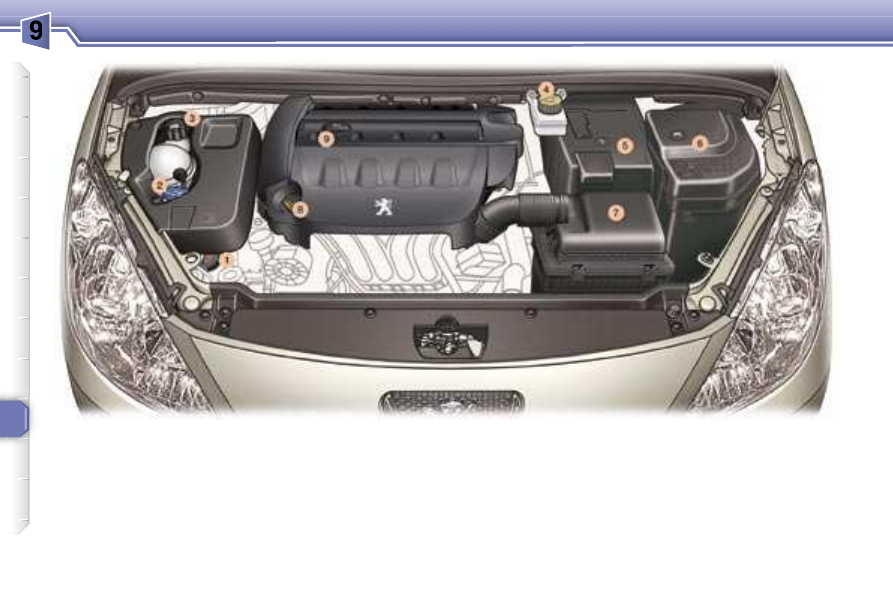

2 LITRE 16V TURBO DIESEL HDI ENGINE (136 BHP)

113

CHECKS

CHECKING THE LEVELS

There are two marks on

the dipstick:
A

= maximum

Never i ll past this mark.
B = minimum

To maintain the reliability of
engines and emission control
systems, the use of additives

in engine oil is prohibited.

Viscosity selection
In all cases, the oil selected must

meet the manufacturer's require-

ments.

Note: the coolant does not need to
be changed.

Dipstick

Cooling system

Use the l uid recommended by the

manufacturer.
When the engine is warm, the tem-

perature of the coolant is controlled

by the engine fan. This fan can ope-

rate with the ignition off.

In the case of vehicles i tted with

a particle emission i lter, the fan

can operate after the vehicle has
stopped, even when the engine is
cold.
In addition, as the cooling system is

pressurised, wait for at least one hour

after the engine has stopped before

carrying out any work.

Slacken the cap by two turns to re-

lease the pressure to prevent any

risk of scalding. When the pressure

has dropped, remove the cap and

top up the level.

Windscreen and headlamp
wash level

Diesel additive level (Diesel
with particle emission filter)

If the service warning light comes on,

accompanied by a message and an

audible signal, this indicates a low

diesel additive level.
This additive must be topped up.
Contact a PEUGEOT dealer as soon

as possible.

Brake fluid level

Oil level

Oil change
According to the information given in
the servicing booklet.

The level should always be

above the MIN mark and clo-

se to the MAX mark.

Power steering reservoir

Remove the style trim * (see § "Chan-

ging a bulb - Front lights").

Open the reservoir, with the engine

at ambient temperature. The level

should always be above the MIN.

mark and close to the MAX. mark.

For best quality cleaning

and for your safety, we

would advise that you use

products recommended by

PEUGEOT.

Replacement must be car-

ried out according to the

manufacturerw's

servicing

schedule.
Use l uids recommended by

the manufacturer, which fuli l DOT4

standards.

Check the level regularly and

top up between changes.

The maximum consump-

tion is 0.5 l per 600 miles

(1 000 km).

Check the level with the vehicle level,

engine cold, using the oil level gauge

on the instrument panel or the dipstick.

* According to engine.

Content .. 6 7 8 9 ..
