Peugeot 307 SW Dag (2007.5). Instruction - part 6

ACCESS

This enables the tailgate to be un-

locked in the event of a central lock-

ing fault.
- Fold back the rear seats to gain

access to the lock from inside the
boot,

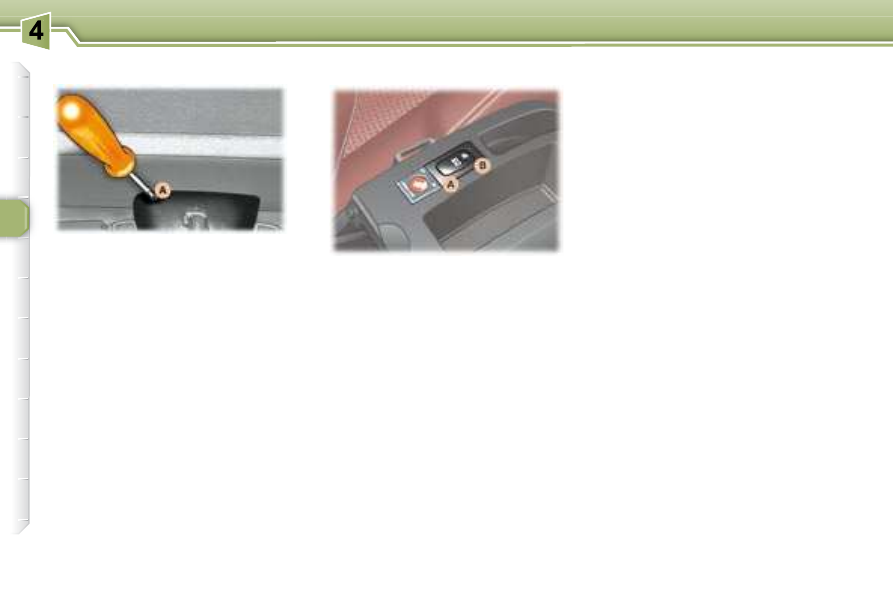

- Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it

stops and moves back slightly.

Your vehicle is i tted with a tinted

glass panoramic roof which increas-

es the light and visibility in the pas-

senger compartment. Its electric

concealing shutter improves temper-

ature conditions.

To open:

press part A of the switch.

To close:

press part B of the switch.

Manually:

press the switch without

going past the point of resistance; the

shutter stops as soon as the switch is

released.

Automatically:

press the switch

beyond the point of resistance; one

press fully opens or closes the shut-

ter. Press the switch again to stop the

shutter.

Notes
If the shutter's power supply is cut

off, while it is moving or immediately

after it has stopped, you must reini-

tialise the safety auto-reverse:

- press section B of the switch until

the shutter is completely closed

(closing in stages of a few centi-

metres).

In the event of unwanted opening of

the shutter on closing, and immedi-

ately after the shutter has stopped:

- press section A of the switch until

the shutter is fully open,

- release section A and immediate-

ly afterwards press section B of

the switch until the shutter is fully

closed (closing in stages of a few

centimetres).

  The  safety  auto-reverse  function
is  not  active  during  these  opera-
tions.

PANORAMIC ROOF

Tailgate release

ACCESS

This enables the tailgate to be un-

locked in the event of a central lock-

ing fault.
- Fold back the rear seats to gain

access to the lock from inside the
boot,

- Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it

stops and moves back slightly.

Your vehicle is i tted with a tinted

glass panoramic roof which increas-

es the light and visibility in the pas-

senger compartment. Its electric

concealing shutter improves temper-

ature conditions.

To open:

press part A of the switch.

To close:

press part B of the switch.

Manually:

press the switch without

going past the point of resistance; the

shutter stops as soon as the switch is

released.

Automatically:

press the switch

beyond the point of resistance; one

press fully opens or closes the shut-

ter. Press the switch again to stop the

shutter.

Notes
If the shutter's power supply is cut

off, while it is moving or immediately

after it has stopped, you must reini-

tialise the safety auto-reverse:

- press section B of the switch until

the shutter is completely closed

(closing in stages of a few centi-

metres).

In the event of unwanted opening of

the shutter on closing, and immedi-

ately after the shutter has stopped:

- press section A of the switch until

the shutter is fully open,

- release section A and immediate-

ly afterwards press section B of

the switch until the shutter is fully

closed (closing in stages of a few

centimetres).

  The  safety  auto-reverse  function
is  not  active  during  these  opera-
tions.

PANORAMIC ROOF

Tailgate release

ACCESS

The engine must be switched off

when i lling with fuel.


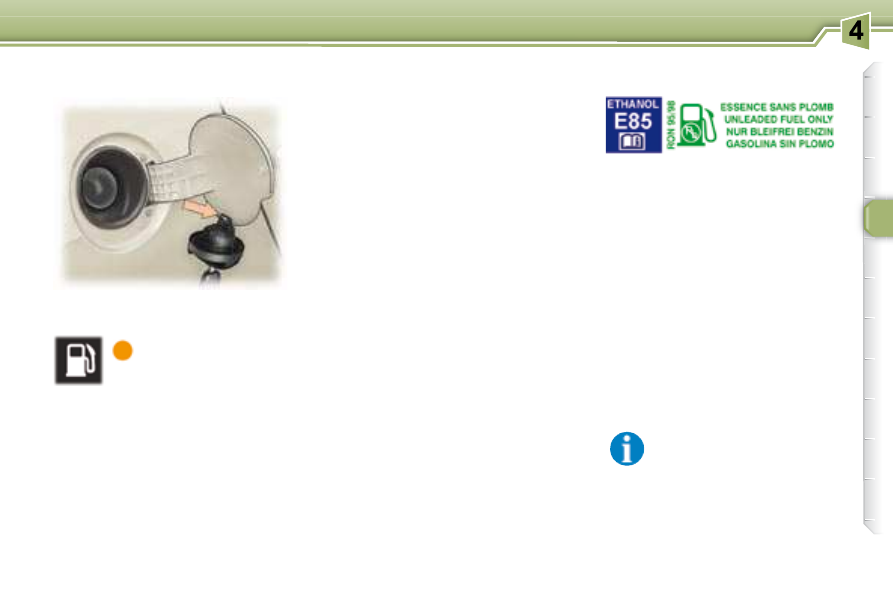

Open the fuel i ller l ap.

 Insert the key then turn it to the

left.



Remove the cap and hang it on

the hook located on the inside of

the l ap.

A label afi xed to the inside of the fuel

i ller l ap indicates which type of fuel

to use.
When you i ll your tank, do not continue

after the third cut-off of the pump.

This could cause your vehicle to mal-

function.
  The capacity of the tank is approx-
imately 60 litres.
   

After i lling the tank, lock the cap

and close the fuel i ller l ap.

Low fuel level

When the minimum
fuel level in the tank

is reached, this warn-

ing light comes on on

the instrument panel.

You can still drive approximately
30 miles (50 km).

Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to the

rest position (below zero), this in-

dicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.

FILLING WITH FUEL

1.6 litre 16V BioFlex engine

Your BioFlex vehicle is an adapt-

able vehicle. It has been designed to

run equally well on unleaded petrol

(RON 95 or RON 98) or ethanol (in

Europe, this is a mixture containing

85 % ethanol and 15 % unleaded

petrol, referred to as E85).

So, irrespective of the quantity of fuel

remaining in your tank and regard-

less of the type of fuel (unleaded

petrol, E85 or a mixture of the two),

you can i ll your tank at any time with

unleaded petrol (RON 95 or RON 85)

or ethanol E85.
This vehicle will run on unleaded

petrol only without experiencing any

problems.

In wintry conditions, start-

ing the engine from cold

may sometimes prove difi -

cult. During these very cold

periods, it is advisable to favour un-

leaded petrol to guarantee optimum

starting conditions.

VISIBILITY

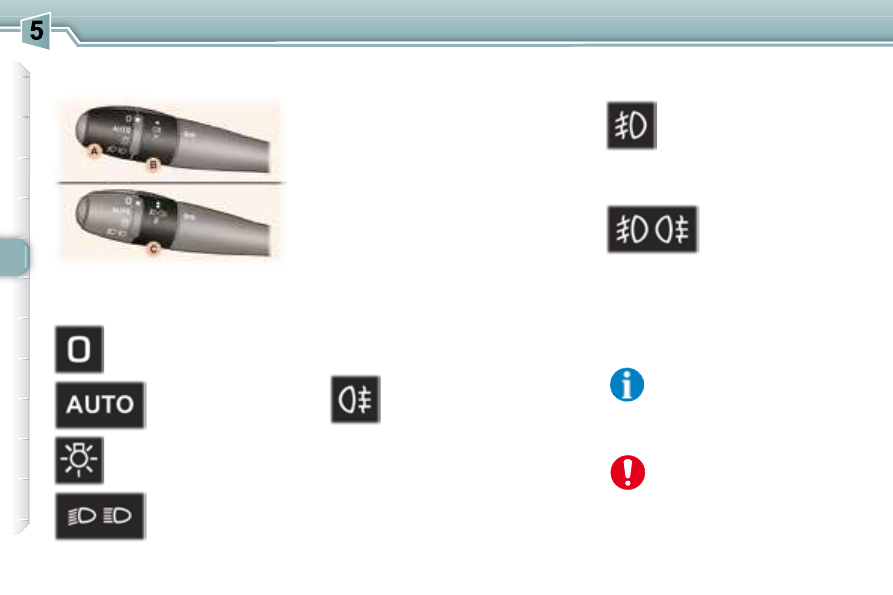

Front and rear lights (ring A)

 Place ring A

in the required

position.

Dipped/Main beam change


Pull the stalk towards you.

Vehicles i tted with front fog

lamps and a rear fog
lamp (ring C)

Lights off

Side lights

Dipped/main beam

headlamps

Rear fog lamp

Front fog lamps ( i rst rota-

tion of the ring forwards)

Front and rear fog

lamps (2 nd rotation

of the ring forwards).
Note:

to switch off

the rear fog lamp

and the front fog

lamps, turn the ring backwards twice

in succession.

Vehicles i tted with a rear

fog lamp (ring B)

This operates with the dipped/main

beam headlamps.
Note:

when the lights are switched off

automatically, the rear fog lamp and

the dipped headlamps will remain on.

Turn the ring backwards to switch off

the rear fog lamp. The dipped head-

lamps will then be switched off.

The front fog lamps operate with the

side lights and the dipped headlamps.

Front fog lamps and
rear fog lamp

 Turn ring B or C

forwards to switch

on and backwards to switch off.

The status is coni rmed by the

indicator light on the instrument

panel .

Lights on buzzer
With the ignition off and the automat-

ic switching on of the lights deactivat-

ed, when the driver's door is opened,

a buzzer sounds to warn you that you

have left your lights on.

In good or rainy weather,

both day and night, the front

fog lamps and the rear fog

lamp are dazzling and are

prohibited.

Do not forget to switch them off when

they are no longer needed.

LIGHTS STALK

The rear fog lamp will be de-

activated automatically when

towing or when a bicycle car-

rier i tted with a fog lamp is

i tted.

Automatic switching

on of the lights

VISIBILITY

Automatic switching on
of the lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of

the windscreen wipers. They switch

off as soon as the light becomes

bright enough or the windscreen wip-

ers stop.
Note:

in foggy weather or in snow,

the brightness sensor can detect suf-

i cient light. As a consequence, the

lights will not come on automatically.

Deactivation
 Turn ring A

to a position other

than "AUTO"

. Switching off is ac-

companied by a message on the

multifunction display.

If the brightness sensor does not
function correctly, the lights come

on accompanied by the service

warning light, an audible signal and

a message on the multifunction dis-

play.
Contact a PEUGEOT dealer.

Manual "Follow-me-home"
lighting
When the automatic switching on of
the lights function is deactivated , the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights
function

, when you leave your vehi-

cle, the side lights and dipped head-

lamps remain on for thirty seconds.

Direction indicators

(l ashers)

Left:

downwards.

Right:

upwards.

Note:

if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow me home"
lighting
With the ignition off, when you leave

your vehicle with the automatic

switching on of the lights function
activated

, the side lights and dipped

headlamps remain on for the select-

ed duration.

Activation:


switch off the engine,



"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display coni guration menu, except

in the case of the monochrome
screen A

for which it is pre-set.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

posi-

tion. The automatic lighting is ac-

companied by a message on the

multifunction display.

Do not cover the brightness

sensor, coupled with the rain

sensor, located in the centre

of the windscreen, behind

the interior mirror. It is used for the

automatic switching on of the lights.

VISIBILITY

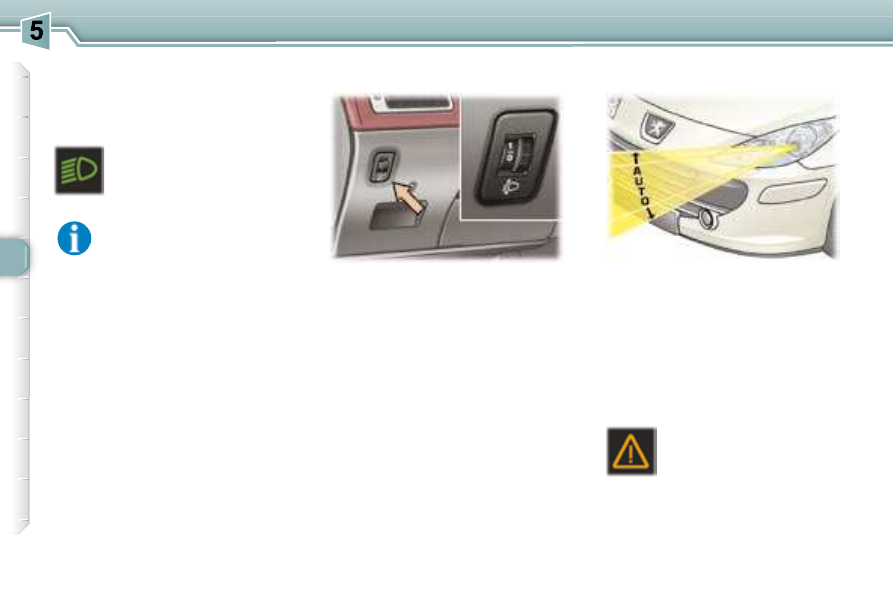

For vehicles i tted with halogen

bulbs, depending on the load in your

vehicle, adjusting the beam of your

headlamps is recommended.
0.

1 or 2 people in the front seats.

3 people.

5 or 7 people.

-. Intermediate setting.
2.

5 or 7 people + maximum

authorised load.

-. Intermediate setting.
3.

Driver + maximum authorised

load.

Initial setting is position 0.

On vehicles with xenon bulbs:
when stationary

, the system auto-

matically corrects the height of the

beam, whatever the load of the vehi-

cle. The driver is then assured of hav-

ing optimum lighting and not causing

a nuisance to other road users.

In cases of malfunction ,

the service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction display.

The system places your headlamps

to the low position.

Do not touch the xenon bulbs. Con-

tact a PEUGEOT dealer.

Daytime lights *

On vehicles which are equipped with

daytime lights, the dipped headlamps

come on when the vehicle is started.

* According to country.

The instruments and controls

(instrument panel, multifunc-

tion display, air conditioning

control panel, ...) are only lit

on switching to the automatic switch-

ing on of the lights mode or when the

lights are switched on manually.

This warning light comes

on on the instrument panel.

MANUAL ADJUSTMENT OF
THE HEADLAMPS

AUTOMATIC HEADLAMP
ADJUSTMENT

VISIBILITY

Automatic switching on
of the lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of

the windscreen wipers. They switch

off as soon as the light becomes

bright enough or the windscreen wip-

ers stop.
Note:

in foggy weather or in snow,

the brightness sensor can detect suf-

i cient light. As a consequence, the

lights will not come on automatically.

Deactivation
 Turn ring A

to a position other

than "AUTO"

. Switching off is ac-

companied by a message on the

multifunction display.

If the brightness sensor does not
function correctly, the lights come

on accompanied by the service

warning light, an audible signal and

a message on the multifunction dis-

play.
Contact a PEUGEOT dealer.

Manual "Follow-me-home"
lighting
When the automatic switching on of
the lights function is deactivated , the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights
function

, when you leave your vehi-

cle, the side lights and dipped head-

lamps remain on for thirty seconds.

Direction indicators

(l ashers)

Left:

downwards.

Right:

upwards.

Note:

if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow me home"
lighting
With the ignition off, when you leave

your vehicle with the automatic

switching on of the lights function
activated

, the side lights and dipped

headlamps remain on for the select-

ed duration.

Activation:


switch off the engine,



"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display coni guration menu, except

in the case of the monochrome
screen A

for which it is pre-set.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

posi-

tion. The automatic lighting is ac-

companied by a message on the

multifunction display.

Do not cover the brightness

sensor, coupled with the rain

sensor, located in the centre

of the windscreen, behind

the interior mirror. It is used for the

automatic switching on of the lights.

VISIBILITY

For vehicles i tted with halogen

bulbs, depending on the load in your

vehicle, adjusting the beam of your

headlamps is recommended.
0.

1 or 2 people in the front seats.

3 people.

5 or 7 people.

-. Intermediate setting.
2.

5 or 7 people + maximum

authorised load.

-. Intermediate setting.
3.

Driver + maximum authorised

load.

Initial setting is position 0.

On vehicles with xenon bulbs:
when stationary

, the system auto-

matically corrects the height of the

beam, whatever the load of the vehi-

cle. The driver is then assured of hav-

ing optimum lighting and not causing

a nuisance to other road users.

In cases of malfunction ,

the service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction display.

The system places your headlamps

to the low position.

Do not touch the xenon bulbs. Con-

tact a PEUGEOT dealer.

Daytime lights *

On vehicles which are equipped with

daytime lights, the dipped headlamps

come on when the vehicle is started.

* According to country.

The instruments and controls

(instrument panel, multifunc-

tion display, air conditioning

control panel, ...) are only lit

on switching to the automatic switch-

ing on of the lights mode or when the

lights are switched on manually.

This warning light comes

on on the instrument panel.

MANUAL ADJUSTMENT OF
THE HEADLAMPS

AUTOMATIC HEADLAMP
ADJUSTMENT

VISIBILITY

Special position of the front
windscreen wiper
In the minute following switching off

of the ignition, any action on the stalk

positions the wipers in the centre of

the windscreen.

This action enables you to position

the wiper blades for winter parking,

cleaning or replacement (See sec-

tion "Practical information - Chang-

ing a wiper blade").

To park the wipers after this has been

done, switch on the ignition and op-

erate the stalk.

Windscreen and headlamp wash
Pull the windscreen wiper stalk to-

wards you. The windscreen wash

then the windscreen wipers operate

for a i xed period.

The headlamp wash is also activat-

ed, if the headlamps are on.

Automatic windscreen
wipers

In AUTO

mode, the windscreen wip-

ers operate automatically and adapt

their speed to the intensity of the
rainfall .

Front windscreen wiper with
automatic wipe

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

Off.

AUTO 

Automatic or single wipe

(press downwards).

In the I

ntermittent position, the wiping

speed is in proportion to the speed of

the vehicle.
In AUTO

mode, the wiping speed is

in proportion to the intensity of the

rainfall. The i rst press of the stalk

downwards activates the automatic

wipe.

Subsequent presses trigger a single

wipe.

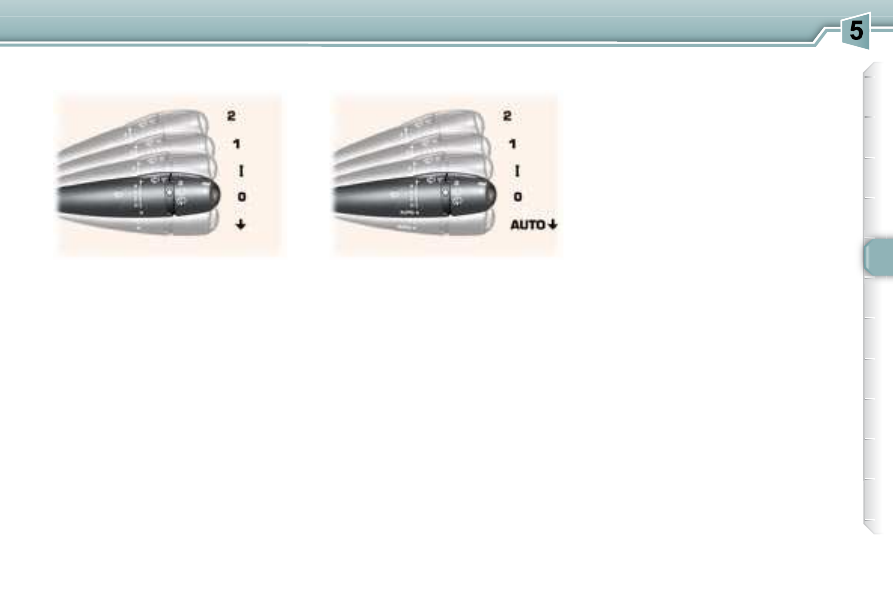

WINDSCREEN WIPER
STALK

Front windscreen wiper with
intermittent wipe

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

0 Off.


Single wipe (press downwards).

In the I

ntermittent position, the wip-

ing speed is in proportion to the ve-

hicle speed.

VISIBILITY

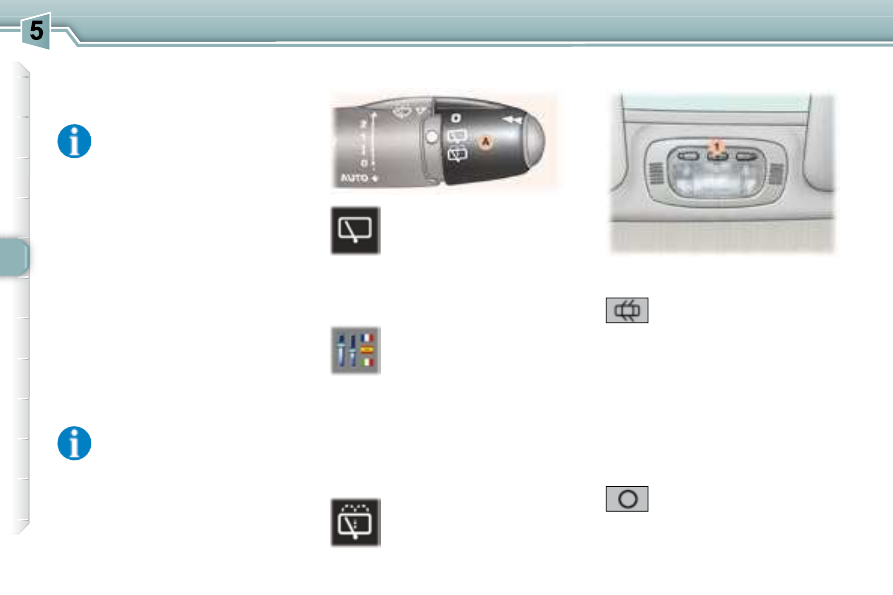

Do not cover the rain sensor

located on the windscreen

behind the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait for the

windscreen to completely clear of ice

before operating the automatic wipe.

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

Turn ring A

to the i rst notch

for intermittent wiping.

When reverse gear is en-

gaged, if the windscreen

wipers are in operation, the

rear wiper will start wiping.

To activate or deactivate
this function, go to the

multi-function display con-

i guration menu.

If there is a signii cant ac-

cumulation of snow or ice and when

using a bicycle carrier on the tailgate,

deactivate the automatic rear wiping

by going to the multifunction display

coni guration menu.

Turn ring A

past the i rst

notch; the windscreen wash

then the windscreen wiper

operate for a i xed period.

Deactivation
Deactivation of the function is ac-

companied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

Rear windscreen wash

1. Front courtesy light

In this position, the courtesy

light comes on automati-

cally:

- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

Permanently off.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

Rear windscreen wiper

  The automatic windscreen
wipers  function  must  be
reactivated  if  the  ignition
has  been  switched  off  for

more than one minute, by press-
ing the stalk downwards.

VISIBILITY

Do not cover the rain sensor

located on the windscreen

behind the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait for the

windscreen to completely clear of ice

before operating the automatic wipe.

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

Turn ring A

to the i rst notch

for intermittent wiping.

When reverse gear is en-

gaged, if the windscreen

wipers are in operation, the

rear wiper will start wiping.

To activate or deactivate
this function, go to the

multi-function display con-

i guration menu.

If there is a signii cant ac-

cumulation of snow or ice and when

using a bicycle carrier on the tailgate,

deactivate the automatic rear wiping

by going to the multifunction display

coni guration menu.

Turn ring A

past the i rst

notch; the windscreen wash

then the windscreen wiper

operate for a i xed period.

Deactivation
Deactivation of the function is ac-

companied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

Rear windscreen wash

1. Front courtesy light

In this position, the courtesy

light comes on automati-

cally:

- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

Permanently off.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

Rear windscreen wiper

  The automatic windscreen
wipers  function  must  be
reactivated  if  the  ignition
has  been  switched  off  for

more than one minute, by press-
ing the stalk downwards.

VISIBILITY

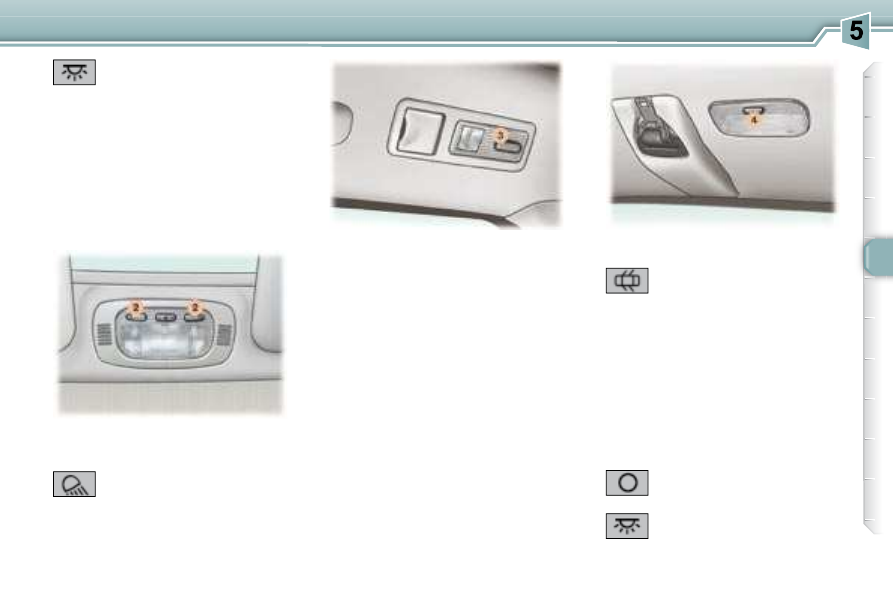

3. 2 nd row rear reading lights

Permanently off.

The reading light comes on:

- when the vehicle is unlocked,

- when the key is removed from the

ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

With the ignition on (function not avail-

able in economy mode), press the

switch to obtain permanent lighting.

Press the switch again to switch the

reading light off.

In this position, the courtesy

light comes on automati-

cally:

4. 3 rd row rear courtesy light

Permanently on when the

ignition is on (function not
available in economy mode).

- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

Permanently on.

2. Front map reading lights

Different lighting times are available:

- with the ignition off or on, approxi-

mately 10 minutes,

- in economy mode, approximately

30 seconds,

- when the engine is running, no

limit.

With the ignition on, press

the corresponding switch.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

LAYOUT

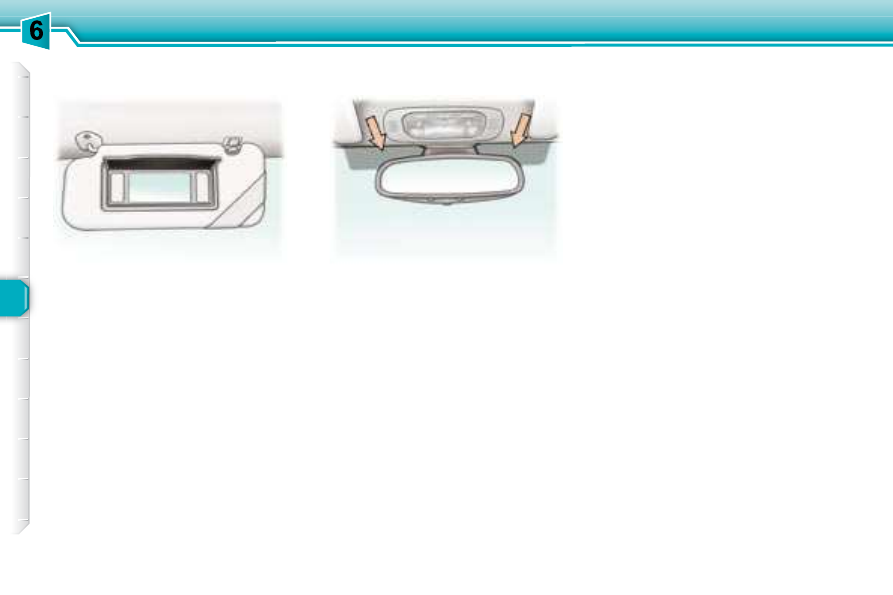

With the ignition on, the mirror is

automatically lit up when the l ap is

opened.

The athermic windscreen has two

non-rel ective zones located either

side of the base of the interior mir-

ror.
They are intended for afi xing toll

cards and/or car park tickets.

SUN VISOR WITH ILLUMINATED
COURTESY MIRROR

AREAS FOR TOLL CARDS/
CAR PARK TICKETS

LAYOUT

INTERIOR LAYOUT

2. Front ashtray
Pull the lid to open the ashtray.

To empty it after opening, press the

tab and remove the ashtray.

3. Storage

4. 12 volt socket (100 W max)
This is a lighter type socket, i tted

with a cap. It is supplied with current

from the running position.

5. Door tray

6. Storage/Can holder

7. Waste container
To empty, open it fully (past the point

of resistance) then pull on the recep-

tacle to remove it.
To rei t, lock it in place on the cover.

It contains three sockets * B for

connecting video equipment.

The layout allows storage of a water

bottle, a pen, the vehicle handbook,

a pair of spectacles, tokens, etc.

* Colour screen only.

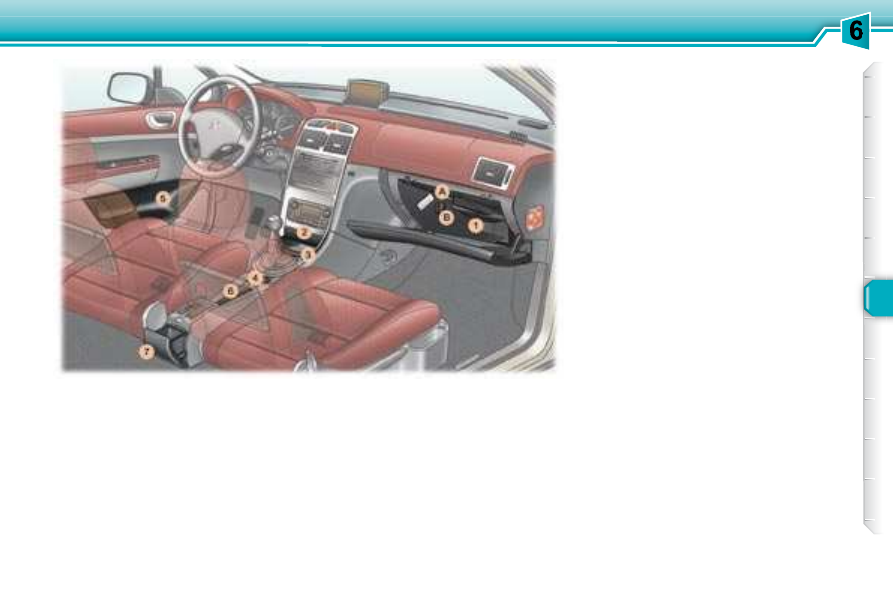

1. Glove box with cooling facility
This is i tted with a lock.

To open the glove box, lift the han-

dle.
The glove box lights when the lid is

opened.
It  has  a  ventilation  nozzle  that  can
be  closed   A ,  distributing  the  same

cooled air as the vents of the pas-

senger compartment.

LAYOUT

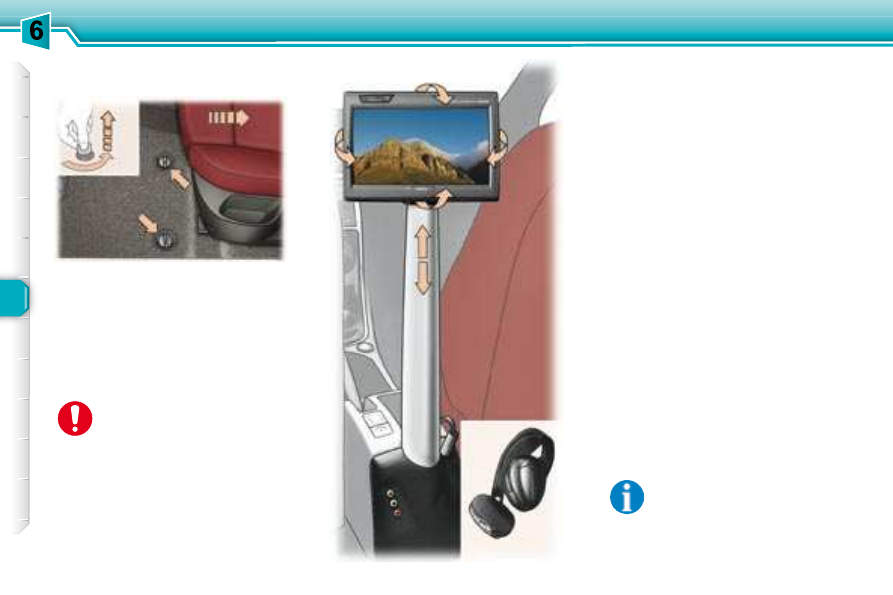

When i tting the mat for the i rst time,

use only the i xings supplied in the

wallet attached.
When removing the mat on the

driver's side:

- push the seat as far back as

possible,

- unscrew the i xings fully,

- remove the i xings, then the mat.

FITTING/REMOVING THE MAT

When rei tting, position the

mat correctly and replace the

i xings by pressing them in.

Ensure that the mat is se-

cured correctly.
To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

correctly.

- never i t one mat on top of an-

other.

For further details, refer to the

operating manuals "Video kit

operation" and "VMA8582 7

inch LCD colour monitor".

ENTERTAINMENT SCREEN KIT

This video assembly will enable the

rear passengers to pass the time

pleasantly while watching their fa-

vourite i lm or playing their favourite

game, by means, in particular, of the

connection of a DVD player or games

console to the central support, i tted

between the front seats.

The entertainment screen kit consists

of:

- a 16/9 ths , 7 inch, LCD colour

monitor with direction adjustment

in the three axes,

- two high frequency, wireless,

stereo headphones,

- a removable support,

- three audio/video sockets on

the i xed base and in the glove

compartment.

The monitor and the support can be

removed and stored, each in their

own protective cover.

The entertainment screen kit accepts

all types of audio/video source, PAL/

NTSC compatible, such as: DVD

player, camcorder, games console, ...
These sources are connected to the
three audio/video sockets, AV1 in the

glove compartment or AV2 on the

i xed base.

LAYOUT

Content .. 4 5 6 7 ..
