Peugeot 307 SW Dag (2007.5). Instruction - part 9

114

CHECKS

Where the handbrake travel

is too great or there is a re-

duction in the performance

of the system, the handbrake

should be adjusted, even

between services.
Have the system checked by a
PEUGEOT dealer.

Air filter and passenger
compartment filter

Particle emission filter
(Diesel)

It is imperative that the particle emis-

sion i lter is maintained in accordance

with the manufacturer's servicing sche-

dule, by a PEUGEOT dealer.

Brake pad wear depends

on the style of driving, in

particular for vehicles which

are used in town, over short

distances.

Disc and drum wear status

For any information relating to

the wear status of the surfaces

of the discs and drums, contact a
PEUGEOT dealer.

Only use products recom-

mended by PEUGEOT or

products of equivalent qua-

lity and characteristics.

To ensure best performance from

components as important as the

power steering and the braking sys-

tem, PEUGEOT selects and offers

quite specii c products.

To prevent damage to the electrical

units, high pressure washing to clean

the engine compartment is strictly

prohibited .

Oil filter

Used products

Avoid all prolonged contact of the

used oil with the skin.

Brake l uid is harmful to health and

very corrosive.

Note:

following prolonged operation

of the vehicle at very low speed or at

idle, you may, in exceptional cases,

notice discharges of water vapour

at the exhaust on acceleration. This

has no effect on the behaviour of the
vehicle or on the environment.

Do not dispose of used oil,

brake l uid or coolant into

drains or onto the ground.
Empty the used oil into the

containers provided for this purpose

in the PEUGEOT network.

Battery

At the start of winter, have

your battery checked by a
PEUGEOT dealer.

Have the i lter elements

replaced regularly. If you

drive in dusty condi-
tions, change them twice
as often.

Brake pads

It may be necessary to check

the thickness of the pads,

even between services.

Handbrake

Change the i lter regularly,

in accordance with the ser-

vicing schedule.

Manual gearbox

  To  check  the  main  levels
and certain components, in
accordance with the manu-
facturer's  servicing  sche-
dule,  refer  to  the  pages  of

the servicing booklet which corres-
pond to your vehicle's engine.

This does not require an oil

change. Have the level checked

in accordance with the manu-

facturer's servicing schedule.

114

CHECKS

Where the handbrake travel

is too great or there is a re-

duction in the performance

of the system, the handbrake

should be adjusted, even

between services.
Have the system checked by a
PEUGEOT dealer.

Air filter and passenger
compartment filter

Particle emission filter
(Diesel)

It is imperative that the particle emis-

sion i lter is maintained in accordance

with the manufacturer's servicing sche-

dule, by a PEUGEOT dealer.

Brake pad wear depends

on the style of driving, in

particular for vehicles which

are used in town, over short

distances.

Disc and drum wear status

For any information relating to

the wear status of the surfaces

of the discs and drums, contact a
PEUGEOT dealer.

Only use products recom-

mended by PEUGEOT or

products of equivalent qua-

lity and characteristics.

To ensure best performance from

components as important as the

power steering and the braking sys-

tem, PEUGEOT selects and offers

quite specii c products.

To prevent damage to the electrical

units, high pressure washing to clean

the engine compartment is strictly

prohibited .

Oil filter

Used products

Avoid all prolonged contact of the

used oil with the skin.

Brake l uid is harmful to health and

very corrosive.

Note:

following prolonged operation

of the vehicle at very low speed or at

idle, you may, in exceptional cases,

notice discharges of water vapour

at the exhaust on acceleration. This

has no effect on the behaviour of the
vehicle or on the environment.

Do not dispose of used oil,

brake l uid or coolant into

drains or onto the ground.
Empty the used oil into the

containers provided for this purpose

in the PEUGEOT network.

Battery

At the start of winter, have

your battery checked by a
PEUGEOT dealer.

Have the i lter elements

replaced regularly. If you

drive in dusty condi-
tions, change them twice
as often.

Brake pads

It may be necessary to check

the thickness of the pads,

even between services.

Handbrake

Change the i lter regularly,

in accordance with the ser-

vicing schedule.

Manual gearbox

  To  check  the  main  levels
and certain components, in
accordance with the manu-
facturer's  servicing  sche-
dule,  refer  to  the  pages  of

the servicing booklet which corres-
pond to your vehicle's engine.

This does not require an oil

change. Have the level checked

in accordance with the manu-

facturer's servicing schedule.

115

PRACTICAL INFORMATION

Parking the vehicle


As far as possible, park the vehi-

cle on level, stable and non-slip-

pery ground.



Apply the handbrake, switch off

the ignition and engage i rst or

reverse gear (position P for the

automatic gearbox).

Access to the spare wheel


Open the boot.



Open the l ap using the lug to re-

lease the winch and gain access

to its control nut.



Unscrew the nut fully, using the

wheelbrace 1 , to unroll the winch

cable.

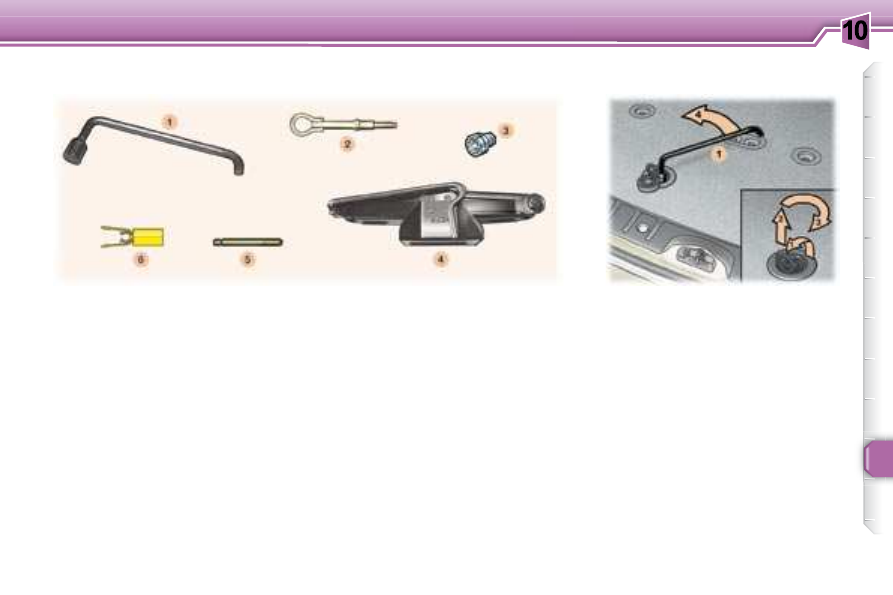

Tools
The following tools are located:

- in the right-hand trim of the boot,

1. Wheelbrace.
2.

Removable towing eye.

Socket for anti-theft bolts.

- in the holder in the centre of the

spare wheel,

Jack with handle.

5. Centralising tool.
6. Bolt cover tool.

CHANGING A WHEEL

116

PRACTICAL INFORMATION



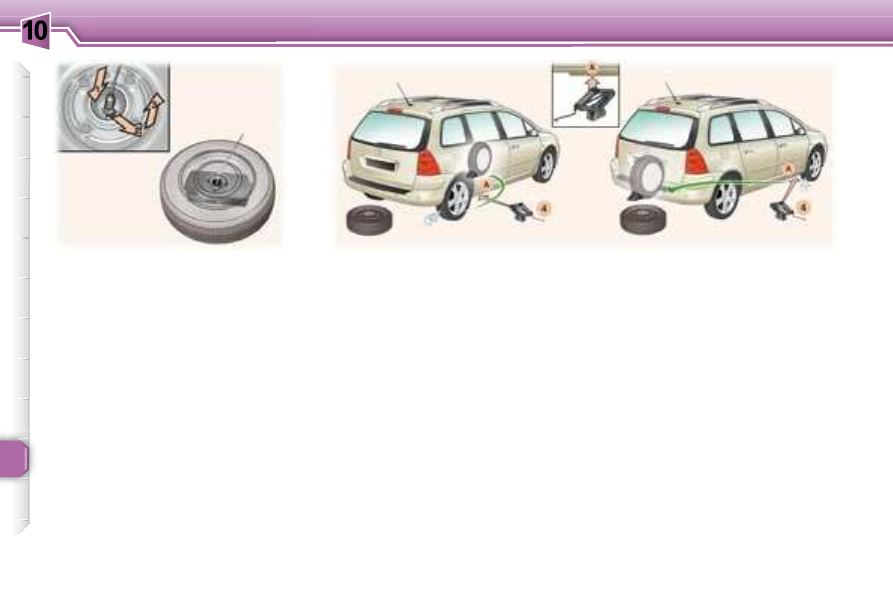

Detach the wheel/holder assem-

bly from the rear of the vehicle.



Take out the notched hook to re-

lease the wheel, as shown in the

illustration.

Removing the wheel


Slide the holder cover to gain ac-

cess to the tools.



If necessary, place a chock under

the wheel diagonally opposite to

the one to be changed.

 Remove the trim, using the

wheelbrace 1 , pulling at the valve

passage hole (for vehicles i tted

with steel wheels).



Loosen the wheel bolts (see §

"Special features of alloy wheels"

for vehicles i tted with alloy

wheels).

Note: you can use the other end
of the tool 6

to unscrew the wheel

bolts.



Place the jack 4 in contact with

one of the four locating points A

on the sub-frame, the one which

is closest to the wheel to be

changed.



Extend the jack 4 until its base

is in contact with the ground. En-

sure that the centre line of the

base of the jack is straight above

the locating point A used.

 Raise the vehicle
 Remove one bolt and install the

centralising tool 5

in its place.



Unscrew the other bolts and re-

move the wheel.

117

PRACTICAL INFORMATION

Fitting a wheel


Position the wheel using the cen-

tralising tool 5 to assist you.



Tighten the bolts by hand and re-

move the centralising tool 5 .

 Partly tighten the bolts using the

wheelbrace 1 .



Fold the jack 4 and remove it.

 Fully tighten the bolts using the

wheelbrace 1 .



Replace the wheel trim, starting

by placing the wheel trim notch

opposite the valve, and press it

on using the palm of the hand.



Put the corresponding tools in the

holder and secure its cover.

 Place the holder on the ground

and align the spare wheel on it.

 Pass the notched hook into the

holder cover.



Rei t the wheel under the vehicle

tightening the winch control nut

using the wheelbrace 1 .

 Fully tighten and check that

the wheel is horizontally l ush

against the rear l oor .



Close the l ap using the lug to

lock the winch.

 Store the rest of the tools in the

right-hand trim of the boot.

For your safety, always
change the wheel:

- on level, stable, non-slippery

ground,

- with the handbrake on and the ig-

nition switched off,

- with i rst or reverse gear engaged

(position P for the automatic gear-

box),

  -   with the vehicle chocked.
  Never go underneath a vehicle that
is supported only by a jack (use a
ramp).

Never rei t the holder under the

vehicle without the spare wheel.
  Do not use a screwdriver in place
of  the  wheelbrace  to  unwind  or
wind the winch.

Recommendations when using
the temporary spare wheel *
Your vehicle may be equipped with a

spare wheel which has a different rim

to the standard wheel.

After use, have it replaced as quickly

as possible.

Observe the following instructions in

order to avoid altering the behaviour

of the vehicle:

- do not exceed 50 mph (80 km/h) ,

- do not i t a wheel trim,

- drive with care,

- check the tyre pressure indicated

on the label.

* According to model and country.

After changing the wheel:
- have the correct positioning of the

punctured wheel, the tightening

of the bolts and the tyre pressure

checked by a PEUGEOT dealer

as soon as possible,

- have the punctured tyre repaired

and rei t it to the vehicle as soon

as possible,

- have the correct positioning of

the spare wheel checked by a

PEUGEOT dealer.

Wheels i tted with the Tyre Under-

Inl ation Detection system
For further information refer to "Tyre

under-inl ation detection" in the safe-

ty section.

118

PRACTICAL INFORMATION

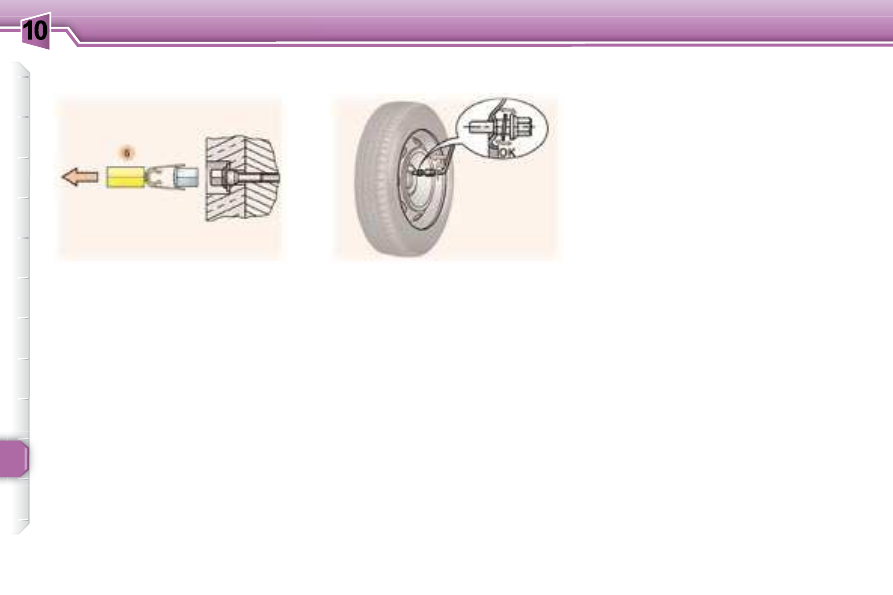

Bolt covers
Alloy wheel bolts are covered by

chrome trims.
Use the yellow tool 6 to remove the

trims before slackening the bolts.

If your vehicle is i tted with a steel

spare wheel, when i tting it, it is nor-

mal

when tightening the bolts to no-

tice that the washers do not come

into contact with the rim. The spare

wheel is secured by the cone shape

of each bolt.

Fitting snow tyres
If you i t snow tyres mounted on steel

wheels onto your vehicle, it is es-

sential

to use special bolts available

from your PEUGEOT dealer.

Special features of alloy
wheels

Fitting the spare wheel

Anti-theft bolts

If your wheels are i tted with an anti-

theft bolt (one per wheel), the chrome

trim must be removed before un-

screwing the bolt using the anti-theft

socket and the wheelbrace.

This anti-theft socket was given to

you on delivery of your vehicle along

with the duplicate keys and the con-

i dential card.
Make a careful note of the code
number engraved on the head of the

anti-theft socket. This will enable you

to obtain a duplicate socket from a

PEUGEOT dealer.

119

PRACTICAL INFORMATION

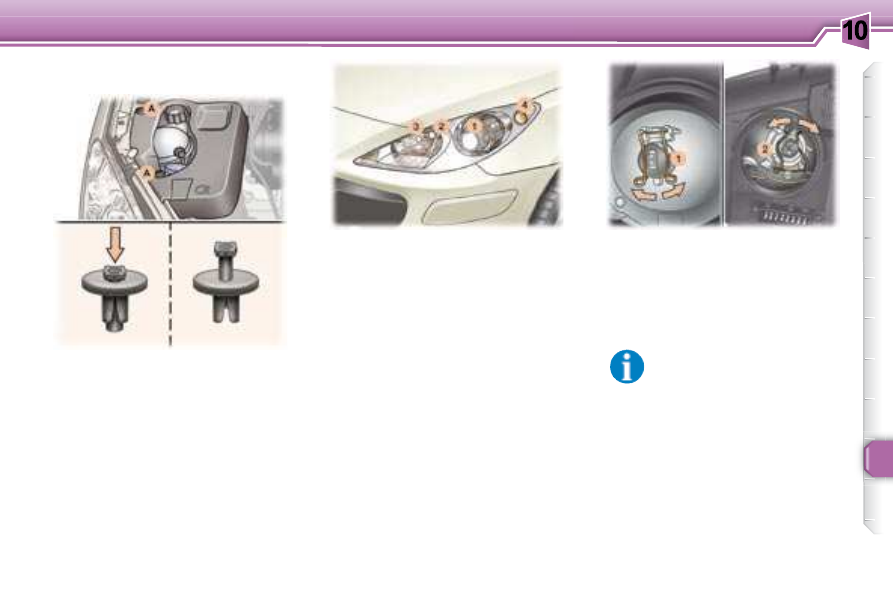

1. Dipped beam headlamps

(H1-55 W or xenon bulb).

  WARNING: RISK OF ELECTROCU-
TION
Xenon  bulbs  must  be  changed  by  a
PEUGEOT dealer.

2. Main beam headlamps (H7-55 W).


Remove the protective cover cor-

responding to the faulty bulb.

 Disconnect the connector.
 Press the end of each securing

clip. Change the bulb.

When i tting the new bulb, ensure

that the direction notches are po-

sitioned correctly and the securing

clips are i xed properly.

 Reconnect the connector.


Rei t the protective cover.

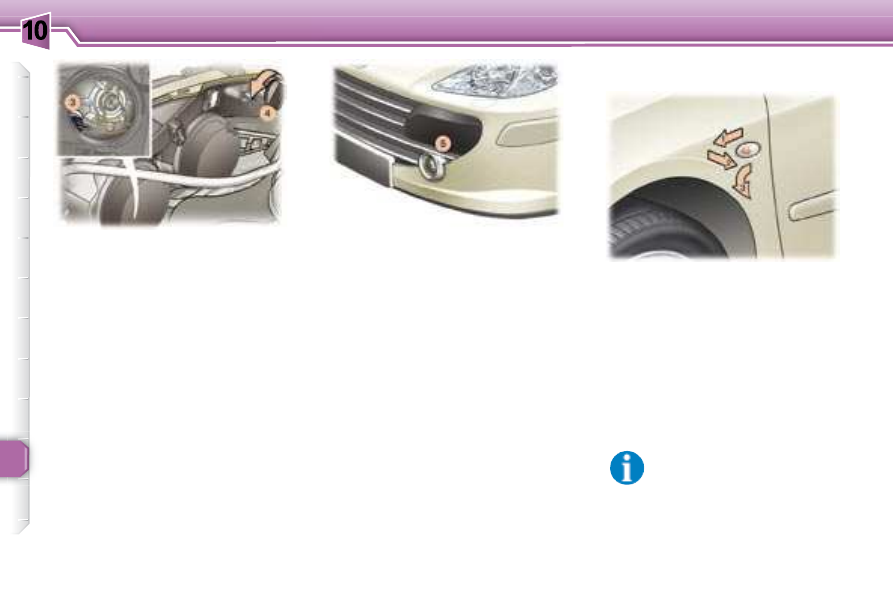

Front lights

In the engine compartment, on the

right-hand side, remove the style

trim * :

- press the centre of each plastic

stud A ,

- remove each plastic stud,

- remove the style trim.

When you have i nished, do not for-

get to put everything back in place

correctly:

- position the style trim * ,

- rei t each plastic stud A by press-

ing on it.

Handle the bulbs with a dry

cloth.
The headlamps are i tted

with polycarbonate glass

with a protective coating. Do not

clean them with a dry or abrasive
cloth, nor with a detergent or sol-
vent product.
Use a sponge and soapy water.

CHANGING A BULB

* According to engine.

120

PRACTICAL INFORMATION

3. Side lights (W 5 W).


Remove the protective cover cor-

responding to the faulty bulb.

 Disconnect the connector.
 Remove the bulb and change it.

4. Direction indicators

(PY 21 W amber).



Turn the bulb holder a quarter of

a turn and remove it.

 Change the bulb.

Note

: in certain climatic conditions

(low temperature, humidity), con-

densation inside the headlamp
glass is normal

; it disappears a few

minutes after the lights are switched

on.

5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have
these bulbs changed.



Push the repeater forwards and

release it.



Remove the repeater and change

it.

These can be obtained from a
PEUGEOT dealer.

Amber coloured bulbs, such
as the direction indicators,

must be replaced with bulbs

of identical specii cation and

colour.

Integrated direction indicator side
repeaters.

121

PRACTICAL INFORMATION

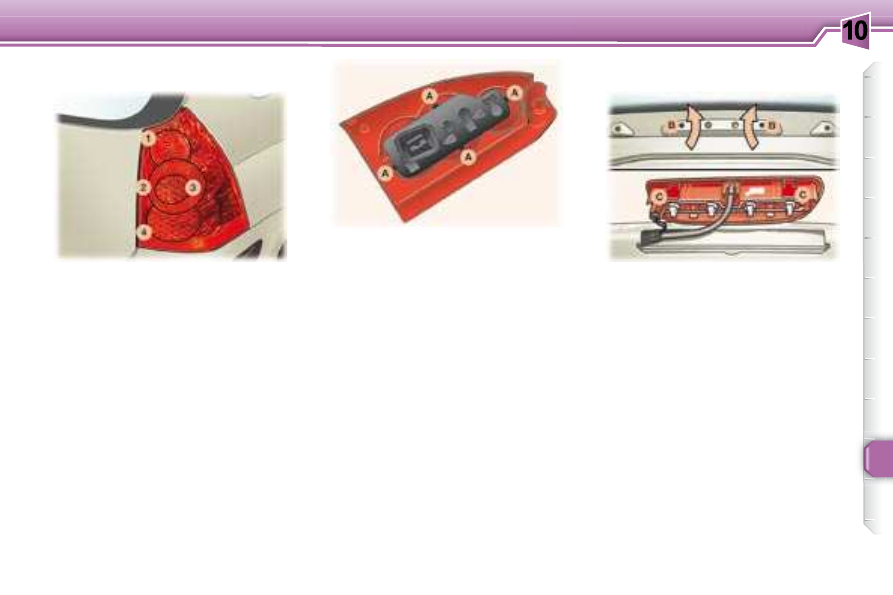

   1.    Brake lights (P 21 W).
  2.    Side lights (x 2) (R 5 W).
  3.    Direction indicators (P 21 W).
  4.    Reversing  light  (P  21 W),  right

side.

Fog lamp (P 21 W), left side.

These 6 bulbs are changed by re-

moving the light:


Remove the corresponding boot

side trim to access the light,



Remove the light i xing nut inside

the boot,



Remove the light i xing nut out-

side the boot,

 Remove the light,


Unclip the harness,



Remove the bulb holder pressing

on the tabs A ,

 Change the faulty bulb.

Note:

if necessary, use the wheel-

brace to remove the nuts.
When rei tting, take care to position

the bulb holder and the light correctly.



Remove the tailgate upper trim

carefully by unclipping it on either

side, perpendicular to its direction

of engagement.



Insert a screwdriver into the two

outer holes B

to press on the two

tabs C .



Push the light unit outwards while

maintaining the pressure on the

tabs.



Pull the light unit outwards while

tilting it.

 Change the faulty bulb.


When rei tting, ensure that the

light unit tabs are engaged cor-

rectly and that the tailgate upper

trim has been put back in place

correctly.

Number plate lights (W 5 W)



Insert a thin screwdriver into one

of the external holes of the lens.



Push it outwards to unclip it.

 Remove the lens.
 Change the faulty bulb.

Third brake light: 4 W 5 W
bulbs.

Rear lights

122

PRACTICAL INFORMATION

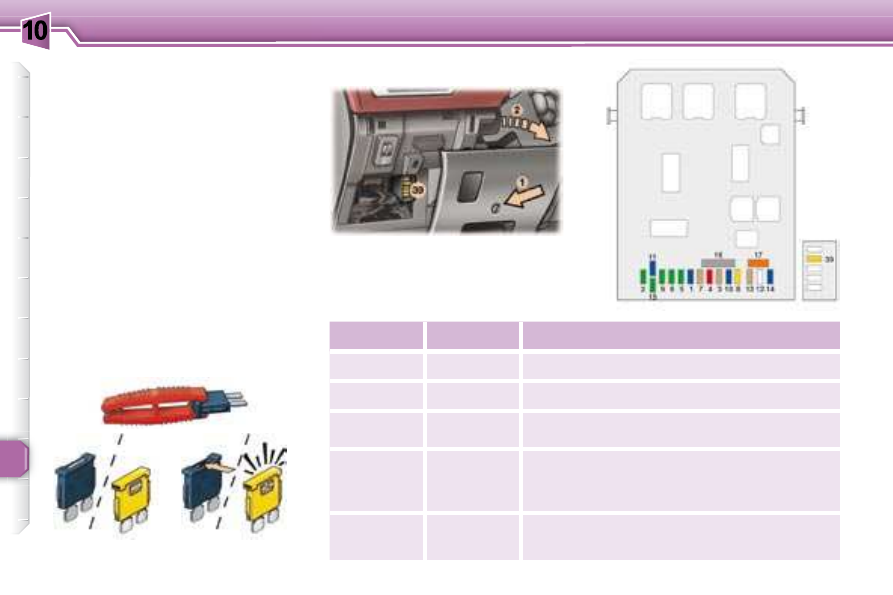

CHANGING A FUSE

The fuse boxes are placed in the

lower part of the fascia (driver's side)

and in the engine compartment (left-

hand side).

Correct

Incorrect



Unscrew the bolt a quarter of a

turn using a coin (1), then unclip

the l ap, pulling at the top right

(2).

Replacing a fuse

Before replacing a fuse, the cause of

the incident must be found and recti-

i ed. The fuse numbers are indicated

on the fuse box.

Always replace a faulty fuse with a fuse

of the same rating (same colour).
Use the special pliers located on the

inside of the fascia fuse box cover,

this support also contains the re-

placement fuses.

Fascia fuses

Fuse N°

Rating

Functions

15 A

Rear wiper.

30 A

Locking and deadlocking.

5 A

Air bags and pre-tensioners unit.

10 A

Brake and clutch pedals switch, engine coolant

level switch, steering wheel angle sensor,

diagnostic socket, ESP sensor, electrochromatic

mirror, particle emission i lter pump.

30 A

Front electric windows and panoramic roof

concealing shutter supply, heated mirrors.

122

PRACTICAL INFORMATION

CHANGING A FUSE

The fuse boxes are placed in the

lower part of the fascia (driver's side)

and in the engine compartment (left-

hand side).

Correct

Incorrect



Unscrew the bolt a quarter of a

turn using a coin (1), then unclip

the l ap, pulling at the top right

(2).

Replacing a fuse

Before replacing a fuse, the cause of

the incident must be found and recti-

i ed. The fuse numbers are indicated

on the fuse box.

Always replace a faulty fuse with a fuse

of the same rating (same colour).
Use the special pliers located on the

inside of the fascia fuse box cover,

this support also contains the re-

placement fuses.

Fascia fuses

Fuse N°

Rating

Functions

15 A

Rear wiper.

30 A

Locking and deadlocking.

5 A

Air bags and pre-tensioners unit.

10 A

Brake and clutch pedals switch, engine coolant

level switch, steering wheel angle sensor,

diagnostic socket, ESP sensor, electrochromatic

mirror, particle emission i lter pump.

30 A

Front electric windows and panoramic roof

concealing shutter supply, heated mirrors.

123

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

30 A

Rear electric windows supply.

5 A

Front and rear courtesy lights, map reading lights, glove box light, concealing shutter

control.

20 A

Audio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, trailer

fusebox, steering wheel stalks supply.

30 A

Front 12 V socket, rear 12 V socket.

F10

15 A

Automatic gearbox control unit, STOP switch, tyre under-inl ation detection control unit.

F11

15 A

Diagnostic socket, low current ignition switch, particle emission i lter unit.

F12

15 A

Rear parking assistance.

F13

5 A

Engine fusebox supply, rain and brightness sensor.

F14

15 A

Trailer fusebox, instrument panel, automatic air conditioning, air bags and pre-tensioners

unit, hands-free kit.

F15

30 A

Locking and deadlocking supply.

F16

PARC shunt.

F17

40 A

Heated rear screen.

F39

20 A

Driver and passenger heated seats.

124

PRACTICAL INFORMATION

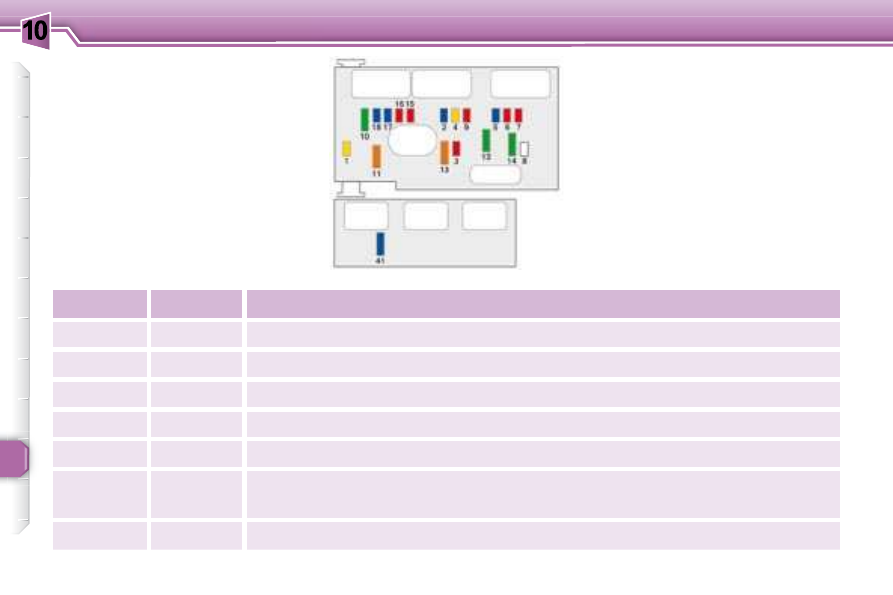

Engine compartment fuses

To access the fuses located in the

engine compartment (next to the bat-

tery), unclip the fuse box lid.

When you have i nished, close the lid

carefully to guarantee the sealing of

the fuse box.

Fuse N°

Rating

Functions

20 A

Engine control unit and fan assembly high speed relays supplies.

15 A

Horn.

10 A

Front and rear wash-wipe.

20 A

Headlamp wash.

15 A

Fuel pump and purge canister solenoid valve (2 litre petrol).

10 A

Four speed automatic gearbox control unit, automatic gearbox lever locking control, push

control switch, fan assembly high speed relay, right and left xenon headlamps.

10 A

ABS/ESP control unit, power steering electropump assembly control unit.

125

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

25 A

Starter control.

10 A

Additional heating unit (Diesel), coolant level switch.

F10

30 A

Engine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units,

injectors, heaters), purge canister solenoid valve (1.6 litre petrol).

F11

40 A

Air conditioning blower.

F12

30 A

Windscreen wipers low/high speed.

F13

40 A

Built-in system interface supply (ignition positive).

F14

30 A

Air pump (2 litre petrol).

F15

10 A

Right main beam headlamp.

F16

10 A

Left main beam headlamp.

F17

15 A

Left dipped headlamp.

F18

15 A

Right dipped headlamp.

F41

15 A

Six speed automatic gearbox control unit.

126

PRACTICAL INFORMATION

* The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT dealer.

The electrical system of your vehicle is designed to operate with standard or optional equipment.

Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer.

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctions

resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in

accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected

exceeds 10 milliamperes.

Fuse N°

Rating

Functions

MF1 *

30 A

200 W fan assembly.

50 A

400 W and 460 W fan assembly.

MF2 *

30 A

ABS/ESP pump.

MF3 *

30 A

ABS/ESP solenoid valves.

MF4 *

80 A

Built-in systems interface supply.

MF5 *

80 A

Built-in systems interface supply.

MF6 *

80 A

Passenger compartment fuse box.

MF8 *

70 A

Power steering electropump assembly.

PRACTICAL INFORMATION

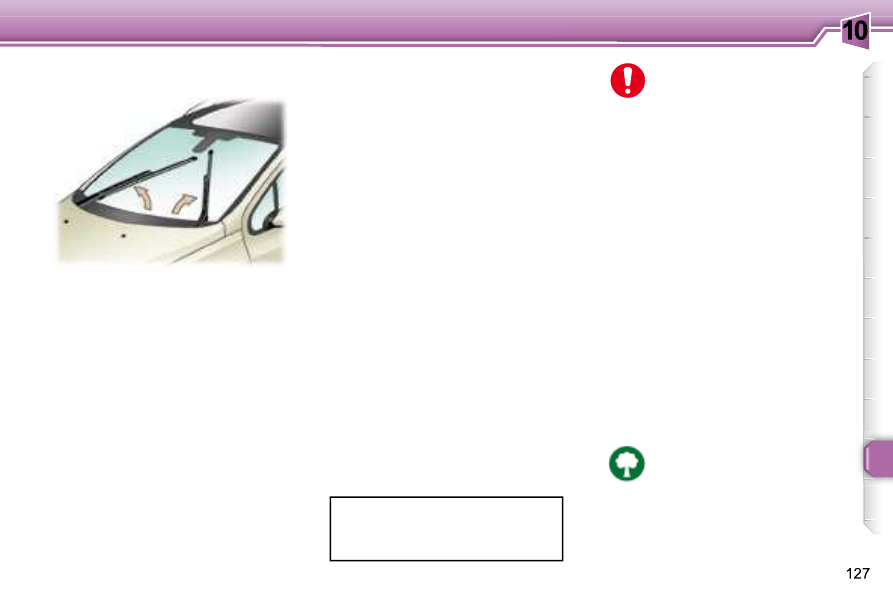

Special front windscreen
wiper position



Within one minute of switching off

the ignition, operate the wipers

stalk to position the wiper blades

in the centre of the windscreen

(maintenance position).

Changing a wiper blade



Lift the wiper arm, then unclip the

blade and remove it.



Fit the new blade and push back

the arm.

Note:

the shortest blade is i tted on

the vehicle's right-hand windscreen

wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.

BATTERY

To charge the battery using a
battery charger:

- Disconnect the battery starting

with the negative (-) terminal,

- Follow the instructions for use

given by the battery charger man-

ufacturer,

- Check that the terminals and

connectors are clean. If they are

covered with sulphate (white or

greenish deposit), disconnect

them and clean them,

- Reconnect starting with the nega-

tive (-) terminal.

Before

disconnecting

the

battery, you must wait for

2 minutes after switching off

the ignition.

Never disconnect a terminal when

the engine is running.
Never charge a battery without i rst

disconnecting the terminals.
Close the windows and the roof con-

cealing shutter before disconnecting

the battery. If the windows and the

shutter do not operate normally fol-

lowing reconnection of the battery,

they must be reinitialised (see sec-

tion "Reinitialisation of the electric

windows" and "Panoramic roof").

After every reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to allow the

electronic systems to be initialised. If

slight difi culties are experienced af-

ter this, please contact a PEUGEOT

dealer.
Following disconnection of the bat-

tery, the remote control key and the
GPS satellite navigation system must

be reinitialised (see corresponding

section).

  It is advisable to disconnect the
battery if the vehicle is not to be
used  for  a  period  of  more  than
one month.

To start the vehicle from
another battery:

- Connect the red cable to the posi-

tive (+) terminals of the two bat-

teries,

- Connect one end of the green or

black cable to the negative (-) ter-

minal of the slave battery,

- Connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery,

- Operate the starter, let the engine run,

- Wait for the engine to return to

idle, then disconnect the cables.

The batteries contain harm-

ful substances such as sul-

phuric acid and lead. They

must be disposed of in ac-

cordance with regulations and must

never be discarded with household

waste.

Take used remote control and vehi-

cle batteries to an approved collec-

tion point.

CHANGING A WINDSCREEN
WIPER BLADE

Content .. 7 8 9 10 ..
