VISIBILITY

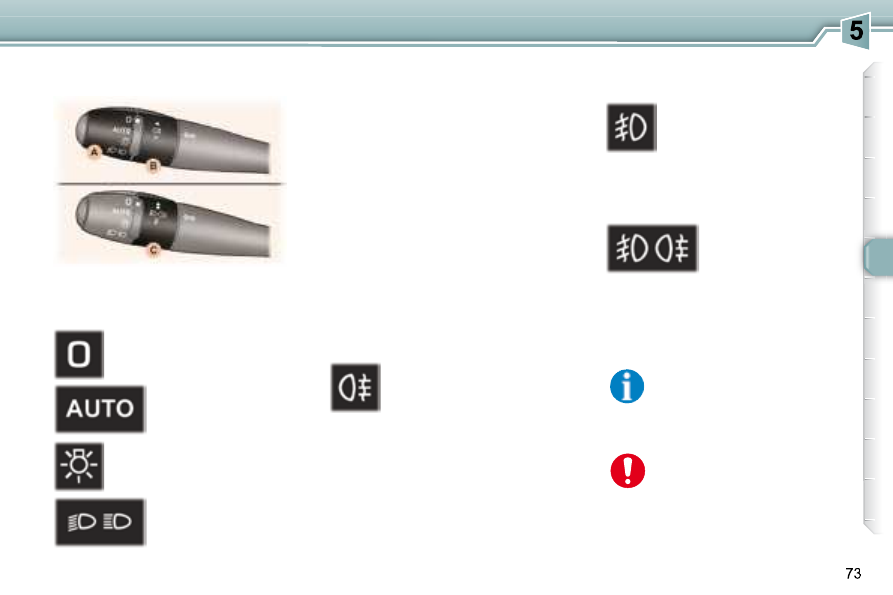

Front and rear lights (ring A)

 Place ring A in the required

position.

Dipped/Main beam change
 Pull the stalk towards you.

Vehicles i tted with front fog

lamps and a rear fog lamp

(ring C)

Lights off

Side lights

Dipped/main beam
headlamps

Rear fog lamp

Front fog lamps ( i rst rota-

tion of the ring forwards)

Front  and  rear  fog
lamps  (2 nd   rotation
of the ring forwards).
  Note:   to  switch  off
the  rear  fog  lamp

and the front fog lamps, turn the ring
backwards twice in succession.

Vehicles i tted with a rear fog

lamp (ring B)

This  operates  with  the  dipped/main
beam headlamps.
  Note:  when the lights are switched off
automatically,  the  rear  fog  lamp  and
the dipped headlamps will remain on.
Turn the ring backwards to switch off

the rear fog lamp. The dipped head-

lamps will then be switched off.

The front fog lamps operate with

the side lights and the dipped head-

lamps.

Front fog lamps and rear fog

lamp

 Turn ring B or C forwards to switch

on and backwards to switch off.

The status is coni rmed by the

indicator light on the instrument
panel .

   Lights on buzzer
With the ignition off and the automatic
switching on of the lights deactivated,
when  the  driver's  door  is  opened,  a
buzzer  sounds  to  warn  you  that  you
have left your lights on.

The rear fog lamp will be de-

activated automatically when

towing or when a bicycle car-

rier i tted with a fog lamp is

i tted.

LIGHTS STALK

In good or rainy weather, both
day and night, the front fog
lamps and the rear fog lamp are
dazzling and are prohibited.

Do not forget to switch them off when
they are no longer needed.

Automatic switching
on of the lights

VISIBILITY

Automatic switching on of the

lights

Side lights and dipped beam head-

lamps  switch  on  automatically  if  the
light is poor, or during operation of the
windscreen  wipers.  They  switch  off
as  soon  as  the  light  becomes  bright
enough  or  the  windscreen  wipers
stop.
  Note:   in  foggy  weather  or  in  snow,

the brightness sensor can detect suf-

i cient light. As a consequence, the

lights will not come on automatically.

Deactivation
 Turn ring A to a position other

than "AUTO"

. Switching off is ac-

companied by a message on the
multifunction display.

If the brightness sensor does not

function correctly, the lights come on

accompanied by the service warning

light, an audible signal and a mes-

sage on the multifunction display.
Contact a PEUGEOT dealer.

Manual "Follow-me-home" lighting

When the automatic switching

on of the lights function is deac-

tivated , the side lights and dipped

headlamps remain on for the dura-

tion selected for the automatic "fol-

low-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights

function , when you leave your vehicle,

the side lights and dipped headlamps
remain on for thirty seconds.

Direction indicators

(l ashers)

Left: downwards.
Right: upwards.

Note:

if you forget to cancel the di-

rection  indicator,  the  volume  of  the
audible  signal  will  increase,  if  you
are  driving  at  a  speed  greater  than
50 mph (80 km/h).

Automatic "Follow me home"

lighting
With the ignition off, when you leave
your vehicle with the automatic

switching on of the lights function

activated , the side lights and dipped
headlamps remain on for the selected
duration.

   Activation:
      switch off the engine,
  

"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,
60 seconds), via the multifunction

display coni guration menu, except

in the case of the monochrome
screen A

for which it is pre-set.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

posi-

tion. The automatic lighting is ac-

companied by a message on the
multifunction display.

Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen, behind

the interior mirror. It is used for the
automatic switching on of the lights.

VISIBILITY

Automatic switching on of the

lights

Side lights and dipped beam head-

the brightness sensor can detect suf-

i cient light. As a consequence, the

lights will not come on automatically.

Deactivation
 Turn ring A to a position other

than "AUTO"

. Switching off is ac-

companied by a message on the
multifunction display.

If the brightness sensor does not

function correctly, the lights come on

accompanied by the service warning

light, an audible signal and a mes-

sage on the multifunction display.
Contact a PEUGEOT dealer.

Manual "Follow-me-home" lighting

When the automatic switching

on of the lights function is deac-

tivated , the side lights and dipped

headlamps remain on for the dura-

tion selected for the automatic "fol-

low-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights

function , when you leave your vehicle,

the side lights and dipped headlamps
remain on for thirty seconds.

Direction indicators

(l ashers)

Left: downwards.
Right: upwards.

Note:

if you forget to cancel the di-

rection  indicator,  the  volume  of  the
audible  signal  will  increase,  if  you
are  driving  at  a  speed  greater  than
50 mph (80 km/h).

Automatic "Follow me home"

lighting
With the ignition off, when you leave
your vehicle with the automatic

switching on of the lights function

activated , the side lights and dipped
headlamps remain on for the selected
duration.

   Activation:
      switch off the engine,
  

"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,
60 seconds), via the multifunction

display coni guration menu, except

in the case of the monochrome
screen A

for which it is pre-set.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

posi-

tion. The automatic lighting is ac-

companied by a message on the
multifunction display.

Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen, behind

the interior mirror. It is used for the
automatic switching on of the lights.

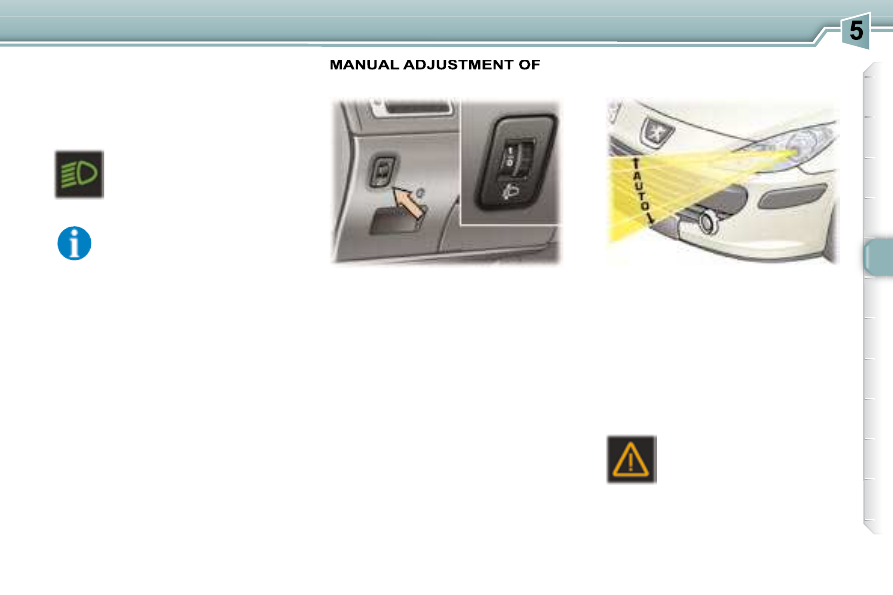

VISIBILITY

For  vehicles  fitted  with  halogen
bulbs, depending on the load in your
vehicle,  adjusting  the  beam  of  your
headlamps is recommended.
  0.    1 or 2 people in the front

seats.

-.    3 people.
  1.   5 people.
      2.

5 people + maximum authorised

loads.

Driver + maximum authorised

loads.

Initial setting is position 0.

On vehicles with xenon bulbs:

when stationary , the system auto-

matically corrects the height of the
beam, whatever the load of the vehicle.
The driver is then assured of having
optimum lighting and not causing a
nuisance to other road users.

In cases of malfunction ,

the service warning light
comes on on the instrument
panel, accompanied by an

audible signal and a mes-

sage on the multifunction display.
The system places your headlamps
to the low position.
Do not touch the xenon bulbs. Con-

tact a PEUGEOT dealer.

Daytime lights *

On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.

The instruments and controls

(instrument panel, multifunc-

tion display, air conditioning
control panel, ...) are only lit

on switching to the automatic switch-

ing on of the lights mode or when the
lights are switched on manually.

This warning light comes
on on the instrument panel.

THE HEADLAMPS

AUTOMATIC HEADLAMP
ADJUSTMENT

* According to country.

VISIBILITY

Special position of the front

windscreen wiper
In  the  minute  following  switching  off
of the ignition, any action on the stalk
positions  the  wipers  in  the  centre  of
the windscreen.
This  action  enables  you  to  position
the  wiper  blades  for  winter  parking,
cleaning or replacement (See section

"Practical information - Changing a

wiper blade").
To park the wipers after this has been

done, switch on the ignition and ope-

rate the stalk.

Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate

for a i xed period.

The headlamp wash is also activa-

ted,

if the headlamps are on.

WINDSCREEN WIPER STALK

Fast wipe
(heavy rain).

Normal wipe
(moderate rain).

Intermittent wipe.

Off.

AUTO  Automatic or single wipe

(press downwards).

In the  I ntermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In   AUTO   mode,  the  wiping  speed  is
in  proportion  to  the  intensity  of  the

rainfall. The i rst press of the stalk

downwards activates the automatic
wipe.
Subsequent presses trigger a single
wipe.

Front windscreen wiper with

intermittent wipe

2 Fast wipe

(heavy rain).

1 Normal wipe

(moderate rain).

Intermittent wipe.

0 Off.
 Single wipe

(press downwards).

In the I

ntermittent position, the wip-

ing speed is in proportion to the ve-

hicle speed.

Front windscreen wiper with

automatic wipe

VISIBILITY

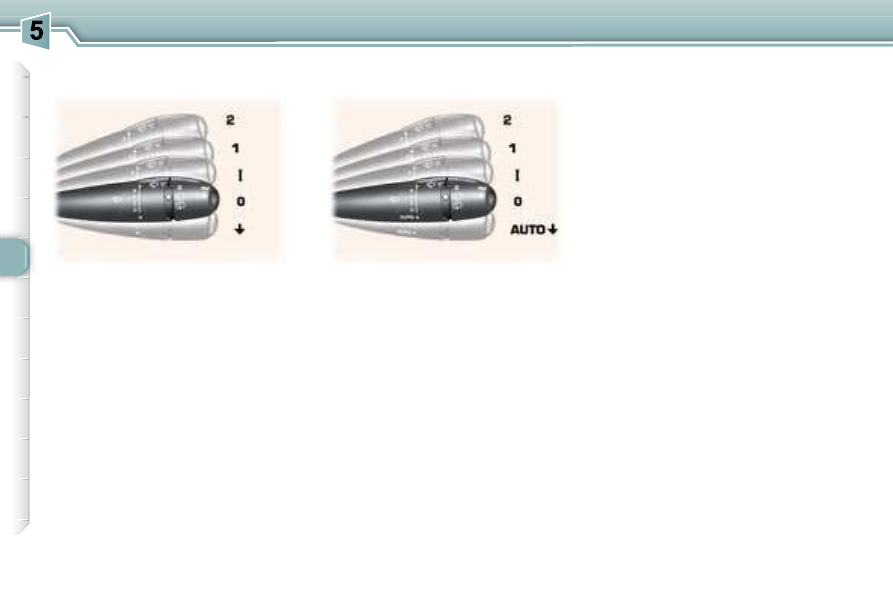

Automatic windscreen

wipers

In AUTO

mode, the windscreen wip-

ers operate automatically and adapt

their speed to the intensity of the

rainfall .

Do not cover the rain sensor
located on the windscreen
behind the interior mirror.

When using an automatic car wash,
switch off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

REAR WINDSCREEN WIPER

To activate or deactivate

this function, go to the multi-

function display coni gura-

tion menu.
If there is a signii cant ac-

cumulation of snow or ice and when
using a bicycle carrier on the tailgate
(estate), deactivate the automatic

rear wiper by going to the multifunc-

tion display coni guration menu.

Rear windscreen wash

Deactivation
Deactivation of the function is ac-

companied  by  a  message  on  the
multifunction display.
The function is deactivated when the
windscreen wipers stalk is moved to
position  I ,  1  or  2 .

In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

Turn ring A

past the i rst

notch; the windscreen wash
then the windscreen wiper

operate for a i xed period.

Turn ring A

to the i rst notch

for intermittent wiping.

When reverse gear is en-

gaged, if the windscreen
wipers are in operation, the

rear wiper starts .

The automatic windscreen

wipers function must be re-

activated if the ignition has

been switched off for more

than one minute, by pres-sing the

stalk downwards.

VISIBILITY

Automatic windscreen

wipers

In AUTO

mode, the windscreen wip-

ers operate automatically and adapt

their speed to the intensity of the

rainfall .

Do not cover the rain sensor
located on the windscreen
behind the interior mirror.

When using an automatic car wash,
switch off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

REAR WINDSCREEN WIPER

To activate or deactivate

this function, go to the multi-

function display coni gura-

tion menu.
If there is a signii cant ac-

cumulation of snow or ice and when
using a bicycle carrier on the tailgate
(estate), deactivate the automatic

rear wiper by going to the multifunc-

tion display coni guration menu.

Rear windscreen wash

Deactivation
Deactivation of the function is ac-

companied  by  a  message  on  the
multifunction display.
The function is deactivated when the
windscreen wipers stalk is moved to
position  I ,  1  or  2 .

In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

Turn ring A

past the i rst

notch; the windscreen wash
then the windscreen wiper

operate for a i xed period.

Turn ring A

to the i rst notch

for intermittent wiping.

When reverse gear is en-

gaged, if the windscreen
wipers are in operation, the

rear wiper starts .

The automatic windscreen

wipers function must be re-

activated if the ignition has

been switched off for more

than one minute, by pres-sing the

stalk downwards.

VISIBILITY

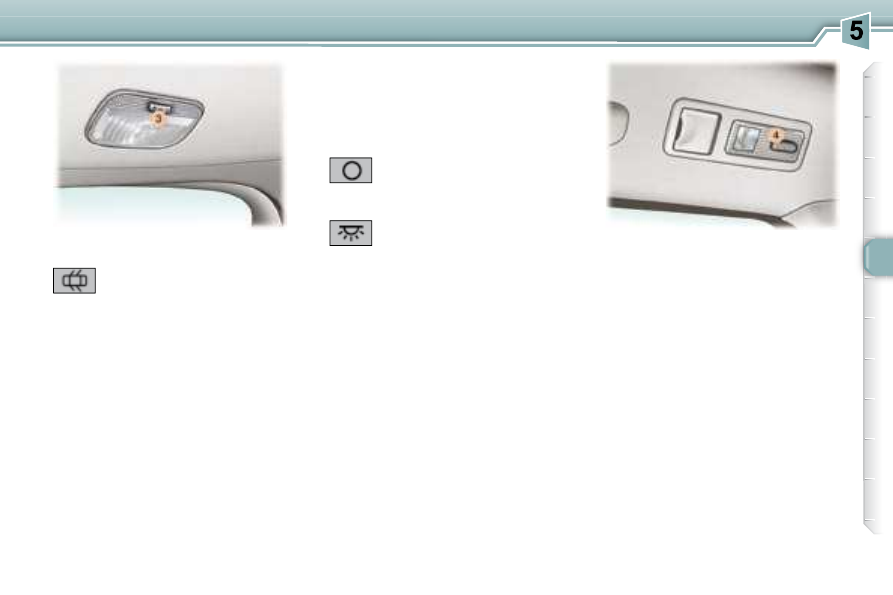

1. Front courtesy light

2. Map reading lights

Permanently off.

Permanently on.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

In this position, the courtesy

light comes on automatically:

- when the vehicle is unlocked,

- when the key is removed from the

ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

Different lighting times are available:

- with the ignition off or on, approxi-

mately 10 minutes,

- in economy mode, approximately

30 seconds,

- when the engine is running, no

limit.

With the ignition on, press the
corresponding switch.

COURTESY LIGHTS

VISIBILITY

3. Rear courtesy light

Note:

on the saloon, the front cour-

tesy  light  (in  the  "permanently  on"
position)  forces  the  switching  on  of
the rear courtesy light if the switch is
in the central position.
To  switch  off  the  rear  courtesy  light,
place the switch in the "permanently
off" position.

In this position, the courtesy

light comes on automatically:

- when the vehicle is unlocked,

- when the key is removed from the

ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

Permanently off.

Permanently on when the
ignition is on (function not
available in economy mode).

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

4. Rear reading lights (estate)
The reading light comes on:

- when the vehicle is unlocked,

- when the key is removed from the

ignition,

- when a door is opened,

- when the vehicle location function

is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds after

the last door is closed.

With the ignition on (function not avail-

able  in  economy  mode),  press  the
switch to obtain permanent lighting.
Press  the  switch  again  to  switch  the
reading light off.

LAYOUT

With the ignition on, the mirror is

automatically lit up when the l ap is

opened.

The front courtesy light and a spectacles

holder are i tted in the roof console.
To open or close the spectacles hol der,
press the recess in the cover.

The athermic windscreen has two

non-rel ective zones located either

side of the base of the interior mirror.
They are intended for afi xing toll

cards and/or car park tickets.

SUN VISOR WITH ILLUMINATED
COURTESY MIRROR

THE ROOF CONSOLE

AREAS FOR TOLL CARDS/
CAR PARK TICKETS

LAYOUT

INTERIOR LAYOUT

  2.    Front ashtray
Pull the lid to open the ashtray.
To  empty  it  after  opening,  press  the
tab and remove the ashtray.

3. Storage

4. 12 volt socket (100 W max)
This is a lighter type socket, i tted

with a cap. It is supplied with current
from the running position.

5. Door tray

6. Storage/Can holder

7. Coin storage

  8.    Waste container
To  empty  this,  open  it  fully  (past  the
point  of  resistance)  then  pull  on  the
receptacle to remove it.
To rei t, lock it in place on the cover.

It   contains   three sockets *   B  for con-
necting video equipment.
The layout allows storage of a water
bottle,  a  pen,  the  vehicle  handbook,
a pair of spectacles, tokens, etc.

1. Glove box with cooling facility
This is i tted with a lock.

To open the glove box, lift the handle.

The glove box lights when the lid is

opened.
It has a ventilation nozzle that can

be  closed   A ,  distributing  the  same
cooled  air  as  the  vents  of  the  pas-
senger compartment.

* With colour display only.

LAYOUT

When i tting the mat for the i rst time,

use only the i xings supplied in the

wallet attached.
When removing the mat on the driver's
side:
-

push the seat as far back as pos-
sible,

- unscrew the i xings fully,

- remove the i xings, then the mat.

FITTING/REMOVING THE
MAT

When rei tting, position the

mat correctly and replace the

i xings by pressing them in.

Ensure  that  the  mat  is  secured  cor-
rectly.
To  avoid  any  risk  of  jamming  of  the
pedals:
   -

ensure that the mat is positioned
correctly.

- never i t one mat on top of another.

 Lower the armrest to access the

storage shelf on the seat back.

 Lift the lid. It contains a storage

tray as well as two can holders
and two pen holders.

REAR ARMREST
(SALOON AND ESTATE)

LAYOUT

For further details, refer to the
operating manuals "Video kit
operation" and "VMA8582
7 inch LCD colour monitor".

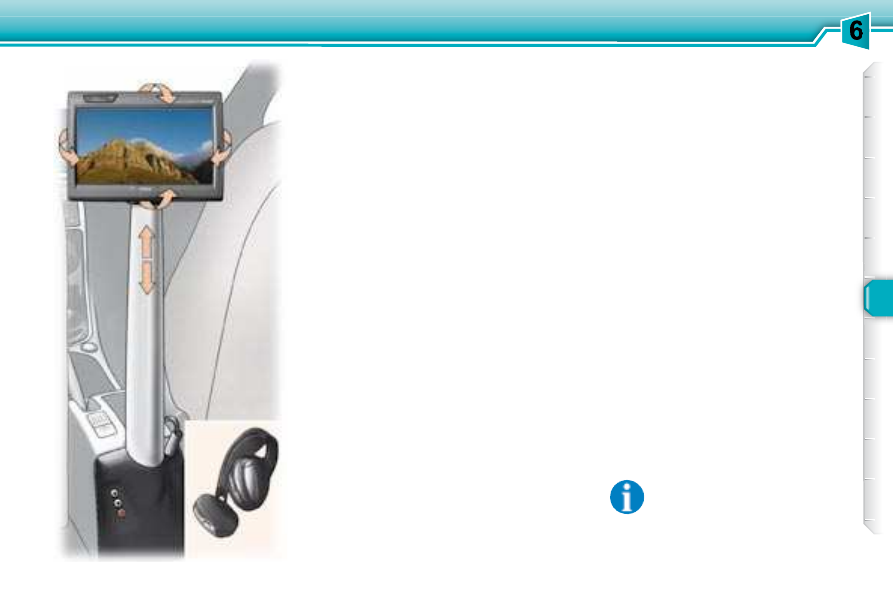

ENTERTAINMENT SCREEN KIT

This  video  assembly  will  enable  the
rear  passengers  to  pass  the  time
pleasantly  while  watching  their  fa-

vourite i lm or playing their favourite

game, by means, in particular, of the
connection of a DVD player or games

console to the central support, i tted

between the front seats.

The entertainment screen kit consists of:
-

a 16/9 ths , 7 inch, LCD colour mon-
itor with direction adjustment in the

three axes,

two high frequency, wireless,
stereo headphones,

a removable support,

three audio/video sockets on the

i xed base and in the glove com-

partment.

The monitor and the support can be
removed  and  stored,  each  in  their
own protective cover.
The entertainment screen kit accepts
all  types  of  audio/video  source,  PAL/
NTSC  compatible,  such  as:  DVD
player, camcorder, games console, ...
These sources are connected to the
three audio/video sockets,  AV1  in the
glove  compartment  or   AV2   on  the

i xed base.

LAYOUT

LAYOUT

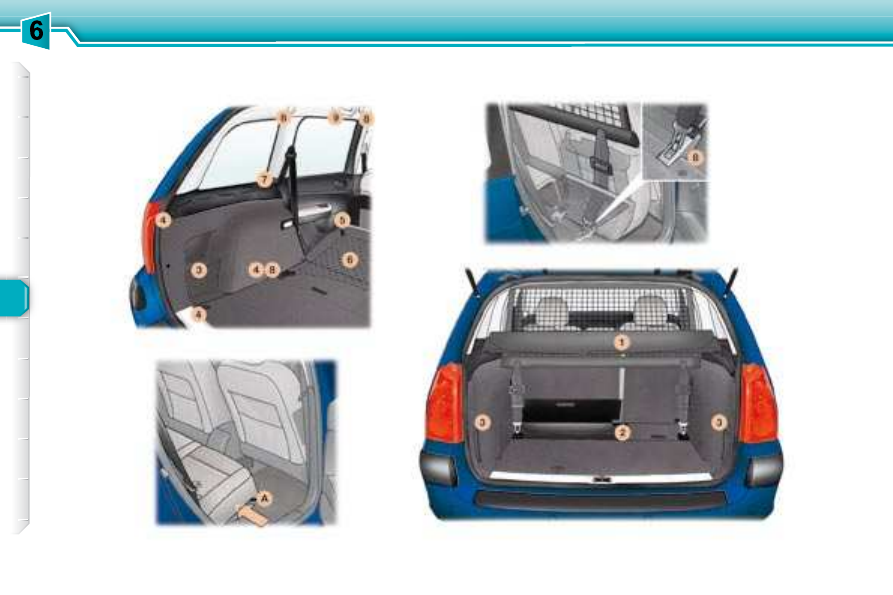

1. Rear parcel shelf
To remove the shelf:
-

unhook the two strings,

slightly raise the shelf, then remove it.

The shelf can be stored:
-

either behind the front seats,

or behind the rear seat.

2. Hooks

3. Stowing rings

4. Luggage retaining net
Hooked onto the stowing rings, this
enables your luggage to be secured.

5. Open storage trays

  6.   12 volt socket (100 W max)
This is a lighter type socket, installed
on  the  left-hand  side  of  the  parcel
shelf.
It  is  supplied  from  the  "Running"
position.

BOOT LAYOUT
(SALOON)

LAYOUT

Content .. 4 5 6 7 ..
