Peugeot 307 Dag (2007.5). Instruction - part 4

COMFORT

The air conditioning only operates
when the engine is running.

When the engine is cold, to prevent
too great a distribution of cold air, the

air l ow will reach its optimum level

gradually.

The driver and his front
passenger can each adjust
the temperature to their re-
quirements.
The value indicated on the

display corresponds to a level of com-
fort  and  not  to  a  temperature  in  de-
grees Celsius or Fahrenheit.
Turn  control   2   or   3   to  the  left  or  to
the  right  respectively  to  decrease  or
increase this value.
A setting around the

value 21 provides

optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.

For optimum comfort, you are advised
to avoid a left/right setting difference
of more than 3.
For maximum cooling or heating of the
passenger compartment, it is possible
to go below the value 15 by turning until

"LO" is displayed or above the value

27 by turning until

"HI" is displayed.

4. Automatic visibility

programme

The automatic comfort pro-
gramme may not be suf-

i cient to quickly demist or

de-ice the windscreen and
side windows (humidity, sev-

eral passengers, ice, etc.).
In this case, select the automatic vis-
ibility programme.
The system automatically controls

the air conditioning, the air l ow and

the  air  intake  and  provides  optimum
distribution  of  the  ventilation  to  the
windscreen and side windows.
To switch it off, press button  4  again
or press the

"AUTO" button, the but-

ton’s indicator light switches off and

"AUTO" is displayed.

Automatic operation

1. Automatic comfort programme

Press the

"AUTO" button.

The

"AUTO" symbol is dis-

played.
We recommend the use of
this mode: it permits auto-

matic and optimised adjustment of
all of the functions, passenger com-

partment temperature, air l ow, air

distribution and air recirculation, in
accordance with the comfort value
that you have chosen. This system is
designed to operate effectively in all
seasons, with the windows closed.

2. Driver’s side adjustment
3. Passenger side adjustment

On entering the vehicle, if
the interior temperature is
much colder or warmer than
the comfort value, there is no

need  to  change  the  value  displayed
in  order  to  obtain  the  comfort  re-
quired.  The  system  corrects  the  dif-
ference in temperature automatically
and as quickly as possible.

DUAL ZONE AUTOMATIC AIR CONDITIONING

COMFORT

Manual operation

If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The other
functions will still be controlled auto-
matically. Pressing the

"AUTO" but-

ton returns the system to completely
automatic operation.

Press this button to stop air
cooling.
Avoid prolonged use of this
mode (risk of condensation,
odour, humidity).

Press  this  button  again  as  soon  as
possible  to  return  to  automatic  op-
eration  of  the  air  conditioning.  The
symbol " A/C " is displayed.

6. Air distribution adjustment

Pressing this button sev-
eral times in succession

enables the air l ow to be

directed in turn towards:

the windscreen and side windows
(de-icing or demisting),

the windscreen, the side windows
and the footwells,

the footwells,

the centre vents, the side vents
and the footwells,

the centre and side vents.

7. Air l ow adjustment

Press the

"small fan" or "large fan"

button respectively to decrease or in-

crease the l ow of air.

The air l ow symbol, the fan, i lls pro-

gressively in relation to the value re-
quired.

8. Air intake/Air recirculation

9. Demisting the rear screen and

the mirrors

Press  this  button  for  recir-
culation  of  the  interior  air.
The air recirculation symbol
8  is displayed.

Air recirculation enables the passen-
ger compartment to be isolated from
exterior odours and smoke.
Avoid prolonged recirculation of interior
air (risk of condensation and deteriora-
tion of the air quality).
As soon as possible, press this button
again  to  permit  the  intake  of  outside
air and prevent condensation.

5. Air conditioning On/Off

Press  this  button  to demist
the rear screen and the ex-
terior  mirrors.  The  button
9  indicator light comes on.

Demisting switches off automatically
to prevent an excessive consumption
of  current.  It  is  possible  to  stop  op-
eration  of  the  demisting  before  it  is
switched  off  automatically  by  press-
ing the button again.

10. Switching the system off
Press the

"small fan" button of the air

l ow  7  until the fan symbol disappears.
This  action  switches  off  all  of  the
functions of the air conditioning sys-
tem, with the exception of the demist-
ing of the rear screen  9 .
Temperature  related  comfort  is  no

longer guaranteed but a slight l ow of

air, due to the movement of the vehicle,
can still be felt.
Pressing the

"large fan" button of the

air l ow 7 again or the AUTO button

reactivates the system with the values
set before it was switched off.

COMFORT

In certain cases of particularly
arduous use (towing the maxi-
mum load on a steep gradient
in high temperatures), switch-

ing off the air conditioning permits the
recovery of engine power and therefore
an increase in the towing capacity.
In order for the air conditioning to be
fully  effective,  the  windows  must  be
closed.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate  the  air  conditioning  for  5  to
10 minutes, once or twice a month, to
keep it in good working order.
The  water  produced  by  the  air  con-
ditioning condensation is discharged
through an opening provided for this
purpose. Therefore, a puddle of wa-
ter may form underneath the vehicle
when stationary.
In  order  to  ensure  that  the  air  condi-
tioning system operates correctly, reg-
ular checks are also recommended.
If  the  system  does  not  produce
cold  air,  do  not  use  it  and  contact  a
PEUGEOT dealer.

COMFORT

Electric exterior mirrors

Adjustment
 Slide switch A to the right or to

the left to select the correspond-
ing mirror.

 Move knob B in all four directions

to adjust.

 Return switch A to the centre po-

sition.

Folding
-

from inside:

 with the ignition on, pull switch

A rearwards.

from outside:

 lock the vehicle using the re-

mote control or the key.

      Note:  if the mirrors are folded using
switch   A ,  they  will  not  unfold  when
the  vehicle  is  unlocked  using  the
remote  control  or  the  key.  Switch   A
must be pulled again.

Unfolding
-

from inside:

 with the ignition on, pull switch

A rearwards.

from outside:

 unlock the vehicle using the re-

mote control or the key.

The  folding  and  unfolding  of
the  exterior  mirrors  can  be
deactivated  by  a  PEUGEOT
dealer.

MIRRORS

Move  the  lever  in  all  four  directions
to adjust.
When  the  vehicle  is  parked,  the  ex-
terior  mirrors  can  be  folded  back
manually.

The exterior mirror on the
driver’s side is convex (out-

er edge dei ned by a dotted

line) in order to eliminate the
"blind spot".

As  a  result,  objects  observed  in  the
driver’s and passenger’s mirrors are
in reality closer than they appear.
This  must  be  taken  into  account  to
correctly  judge  the  distance  of  vehi-
cles approaching from behind.

Manual exterior mirrors

COMFORT

This  automatically  and  gradually
changes  between  the  day  and  night
positions.  To  prevent  dazzling,  the
glass  of  the  mirror  darkens  auto-
matically  depending  on  the  intensity
of  the  light  from  behind.  It  clears  as
the light (headlamps of following ve-
hicles, sunlight) decreases, ensuring
maximum visibility.

Manual interior mirror

The interior mirror has two positions:
-

day (normal),

night (anti-dazzle).

To  change  from  one  to  the  other,
push  or  pull  the  lever  on  the  lower
edge of the mirror.

   Operation
Switch  on  the  ignition  and  press
switch  1 :
   -

Indicator light 2 lit (switch
pressed): automatic operation.

Indicator light 2 off: automatic
system off. The mirror remains at
its most clear.

Special feature
To  ensure  maximum  visibility  during
manoeuvres,  the  mirror  clears  auto-
matically  when  reverse  gear  is  en-
gaged.

 When the vehicle is stationary, un-

lock the steering wheel by pulling
handle A .

 Adjust the height and depth of the

steering wheel.

 Lock it by pushing handle A down

fully.

Automatic day/night interior

mirror

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT

COMFORT

Manual interior mirror

The interior mirror has two positions:
-

day (normal),

night (anti-dazzle).

To  change  from  one  to  the  other,
push  or  pull  the  lever  on  the  lower
edge of the mirror.

   Operation
Switch  on  the  ignition  and  press
switch  1 :
   -

Indicator light 2 lit (switch
pressed): automatic operation.

Indicator light 2 off: automatic
system off. The mirror remains at
its most clear.

Special feature
To  ensure  maximum  visibility  during
manoeuvres,  the  mirror  clears  auto-
matically  when  reverse  gear  is  en-
gaged.

 When the vehicle is stationary, un-

lock the steering wheel by pulling
handle A .

 Adjust the height and depth of the

steering wheel.

 Lock it by pushing handle A down

fully.

Automatic day/night interior

mirror

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT

COMFORT

FRONT SEATS

1. Forwards-backwards

adjustment

Lift the control and slide the seat
forwards or backwards.

2. Driver’s or passenger’s seat

height adjustment

Pull the handle upwards or push it
downwards as many times as neces-
sary to obtain the required position.

3. Seat back angle adjustment
Push the handle towards the rear.

4. Access to rear seats (3 door)
Pull  the  handle  to  fold  the  seat  back
and move the seat forwards. On repo-
sitioning,  the  seat  returns  to  its  initial
position.
  Note:   it  is  also  possible  to  use  con-
trol  3 . Then adjust the angle.

No person or object must
prevent the seat slide from
returning to its initial position;
return to this position is nec-

essary for the seat to lock in place.

COMFORT

5. Head restraint height and angle

adjustment

To  raise  the  head  restraint,  pull  it  up-
wards.
To remove the head restraint, press the lug
A  and pull the head restraint upwards.
To put the head restraint back in position,
locate  the  stems  of  the  head  restraint  in
the holes, taking care to keep them in line
with the seat back.
To lower the head restraint, press the lug  A
and the head restraint at the same time.
The  head  restraint  has  a  frame  with  a
notch  which  prevents  the  head  restraint
from  lowering;  this  is  a  safety  device
which provides protection in the event of
an impact.

To tilt the head restraint, tilt the lower
part forwards or rearwards.

8. Heated seats switch

Never drive with the head re-
straints removed; they must
be in place and correctly ad-
justed.

REAR HEAD RESTRAINTS

These have a high position for when
they are in use and a low position for
when they are stored.
The  head  restraints  can  also  be  re-
moved.
To remove them, pull upwards as far
as the stop then press the lug.

6. Armrests
These  can  be  folded  down  and  are
removable.
To remove them, press the button lo-
cated  between  the  armrest  and  the
side of the seat and pull it.

7. Storage drawers
There is a storage drawer under each
front seat.
-

To open it, lift it and pull.

To take it out, open it to its full extent,
press the ends of the slides and lift
it, then remove it completely.

To put it back in place, with it fully
closed, press on the top of the
drawer to secure it.

Under the front passenger seat, the

layout of the l oor allows for storage

of a i rst aid kit and a warning triangle

(small version).

The adjustment is correct when

the upper edge of the head re-

straint is level with the top of the

head.

Do not place heavy objects
in the drawers.

With  the  engine  running,  press  the
switch. The temperature is controlled
automatically.
Pressing  the  switch  again  stops
operation.
  Note:  the command for activation of
heating of the seat(s) remains mem-
orised for two minutes after the igni-
tion has been switched off.

COMFORT

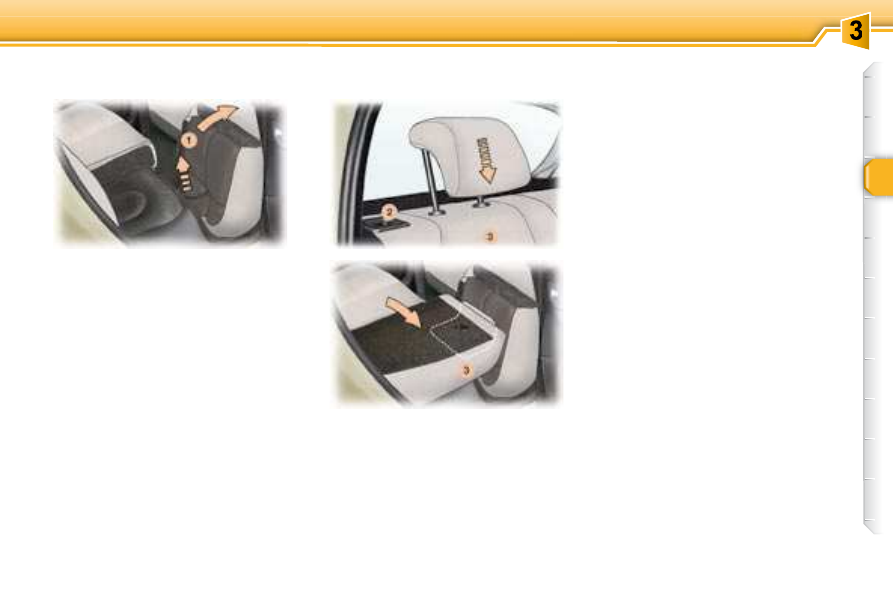

To fold down the rear left seat
(2/3 part) or the right seat (1/3 part),

always start with the seat, never

with the seat back (risk of dam-

age) :
-

move the front seat(s) forward if
necessary,

lift the front of the seat cushion 1 ,

tilt the seat cushion 1 against the
front seat(s),

check that the seat belt is cor-
rectly positioned on the side of
the seat back,

pull control 2 forwards to unlock
the seat back 3 ,

place the head restraints in the
low position,

fold down the seat back 3 .

Note: the seat cushion 1 can be re-
moved to increase the volume of the
load space.
Squeeze the seat cushion i xings to

detach them from their fastenings.

When repositioning:
-

fold up the seat back and lock it
(the red marker of control 2 should
no longer be visible),

fold up the seat.

Take care not to trap the seat belts

and to position the stalks correctly.

REAR SEATS (SALOON)

COMFORT

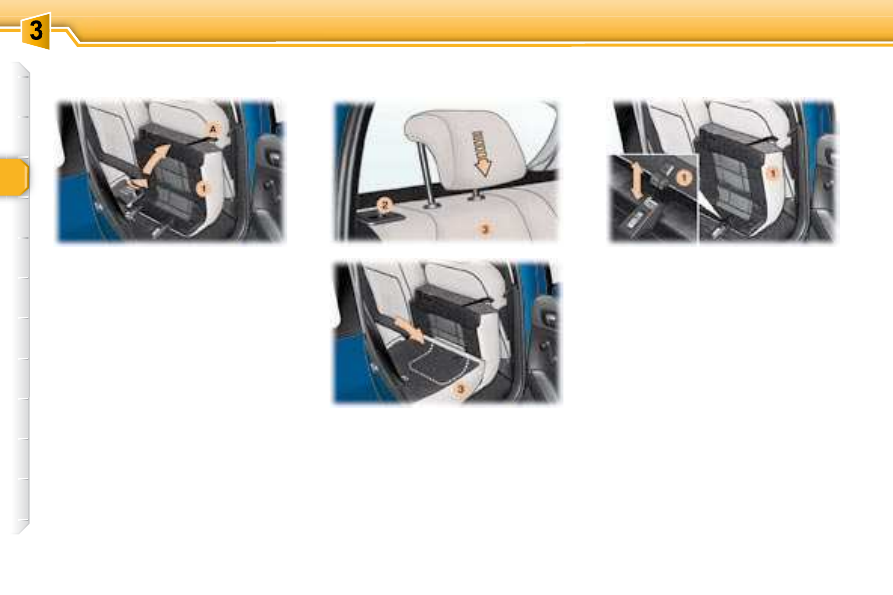

Removing the seat cushion

(position against the front seats):

Take hold of the seat cushion 1 at the

bottom to remove it from its i xings

and pull upwards.

pull control 2 forwards to release
the seat back 3 ,

place the head restraints in the
low position,

tilt the seat back 3 .

Note: the seat cushion 1 can be re-
moved to increase the volume of the
load space.

Folding the seats:

To fold the rear left seat (2/3 section)
or the rear right seat (1/3 section),

al-

ways start with the seat cushion,

never with the seat back (risk of

damage) :
-

move the front seat(s) forward if
necessary,

pull the handle  A  located between
the  seat  cushion   1   and  the  seat
back   3   forwards,  then  pull  it  up-
wards to lift the seat cushion and
tilt it against the front seat(s),

check that the seat belt is posi-
tioned correctly on the side of the
seat back,

REAR SEATS (ESTATE)

Refitting the seat cushion

(position against the front seats):

- i t the seat cushion 1 in its i xings,
-

to lock it, press on the top of the
seat cushion 1 .

Putting the seats back in

position:

fold the seat back and lock it (the
red indicator on control 2 should
no longer be visible),

fold the seat cushion.

Take care not to trap the seat belts

and to position the stalks correctly.

COMFORT

"Forwards-facing"
When a "forwards-facing" child seat
is installed on the

front passenger

seat , adjust the vehicle’s seat to the

intermediate longitudinal position with
the seat back upright and leave the
passenger air bag armed.

INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT

GENERAL POINTS RELATING
TO CHILD SEATS

  Although  one  of  PEUGEOT’s  main
criteria when designing your vehicle,
the  safety  of  your  children  also  de-
pends on you.
For  maximum  safety,  please  follow
these precautions:
   -

in accordance with Directive
2003/20,

all children under the

age of 12 or less than one metre

i fty tall must travel in approved

child seats suited to their weight ,

on seats i tted with a seat belt or

ISOFIX mountings * ,

statistically, the safest seats in

your vehicle for the transpor-

tation of children are the rear

seats,

a child weighing less than 9 kg

must travel in the "rearwards-

facing" position both in the

front and in the rear.

PEUGEOT recommends that chil-

dren should travel in the

rear seats

of your vehicle:
-

"rearwards-facing" up to the

age of 2,

"forwards-facing" over the age

of 2.

* The rules for transporting children are

specii c to each country. Consult the

current legislation in your country.

Intermediate longitudinal

position

"Rearwards-facing"
When a "rearwards-facing" child seat
is installed on the

front passenger

seat , it is essential that the passen-

ger air bag is disarmed. Otherwise,

the child would risk being seri-

ously injured or killed if the air bag

were to inl ate.

COMFORT

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a

three point seat belt :

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children (from 9 to 18 kg),

PEUGEOT recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start"

"KLIPPAN

Optima"

From the age of

6 years

(approximately

22 kg), the

booster is used

on its own.

COMFORT

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a

three point seat belt :

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children (from 9 to 18 kg),

PEUGEOT recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start"

"KLIPPAN

Optima"

From the age of

6 years

(approximately

22 kg), the

booster is used

on its own.

COMFORT

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) depending on the weight of the child and the seat in the vehicle:

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the current legislation in your country before installing your child on this seat.
U : seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or

"forwards facing".

U (R) : identical to U , but the vehicle seat must be adjusted to the highest position.

Seat

Weight of the child /indicative age

Below 13 kg

(groups 0 (b) and

0+)

Up to 1 year approx

9 to 18 kg

(group 1)

1 to 3 years approx

15 to 25 kg

(group 2)

3 to 6 years approx

22 to 36 kg

(group 3)

6 to 10 years approx

Front
passengerseat (c)
- i xed
- height

adjustable (R)

U(R)

Rear side seats

Rear centre seat

COMFORT

ADVICE ON CHILD
SEATS

Children under the age of 10 must not
travel in the "forward facing" position
on  the  front  passenger  seat,  unless
the  rear  seats  are  already  occupied
by other children, cannot be used or
are absent.
Disarm  the  passenger  air  bag  when
a  "rear  facing"  child  seat  is  installed
on the front seat. Otherwise, the child
would  risk  being  seriously  injured  or

killed if the air bag were to inl ate.

Installing a booster seat
The  chest  part  of  the  seat  belt  must
be positioned on the child's shoulder
without touching the neck.
Ensure  that  the  lap  part  of  the  seat
belt passes correctly over the child's
thighs.
PEUGEOT  recommends  the  use  of

a booster seat which has a back, i t-

ted with a seat belt guide at shoulder
level.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the

rays of the sun, i t side blinds on the

rear windows.

The  incorrect  installation  of  a  child
seat  in  a  vehicle  compromises  the
child's  protection  in  the  event  of  an
accident.
Remember to fasten the seat belts or
the child seat harnesses

keeping the

slack in relation to the child's body to

a minimum, even for short journeys.
For  optimum  installation  of  the  "for-
ward  facing"  child  seat,  ensure  that
the back of the child seat is in contact
with  the  back  of  the  vehicle's  seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around  the  vehicle  in  the  event  of
sharp braking.

COMFORT

These are two rings located between
the seat back and the seat cushion.

The ISOFIX child seats are i tted

with two locks which are secured
easily on these rings.

These seats are i tted with ISOFIX

mountings.

This ISOFIX mounting system guar-

antees reliable, safe and fast i tting of

the child seat in your vehicle.

Content .. 2 3 4 5 ..
