Peugeot 307 CC Dag (2007.5). Instruction - part 8

PRACTICAL INFORMATION

Access to the spare wheel and
the jack in the boot


Place the vehicle in the coupé po-

sition.

 Detach the luggage retaining net.
 Lift the boot mat using the handle.

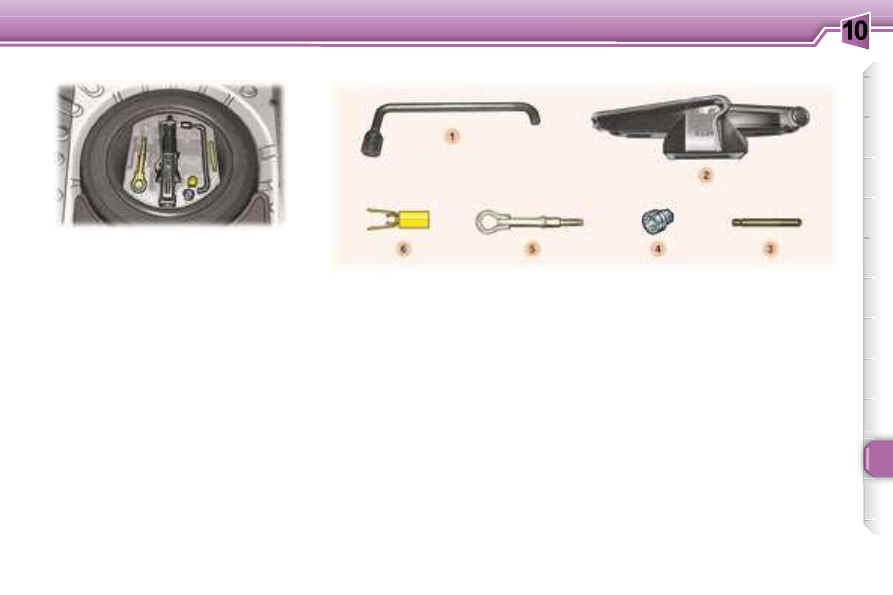

Tools
The following tools are located in

a holder in the centre of the spare

wheel:
1. Wheelbrace.
2.

Jack with handle.

3. Centralising tool.
4.

Socket for anti-theft bolt.

Removable towing eye.

Alloy wheel bolt trim remover.

A diagram on the holder indicates the
location of the tools.

Parking the vehicle


As far possible, park the vehicle

on level, stable and non-slippery

ground.



Apply the handbrake, switch off

the ignition and engage i rst or

reverse gear (position P for the

automatic gearbox).

CHANGING A WHEEL

PRACTICAL INFORMATION

Extracting the wheel

Removing the wheel


If necessary, place a chock under

the wheel diagonally opposite to

the one to be changed.

 Remove the trim, using the

wheelbrace 1 , pulling at the valve

passage hole.



Loosen the wheel bolts (for vehi-

cles i tted with alloy wheels, re-

move the chrome trims i rst. See

paragraph on "Special features of

alloy wheels").



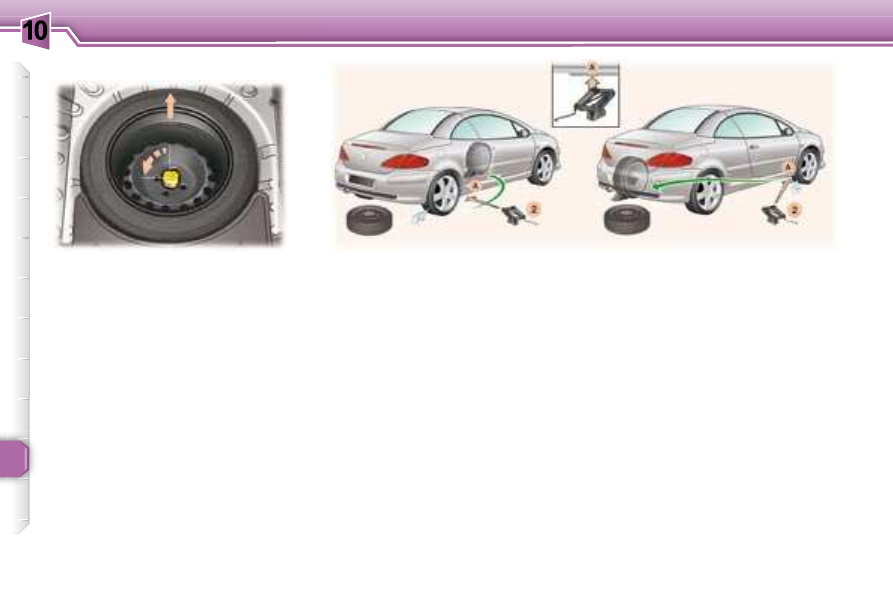

Place the jack 2 in contact with

one of the four locating points A

on the sub-frame, the one which

is closest to the wheel to be

changed.



Extend the jack 2 until its base

is in contact with the ground. En-

sure that the centre line of the

base of the jack is directly below

the locating point A used.

Fitting a wheel


Position the wheel using the cen-

tralising tool 3 to assist you.



Tighten the bolts by hand and re-

move the centralising tool.

 Partly tighten the bolts using the

wheelbrace 1 .



Fold the jack 2 and remove it.

 Fully tighten the bolts using the

wheelbrace 1 .



Replace the wheel trim, starting

by placing the wheel trim notch

opposite the valve, and press it

on using the palm of the hand.

 Raise the vehicle.


Unscrew the bolts and remove

the wheel.



Unscrew the yellow central bolt a

quarter turn.



Raise the spare wheel towards

you from the rear.



Remove the wheel from the boot.

PRACTICAL INFORMATION

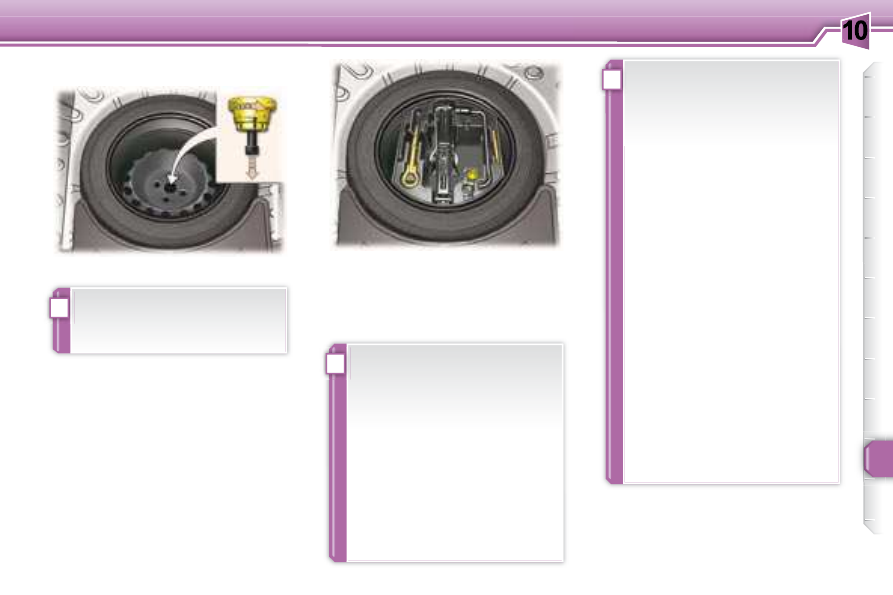

Putting the wheel back in
place



Put the wheel back in place.



Unscrew the yellow central bolt a

few turns, then put it in place in

the centre of the wheel.

 Tighten the central bolt fully until it

clicks to secure the wheel i rmly.

 Put the tool holder back in the

centre of the wheel and clip it.



Put the boot l oor back in place.

Wheels i tted with the Tyre Under-

Inl ation Detection system

For further information refer to "Tyre

under-inl ation detection" in the safe-

ty section.

The wheel must be positioned

l at, in the centre of its housing.

After changing the wheel:
- have the tightening of the

bolts and the tyre pressure

checked by a PEUGEOT

dealer as soon as possible,

- have the punctured tyre re-

paired and rei t it to the vehi-

cle as soon as possible.

   Recommendations when
using the temporary spare
wheel *
Your  vehicle  may  be  equipped

with a spare wheel with a rim

which is different from that of the

standard wheel.

After use, be sure to replace it

as soon as possible.

Observe the following instruc-

tions to avoid altering the han-

dling of the vehicle:

- do not drive above 50 mph

(80 km/h) ,

- do not i t a wheel trim,

- drive carefully,

- check the inl ation pressure

indicated on the label.

For your safety, always
change the wheel:
- on level, stable, non-slippery

ground,

- with the handbrake on and

the ignition switched off,

- with i rst or reverse gear en-

gaged (position P for the au-

tomatic gearbox),

  -   with the vehicle chocked.
  Never  go  underneath  a  vehi-
cle  that  is  supported  only  by
a jack (use a ramp).

* According to model and country.

100

PRACTICAL INFORMATION

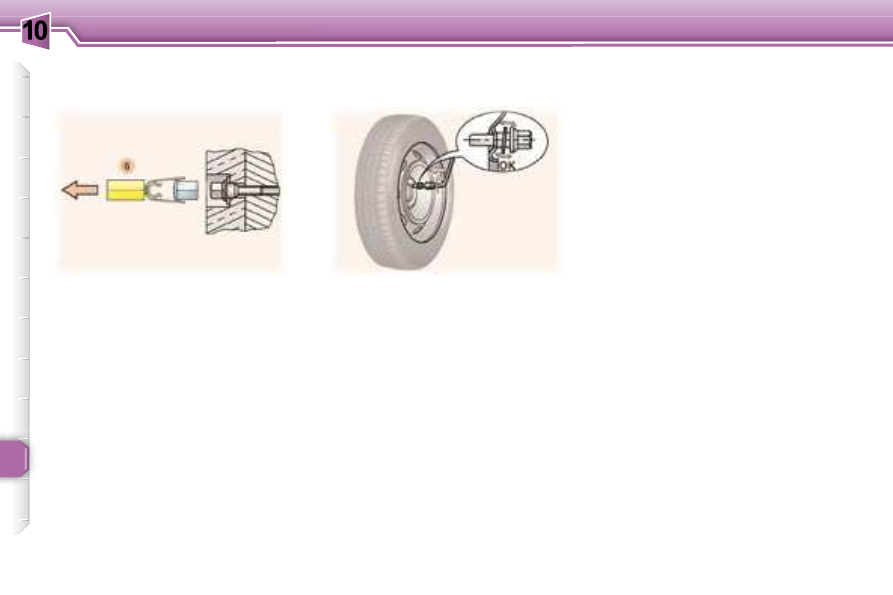

Alloy wheel bolts are covered by

chrome trims.
Use the yellow tool 6 to remove the

trims before slackening the bolts.

If your vehicle is i tted with a steel

spare wheel, when i tting it, it is nor-

mal

when tightening the bolts to no-

tice that the washers do not come

into contact with the rim. The spare

wheel is secured by the cone shape

of each bolt.

Anti-theft bolts

If your wheels are i tted with an anti-

theft bolt (one per wheel), the chrome

trim must be removed before un-

screwing the bolt using the anti-theft

socket and the wheelbrace.

This anti-theft socket was given to

you on delivery of your vehicle along

with the duplicate keys and the con-

i dential card.
Make a careful note of the code
number engraved on the head of the

anti-theft socket. This will enable you

to obtain a duplicate socket from a

PEUGEOT dealer.

Fitting snow tyres
If you i t snow tyres mounted on steel

wheels onto your vehicle, it is es-

sential

to use special bolts available

from your PEUGEOT dealer.

Special features of alloy wheels

Bolt covers

Fitting the spare wheel

101

PRACTICAL INFORMATION

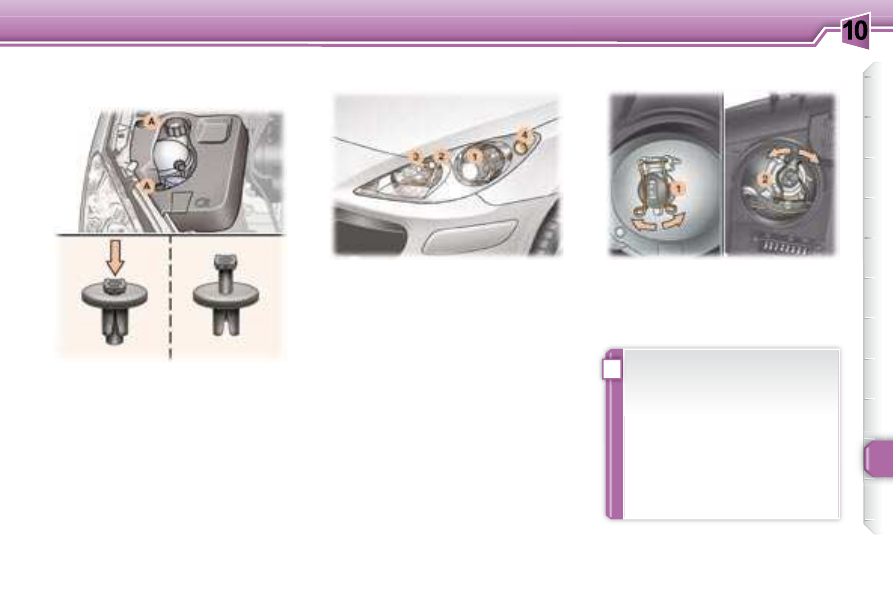

In the engine compartment, on the right-

hand side, remove the style trim * :

- press the centre of each plastic

stud A ,

- remove each plastic stud,

- remove the style trim.

When you have i nished, do not for-

get to put everything back in place

correctly:

- position the style trim * ,

- rei t each plastic stud A by press-

ing on it.

1. Dipped beam headlamps

(H1-55 W or xenon bulb).

  WARNING: RISK OF ELECTROCU-
TION
Xenon  bulbs  must  be  changed  by  a
PEUGEOT dealer.
2.  Main beam headlamps

(H7-55 W).



Remove the protective cover cor-

responding to the faulty bulb.

 Disconnect the connector.
 Press the end of each securing

clip. Change the bulb.

When i tting the new bulb, ensure

that the direction notches are po-

sitioned correctly and the securing

clips are i xed properly.

 Reconnect the connector.


Rei t the protective cover.

CHANGING A BULB

Front lights

Handle the bulbs with a dry cloth.

The headlamps are i tted with

polycarbonate glass with a pro-

tective  coating.   Do  not  clean
them  with  a  dry  or  abrasive
cloth, nor  with a  detergent  or
solvent product.
Use a sponge and soapy water.

* According to engine.

102

PRACTICAL INFORMATION



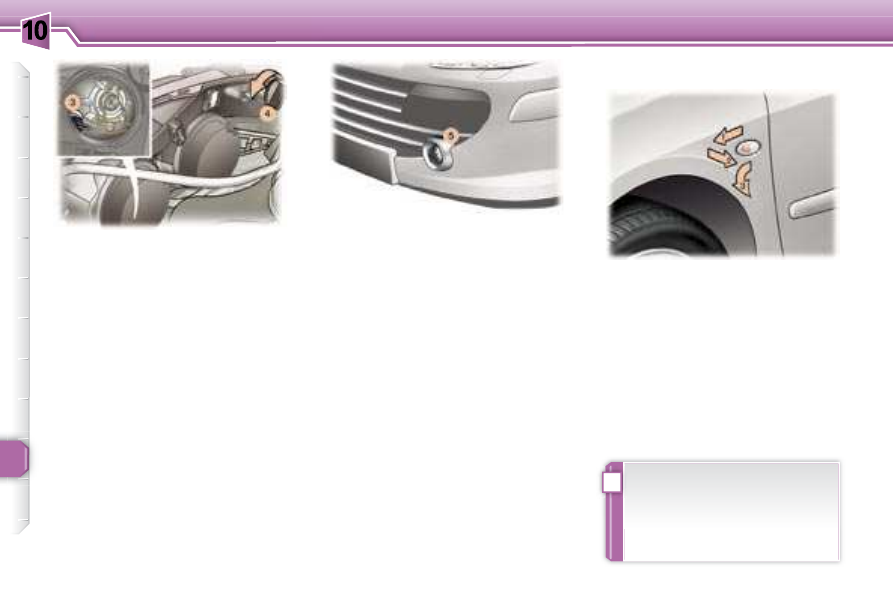

Push the repeater forwards and

release it.



Remove the repeater and change it.

These can be obtained from a PEUGEOT
dealer.

3 Side lights (W 5 W).


Remove the protective cover cor-

responding to the faulty bulb.

     Disconnect the connector.
     Remove the bulb and change it.
4.  Direction indicators

(PY 21 W amber).



Turn the bulb holder a quarter of

a turn and remove it.

 Change the bulb.

Note

: in certain climatic conditions

(low temperature, humidity), conden-

sation inside the headlamp glass is
normal

; it disappears a few minutes

after the lights are switched on.

Contact a PEUGEOT dealer to have
these bulbs changed.

5. Fog lamps (H11-55 W).

Integrated direction indicator side
repeaters.

Amber coloured bulbs, such as
the direction indicators, must be

replaced with bulbs of identical

specii cation and colour.

103

PRACTICAL INFORMATION



Unclip the corresponding boot lid

trim at two points.



Move the trim aside gently to ac-

cess the bulb holder 6 .



Unscrew the bulb holder a quar-

ter of a turn.

     Remove the bulb holder.
     Change the faulty bulb.
  Note:

when rei tting, take care to po-

sition the bulb holder correctly.

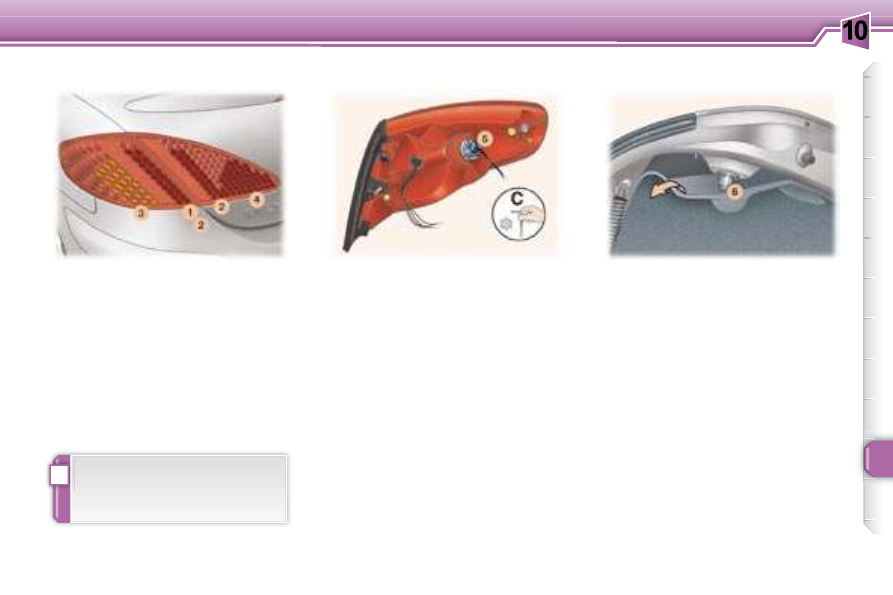

   1.    Brake lights (diodes).
  2.    Side lights (diodes).
  3.    Direction indicators (P 21 W).
  4.    Reversing light (P 21 W), right side.

Fog lamp (P 21 W), left side.



Remove the 3 bolts of the corre-

sponding boot side trim to access

the light (use the 20 Torx

adap-

tor of tool C

located in the hand-

book pocket).



Remove the light i xing nut inside

the boot.

 Remove the light.


Unscrew the bulb holder 5 a quar-

ter of a turn.

     Remove the bulb holder.
     Change the faulty bulb.
  Note:

when rei tting, take care to po-

sition the bulb holder and the light
correctly.

Rear lights

Direction indicators

Reversing light/fog lamp

All work on the diode lights must

be carried out by a PEUGEOT
dealer.

104

PRACTICAL INFORMATION



Insert a thin screwdriver into one

of the external holes of the lens.



Push it outwards to unclip it.

 Remove the lens.
 Change the faulty bulb.

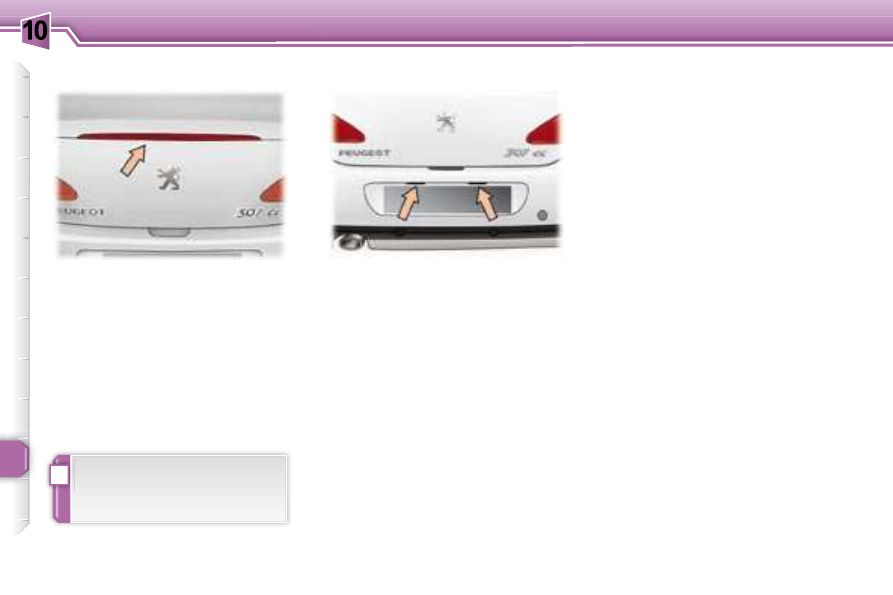

Third brake light (diodes)

Number plate lights (W 5 W)

All work on the diode lights must

be carried out by a PEUGEOT
dealer.

105

PRACTICAL INFORMATION

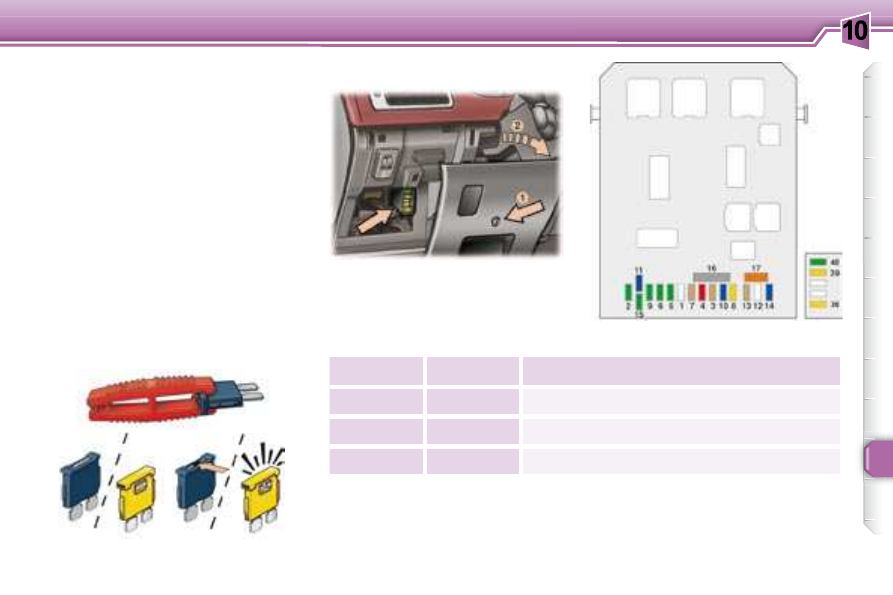

CHANGING A FUSE

The fuse boxes are placed in the

lower part of the fascia (driver's side)

and in the engine compartment (left-

hand side).

Correct

Incorrect

Unscrew the bolt a quarter of a turn

using a coin (1), then unclip the l ap,

pulling at the top right (2).

Replacing a fuse

Before replacing a fuse, the cause of

the incident must be found and recti-

i ed. The fuse numbers are indicated

on the fuse box.
Always replace a faulty fuse with a fuse

of the same rating (same colour).
Use the special pliers located on the

inside of the fascia fuse box cover,

this support also contains the re-

placement fuses.

Fascia fuses

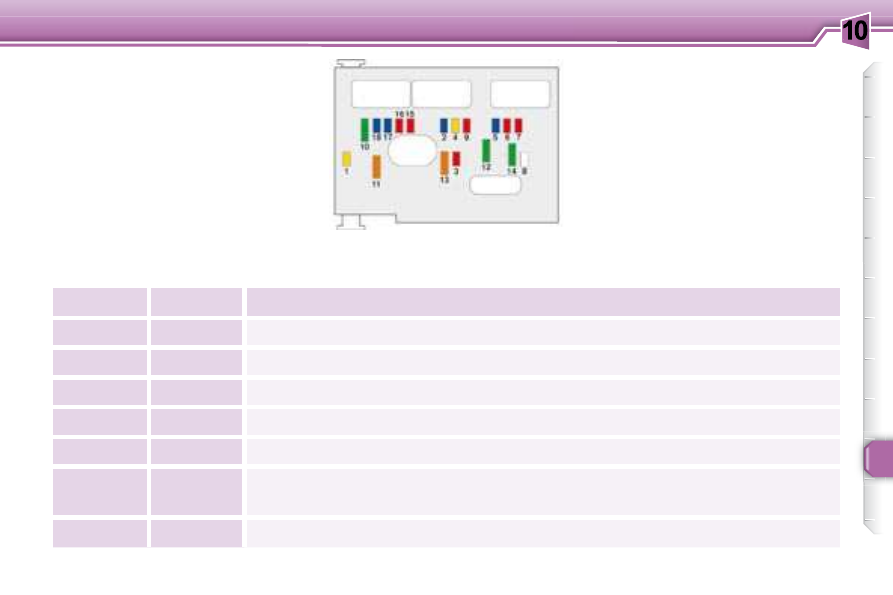

Fuse N°

Rating

Functions

F36

20 A

Hi-Fi amplii er.

F39

20 A

Driver and passenger heated seats.

F40

30 A

Retractable roof pump supply.

105

PRACTICAL INFORMATION

CHANGING A FUSE

The fuse boxes are placed in the

lower part of the fascia (driver's side)

and in the engine compartment (left-

hand side).

Correct

Incorrect

Unscrew the bolt a quarter of a turn

using a coin (1), then unclip the l ap,

pulling at the top right (2).

Replacing a fuse

Before replacing a fuse, the cause of

the incident must be found and recti-

i ed. The fuse numbers are indicated

on the fuse box.
Always replace a faulty fuse with a fuse

of the same rating (same colour).
Use the special pliers located on the

inside of the fascia fuse box cover,

this support also contains the re-

placement fuses.

Fascia fuses

Fuse N°

Rating

Functions

F36

20 A

Hi-Fi amplii er.

F39

20 A

Driver and passenger heated seats.

F40

30 A

Retractable roof pump supply.

106

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

Not used.

30 A

Locking and deadlocking.

5 A

Air bags and pre-tensioners unit.

10 A

Brake and clutch pedal switches, engine coolant level switch, steering wheel angle sensor,

diagnostic socket, ESP sensor, particle emission i lter pump, electrochromatic mirror.

30 A

Front electric windows and heated mirrors supply.

30 A

Rear electric windows supply, hinged l aps motor.

5 A

Front and rear courtesy lights, map reading lights, glove box light.

20 A

Multifunction display supply, audio equipment, audio/telephone, alarm siren, alarm control

unit, trailer fuse box, steering wheel stalks supply.

30 A

12 V front socket, 12 V rear socket.

F10

15 A

Automatic gearbox control unit, brake switch, tyre under-inl ation detection control unit.

F11

15 A

Diagnostic socket, particle emission i lter control unit, low current ignition switch.

F12

15 A

Rear parking assistance, Hi-Fi amplii er.

F13

5 A

Engine fuse box supply, rain and brightness sensor.

F14

15 A

Trailer fuse box, instrument panel, automatic air conditioning, air bags, pre-tensioners and

rear protective pop-up roll-over hoops unit, hands-free kit.

F15

30 A

Locking and deadlocking supply.

F16

PARC shunt.

F17

40 A

Heated rear screen.

107

PRACTICAL INFORMATION

Engine compartment fuses

To access the fuses located in the

engine compartment (next to the bat-

tery), unclip the fuse box lid.

When you have i nished, close the lid

carefully to guarantee the sealing of
the fuse box.

Fuse N°

Rating

Functions

20 A

Fan assembly relay control, engine control unit control.

15 A

Horn.

10 A

Front wash-wipe.

20 A

Headlamp wash.

15 A

Fuel pump and purge canister solenoid valve (2 litre petrol).

10 A

Four speed automatic gearbox control unit, automatic gearbox lever locking control, push

control switch, fan assembly high speed relay, right and left xenon headlamps.

10 A

ABS/ESP control unit, power steering control unit.

108

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

25 A

Starter control.

10 A

Additional heating unit (Diesel), engine coolant level switch.

F10

30 A

Engine management actuators (ignition coil, solenoid valves, oxygen sensors, control units,

injectors, heaters), purge canister solenoid valve (1.6 litre petrol).

F11

40 A

Air conditioning blower.

F12

30 A

Windscreen wipers low/high speed.

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Air pump (2 litre petrol).

F15

10 A

Right main beam headlamp.

F16

10 A

Left main beam headlamp.

F17

15 A

Left dipped headlamp.

F18

15 A

Right dipped headlamp.

109

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

MF1 *

30 A

200 W fan unit.

50 A

400 W and 460 W fan unit.

MF2 *

30 A

ABS/ESP pump.

MF3 *

30 A

ABS/ESP solenoid valves.

MF4 *

80 A

Built-in systems interface supply.

MF5 *

80 A

Built-in systems interface supply.

MF6 *

80 A

Passenger compartment fuse box.

MF8 *

70 A

Power steering electro-pump unit.

* The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a PEUGEOT

dealer.

The electrical system of your vehicle is designed to operate with standard or optional equipment.

Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer.

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctions

resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in

accordance with its instructions, in particular when the combined consumption of all of the additional equipment con-

nected exceeds 10 milliamperes.

110

PRACTICAL INFORMATION

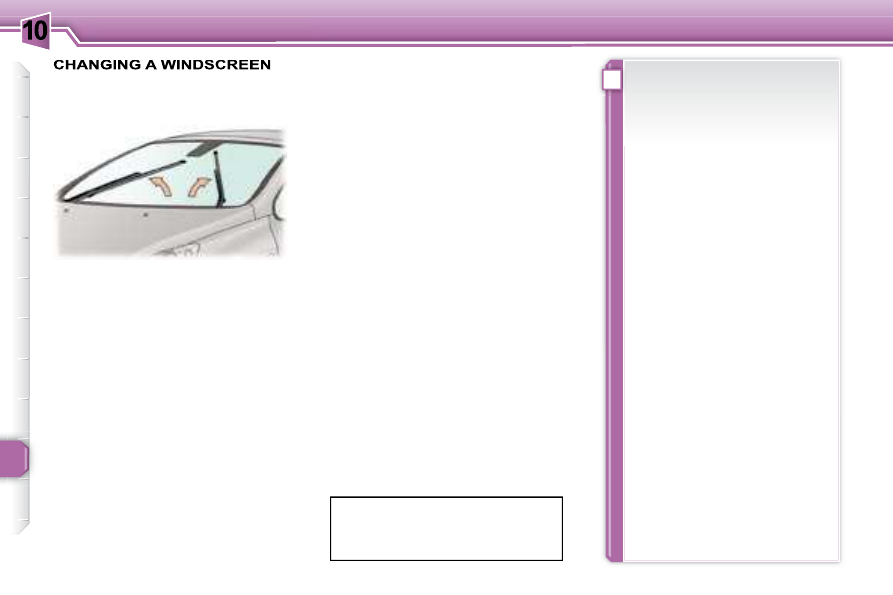

Special front windscreen
wiper position



Within one minute of switching off

the ignition, operate the wipers

stalk to position the wiper blades

in the centre of the windscreen

(maintenance position).

Changing a wiper blade



Lift the wiper arm, then unclip the

blade and remove it.



Fit the new blade and push back

the arm.

Note:

the shortest blade is i tted on

the vehicle's right-hand windscreen

wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.

BATTERY

To charge the battery using a
battery charger:

- Disconnect the battery starting

with the negative (-) terminal,

- Follow the instructions for use

given by the battery charger manu-

facturer,

- Check that the terminals and

connectors are clean; if they are

covered with sulphate (white or

greenish deposit), disconnect

them and clean them,

- Reconnect the battery starting

with the negative (-) terminal.

  It is advisable to disconnect the
battery if the vehicle is not to be
used  for  a  period  of  more  than
one month.

To start the vehicle from
another battery:

- Connect the red cable to the posi-

tive (+) terminals of the two batter-

ies,

- Connect one end of the green or

black cable to the negative (-) ter-

minal of the slave battery,

- Connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery,

- Operate the starter, let the engine run,

- Wait for the engine to return to

idle, then disconnect the cables.

WIPER BLADE

Before disconnecting the bat-

tery, you must wait for 2 minutes

after switching off the ignition.
Never disconnect a terminal

when the engine is running.

Never charge a battery without

i rst disconnecting the terminals.

Close the windows, the retract-

able roof and the doors before
disconnecting the battery. If the

windows do not operate normal-

ly following reconnection of the

battery, they must be reinitialised

(see sections "Reinitialisation of

the electric windows" and "Reini-

tialisation of the automatic partial

opening of the door windows").
After every reconnection of the

battery, switch on the ignition

and wait 1 minute before starting

to allow the electronic systems to

be initialised. If slight difi culties

are experienced after this, please

contact a PEUGEOT dealer.
Following disconnection of the

battery, the remote control key

and the GPS satellite naviga-

tion system must be reinitialised

(see corresponding section).

110

PRACTICAL INFORMATION

Special front windscreen
wiper position



Within one minute of switching off

the ignition, operate the wipers

stalk to position the wiper blades

in the centre of the windscreen

(maintenance position).

Changing a wiper blade



Lift the wiper arm, then unclip the

blade and remove it.



Fit the new blade and push back

the arm.

Note:

the shortest blade is i tted on

the vehicle's right-hand windscreen

wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.

BATTERY

To charge the battery using a
battery charger:

- Disconnect the battery starting

with the negative (-) terminal,

- Follow the instructions for use

given by the battery charger manu-

facturer,

- Check that the terminals and

connectors are clean; if they are

covered with sulphate (white or

greenish deposit), disconnect

them and clean them,

- Reconnect the battery starting

with the negative (-) terminal.

  It is advisable to disconnect the
battery if the vehicle is not to be
used  for  a  period  of  more  than
one month.

To start the vehicle from
another battery:

- Connect the red cable to the posi-

tive (+) terminals of the two batter-

ies,

- Connect one end of the green or

black cable to the negative (-) ter-

minal of the slave battery,

- Connect the other end of the green

or black cable to an earth point on

the broken down vehicle as far as

possible from the battery,

- Operate the starter, let the engine run,

- Wait for the engine to return to

idle, then disconnect the cables.

WIPER BLADE

Before disconnecting the bat-

tery, you must wait for 2 minutes

after switching off the ignition.
Never disconnect a terminal

when the engine is running.

Never charge a battery without

i rst disconnecting the terminals.

Close the windows, the retract-

able roof and the doors before
disconnecting the battery. If the

windows do not operate normal-

ly following reconnection of the

battery, they must be reinitialised

(see sections "Reinitialisation of

the electric windows" and "Reini-

tialisation of the automatic partial

opening of the door windows").
After every reconnection of the

battery, switch on the ignition

and wait 1 minute before starting

to allow the electronic systems to

be initialised. If slight difi culties

are experienced after this, please

contact a PEUGEOT dealer.
Following disconnection of the

battery, the remote control key

and the GPS satellite naviga-

tion system must be reinitialised

(see corresponding section).

Content .. 6 7 8 9 ..
