LAYOUT

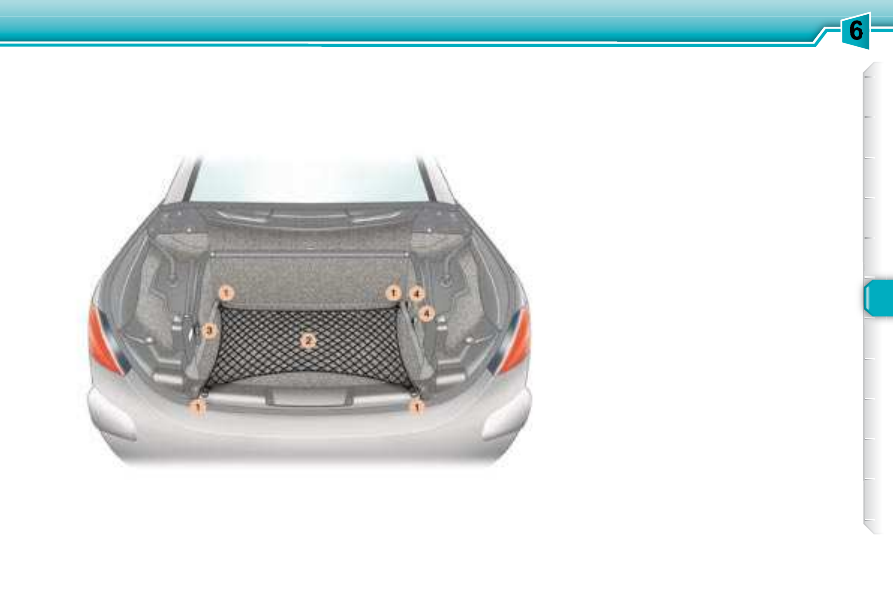

BOOT LAYOUT

* According to country.

1. Stowing rings

Use the stowing rings located on the

boot l oor and on the boot rear inner

panel to secure your luggage.

2. Luggage retaining net

Hooked onto the stowing rings, this

enables your luggage to be secured.

3. 12 volt socket (100 W max)

This is a lighter type socket, installed

on the boot side trim on the left-hand

side.
It is supplied from the "Running" po-

sition.

4. Signalling triangle *

Two elastic straps permit the secur-

ing of a signalling triangle.

SAFETY

HAZARD WARNING LIGHTS

HORN

Automatic lighting of hazard
warning lights *

When braking in an emergency, de-

pending on the deceleration, the

hazard warning lights come on auto-

matically. They switch off automati-

cally the i rst time you accelerate.

It is also possible to switch them off

by pressing the button.

* According to country.

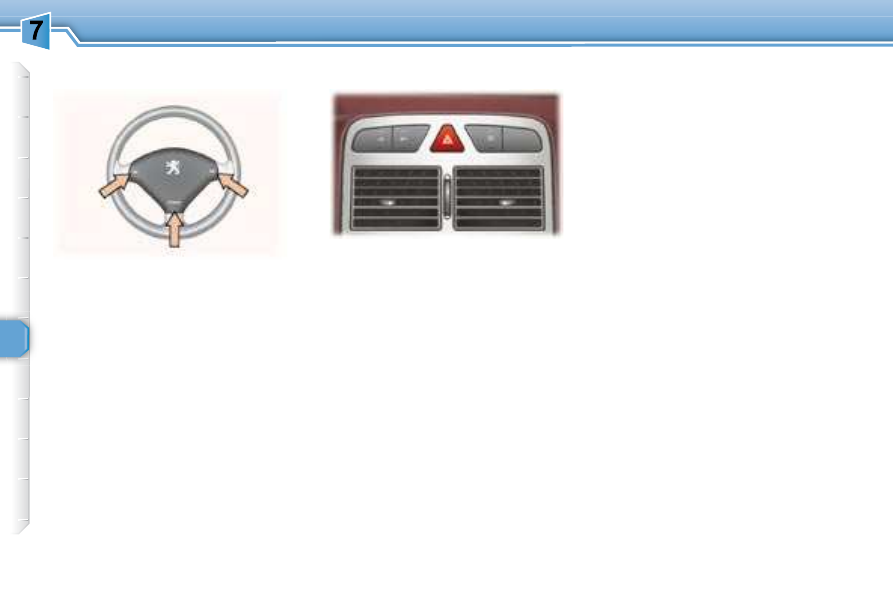

Press one of the spokes of the steer-

ing wheel.

Press the button, the direction indica-

tors l ash.

They can operate with the ignition

off.

SAFETY

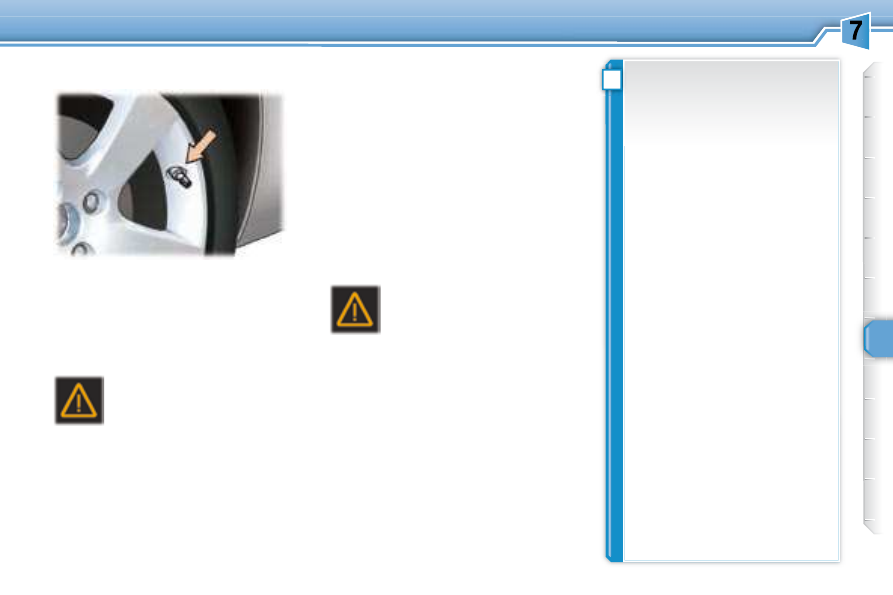

Sensors i tted in each valve check

the tyre pressure during driving and

trigger a warning in the event of

malfunction (speed above 12 mph

(20 km/h)).

The service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction

display locating the wheel

concerned.
Check the tyre pressures as soon as

possible. This check must be carried

out when the tyres are cold.

Puncture
The STOP

warning light comes on on

the instrument panel, accompanied

by an audible signal and a message

on the multi-function display locating

the wheel concerned.

Stop immediately, avoiding any sud-

den movement of the steering wheel

and the brakes.
Change the damaged wheel (punc-

tured or very del ated tyre), and have

the tyre pressure checked as soon

as possible.

The service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction

display locating the wheel or wheels

which are not detected or indicating a

fault in the system.
Contact a PEUGEOT dealer to re-

place the faulty sensor(s).

Flat tyre

Sensor(s) not detected or faulty

Notes:
This message is also displayed when

one of the wheels is away from the

vehicle (being repaired) or when one

or more wheels without a sensor are

i tted.

The spare wheel is not i tted with a

sensor.

TYRE UNDER-INFLATION
DETECTION

All repairs and changing of tyres

on a wheel i tted with this sys-

tem must be carried out by a
PEUGEOT dealer.
If, when changing a tyre, you

install a wheel which is not de-

tected by your vehicle (example:

i tting of snow tyres), you must

have the system reinitialised by
a PEUGEOT dealer.
The tyre under-inl ation detec-

tion system is an aid to driving

which does not replace the need

for the driver to be vigilant or to

drive responsibly.
This system does not eliminate

the need to have the tyre pres-

sure checked regularly (see
manufacturer's label on the door

pillar) to ensure that the opti-

mum dynamic performance of

the vehicle is maintained and

prevent premature wear of the

tyres, particularly in arduous

driving conditions (heavy load,

high speed).

The tyre pressures must be

checked cold, at least once a
month. Remember to check the

pressure of the spare wheel.

The tyre under-inl ation detec-

tion system may experience

temporary interference due to

radioelectric emissions on a fre-

quency close to that used by the

system.

SAFETY

ANTI-LOCK BRAKING
SYSTEM (ABS) AND
ELECTRONIC BRAKE FORCE
DISTRIBUTION (EBFD)

The ABS, in conjunction with the

electronic brake force distribution,

increases the stability and manoeu-

vrability of your vehicle on braking,

in particular on poor or slippery road

surfaces.
Note:

when changing wheels (tyres

and rims), make sure that these are

approved.

The anti-lock braking system comes

into operation automatically when

there is a risk of wheel lock.

Stop immediately.
In both cases, consult a PEUGEOT
dealer.

ASSISTANCE SYSTEM

In an emergency, this system ena-

bles the optimum braking pressure to

be reached more quickly, thus reduc-

ing the stopping distance.

It is triggered by the speed at which

the brake pedal is activated. The ef-

fect of this is a reduction in the resist-

ance of the pedal and an increase in

braking efi ciency.

When this warning light

comes on, accompanied

by a buzzer and a mes-

sage, it indicates that there
is a malfunction of the ABS,

which can cause a loss of control of

the vehicle when braking.

When this warning light

comes on, connected to
the STOP and ABS

warn-

ing lights, accompanied by

a buzzer and a message, it

indicates that there is a malfunction

of the electronic brake force distribu-

tion, which can cause a loss of con-

trol of the vehicle when braking.

Normal operation of the ABS may

make itself felt by slight vibrations

of the brake pedal.
In emergency braking, press

very i rmly without releasing the

pressure.

SAFETY

TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)

These systems are linked and com-

plement the ABS.

The ASR system optimises drive to

prevent the wheels skidding, by act-

ing on the brakes of the drive wheels

and on the engine. It also allows the

directional stability of the vehicle to

be improved on acceleration.

If there is a variation between the tra-

jectory followed by the vehicle and

that required by the driver, the ESP

system automatically acts on the en-

gine and the brake of one or more

wheels, in order to put the vehicle

back on course, within the limits of

the laws of physics.

In exceptional conditions (starting a

vehicle which is bogged down, stuck

in snow, on soft ground, ...), it may

be advisable to disarm the ASR and

ESP systems, so that the wheels can

move freely and regain grip.

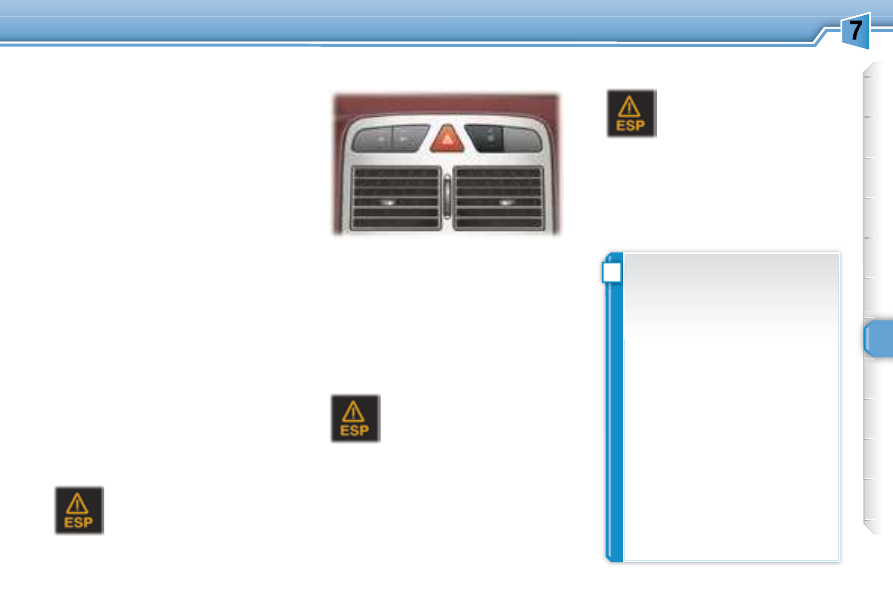

 Press the "ESP OFF"

switch, lo-

cated on the central section of the
fascia.

Operating check

Activation of the ASR and ESP
systems

The switch lights up and

the warning light comes on:

the ASR and ESP systems
are disarmed.

Reactivation


Automatic if the ignition is swit-

ched off.



Automatic above 30 mph (50 km/h).



Manual by pressing the switch

again.

When a malfunction of the

systems occurs, the switch

light l ashes and the warn-

ing light comes on, accom-

panied by an audible signal

and a message on the multifunction

display.
Contact a PEUGEOT dealer to have
the systems checked.

When the ignition is on, the ASR and

ESP systems are always active.

Disarming

The ESP/ASR systems offer

exceptional safety in normal

driving, but this should not en-

courage the driver to take extra

risks or drive at high speed.
The correct functioning of these

systems depends on observa-

tion of the manufacturer's rec-

ommendations

regarding

the

wheels (tyres and rims), the brak-

ing components, the electronic

components and the PEUGEOT

assembly and operation proce-

dures.
After an impact, have the sys-

tems checked by a PEUGEOT
dealer.

Operation of the ASR and ESP
systems

The warning light l ashes

if the ASR or ESP is acti-

vated.

SAFETY

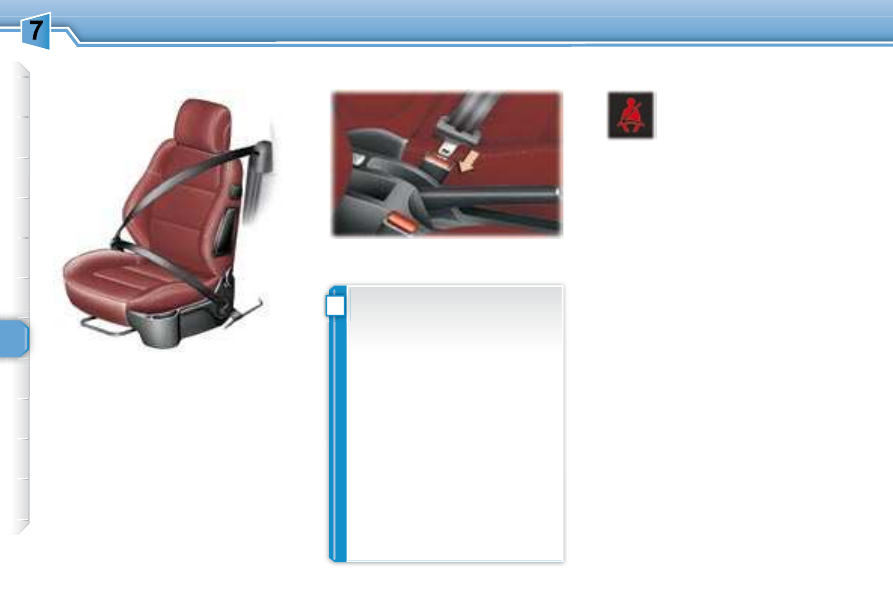

Fastening the seat belts



Pull the strap, then insert the buc-

kle into the stalk.



Check that the seat belt is fas-

tened by pulling the strap.

Unfastening the seat belts

When the ignition is switched

on, the warning light comes

on on the instrument panel

if the driver has not fastened
his seat belt.

With the engine running and the

doors closed, the warning light goes

off automatically after 30 seconds.
If the seat belt is unfastened:

- below 12 mph (20 km/h), the warn-

ing light comes on constantly,

- above 12 mph (20 km/h) and for

two minutes, the warning light

l ashes accompanied by an au-

dible signal of increasing volume.

Once these two minutes have

elapsed, the warning light re-

mains on until the driver fastens
his seat belt.

SEAT BELTS

 Press the red button on the stalk

then remove the buckle.

Seat belt unfastened/not
fastened warning light

Pre-tensioning and
force-limiting front
seat belts

Safety in the event of a frontal

impact has been improved by

the introduction of pre-tension-

ing and force-limiting front seat

belts. Depending on the serious-

ness of the impact, the pre-ten-

sioning system instantly tightens

the seat belt i rmly against the

body of the occupant.

The pre-tensioning seat belts

are armed when the ignition is

on.
The force-limiting device reduc-

es the pressure of the seat belt

against the chest of the occupant,

so increasing his protection.

SAFETY

The two rear seats are both i tted

with three-point inertia reel seat belts

with force-limiting devices.

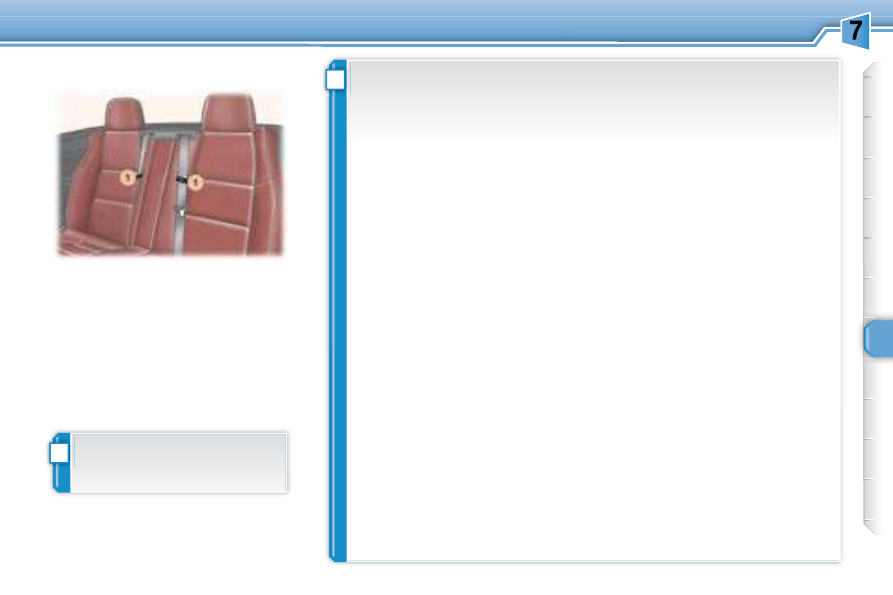

Slide the straps in the guides 1 to

prevent l uttering of the rear seat

belts in cabriolet coni guration.

Rear seat belts

Wherever you are seated in the vehicle, always fasten your seat belt, even

for short journeys.

Do not invert the seat belt buckles as they will not fuli l their role fully.

The seat belts are i tted with an inertia reel permitting automatic adjustment

of the length of the strap to your size. The seat belt is stored automatically

when not in use.

Before and after use, ensure that the seat belt is rolled up correctly.

The lower part of the strap must be positioned as low as possible on the

pelvis.

The upper part must be positioned in the hollow of the shoulder.

The inertia reels are i tted with an automatic locking device which comes into

operation in the event of a collision, emergency braking or if the vehicle rolls

over. You can release the device by pulling rapidly on the strap and releas-

ing it.
In order to be effective, a seat belt:

- must be tightened as close to the body as possible,

- must restrain one person of adult size only,

- must not bear any trace of cuts or fraying,

- must be pulled in front of you with a smooth movement, checking that it

does not twist,

- must not be transformed or modii ed to avoid altering its performance.

In accordance with current safety regulations, all repairs and checks must be

carried out by a PEUGEOT dealer who guarantees that the work is carried

out correctly.
Have your seat belts checked regularly by a PEUGEOT dealer and particu-

larly if the straps show signs of damage.

Clean the seat belt straps with soapy water or a textile cleaning product, sold

by PEUGEOT dealers.
After folding or moving a seat or rear bench seat, ensure that the seat belt is

positioned and rolled up correctly.

Remove the straps from the

guides 1 before use.

SAFETY

AIR BAGS

The air bags have been designed to

maximise the safety of the occupants

in the event of violent collisions. They

supplement the action of the force-

limiting seat belts.

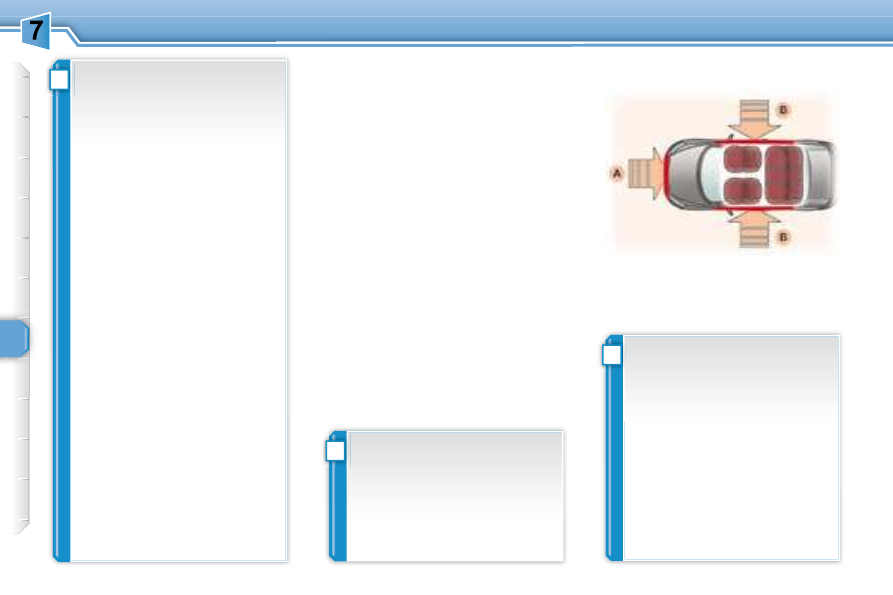

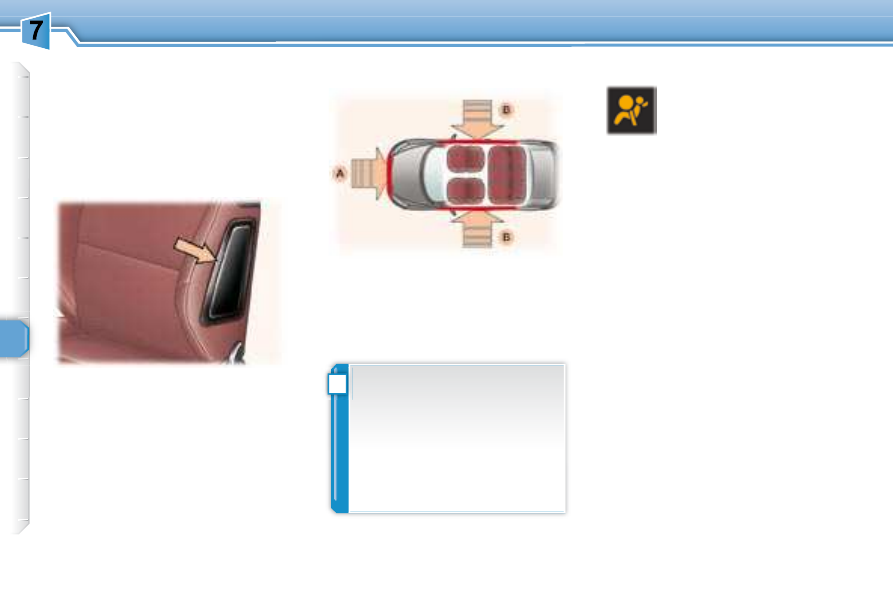

In this case, the electronic detectors
record and analyse the front and side

impacts suffered in the impact detec-

tion zones:

- in the event of a serious impact,

the air bags are deployed instan-

taneously and protect the occu-

pants of the vehicle; immediately

after the impact, the air bags de-

l ate rapidly so that they do not

hinder the visibility of the occu-

pants or their possible exit from

the vehicle,

- in the event of a minor impact or

rear impact and in certain roll-over

conditions, the air bags will not

be deployed; the seat belt alone

is sufi cient to provide maximum

protection in these situations.

Front impact zone.

Side impact zone.

The deployment of one or

more air bags is accompanied

by a slight discharge of harm-

less smoke and a noise, due

to the activation of the pyro-

technic cartridge incorporated

in the system.
This smoke is not harmful, but

sensitive individuals may ex-

perience some irritation.
The  noise  of  the  detonation
may  result  in  a  slight  loss  of
hearing for a short time.

Impact detection zones

Recommendations for
children
Use a suitable child seat if the

passenger is less than 12 years

old or shorter than one metre

i fty.
Never use the same seat belt to

secure more than one person.

Never allow a child to travel on

your lap.
Depending on the nature and
seriousness of the impacts ,

the pre-tensioning device may

be triggered before and inde-

pendently of the air bags. Trig-

gering of the pre-tensioners is

accompanied by a slight dis-

charge of harmless smoke and
a noise, due to the activation of

the pyrotechnic cartridge incor-

porated in the system.

In all cases, the air bag warning

light comes on.
Following an impact, have the

seat belts system checked,

and if necessary replaced, by a

PEUGEOT dealer.

   The  air  bags  do  not  operate
when the ignition is off.
This  equipment  only  operates

once. If a second impact occurs

(during the same or a subse-

quent accident), the air bag will

not operate.

SAFETY

AIR BAGS

The air bags have been designed to

maximise the safety of the occupants

in the event of violent collisions. They

supplement the action of the force-

limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side

impacts suffered in the impact detec-

tion zones:

- in the event of a serious impact,

the air bags are deployed instan-

taneously and protect the occu-

pants of the vehicle; immediately

after the impact, the air bags de-

l ate rapidly so that they do not

hinder the visibility of the occu-

pants or their possible exit from

the vehicle,

- in the event of a minor impact or

rear impact and in certain roll-over

conditions, the air bags will not

be deployed; the seat belt alone

is sufi cient to provide maximum

protection in these situations.

Front impact zone.

Side impact zone.

The deployment of one or

more air bags is accompanied

by a slight discharge of harm-

less smoke and a noise, due

to the activation of the pyro-

technic cartridge incorporated

in the system.
This smoke is not harmful, but

sensitive individuals may ex-

perience some irritation.
The  noise  of  the  detonation
may  result  in  a  slight  loss  of
hearing for a short time.

Impact detection zones

Recommendations for
children
Use a suitable child seat if the

passenger is less than 12 years

old or shorter than one metre

i fty.
Never use the same seat belt to

secure more than one person.

Never allow a child to travel on

your lap.
Depending on the nature and
seriousness of the impacts ,

the pre-tensioning device may

be triggered before and inde-

pendently of the air bags. Trig-

gering of the pre-tensioners is

accompanied by a slight dis-

charge of harmless smoke and
a noise, due to the activation of

the pyrotechnic cartridge incor-

porated in the system.

In all cases, the air bag warning

light comes on.
Following an impact, have the

seat belts system checked,

and if necessary replaced, by a

PEUGEOT dealer.

   The  air  bags  do  not  operate
when the ignition is off.
This  equipment  only  operates

once. If a second impact occurs

(during the same or a subse-

quent accident), the air bag will

not operate.

SAFETY

Reactivation
When you remove the child seat, turn

switch 1 to the "ON" position to re-

arm the air bag and so guarantee the

safety of your front passenger in the

event of an impact.

If this warning light comes

on on the instrument panel,

accompanied by an audible

warning and a message on

the multifunction display,

contact a PEUGEOT dealer to have
the system checked.
If this warning light l ashes, contact a

PEUGEOT dealer.

Operating fault



Only the front passenger's air bag

can be disarmed:

 with the ignition off , insert the

key in the passenger air bag dis-

arming switch 1 ,

 turn it to the "OFF"

position,



then, remove the key keeping the

switch in this position.

To guarantee the safety of your

child, it is imperative that the

passenger air bag is disarmed

when you install a "rear facing"

child seat on the front passen-

ger seat.
Otherwise, the child would risk

being seriously injured or killed

if the air bag were triggered.

Deactivation

If both air bag warning lights

come on continuously, do not in-

stall a "rear facing" child seat on

the front passenger seat.
Contact a PEUGEOT dealer.

System which protects the head and

chest of the driver and front passen-

ger in the event of a front impact.

The driver's air bag is incorporated

in the centre of the steering wheel;

the front passenger's air bag is incor-

porated in the fascia above the glove

box.

The air bags are triggered simultane-

ously, unless the passenger's front air

bag is disarmed, in the event of a se-

rious front impact applied to all or part

of the front impact zone A , in the lon-

gitudinal centreline of the vehicle on

a horizontal plane and directed from

the front to the rear of the vehicle.
The front air bag inl ates between

the front occupant of the vehicle and

the fascia to cushion his forward

movement.

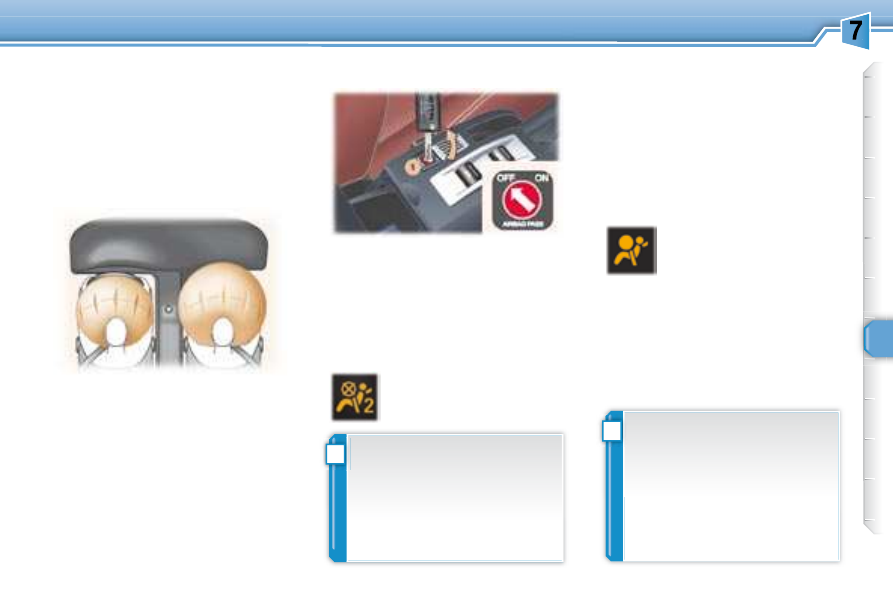

Front air bags

Activation

This warning light comes

on on the instrument pan-

el when the ignition is on

and until the air bag is re-

armed.

SAFETY

Wear a correctly adjusted seat belt.

Sit in a normal upright position.

Do not leave anything between the occupants and the air bags (a child, pet, object...). This could hamper the operation

of the air bags or injure the occupants.
After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
All work on the air bag system is strictly forbidden unless it is carried out by qualii ed personnel of the PEUGEOT

network.

Even if all of the precautions mentioned are observed, a risk of injury or of slight burns to the head, chest or arms, when

an air bag is deployed, cannot be ruled out. The bag inl ates almost instantly (within a few milliseconds) then del ates

within the same time discharging the hot gas via openings provided for this purpose.

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

Passengers must not place their feet on the fascia.

Smoke as little as possible as deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.

Never remove or pierce the steering wheel or hit it violently.

Only put suitable covers on the seats. These will not hamper the deployment of the side air bags. Contact a PEUGEOT

dealer.
Do not i x or glue anything to the seat backs. This could cause injury to the chest or arms when the side air bag

inl ates.

Do not sit with the upper part of the body any nearer to the door than necessary.

Side air bags

Front air bags

For the air bags to be fully effective, observe the following safety rules:

SAFETY

Side air bags

It is triggered unilaterally in the event

of a serious side impact applied to

all or part of the side impact zone B ,

perpendicular to the longitudinal cen-

treline of the vehicle on a horizontal

plane and directed from the outside

towards the inside of the vehicle.

The side air bag inl ates between the

front occupant of the vehicle and the

corresponding door trim pad.

Activation

System which protects the driver and

front passenger in the event of a se-

rious side impact in order to limit the

risk of injury to the chest.

Each side air bag is incorporated

in the front seat back frame, on the
door side.

Front impact zone.

Side impact zone.

In the event of a minor impact or

bump on the side of the vehicle

or if the vehicle rolls over, the
air bag may not be triggered.
The air bag is not triggered in

the event of a rear or front col-

lision.

Impact detection zones

Operating fault

If this warning light comes

on on the instrument panel,

accompanied by an audible

signal and a message on

the multifunction display,

contact  a  PEUGEOT  dealer  to  have
the  system  checked.  The  air  bags
may  no  longer  be  triggered  in  the

event of a serious impact.

SAFETY

Wear a correctly adjusted seat belt.

Sit in a normal upright position.

Do not leave anything between the occupants and the air bags (a child, pet, object...). This could hamper the operation

network.

Even if all of the precautions mentioned are observed, a risk of injury or of slight burns to the head, chest or arms, when

an air bag is deployed, cannot be ruled out. The bag inl ates almost instantly (within a few milliseconds) then del ates

within the same time discharging the hot gas via openings provided for this purpose.

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

Passengers must not place their feet on the fascia.

Smoke as little as possible as deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.

Never remove or pierce the steering wheel or hit it violently.

Only put suitable covers on the seats. These will not hamper the deployment of the side air bags. Contact a PEUGEOT

dealer.
Do not i x or glue anything to the seat backs. This could cause injury to the chest or arms when the side air bag

inl ates.

Do not sit with the upper part of the body any nearer to the door than necessary.

Side air bags

Front air bags

For the air bags to be fully effective, observe the following safety rules:

SAFETY

AIR BAGS

The air bags have been designed to

maximise the safety of the occupants

in the event of violent collisions. They

supplement the action of the force-

limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side

impacts suffered in the impact detec-

tion zones:

- in the event of a serious impact,

the air bags are deployed instan-

taneously and protect the occu-

pants of the vehicle; immediately

after the impact, the air bags de-

l ate rapidly so that they do not

hinder the visibility of the occu-

pants or their possible exit from

the vehicle,

- in the event of a minor impact or

rear impact and in certain roll-over

conditions, the air bags will not

be deployed; the seat belt alone

is sufi cient to provide maximum

protection in these situations.

Front impact zone.

Side impact zone.

The deployment of one or

more air bags is accompanied

by a slight discharge of harm-

less smoke and a noise, due

to the activation of the pyro-

technic cartridge incorporated

in the system.
This smoke is not harmful, but

sensitive individuals may ex-

perience some irritation.
The  noise  of  the  detonation
may  result  in  a  slight  loss  of
hearing for a short time.

Impact detection zones

Recommendations for
children
Use a suitable child seat if the

passenger is less than 12 years

old or shorter than one metre

i fty.
Never use the same seat belt to

secure more than one person.

Never allow a child to travel on

your lap.
Depending on the nature and
seriousness of the impacts ,

the pre-tensioning device may

be triggered before and inde-

pendently of the air bags. Trig-

gering of the pre-tensioners is

accompanied by a slight dis-

charge of harmless smoke and
a noise, due to the activation of

the pyrotechnic cartridge incor-

porated in the system.

In all cases, the air bag warning

light comes on.
Following an impact, have the

seat belts system checked,

and if necessary replaced, by a

PEUGEOT dealer.

   The  air  bags  do  not  operate
when the ignition is off.
This  equipment  only  operates

once. If a second impact occurs

(during the same or a subse-

quent accident), the air bag will

not operate.

DRIVING

HANDBRAKE

   Applying
Pull  the  handbrake  to  immobilise
your vehicle.

When the vehicle is being
driven, illumination of this

warning light and of the

STOP

warning light, ac-

companied by an audible

signal and a message on the multi-

function display, indicates that the

handbrake is still on or has not been

properly released.

Releasing
Pull on the handle and press the

button to release the handbrake.

The four speed automatic gearbox

offers a choice between the comfort

of integral automatic

operation, en-

hanced by a sport and a snow

pro-

gramme, or manual gear changing .

ark: to immobilise the vehicle or

start the engine

, with the handbrake

on or off.
R

everse: to reverse (select this

position with the vehicle stationary,

engine at idle).
N

eutral: to start the engine and to

park

, with the handbrake on.

Note:

if position N is engaged

inadvertently while driving, allow the

engine to return to idle before engag-

ing position D to accelerate.
D

rive: for driving in automatic mode.

anual: to select the gears.

: sport programme.



: snow programme.

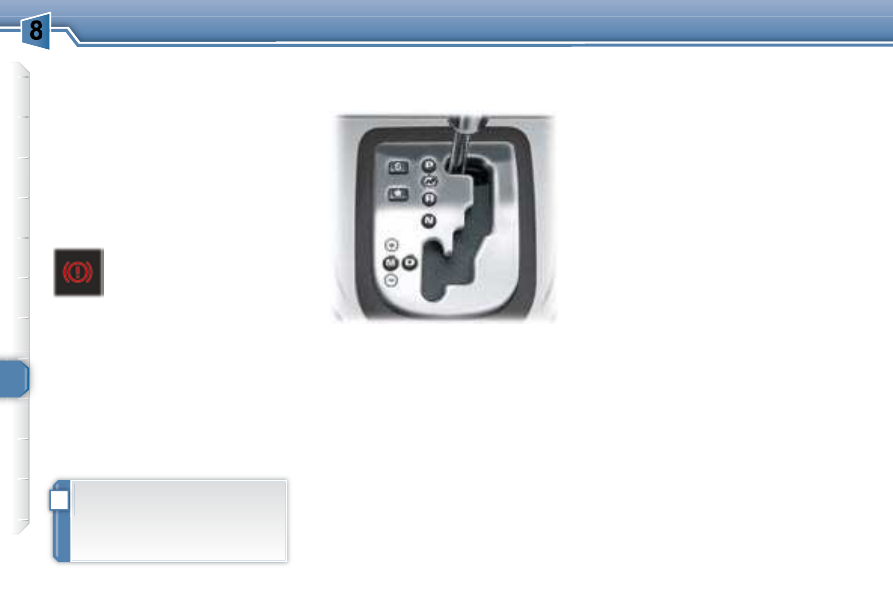

Gear selection gate

 Move the lever in the gate to

select a position.

The indicator light for the selec-

tion is displayed on the instru-

ment panel display.

Starting the engine



With the handbrake applied,

select position P or N in the gate.

 Turn the ignition key to the

Starting

position.

Otherwise, you are warned by an

audible signal and a message on the

multifunction display.

"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX

When parking on a slope, direct

your wheels towards the pave-

ment and pull the handbrake.

DRIVING

HANDBRAKE

   Applying
Pull  the  handbrake  to  immobilise
your vehicle.

When the vehicle is being
driven, illumination of this

warning light and of the

STOP

warning light, ac-

companied by an audible

signal and a message on the multi-

function display, indicates that the

handbrake is still on or has not been

properly released.

Releasing
Pull on the handle and press the

button to release the handbrake.

The four speed automatic gearbox

offers a choice between the comfort

of integral automatic

operation, en-

hanced by a sport and a snow

pro-

gramme, or manual gear changing .

ark: to immobilise the vehicle or

start the engine

, with the handbrake

on or off.
R

everse: to reverse (select this

position with the vehicle stationary,

engine at idle).
N

eutral: to start the engine and to

park

, with the handbrake on.

Note:

if position N is engaged

inadvertently while driving, allow the

engine to return to idle before engag-

ing position D to accelerate.
D

rive: for driving in automatic mode.

anual: to select the gears.

: sport programme.



: snow programme.

Gear selection gate

 Move the lever in the gate to

select a position.

The indicator light for the selec-

tion is displayed on the instru-

ment panel display.

Starting the engine



With the handbrake applied,

select position P or N in the gate.

 Turn the ignition key to the

Starting

position.

Otherwise, you are warned by an

audible signal and a message on the

multifunction display.

"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX

When parking on a slope, direct

your wheels towards the pave-

ment and pull the handbrake.

Peugeot 307 CC Dag (2007.5). Instruction - part 6
