Peugeot 307 CC Dag (2007.5). Instruction - part 7

DRIVING

Moving off

With the engine running, to move off

from position P :
 it is essential to press the brake

pedal,

 release the handbrake,


select position R , D or M , then

gradually release the pressure

on the brake pedal; the vehicle

moves off immediately.

You can also move off from position N .

Sport and snow programmes

In addition to the auto-adaptive

programme, there are two special

programmes .

The programme is displayed on the

instrument panel screen.
Sport programme
 Press button S once the engine

has been started.

The gearbox automatically favours

sporty driving and more dynamic

acceleration.

Snow programme
This programme improves starting

and drive when traction is poor.
 Press button  once the engine

has been started.

The gearbox adapts to driving on

slippery roads.
Note:

you can return to the auto-

adaptive programme at any time.
 Press button S or  again to

switch off the programme you

are in.

Automatic operation

Automatic changing of the four

gears:


select position D in the gate.

The gearbox automatically adapts

the gear in relation to the style of

driving, the road proi le and the

vehicle load.
The gearbox is then operating in

auto-adaptive mode, without any

action on your part .

For immediate maximum accelera-

tion without touching the gear lever,

press the accelerator pedal down as

far as it will go (kickdown). The gear-

box will automatically change down

or maintain the gear selected until

maximum engine speed is reached.

When braking, the gearbox will au-

tomatically change down in order to

provide efi cient engine braking.

If you take your foot off the accel-

erator suddenly, the gearbox will not

change to a higher gear for reasons
of safety.

When the engine is at idle,

brakes not applied, if position R ,

D or M is selected the vehicle

moves even without the accel-

erator being pressed.
For  this  reason,   do  not  leave
children  unsupervised  inside
the  vehicle,  with  the  engine
running .
If  the  lever  is  not  in  position   P ,

an audible signal is heard and

a message appears when the

driver's door is opened or ap-

proximately 45 seconds after

the ignition is switched off. Move

the lever to P

. The audible sig-

nal stops and the message dis-

appears.

Never select position N when

the vehicle is moving.
Never select positions P or R

unless the vehicle is stationary.
Never change between posi-

tions to optimise braking on a

slippery surface.

When maintenance operations

need to be carried out with the

engine running, apply the hand-

brake and select position P .

DRIVING

Manual operation

Manual

changing of the four gears:



select position M in the gate,



push the lever to the + sign to

change to a higher gear,



pull the lever to the - sign to

change to a lower gear.

You can change from position D

(driving in automatic mode) to posi-

tion M (driving in manual mode) at
any time.

Invalid value during manual
operation

Notes
It is only possible to change from one

gear to another if the vehicle speed

and engine speed permit. If they do

not, the vehicle will operate tempo-

rarily in automatic mode.
In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear

engaged is displayed.
When the vehicle is stationary or

moving very slowly, the gearbox au-

tomatically selects gear M1 .
Programme S

(sport) and  (snow)

do not operate in manual mode.

Operating abnormality

Any operating abnormality

is indicated by the display-

ing of this warning light, an

audible signal and a mes-

sage on the multi-function

display.

In this situation the gearbox oper-

ates in downgrade mode (locked in

3rd gear). You may feel a substan-

tial knock when changing from P to

R and from N to R

(this will not cause

any damage to the gearbox).
Do not exceed 60 mph (100 km/h),

keeping within the limit of local speed

restrictions.
Contact a PEUGEOT dealer as soon

as possible.

This is displayed if a gear

is not engaged correctly

(selector between two posi-

tions).

If the battery is l at and the lever is

in position P , it will be impossible

to change to another position.
Above all, do not force the lever
as there is a risk of damage to
the automatic gearbox.

DRIVING

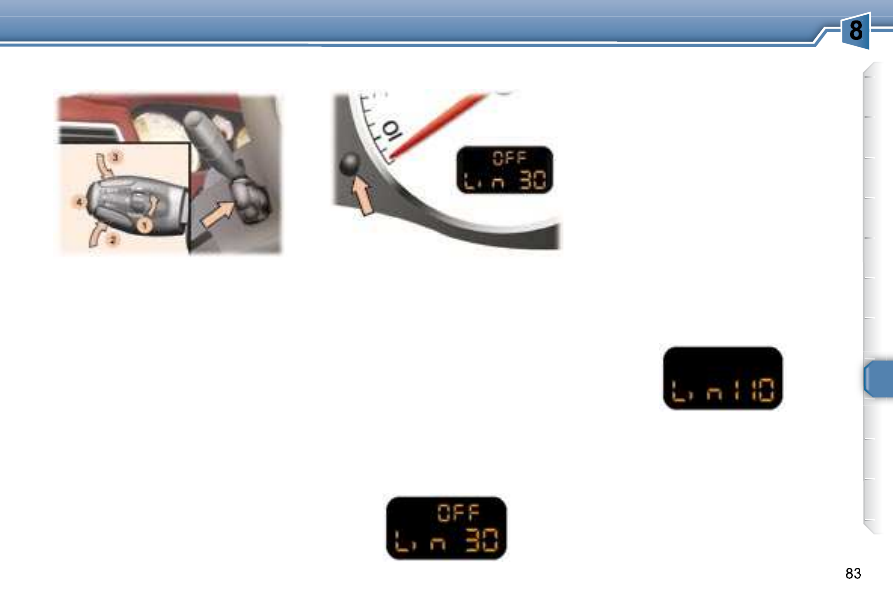

This speed limiter, of the new gener-

ation, has a display on the instrument

panel to indicate the programmed

speed.

It prevents exceeding of the vehicle

speed programmed by the driver.

When the programmed speed is

reached, pressing the accelerator

pedal no longer has any effect.

The limiter operates with a pro-

grammed speed of at least 18 mph

(30 km/h); it remains active regard-

less of any action on the brake and

clutch pedals.
  The  operating  actions  must  be
carried out:
   -    when stationary, with the engine

running,

or
- with the vehicle moving.

When the speed limiter function is

active, pressing this button displays

the distance recorders.
After a few seconds or when this but-

ton is pressed again, the display re-

turns to the speed limiter function.

Storing a speed
A speed can be stored without acti-

vating the limiter.
Press buttons 2 and 3

briel y to de-

crease or increase by 1 mph (1 km/h).

An extended press decreases or in-

creases by 5 mph (5 km/h).

A maintained press decreases or in-

creases the programmed speed in

steps of 5 mph (5 km/h).

Selecting the function
 Place the dial 1 in the LIMIT

posi-

tion. The limiter is not yet active.

By default, the display indicates:

Activating/deactivating the limiter
Pressing button 4 once activates the

limiter, pressing the button again de-

activates it.

When the limiter is active, the display

indicates (e.g. at 70 mph (110 km/h)):

SPEED LIMITER *

Instrument panel display

* According to country.

DRIVING

Note:

the speed also l ashes when

the limiter cannot prevent the vehi-

cle from exceeding the programmed

speed (on a steep descent, in the

event of sharp acceleration).
To reactivate the limiter, release the

accelerator to slow down to a speed

below the programmed speed.

Switching the function off
 Place dial 1

in position 0 or switch

off the ignition to switch the sys-

tem off. The last programmed

speed remains in the memory.

Operating fault
In the event of a limiter malfunction,

the programmed speed is cleared,

the dashes l ash for a few seconds:

Contact a PEUGEOT dealer to have
the system checked.

Exceeding the programmed
speed
In exceptional circumstances, use

this mode to exceed the programmed

speed.
Pressing the accelerator in order to

exceed the programmed speed will

have no effect unless you press the

pedal

i rmly beyond the point of

resistance .

The limiter is deactivated temporarily

and the speed displayed on the instru-

ment panel l ashes (e.g. at 70 mph

(110 km/h)):

In the event of a steep descent

or sharp acceleration, the speed

limiter will not be able to prevent

the vehicle from exceeding the

programmed speed.

In any event, the speed limiter

cannot replace the need to

observe speed limits, nor can it

replace the need for vigilance

and responsibility on the part of

the driver.
To avoid any risk of jamming of

the pedals:

- ensure that the mat is posi-

tioned correctly.

- never i t one mat on top of

another.

DRIVING

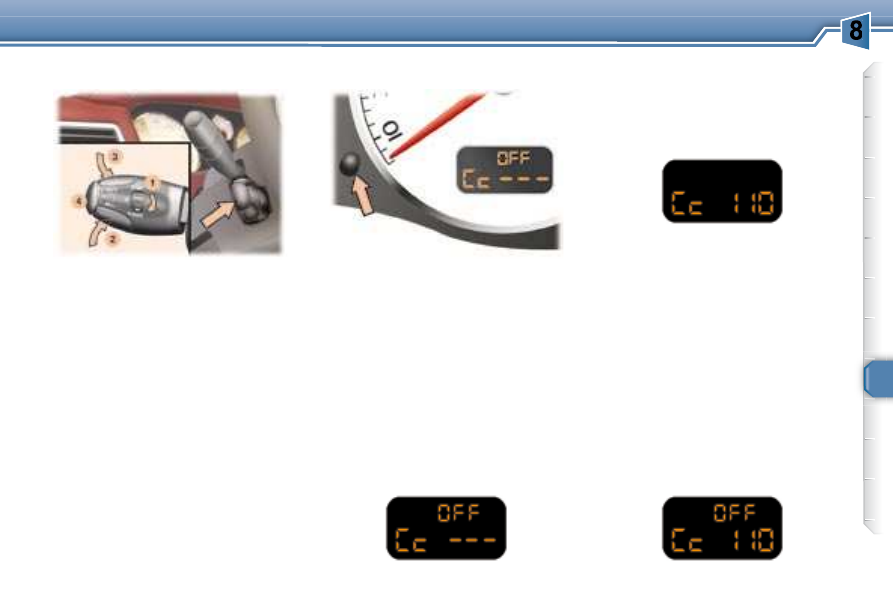

This cruise control, of the new gen-

eration, is linked with the speed lim-

iter. It has a display on the instrument

panel to indicate the memorised ref-

erence speed.
It enables the vehicle to maintain a

steady speed programmed by the

driver.
In order for it to be memorised or ac-

tivated, the vehicle speed must be

greater than 25 mph (40 km/h) with

at least fourth gear engaged for vehi-

cles i tted with a manual gearbox.

On vehicles i tted with an automatic

gearbox, the lever must be in posi-

tion D , or in at least second gear in

sequential mode.

When the cruise control function

is activated, pressing this button

enables you to display the distance

recorders.
After a few seconds or when this

button is pressed again, the display

returns to the cruise control function.

First activation/memorising a
reference speed
As soon as you reach the chosen

speed, press button 2 or 3 . This mem-

orises the speed and the display indi-

cates (e.g. at 70 mph (110 km/h)):

Selecting the function


Place switch 1 in the CRUISE

position. The cruise control is

not yet active and no speed has

been memorised. The display

indicates:

Note:

It is possible to accelerate

and drive momentarily at a speed

greater than the memorised speed.

The value memorised l ashes. When

the accelerator pedal is released, the

vehicle will return to the memorised

speed.

Cancelling the cruise control

If you wish to cancel the cruise control:
 Press button 4 or the brake or

clutch pedal.

The display indicates (e.g. at 70 mph

(110 km/h)):

* According to country.

CRUISE CONTROL *

Instrument panel display

DRIVING

Cancelling the memorised
reference speed


When the vehicle becomes sta-

tionary, after switching off the

ignition, the system no longer

memorises a speed.

Reactivating the cruise control
After cancellation of the cruise con-

trol, press button 4

. Your vehicle will

return to the last memorised speed.

The display indicates (e.g. at 70 mph

(110 km/h)):

Changing the memorised
reference speed
To memorise a speed higher than the

previous one, there are two options:

Without using the accelerator:


press button 3 ;

A brief press increases by 1 mph

(1 km/h).
An extended press increases by

5 mph (5 km/h).

A maintained press increases in

steps of 5 mph (5 km/h).

Using the accelerator:


exceed the memorised speed un-

til the required speed is reached,



press button 2 or 3 .

Switching the function off
 Place dial 1

in position 0 to switch

the system off.

Operating fault
In the event of a cruise control mal-

function, the memorised speed is

erased, the dashes l ash for a few

seconds:

To memorise a speed lower than the

previous one:


press button 2 ;

A brief press decreases by 1 mph

(1 km/h).
An extended press decreases by

5 mph (5 km/h).

A maintained press decreases in

steps of 5 mph (5 km/h).

Contact a PEUGEOT dealer to have
the system checked.

When changing the memorised

reference speed by means of a

maintained press, pay attention

as the speed can increase or

decrease rapidly.
Do not use the cruise control on

slippery roads or in heavy trafi c.

In the event of a steep slope, the

cruise control cannot prevent

the vehicle from exceeding the

programmed speed.
In any event, the cruise control

cannot replace the need to com-

ply with speed limits, nor can it

replace the need for vigilance

and responsibility on the part of

the driver.

To prevent the mat from becoming

caught under the pedals:

- ensure that the mat is posi-

tioned correctly.

- never i t one mat on top of

another.

DRIVING

First activation/memorising a
reference speed
As soon as you reach the chosen

speed, press button 2 or 3 . This mem-

orises the speed and the display indi-

cates (e.g. at 70 mph (110 km/h)):

This cruise control has a display on

the instrument panel to indicate the

memorised reference speed.
It enables the vehicle to maintain a

steady speed programmed by the

driver.
In order for it to be memorised or ac-

tivated, the vehicle speed must be

greater than 25 mph (40 km/h) with

at least fourth gear engaged for vehi-

cles i tted with a manual gearbox.

On vehicles i tted with an automatic

gearbox, the lever must be in posi-

tion D or at least second gear must

be engaged in sequential driving

mode.

When the cruise control function

is activated, pressing this button

enables you to display the distance

recorder.
After a few seconds or when this

button is pressed again, the display

returns to the cruise control function.

Selecting the function


Place switch 1 in the ON position.

The cruise control is not yet active

and no speed has been memo-

rised. The display indicates:

Note:

It is possible to accelerate

and drive momentarily at a speed

greater than the memorised speed.

The value memorised l ashes. When

the accelerator pedal is released, the

vehicle will return to the memorised

speed.

Cancelling the cruise control

If you wish to cancel the cruise control:
 Press button 4 or the brake or

clutch pedal.

The display indicates (e.g. at 70 mph

(110 km/h)):

* According to country.

CRUISE CONTROL *

Instrument panel display

DRIVING

Reactivating the cruise control
After cancellation of the cruise con-

trol, press button 4

. Your vehicle will

return to the last memorised speed.

The display indicates (e.g. at 70 mph

(110 km/h)):

Cancelling the memorised
reference speed


When the vehicle is stationary, af-

ter the ignition has been switched

off, the system no longer stores

any speed.

Changing the memorised
reference speed
To memorise a speed higher than the

previous one, there are two options:

Without using the accelerator:


press button 3 ;

A brief press increases by 1 mph

(1 km/h).
An extended press increases by

5 mph (5 km/h).

A maintained press increases in

steps of 5 mph (5 km/h).

Using the accelerator:


exceed the memorised speed un-

til the required speed is reached,



press button 2 or 3 .

Switching the function off
 Place dial 1 in the OFF

position to

switch the system off.

Operating fault
In the event of a cruise control mal-

function, the memorised speed is

erased, the dashes l ash for a few

seconds:

To memorise a speed lower than the

previous one:


press button 2 ;

A brief press decreases by 1 mph

(1 km/h).
An extended press decreases by

5 mph (5 km/h).

A maintained press decreases in

steps of 5 mph (5 km/h).

Contact a PEUGEOT dealer to have
the system checked.

When changing the memorised

reference speed by means of a

maintained press, pay attention

as the speed can increase or

decrease rapidly.
Do not use the cruise control on

slippery roads or in heavy trafi c.

In the event of a steep slope, the

cruise control cannot prevent

the vehicle from exceeding the

programmed speed.
In any event, the cruise control

cannot replace the need to ob-

serve the speed limits, nor can

it replace the need for vigilance

and responsibility on the part of

the driver.
To avoid any risk of jamming of

the pedals:

- ensure that the mat is posi-

tioned correctly.

- never i t one mat on top of

another.

DRIVING

VISUAL AND AUDIBLE REAR
PARKING ASSISTANCE

The proximity information is given

by:

- an audible signal, which be-

comes more rapid as the vehicle

approaches the obstacle.

- a graphic on the multifunction dis-

play, with blocks which become

progressively closer to the vehicle.

The rear speakers transmit an audi-

ble signal:

- on the right if an obstacle is

detected on the right,

- on the left if an obstacle is detect-

ed on the left,

- on the right and on the left if an

obstacle is detected in the centre.

When the distance between the rear

of the vehicle and the obstacle is less

than approximately twenty-i ve centi-

metres, the audible signal becomes

continuous and the "Danger" symbol

appears on the multifunction display.

 Change to neutral, the system is

again inactive.

Activation/Deactivation

The system can be activat-

ed or deactivated from the

multifunction display con-

i guration menu.

The activation and deacti-

vation of the system are memorised

when the engine is switched off.

Switching the system off

If there is an operating fault, when

reverse gear is engaged, the

service warning light comes on,

accompanied by an audible sig-

nal (short bleep) and a message

on the multifunction display.
Contact a PEUGEOT dealer.

This system consists of four proximity

sensors, located in the rear bumper.

This detects any obstacle (person,

vehicle, tree, gate, etc.) behind the

vehicle. Nevertheless, it cannot de-

tect obstacles located just below the

bumper.

An object, such as a stake, a road-

works cone or any other similar ob-

ject may be detected at the beginning

of the manoeuvre, but may no longer

be detected when the vehicle comes

close to it.
Note:

this function will be disarmed

automatically when the vehicle is

towing a trailer (vehicle i tted with

towing attachment recommended by

PEUGEOT).
In bad or wintry weather, ensure that

the sensors are not covered with

mud, frost or snow. When reverse

gear is engaged, an audible signal

(long bleep) indicates that the sen-

sors may be dirty.

Activation

The system is activated as soon as
reverse gear is engaged.
This is accompanied by an audible

signal and displaying of the vehicle

on the multifunction display.

CHECKS

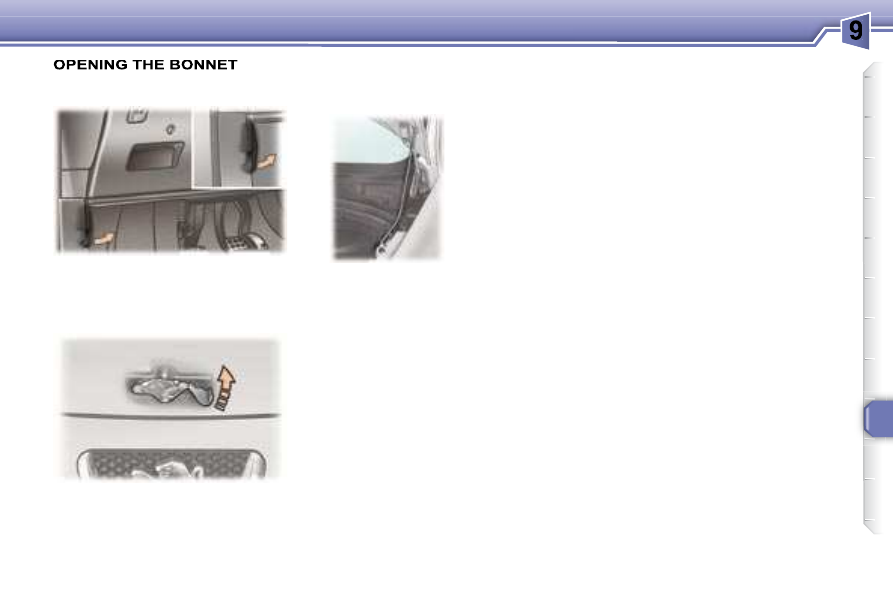

Lift the catch and raise the bonnet.

Bonnet strut

RUNNING OUT OF FUEL
(DIESEL)

If you should run out of fuel, it is nec-

essary to re-prime the circuit.

The repriming pump and the degas

screw are located under the bonnet

(see corresponding drawing):

2 litre 16V HDI engine

- i ll the fuel tank with at least i ve

litres of diesel,

- unclip the style cover to gain ac-

cess to the repriming pump,

- unscrew the degas screw,

- squeeze and release the manual

repriming pump until diesel is

seen escaping via the degas

screw,

- retighten the degas screw,

- operate the starter until the en-

gine starts.

From inside

Tilt the handle on the left-hand side

under the fascia to the right.

From outside

Secure the strut
to hold the bonnet

open.
Before closing the

bonnet, replace the

strut in its housing.

To close
Lower the bonnet and release it at

the end of its travel.
Check that the bonnet is properly

locked.

CHECKS

Power steering reservoir.

Windscreen/headlamp wash

reservoir.

3. Coolant reservoir.

Brake l uid reservoir.

5. Battery.

6. Fuse box.

Air i lter.

Dipstick.

9. Engine oil reservoir.

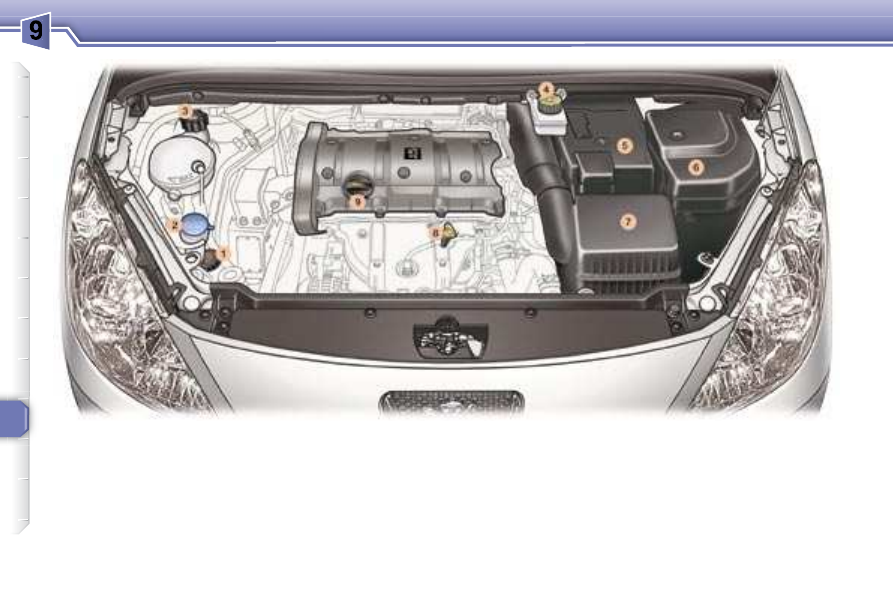

1.6 LITRE 16V PETROL ENGINE

CHECKS

Power steering reservoir.

Windscreen/headlamp wash

reservoir.

3. Coolant reservoir.

Brake l uid reservoir.

5. Battery.

6. Fuse box.

Air i lter.

Dipstick.

9. Engine oil reservoir.

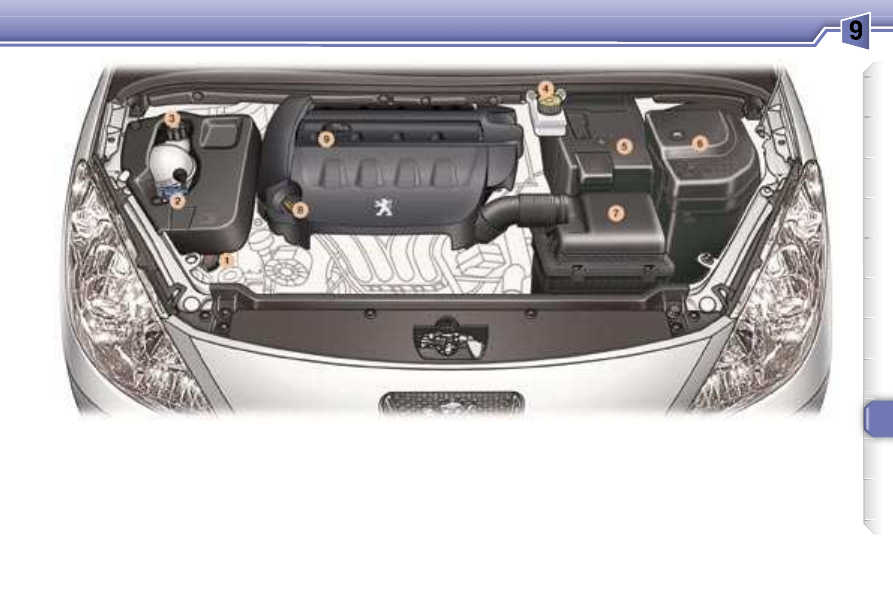

2 LITRE 16V PETROL ENGINE

CHECKS

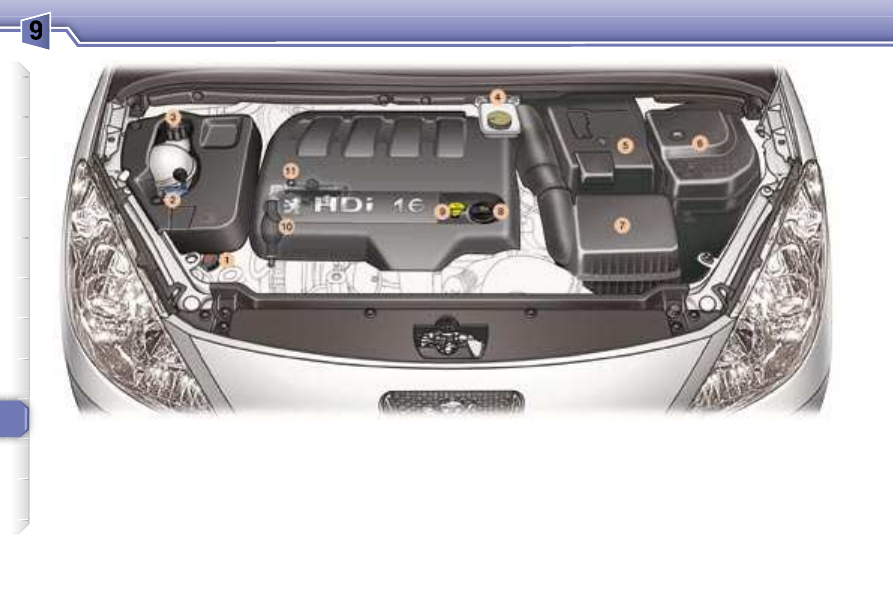

2 LITRE 16V TURBO DIESEL HDI ENGINE (136 BHP)

Power steering reservoir.

Windscreen/headlamp wash

reservoir.

3. Coolant reservoir.

Brake l uid reservoir.

5. Battery.

6. Fuse box.

Air i lter.

8. Engine oil reservoir.

Dipstick.

10.

Priming pump.

11.

Degas screw.

CHECKS

CHECKING THE LEVELS

There are two marks on

the dipstick:
A = maximum
Never i ll past this mark.
B = minimum

Oil change
According to the information given in
the servicing booklet.

Power steering reservoir

Remove the style trim * (see §

"Changing a bulb - Front lights").

Open the reservoir, with the engine

at ambient temperature. The level

should always be above the MIN.

mark and close to the MAX. mark.

Dipstick

Cooling system

Use the l uid recommended by the

manufacturer.
When the engine is warm, the tem-

perature of the coolant is controlled

by the engine fan. This fan can oper-

ate with the ignition off.

In the case of vehicles i tted with

a particle emission i lter, the fan

can operate after the vehicle has
stopped, even when the engine is
cold.
In addition, as the cooling system is

pressurised, wait for at least one hour

after the engine has stopped before

carrying out any work.

Slacken the cap by two turns to re-

lease the pressure to prevent any

risk of scalding. When the pressure

has dropped, remove the cap and

top up the level.

Windscreen and headlamp
wash level

Diesel additive level (Diesel
with particle emission filter)

If the service warning light comes on,

accompanied by a message and an

audible signal, this indicates a low

diesel additive level.
This additive must be topped up.
Contact a PEUGEOT dealer as soon

as possible.

Brake fluid level

Viscosity selection
In all cases, the oil selected must

meet the manufacturer's require-

ments.

Oil level

Note: the coolant does not need to
be changed.

The level should always be

above the MIN mark and
close to the MAX mark.

Replacement must be car-

ried out according to the
manufacturer's

servicing

schedule.

Use l uids recommended by the

manufacturer, which fuli l DOT4

standards.

Check the level regularly

and top up between chang-

es. The maximum consump-

tion is 0.5 l per 600 miles

(1 000 km).

Check the level with the vehicle level,

engine cold, using the oil level gauge

on the instrument panel or the dip-

stick.

For best quality cleaning and

for your safety, we would advise

that you use products recom-

mended by PEUGEOT.

To maintain the reliability of
engines and emission control
systems, the use of additives in

engine oil is prohibited.

* According to engine.

CHECKS

Where the handbrake travel

is too great or there is a re-

duction in the performance

of the system, the hand-

brake should be adjusted,

even between services.
Have the system checked by a PEUGEOT
dealer.

Air filter and passenger
compartment filter

Particle emission filter (Diesel)

It is imperative that the particle emis-

sion i lter is maintained in accordance

with the manufacturer's servicing

schedule, by a PEUGEOT dealer.

Brake pad wear depends

on the style of driving, in

particular for vehicles which

are used in town, over short

distances.

Disc and drum wear status

For any information relating to the wear

status of the surfaces of the discs and
drums, contact a PEUGEOT dealer.

Oil filter

Used products

Avoid all prolonged contact of the

used oil with the skin.

Brake l uid is harmful to health and

very corrosive.

Note:

following prolonged operation

of the vehicle at very low speed or at

idle, you may, in exceptional cases,

notice discharges of water vapour

at the exhaust on acceleration. This
has no effect on the behaviour of the
vehicle or on the environment.

Battery

At the start of winter, have

your battery checked by a
PEUGEOT dealer.

Have the i lter elements

replaced regularly. If you

drive in dusty conditions,
change them twice as of-
ten.

Brake pads

Handbrake

Change the i lter regular-

ly, in accordance with the

servicing schedule.

Manual gearbox

This does not require an oil

change. Have the level checked

in accordance with the manu-

facturer's servicing schedule.

Do not dispose of used oil,

brake l uid or coolant into drains

or onto the ground.
Empty the used oil into the con-

tainers provided for this purpose

in the PEUGEOT network.

It may be necessary to check

the thickness of the pads, even

between services.

  To  check  the  main  levels  and
certain components, in accordance
with the manufacturer's servicing
schedule,  refer  to  the  pages
of  the  servicing  booklet  which
correspond  to  your  vehicle's
engine.

Only use products recommend-

ed by PEUGEOT or products of

equivalent quality and charac-

teristics.
To ensure best performance

from components as important

as the power steering and the

braking system, PEUGEOT se-

lects and offers quite specii c

products.

To prevent damage to the electri-

cal units, high pressure washing

to clean the engine compart-

ment is strictly prohibited .

CHECKS

Where the handbrake travel

is too great or there is a re-

duction in the performance

of the system, the hand-

brake should be adjusted,

even between services.
Have the system checked by a PEUGEOT
dealer.

Air filter and passenger
compartment filter

Particle emission filter (Diesel)

It is imperative that the particle emis-

sion i lter is maintained in accordance

with the manufacturer's servicing

schedule, by a PEUGEOT dealer.

Brake pad wear depends

on the style of driving, in

particular for vehicles which

are used in town, over short

distances.

Disc and drum wear status

For any information relating to the wear

status of the surfaces of the discs and
drums, contact a PEUGEOT dealer.

Oil filter

Used products

Avoid all prolonged contact of the

used oil with the skin.

Brake l uid is harmful to health and

very corrosive.

Note:

following prolonged operation

of the vehicle at very low speed or at

idle, you may, in exceptional cases,

notice discharges of water vapour

at the exhaust on acceleration. This
has no effect on the behaviour of the
vehicle or on the environment.

Battery

At the start of winter, have

your battery checked by a
PEUGEOT dealer.

Have the i lter elements

replaced regularly. If you

drive in dusty conditions,
change them twice as of-
ten.

Brake pads

Handbrake

Change the i lter regular-

ly, in accordance with the

servicing schedule.

Manual gearbox

This does not require an oil

change. Have the level checked

in accordance with the manu-

facturer's servicing schedule.

Do not dispose of used oil,

brake l uid or coolant into drains

or onto the ground.
Empty the used oil into the con-

tainers provided for this purpose

in the PEUGEOT network.

It may be necessary to check

the thickness of the pads, even

between services.

Only use products recommend-

ed by PEUGEOT or products of

equivalent quality and charac-

teristics.
To ensure best performance

from components as important

as the power steering and the

braking system, PEUGEOT se-

lects and offers quite specii c

products.

To prevent damage to the electri-

cal units, high pressure washing

to clean the engine compart-

ment is strictly prohibited .

Content .. 5 6 7 8 ..
