Peugeot 307 CC Dag (2007.5). Instruction - part 4

COMFORT

Passenger air bag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-

cured using a three point seat belt

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children

(from 9 to 18 kg), PEUGEOT

recommends use of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN

Optima"

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

COMFORT

Passenger air bag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-

cured using a three point seat belt

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

For the safety of young children

(from 9 to 18 kg), PEUGEOT

recommends use of the restraining

cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN

Optima"

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

COMFORT

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

U: seat suited to the installation of a

child seat which is secured using

the seat belt and "universally" ap-

proved, "rearwards facing" and/or

"forwards facing".

U (R): idem U

, with the vehicle's

seat adjusted to the highest

position.

(a) Universal child seat: child seat

which can be installed in all vehi-

cles using the seat belt.

(b) Group 0: from birth to 10 kg.
(c) Consult the current legislation

in your country before installing
your child on this seat.

Special Notes
For the L3

"RECARO Start" seat, in-

stalled on the front passenger seat,

with groups 2 and 3, adjust the vehi-

cle's seat to the intermediate longitu-

dinal position.
For the L4

"KLIPPAN Optima" seat,

installed on the rear side seat, with

group 3, use the booster cushion

only.

Seat

Weight of the child /indicative age

Below 13 kg

(groups 0 (b) and 0+)

Up to 1 year approx

9 to 18 kg

(group 1)

From 1 to 3 years

approx

15 to 25 kg

(group 2)

From 3 to 6 years

approx

22 to 36 kg

(group 3)

From 6 to 10 years

approx

Front passenger seat (c)

- height adjustable

U (R)

Rear side seats

In accordance with the European regulation (Directive 2000/3), this table indicates the possibilities for the installation of child

seats, which are secured using the seat belt and universally approved (a) in accordance with the weight of the child and the

seat in the vehicle.

COMFORT

Installing a booster seat
The chest part of the seat belt must

be positioned on the child's shoul-

der without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child's

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, i t-

ted with a seat belt guide at shoul-

der level.

As a safety precaution, do not

leave:

- one or more children alone and

unsupervised in a vehicle,

- a child or an animal in a vehi-

cle which is exposed to the sun,

with the windows closed,

- the keys within reach of children

inside the vehicle.

To prevent accidental opening of

the doors, use the "Child lock".

Take care not to open the rear win-

dows by more than one third.

To protect young children from the

rays of the sun, i t side blinds on the

rear windows.

Children under the age of 10 must

not travel in the "forward facing" po-

sition on the front passenger seat,

unless the rear seats are already

occupied by other children, cannot

be used or are absent.
Disarm the passenger air bag when

a "rear facing" child seat is installed

on the front seat. Otherwise, the

child would risk being seriously in-

jured or killed if the air bag were to

inl ate.

The incorrect installation of a child

seat in a vehicle compromises the

child's protection in the event of an

accident.
Remember to fasten the seat belts
or the child seat harnesses  keeping
the  slack   in  relation  to  the  child's
body  to  a  minimum,  even  for  short

journeys.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in con-

tact with the back of the vehicle's

seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be re-

moved, ensure that it is stored or

attached securely to prevent it from

being thrown around the vehicle in

the event of sharp braking.

COMFORT

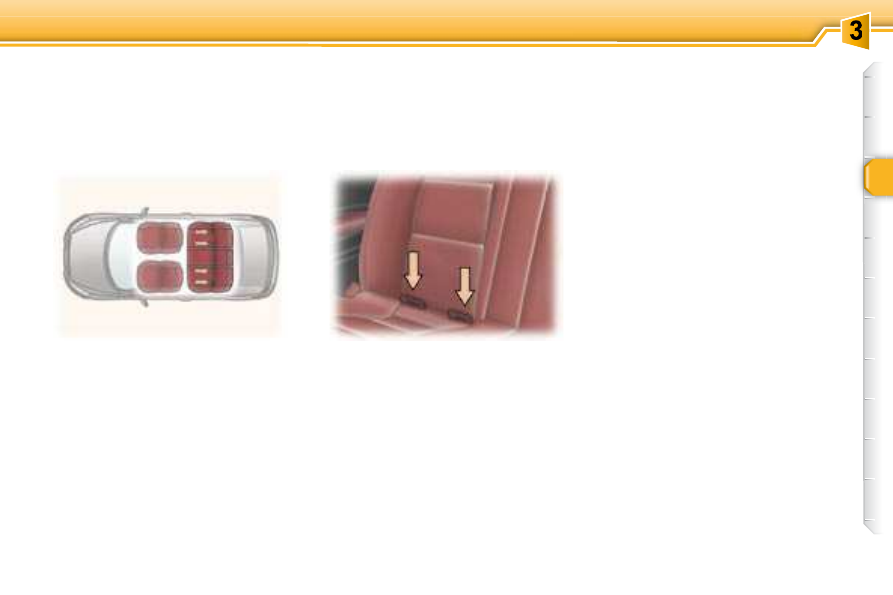

These are two rings located between

the seat back and the seat cushion.
The ISOFIX child seats

are i tted

with two locks which are secured

easily on these rings.

"ISOFIX" MOUNTINGS

These seats are i tted with ISOFIX

mountings.

This ISOFIX mounting system guar-

antees reliable, safe and fast i tting of

the child seat in your vehicle.

COMFORT

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

These child seats can also be used on seats which are not i tted with ISOFIX mountings. In this case, it is essential that

they are secured to the vehicle's seat by means of the three point seat belt.

Follow the instructions for i tting the child seat indicated in the seat manufacturer's installation guide.

ISOFIX KIDDY

ISOFIX RÖMER Duo Plus

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position.

Installed in the forwards facing position. Installed in the forwards facing position only.

The body of the child seat must be in

contact with the back of the vehicle's

front seat.

It is essential that the vehicle's front

seat is adjusted to the intermediate

longitudinal position.

Secured without the top strap.

Three child seat body angles: sitting,

reclining and lying positions.

Adjust the vehicle's front seat so that

the child's feet do not touch the seat
back.

ACCESS

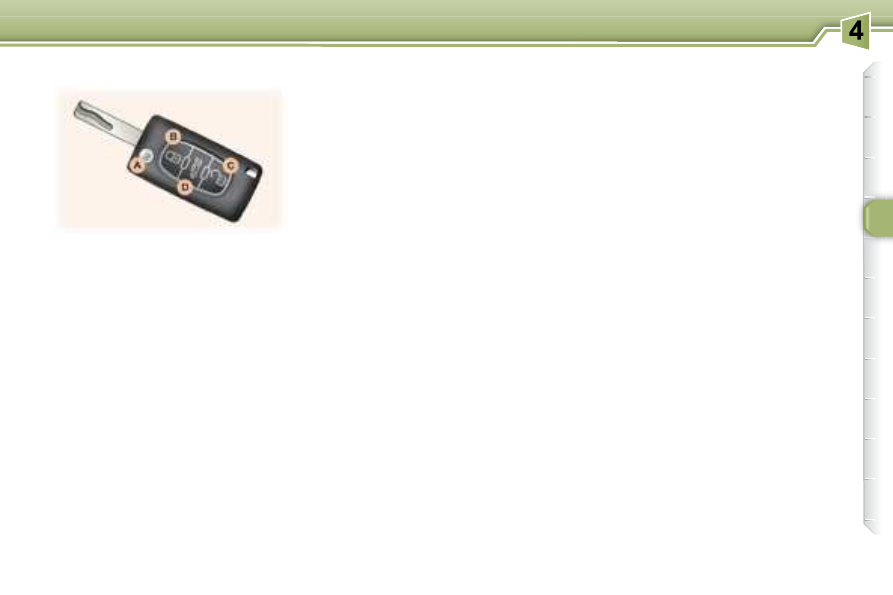

The remote control permits remote

locking, deadlocking and unlocking
of the vehicle, locating of the vehicle,
folding and unfolding of the exterior

mirrors and partial opening of the

boot.
The key allows you to switch on the

ignition and mechanically and inde-

pendently operate the lock on the

glove box, the fuel i ller cap, the pas-

senger air bag disarming switch and

the boot opening button disarming

switch.

Locking

   Using the remote control
      Press button  B  to lock the vehicle.
This  action  is  coni rmed  by  i xed

lighting of the direction indicators for

approximately two seconds.
At the same time, the exterior mirrors
fold back.

- fold and unfold the mirrors.
The boot can only be unlocked by

pressing the locking/unlocking button

from inside the vehicle, with the key

in the switch (refer to the correspond-

ing section).
If one of the doors or the boot is open,

the central locking will not work.

Unlocking

 Press button C to unlock the vehicle.
This action is coni rmed by rapid

l ashing of the direction indicators for

approximately two seconds.
At the same time, the exterior mirrors
unfold.

Deadlocking

This renders the exterior and interior

door controls inoperative.
It also disarms the interior central
locking/unlocking button.

Using the key
 Turn the key in the lock on the

driver's door to lock the vehicle.

Each action is coni rmed by i xed

lighting of the direction indicators for

approximately two seconds.
At the same time, the exterior mirrors
fold back.

   Using the remote control
       Pressing  button  B  locks the vehicle.
      A second press

within i ve sec-

onds deadlocks the vehicle.

Each action is coni rmed by i xed

lighting of the direction indicators for

approximately two seconds.

Unfolding/Folding the key

To unfold or fold the key, i rst press

button A .

Using the key
 Turn the key in the lock on the

driver's door to lock the vehicle.



Turn the key a second time within

i ve seconds to deadlock the vehicle.

Each action is coni rmed by i xed

lighting of the direction indicators for

approximately two seconds.

Central locking/Unlocking

From the driver's door, the key allows

you to:

- lock/deadlock the doors and boot

simultaneously,

- unlock the driver's door. Opening

this door unlocks the passenger

door,

REMOTE CONTROL KEY

ACCESS

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system

a few moments after the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.
The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code is

recognised and starting is possible.
If the system does not function
correctly,

the service warning light

comes on, accompanied by an audi-

ble signal and a message on the mul-

tifunction display.

In this case, your vehicle will not

start.Contact a PEUGEOT dealer as

soon as possible.

A heavy object attached to the key

(key ring, ...), weighing down on the

shaft of the key in the switch, may

cause a malfunction.

Battery ref.: CR1620/3 volts.

The information "battery l at" is given

by displaying of the service warning

light, accompanied by an audible sig-

nal and a message on the multifunc-

tion display.

To replace the battery, unclip the cas-

ing using a coin at the notch.
If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Key in ignition

A buzzer sounds on opening the driv-

er's door, if the key has been left in
the ignition.

mote  control  battery  or  in  the  event
of  a  remote  control  malfunction,  the
remote control must be reinitialised.
   

Switch off the ignition.



Switch the ignition on again.

 Press the remote control locking

button immediately for a few sec-

onds.



Switch off the ignition and remove

the remote control key from the
ignition lock.

The remote control is now working

again.

Locating your vehicle
To locate your vehicle, if you have

locked it, in a car park:


press button B , the courtesy lights

come on and the direction indica-

tors l ash for a few seconds.

 Press button D

to unlock and par-

tially open the boot.

This action also unlocks the doors.

Partial opening of the boot

Changing the remote control
battery

When the vehicle is locked, if un-

locking is activated inadvertent-

ly without a door being opened

within 30 seconds, the vehicle

will lock automatically.
The folding and unfolding of the
mirrors can be deactivated by a
PEUGEOT dealer.

Reprogramming the remote
control

Following disconnection of the vehi-

cle's battery, replacement of the re-

ACCESS

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identii cation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a i lm, which should be

removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

  Make  a  careful  note  of  the  number  on  each  key.  The  key  number  is
coded on the label attached to the key.
  If the keys are lost, your PEUGEOT dealer can rapidly supply you with
new keys.
  The high frequency remote control is a sensitive system; do not op-
erate  it  while  it  is  in  your  pocket  as  there  is  a  possibility  that  it  may
unlock your vehicle, without you being aware of it.
  The remote control does not operate when the key is in the ignition,
even when the ignition is switched off, except for reprogramming.
  Do not operate the deadlocking function if there is anyone inside the
vehicle.
  Driving with the doors locked may make access to the passenger com-

partment by the emergency services more difi cult in an emergency.
  As  a  safety  precaution  (with  children  on  board),  remove  the  ignition
key when you leave the vehicle, even for a short time.
  Do not repeatedly press the button of your remote control out of range
and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reprogrammed.
  When purchasing a second-hand vehicle:
   -

ensure that you are given the coni dential card;

- have the key codes memorised by a PEUGEOT dealer, to ensure

that the keys in your possession are the only ones which can start
the vehicle.

Do not make any modii cations to the electronic engine immobiliser

system.

Do not throw the remote control batteries away, they contain metals which

are harmful to the environment.
Take them to an approved collection point.

ACCESS

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control system

a few moments after the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.
The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code is

recognised and starting is possible.
If the system does not function
correctly,

the service warning light

comes on, accompanied by an audi-

ble signal and a message on the mul-

tifunction display.

In this case, your vehicle will not

start.Contact a PEUGEOT dealer as

soon as possible.

A heavy object attached to the key

(key ring, ...), weighing down on the

shaft of the key in the switch, may

cause a malfunction.

Battery ref.: CR1620/3 volts.

The information "battery l at" is given

by displaying of the service warning

light, accompanied by an audible sig-

nal and a message on the multifunc-

tion display.

To replace the battery, unclip the cas-

ing using a coin at the notch.
If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Key in ignition

A buzzer sounds on opening the driv-

er's door, if the key has been left in
the ignition.

mote  control  battery  or  in  the  event
of  a  remote  control  malfunction,  the
remote control must be reinitialised.
   

Switch off the ignition.



Switch the ignition on again.

 Press the remote control locking

button immediately for a few sec-

onds.



Switch off the ignition and remove

the remote control key from the
ignition lock.

The remote control is now working

again.

Locating your vehicle
To locate your vehicle, if you have

locked it, in a car park:


press button B , the courtesy lights

come on and the direction indica-

tors l ash for a few seconds.

 Press button D

to unlock and par-

tially open the boot.

This action also unlocks the doors.

Partial opening of the boot

Changing the remote control
battery

When the vehicle is locked, if un-

locking is activated inadvertent-

ly without a door being opened

within 30 seconds, the vehicle

will lock automatically.
The folding and unfolding of the
mirrors can be deactivated by a
PEUGEOT dealer.

Reprogramming the remote
control

Following disconnection of the vehi-

cle's battery, replacement of the re-

ACCESS

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identii cation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a i lm, which should be

removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

ensure that you are given the coni dential card;

- have the key codes memorised by a PEUGEOT dealer, to ensure

that the keys in your possession are the only ones which can start
the vehicle.

Do not make any modii cations to the electronic engine immobiliser

system.

Do not throw the remote control batteries away, they contain metals which

are harmful to the environment.
Take them to an approved collection point.

ACCESS

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identii cation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a i lm, which should be

removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

ensure that you are given the coni dential card;

- have the key codes memorised by a PEUGEOT dealer, to ensure

that the keys in your possession are the only ones which can start
the vehicle.

Do not make any modii cations to the electronic engine immobiliser

system.

Do not throw the remote control batteries away, they contain metals which

are harmful to the environment.
Take them to an approved collection point.

ACCESS

This provides two types of protection:

- exterior protection: it sounds if a door,

the boot or the bonnet is opened.

- interior protection: it sounds if

the volume inside the passenger

compartment changes (breaking

of a window or a movement in-

side the vehicle).

Note:

the interior protection alarm

does not function if the vehicle's roof

is open (cabriolet position).

When the alarm is triggered, the si-

ren sounds and the direction indica-

tor lights l ash for thirty seconds.
After triggering, the alarm remains set.



Switch off the ignition,



In the next ten seconds, press

button A until the indicator light is
on continuously,

 Get out of the vehicle,


Set the alarm by locking or dead-

locking using the remote control
(button A

indicator light l ashes

once a second).

In order for the alarm to be set in

this mode, these operations must be

carried out each time the ignition is

switched off.

Setting the alarm



Switch off the ignition and get out

of the vehicle.



Set the alarm by locking or dead-

locking using the remote control
(button A

indicator light l ashes

once per second).

Note:

if you wish to lock your vehi-

cle without setting the alarm, use the

door lock.

Disarming

Unlock the vehicle with the remote control

key (button A indicator light goes out).
Note: if the alarm has been triggered

while you were away from your vehicle,

the rapid l ashing of the indicator light will

stop when you switch on the ignition.

To set the alarm with exterior
protection only

If, while you are away from the vehi-

cle, you wish to leave a window par-

tially open or a pet inside the vehicle,

you should choose exterior protec-

tion only.

Incorrect operation

When the ignition is switched on, if

button A lights for ten seconds, there
is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.

Automatic activation *

The alarm is activated automatically two

minutes after the last closure of a door
or the boot.
In order to avoid accidental triggering

of the alarm when a door or the boot is

opened, it is essential to i rst press the

unlocking button on the remote control.

Failure of the remote control



Unlock the door with the key and

open it. The alarm is triggered.



Switch on the ignition. The alarm

is disarmed.

ALARM

If button A

indicator light l ashes rapid-

ly, the alarm has been triggered while

you were away from your vehicle.

45 seconds following pressing of the

locking button on the remote control,
the alarm is set, regardless of the
status of the doors or boot.
When washing your vehicle, to avoid

triggering the alarm:

- lock the doors using the key,
or
- set the exterior protection alarm only.

If the alarm has been triggered ten

times in succession, on the elev-

enth time it becomes inactive.

ACCESS

1. Driver's electric window

switch.

2. Passenger's electric window

switch.

3. Rear right electric window

switch.

4. Rear left electric window

switch.

5. Disarming of the rear electric

window switches (child lock).

You have two options:

Manual operation:
Press or pull the switch gently. The

window stops as soon as the switch

is released.

Front windows safety auto-
reverse
When the window rises and meets

an obstacle, it stops and partially

lowers again.

Disarming the rear window
controls
For the safety of your children, press

switch 5 to prevent operation of the

rear windows irrespective of their po-

sition.
When the button is lowered, the con-

trols are active.
When the button is raised, the con-

trols are disarmed.

Automatic operation:
Press or pull the switch fully: the

window opens or closes completely

when the switch is released.

Pressing the switch again stops the

movement of the window.

Note:
In the event of unwanted opening

of the window on closing (for exam-

ple in the presence of frost), press

the switch until it opens completely,

then pull it immediately until it clos-

es. Continue to hold the switch for

approximately one second after the

window has closed.
  The  safety  auto-reverse  function
is  not  active  during  these  opera-
tions.

ELECTRIC WINDOWS

Notes:
Approximately 45 seconds following

removal of the ignition key or the open-

ing of a door, none of the windows can

be opened or closed. The ignition must

be switched on again to permit open-

ing or closing of the windows.

The rear windows do not close auto-

matically.

ACCESS

Control 6

opens or closes all of the

windows simultaneously.
To disarm the action of control 6 ,

press the rear windows disarming

control 5 .

REINITIALISING THE
ELECTRIC WINDOWS

Following reconnection of the battery

or in the event of a malfunction:

- release the switch and pull it

again until it closes completely,

- hold the switch for approximately

one second after closing,

- press the control to lower the win-

dow automatically,

- when the window has reached the

low position, press the switch again

for approximately one second.

The safety auto-reverse function is
not active during these operations.

SIMULTANEOUS CONTROL
OF ALL 4 WINDOWS

Operation of the simultaneous

control of all four windows is the

sole responsibility of the driver.

Always remove the key from the

ignition when leaving the vehi-

cle, even for a short time.
In the event of contact during

operation of the windows, you

must reverse the movement of

the window. To do this, press the

switch concerned.

When the driver operates the

passenger

electric

window

switches, he must ensure that

no one is preventing correct

closing of the windows.
The driver must ensure that the

passengers use the electric win-

dows correctly.

Be aware of children when oper-

ating the windows.

ACCESS

"Door open" alert
If a door has not been closed properly:

- when the engine is running,

you are warned by a diagram and

a message on the multifunction

display for a few seconds,

- when the vehicle is moving

(speed above 6 mph (10 km/h)),

the service warning light comes

on. This is accompanied by an

audible signal, a diagram and a

message on the multifunction dis-

play for a few seconds.

The door opening controls do not

function when the vehicle is dead-

locked.

Opening the doors from outside
When you place your hand behind

the handle, the window automatically

lowers by a few millimetres. It rises

again after a few seconds and ad-

justs automatically on closing to pro-

vide perfect sealing.
Note:

when the vehicle is unlocked,

if you leave your hand on the handle

for more than 5 seconds, the window

rises again. Remove your hand to re-

activate the system.

Reinitialisation of the automatic
partial opening of the door
windows
Carry out this operation following re-

connection of the battery and reini-

tialisation of the electric windows

(see corresponding section):


partially open the door,

 close the door,


wait for a few seconds,



place your hand behind the han-

dle, the window automatically

lowers by a few millimetres.

THE DOORS

Opening the doors from inside

  Before  carrying  out  any  work
which  requires  cutting  off  of
the battery, lower the windows
to make it easier to open and
close the doors.
In the event of a battery cut-off,

it is still possible to open the

doors. However, it is imperative

that the door is not slammed on
closing.
It will be necessary to reinitial-

ise the window controls and the

automatic partial opening of the

door windows.
Contact a PEUGEOT dealer as

soon as possible.

When washing your vehicle:
- do not forget to lock it to

avoid any risk of automat-
ic partial opening of the
windows,

- avoid soaking the upper

part of the windows.

  When  washing  your  vehicle
using  high  pressure  equip-
ment,  it  is  advisable  to  keep
the  end  of  the  nozzle  at  least
1 metre from the windows and
door seals.

Content .. 2 3 4 5 ..
