Coolant temperature indicator

System which informs the driver of the

changes in the temperature of the en-

gine coolant while driving.

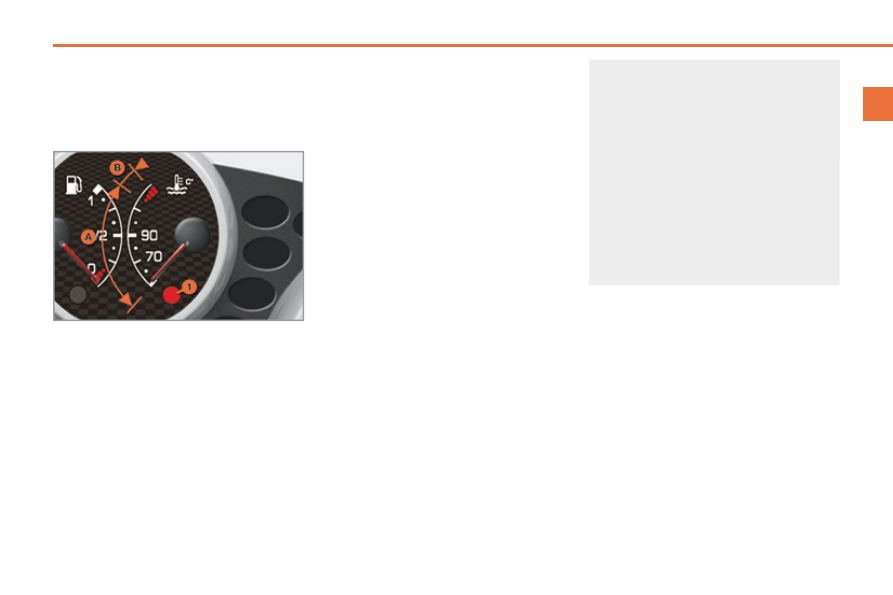

With the engine running, when the nee-

dle is:

in zone

A , the temperature is correct,

in zone

B , the temperature is too

high; the max temperature warning

lamp

1 and the central STOP warn-

ing lamp come on, accompanied by

an audible signal and a message in

the multifunction screen.

You MUST stop as soon as it is safe

to do so.

Contact a PEUGEOT dealer or a quali-

ﬁ ed workshop.

After driving for a few minutes, the tem-

perature and pressure in the cooling

system increase.

To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to al-

low the pressure to drop,

 when the pressure has dropped, re-

move the cap,

 top up the level to the "MAX" mark

(circular line).

On petrol engines, the cooling of the

engine is managed electronically to

reduce fuel consumption. Conse-

quently, the coolant temperature

levels are no longer simply linked

with the external ambient conditions

and the use of the vehicle.

For example, in town, it is normal

for the coolant temperature to be

slightly higher in cold weather than

in hot weather (normal operation

may lead to a temperature of over

100°).

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Distance recorders

Lighting dimmer

Permits manual adjustment of the

brightness of the instruments and con-

trols to suit the ambient light level. Only

operates when the vehicle lighting is on,

with the exception of the daytime run-

ning lamps.

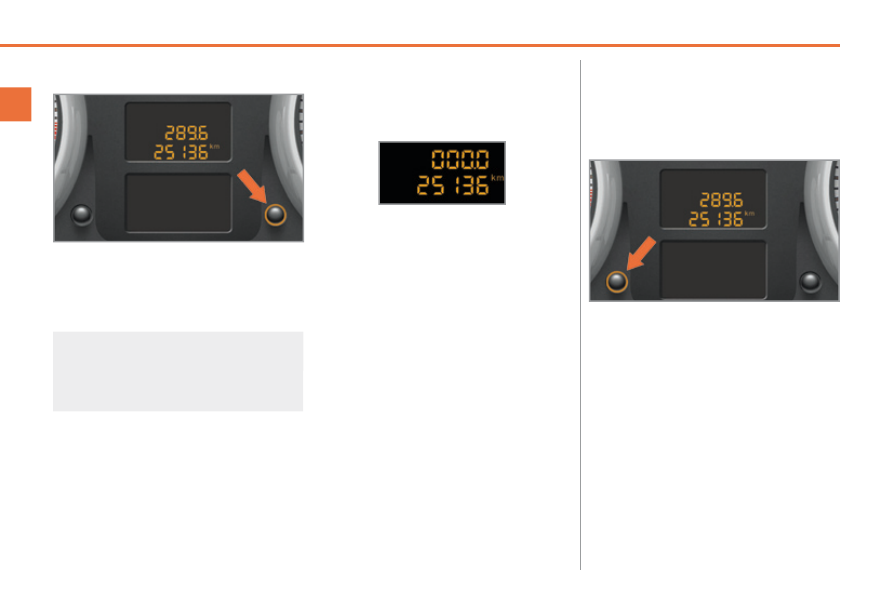

The total and trip distances are dis-

played for thirty seconds when the ig-

nition is switched off, when the driver's

door is opened and when the vehicle is

locked or unlocked.

Trip distance recorder

System which measures a distance

travelled during a day or other period

since it was reset to zero by the driver.

Activation



Press the button to change the

brightness of the instruments and

controls.

 When the lighting reaches the mini-

mum setting, release the button,

then press again to increase it.

 When the lighting reaches the maxi-

mum setting, release the button,

then press again to reduce it.

 When the lighting reaches the level

of brightness required, release the

button.

Deactivation

When the vehicle lighting is off, or in

day mode on vehicles ﬁ tted with day-

time running lamps, pressing the button

does not have any effect.

 With the ignition on, press the but-

ton until zeros appear.

To conform to legislation in the

country you are crossing, change

the units of distance (miles or km)

via the conﬁ guration menu.

Total distance recorder

System which measures the total dis-

tance travelled by the vehicle since its

ﬁ rst registration.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

MONOCHROME SCREEN A (WITHOUT

PEUGEOT CONNECT SOUND)

Controls

Main menu

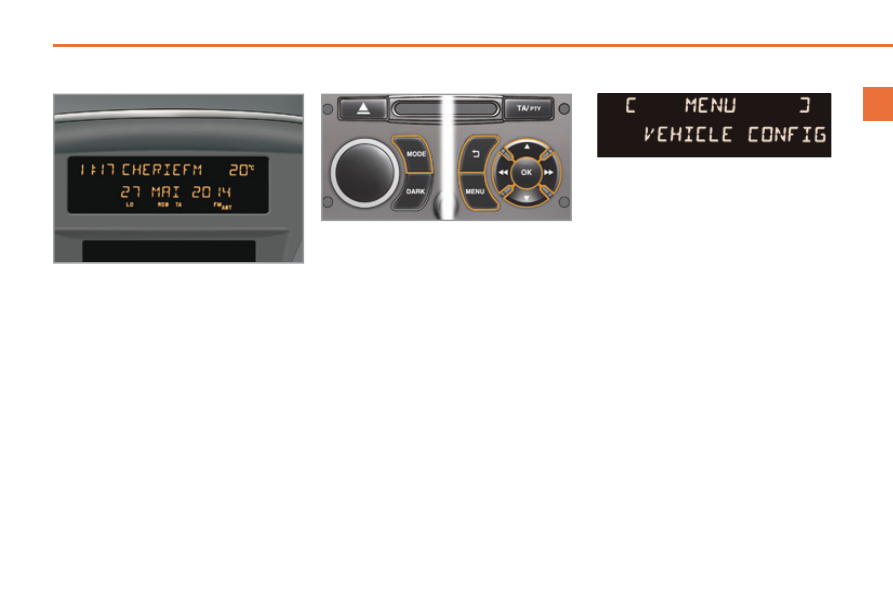

There are three display control buttons:

"Back" to abandon the operation in

progress,

"MENU" to scroll through the menus

or sub-menus,

"OK" to select the menu or sub-

menu required.

 Press the

"MENU" button to scroll

through the various menus of the

main menu :

   -   vehicle conﬁ guration,
-   options,
-   display  settings,
-   language,
-   units.

 Press the

"OK" button to select the

menu required.

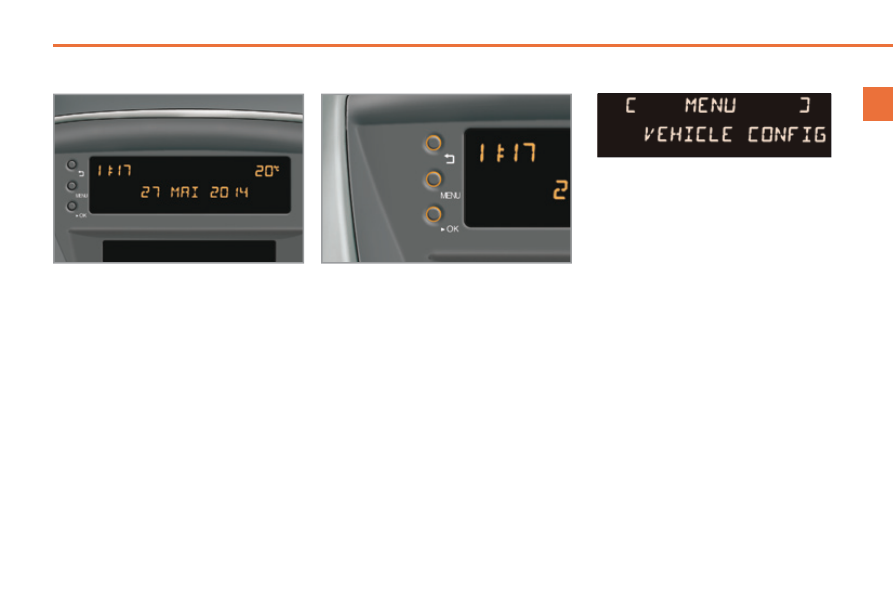

Displays in the screen

This displays the following information:

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

- status of the openings (doors, boot...),

trip computer (refer to the corre-

sponding section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Boot open") may ap-

pear temporarily. These can be cleared

by pressing the

"Back" button.

* With air conditioning only.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Vehicle conﬁ guration

Options

Once the "Options" menu has been se-

lected, you can start diagnostics of the

status of the equipment (active, not ac-

tive, faulty).

Language

Once the "Language" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Display settings

Once the "Display settings" menu has

been selected, you can gain access to

the following settings:

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Units

Once the "Units" menu has been se-

lected, you can change the units of the

following parameters:

temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).

 Once you have selected a setting,

press the

"OK" button to change its

value.



Wait for approximately ten sec-

onds without any action to allow

the changed data to be recorded or

press the

"Back" button to cancel.

The screen then returns to the normal

display.

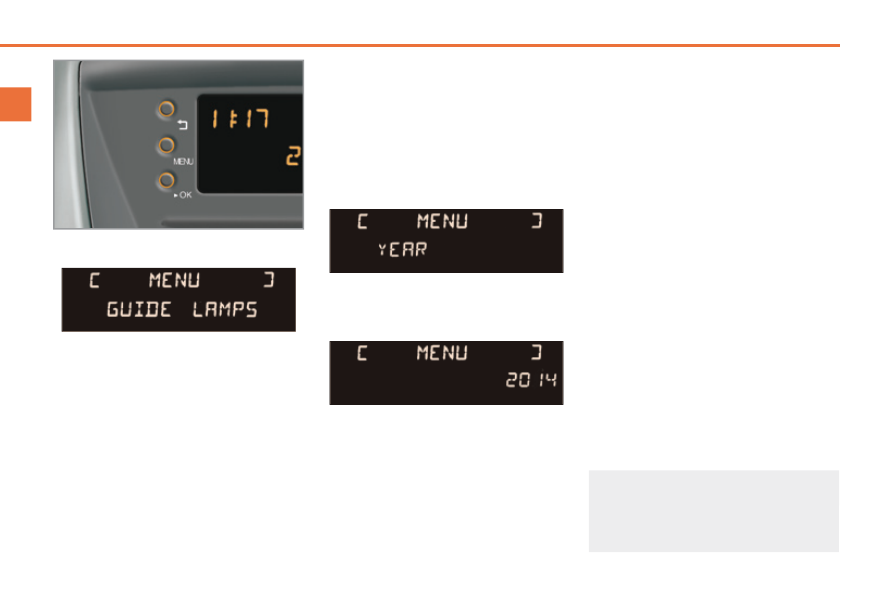

Once the "Vehicle conﬁ guration" menu

has been selected, you can activate or

deactivate the following equipment:

directional headlamps (refer to the

"Visibility" section),

"guide-me-home" lighting (refer to

the "Visibility" section),

For safety reasons, conﬁ guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

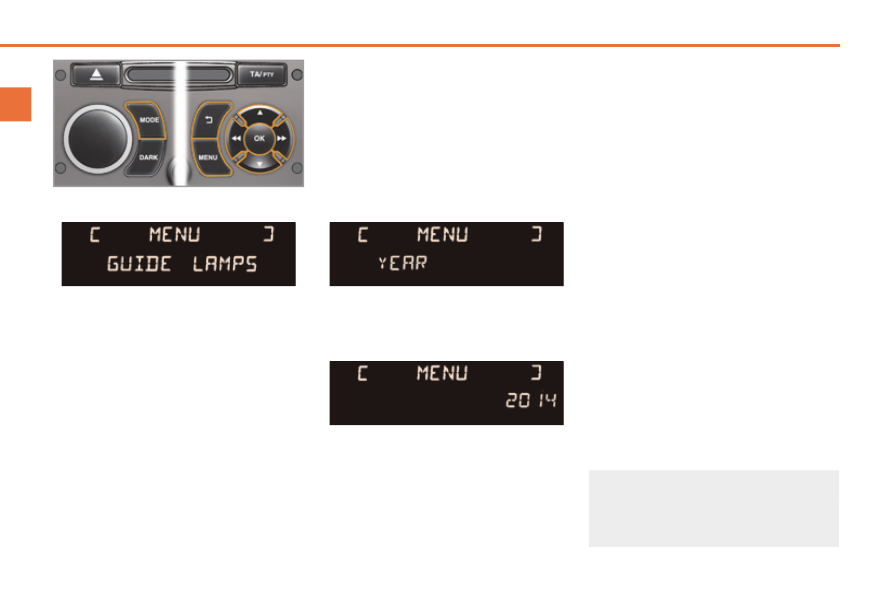

MONOCHROME SCREEN A

Controls

Displays in the screen

This displays the following information:

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

- status of the openings (doors, boot...),

audio sources (radio, CD...),

trip computer (refer to the corre-

sponding section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Boot open") may ap-

pear temporarily. These can be cleared

by pressing the

"Back" button.

Main menu

 Press the

"MENU" button to gain

access to the

main menu , then

press the "



" or "



" buttons to

scroll through the various menus:

-   radio-CD,
  -   vehicle conﬁ guration,
-   options,
-   display  settings,
-   language,
-   units.

 Press the

"OK" button to select the

menu required.

From your PEUGEOT Connect Sound

control panel, you can:

 press the

"MENU" button to gain

access to the

main menu,



press the "



" or "



" buttons to

scroll through the items on the

screen,

 press the

"MODE" button to change

the permanent application (trip com-

puter, audio source...),



press the "



" or "



" buttons to

change a setting value,

 press the

"OK" button to conﬁ rm,

 press the

"Back" button to abandon

the operation in progress.

Radio-CD

With the PEUGEOT Connect Sound

switched on, once the "Radio-CD"

menu has been selected you can acti-

vate or deactivate the functions linked

with use of the radio (RDS, REG) or the

CD (introscan, shufﬂ e, CD repeat).

For more information on the "Radio-

CD" application, refer to the PEUGEOT

Connect Sound section.

* Only with air conditioning.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

For safety reasons, conﬁ guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

Display settings

Once the "Display settings" menu has

been selected, you can gain access to

the following settings:

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Language

Once the "Language" menu has been

selected, you can change the language

used by the display (Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Units

Once the "Units" menu has been se-

lected, you can change the units of the

following parameters:

temperature (°C or °F),

- fuel consumption (l/100 km, mpg or

km/l).

 Once you have selected a setting,

press the "



" or "



" buttons to

change its value.



Press the "



" or "



" buttons to

switch respectively to the previous

or next setting.

 Press the

"OK" button to record the

change and return to the normal dis-

play or press the

"Back" button to

cancel.

Vehicle conﬁ guration

Options

Once the "Options" menu has been se-

lected, you can start diagnostics of the

status of the equipment (active, not ac-

tive, faulty).

Once the "Vehicle Conﬁ guration" menu

has been selected, you can activate or

deactivate the following equipment:

directional headlamps (refer to the

"Visibility" section),

"guide-me-home" lighting (refer to

the "Visibility" section).

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

MONOCHROME SCREEN C

* With air conditioning only.

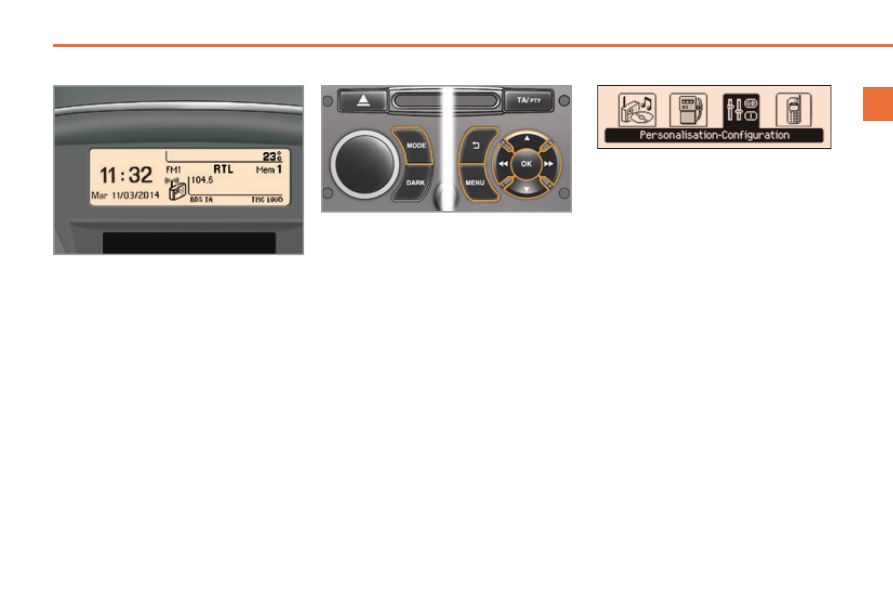

Displays in the screen

This displays the following information:

time,

date,

- ambient temperature * (this ﬂ ashes if

there is a risk of ice),

- status of the openings (doors, boot...),

audio sources (radio, CD...),

- trip computer (refer to correspond-

ing section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Automatic headlamp

lighting activated") may appear tempo-

rarily. These can be cleared by pressing

the

"Back" button.

From your PEUGEOT Connect Sound

control panel, you can:

 press the

"MENU" button to gain

access to the

main menu ,



press the "



" or "



" buttons to

scroll through the items on the

screen,

 press the

"MODE" button to change

the permanent application (trip com-

puter, audio source...),



press the "



" or "



" buttons to

change a setting value,

 press the

"OK" button to conﬁ rm,

 press the

"Back" button to abandon

the operation in progress.

 Press the

"MENU" button to gain

access to the

main menu :

-   audio  functions,
-   trip  computer
  -   personalisation-conﬁ guration,
-   telephone  (hands-free  kit).

 Press the "  " or "  " buttons to se-

lect the menu required, then conﬁ rm

by pressing the

"OK" button.

Controls

Main menu

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

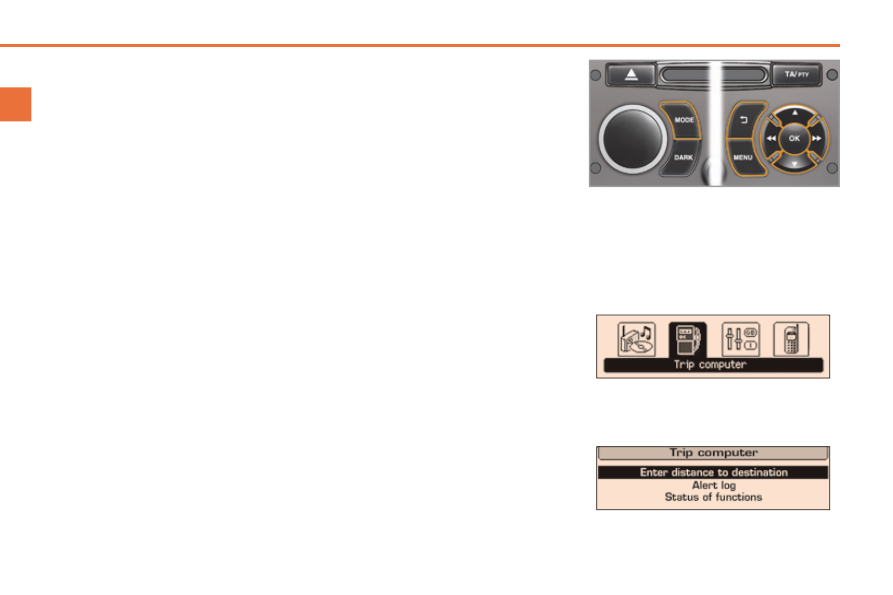

 Press the

"MENU" key to access

the main menu.

 Press the arrows, then the

"OK" key

to select the

"Trip computer" menu.

 In the

"Trip computer" menu, select

one of the following applications:

"Audio functions" menu

With the PEUGEOT Connect Sound

switched on, once this menu has been

selected you can activate or deactivate

the functions linked with use of the ra-

dio (RDS, REG, RadioText) or the CD

(introscan, shufﬂ e, CD repeat).

For more information on the "Audio func-

tions" application, refer to the PEUGEOT

Connect Sound section.

Enter the distance to the destination

This allows you to enter an approximate

distance value to the ﬁ nal destination.

"Trip computer" menu

Once this menu has been selected, you

can consult information concerning the

status of the vehicle (alert log, status of

the functions...).

Alert log

This summarises the active warning

messages, displaying them succes-

sively on the multifunction screen.

Status of functions

This summarises the active or inactive

status of the functions present on the

vehicle.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

For safety reasons, conﬁ guration

of the multifunction screen by the

driver must only be done when sta-

tionary.

Deﬁ ne the vehicle parameters

Once this menu has been selected, you

can activate or deactivate the following

equipment:

directional headlamps (refer to the

"Visibility" section),

"guide-me-home" lighting (refer to

the "Visibility" section).

- rear parking sensors (refer to the

"Driving" section).

"Telephone" menu

With the PEUGEOT Connect Sound

switched on, once this menu has been

selected you can conﬁ gure your Blue-

tooth hands-free system (pairing), con-

sult the various telephone directories

(calls log, services...) and manage your

communications (pick up, hang up, call

waiting, secret mode...).

For further details concerning the "Tele-

phone" application, refer to the PEUGEOT

Connect Sound section.

Display conﬁ guration

Once this menu has been selected, you

can gain access to the following set-

tings:

brightness-video setting,

date and time setting,

selection of the units.

Choice of language

Once this menu has been selected,

you can change the language used by

the display (Deutsch, English, E spanol,

Français, Italiano, Nederlands, Portugues,

Portugues-Brasil, Türkçe ** ).

Example: setting of the duration of the

"guide-me-home" lighting

"Personalisation-Configuration"

menu

Once this menu has been selected, you

can gain access to the following func-

tions:

- deﬁ ne the vehicle parameters,

- display conﬁ guration,

choice of language.

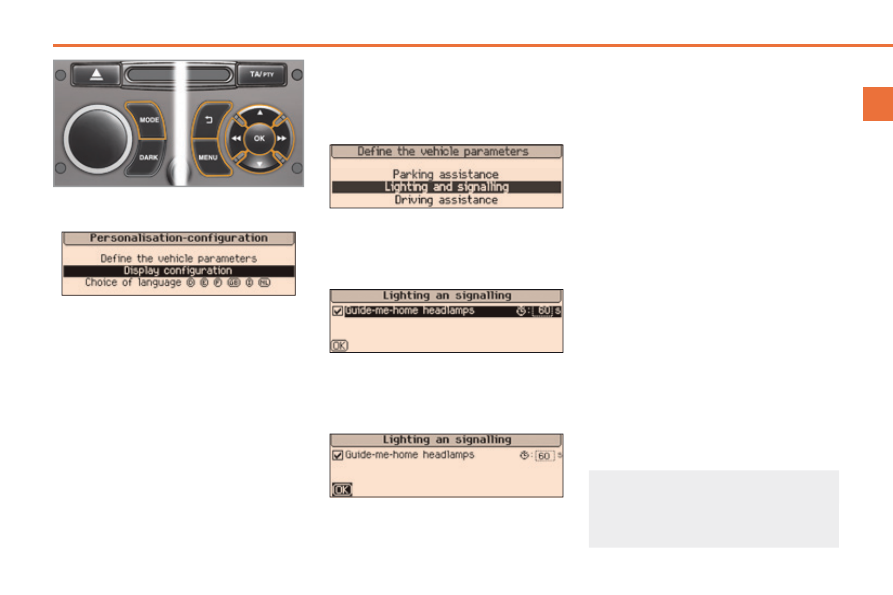

 Press the "  " or "  " buttons, then

the

"OK" button to select the menu

required.



Press the "



" or "



" buttons,

then the

"OK" button to select the

"Guide-me-home headlamps" line.

 Press the "  " or "  " buttons to set

the value required (15, 30 or 60 sec-

onds), then press the

"OK" button

to conﬁ rm.

 Press the "  " or "  " buttons, then

the

"OK" button to select the "OK"

box and conﬁ rm or press the

"Back"

button to cancel.

** According to country.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

16/9 COLOUR SCREEN (WITH

PEUGEOT CONNECT NAVIGATION)

Displays in the screen

This displays the following information

automatically and directly:

time,

date,

altitude,

- ambient temperature (the value dis-

played ﬂ ashes if there is a risk of ice),

openings check,

- warning and vehicle function status

messages, displayed temporarily,

audio functions,

trip computer information,

satellite navigation system informa-

tion.

Controls

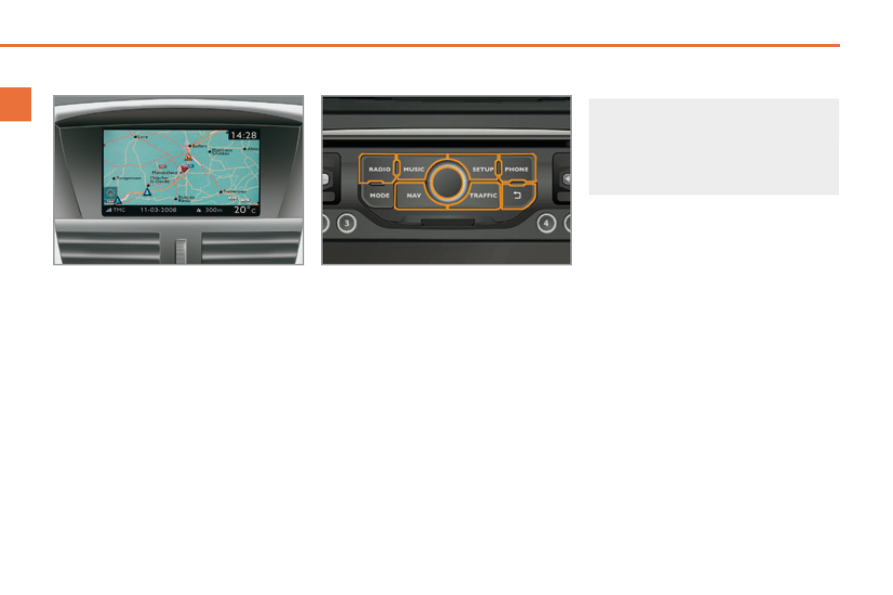

From the PEUGEOT Connect Naviga-

tion control panel, to select one of the

applications:



press the dedicated

"RADIO" ,

"MUSIC" ,

"NAV" ,

"TRAFFIC" ,

"SETUP" or "PHONE" button for

access to the corresponding menu,

 turn the navigator to move the se-

lection,

 press the navigator to conﬁ rm the

selection,

 press the

"Back" button to abandon

the current operation and return to

the previous display.

For more information on these

applications, refer to the "Audio

equipment and telematics" sec-

tion or to the speciﬁ c user guide

given to you with the other owner's

documents.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

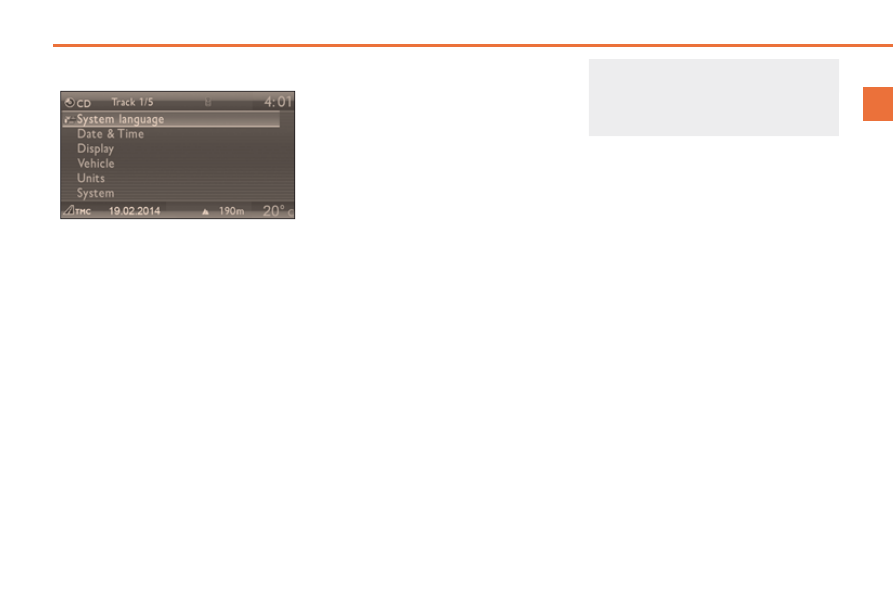

"SETUP" menu

 Press the

"SETUP" button to gain

access to the

"SETUP" menu. This

allows you to select from the follow-

ing functions:

-   "System  language",
-   "Date  and  time",
-   "Display",
-   "Vehicle",
-   "Units",
-   "System".

System language

This menu allows you to select the lan-

guage used by the display: Deutsch,

English, Espanol, Français, Italiano,

Nederlands, Polski, Portugues, Türkçe * .

Date and time

This menu allows you to set the date

and time, the format of the date and the

format of the time (refer to the "Audio

equipment and telematics" section or to

the speciﬁ c user guide given to you with

the other owner's documents).

Display

This menu allows you to set the bright-

ness of the screen, the screen colour

scheme and the colour of the map (day/

night or auto mode).

Vehicle

This menu allows you to activate or

deactivate certain driving and comfort

equipment:

guide-me-home lighting and duration

(refer to the "Visibility" section),

- directional headlamps (refer to the

"Visibility" section).

Units

This menu allows you to select the

units: temperature (°C or °F) and fuel

consumption (km/l, l/100 or mpg).

System

This menu allows you to restore the fac-

tory conﬁ guration, display the software

version and activate scrolling text.

For safety reasons, conﬁ guration

of the multifunction screen by the

driver must only be done when

stationary.

* According to country.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

TRIP COMPUTER

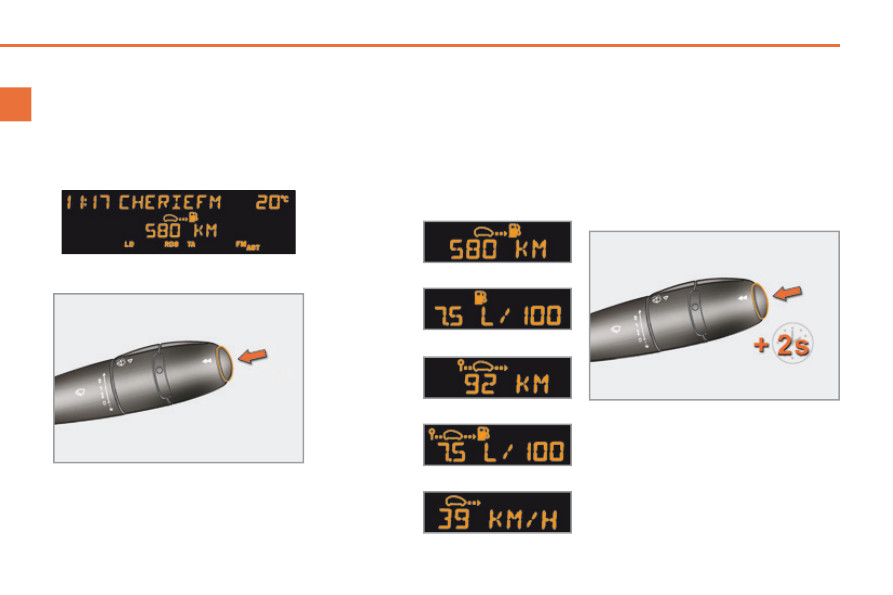

 Press the button, located at the end

of the

wiper stalk , to display the

various items of trip computer data

in succession.

The trip computer provides the following

information:

System which provides current informa-

tion concerning the trip travelled (range,

fuel consumption...).

Zero reset

Monochrome screen A

 The next press then returns you to

the normal display.

Information displays

range,

current fuel consumption,

distance travelled,

average fuel consumption,

average speed.



Press the control for more than

two seconds to reset to zero the

distance travelled, the average

fuel consumption and the average

speed.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

the current information

tab with:

● the range,

● the current fuel

consumption,

● the distance

remaining to be

travelled,

16/9 colour screen

 Press again to return to the normal

display.

Monochrome screen C

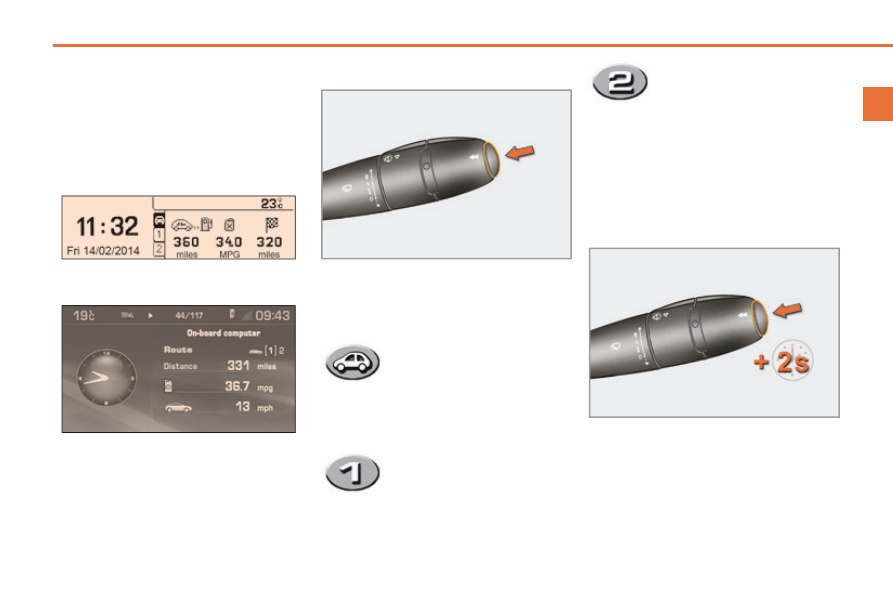

 Press the button, located at the end

of the

wiper stalk, to display the

various trip computer tabs in suc-

cession:

Information displays

Trip zero reset

the trip

"1" tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,

for the ﬁ rst trip.

the trip

"2" tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,

for the second trip.

 When the trip required is displayed,

press the control for more than

two seconds.

Trips

"1" and "2" are independent but

their use is identical.

For example, trip

"1" can be used for dai-

ly ﬁ gures and trip

"2" for monthly ﬁ gures.

TRIP COMPUTER

System which provides current infor-

mation concerning the route travelled

(range, fuel consumption, …).

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Distance remaining to be

travelled

(miles or km)

This is the distance remaining

to be travelled to the ﬁ nal destination. It

is calculated either instantly by the navi-

gation system if guidance is activated,

or entered by the user.

If the distance is not entered, dashes

are displayed in place of the digits.

Average speed

(mph or km/h)

This is the average speed cal-

culated since the last trip com-

puter zero reset (ignition on).

Range

(miles or km)

This indicates the num-

ber of miles (or kilometres)

which can still be travelled with the fuel

remaining in the tank in relation to the

average fuel consumption over the last

few miles (kilometres) travelled.

Current fuel consumption

(l/100 km or km/l or mpg)

This is the average quantity of

fuel consumed over the last

few seconds.

Average fuel

consumption

(l/100 km or km/l or mpg)

This is the average quantity

of fuel consumed since the

last trip computer zero reset.

Distance travelled

(miles or km)

This indicates the distance

travelled since the last trip

computer zero reset.

A few definitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After ﬁ ll-

ing with at least 5 litres of fuel, the range

is recalculated and is displayed when it

exceeds 60 miles (100 km).

If dashes are displayed continuously

while driving in place of the digits,

contact a PEUGEOT dealer or a

qualiﬁ ed workshop.

This function is only displayed from

20 mph (30 km/h).

This ﬁ gure may increase following

a change of driving style or relief,

resulting in a signiﬁ cant change in

the current fuel consumption.

COMFORT

207CC_EN_CHAP02_CONFORT_ED01-2014

VENTILATION

Air treatment

The incoming air follows various routes

depending on the controls selected by

the driver:

- direct arrival in the passenger com-

partment (air intake),

passage through a heating circuit

(heating),

passage through a cooling circuit

(air conditioning).

The temperature control enables you to

obtain the level of comfort required by

mixing the air of the various circuits.

The air distribution control enables you

to diffuse the air in the passenger com-

partment combining several air vents.

The air ﬂ ow control enables you to in-

crease or reduce the speed of the ven-

tilation blower.

Air intake

The air circulating in the passenger

compartment is ﬁ ltered and originates

either from the outside via the grille lo-

cated at the base of the windscreen or

from the inside in air recirculation mode.

Control panel

The controls of this system are grouped

together on control panel

A on the cen-

tre console. Depending on the model,

the functions offered are:

the level of comfort required,

- air ﬂ ow,

air distribution,

demisting-defrosting,

manual or digital air conditioning

controls.

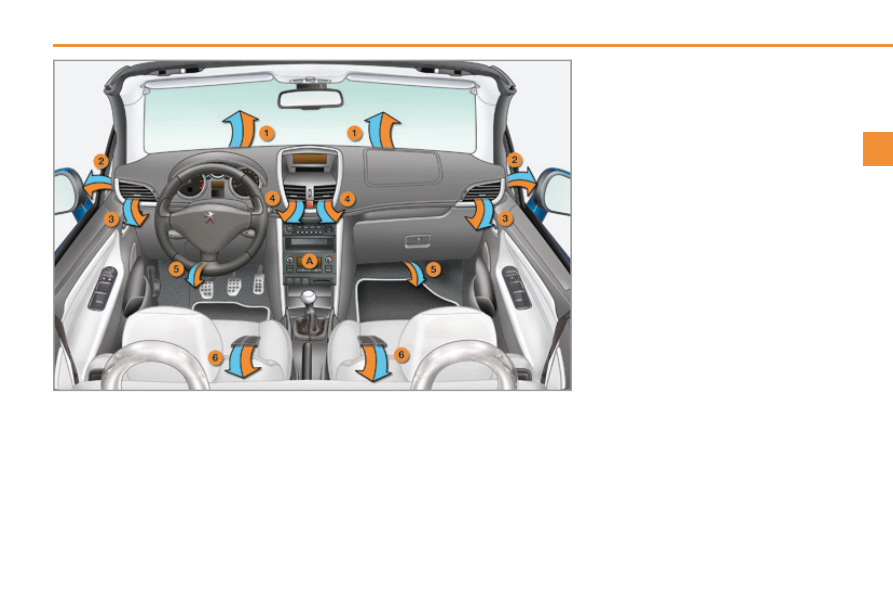

Air distribution

1. Windscreen demisting-defrosting vents.

2. Front side window demisting-defrosting

vents.

3. Side adjustable air vents.

4. Central adjustable air vents.

5. Air outlets to the front footwells.

6. Air outlets to the rear footwells.

COMFORT

207CC_EN_CHAP02_CONFORT_ED01-2014

The air conditioning system does

not contain chlorine and does not

present any danger to the ozone

layer.

RECOMMENDATIONS FOR VENTILATION AND AIR

CONDITIONING

In order for these systems to be fully effective, follow the operation and main-

tenance guidelines below:

 To obtain an even air distribution, take care not to obstruct the exterior air

intake grilles located at the base of the windscreen, the nozzles, the vents

and the air outlets, as well as the air extractor located in the boot.

 Do not cover the sunshine sensor, located on the dashboard; this is used

for regulation of the air conditioning system.

 Operate the air conditioning system for at least 5 to 10 minutes, once or

twice a month to keep it in perfect working order.

 Ensure that the passenger compartment ﬁ lter is in good condition and

have the ﬁ lter elements replaced regularly.

We recommend the use of a combined passenger compartment ﬁ lter.

Thanks to its special active additive, it contributes to the puriﬁ cation of

the air breathed by the occupants and the cleanliness of the passenger

compartment (reduction of allergic symptoms, bad odours and greasy de-

posits).

 To ensure correct operation of the air conditioning system, you are also

advised to have it checked regularly as recommended in the warranty and

maintenance record.

 If the system does not produce cold air, switch it off and contact a

PEUGEOT dealer or a qualiﬁ ed workshop.

When towing the maximum load on a steep gradient in high temperatures,

switching off the air conditioning increases the available engine power and so

improves the towing ability.
If after an extended stop in sunshine, the interior temperature is very high, ﬁ rst

ventilate the passenger compartment for a few moments.

Put the air ﬂ ow control at a setting high enough to quickly change the air in the

passenger compartment.

The condensation created by the air conditioning results in a discharge of

water under the vehicle which is perfectly normal.

Peugeot 207 CC (2014 year). Instruction - part 3
