Peugeot 207 CC (2014 year). Instruction - part 2

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

MONITORING

Instrument panel

Switch panel

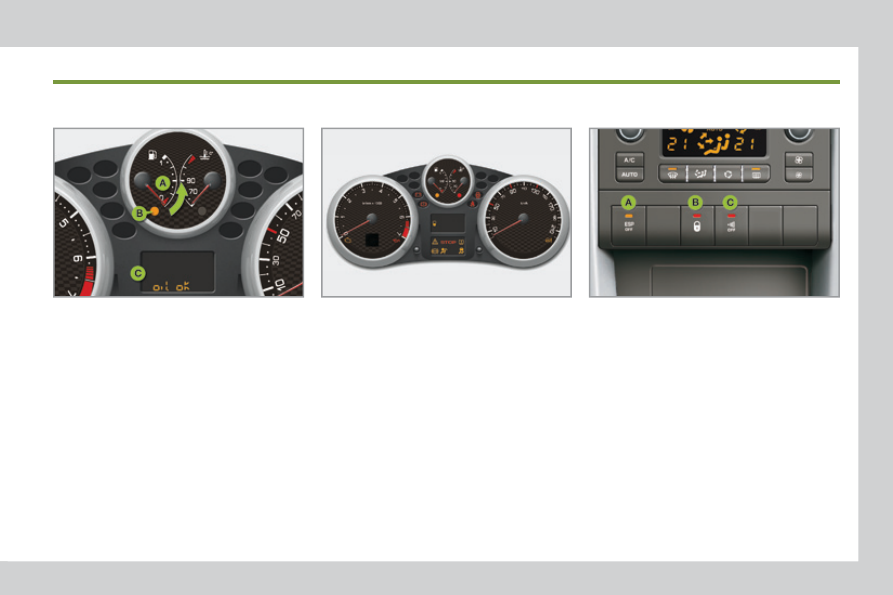

A. With the ignition on, the fuel gauge nee-

dle should rise.

B. With the engine running, the associated

low level warning lamp should go off.

C. With the ignition on, the oil level in-

dicator should display

"OIL OK" for

a few seconds.

If the levels are not correct, top up the level

which is low.

Ilumination of the indicator lamp gives

the status of the corresponding function.

A. Deactivation of the ESP/ASR system.

1. With the ignition on, the orange and

red warning lamps come on.

With the engine running, these

warning lamps should go off.

If a warning lamp remains on, refer to

the page concerned.

Warning lamps

B. Central locking.

C. Deactivation of the interior volumetric

protection alarm.



101



FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

Front passenger's airbag

Ignition switch

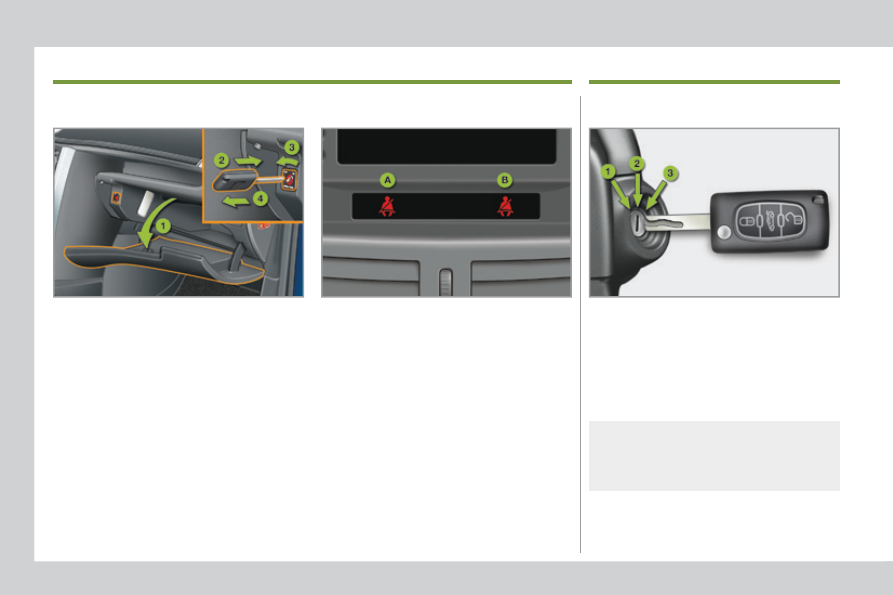

1. Open the glove box.

2. Insert the key.

3. Select position:

"ON" (activation), with front passen-

ger or "forwards facing" child seat,

"OFF" (deactivation), with "rear fac-

ing" child seat.

4. Remove the key keeping the switch

in the new position.

1. Stop position.

2. Ignition position.

3. Starting position.

A. Front left seat belt not fastened or

unfastened warning lamp on in red.

B. Front right seat belt not fastened or

unfastened warning lamp on in red.

Front seat belts

A heavy object (key fob...), at-

tached to the key and weighing

down on its shaft in the ignition

switch, could cause a malfunction.

PASSENGER SAFETY

STARTING



106



103



FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

DRIVING SAFELY

Speed limiter "LIMIT"

Instrument panel display

1. Selecting/Switching off speed limiter

mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter on/off.

The values must be set with the engine

running.

The cruise control or speed limiter mode

appears ino the instrument panel when

it is selected.

1. Selecting/Switching off cruise con-

trol mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Off/return to cruise control.

In order to be programmed or activated,

the vehicle speed must be higher than

25 mph (40 km/h), with at least fourth

gear engaged on a manual gearbox

(second gear on an automatic gearbox).

Cruise control "CRUISE"

Cruise control

Speed limiter



114



116

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up

without waiting. During acceleration change up early.

With an automatic or electronic gearbox, give preference to

automatic mode and avoid pressing the accelerator pedal

heavily or suddenly.

The gear shift indicator invites you engage the most suitable

gear: as soon as the indication is displayed in the instru-

ment panel, follow it straight away.

For vehicles ﬁ tted with an electronic or automatic gearbox,

this indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine

braking rather than the brake pedal, and press the accel-

erator progressively. These practices contribute towards a

reduction in fuel consumption and CO

emissions and also

helps reduce the background trafﬁ c noise.

Switch off the headlamps and front foglamps when the level

of light does not require their use.

Avoid running the engine before moving off, particularly in

winter; your vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia

devices (ﬁ lm, music, video game...), you will contribute to-

wards limiting the consumption of electrical energy, and so

of fuel.

Disconnect your portable devices before leaving the vehicle.

If your vehicle has cruise control, make use of the system at

speeds above 25 mph (40 km/h) when the trafﬁ c is ﬂ owing

well.

Control the use of your electrical equipment

Before moving off, if the passenger compartment is too

warm, ventilate it by opening the windows and air vents be-

fore using the air conditioning.

Above 30 mph (50 km/h), close the windows and leave the

air vents open.

Remember to make use of equipment that can help keep

the temperature in the passenger compartment down (sun-

roof and window blinds...).

Switch off the air conditioning, unless it has automatic regu-

lation, as soon as the desired temperature is attained.

Switch off the demisting and defrosting controls, if not au-

tomatic.

Switch off the heated seat as soon as possible.

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest

items in the bottom of the boot, as close as possible to the

rear seats.

Limit the loads carried in the vehicle and reduce wind resis-

tance (roof bars, roof rack, bicycle carrier, trailer...). Use a

roof box in preference.

Remove roof bars and roof racks after use.

Have your vehicle serviced regularly (engine oil, oil ﬁ lter,

air ﬁ lter, passenger compartment ﬁ lter...) and observe the

schedule of operations recommended in the warranty and

maintenance record.

When refuelling, do not continue after the third cut-off of the

nozzle to avoid any overﬂ ow.

At the end of winter, remove snow tyres and reﬁ t your summer

tyres.

Observe the recommendations on maintenance

Check the tyre pressures regularly, when cold, referring to

the label in the door aperture, driver's side.

Carry out this check in particular:

before a long journey,

- at each change of season,

- after a long period out of use.

Don't forget the spare wheel and the tyres on any trailer or

caravan.

At the wheel of your new vehicle, it is only after the ﬁ rst

1 800 miles (3 000 kilometres) that you will see the fuel con-

sumption settle down to a consistent average.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX,

INSTRUMENT PANELS

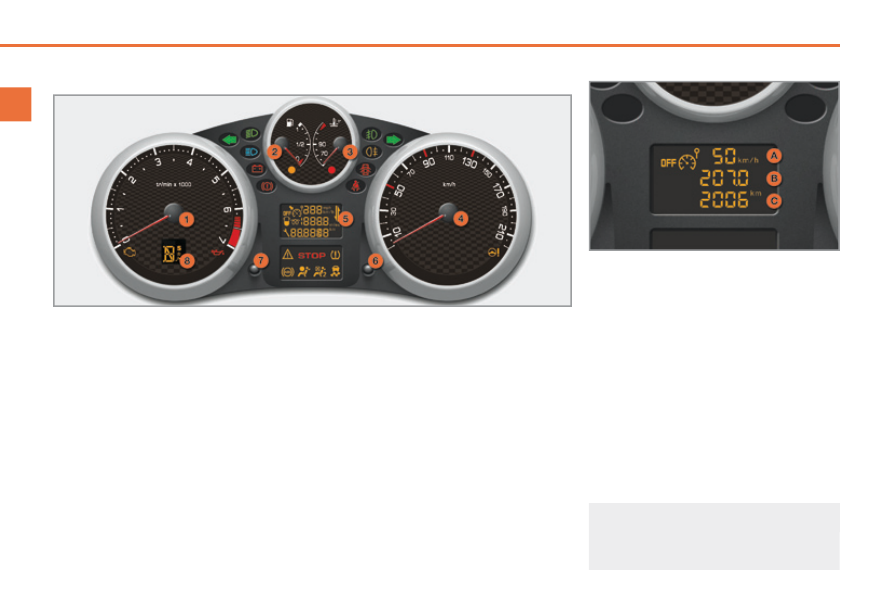

Panel which groups together the vehicle operation dials and indicator lamps.

5. Screen.

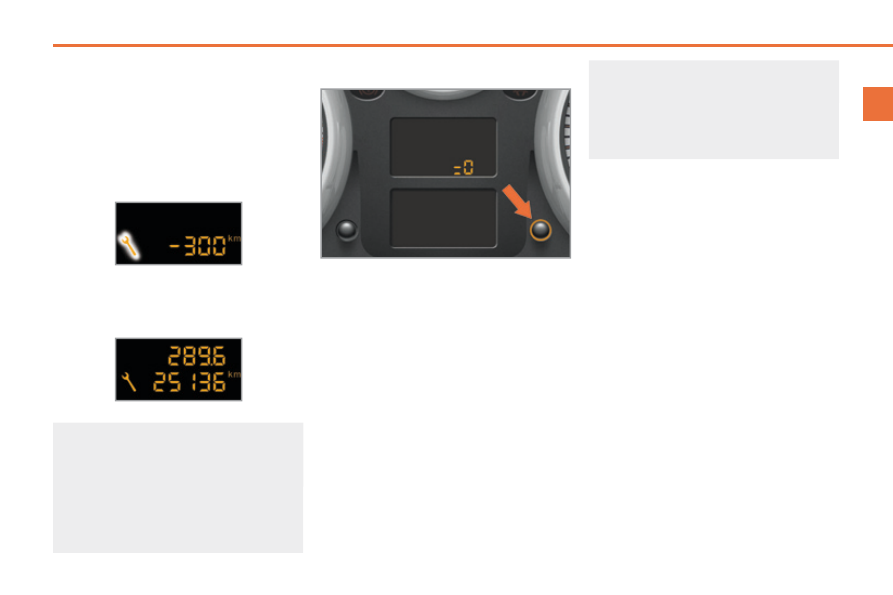

6. Display zero reset button.

Resets the selected function to zero

(trip distance recorder or service in-

dicator).

7. Instrument panel lighting button.

Adjusts the brightness of the lighting

of the instruments and controls.

8. Automatic gearbox.

Indicates the programme selected

and the gear engaged.

Dials

1. Rev counter.

Indicates the speed of rotation of the

engine (x 1 000 rpm).

2. Fuel gauge.

Indicates the quantity of fuel remain-

ing in the tank.

3. Coolant temperature.

Indicates the temperature of the en-

gine coolant (°Celsius).

4. Speedometer.

Indicates the current speed of the

moving vehicle (mph or km/h).

A. Speed limiter

Cruise control.

(mph or km/h)

B. Trip distance recorder.

(miles or km/h)

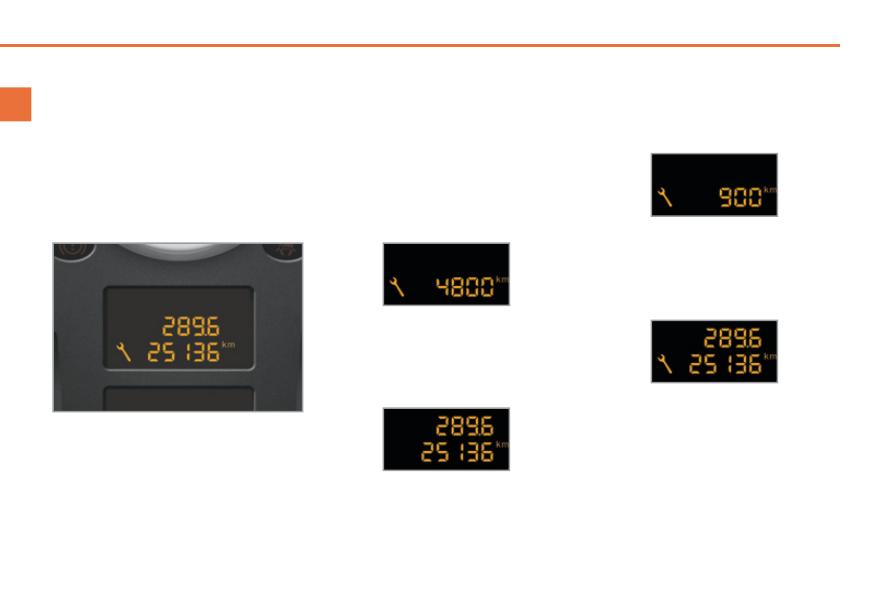

C. Service indicator.

(miles or km/h) then,

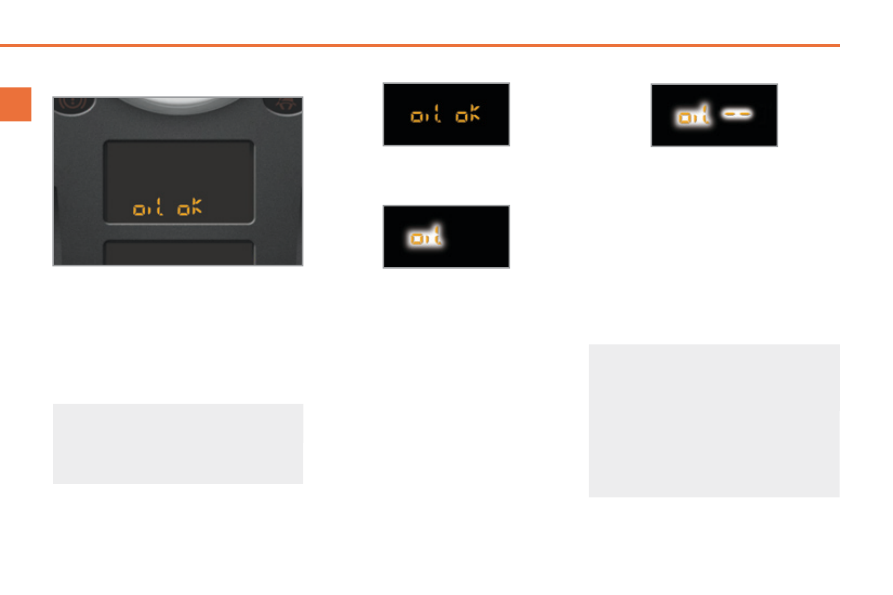

Engine oil level indicator.

then

Distance recorder.

km or miles)

These three functions are displayed

in succession when the ignition is

switched on.

Screen

For more information, refer to the

corresponding section for the func-

tion and to the display associated

with it.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

INDICATOR AND WARNING LAMPS

Visual indicators informing the driver that a system is in operation (operation or

deactivation indicator lamps) or of the occurrence of a fault (warning lamp).

When the ignition is switched on

Certain warning lamps come on for a few seconds when the vehicle's ignition is switched

on.

When the engine is started, these same warning lamps should go off.

If they remain on, before moving off, refer to the information on the warning lamp concerned.

The warning lamps may come on

continuously (ﬁ xed) or ﬂ ash.

Certain warning lamps may come

on in one of two different modes.

Only by relating the type of illumi-

nation to the operating status of

the vehicle can it be ascertained

whether the situation is normal or

whether a fault has occurred.

Associated warnings

The illumination of certain warning lamps may be accompanied by an audible s ignal

and a message in the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

Left-hand

direction

indicato r

ﬂ ashing with

buzzer.

The lighting stalk is pushed

down.

Right-hand

direction

indicator

ﬂ ashing with

buzzer.

The lighting stalk is pushed

up.

Dipped beam

headlamps

ﬁ xed.

The lighting stalk is in the

"Dipped beam headlamps"

position.

Main beam

headlamps

ﬁ xed.

The lighting stalk is pulled

towards you.

Pull the stalk to return to dipped beam

headlamps.

Operation indicator lamps

If one of the following indicator lamps comes on, this conﬁ rms that the correspond-

ing system has come into operation.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Warning lamp

is on

Cause

Action/Observations

Front

foglamps

ﬁ xed.

The front foglamps are

switched on.

Turn the ring on the stalk rearwards twice to

switch off the front foglamps.

Rear

foglamps

ﬁ xed.

The rear foglamps are

switched on.

Turn the ring on the stalk rearwards to switch off

the rear foglamps.

Diesel engine

pre-heating

ﬁ xed.

The ignition switch is at the

2nd position (ignition on).

Wait until the warning lamp has switched off before starting.

The duration for which the warning lamp is on is

determined by the climatic conditions.

Parking brake

ﬁ xed.

The parking brake is

applied or not properly

released.

Release the parking brake to switch off the

warning lamp, keeping your foot on the brake

pedal.

Observe the safety recommendations.

For further information on the parking brake, refer

to the "Parking brake" section.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Deactivation indicator lamps

If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has been switched off intentionally.

This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

Passenger's

airbag

system

ﬁ xed.

The control, located in the

glove box, is set to the

OFF position.

The passenger's front

airbag is deactivated.

You can install a "rearward

facing" child seat, unless

there is a fault with the

operation of the airbags

(Airbag warning lamp on).

Set the control to the

ON position to activate the

passenger's front airbag.

In this case, do not ﬁ t a child seat in the rearward

facing position.

ESP/ASR

ﬁ xed.

The button, located

in the centre of

the dashboard,

is pressed. Its

indicator lamp is on.

The ESP/ASR is

deactivated.

ESP: electronic stability

programme.

ASR: anti-slip regulation.

Press the button again to reactivate the ESP/

ASR manually. Its indicator lamp goes off.

From approximately 30 mph (50 km/h), the

system is reactivated automatically.

The ESP/ASR system is reactivated

automatically when the vehicle is started.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Warning lamps

When the engine is running or the vehicle is

being driven, the illumination of one of the fol-

lowing warning lamps indicates a fault which

requires action on the part of the driver.

Any fault resulting in the illumination of a warning lamp must be investigated

further by reading the associated message in the multifunction screen.

If you encounter any problems, do not hesitate to contact a PEUGEOT dealer

or a qualiﬁ ed workshop.

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed, alone or

associated with

another warning

lamp, accompanied

by an audible signal

and a message in

the screen.

Illumination of the warning

lamp is associated with:

a serious braking

system fault,

a serious engine coolant

temperature problem,

a punctured tyre.

Stop as soon as it is safe to do so as the engine

may cut out when driving.

Park, switch off the ignition and call a PEUGEOT

dealer or a qualiﬁ ed workshop.

Service

temporarily.

Minor problems have

occurred for which there is

no speciﬁ c warning lamp.

Identify the problem by reading the message

shown in the screen, such as, for example:

the engine oil level,

the screenwash level,

the remote control battery,

- saturation of the particle emission ﬁ lter

on Diesel vehicles (refer to the "Particle

emissions ﬁ lter (Diesel)" section).

For any other faults, contact a PEUGEOT dealer

or a qualiﬁ ed workshop.

ﬁ xed.

Major problems have

occurred for which there is

no speciﬁ c warning lamp.

Identify the problem by reading the message

shown in the screen and contact a PEUGEOT

dealer or a qualiﬁ ed workshop.

Braking

ﬁ xed, associated

with the STOP

warning lamp.

The braking system ﬂ uid

level is too low.

You must stop as soon as it is safe to do so. Top

up with brake ﬂ uid recommended by PEUGEOT.

If the problem persists, have the system checked

by a PEUGEOT dealer or a qualiﬁ ed workshop.

ﬁ xed, associated

with the STOP and

ABS warning lamp.

The electronic brake force

distribution (EBFD) system

has a fault.

You must stop as soon as it is safe to do so.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Warning lamp

is on

Cause

Action/Observations

Anti-lock

Braking

System

(ABS)

ﬁ xed.

The anti-lock braking

system has a fault.

The vehicle retains conventional braking.

Drive carefully at reduced speed and contact

a PEUGEOT dealer or a qualiﬁ ed workshop

without delay.

Electronic

stability

programme

( ESP /ASR)

ﬂ ashing.

The ESPASR regulation is

operating.

The system optimises traction and improves the

directional stability of the vehicle.

ﬁ xed.

Unless it has been

deactivated (button pressed

and its indicator lamp on) the

ESP/ASR system has a fault.

Have it checked by a PEUGEOT or a qualiﬁ ed

workshop.

Engine

autodiagnosis

system

ﬂ ashing.

The engine management

system has a fault.

Risk of destruction of the catalytic converter.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

ﬁ xed.

The emission control

system has a fault.

The warning lamp should go off when the engine

is started.

If it does not go off, contact a PEUGEOT dealer

or qualiﬁ ed workshop without delay.

Low fuel level

ﬁ xed.

When it ﬁ rst comes on there

remains

approximately

5 litres of fuel in the tank.

You must refuel as soon as possible to avoid

running out of fuel.

This warning lamp will come on every time

the ignition is switched on, until a sufﬁ cient

addition of fuel is made.

Fuel tank capacity: approximately 50 litres

(petrol) or 48 litres (Diesel).

Never continue to drive until you run out of fuel

as this could damage the emission control and

injection systems.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Warning lamp

is on

Cause

Action/Observations

Maximum

coolant

temperature

ﬁ xed red.

The temperature of the

cooling system is too high.

Stop as soon as it is safe to do so.

Wait until the engine has cooled down before

topping up the level, if necessary.

If the problem persists, contact a PEUGEOT

dealer or qualiﬁ ed workshop.

Engine oil

pressure

ﬁ xed.

There is a fault with the

engine lubrication system.

You must stop as soon it is safe to do so.

Park, switch off the ignition and contact a

PEUGEOT dealer or a qualiﬁ ed workshop.

Battery

charge *

ﬁ xed.

The battery charging circuit

has a fault (dirty or loose

terminals, slack or cut

alternator belt, ...).

The warning lamp should go off when the engine

is started.

If it does not go off, contact a PEUGEOT dealer

or a qualiﬁ ed workshop.

Door(s)

open

ﬁ xed if the

speed is

below 6 mph

(10 km/h).

A door, the boot or the rear

screen is still open.

Close the door or boot.

ﬁ xed and

accompanied

by an audible

signal if the

speed is

above 6 mph

(10 km/h).

* According to destination country.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Warning lamp

is on

Cause

Action/Observations

Airbags

temporarily.

This lamp comes on for a

few seconds when you turn

on the ignition, then goes

off.

This lamp should go off when the engine is

started.

If it does not go off, contact a PEUGEOT dealer

or a qualiﬁ ed workshop.

ﬁ xed.

One of the airbag or seat

belt pretensioner systems

has a fault.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

Seat belt not

fastened/

unfastened

ﬁ xed then

ﬂ ashing

accompanied

by an

increasing

audible signal.

The driver and/or the front

passenger has not fastened

or has unfastened their seat

belt.

Pull the strap then insert the tongue in the

buckle.

Power

steering

ﬁ xed.

The power steering has a

fault.

Drive carefully at reduced speed.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

Water in

Diesel

ﬁ xed.

The Diesel fuel ﬁ lter

contains water.

Risk of damage to the injection system on Diesel

engines.

Contact a PEUGEOT dealer or a qualiﬁ ed

workshop without delay.

Directional

headlamps

ﬂ ashing.

The directional headlamps

system has a fault.

Have it checked by a PEUGEOT dealer or a

qualiﬁ ed workshop.

Punctured

wheel

ﬁ xed.

One or more wheels are

punctured or seriously

deﬂ ated.

Stop immediately avoiding any sharp action on

the steering wheel or the brakes.

Repair or change the damaged wheel and have

the pressure of the tyres checked as soon as

possible.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Service indicator

System which informs the driver when the

next service is due, in accordance with the

manufacturer's servicing schedule.

The point at which the service is due is

calculated from the last indicator zero

reset, depending on the distance cov-

ered and the time elapsed since the last

service.

More than 1 000 km remain before

the next service is due

For a few seconds after the ignition is

switched on, the spanner symbolising

the service operations comes on. The

distance recorder display line indicates

the distance remaining before the next

service is due.

Example: 4800 km remain before the

next service is due.

For a few seconds after the ignition

is switched on, the display indicates

4800 km:

A few seconds after the ignition is

switched on,

the spanner goes off ; the

distance recorder resumes its normal

operation. The display then indicates

the total and trip distances.

Less than 1 000 km remain before

the next service is due

Example: 900 km remain before the

next service is due.

For a few seconds after the ignition

is switched on, the display indicates

900 km:

A few seconds after the ignition is

switched on, the distance recorder

resumes its normal operation.

The

spanner remains on to indicate that a

service must be carried out soon.

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Following this operation, if you wish

to disconnect the battery, lock the

vehicle and wait at least ﬁ ve minutes

for the zero reset to be taken into

account.

Service indicator zero reset

After each service, the service indicator

must be reset to zero.

The procedure for resetting to zero is as

follows:

 switch off the ignition,

 press and hold the trip distance re-

corder zero reset button,

 switch on the ignition; the distance

recorder display begins a count-

down,

 when the display indicates

"=0" , re-

lease the button; the spanner disap-

pears.

The distance remaining may be

weighted by the time factor, de-

pending on the type of driving

done.

Therefore, the spanner may also

come on if you have exceeded the

period since the last service, as in-

dicated in the warranty and mainte-

nance record.

Service overdue

For a few seconds after the ignition is

switched on,

the spanner ﬂ ashes to in-

dicate that the service must be carried

out as soon as possible.

Example:

the service is overdue by

300 km.

For a few seconds after the ignition

is switched on, the display indicates

-300 km:

A few seconds after the ignition is switched

on, the distance recorder resumes its nor-

mal operation.

The spanner remains on .

MONITORING

207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

The level shown will only be correct

if the vehicle is on level ground and

the engine has been off for more

than 30 minutes.

Engine oil level indicator *

Oil level correct

Oil level low

Oil level indicator fault

This is indicated by the ﬂ ashing of

"OIL" , accompanied by illumination of

the service warning lamp, an audible

signal and a message.

If the low oil level is conﬁ rmed by a

check using the dipstick, the level must

be topped up to prevent damage to the

engine.

Refer to the "Checking levels" section.

This is signaled by the ﬂ ashing of

"OIL--" .

Contact a PEUGEOT dealer or a quali-

ﬁ ed workshop.

On vehicles ﬁ tted with an electric oil level

indicator, information on the oil level is

displayed in the instrument panel for a

few seconds when the ignition is switched

on, after the service information.

* Depending on version.

In the event of a fault with the elec-

tric oil level indicator, the engine oil

level is no longer monitored.

While the system is faulty, you

should check the engine oil level

using the manual dipstick located

under the bonnet.

Refer to the "Checking levels" sec-

tion.

Content .. 1 2 3 ..
