Peugeot 207 CC (2014 year). Instruction - part 1

207CC_EN_CHAP00_COUV_DEBUT_ED01-2014

207CC_EN_CHAP00_COUV_DEBUT_ED01-2014

Please note the following point:

The fitting of electrical equipment or accessories which are not

recommended by PEUGEOT may result in a failure of your vehicle's

electronic system. Please note this specific warning. It is advisable

to contact a PEUGEOT dealer to be shown the recommended

equipment and accessories.

You can find your handbook on the PEUGEOT website, under

"MyPEUGEOT".

Referring to the handbook on-line also gives you access to the

latest information available, easily identified by the bookmark,

associated with this symbol:

If the "MyPEUGEOT" function is not available on the PEUGEOT

public website for your country, you can find your handbook at the

following address:

http://public.servicebox.peugeot.com/ddb/

The Vehicle documentation link in the home page (no registration is

needed),

the language,

the vehicle, its body style,

the print edition of your handbook appropriate for the date of

registration of your vehicle.

Select:

You have access to your handbook on line, together with the latest

information, identified by the symbol:

207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

Thank you for choosing a 207 CC, a

symbol of conﬁ dence, passion and in-

spiration.

This handbook has been designed to

enable you to make the most of your

207 CC.

On the ﬁ rst few pages, you will ﬁ nd a

detailed summary, followed by a quick

reference guide intended to make it

easier for you to become familiar with

your coupé-cabriolet.

All of the details speciﬁ c to your 207 CC,

comfort, safety, driving, are then pre-

sented in this handbook, to increase

your appreciation of the vehicle help

you get the most from it.

Each model may only be ﬁ tted with

some of the equipment mentioned in

this handbook, depending on its version

and the speciﬁ cation for the country in

which it is sold.

Page reference:

this symbol invites you to refer to

the pages which provide details

of the function.

Key

Protection of the environment:

this symbol accompanies advice

relating to protection of the envi-

ronment.

Information:

this symbol draws your attention

to additional information for better

use of your vehicle.

Warning:

this symbol marks warnings which

it is essential to observe for your

own safety, for the safety of others

or to avoid any risk of damaging

your vehicle.

CONTENTS

207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Instrument panels

■ Indicator and warning lamps

■ Indicators 28

■ Adjustment buttons

■ Screens without audio

equipment 33

■ Screens with audio equipment 35

■ 16/9 colour screen

(PEUGEOT Connect Navigation) 40

■ Trip computer

■ Ventilation 45

■ Heating 47

■ Manual air conditioning

■ Rear screen demist - defrost

■ Digital air conditioning

■ Seats 52

■ Steering wheel adjustment

■ Mirrors 55

■ Interior ﬁ ttings

■ Windstop 62

COMFORT 45



■ Remote control key

■ Alarm 69

■ Window controls

■ Doors 73

■ Boot 76

■ Fuel tank

■ Misfuel prevention (Diesel)

ACCESS 65



■ Lighting control stalk

■ Static directional lighting

■ Headlamp adjustment

■ Wiper control stalk

■ Courtesy lamp

VISIBILITY 80



■ Conventional child seats

■ Deactivating the passenger's

front airbag

■ ISOFIX child seats

CHILD

SAFETY 86



FAMILIARISATION 4



MONITORING



ECO-DRIVING 18



CONTENTS

207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Direction indicators

■ Emergency or assistance call 97

■ Warning triangle

■ Hazard warning lamps

■ Horn 98

■ Tyre under-inﬂ ation detection 99

■ Braking assistance systems 100

■ Trajectory control systems

101

■ Seat belts

102

■ Airbags 105

SAFETY 97



108

■ Parking brake

109

■ Manual gearbox

109

■ Gear shift indicator

110

■ Automatic gearbox

111

■ Speed limiter

114

■ Cruise control

116

■ Parking sensors

118

DRIVING 109



119

■ Bonnet 121

■ Running out of fuel (Diesel)

121

■ Petrol engines

122

■ Diesel engine

123

■ Checking levels

124

■ Checks 126

CHECKS

120



127

■ Temporary puncture

repair kit

128

■ Changing a wheel

133

■ Snow chains

137

■ Changing a bulb

138

■ Changing a fuse

142

■ Battery 147

■ Energy economy mode

149

■ Changing a wiper blade

149

■ Towing the vehicle

150

■ Towing a trailer

151

■ Accessories 153

PRACTICAL

INFORMATION 128  153

■ Petrol engines

154

■ Weights (petrol)

155

■ Diesel engine

156

■ Weights (Diesel)

157

■ Dimensions 158

■ Identiﬁ cation markings

159

TECHNICAL DATA

154  160

AUDIO EQUIPMENT and

TELEMATICS 161



214

■ Emergency or assistance

161

■ PEUGEOT Connect Navigation

(RNEG)

163

■ PEUGEOT Connect Sound (RD5) 195

ALPHABETICAL

INDEX 219 223

VISUAL

SEARCH 215



218

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

EXTERIOR

Retractable roof

This system enables you to change the

vehicle from "coupé" to "cabriolet" con-

ﬁ guration and vice versa with a single

action.

Static directional lighting

This additional lighting automatically

provides extended visibility when

turning.

Visual and audible rear parking

sensors

This system provides a warning when

reversing by detecting obstacles located

behind the vehicle.

Under-inflation detection

This system monitors the pressure in

each tyre and warns you of a punc-

ture or drop in pressure.

Turbulence prevention

net (Windstop)

In "cabriolet" conﬁ guration, this

system reduces the wind turbu-

lence in the front seats.

Temporary puncture repair kit

This kit is a complete system, con-

sisting of a compressor and an inte-

gral sealant, for the temporary repair

of a punctured tyre.



128



118

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

OPENING

Remote control key

A. Unfolding/Folding the key.

B. Unlocking the vehicle.

C. Unlocking and partially opening the

boot.

Also...

D. Normal locking

Deadlocking the vehicle.

Fuel tank

1. Opening the fuel ﬁ ller ﬂ ap.

2. Removing and hooking the fuel ﬁ ller

cap.

Capacity of the tank: approximately

50 litres (petrol) or 48 litres (Diesel).

Boot

From outside

From inside

1. Unlocking the complete vehicle or

unlocking the boot and the vehicle.

2. Opening the boot lid.

1. Key in the ignition switch.

Unlocking using the manual cen-

tralised control or the door opening

control.

On Diesel vehicles, the fuel ﬁ ller

neck incorporates a misfuel preven-

tion device which prevents ﬁ lling

with petrol.



FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

OPENING

Retractable roof

When washing your vehicle:

lock the vehicle,

- avoid spraying the upper part

of the windows,

- keep the end of the high-pres-

sure nozzle at least 1 metre

from the windows and door

seals.

After washing the vehicle or fol-

lowing rain, wait until the roof has

dried before opening it.

The roof is operated under the

sole responsibility of the driver.

During operation of the roof, to

avoid the risk of injury, ensure that

no one is in the vicinity of the mov-

ing parts.

You are strongly advised not to op-

erate the roof in strong winds.

It is preferable to operate the roof

with the engine running.

The roof can be operated at

speeds below 6 mph (10 km/h).

It is only possible to carry out the

operation twice with the engine off,

to avoid discharging the battery.

Preliminary conditions

 Switch on the ignition.

 Ensure that:

- the vehicle is not in energy econo-

my mode (refer to the correspond-

ing section),

- the battery voltage is sufﬁ cient

indicator lamp on in the roof con-

trol),

- the roof fuse is in good condition

(refer to the corresponding section),

- the electric windows are initialised

(refer to the corresponding section),

- the ambient temperature is above

-15 °C.

Precautions to be taken before

operating the roof
 Park the vehicle on level ground.

 Check that no object could hinder

the operation of the roof:

- nothing should be placed on the

moving rear shelf

or on the

net

2 .

- if luggage is being carried in the

boot, it must not raise the net,

 Ensure that the net

2 is secure.

 Close the boot correctly.

Maintenance

Carry out a complete opening

and closing operation of the roof

at least once a month to keep it in

good working order.

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

OPENING

Retractable roof operation

Opening the roof

 Pull this control until the roof

is fully open.

Closing the roof

 Press this control until the

roof is fully closed.

Do not release the roof control

during operation of the roof.

However, in the event of danger,

release the control, the roof stops;

then, when the danger is no longer

present, complete the required op-

eration.

If the operation has not completely

ﬁ nished, you will be warned by an

audible signal and a message in

the multifunction screen. These

will be repeated as the vehicle

passes a number of speed thresh-

olds.

Changing to "cabriolet"

conﬁ guration:

the four windows lower,

the boot opens,

- the roof folds into the boot,

the boot closes.

If you continue to pull or press this

control after the end of the opera-

tion, the four windows rise.

The electric window controls and

the control for the four windows

are deactivated during operation

of the roof.

The roof electronic control unit

may interrupt the operation in

progress as a precaution (for ex-

ample: door movement and roof

operation in quick succession). In

this case, release the control then

operate it again to complete the

required operation.

Operating fault

If a malfunction of the roof occurs,

apply the parking brake, switch

off the ignition, restart the engine,

then start the required operation

again.

If the problem persists, contact a

PEUGEOT dealer.

Changing to "coupé" conﬁ guration:

the four windows lower,

the boot opens,

- the roof opens out and locks auto-

matically,

the boot closes.

The end of the operation is conﬁ rmed

by an audible signal and a message in

the multifunction screen.

The end of the operation is conﬁ rmed

by an audible signal and a message in

the multifunction screen.

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

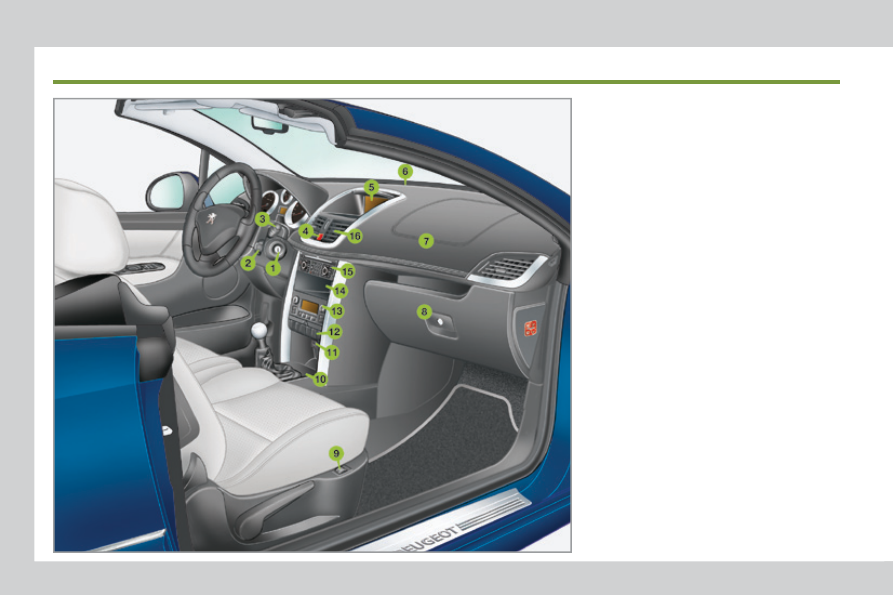

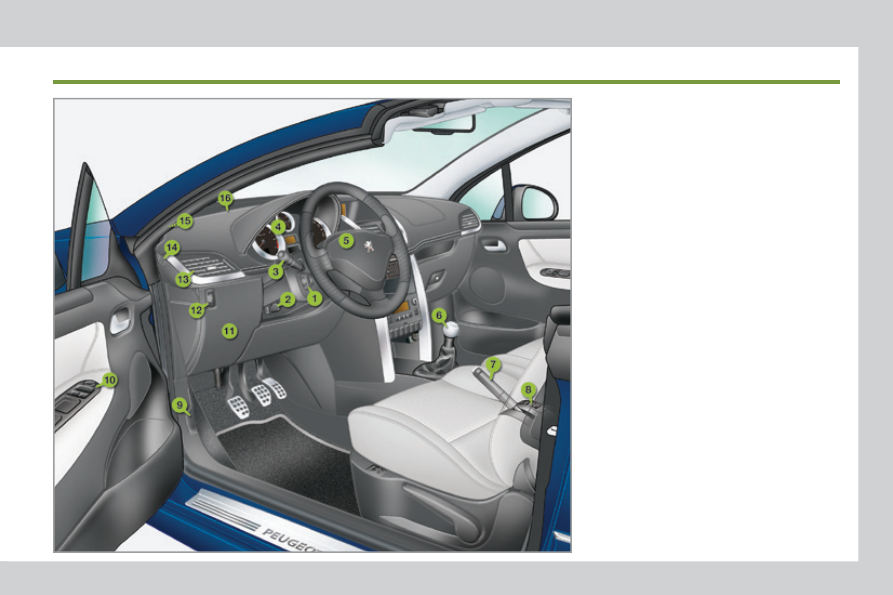

INTERIOR

Dual-zone digital air

conditioning

This system allows different levels of

comfort to be set for the driver and the

front passenger. It then automatically

controls these levels according to the

ambient conditions.

Automatic gearbox

This system provides perfect driving

pleasure by combining a fully automatic

mode, associated with two special pro-

grammes, and a manual mode.

Audio and communication systems

These systems beneﬁ t from the latest

technology: MP3 compatible PEUGEOT

Connect Sound (RD5), PEUGEOT

Connect USB, Bluetooth hands-free

system, PEUGEOT Connect Naviga-

tion (RNEG) with 16/9 colour screen,

JBL audio system, auxiliary sockets.

PEUGEOT Connect Navigation (RNEG)

Electric windows

On the driver's side, control of

the electric window is automatic

when opening and when closing.



163



195



202



111



PEUGEOT Connect Sound (RD5)

PEUGEOT Connect USB

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

INSTRUMENTS AND CONTROLS

1. Cruise control/speed limiter switches.

2. Steering wheel adjustment control.

3. Lighting and direction indicator

control stalk.

4. Instrument panel.

5. Driver's airbag.

Horn.

6. Gear lever.

7. Parking brake.

8. Retractable roof control.

Control for the four windows.

9. Bonnet release lever.

10. Door mirror controls.

Electric window controls.

11. Fusebox.

12. Headlamp height adjustment.

13. Side adjustable air vent.

14. Door window demisting vent.

15. Speaker (medium tweeter).

16. Windscreen demisting vent.

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.

2. Audio equipment steering mounted

controls.

3. Wiper/wash-wipe/trip computer

control stalk.

4. Hazard warning lamps switch.

5. Multifunction screen.

Seat belt fastening status warning

lamps.

6. Sunshine sensor.

7. Passenger's airbag.

8. Glove box/Passenger's airbag

deactivation/Audio/video sockets.

9. Heated seat control.

10. 12 V accessory socket.

11. USB port.

12. Dynamic stability control

(ESP/ASR) button.

Central locking button.

Alarm button.

13. Heating/air conditioning controls.

14. Storage compartment.

15. Audio and telematics system.

16. Central adjustable air vents.

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

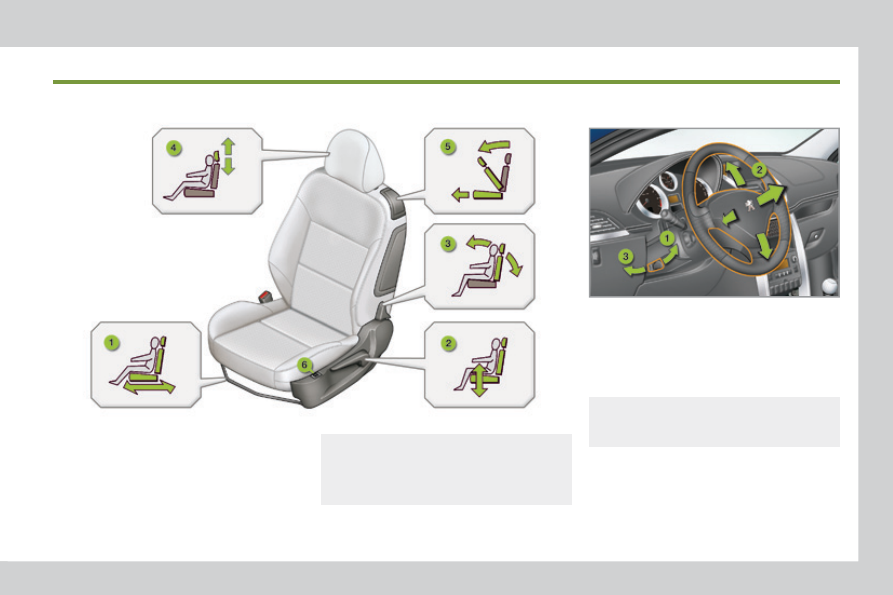

SITTING COMFORTABLY

Also...

5. Access to the rear seats.

6. Heated seat.

Front seat adjustment

Steering wheel adjustment

1. Forwards-backwards adjustment.

2. Height adjustment.

3. Seat back angle adjustment.

4. Head restraint height adjustment.

1. Unlocking the control.

2. Adjustment for height and reach.

3. Locking the control.

As a safety precaution, these op-

erations must only be carried out

while stationary.



FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

SITTING COMFORTABLY

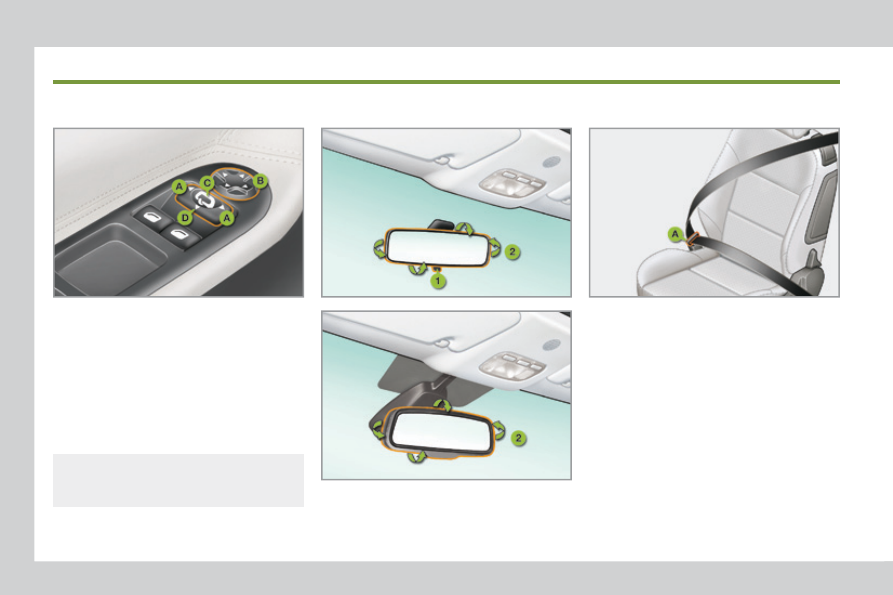

Door mirror adjustment

A. Selecting the mirror.

B. Adjusting the position of the mirror.

C. De-selecting the mirror.

Also...

D. Folding/Unfolding.

Rear view mirror adjustment

1. Selecting the "day" position of the

mirror.

2. Adjusting the mirror.

Front seat belts

A. Installing the strap.

B. Fastening the buckle.

C. Checking the fastening by pulling

the strap.



103

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

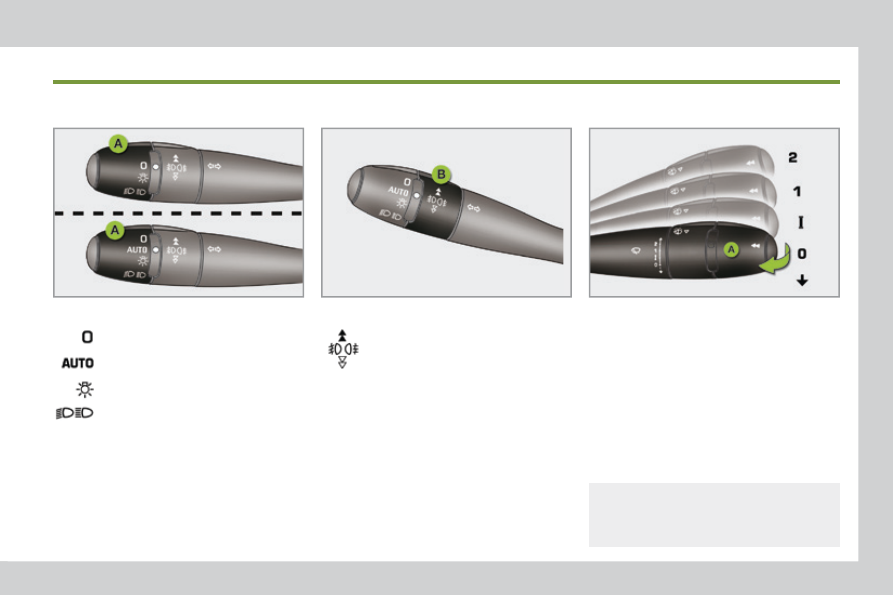

SEEING CLEARLY

Lighting

Wipers

Ring B

Front and rear foglamps.

Ring A

Stalk A: windscreen wipers

2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

 Single wipe.

Screenwash: pull the stalk towards you.

Lighting off.
Automatic illumination of head-

lamps.
Sidelamps.

Dipped/main beam headlamps.

Automatic wiping is not currently

available on the 207CC.



–

FAMILIARISATION

207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

VENTILATION

Advice on interior settings

Digital air conditioning : use of the fully automatic mode by pressing the "AUTO" button is recommended.

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂ ow

Air recirculation/

Exterior air intake

Temperature

Manual A/C

HEAT

COOL

DEMISTING

DEFROSTING

Content .. 1 2 3 ..
